Technical Information · issue 6 of 1999
RE ... K, KM: Spray lance extension with bayonet c
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Historical fitment · RE 101 K / RE 105 K / RE 115 K / RE 125 K / RE 140 K / RE 160 K
RE 101 K, RE 105 K, RE 115 K, RE 125 K, RE 140 K, RE 160 K: 410 mm bayonet extension (RE 160 K except GB)
Extension 4900 500 0301: 410 mm; for spray attachments with bayonet catch only. RE 160 K excludes GB.
No exact-model IPL link: No retained IPL JSON for series4721,4733,4734,4728 or4726. Exact source headings support these model references; series4719 sheets are not borrowed.
- The spray lance extension 4900 500 0301 is 410 mm long. The TI says it can be used for ALL SPRAY ATTACHMENTS WITH BAYONET CATCH. This is a connection-qualified statement, not approval for every spray attachment, every pressure washer, or arbitrary threaded/quick-release couplings.
- The exact heading lists RE 101 K (type 4721); RE 102 K, RE 102 KM, RE 104 K, RE 104 KM, RE 106 K and RE 106 KM (type 4719); RE 105 K (type 4733); RE 115 K and RE 125 K (type 4734); RE 140 K (type 4728); and RE 160 K (type 4726), EXCEPT GB. The parenthetical restriction belongs to RE 160 K only. The GB language/edition mark at the foot does not cancel that market exclusion. No unlisted KM variant is inferred.
- Figure 003TI000 KN depicts the extension and its two end connections. It does not supply thread dimensions, pressure/temperature ratings, seals, installation torque, allowable stacked-extension length or an adapter requirement. No such values or physical interchange have been inferred from the drawing.
- No previous part number, supersession, production date or serial changeover is specified. The extension is not identified as replacing a spray lance/wand or an adapter. The bulletin does not promise current availability or establish present-day approval.
- Both retained page slots contain the same one-page announcement and are byte-identical; both source anchors are preserved, not treated as independent corroboration. The original prints 06.1999, TI_06_1999_01_01.fm, GB, copyright 1999 and colophon 6448. Extracted footer G is not substituted for the visible GB.
- Historical source guidance only. No hardware operation, pressure test or physical compatibility verification was performed.
Source: TI 6/1999, p. 1 · TI 6/1999, p. 2 — Complete model/type list, bayonet-extension specification, figure003TI000 KN and provenance; both identical retained page slots.
Part numbers (1)
- 4900 500 0301 — Spray lance extension with bayonet catch, 410 mmNamed extension; no predecessor or replacement pair specified · RE 101 K, RE 105 K, RE 115 K, RE 125 K, RE 140 K, RE 160 K; RE 160 K except GB; bayonet spray attachments only
Full text
Page 1 of 2

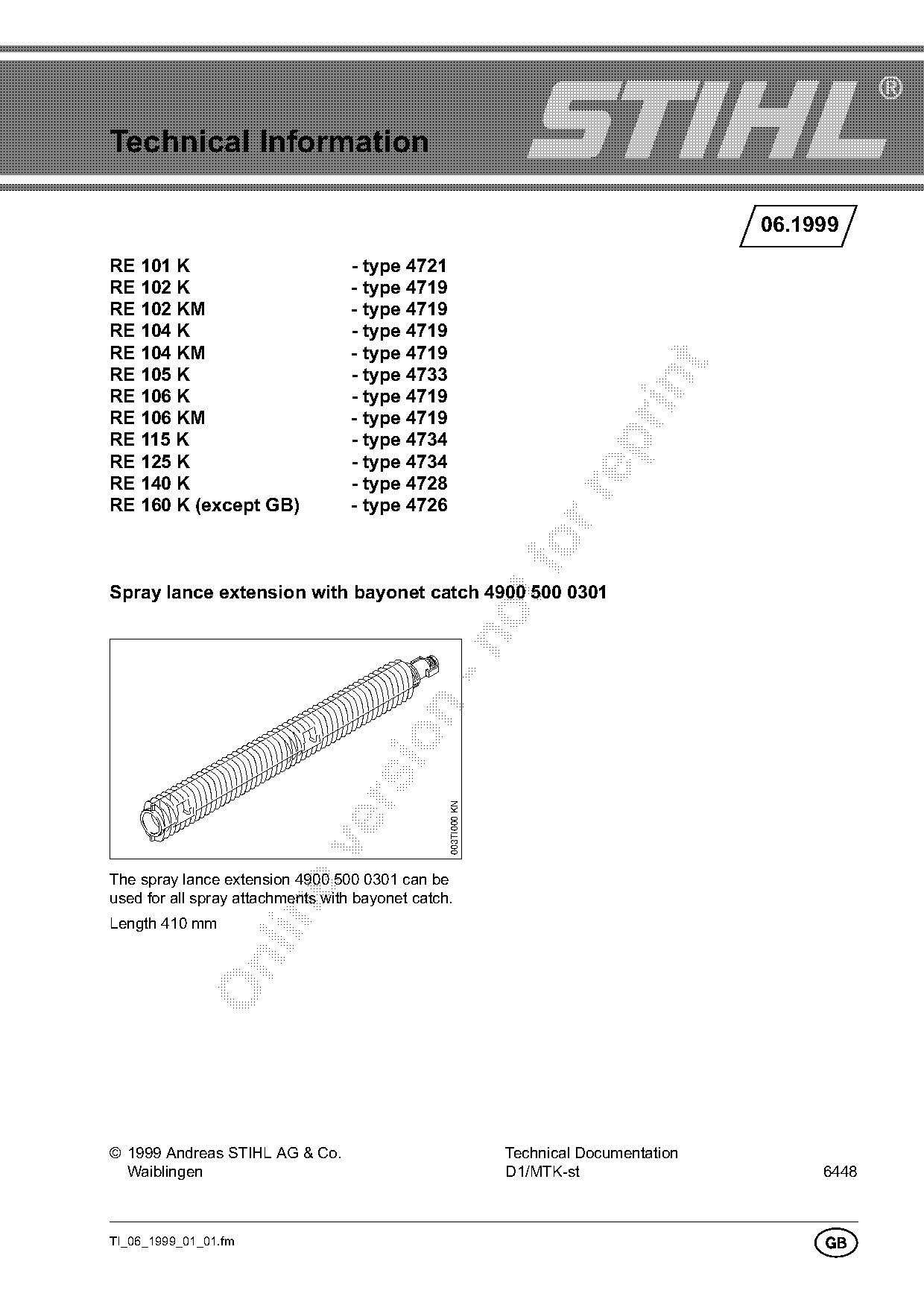

Text of page 1 — search, copy, screen readers
