Technical Information · issue 8 of 1999

New 3/8” Oilomatic Rapid-Super Saw Chain: New fact

IssueTI 8/1999

Accessory changes & notes

Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.

Service note · Accessory

3/8-inch Rapid-Super: factory side-plate angle changes to 60°

TI08/1999 names 33 RS (3873), 35 RS (3881), 36 RS (3868), 33 RSF (3953) and Classic 33 RSK (3874); the previous side-plate angle was 70°.

  • The original USA edition explicitly includes four 3/8-inch RS Oilomatic types: 33 RS (3873), 35 RS (3881), 36 RS (3868) and 33 RSF (3953), plus 3/8-inch RSK (Classic), 33 RSK (3874). These four-digit identifiers are chain types, not complete order numbers or saw engine-series bindings. No other pitch, chain type or powerhead compatibility is established.
  • Figure 689TI000 KN shows the cutter side view and a 60° side-plate angle, replacing the previous 70°. This is factory grinding geometry, not a top-plate filing angle, depth-gauge setting or complete grinder setup. No file diameter, sharpening-machine scale setting or instruction to regrind existing chains is supplied.
  • The bulletin claims 16% increased cutting efficiency and 23% reduced required feed force compared with the previous factory grinding geometry, improving out-of-the-box sharpness. These are historical source claims, not independently measured results or guarantees for resharpened chains; test conditions are not supplied.
  • Modified chains are identified by a “NEW” label on the 100 ft chain reel and its outer packaging. The source says the label will be applied to 100 ft reels for the next few months; it is a temporary introduction marker, not a permanent chain marking. Absence of the label does not establish old geometry. Reel length is packaging, not a fitted loop length or drive-link count.
  • The future-supply statement gives no exact introduction date, serial or lot boundary, replacement order number, drive-link gauge or loop length. Do not infer a complete chain order or present-day stock from this announcement. TI25/1997 is a backward bibliographic reference, not a prerequisite for the self-contained geometry change.
  • Historical TI08/1999 evidence only. No hardware operation or physical interchange verification was performed.

Source: TI 8/1999, p. 1 — New factory grinding geometry; complete page and figure 689TI000 KN.

No additional parts-table entry added.

Full text

Page 1 of 1

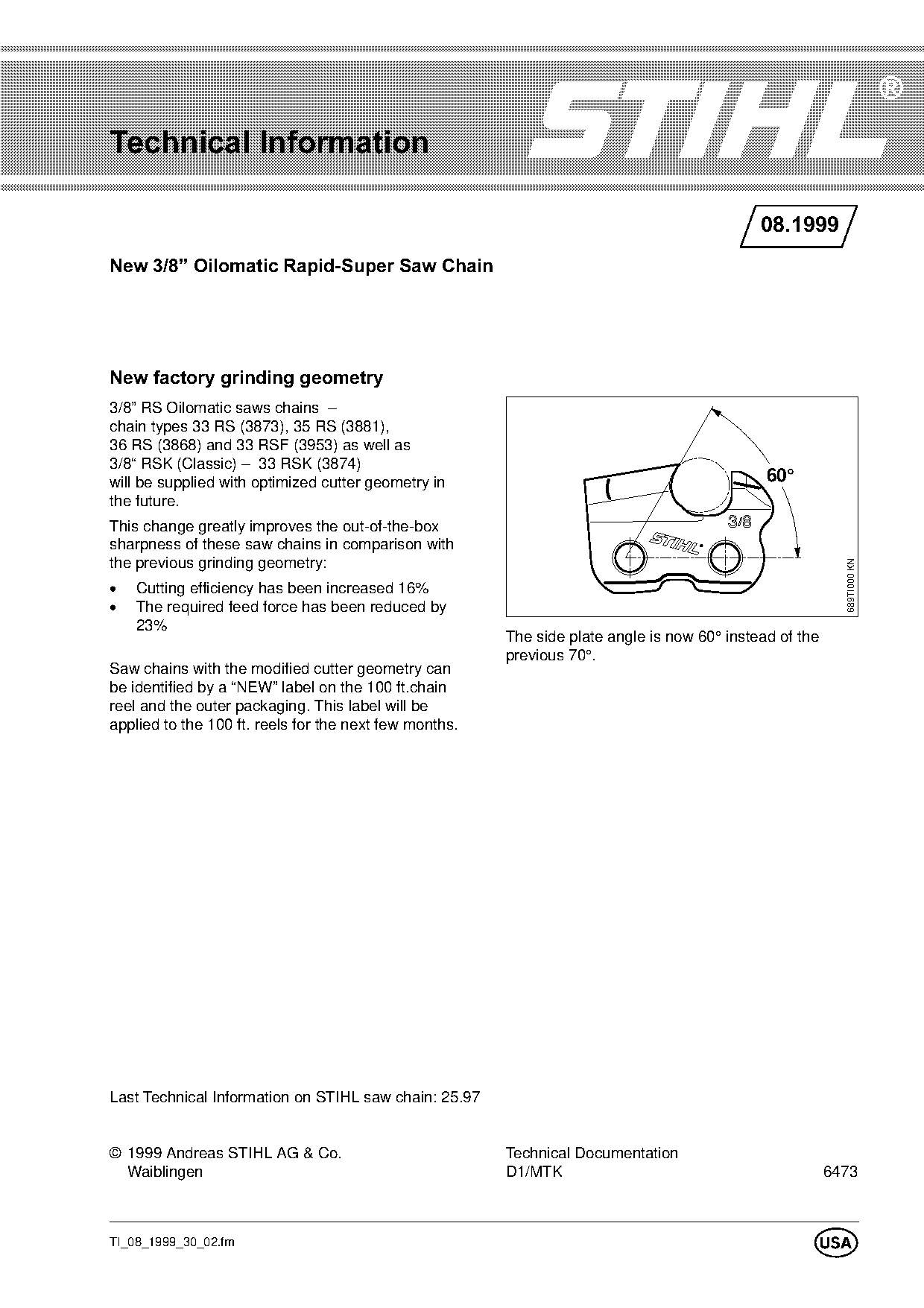

TI 8/1999 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                             08.1
New 3/8´ Oilomatic Rapid-Super Saw Chain

New factory grinding geometry
3/8” RS Oilomatic saws chains –
chain types 33 RS (3873), 35 RS (3881),
36 RS (3868) and 33 RSF (3953) as well as
3/8“ RSK (Classic) – 33 RSK (3874)
will be supplied with optimized cutter geometry in                                            60°
the future.
This change greatly improves the out-of-the-box
sharpness of these saw chains in comparison with
the previous grinding geometry:

                                                                                                           689TI000 KN
.===`utting efficiency has been increased 16%
.===qhe required feed force has been reduced by
    23%
                                                        The side plate angle is now 60° instead of the
                                                        previous 70°.
Saw chains with the modified cutter geometry can
be identified by a “NEW” label on the 100 ft.chain
reel and the outer packaging. This label will be
applied to the 100 ft. reels for the next few months.

Last Technical Information on STIHL saw chain: 25.97

© 1999 Andreas STIHL AG & Co.                           Technical Documentation
  Waiblingen                                            D1/MTK                                           6473

TI_08_1999_30_02.fm
                                                                                                     8
