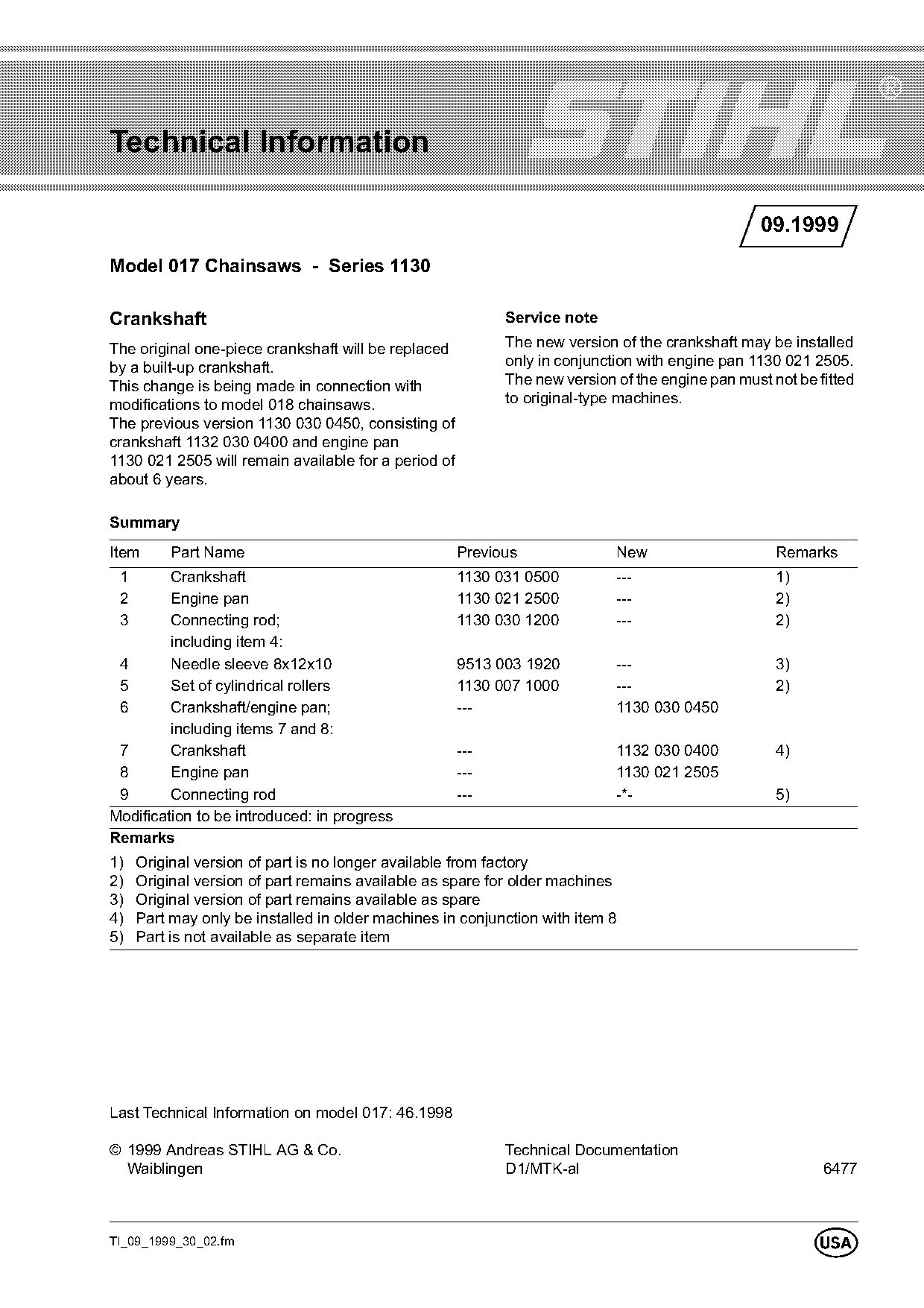

Technical Information

                                                                                                  09.1999
Model 017 Chainsaws - Series 1130

Crankshaft                                                  Service note

The original one-piece crankshaft will be replaced          The new version of the crankshaft may be installed
by a built-up crankshaft.                                   only in conjunction with engine pan 1130 021 2505.
This change is being made in connection with                The new version of the engine pan must not be fitted
modifications to model 018 chainsaws.                       to original-type machines.
The previous version 1130 030 0450, consisting of
crankshaft 1132 030 0400 and engine pan
1130 021 2505 will remain available for a period of
about 6 years.

Summary
Item      Part Name                                   Previous              New                     Remarks
 1       Crankshaft                                   1130 031 0500         ---                     1)
 2       Engine pan                                   1130 021 2500         ---                     2)
 3       Connecting rod;                              1130 030 1200         ---                     2)
         including item 4:
 4       Needle sleeve 8x12x10                        9513 003 1920         ---                     3)
 5       Set of cylindrical rollers                   1130 007 1000         ---                     2)
 6       Crankshaft/engine pan;                       ---                   1130 030 0450
         including items 7 and 8:
 7       Crankshaft                                   ---                   1132 030 0400           4)
 8       Engine pan                                   ---                   1130 021 2505
 9       Connecting rod                               ---                   -*-                     5)
Modification to be introduced: in progress
Remarks
1)   Original version of part is no longer available from factory
2)   Original version of part remains available as spare for older machines
3)   Original version of part remains available as spare
4)   Part may only be installed in older machines in conjunction with item 8
5)   Part is not available as separate item

Last Technical Information on model 017: 46.1998

© 1999 Andreas STIHL AG & Co.                               Technical Documentation
  Waiblingen                                                D1/MTK-al                                      6477

TI_09_1999_30_02.fm
