Technical Information · issue 10 of 1999
FE 55: Starting Interlock; Model update
Model FE 55 Electric Trimmer - Series 4803
IssueTI 10/1999
Full text
Page 1 of 2

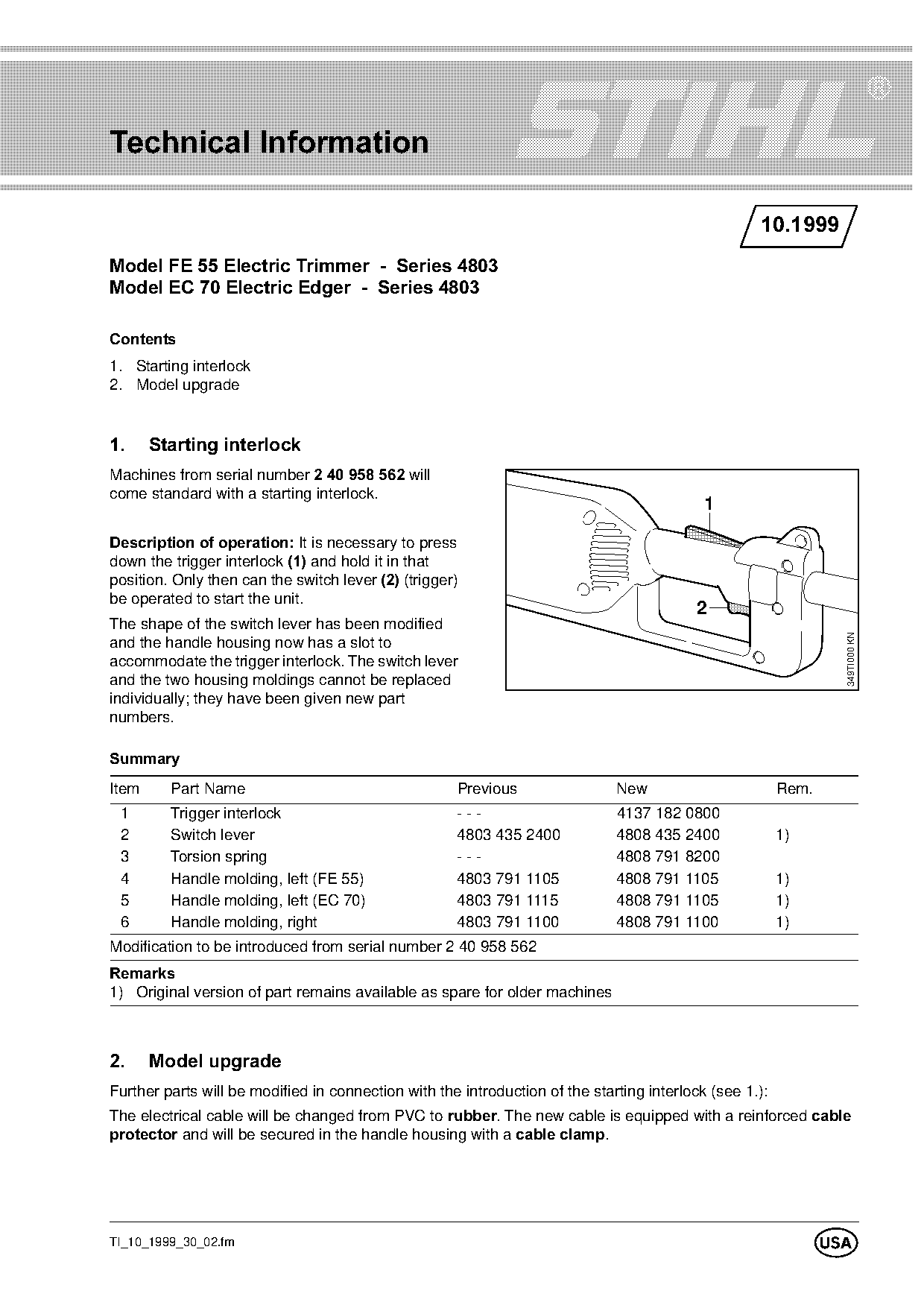

Technical Information
10.1
Model FE 55 Electric Trimmer - Series 4803
Model EC 70 Electric Edger - Series 4803
&RQWHQWV
1. Starting interlock
2. Model upgrade
1.=====Starting interlock
Machines from serial number 2 40 958 562 will
come standard with a starting interlock.
1
Description of operation:=ft=is=necess~ry=to=press
down the trigger interlock 1=~nd hold it in that
position. Only then can the switch lever 2=Etrigger)
be operated to start the unit.
2
The shape of the switch lever has been modified
349TI000 KN
and the handle housing now has a slot to
accommodate the trigger interlock. The switch lever
and the two housing moldings cannot be replaced
individually; they have been given new part
numbers.
6XPPDU\
Item Part Name Previous New Rem.
1 Trigger interlock --- 4137 182 0800
2 Switch lever 4803 435 2400 4808 435 2400 1)
3 Torsion spring --- 4808 791 8200
4 Handle molding, left (FE 55) 4803 791 1105 4808 791 1105 1)
5 Handle molding, left (EC 70) 4803 791 1115 4808 791 1105 1)
6 Handle molding, right 4803 791 1100 4808 791 1100 1)
Modification to be introduced from serial number 2 40 958 562
5HPDUNV
1) Original version of part remains available as spare for older machines
2.=====Model upgrade
Further parts will be modified in connection with the introduction of the starting interlock (see 1.):
The electrical cable will be changed from PVC to UXEEHU. The new cable is equipped with a reinforced cable
SURWHFWRU and will be secured in the handle housing with ~=cable clamp.
TI_10_1999_30_02.fm
8 Page 2 of 2

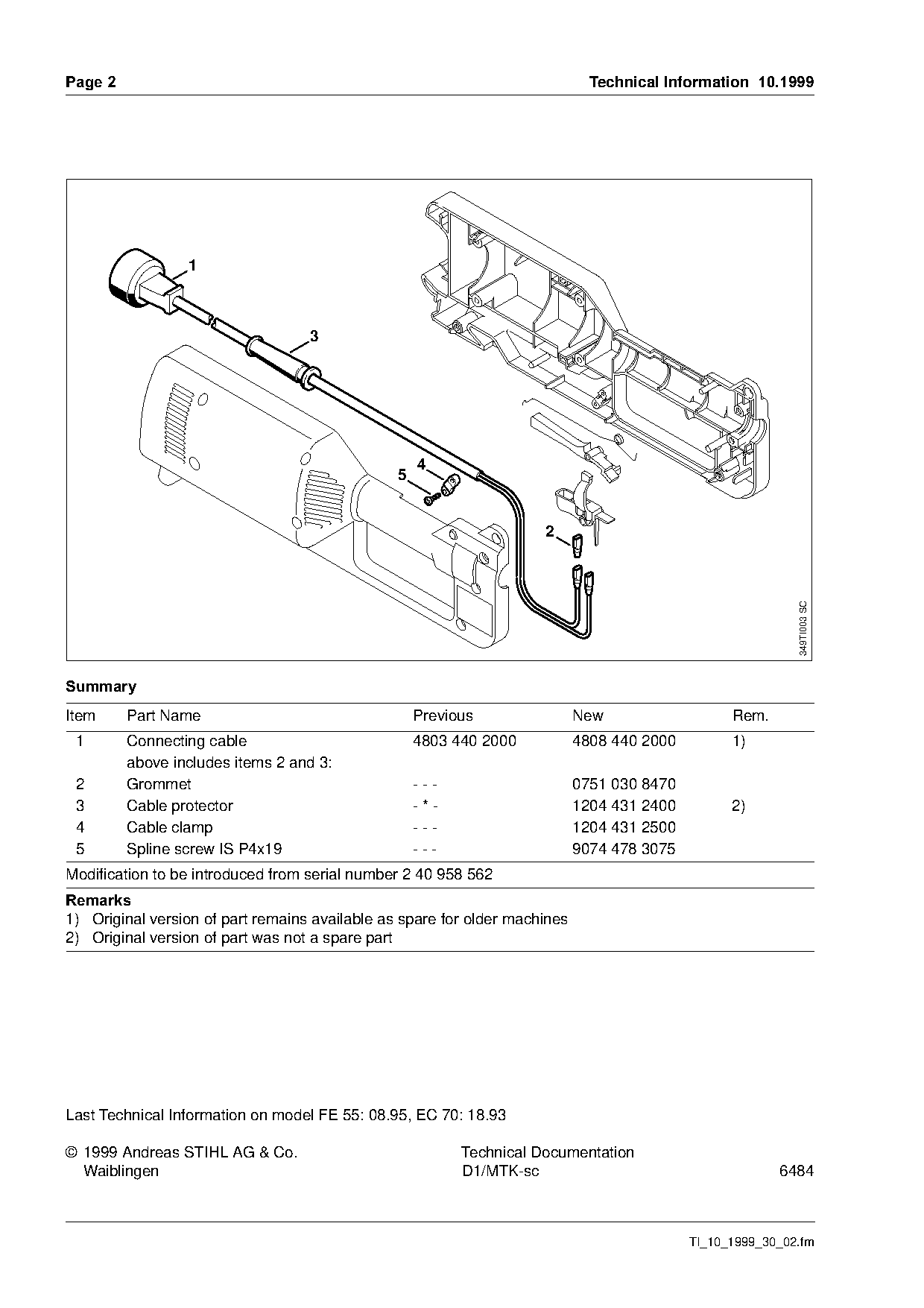

Page 2========================================================================qechnical Information 10.1
4
5
349TI003 SC
6XPPDU\
Item Part Name Previous New Rem.
1 Connecting cable 4803 440 2000 4808 440 2000 1)
above includes items 2 and 3:
2 Grommet --- 0751 030 8470
3 Cable protector -*- 1204 431 2400 2)
4 Cable clamp --- 1204 431 2500
5 Spline screw IS P4x19 --- 9074 478 3075
Modification to be introduced from serial number 2 40 958 562
5HPDUNV
1) Original version of part remains available as spare for older machines
2) Original version of part was not a spare part
Last Technical Information on model FE 55: 08.95, EC 70: 18.93
© 1999 Andreas STIHL AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 6484
TI_10_1999_30_02.fm Extracted from the manufacturer's 2012 service catalogue. Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
