Technical Information · issue 13 of 1999
SR 320, 400:Standard nozzle; ULV rotary nozzle kit
IssueTI 13/1999
Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4203 700 6306 | 4203 700 6310 | The original version 4203 700 6306 will be replaced by version 4203 700 6310. |
| 4203 007 1014 | 4203 007 1019 | ULV rotary nozzle kit In connection with the above line modification, the ULV rotary nozzle kit 4203 007 1014 will be replaced by version 4203 007 1019. |
| 4203 007 1016 | 4203 007 1026 | Constant volume pump kit In connection with the above line modification, the constant volume pump kit 4203 007 1016 will be replaced by version 4203 007 1026. |
Full text
Page 1 of 2

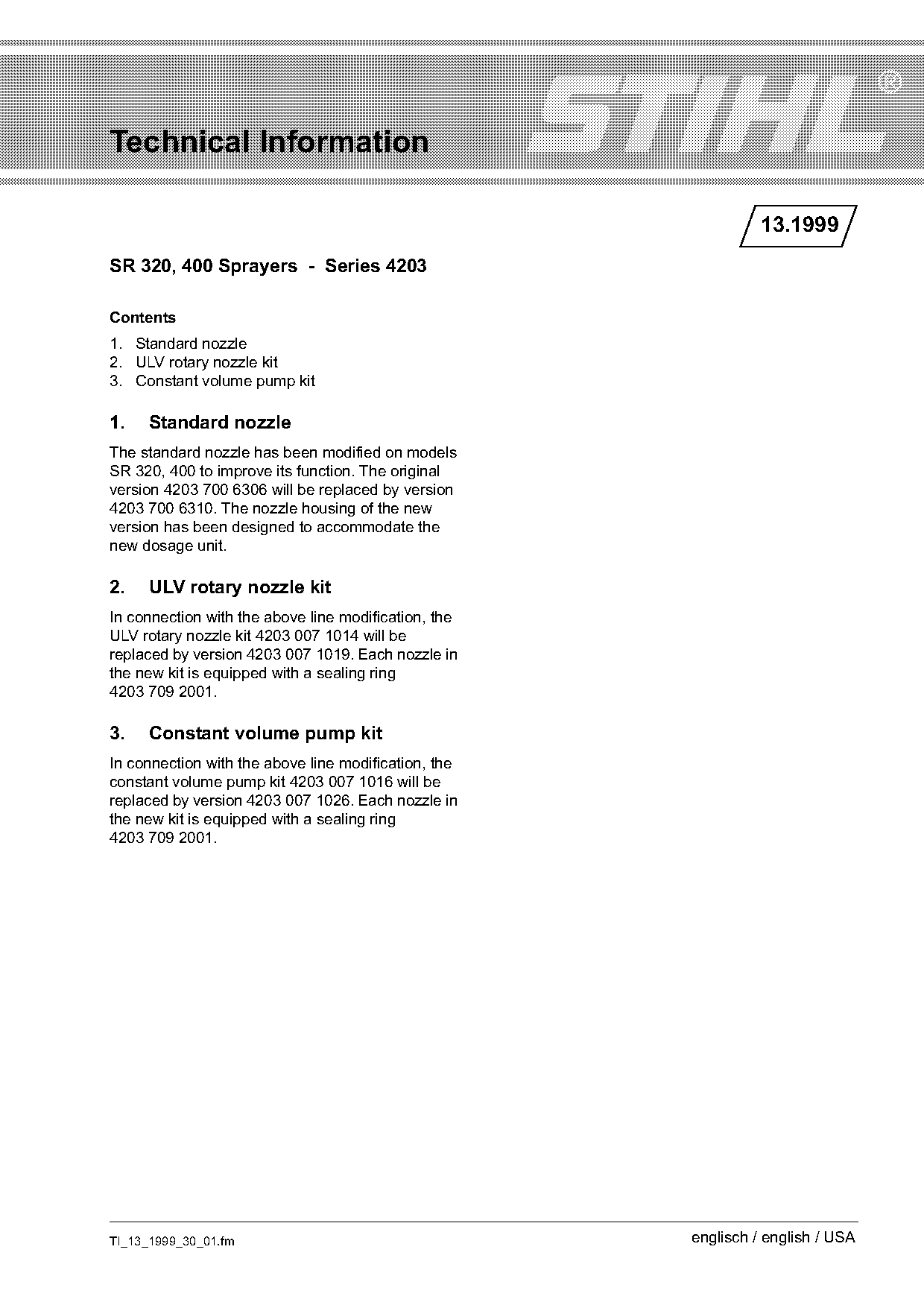

Technical Information
13.1999
SR 320, 400 Sprayers - Series 4203
Contents
1. Standard nozzle
2. ULV rotary nozzle kit
3. Constant volume pump kit
1. Standard nozzle
The standard nozzle has been modified on models
SR 320, 400 to improve its function. The original
version 4203 700 6306 will be replaced by version
4203 700 6310. The nozzle housing of the new
version has been designed to accommodate the
new dosage unit.
2. ULV rotary nozzle kit
In connection with the above line modification, the
ULV rotary nozzle kit 4203 007 1014 will be
replaced by version 4203 007 1019. Each nozzle in
the new kit is equipped with a sealing ring
4203 709 2001.
3. Constant volume pump kit
In connection with the above line modification, the
constant volume pump kit 4203 007 1016 will be
replaced by version 4203 007 1026. Each nozzle in
the new kit is equipped with a sealing ring
4203 709 2001.
TI_13_1999_30_01.fm englisch / english / USA Page 2 of 2

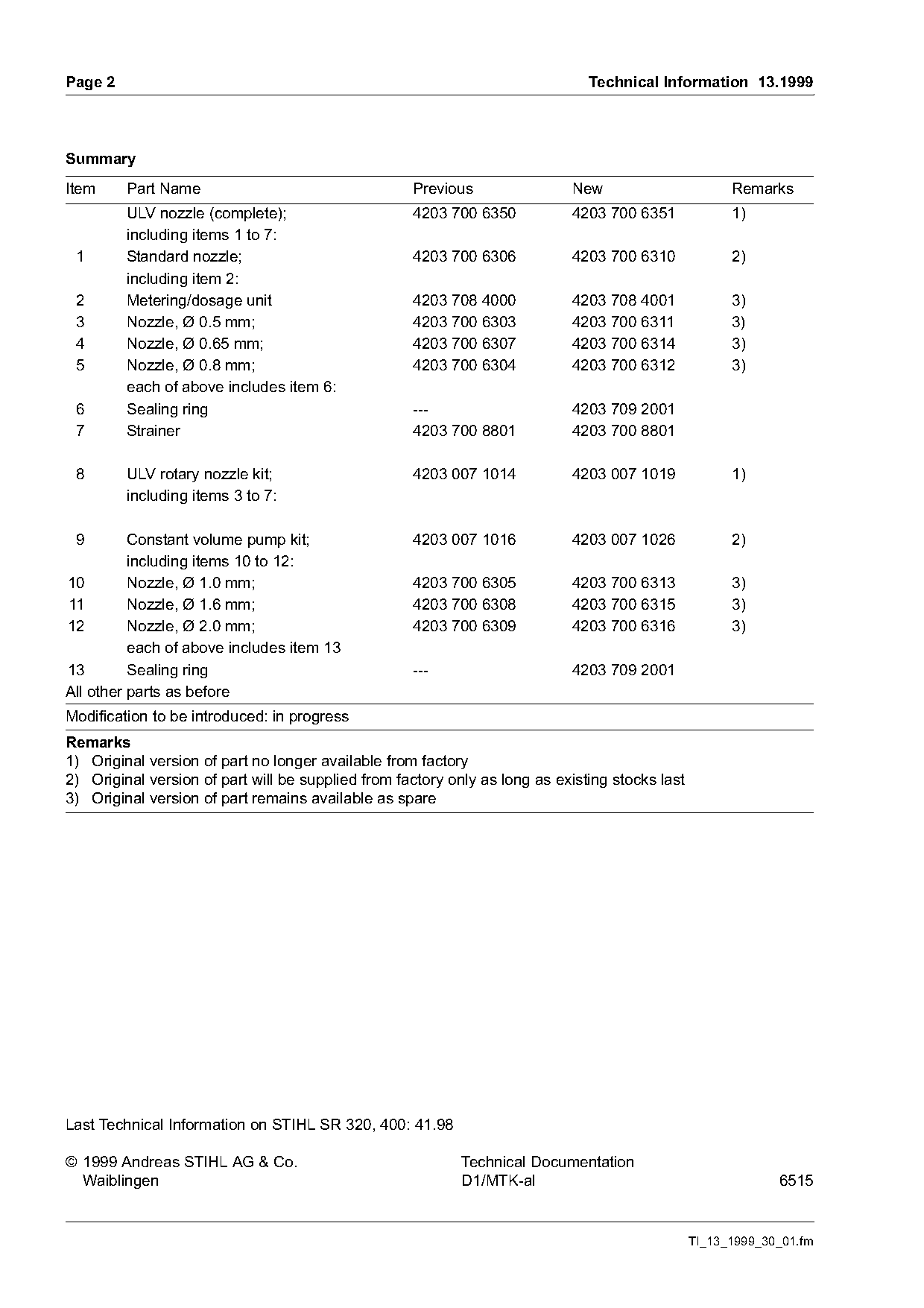

Page 2 Technical Information 13.1999
Summary
Item Part Name Previous New Remarks
ULV nozzle (complete); 4203 700 6350 4203 700 6351 1)
including items 1 to 7:
1 Standard nozzle; 4203 700 6306 4203 700 6310 2)
including item 2:
2 Metering/dosage unit 4203 708 4000 4203 708 4001 3)
3 Nozzle, Ø 0.5 mm; 4203 700 6303 4203 700 6311 3)
4 Nozzle, Ø 0.65 mm; 4203 700 6307 4203 700 6314 3)
5 Nozzle, Ø 0.8 mm; 4203 700 6304 4203 700 6312 3)
each of above includes item 6:
6 Sealing ring --- 4203 709 2001
7 Strainer 4203 700 8801 4203 700 8801
8 ULV rotary nozzle kit; 4203 007 1014 4203 007 1019 1)
including items 3 to 7:
9 Constant volume pump kit; 4203 007 1016 4203 007 1026 2)
including items 10 to 12:
10 Nozzle, Ø 1.0 mm; 4203 700 6305 4203 700 6313 3)
11 Nozzle, Ø 1.6 mm; 4203 700 6308 4203 700 6315 3)
12 Nozzle, Ø 2.0 mm; 4203 700 6309 4203 700 6316 3)
each of above includes item 13
13 Sealing ring --- 4203 709 2001
All other parts as before
Modification to be introduced: in progress
Remarks
1) Original version of part no longer available from factory
2) Original version of part will be supplied from factory only as long as existing stocks last
3) Original version of part remains available as spare
Last Technical Information on STIHL SR 320, 400: 41.98
© 1999 Andreas STIHL AG & Co. Technical Documentation
