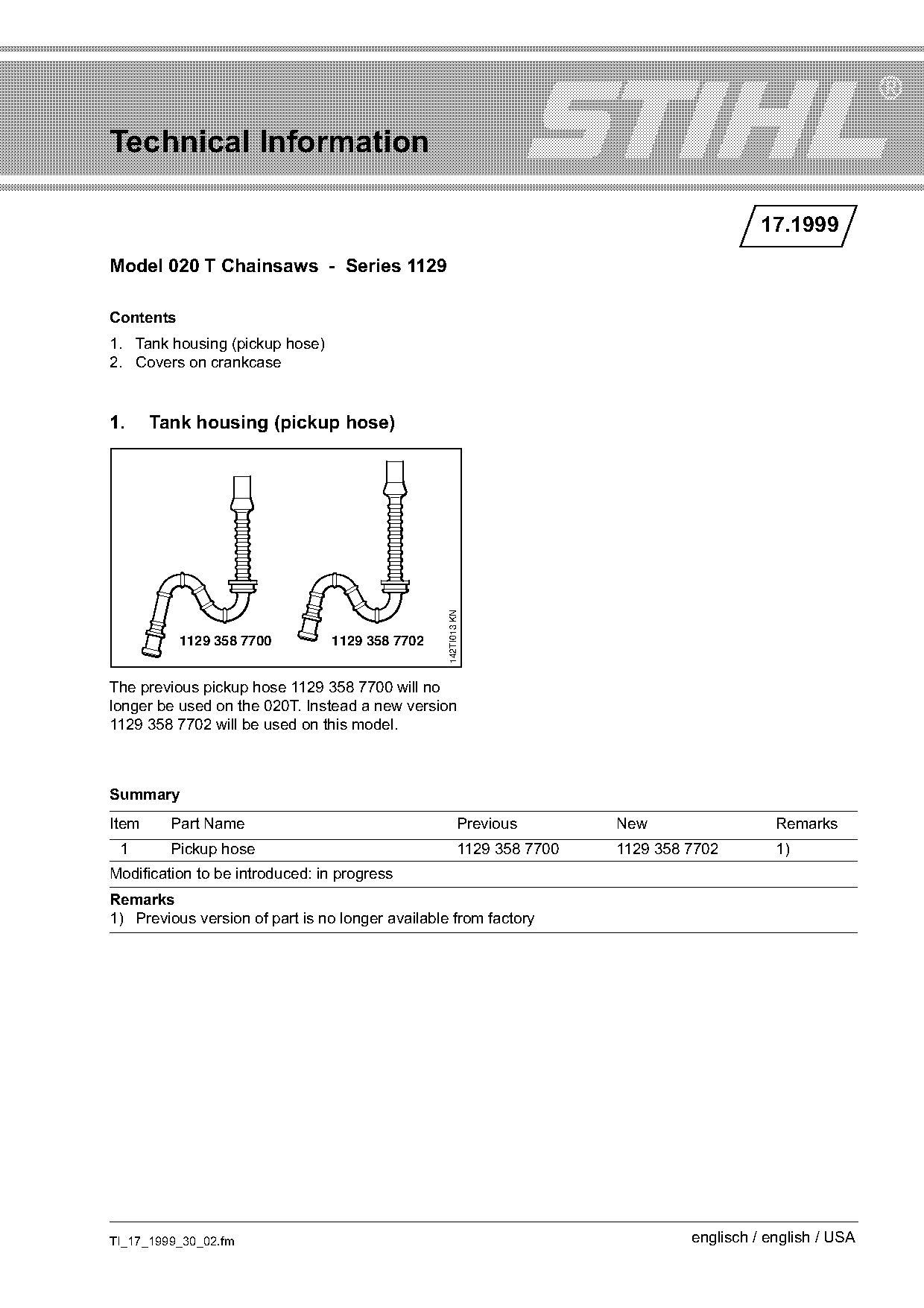

Technical Information
17.1999
Model 020 T Chainsaws - Series 1129
Contents
1. Tank housing (pickup hose)
2. Covers on crankcase
1. Tank housing (pickup hose)
142TI013 KN
1129 358 7700 1129 358 7702
The previous pickup hose 1129 358 7700 will no
longer be used on the 020T. Instead a new version
1129 358 7702 will be used on this model.
Summary
Item Part Name Previous New Remarks
1 Pickup hose 1129 358 7700 1129 358 7702 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part is no longer available from factory
TI_17_1999_30_02.fm englisch / english / USA

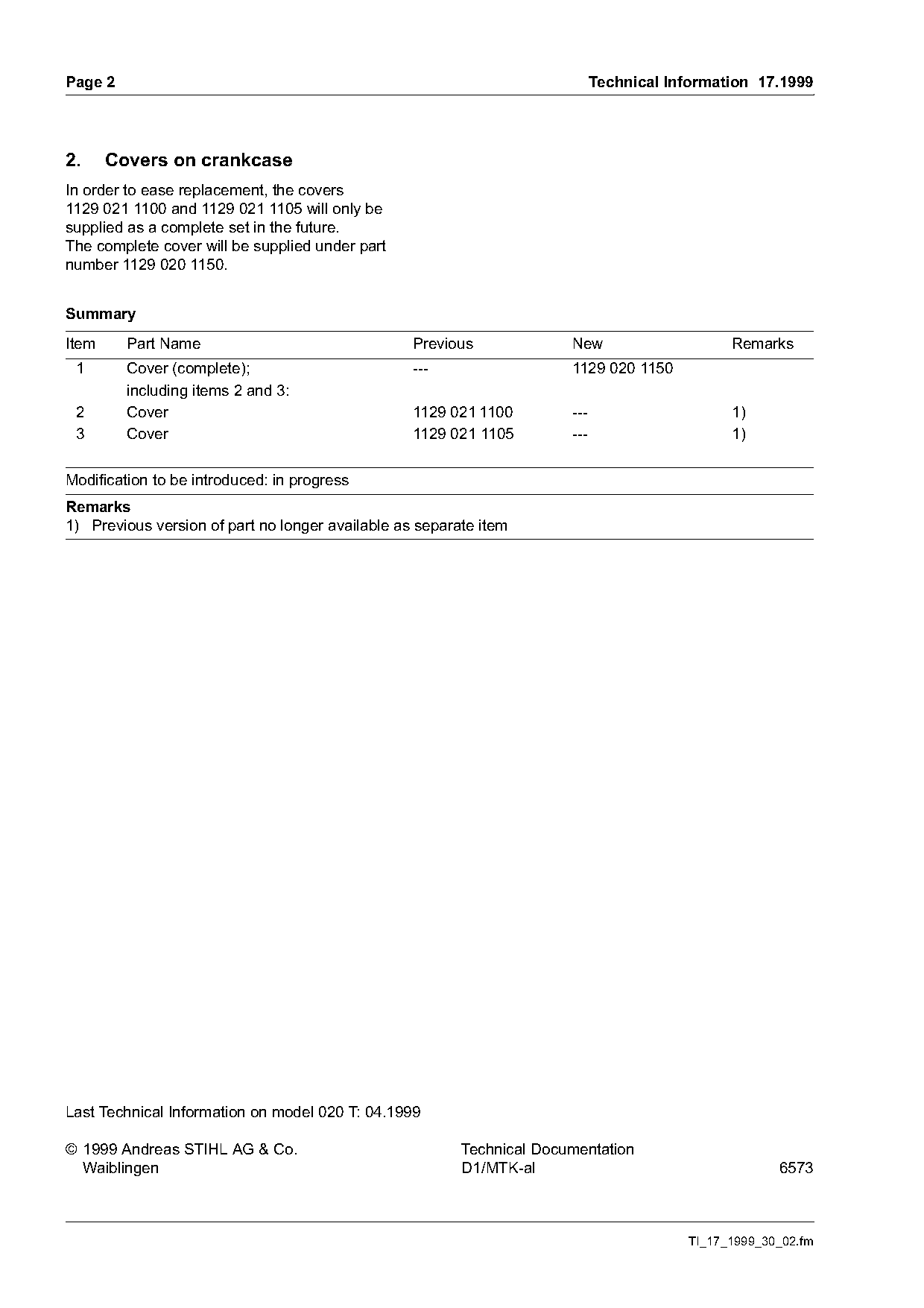

)m~ge 2 Technical Information 17.1999
2. Covers on crankcase
In order to ease replacement, the covers
1129 021 1100 and 1129 021 1105 will only be
supplied as a complete set in the future.
The complete cover will be supplied under part
number 1129 020 1150.
Summary
Item Part Name Previous New Remarks
1 Cover (complete); --- 1129 020 1150
including items 2 and 3:
2 Cover 1129 021 1100 --- 1)
3 Cover 1129 021 1105 --- 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part no longer available as separate item
Last Technical Information on model 020 T: 04.1999
© 1999 Andreas STIHL AG & Co. Technical Documentation
Waiblingen D1/MTK-al 6573
TI_17_1999_30_02.fm Page 2 of 2
