Technical Information · issue 23 of 1999
BR/SR 320, 400: Filter housing / Filter cover; Thr
IssueTI 23/1999
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4203 140 2800 | 4203 140 2803 | The previous filter housing 4203 140 2800 will be replaced by filter housing 4203 140 2803. |
| 4203 140 1000 | 4203 140 1002 | Filter cover 4203 140 1000 will be replaced by filter cover 4203 140 1002. |
Full text
Page 1 of 2

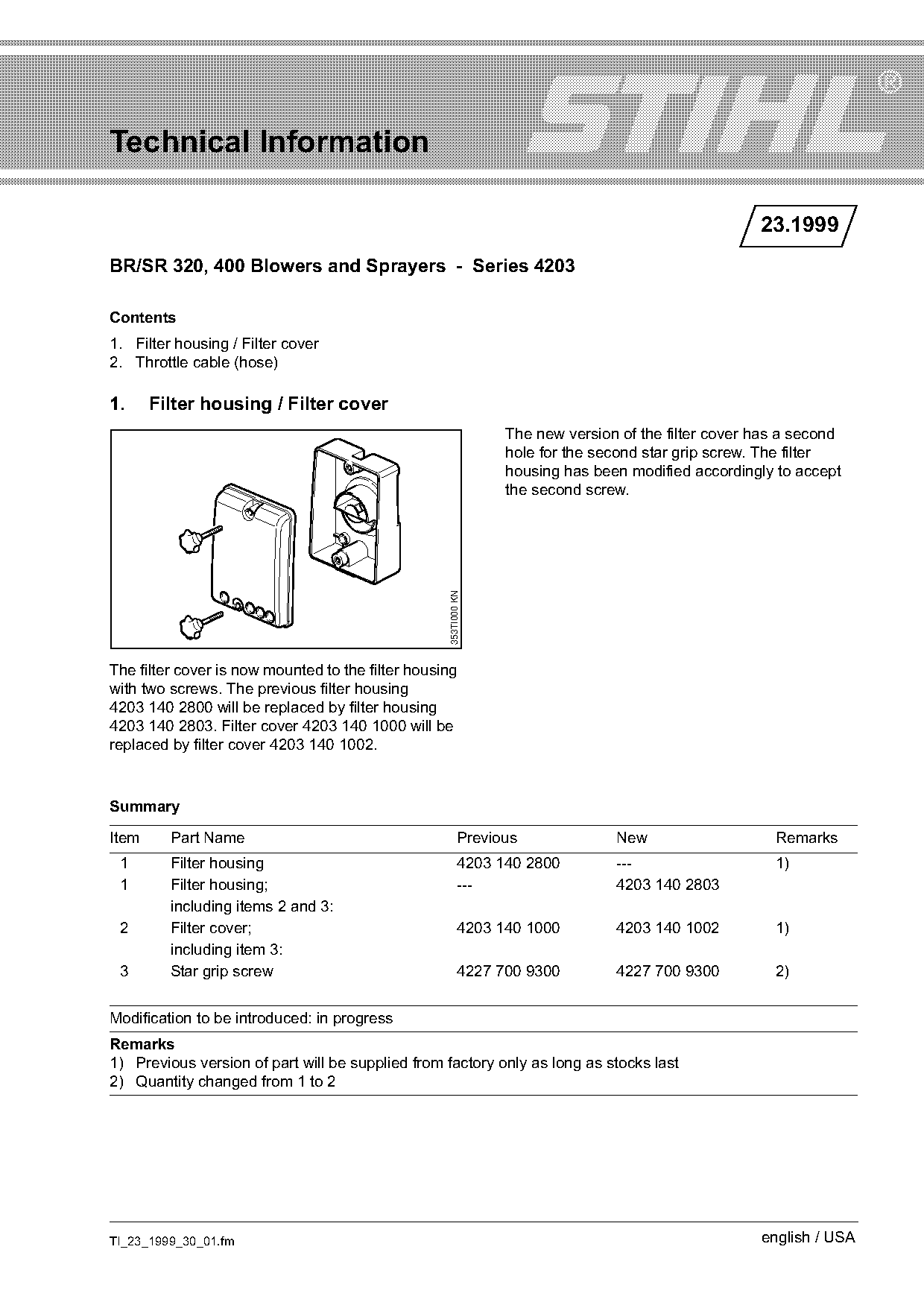

Technical Information
23.1999
BR/SR 320, 400 Blowers and Sprayers - Series 4203
Contents
1. Filter housing / Filter cover
2. Throttle cable (hose)
1. Filter housing / Filter cover
The new version of the filter cover has a second
hole for the second star grip screw. The filter
housing has been modified accordingly to accept
the second screw.
353TI000 KN
The filter cover is now mounted to the filter housing
with two screws. The previous filter housing
4203 140 2800 will be replaced by filter housing
4203 140 2803. Filter cover 4203 140 1000 will be
replaced by filter cover 4203 140 1002.
Summary
Item Part Name Previous New Remarks
1 Filter housing 4203 140 2800 --- 1)
1 Filter housing; --- 4203 140 2803
including items 2 and 3:
2 Filter cover; 4203 140 1000 4203 140 1002 1)
including item 3:
3 Star grip screw 4227 700 9300 4227 700 9300 2)
Modification to be introduced: in progress
Remarks
1) Previous version of part will be supplied from factory only as long as stocks last
2) Quantity changed from 1 to 2
TI_23_1999_30_01.fm english / USA Page 2 of 2

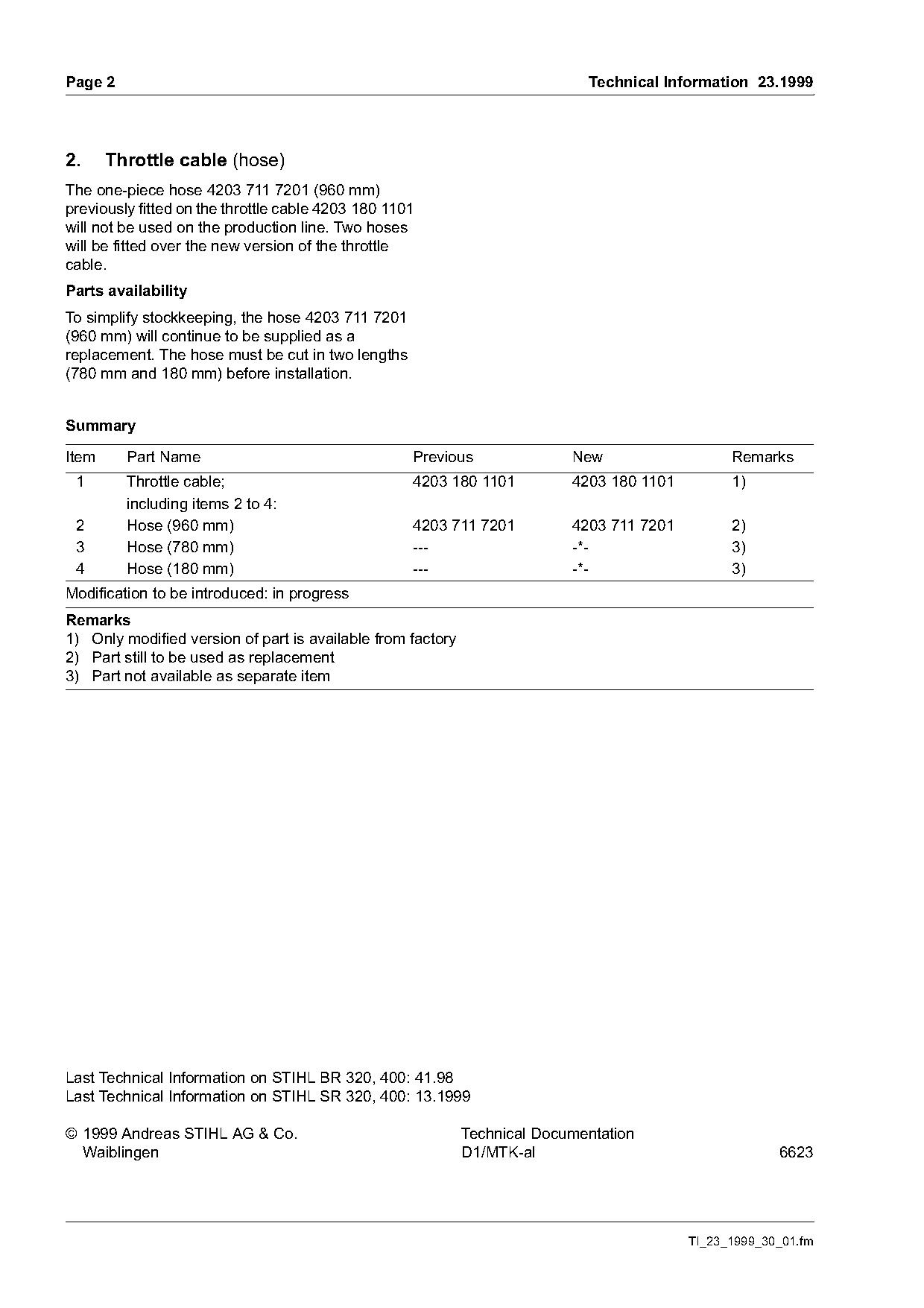

Page 2 Technical Information 23.1999
2. Throttle cable (hose)
The one-piece hose 4203 711 7201 (960 mm)
previously fitted on the throttle cable 4203 180 1101
will not be used on the production line. Two hoses
will be fitted over the new version of the throttle
cable.
Parts availability
To simplify stockkeeping, the hose 4203 711 7201
(960 mm) will continue to be supplied as a
replacement. The hose must be cut in two lengths
(780 mm and 180 mm) before installation.
Summary
Item Part Name Previous New Remarks
1 Throttle cable; 4203 180 1101 4203 180 1101 1)
including items 2 to 4:
2 Hose (960 mm) 4203 711 7201 4203 711 7201 2)
3 Hose (780 mm) --- -*- 3)
4 Hose (180 mm) --- -*- 3)
Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from factory
2) Part still to be used as replacement
3) Part not available as separate item
Last Technical Information on STIHL BR 320, 400: 41.98
Last Technical Information on STIHL SR 320, 400: 13.1999
© 1999 Andreas STIHL AG & Co. Technical Documentation
