Technical Information · issue 26 of 1999

STIHL Adhesive Oil for Saw Chain Lubrication

IssueTI 26/1999

Accessory changes & notes

Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.

Historical fitment · Accessory

STIHL partially synthetic chain oil: 1999 data and Bioplus mixing warning

Historical adhesive chain lubricant; mixing with Bioplus causes lumps. Keep the changeover/rinsing instruction and exact property limits.

  • Type and scope: partially synthetic heavy-duty adhesive lubricant, formulated mainly from synthetic base oils for high-speed saw chains in Central European and hot climates. Section 1.3 describes suitability for all types of saw chains and guide bars and all species of wood. These are dated 1999 product claims, not exact-machine or IPL assembly fitment, proof for later formulations, or an engine/premix oil specification.
  • Manufacturer-reported properties: high-temperature resistance and protection against overheating and wear, including brief thermal overload; reduced cutting-attachment smoking under tough use; good flow down to −25°C; 100% protection against resinification after long out-of-service periods; special base oils described as generally recognized as safe; and compatibility with lightmetal alloys, plastics, paints and elastomers. These are historical source claims, not project tests, a general health-safety assurance or approval of indefinite storage.
  • Typical chemical-physical data, not guaranteed tolerances: brown; density at 15°C 900 kg/m³, DIN 51757 T4; pour point <−25°C, ISO 3016; flash point >230°C, ISO 2592; viscosity at 40°C 120 mm²/s and at 100°C 12 mm²/s, DIN 51562; Brugger value >30 N/mm², DIN 51347 Part 1 + 2; life approximately 5 years. Preserve both inequalities and the stated test methods. The narrative flow temperature and table pour point are different statements; neither is an inferred machine operating limit. Oil life is not a fuel-mix storage period; sealed/opened conditions are not specified.
  • Important: avoid mixing partially synthetic STIHL saw chain oil with STIHL Bioplus. The source states that mixing the two causes lumps. If the tank is filled alternately with these oils, the first tankful should be used up immediately and the tank then refilled to the brim. This is the printed historical changeover instruction, not advice to store a mixed tank or a general declaration that the oils are interchangeable.
  • If that changeover procedure is not possible for any reason, the chain oil tank must be cleaned (rinsed out). The contaminated mixture of rinsing medium and adhesive chain oil must be disposed of properly according to local regulations. No rinsing solvent, volume or detailed dismantling procedure is specified; none is invented. Bioplus is named only as the mixing counterpart, without a package number or its own formulation specification.
  • Historical disposal wording: section 1.4 says the oil may, if necessary, be disposed of in Europe as used oil under European Waste Disposal Catalog code 13 02 03; a completely empty canister may be disposed of as normal packaging material. This records the 1999 source, not a present legal classification or permission to discharge oil. No biodegradability claim or two-stroke fuel ratio is imported from another oil bulletin.

Source: TI 26/1999, p. 1 · TI 26/1999, p. 2 — 1.1–1.6 partially synthetic adhesive chain oil, including Important mixing warning.

Part numbers (6)
  • 0781 516 2000 — Partially synthetic STIHL saw chain oil — 1 LHistorical package; no current-stock claim · TI26/1999 section 1.6 availability table
  • 0781 516 2012 — Partially synthetic STIHL saw chain oil — 3 LHistorical package; no current-stock claim · TI26/1999 section 1.6 availability table
  • 0781 516 2002 — Partially synthetic STIHL saw chain oil — 5 LHistorical package; no current-stock claim · TI26/1999 section 1.6 availability table
  • 0781 516 2004 — Partially synthetic STIHL saw chain oil — 20 LHistorical package; no current-stock claim · TI26/1999 section 1.6 availability table
  • 0781 516 2005 — Partially synthetic STIHL saw chain oil — 60 LHistorical package; no current-stock claim · TI26/1999 section 1.6 availability table
  • 0781 516 2006 — Partially synthetic STIHL saw chain oil — 200 LHistorical package; no current-stock claim · TI26/1999 section 1.6 availability table

Full text

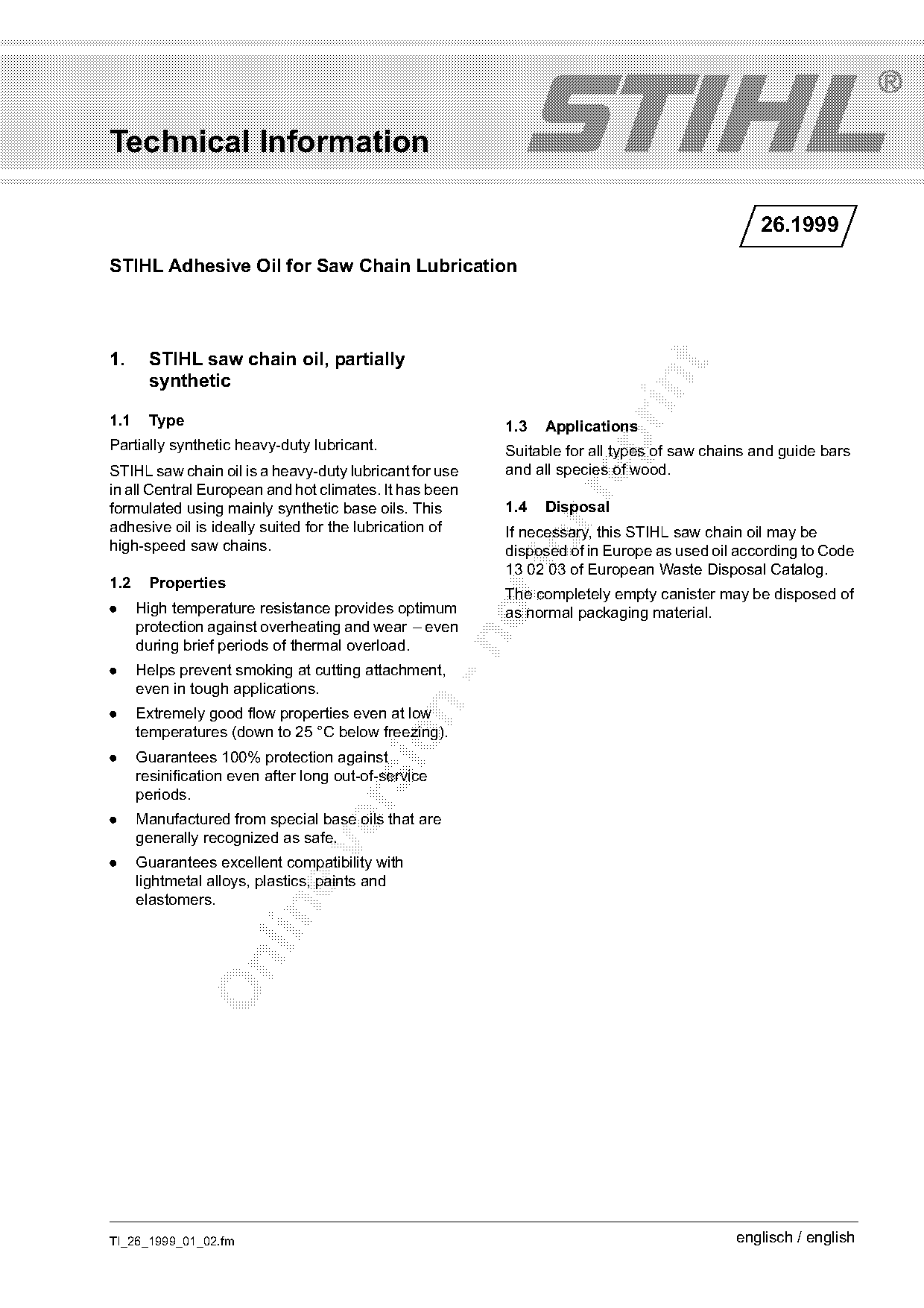

Page 1 of 2

TI 26/1999 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                             26.1999
STIHL Adhesive Oil for Saw Chain Lubrication

1.      STIHL saw chain oil, partially

        synthetic

1.1     Type                                            1.3   Applications

Partially synthetic heavy-duty lubricant.               Suitable for all types of saw chains and guide bars
STIHL saw chain oil is a heavy-duty lubricant for use   and all species of wood.
in all Central European and hot climates. It has been

formulated using mainly synthetic base oils. This       1.4   Disposal
adhesive oil is ideally suited for the lubrication of   If necessary, this STIHL saw chain oil may be
high-speed saw chains.                                     fo
                                                        disposed of in Europe as used oil according to Code
                                                        13 02 03 of European Waste Disposal Catalog.
1.2     Properties
                                                        The completely empty canister may be disposed of
.     High temperature resistance provides optimum      as normal packaging material.
      protection against overheating and wear – even

      during brief periods of thermal overload.
.     Helps prevent smoking at cutting attachment,
      even in tough applications.

.     Extremely good flow properties even at low
      temperatures (down to 25 °C below freezing).

.     Guarantees 100% protection against
      resinification even after long out-of-service
      periods.

.     Manufactured from special base oils that are
      generally recognized as safe.

.     Guarantees excellent compatibility with
      lightmetal alloys, plastics, paints and
      elastomers.

TI_26_1999_01_02.fm                                                                       englisch / english

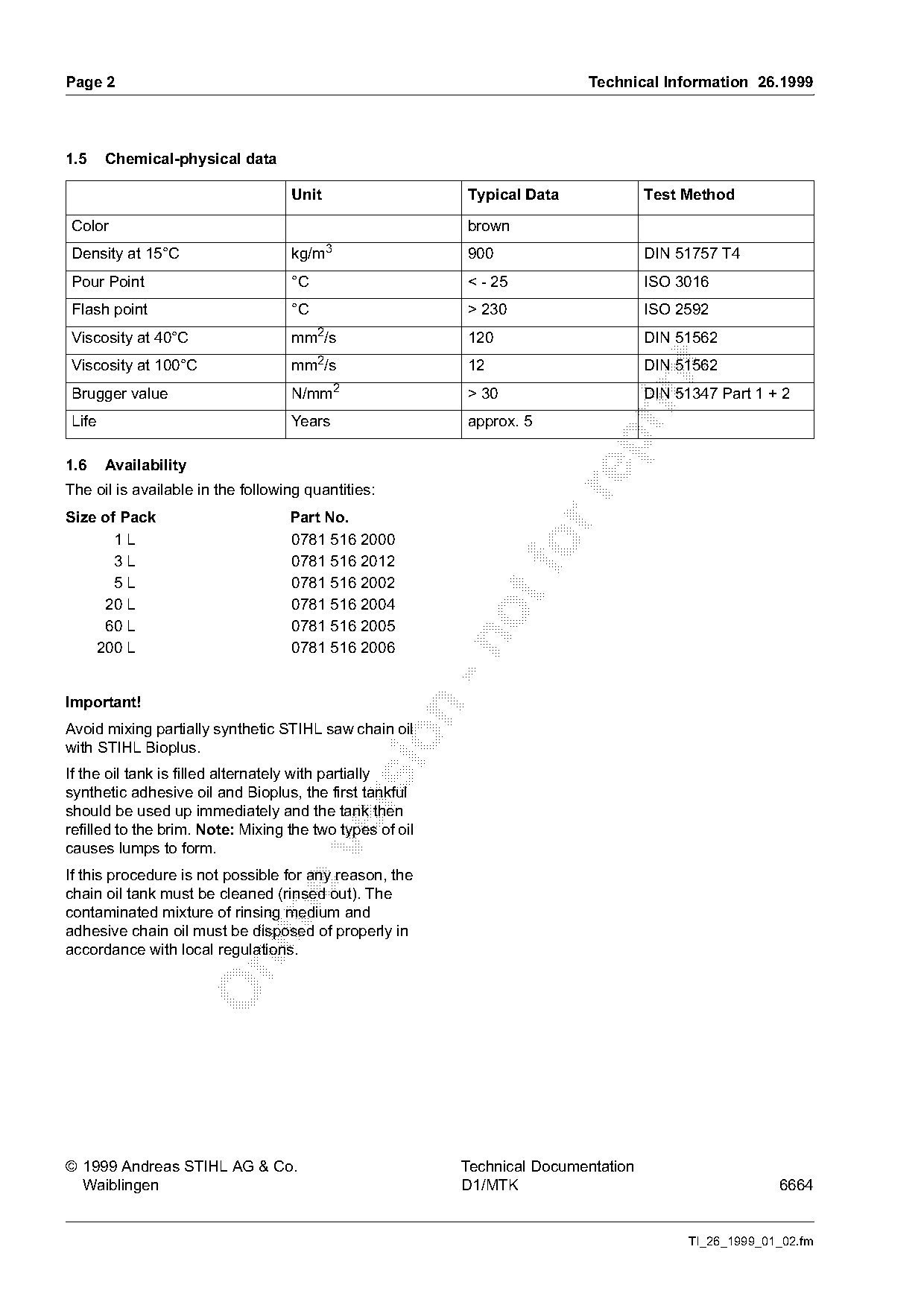

Page 2 of 2

TI 26/1999 page 2
Text of page 2 — search, copy, screen readers
Page 2                                                                    Technical Information 26.1999

1.5    Chemical-physical data

                                   Unit                   Typical Data              Test Method
Color                                                     brown
Density at 15°C                    kg/m3                  900                       DIN 51757 T4
Pour Point                         °C                     < - 25                    ISO 3016
Flash point                        °C                     > 230                     ISO 2592
Viscosity at 40°C                  mm2/s                  120                       DIN 51562
Viscosity at 100°C                 mm2/s                  12                        DIN 51562

Brugger value                      N/mm2                  > 30                      DIN 51347 Part 1 + 2
Life                               Years                  approx. 5

1.6    Availability
The oil is available in the following quantities:

Size of Pack                       Part No.
       1L                          0781 516 2000
       3L                          0781 516 2012
       5L                          0781 516 2002
     20 L                          0781 516 2004
     60 L                          0781 516 2005

    200 L                          0781 516 2006

Important!

Avoid mixing partially synthetic STIHL saw chain oil

with STIHL Bioplus.
If the oil tank is filled alternately with partially
synthetic adhesive oil and Bioplus, the first tankful

should be used up immediately and the tank then
refilled to the brim. Note: Mixing the two types of oil

causes lumps to form.
If this procedure is not possible for any reason, the
chain oil tank must be cleaned (rinsed out). The

contaminated mixture of rinsing medium and
adhesive chain oil must be disposed of properly in
accordance with local regulations.

© 1999 Andreas STIHL AG & Co.                             Technical Documentation
  Waiblingen                                              D1/MTK                                       6664

                                                                                          TI_26_1999_01_02.fm
