Technical Information · issue 28 of 1999
046 arctic: Handle and carburetor heating systems
Model 046 arctic Chainsaws - Series 1128
IssueTI 28/1999
Engine family 1128
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 400 1212 | 1128 400 1203 | Flywheel The previous flywheel 1128 400 1212 has been replaced by the new version 1128 400 1203. |
Full text

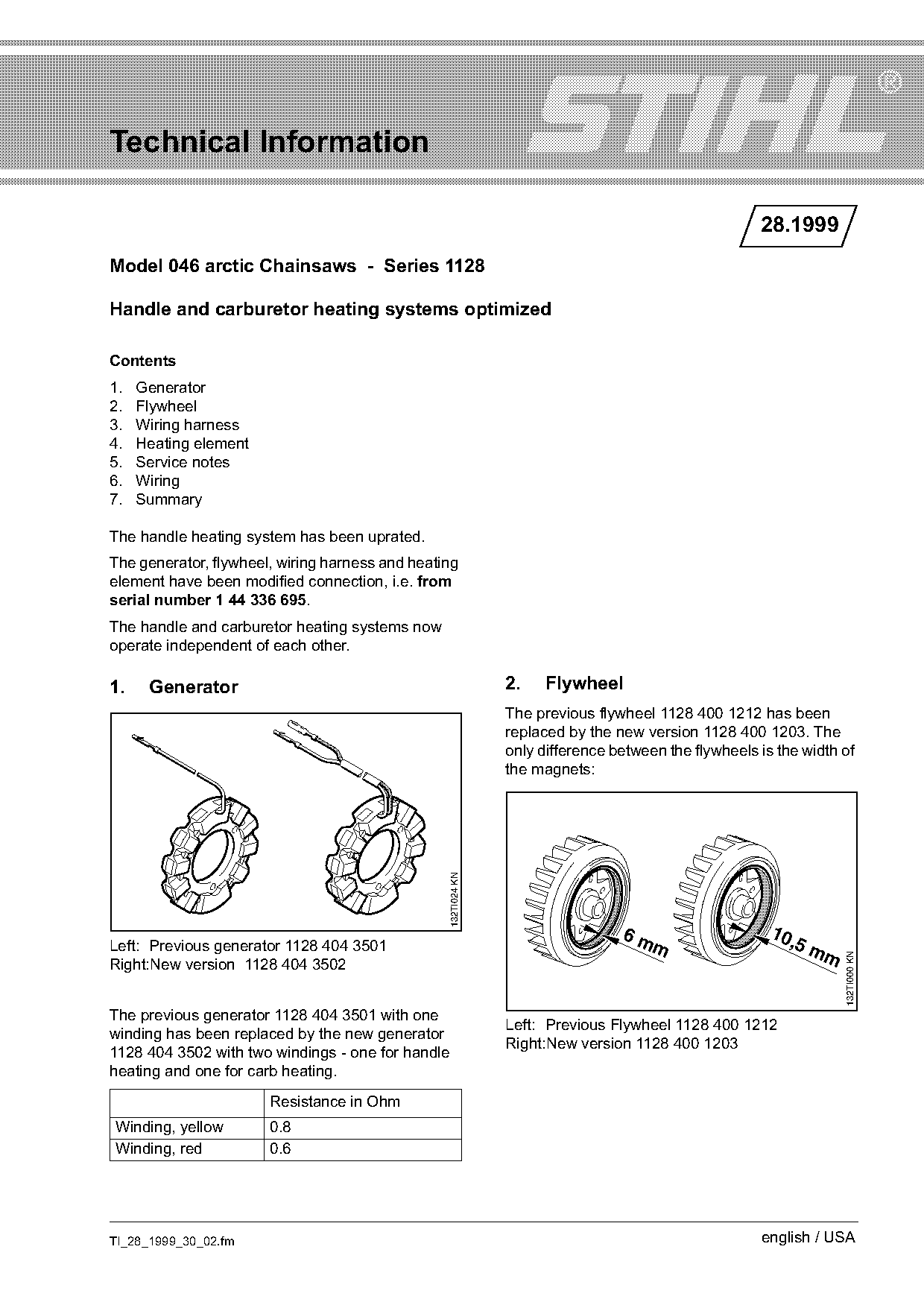

Page 1 of 3
Technical Information
28.1999
Model 046 arctic Chainsaws - Series 1128
Handle and carburetor heating systems optimized
Contents
1. Generator
2. Flywheel
3. Wiring harness
4. Heating element
5. Service notes
6. Wiring
7. Summary
The handle heating system has been uprated.
The generator, flywheel, wiring harness and heating
element have been modified connection, i.e. from
serial number 1 44 336 695.
The handle and carburetor heating systems now
operate independent of each other.
1. Generator 2. Flywheel
The previous flywheel 1128 400 1212 has been
replaced by the new version 1128 400 1203. The
only difference between the flywheels is the width of
the magnets:
132TI024 KN
6m 10,
Left: Previous generator 1128 404 3501 m 5m
m
132TI000 KN
Right:New version 1128 404 3502
The previous generator 1128 404 3501 with one
Left: Previous Flywheel 1128 400 1212
winding has been replaced by the new generator
Right:New version 1128 400 1203
1128 404 3502 with two windings - one for handle
heating and one for carb heating.
Resistance in Ohm
Winding, yellow 0.8
Winding, red 0.6
TI_28_1999_30_02.fm english / USA

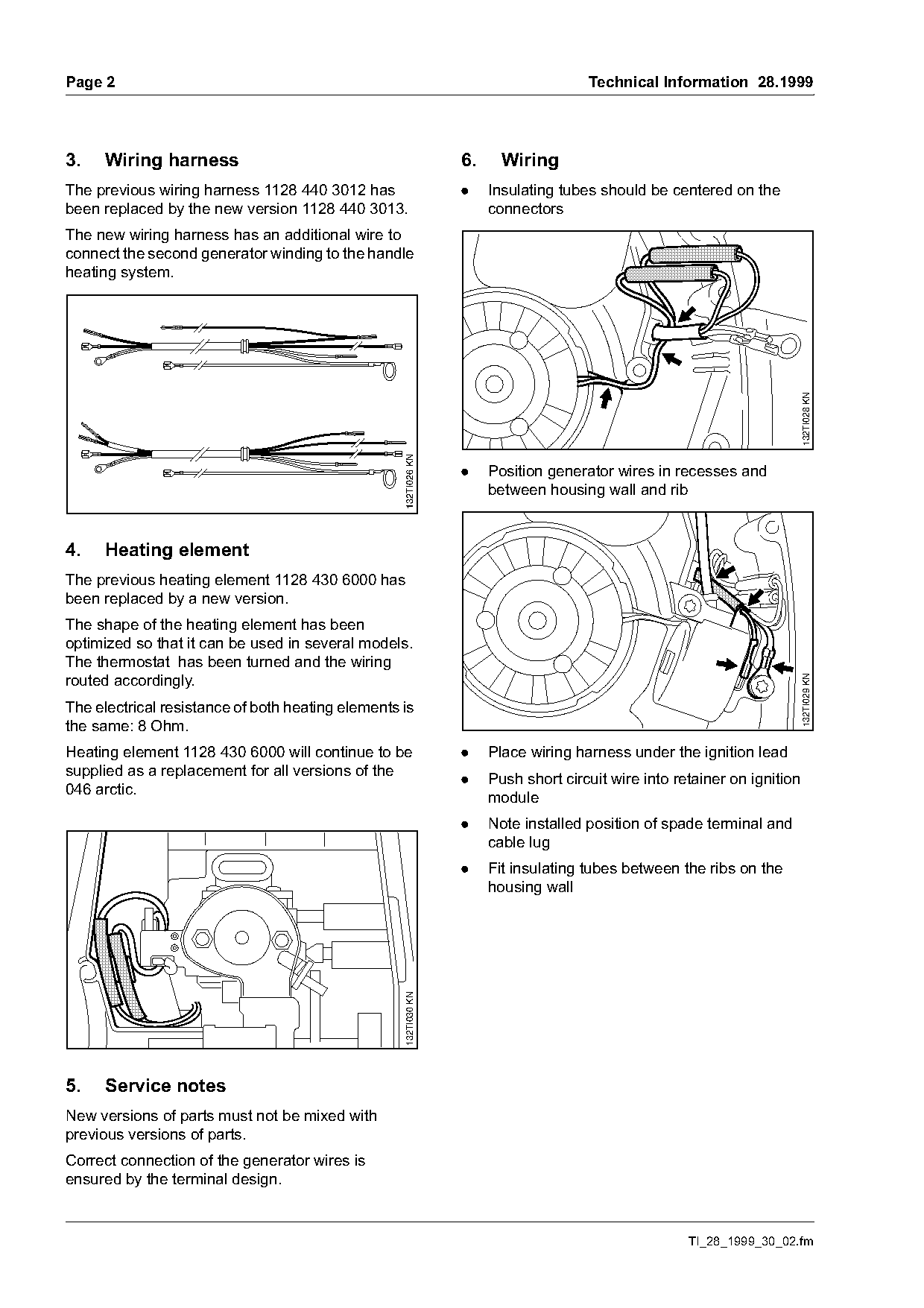

)m~ge 2 Technical Information 28.1999
3. Wiring harness 6. Wiring
The previous wiring harness 1128 440 3012 has . Insulating tubes should be centered on the
been replaced by the new version 1128 440 3013. connectors
The new wiring harness has an additional wire to
connect the second generator winding to the handle
heating system.
132TI028 KN
132TI026 KN
. Position generator wires in recesses and
between housing wall and rib
4. Heating element
The previous heating element 1128 430 6000 has
been replaced by a new version.
The shape of the heating element has been
optimized so that it can be used in several models.
The thermostat has been turned and the wiring
routed accordingly.
132TI029 KN
The electrical resistance of both heating elements is
the same: 8 Ohm.
Heating element 1128 430 6000 will continue to be . Place wiring harness under the ignition lead
supplied as a replacement for all versions of the
. Push short circuit wire into retainer on ignition
046 arctic.
module
. Note installed position of spade terminal and
cable lug
. Fit insulating tubes between the ribs on the
housing wall
132TI030 KN
5. Service notes
New versions of parts must not be mixed with
previous versions of parts.
Correct connection of the generator wires is
ensured by the terminal design.
TI_28_1999_30_02.fm Page 2 of 3

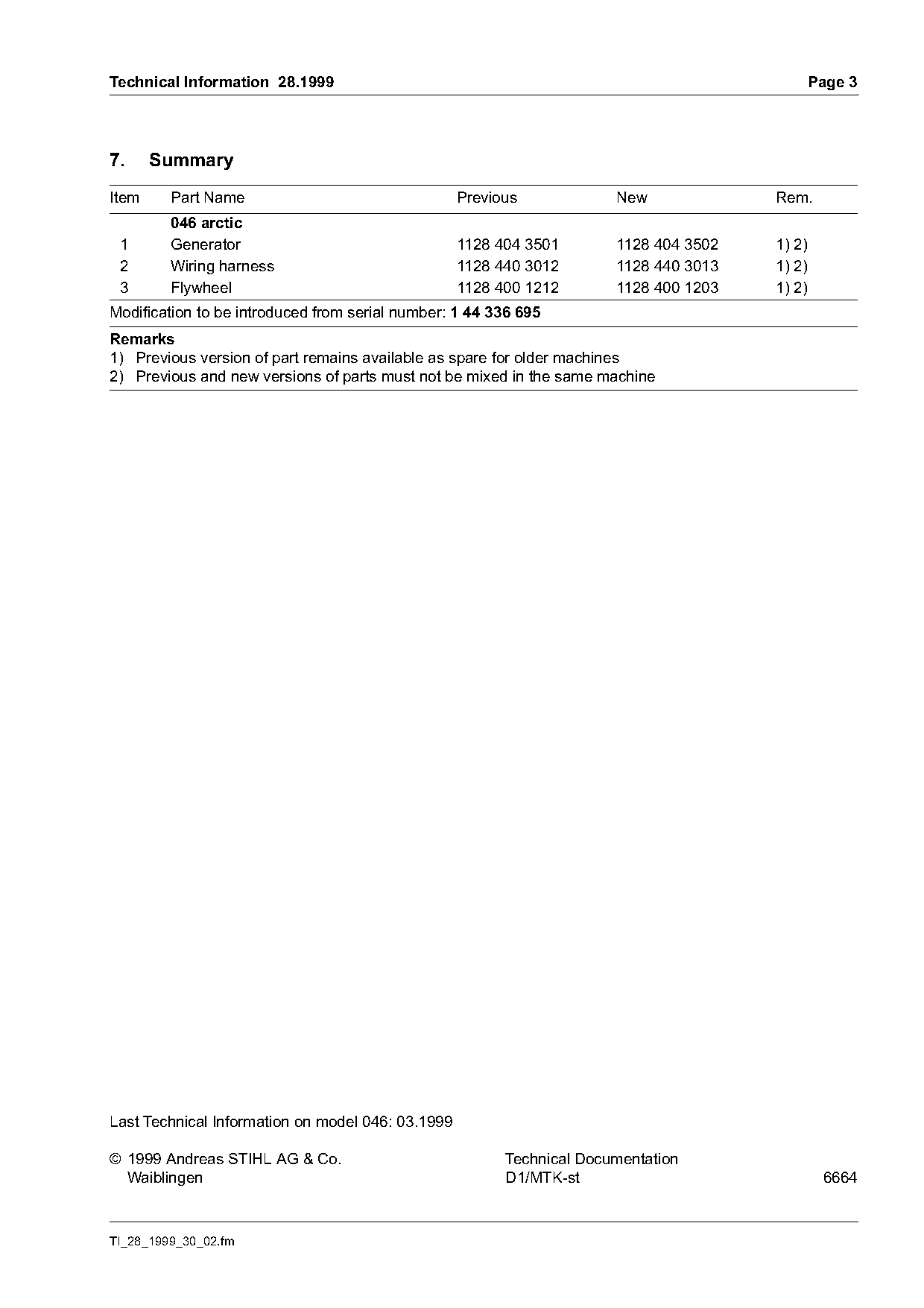

Technical Information 28.1999 Page 3
7. Summary
Item Part Name Previous New Rem.
046 arctic
1 Generator 1128 404 3501 1128 404 3502 1) 2)
2 Wiring harness 1128 440 3012 1128 440 3013 1) 2)
3 Flywheel 1128 400 1212 1128 400 1203 1) 2)
Modification to be introduced from serial number: 1 44 336 695
Remarks
1) Previous version of part remains available as spare for older machines
2) Previous and new versions of parts must not be mixed in the same machine
Last Technical Information on model 046: 03.1999
© 1999 Andreas STIHL AG & Co. Technical Documentation
Waiblingen D1/MTK-st 6664
TI_28_1999_30_02.fm Page 3 of 3
