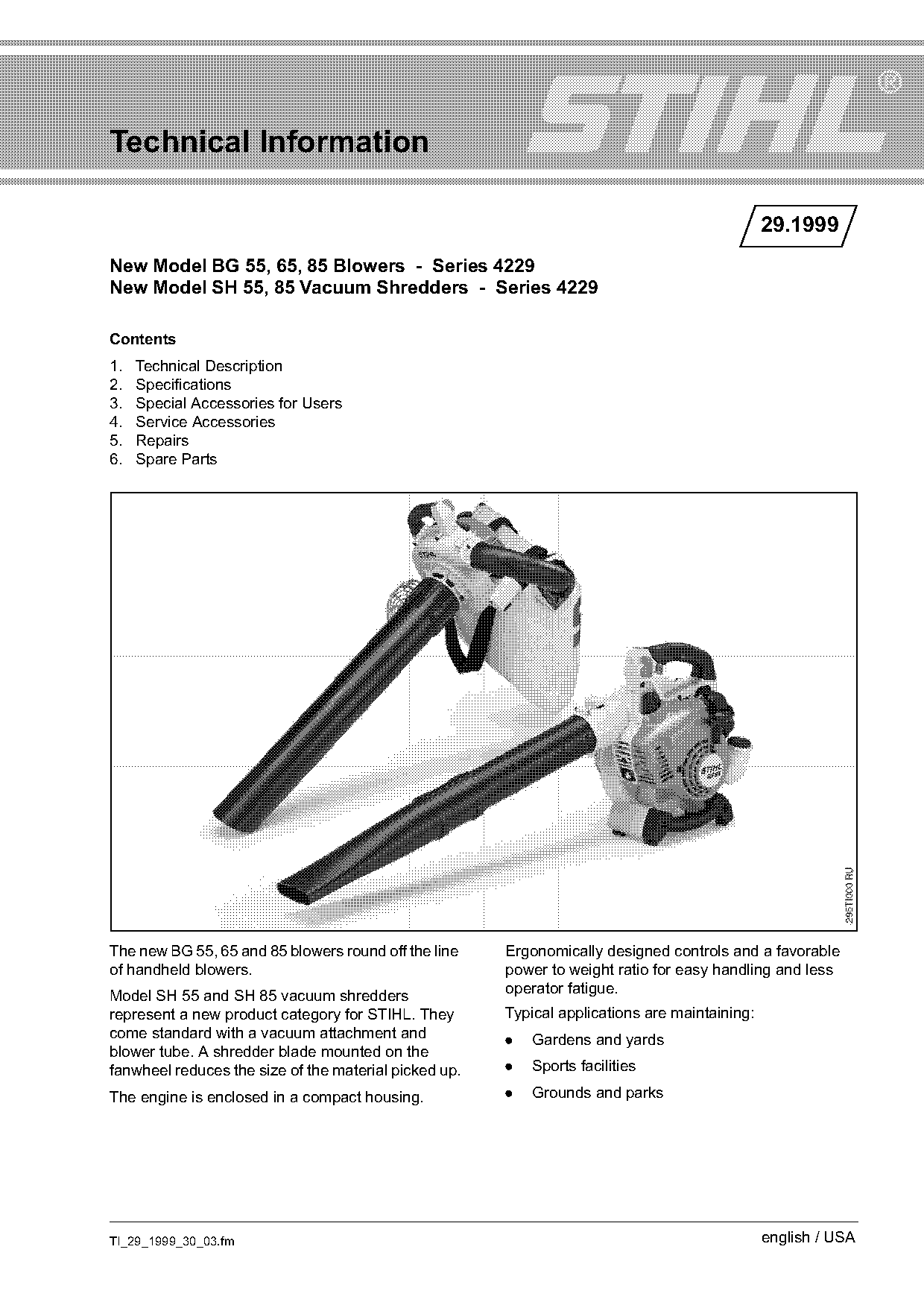

Page 1 of 6
Technical Information
29.1999
New Model BG 55, 65, 85 Blowers - Series 4229
New Model SH 55, 85 Vacuum Shredders - Series 4229
Contents
1. Technical Description
2. Specifications
3. Special Accessories for Users
4. Service Accessories
5. Repairs
6. Spare Parts
The new BG 55, 65 and 85 blowers round off the line Ergonomically designed controls and a favorable
of handheld blowers. power to weight ratio for easy handling and less
Model SH 55 and SH 85 vacuum shredders operator fatigue.
represent a new product category for STIHL. They Typical applications are maintaining:
come standard with a vacuum attachment and . Gardens and yards
blower tube. A shredder blade mounted on the
fanwheel reduces the size of the material picked up. . Sports facilities
The engine is enclosed in a compact housing. . Grounds and parks
TI_29_1999_30_03.fm english / USA

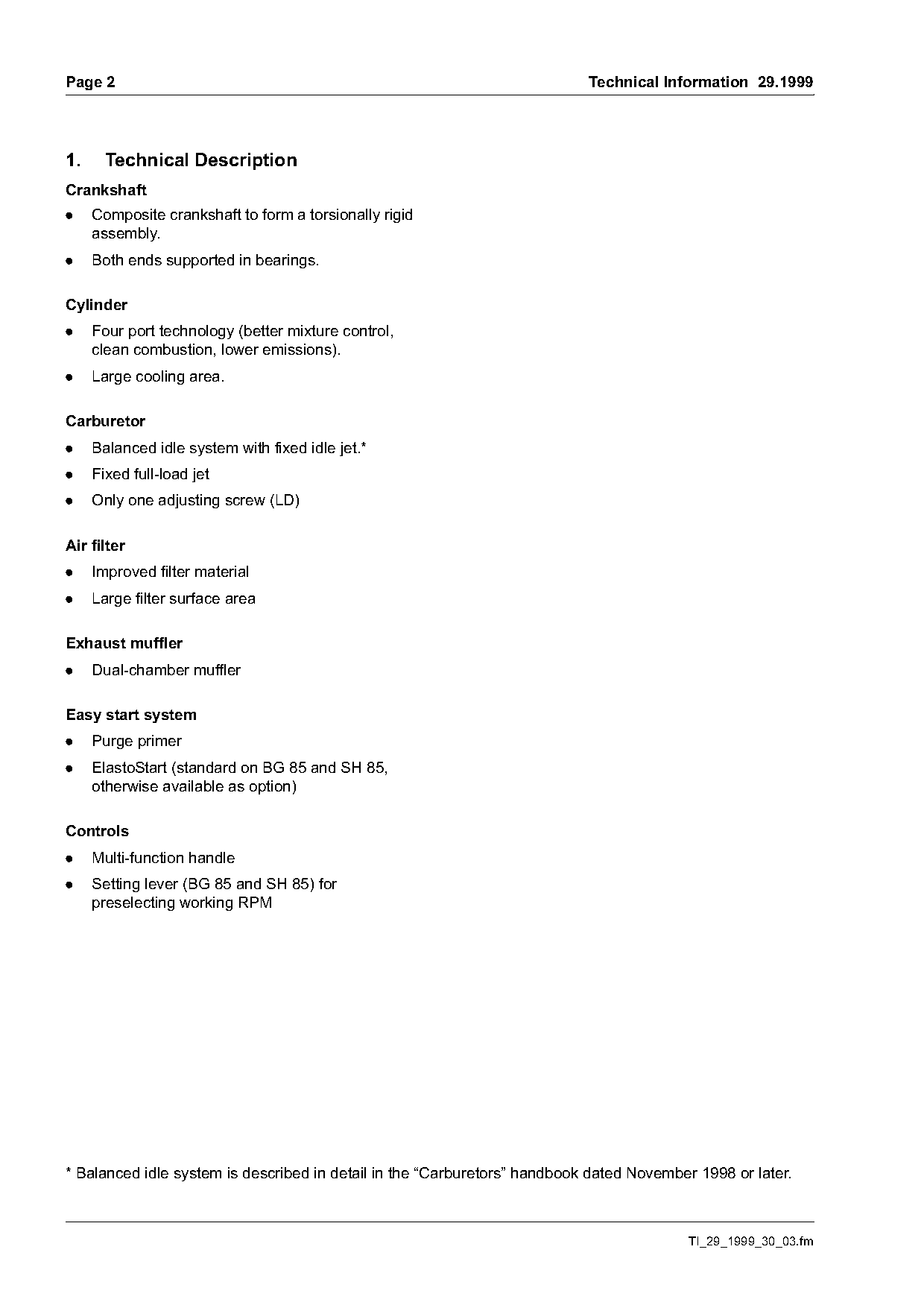

)m~ge 2 Technical Information 29.1999
1. Technical Description
Crankshaft
. Composite crankshaft to form a torsionally rigid
assembly.
. Both ends supported in bearings.
Cylinder
. Four port technology (better mixture control,
clean combustion, lower emissions).
. Large cooling area.
Carburetor
. Balanced idle system with fixed idle jet.*
. Fixed full-load jet
. Only one adjusting screw (LD)
Air filter
. Improved filter material
. Large filter surface area
Exhaust muffler
. Dual-chamber muffler
Easy start system
. Purge primer
. ElastoStart (standard on BG 85 and SH 85,
otherwise available as option)
Controls
. Multi-function handle
. Setting lever (BG 85 and SH 85) for
preselecting working RPM
* Balanced idle system is described in detail in the “Carburetors” handbook dated November 1998 or later.
TI_29_1999_30_03.fm Page 2 of 6

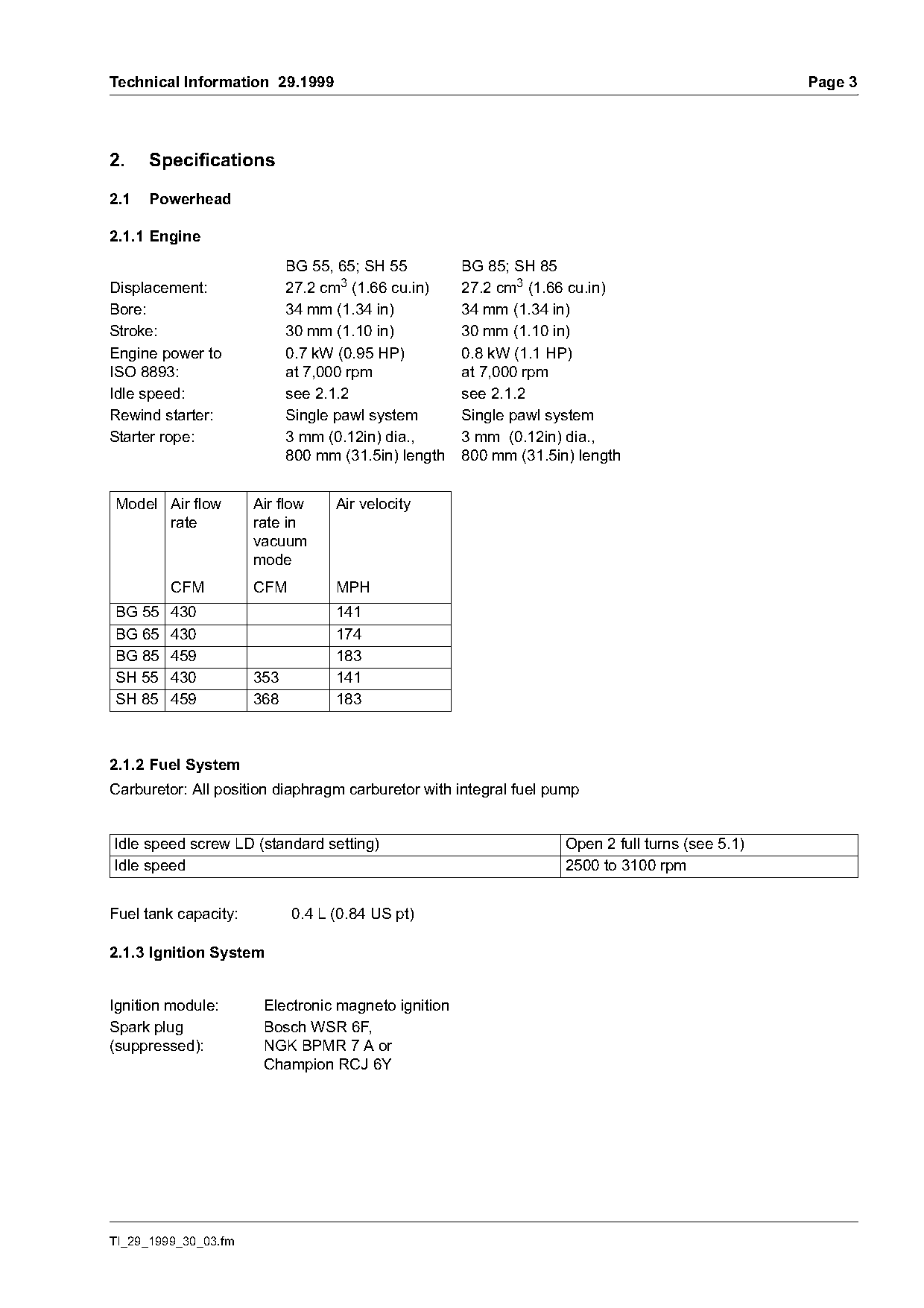

Technical Information 29.1999 Page 3
2. Specifications
2.1 Powerhead
2.1.1 Engine
BG 55, 65; SH 55 BG 85; SH 85
Displacement: 27.2 cm3 (1.66 cu.in) 27.2 cm3 (1.66 cu.in)
Bore: 34 mm (1.34 in) 34 mm (1.34 in)
Stroke: 30 mm (1.10 in) 30 mm (1.10 in)
Engine power to 0.7 kW (0.95 HP) 0.8 kW (1.1 HP)
ISO 8893: at 7,000 rpm at 7,000 rpm
Idle speed: see 2.1.2 see 2.1.2
Rewind starter: Single pawl system Single pawl system
Starter rope: 3 mm (0.12in) dia., 3 mm (0.12in) dia.,
800 mm (31.5in) length 800 mm (31.5in) length
Model Air flow Air flow Air velocity
rate rate in
vacuum
mode
CFM CFM MPH
BG 55 430 141
BG 65 430 174
BG 85 459 183
SH 55 430 353 141
SH 85 459 368 183
2.1.2 Fuel System
Carburetor: All position diaphragm carburetor with integral fuel pump
Idle speed screw LD (standard setting) Open 2 full turns (see 5.1)
Idle speed 2500 to 3100 rpm
Fuel tank capacity: 0.4 L (0.84 US pt)
2.1.3 Ignition System
Ignition module: Electronic magneto ignition
Spark plug Bosch WSR 6F,
(suppressed): NGK BPMR 7 A or
Champion RCJ 6Y
TI_29_1999_30_03.fm

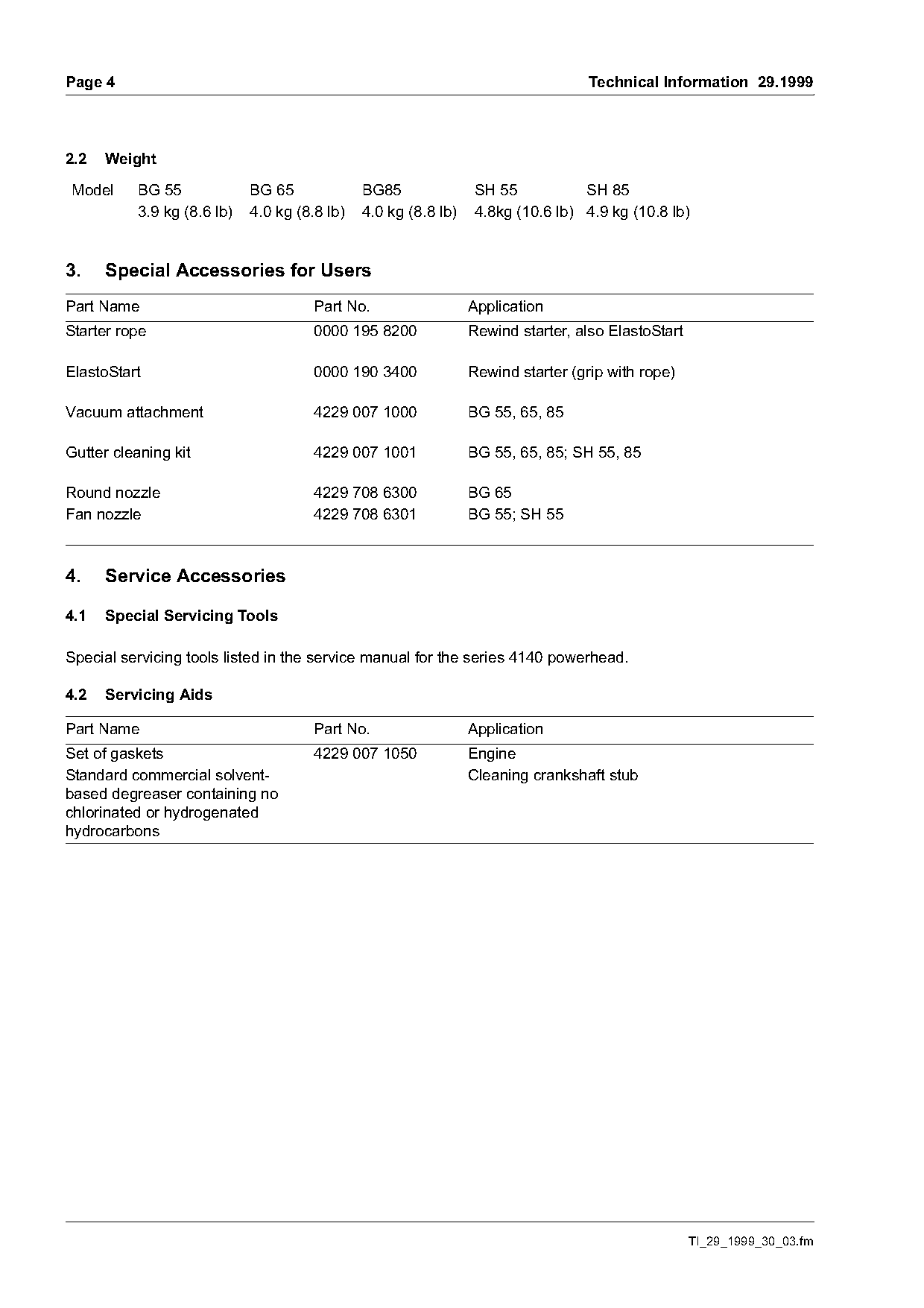

)m~ge 4 Technical Information 29.1999
2.2 Weight
Model BG 55 BG 65 BG85 SH 55 SH 85
3.9 kg (8.6 lb) 4.0 kg (8.8 lb) 4.0 kg (8.8 lb) 4.8kg (10.6 lb) 4.9 kg (10.8 lb)
3. Special Accessories for Users
Part Name Part No. Application
Starter rope 0000 195 8200 Rewind starter, also ElastoStart
ElastoStart 0000 190 3400 Rewind starter (grip with rope)
Vacuum attachment 4229 007 1000 BG 55, 65, 85
Gutter cleaning kit 4229 007 1001 BG 55, 65, 85; SH 55, 85
Round nozzle 4229 708 6300 BG 65
Fan nozzle 4229 708 6301 BG 55; SH 55
4. Service Accessories
4.1 Special Servicing Tools
Special servicing tools listed in the service manual for the series 4140 powerhead.
4.2 Servicing Aids
Part Name Part No. Application
Set of gaskets 4229 007 1050 Engine
Standard commercial solvent- Cleaning crankshaft stub
based degreaser containing no
chlorinated or hydrogenated
hydrocarbons
TI_29_1999_30_03.fm Page 3 of 6

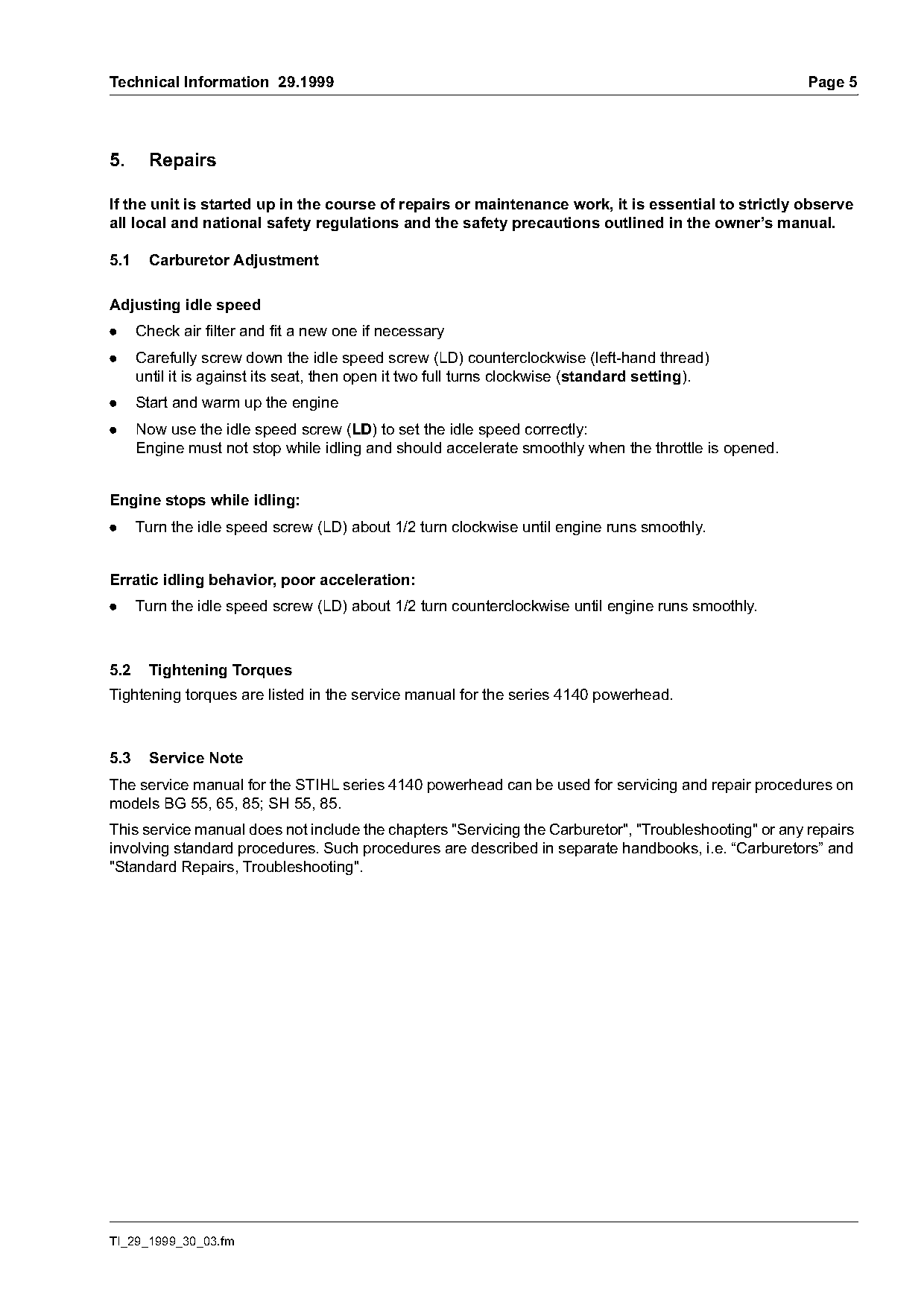

Technical Information 29.1999 Page 5
5. Repairs
If the unit is started up in the course of repairs or maintenance work, it is essential to strictly observe
all local and national safety regulations and the safety precautions outlined in the owner’s manual.
5.1 Carburetor Adjustment
Adjusting idle speed
. Check air filter and fit a new one if necessary
. Carefully screw down the idle speed screw (LD) counterclockwise (left-hand thread)
until it is against its seat, then open it two full turns clockwise (standard setting).
. Start and warm up the engine
. Now use the idle speed screw (LD) to set the idle speed correctly:
Engine must not stop while idling and should accelerate smoothly when the throttle is opened.
Engine stops while idling:
. Turn the idle speed screw (LD) about 1/2 turn clockwise until engine runs smoothly.
Erratic idling behavior, poor acceleration:
. Turn the idle speed screw (LD) about 1/2 turn counterclockwise until engine runs smoothly.
5.2 Tightening Torques
Tightening torques are listed in the service manual for the series 4140 powerhead.
5.3 Service Note
The service manual for the STIHL series 4140 powerhead can be used for servicing and repair procedures on
models BG 55, 65, 85; SH 55, 85.
This service manual does not include the chapters "Servicing the Carburetor", "Troubleshooting" or any repairs
involving standard procedures. Such procedures are described in separate handbooks, i.e. “Carburetors” and
"Standard Repairs, Troubleshooting".
TI_29_1999_30_03.fm

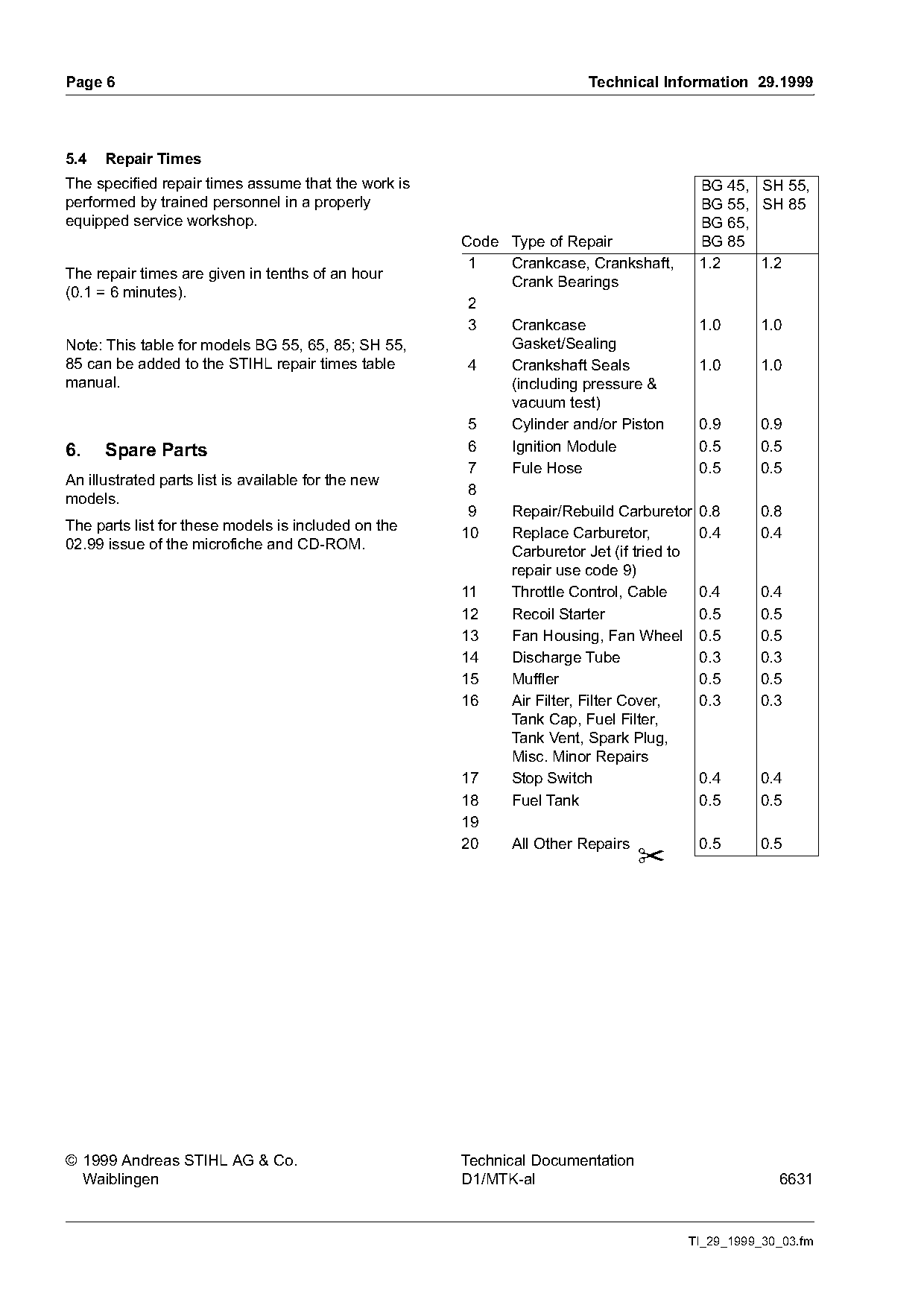

)m~ge 6 Technical Information 29.1999
5.4 Repair Times
The specified repair times assume that the work is BG 45, SH 55,
performed by trained personnel in a properly BG 55, SH 85
equipped service workshop. BG 65,
Code Type of Repair BG 85
1 Crankcase, Crankshaft, 1.2 1.2
The repair times are given in tenths of an hour Crank Bearings
(0.1 = 6 minutes).
2
3 Crankcase 1.0 1.0
Note: This table for models BG 55, 65, 85; SH 55, Gasket/Sealing
85 can be added to the STIHL repair times table 4 Crankshaft Seals 1.0 1.0
manual. (including pressure &
vacuum test)
5 Cylinder and/or Piston 0.9 0.9
6. Spare Parts 6 Ignition Module 0.5 0.5
7 Fule Hose 0.5 0.5
An illustrated parts list is available for the new
8
models.
9 Repair/Rebuild Carburetor 0.8 0.8
The parts list for these models is included on the 10 Replace Carburetor, 0.4 0.4
02.99 issue of the microfiche and CD-ROM. Carburetor Jet (if tried to
repair use code 9)
11 Throttle Control, Cable 0.4 0.4
12 Recoil Starter 0.5 0.5
13 Fan Housing, Fan Wheel 0.5 0.5
14 Discharge Tube 0.3 0.3
15 Muffler 0.5 0.5
16 Air Filter, Filter Cover, 0.3 0.3
Tank Cap, Fuel Filter,
Tank Vent, Spark Plug,
Misc. Minor Repairs
17 Stop Switch 0.4 0.4
18 Fuel Tank 0.5 0.5
19
20 All Other Repairs 0.5 0.5
✂
© 1999 Andreas STIHL AG & Co. Technical Documentation
Waiblingen D1/MTK-al 6631
