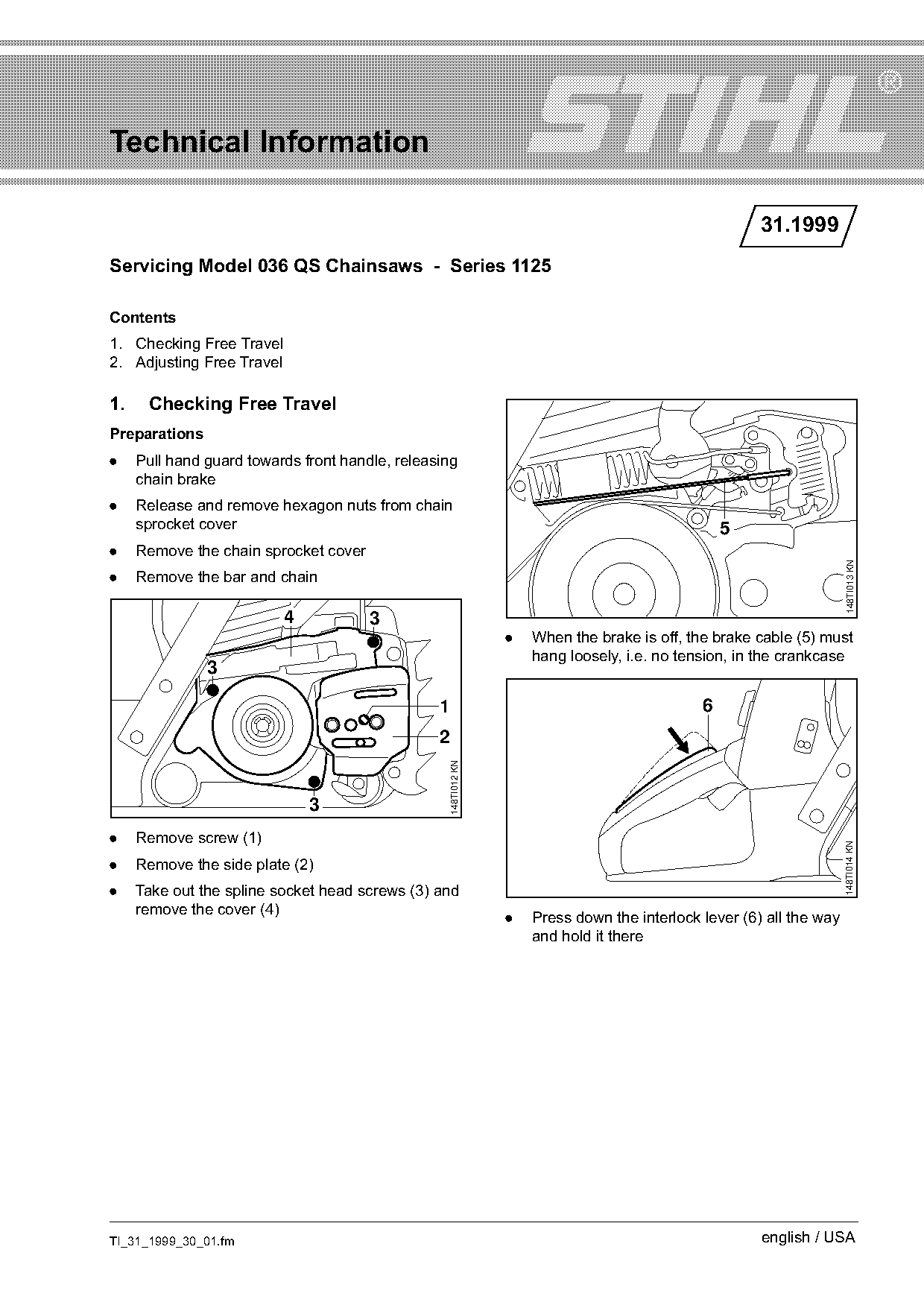

Servicing Model 036 QS Chainsaws - Series 1125
Contents
1. Checking Free Travel
2. Adjusting Free Travel
1. Checking Free Travel
Preparations
. Pull hand guard towards front handle, releasing
chain brake
. Release and remove hexagon nuts from chain
sprocket cover 5
. Remove the chain sprocket cover
148TI013 KN
. Remove the bar and chain
4 3
. When the brake is off, the brake cable (5) must
hang loosely, i.e. no tension, in the crankcase
3
1 6
2
148TI012 KN
3
. Remove screw (1)
148TI014 KN
. Remove the side plate (2)
. Take out the spline socket head screws (3) and
remove the cover (4)
. Press down the interlock lever (6) all the way
and hold it there
TI_31_1999_30_01.fm english / USA
)m~ge 2 Technical Information 31.1999

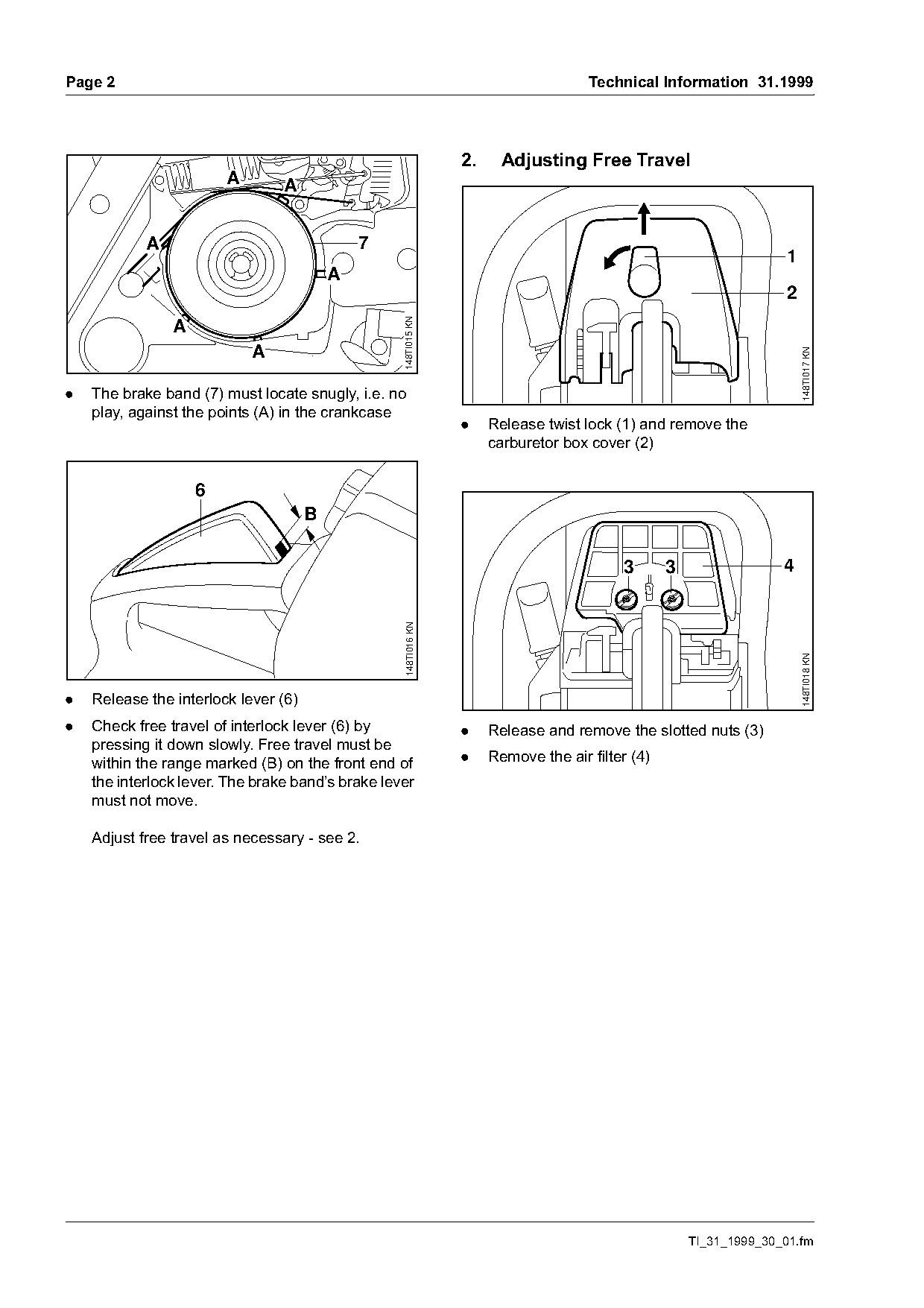

2. Adjusting Free Travel
A A
A 7
1
A
2
148TI015 KN
A
A
148TI017 KN
. The brake band (7) must locate snugly, i.e. no
play, against the points (A) in the crankcase
. Release twist lock (1) and remove the
carburetor box cover (2)
6
B
3 3 4
148TI016 KN
148TI018 KN
. Release the interlock lever (6)
. Check free travel of interlock lever (6) by . Release and remove the slotted nuts (3)
pressing it down slowly. Free travel must be
within the range marked (B) on the front end of . Remove the air filter (4)
the interlock lever. The brake band’s brake lever
must not move.
Adjust free travel as necessary - see 2.
TI_31_1999_30_01.fm Page 2 of 3
Technical Information 31.1999 Page 3
6
5
148TI019 KN

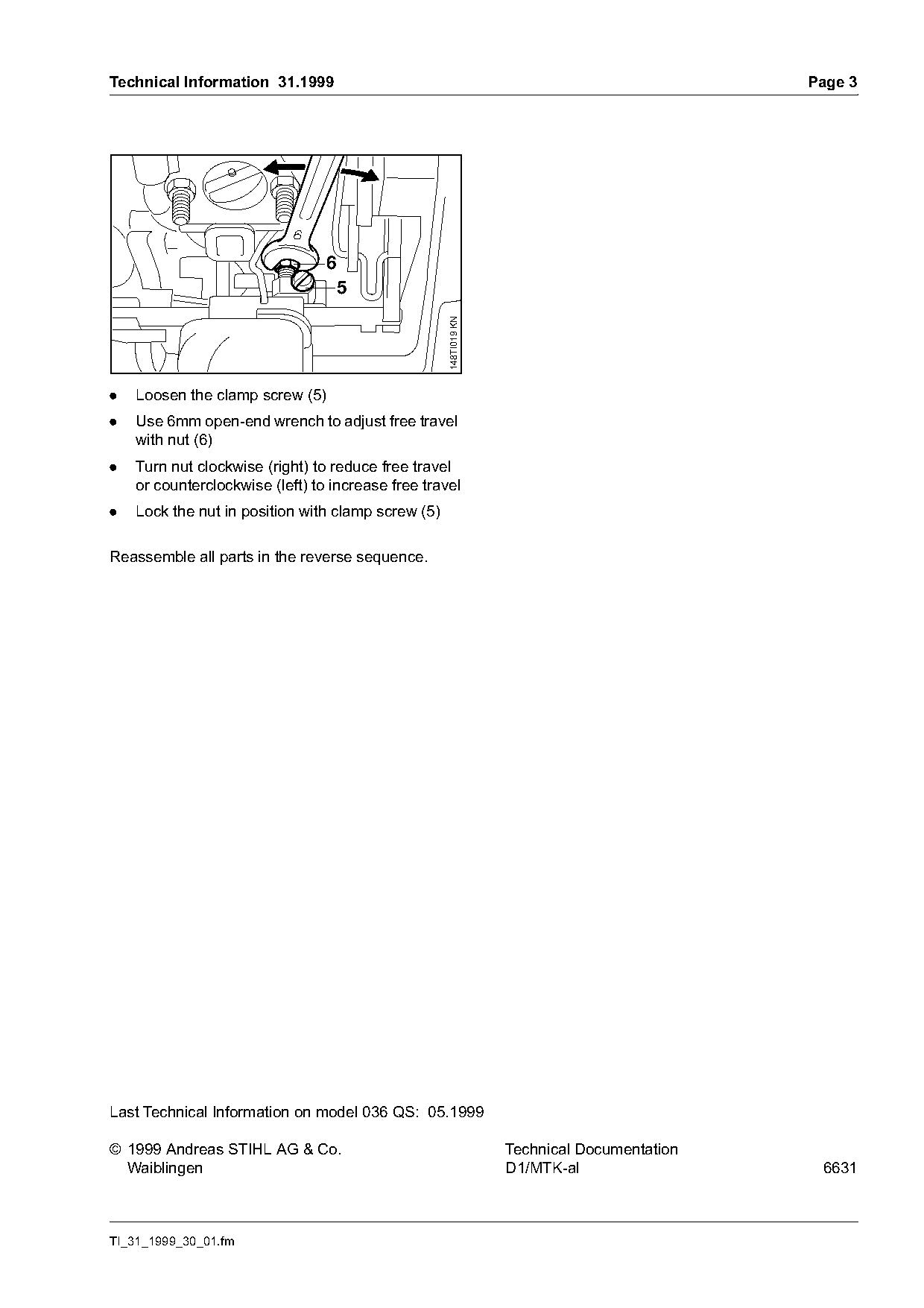

. Loosen the clamp screw (5)
. Use 6mm open-end wrench to adjust free travel
with nut (6)
. Turn nut clockwise (right) to reduce free travel
or counterclockwise (left) to increase free travel
. Lock the nut in position with clamp screw (5)
Reassemble all parts in the reverse sequence.
