Technical Information · issue 34 of 1999

FS 500, FS 550: New cutting tools; Clutch; Cutting

Model FS 500, 550 Clearing Saws

IssueTI 34/1999

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Conditional replacement · FS 500 / FS 550 / FS 160 / FS 180 / FS 220 / FS 280 / FS 400 / FS 450

Carbide 230-36 blade: required stop and exact model list

Blade 4000 713 4211 requires Stop Ø 225; resharpening specifies USG circular-saw tool rest and diamond wheel 5203 757 0901.

No exact-model IPL link: Exact historical blade/model/stop combination is retained as source-only guidance; no generic machine assembly or later blade sheet establishes the complete 1999 combination.

  • Section 1.3 introduces 4000 713 4211 for special cutting applications at or near ground level, where ground contact is possible, and in sandy areas. Tips are carbide brazed onto the cutting teeth. The source compares cutting performance to a chisel-tooth circular blade and claims up to ten times longer wear life under normal cutting conditions; this is not a measured guarantee.
  • Stop Ø 225 MUST be mounted with the circular saw blade. The source does not print a stop order number or give permission to substitute the shredder deflector. Blade designation 230-36 and stop designation Ø 225 are retained as printed, not corrected to match each other.
  • Resharpening specifies the STIHL USG with swivelling tool rest for circular saw blades and diamond grinding wheel 5203 757 0901. No grinding angles, feed settings, removal limits or undocumented USG setup is invented.
  • The heading supplies FS 500 and FS 550; the explicit additional approval names only FS 160, FS 180, FS 220, FS 280, FS 400 and FS 450. FS 360/420 in section 2 apply to the clutch change, not this blade approval. L, K and other variants are not added from catalog group headings.
  • Complete page 2 drawing 398TI019 SC identifies the circular blade as item 3; page 3 summary lists it as a new part. Introduction is in progress, without a blade serial cutoff.
  • Historical TI34/1999 evidence only; availability and performance claims are dated source statements, not current stock or measured performance. Grouped IPL navigation does not add FS 550 L or other unlisted variants. No hardware operation or physical interchange verification.

Source: TI 34/1999, p. 2 · TI 34/1999, p. 3 — Carbide 230-36 blade: required stop and exact model list; complete relevant text, drawings and table rows.

Part numbers (2)
  • 4000 713 4211 — Carbide-tipped circular saw blade 230-36New; summary item 3 · FS 500 / FS 550 plus FS 160 / FS 180 / FS 220 / FS 280 / FS 400 / FS 450
  • 5203 757 0901 — Diamond grinding wheelResharpening with USG and circular-saw swivelling tool rest · Specified 230-36 blade sharpening setup

Full text

Page 1 of 4

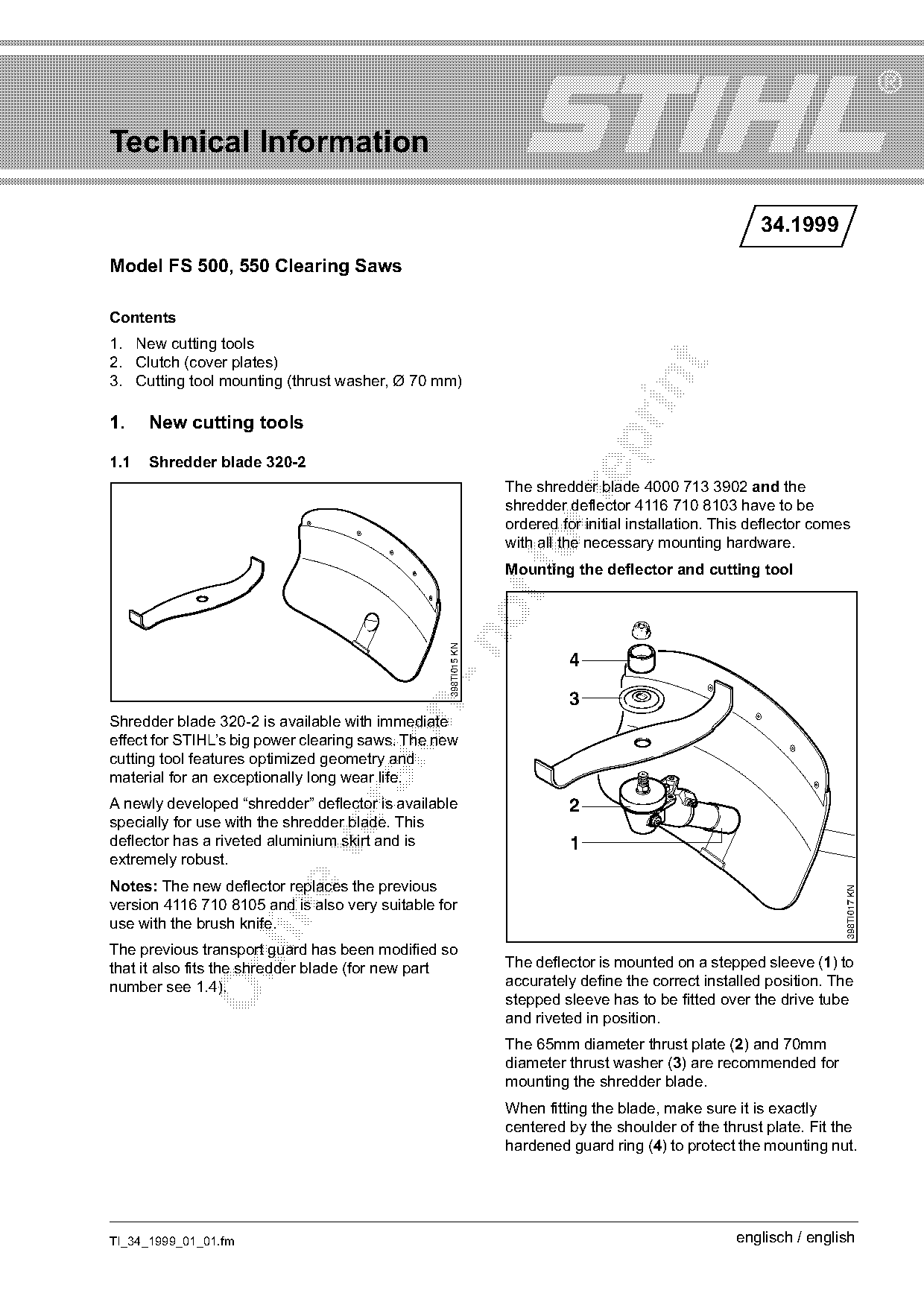

TI 34/1999 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                       34.1999
Model FS 500, 550 Clearing Saws

Contents
1. New cutting tools
2. Clutch (cover plates)

3. Cutting tool mounting (thrust washer, Ø 70 mm)

1.    New cutting tools

1.1   Shredder blade 320-2
                                                                The shredder blade 4000 713 3902 and the

                                                                shredder deflector 4116 710 8103 have to be
                                                                ordered for initial installation. This deflector comes
                                                                with all the necessary mounting hardware.
                                                                Mounting the deflector and cutting tool
                                               -n 398TI015 KN



Shredder blade 320-2 is available with immediate

effect for STIHL’s big power clearing saws. The new
cutting tool features optimized geometry and
material for an exceptionally long wear life.
A newly developed “shredder” deflector is available

                                                                         2
specially for use with the shredder blade. This
deflector has a riveted aluminium skirt and is                            1

extremely robust.
Notes: The new deflector replaces the previous
                                                                                                                     398TI017 KN

version 4116 710 8105 and is also very suitable for

use with the brush knife.
The previous transport guard has been modified so
                                                                The deflector is mounted on a stepped sleeve (1) to

that it also fits the shredder blade (for new part
number see 1.4).                                                accurately define the correct installed position. The
                                                                stepped sleeve has to be fitted over the drive tube
                                                                and riveted in position.
                                                                The 65mm diameter thrust plate (2) and 70mm
                                                                diameter thrust washer (3) are recommended for
                                                                mounting the shredder blade.
                                                                When fitting the blade, make sure it is exactly
                                                                centered by the shoulder of the thrust plate. Fit the
                                                                hardened guard ring (4) to protect the mounting nut.

TI_34_1999_01_01.fm                                                                                 englisch / english

Page 2 of 4

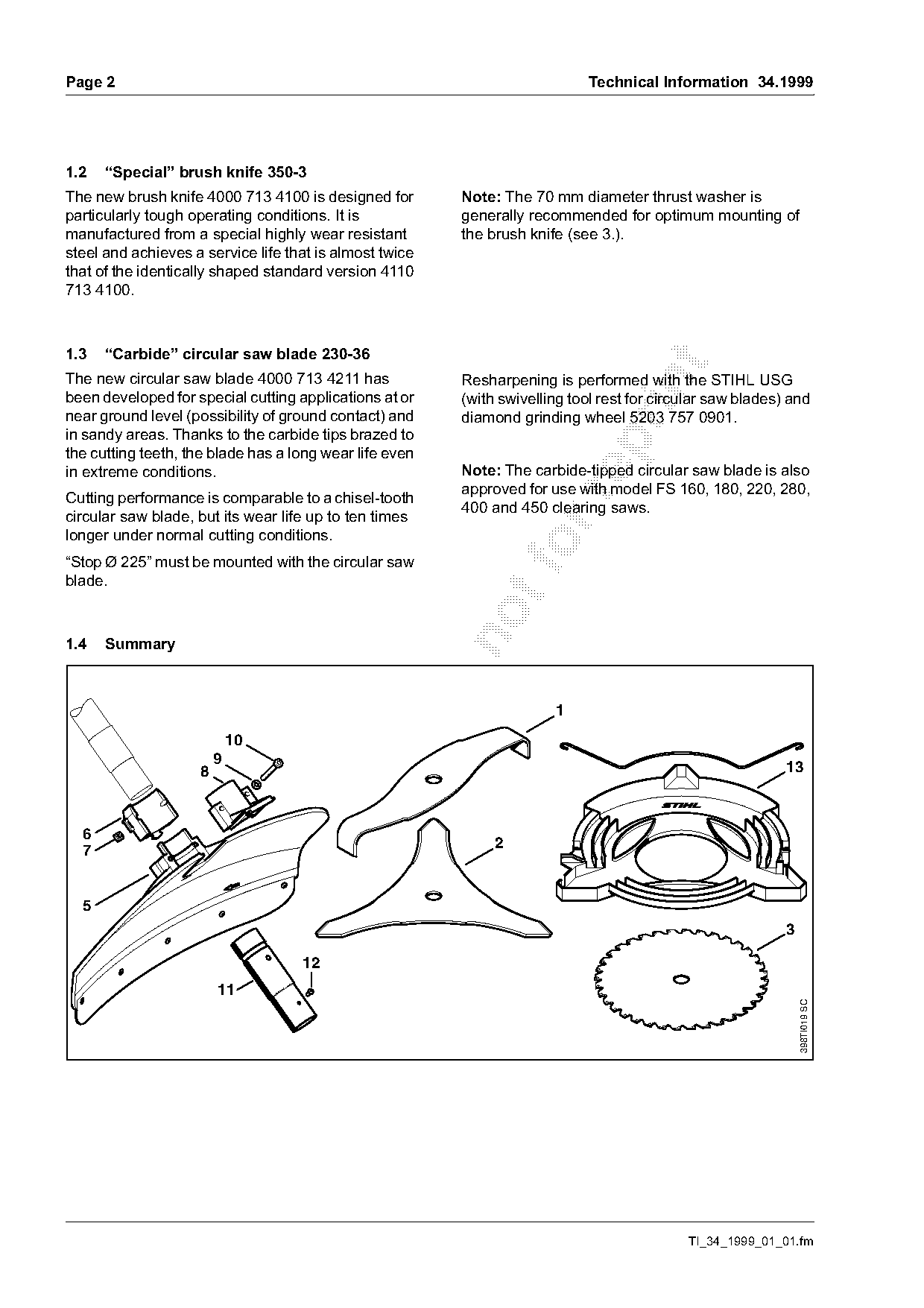

TI 34/1999 page 2
Text of page 2 — search, copy, screen readers
Page 2                                                                       Technical Information 34.1999

1.2   “Special” brush knife 350-3
The new brush knife 4000 713 4100 is designed for        Note: The 70 mm diameter thrust washer is
particularly tough operating conditions. It is           generally recommended for optimum mounting of
manufactured from a special highly wear resistant        the brush knife (see 3.).
steel and achieves a service life that is almost twice
that of the identically shaped standard version 4110
713 4100.

1.3   “Carbide” circular saw blade 230-36

The new circular saw blade 4000 713 4211 has             Resharpening is performed with the STIHL USG

been developed for special cutting applications at or    (with swivelling tool rest for circular saw blades) and
near ground level (possibility of ground contact) and    diamond grinding wheel 5203 757 0901.
in sandy areas. Thanks to the carbide tips brazed to

the cutting teeth, the blade has a long wear life even
in extreme conditions.                                   Note: The carbide-tipped circular saw blade is also
                                                         approved for use with model FS 160, 180, 220, 280,

Cutting performance is comparable to a chisel-tooth
                                                         400 and 450 clearing saws.
circular saw blade, but its wear life up to ten times
longer under normal cutting conditions.
“Stop Ø 225” must be mounted with the circular saw
blade.

1.4   Summary


                            10
                        9
                    8                                                                                       13

  6
                                                              2




                                    12
                        11
                                                                                                                398TI019 SC

                                                                                            TI_34_1999_01_01.fm

Page 3 of 4

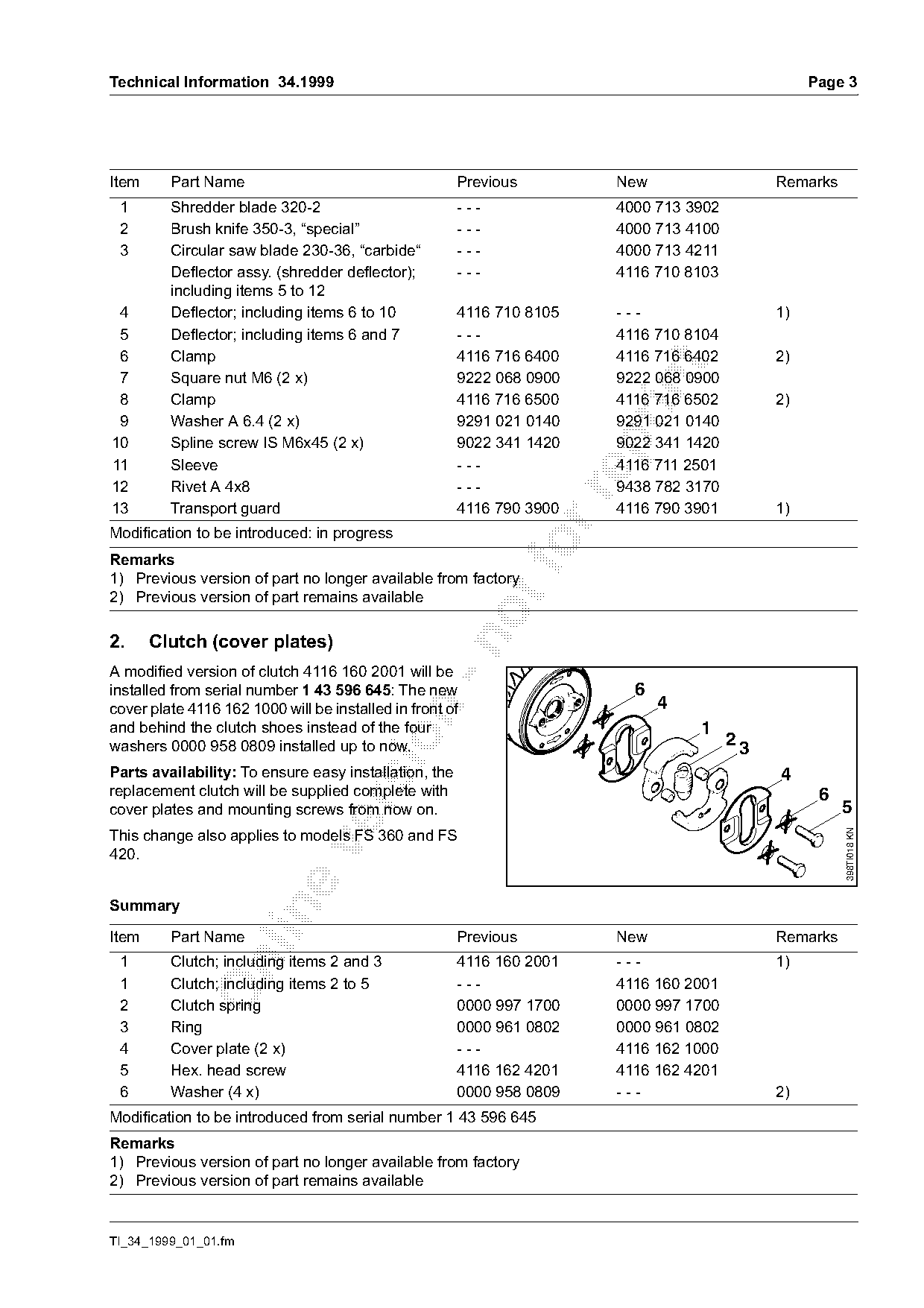

TI 34/1999 page 3
Text of page 3 — search, copy, screen readers
Technical Information 34.1999                                                                     Page 3

Item     Part Name                                     Previous         New                  Remarks
 1       Shredder blade 320-2                          ---              4000 713 3902
 2       Brush knife 350-3, “special”                  ---              4000 713 4100
 3       Circular saw blade 230-36, “carbide“          ---              4000 713 4211
         Deflector assy. (shredder deflector);         ---              4116 710 8103
         including items 5 to 12
 4       Deflector; including items 6 to 10            4116 710 8105    ---                  1)
 5       Deflector; including items 6 and 7            ---              4116 710 8104
 6       Clamp                                         4116 716 6400    4116 716 6402        2)

 7       Square nut M6 (2 x)                           9222 068 0900    9222 068 0900

 8       Clamp                                         4116 716 6500    4116 716 6502        2)
 9       Washer A 6.4 (2 x)                            9291 021 0140    9291 021 0140

10       Spline screw IS M6x45 (2 x)                   9022 341 1420    9022 341 1420
11       Sleeve                                        ---              4116 711 2501
12       Rivet A 4x8                                   ---              9438 782 3170

13       Transport guard                               4116 790 3900    4116 790 3901        1)
Modification to be introduced: in progress
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available

2.     Clutch (cover plates)

A modified version of clutch 4116 160 2001 will be
installed from serial number 1 43 596 645: The new                        6
cover plate 4116 162 1000 will be installed in front of                       4

and behind the clutch shoes instead of the four                                   1

washers 0000 958 0809 installed up to now.                                              23
Parts availability: To ensure easy installation, the                                         4
replacement clutch will be supplied complete with                                                  6

cover plates and mounting screws from now on.                                                          5
This change also applies to models FS 360 and FS
                                                                                                       398TI018 KN

420.

Summary

Item     Part Name                                     Previous         New                  Remarks
 1       Clutch; including items 2 and 3               4116 160 2001    ---                  1)

 1       Clutch; including items 2 to 5                ---              4116 160 2001
 2       Clutch spring                                 0000 997 1700    0000 997 1700
 3       Ring                                          0000 961 0802    0000 961 0802
 4       Cover plate (2 x)                             ---              4116 162 1000
 5       Hex. head screw                               4116 162 4201    4116 162 4201
 6       Washer (4 x)                                  0000 958 0809    ---                  2)
Modification to be introduced from serial number 1 43 596 645
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available

TI_34_1999_01_01.fm

Page 4 of 4

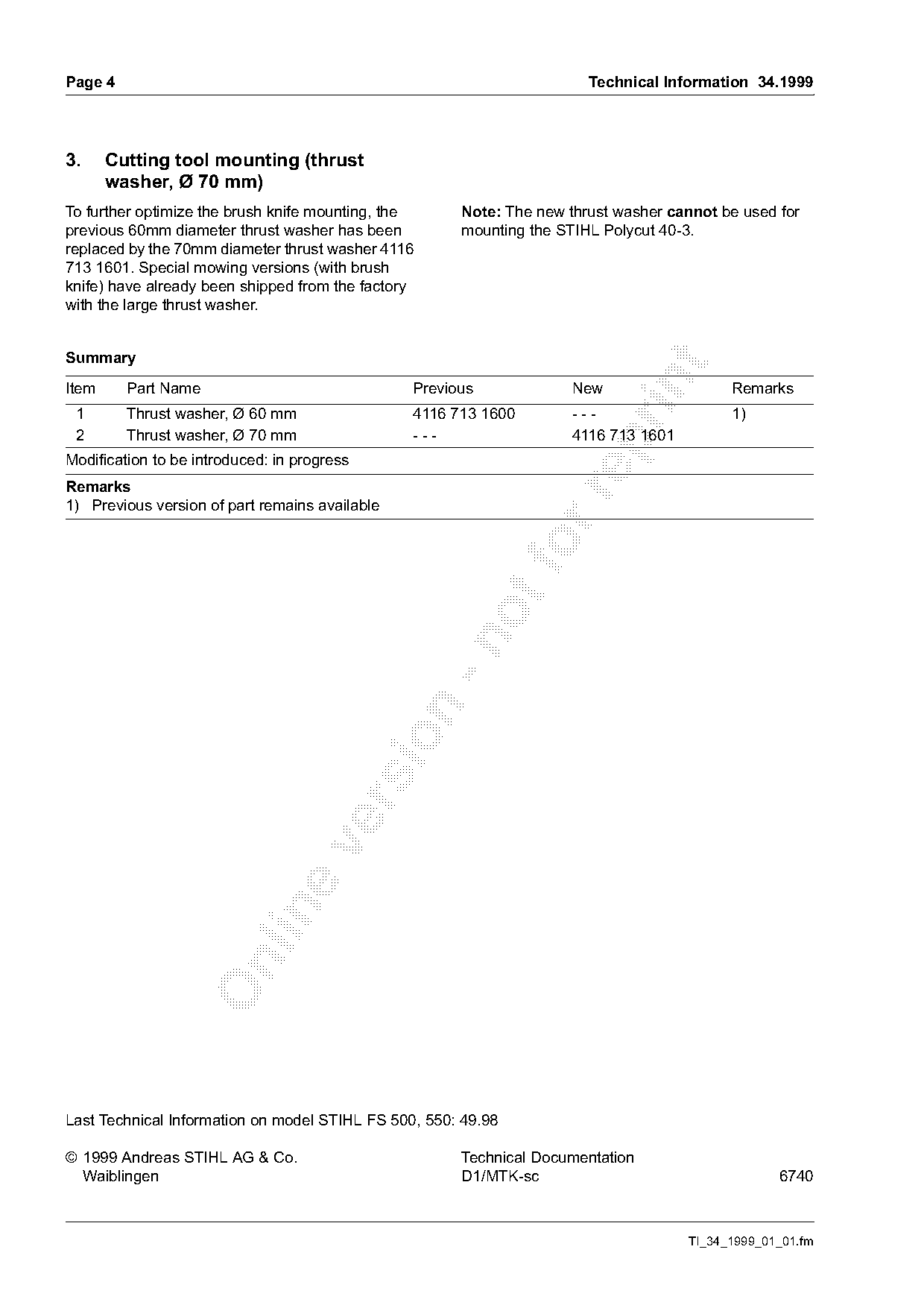

TI 34/1999 page 4
Text of page 4 — search, copy, screen readers
Page 4                                                                 Technical Information 34.1999

3.     Cutting tool mounting (thrust
       washer, Ø 70 mm)
To further optimize the brush knife mounting, the     Note: The new thrust washer cannot be used for
previous 60mm diameter thrust washer has been         mounting the STIHL Polycut 40-3.
replaced by the 70mm diameter thrust washer 4116
713 1601. Special mowing versions (with brush
knife) have already been shipped from the factory
with the large thrust washer.

Summary

Item     Part Name                              Previous             New                   Remarks
 1       Thrust washer, Ø 60 mm                 4116 713 1600        ---                   1)
 2       Thrust washer, Ø 70 mm                 ---                  4116 713 1601

Modification to be introduced: in progress
Remarks

1) Previous version of part remains available

Last Technical Information on model STIHL FS 500, 550: 49.98

© 1999 Andreas STIHL AG & Co.                         Technical Documentation
  Waiblingen                                          D1/MTK-sc                                   6740

                                                                                     TI_34_1999_01_01.fm
