Technical Information · issue 38 of 1999

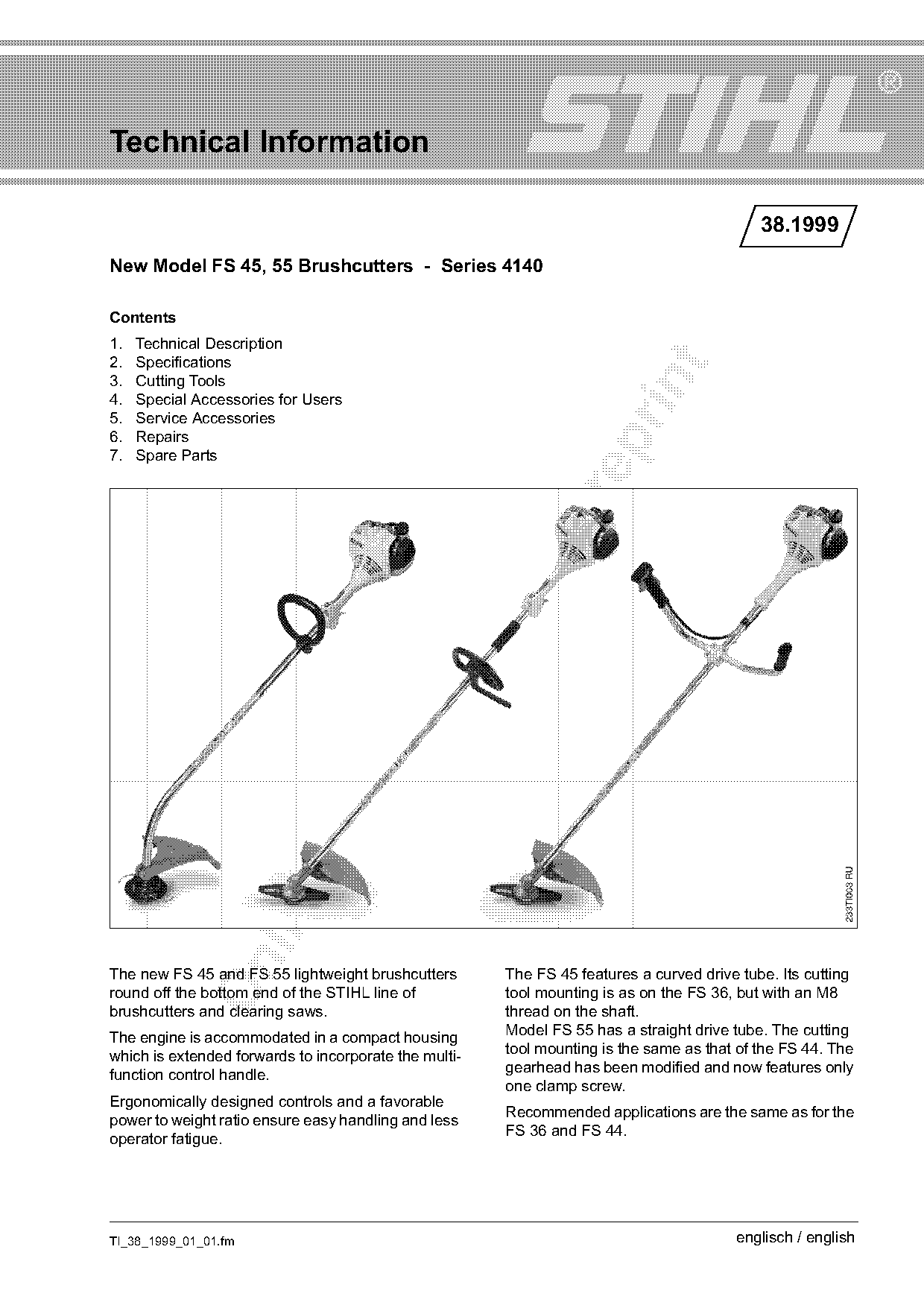

New Model Brushcutters

Model FS 55 has a straight drive tube. The cutting

IssueTI 38/1999

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · FS 45 / FS 55 / FS 55 R

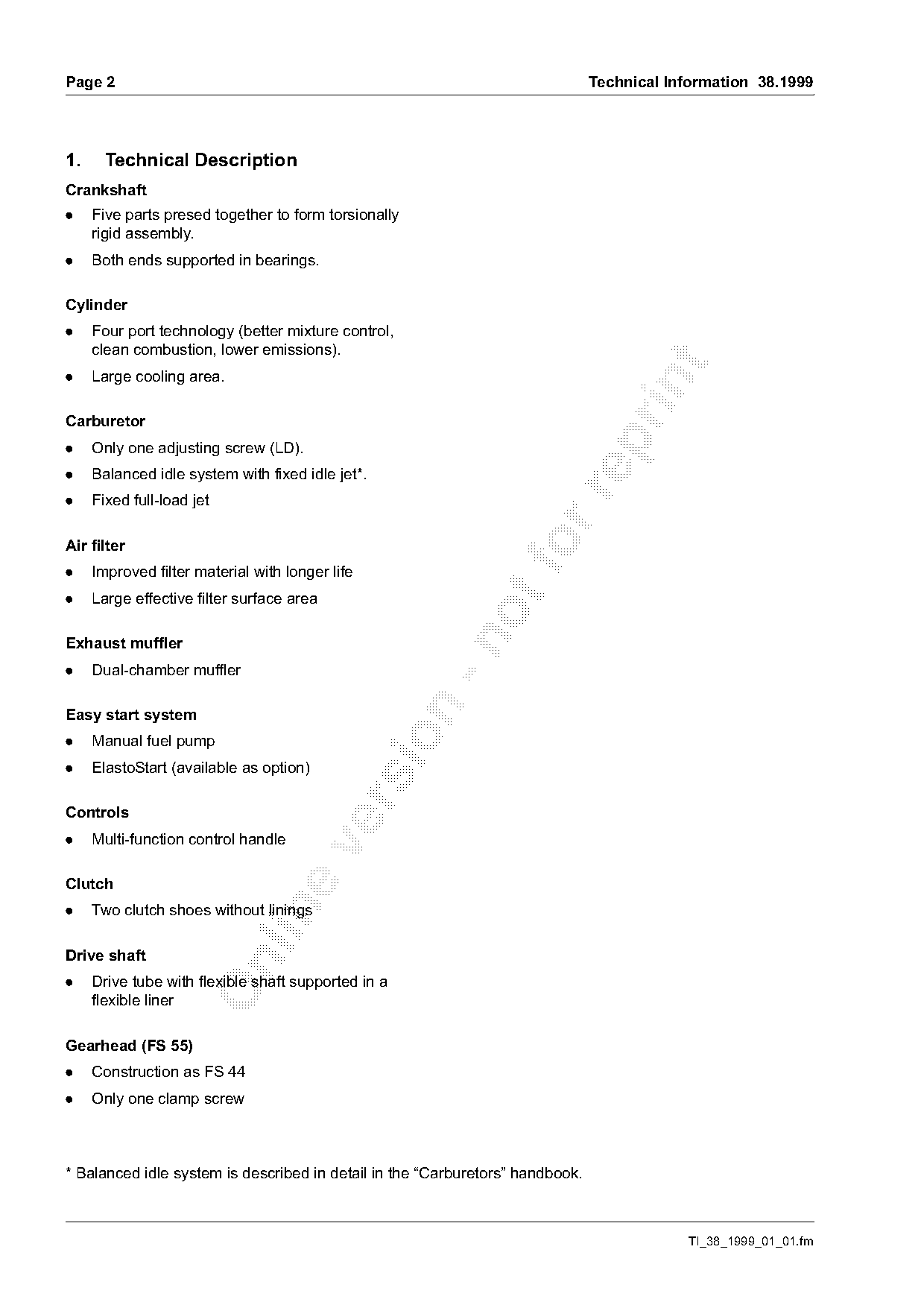

FS 45 / FS 55: curved versus straight drive and LD-only carburetor

The M8 curved-shaft mounting and single-clamp straight-shaft gearhead are distinct configurations.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • FS 45 has a curved drive tube; the cutting-tool mounting is described as on FS 36 but with an M8 shaft thread. FS 55 has a straight tube and mounting as on FS 44, with a modified gearhead using only one clamp screw. These comparisons do not prove interchangeable shafts, gearheads or complete cutting systems.
  • The introductory illustration shows curved-tube loop-handle and straight-tube loop/bike-handle arrangements. It supplies no dimensions or additional attachment approvals. Recommended applications are compared with FS 36/44; handling and power-to-weight statements are qualitative.
  • The compact engine housing extends into the multi-function control handle. Five pressed-together crankshaft parts form a torsionally rigid assembly supported by bearings at both ends. The four-port cylinder has a large cooling area; better mixture control, cleaner combustion and lower emissions are qualitative source claims, not measured ratings.
  • Carburetor: one LD adjusting screw, balanced idle with fixed idle jet, fixed full-load jet. Air filter: improved material and large effective area; no maintenance interval is supplied. Dual-chamber muffler; manual fuel pump; optional ElastoStart. Clutch: two shoes without linings. Flexible drive shaft supported in a flexible liner.
  • The page2 footnote delegates detailed balanced-idle explanation to the separate Carburetors handbook. That detailed-explanation dependency is resolved by the separately reviewed FS45/55 balanced-idle bypass-flow note (Carburetors5.2.4); section6.3 servicing remains pending. No additional jet geometry is inferred.
  • The page2 footnote delegates detailed balanced-idle explanation to Carburetors. The separately reviewed FS45/55 balanced-idle bypass-flow note supplies section5.2.4, including PDF16 continuation. Exact handbook edition remains unknown; this TI38 footnote does not impose the dated-edition requirement printed in TI02/TI29. Carburetor servicing under section6.3 remains pending.

Source: TI 38/1999, p. 1 · TI 38/1999, p. 2 — FS 45 / FS 55: curved versus straight drive and LD-only carburetor.

No additional parts-table entry added.

Service note · FS 45 / FS 55 / FS 55 R

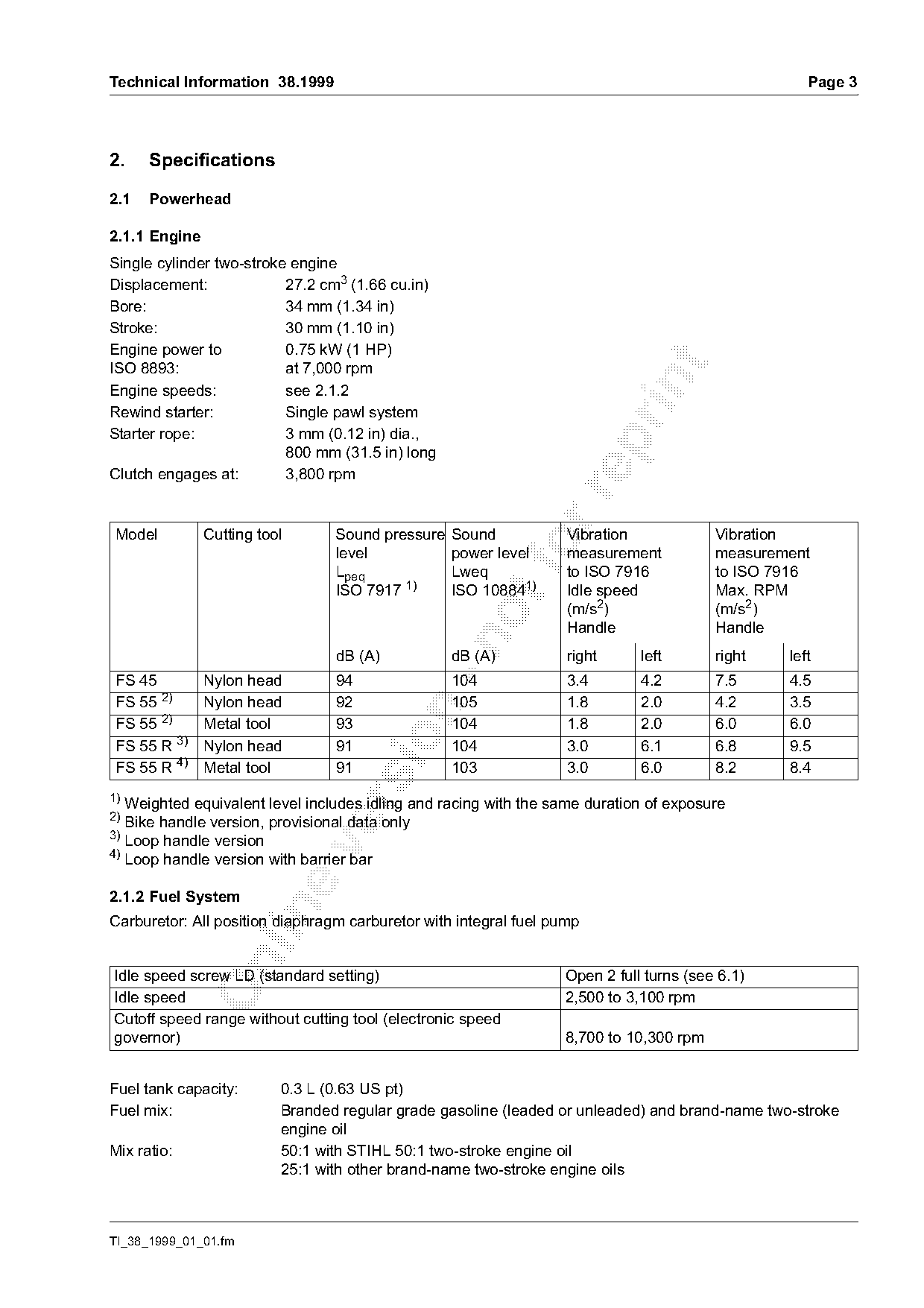

FS 45 / FS 55: printed engine and starter specifications

Retain the printed 30 mm / 1.10 in stroke discrepancy; clutch engagement is not an idle-speed target.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • Single-cylinder two-stroke: 27.2 cm³ (1.66 cu.in), bore 34 mm (1.34 in), stroke printed 30 mm (1.10 in). The stroke units are inconsistent; preserve both as printed, without silently correcting the source or treating 1.10 in as a measured conversion.
  • ISO 8893 engine power: 0.75 kW (1 HP) at 7,000 rpm. Single-pawl rewind starter; rope diameter 3 mm (0.12 in), length 800 mm (31.5 in). Clutch engagement at 3,800 rpm is separate from idle and the no-cutting-tool electronic cutoff range.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 3 — FS 45 / FS 55: printed engine and starter specifications.

No additional parts-table entry added.

Service note · FS 45 / FS 55 / FS 55 R

FS 45 / FS 55: five handle-specific sound and vibration rows

Bike-handle figures are provisional; FS 55 R metal-tool data requires a barrier bar.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • Table order below: sound pressure Lpeq / sound power Lweq in dB(A); idle right/left handle vibration; maximum-rpm right/left vibration in m/s². Standards are ISO 7917, ISO 10884 and ISO 7916 respectively. Weighted equivalent sound includes idling and racing with equal exposure duration, not an arbitrary average across tools.
  • FS 45, nylon head: 94 / 104 dB(A); idle 3.4 / 4.2 m/s²; maximum rpm 7.5 / 4.5 m/s².
  • FS 55 bike handle, nylon head: 92 / 105 dB(A); idle 1.8 / 2.0 m/s²; maximum rpm 4.2 / 3.5 m/s². Provisional data only.
  • FS 55 bike handle, metal tool: 93 / 104 dB(A); idle 1.8 / 2.0 m/s²; maximum rpm 6.0 / 6.0 m/s². Provisional data only.
  • FS 55 R loop handle, nylon head: 91 / 104 dB(A); idle 3.0 / 6.1 m/s²; maximum rpm 6.8 / 9.5 m/s².
  • FS 55 R loop handle WITH barrier bar, metal tool: 91 / 103 dB(A); idle 3.0 / 6.0 m/s²; maximum rpm 8.2 / 8.4 m/s². The nylon-head and metal-tool left-hand idle values differ; do not normalize them or remove the barrier-bar condition.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 3 — FS 45 / FS 55: five handle-specific sound and vibration rows.

No additional parts-table entry added.

Service note · FS 45 / FS 55 / FS 55 R

FS 45 / FS 55: fuel mixture and conditional speed ranges

The 8,700–10,300 rpm cutoff applies without a cutting tool, not to working speed or idle.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • All-position diaphragm carburetor with integral fuel pump. Idle speed 2,500–3,100 rpm. Electronic-governor cutoff speed range WITHOUT CUTTING TOOL: 8,700–10,300 rpm. This test condition is not a working-speed target or authorization to operate hardware.
  • Fuel tank: 0.3 L (0.63 US pt). Historical fuel specification: branded regular gasoline, leaded or unleaded, and brand-name two-stroke engine oil; 50:1 with STIHL 50:1 two-stroke oil, 25:1 with other brand-name two-stroke oils. Preserve the oil-dependent distinction, not a universal present-day fuel recommendation.
  • Page3 LD standard setting is two full turns open; section6.1 clarifies LEFT-HAND thread, counterclockwise seating and clockwise opening, with the cutting tool mounted and air filter checked. The no-cutting-tool cutoff condition does not replace those adjustment preconditions.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 3 · TI 38/1999, p. 6 — FS 45 / FS 55: fuel mixture and conditional speed ranges.

No additional parts-table entry added.

Service note · FS 45 / FS 55 / FS 55 R

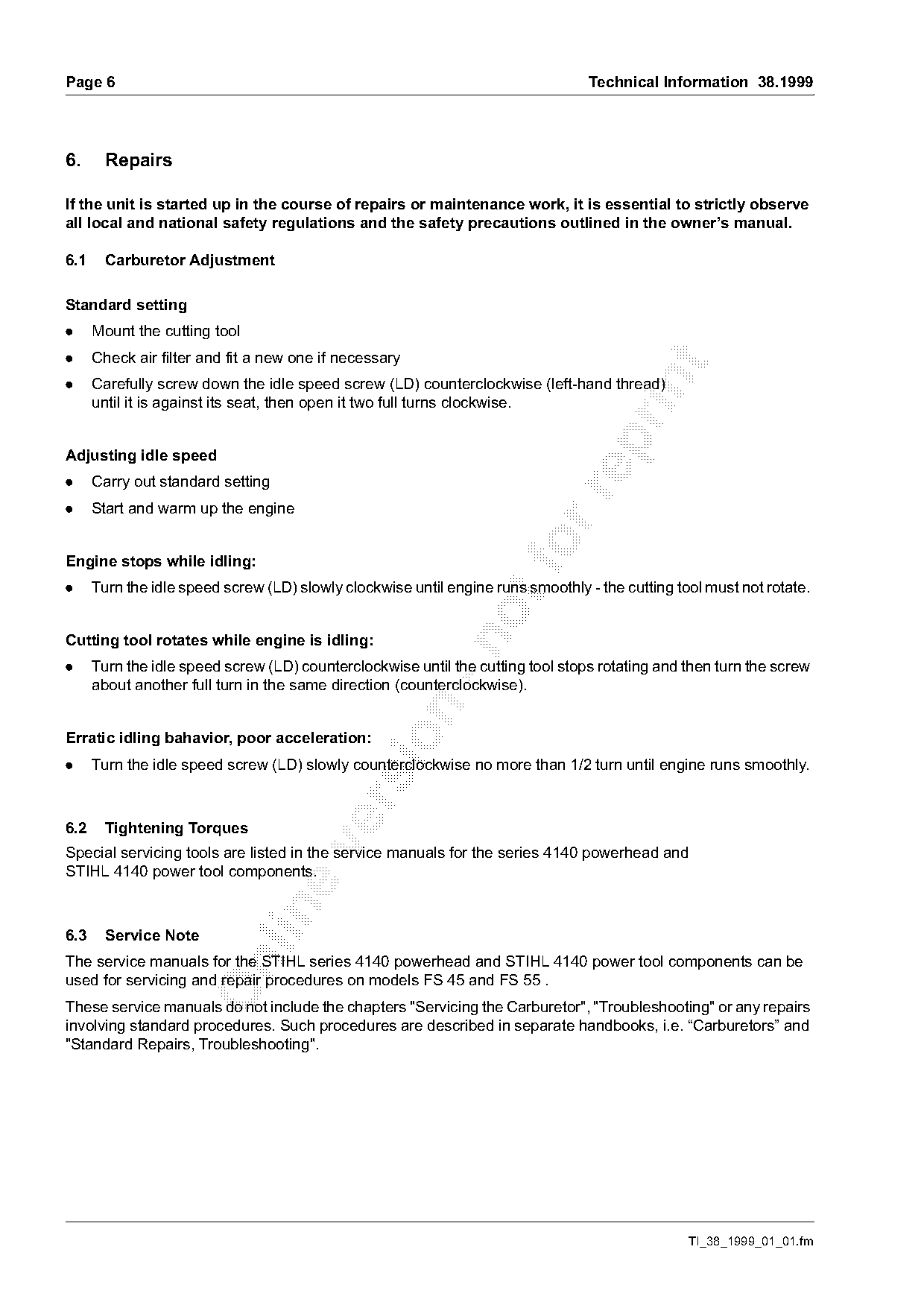

FS 45 / FS 55: left-hand LD adjustment and stationary cutting tool

Seat LD counterclockwise, open two turns clockwise; the two counterclockwise idle corrections have different limits.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • Section6 requires observing all local/national safety regulations and the owner-manual precautions if started during repairs or maintenance. This historical procedure does not substitute for that manual; exact owner/manual dependencies are now dispositioned as named source gaps.
  • Standard setting: mount the cutting tool, check the air filter and renew if necessary. Carefully seat LD COUNTERCLOCKWISE (left-hand thread), then open two full turns CLOCKWISE. For idle adjustment perform the standard setting and warm the engine.
  • If the engine stops at idle, turn LD slowly clockwise until it runs smoothly; the cutting tool MUST NOT rotate.
  • If the cutting tool rotates at idle, turn LD counterclockwise until it stops, then approximately one further full turn counterclockwise.
  • For erratic idle/poor acceleration, turn LD slowly counterclockwise NO MORE THAN 1/2 TURN until smooth. This limit is distinct from the extra full turn in the rotating-tool correction. No H/L setting or procedure for a later adjustable-jet carburetor is inferred.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 6 — FS 45 / FS 55: left-hand LD adjustment and stationary cutting tool.

No additional parts-table entry added.

Service note · FS 45 / FS 55 / FS 55 R

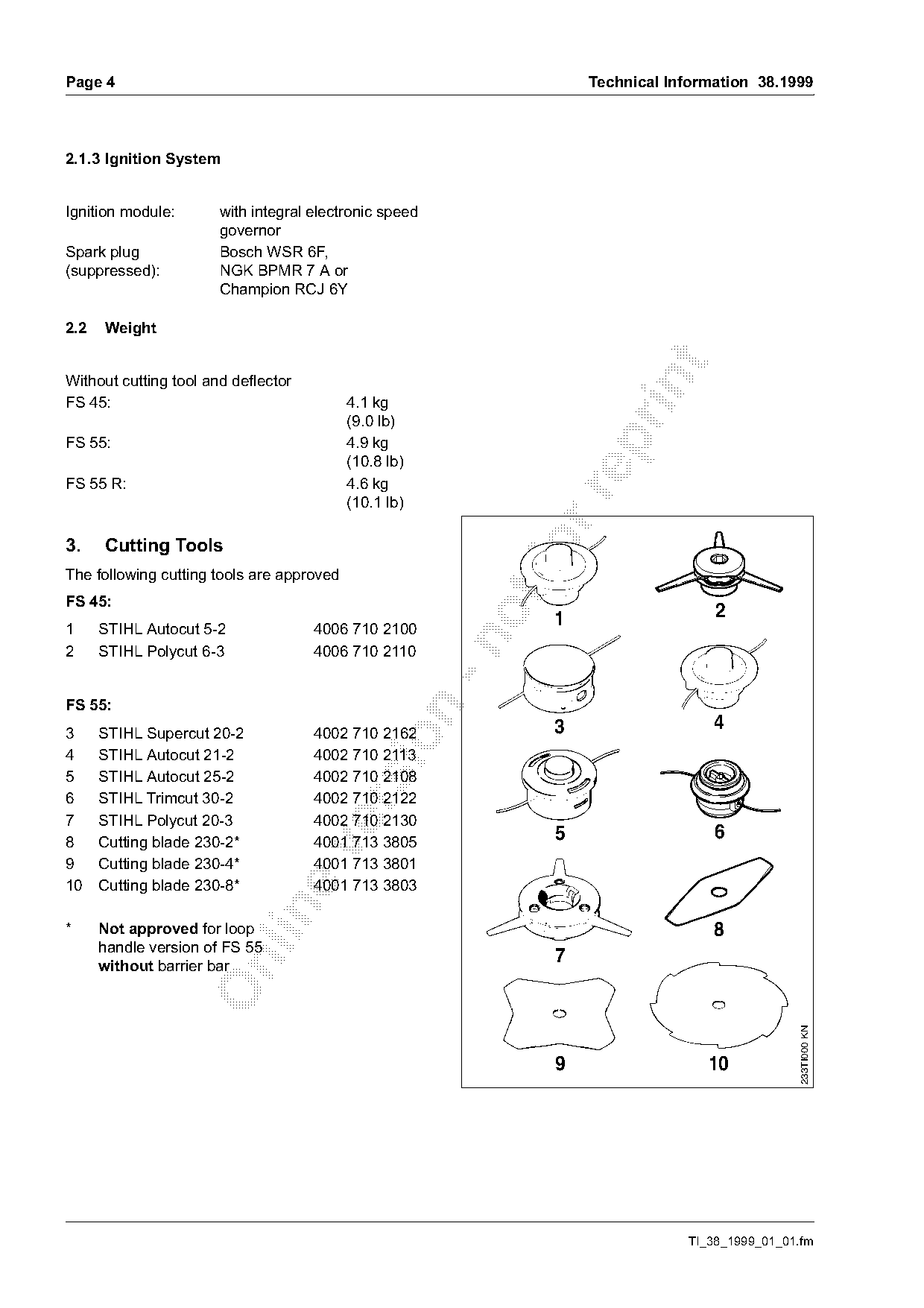

FS 45 / FS 55: suppressed plugs and weight exclusions

Printed weights exclude both cutting tool and deflector; the ignition module includes electronic governing.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • Ignition module incorporates the electronic speed governor. Suppressed spark plugs listed are Bosch WSR 6F, NGK BPMR 7 A or Champion RCJ 6Y. No electrode gap or ignition timing is stated on this page.
  • Without cutting tool AND deflector: FS 45 4.1 kg (9.0 lb); FS 55 4.9 kg (10.8 lb); FS 55 R 4.6 kg (10.1 lb). These are not fully equipped operating weights; do not erase the handle-variant difference.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 4 — FS 45 / FS 55: suppressed plugs and weight exclusions.

No additional parts-table entry added.

Service note · FS 45

FS 45: TI38 AutoCut 5-2 and PolyCut 6-3 list

TI38 lists two FS 45 heads; the earlier TI02 single-head list remains separate historical evidence.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • Drawing233TI000 KN items1–2 correspond to AutoCut5-2 and PolyCut6-3. The curved-shaft M8 mounting is FS45-specific; the FS55 metal-blade entries do not apply to FS45.
  • TI02/1999 listed AutoCut5-2 alone. TI38/1999 lists AutoCut5-2 and PolyCut6-3; retain both source-specific lists without claiming a serial changeover, retroactive TI02 approval, supersession or current approval. The drawings add no unprinted adapter or deflector specification.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 1 · TI 38/1999, p. 4 — FS 45: TI38 AutoCut 5-2 and PolyCut 6-3 list.

Part numbers (2)
  • 4006 710 2100 — STIHL AutoCut 5-2TI38/1999 listed cutting tool, drawing item 1 · FS 45 only in this TI list
  • 4006 710 2110 — STIHL PolyCut 6-3TI38/1999 listed cutting tool, drawing item 2 · FS 45 only in this TI list

Service note · FS 55 / FS 55 R

FS 55: eight cutting tools and mandatory barrier-bar boundary

The three 230 mm metal blades are not approved for a loop handle without a barrier bar.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • Drawing233TI000 KN items3–10 map in order to the eight listed FS55 tools. Items8,9,10 are the three starred metal cutting blades; NOT approved for loop-handle FS55 WITHOUT barrier bar. This does not approve arbitrary other metal tools or conversion hardware.
  • The FS55 straight-tube, one-clamp gearhead comparison to FS44 does not establish unrestricted interchange. The page3 FS55 R metal-tool vibration row likewise specifies loop handle WITH barrier bar; bike-handle acoustic/vibration values remain provisional.
  • Original drawing silhouettes and item numbers were visually reconciled with every table row. No adapter, thrust plate, deflector order number, mounting torque or additional configuration is inferred from illustration scale.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 1 · TI 38/1999, p. 3 · TI 38/1999, p. 4 — FS 55: eight cutting tools and mandatory barrier-bar boundary.

Part numbers (8)
  • 4002 710 2162 — STIHL SuperCut 20-2TI38/1999 listed cutting tool, drawing item 3 · FS 55 nylon/mowing-head list
  • 4002 710 2113 — STIHL AutoCut 21-2TI38/1999 listed cutting tool, drawing item 4 · FS 55 nylon/mowing-head list
  • 4002 710 2108 — STIHL AutoCut 25-2TI38/1999 listed cutting tool, drawing item 5 · FS 55 nylon/mowing-head list
  • 4002 710 2122 — STIHL TrimCut 30-2TI38/1999 listed cutting tool, drawing item 6 · FS 55 nylon/mowing-head list
  • 4002 710 2130 — STIHL PolyCut 20-3TI38/1999 listed cutting tool, drawing item 7 · FS 55 nylon/mowing-head list
  • 4001 713 3805 — Cutting blade 230-2TI38/1999 listed cutting tool, drawing item 8 · FS 55; metal blades NOT approved for loop handle without barrier bar
  • 4001 713 3801 — Cutting blade 230-4TI38/1999 listed cutting tool, drawing item 9 · FS 55; metal blades NOT approved for loop handle without barrier bar
  • 4001 713 3803 — Cutting blade 230-8TI38/1999 listed cutting tool, drawing item 10 · FS 55; metal blades NOT approved for loop handle without barrier bar

Service note · FS 45 / FS 55 / FS 55 R

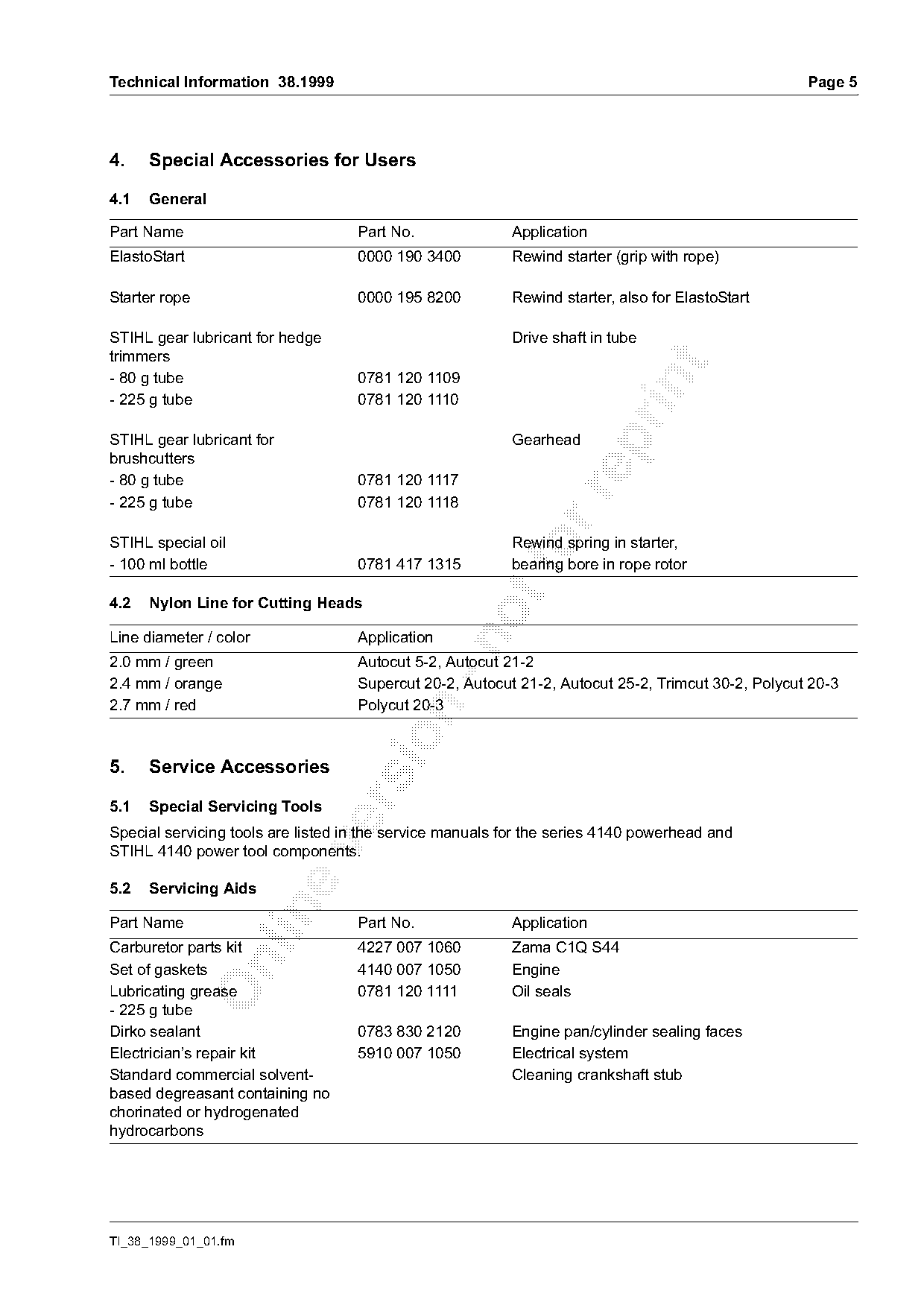

FS 45 / FS 55: starter accessories, distinct lubricants and line sizes

Do not swap shaft and gearhead lubricants; AutoCut 21-2 appears in both green and orange line rows.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • ElastoStart0000 190 3400 is a grip with rope; starter rope0000 195 8200 is also for ElastoStart. These accessory references do not establish a retrofit to every later series4140 variant.
  • Hedge-trimmer gear lubricant is specified for the drive shaft IN THE TUBE: 80 g0781 120 1109 or225 g0781 120 1110. Brushcutter gear lubricant is for the GEARHEAD: 80 g0781 120 1117 or225 g0781 120 1118. FS45 curved shaft is not assigned an FS55 gearhead by this shared table.
  • STIHL special oil0781 417 1315,100 ml, is for the starter rewind spring and bearing bore in the rope rotor, not a replacement for either gear lubricant.
  • 2.0 mm GREEN nylon line: AutoCut5-2 and AutoCut21-2. 2.4 mm ORANGE: SuperCut20-2, AutoCut21-2, AutoCut25-2, TrimCut30-2 and PolyCut20-3. 2.7 mm RED: PolyCut20-3. AutoCut21-2 is printed in both2.0/2.4 mm rows; preserve both. This table supplies no PolyCut6-3 line size, and does not extend each head to both models. Page4 model/handle restrictions still apply.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 4 · TI 38/1999, p. 5 — FS 45 / FS 55: starter accessories, distinct lubricants and line sizes.

Part numbers (7)
  • 0000 190 3400 — ElastoStart grip with ropeHistorical user/service reference; not a supersession · FS45/55 rewind starter
  • 0000 195 8200 — Starter ropeHistorical user/service reference; not a supersession · FS45/55 rewind starter including ElastoStart
  • 0781 120 1109 — Hedge-trimmer gear lubricant, 80 gHistorical user/service reference; not a supersession · Drive shaft in tube
  • 0781 120 1110 — Hedge-trimmer gear lubricant, 225 gHistorical user/service reference; not a supersession · Drive shaft in tube
  • 0781 120 1117 — Brushcutter gear lubricant, 80 gHistorical user/service reference; not a supersession · Gearhead, not FS45 curved-shaft gearbox approval
  • 0781 120 1118 — Brushcutter gear lubricant, 225 gHistorical user/service reference; not a supersession · Gearhead, not FS45 curved-shaft gearbox approval
  • 0781 417 1315 — STIHL special oil, 100 mlHistorical user/service reference; not a supersession · Starter rewind spring and rope-rotor bearing bore

Service note · FS 45 / FS 55 / FS 55 R

FS 45 / FS 55: C1Q S44 kit and crankshaft-cleaner exclusions

Keep the unsuffixed C1Q S44 identity and the printed no-chlorinated-or-hydrogenated-hydrocarbons restriction.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • Carburetor parts kit4227 007 1060 is assigned to Zama C1Q S44. No kit inventory or S44A identity is supplied. The matching number in later combined IPLs does not establish included contents or erase suffix distinctions.
  • Gasket set4140 007 1050 is for the engine. Lubricating grease0781 120 1111,225 g, is for oil seals. Dirko0783 830 2120 is for engine-pan/cylinder sealing faces. Electrician’s repair kit5910 007 1050 is for the electrical system. These application rows do not provide assembly quantities or substitute procedures.
  • Crankshaft-stub cleaning: standard commercial solvent-based degreasant containing NO chlorinated OR hydrogenated hydrocarbons. The unusual hydrogenated wording is retained from the original, not silently rewritten to halogenated. No product number is printed for this cleaner. Earlier differently worded manual evidence remains separate.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.
  • Source wording conflict: TI38 page5 says no chlorinated or hydrogenated hydrocarbons; August1999 Series4140 powerhead section10 (PDF18) instead says neither chlorinated nor HALOGENATED hydrocarbons. Preserve both source-specific readings, not an unannounced correction or substitute-solvent recommendation.

TI dependency: TI 38/1999, p. 5 — FS 45 / FS 55: C1Q S44 kit and crankshaft-cleaner exclusions.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover/introduction and section10 crankshaft-stub solvent row; other rows not blanket-admitted, PDF pages 1, 2, 18

Part numbers (5)
  • 4227 007 1060 — Carburetor parts kitHistorical user/service reference; not a supersession · Zama C1Q S44 only as printed
  • 4140 007 1050 — Set of gasketsHistorical user/service reference; not a supersession · Engine
  • 0781 120 1111 — Lubricating grease, 225 gHistorical user/service reference; not a supersession · Oil seals
  • 0783 830 2120 — Dirko sealantHistorical user/service reference; not a supersession · Engine pan/cylinder sealing faces
  • 5910 007 1050 — Electrician’s repair kitHistorical user/service reference; not a supersession · Electrical system

Service note · FS 45 / FS 55 / FS 55 R

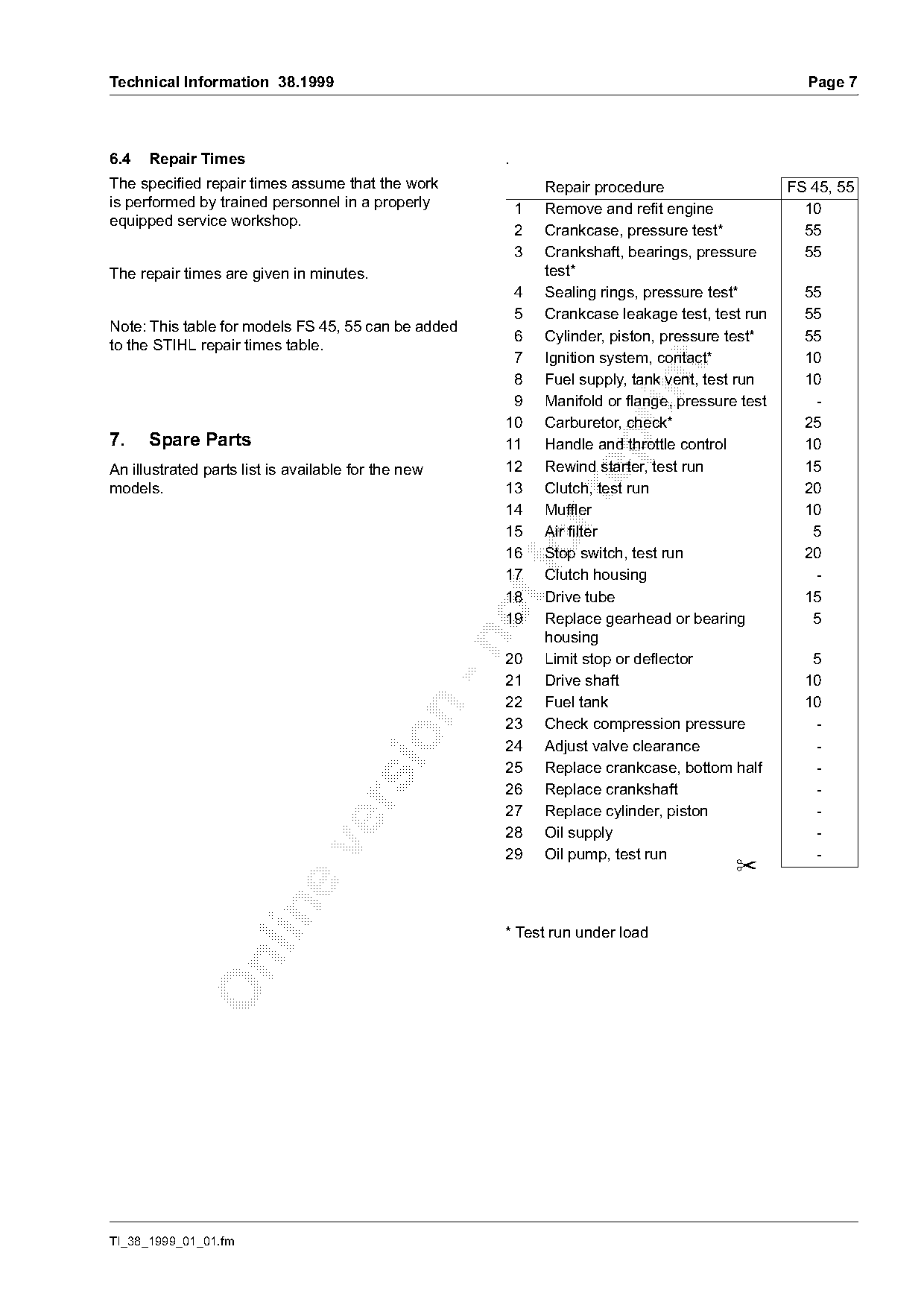

FS 45 / FS 55: all 29 repair-time rows and load-test marks

The table is in minutes; row16 is 20 and row17 is a dash, not a missing shared allowance.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • The table assumes trained personnel in a properly equipped workshop. Units are MINUTES, not tenths of an hour, a quote guarantee or measured task durations. Asterisks mean test run under load; rows2,3,4,6,7,10 carry them. Dashes are retained as unspecified/not-provided entries, not zero.
  • Rows1–10: 1 remove/refit engine10; 2 crankcase pressure test55*; 3 crankshaft/bearings/pressure test55*; 4 sealing rings/pressure test55*; 5 crankcase leakage test/test run55; 6 cylinder/piston/pressure test55*; 7 ignition system/contact10*; 8 fuel supply/tank vent/test run10; 9 manifold or flange/pressure test—; 10 carburetor check25*.
  • Rows11–20: 11 handle/throttle control10; 12 rewind starter/test run15; 13 clutch/test run20; 14 muffler10; 15 air filter5; 16 stop switch/test run20; 17 clutch housing—; 18 drive tube15; 19 replace gearhead or bearing housing5; 20 limit stop or deflector5. The original scan clearly separates row16 value20 from row17 dash; extracted text alone obscures that alignment.
  • Rows21–29: 21 drive shaft10; 22 fuel tank10; 23 check compression pressure—; 24 adjust valve clearance—; 25 replace crankcase bottom half—; 26 replace crankshaft—; 27 replace cylinder/piston—; 28 oil supply—; 29 oil pump/test run—. The generic row names do not establish that every listed assembly exists on both models.
  • TI38 says this table may be added to the STIHL repair-times table. The contemporary parent edition is now a documented bounded source gap. Available2012-01 FS45/55 allowance columns and labor scope are separately reviewed; their changed code meanings and included operations are not substitutes or corrections for these original minutes.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 7 — FS 45 / FS 55: all 29 repair-time rows and load-test marks.

No additional parts-table entry added.

Service note · FS 45 / FS 55 / FS 55 R

FS 45 / FS 55: shared repair references are not complete source coverage

Available delegated sources and four later head supplements are dispositioned; six named source gaps and recorded conflicts remain.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • Page2 delegates balanced-idle detail to Carburetors. Page5 section5.1 delegates special servicing tools to series4140 powerhead and STIHL4140 power-tool components manuals. Page6 section6.2 is headed Tightening Torques but its text repeats the special-tools reference and prints NO torque values; do not invent a torque from this heading.
  • Section6.3 permits those two manuals for FS45/55 servicing and repairs but says they omit Servicing the Carburetor, Troubleshooting and standard repair procedures, referring those to Carburetors and Standard Repairs, Troubleshooting. Retained later manuals can differ; their contents do not silently rewrite the original statement.
  • Section6 startup precautions explicitly require the owner manual and local/national safety rules. Section7 announces an illustrated parts list for the new models without identifying its revision. Exact owner/head standalone editions and the contemporary page7 parent repair-times edition are documented bounded source gaps. Launch IPL and exact delegated-workshop revisions are also named bounded gaps; the four retained head-related TI supplements are now dispositioned for the TI38 dependency scope, not declared wholly reviewed.
  • The page2 balanced-idle explanation and available FS55 powerhead, Components,2007 CombiTools and Carburetors handbook dependencies are dispositioned in their separate accepted notes, with model/edition restrictions and conflicts retained. The distinct Standard Repairs, Troubleshooting handbook and contemporary1999 parent timetable were not identified in the bounded116-PDF opening/current-metadata inventory. Available2012 FS45/55 labor allowances are reviewed as later evidence. No universal absence claim is made: reopen named gaps on applicable new evidence. Existing TI02 FS45 reviews may be reused but not blindly extended to FS55, a different date or unstated edition; prior FS45 torque, unit, tool-number and suffix conflicts remain intact.
  • TI38/1999 historical reference only, not current attachment approval or verified physical interchange. No extension to later C, RC, T, 2-MIX or other combined-catalog variants; original IPL rows and earlier source conflicts remain unchanged.

Source: TI 38/1999, p. 2 · TI 38/1999, p. 5 · TI 38/1999, p. 6 · TI 38/1999, p. 7 — FS 45 / FS 55: shared repair references are not complete source coverage.

No additional parts-table entry added.

Service note · FS 45 / FS 55 / FS 55 R

FS 45 / FS 55: balanced-idle bypass flow and left-hand LD

The handbook explains zero flow at equal chamber pressures and reversal with further clockwise LD rotation; no jet identity or extra adjustment turns are inferred.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • TI38/1999 page2 explicitly identifies a balanced idle system with fixed idle jet and delegates its detailed description to the Carburetors handbook. Unlike TI02 and TI29, this footnote states NO November1998-or-later edition requirement. The located handbook has copyright1999; exact revision/month remains unknown. Its misleading 021/023/025–MS210/230/250 filename is not a machine-manual identity.
  • Section5.2.4 describes a fixed idle jet and calibrated air bypass system. The throttle shutter is completely closed at idle. Most idle-mixture air goes through the hole in the shutter; the additional air used to adjust idle speed is controlled by the single LD screw through the bypass/idle chambers. This is not the separate primary-mixture-control system in section5.2.3 or a conventional H/L mixture-screw adjustment.
  • At low idle, LD restricts the bypass port. Engine-side vacuum Pu behind shutter7 draws air through hole8 and produces pressure P3 in idle chamber3 via primary idle bore6, and P11 in bypass chamber11 via bypass port10. When P11 is below upstream atmospheric pressure, air enters chamber11 through port9. When P11 is above P3, air flows from chamber11 through connecting passage4 to idle chamber3.
  • Idle chamber3 also receives air through secondary idle bore5 and fuel from metering-diaphragm chamber1 through fixed idle jet2. Its primary mixture passes through primary idle bore6 to the engine side of the shutter. That mixture combines with air from bypass port10 and shutter hole8 to form the idle mixture. The numbered features are functional diagram labels, not orderable part numbers.
  • Clockwise LD rotation increases idle speed; counterclockwise reduces it. The handbook explicitly explains that LD has a left-hand thread. Clockwise rotation lowers P11, increases throughput at port10 and reduces the pressure difference between P3 and P11, so less air flows through passage4 toward the idle chamber. On PDF16, passage4 flow stops when P3 equals P11. Further clockwise rotation makes P11 lower than P3, reversing flow: primary mixture from chamber3 passes through passage4 into the bypass air flowing through ports9 and10. Do not describe that reversal as a fault or reverse the LD directions.
  • The handbook claims smooth idle, good acceleration, lower emissions, stable adjustment across ambient temperatures and simpler single-screw adjustment. These are source claims, not measured performance here. Its lambda/CO-versus-rpm graphic labels 2500,2800,3100 but supplies no numerical lambda/CO values in the reviewed rendering; do not derive emissions limits, adjustment targets or a calibrated curve from it. TI38 supplies the separately admitted historical idle range and two-turn setting. No further number of turns, pressure value or engine test is established by these functional diagrams.
  • The adjacent section5.2.5 part-load discussion and limbing example are separate general context, not an FS45/55 part-load-jet assignment. This note explains the BIS architecture explicitly identified by TI38; it does not identify a particular Walbro/Zama/Tillotson carburetor, drilling, suffix, supersession or physical interchange. It does not extend to later C, RC, T, 2-MIX or other combined-catalog variants.
  • Handbook safety/introduction requires the applicable owner manual and local/national precautions, no smoking/flames near fuel, outdoor fuel work, immediate spill cleanup and care around unguarded cutting equipment. It directs use of current IPLs and subsequent TIs for changes. This is a functional explanation, not a complete servicing procedure or hardware test. TI38 section6.3 available carburetor-servicing and other manual dependencies are now dispositioned, with named exact-source gaps retained; no blanket handbook review is claimed.

TI dependency: TI 38/1999, p. 2 — TI38 page2 footnote; Carburetors section5.2.4 including PDF16 left-column continuation.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section Contents/copyright; safety/introduction;5.2.4 balanced-idle system, including PDF16 left-column continuation, PDF pages 1, 2, 15, 16

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: five 1999 powerhead torques and existing-thread limits

The manual specifies 17 Nm for the starter cup and distinguishes screws without locking teeth.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Printed 4 gives all five torque rows in Nm: IS-DG5x60 engine pan/crankcase/cylinder 9.0; IS-DG5x60 muffler/cylinder 9.0; M8 starter cup 17.0; M14x1.25 spark plug 20.0; IS-DG4x20 ignition module/cylinder 4.5. Both DG5x60 rows and the DG4x20 row carry remark 2, WITHOUT locking teeth. Starter cup and plug have no remark. Do not conflate fasteners with and without underhead locking teeth.
  • For DG/P screws in an EXISTING thread, turn counterclockwise until the screw drops slightly into the old thread, then clockwise to the specified torque using a torque wrench. This avoids cutting another thread and weakening the assembly; it is not a direction for installing into a new hole.
  • For polymer, maximum power-screwdriver speed is 600 rpm for Plastoform screws and 500 rpm for DG screws. These are tool-speed limits, not engine speeds or permission to omit torque control.
  • TI38 section6.2 prints no torque values; these numbers come from the August1999 powerhead table, not the TI heading. Existing cross-edition starter-cup conflicts in the FS45 lane are not erased or used to infer an FS55 supersession; the October2003 FS55 component torque table is now separately reviewed and retains the17.0/14.0 Nm starter-cup discrepancy.
  • The August1999 powerhead introduction explicitly names FS55. This is separately dated FS55 evidence, not automatic extension of an FS45 note or proof of the precise revision delegated by TI38. No R/C/RC/T/2-MIX variant, serial cutoff, physical interchange or hardware validation is inferred. Available CombiTools gearbox procedures are separately source-reviewed; distinct unavailable external handbooks remain named source gaps; available powerhead and applicable component procedures are separately source-reviewed.

TI dependency: TI 38/1999, p. 6 — FS 55: five 1999 powerhead torques and existing-thread limits.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover/introduction explicitly FS55; safety/stand; section3.3 complete torque table and9 complete tool table/remarks;10 solvent wording only, not blanket aids/accessory acceptance, PDF pages 1, 2, 3, 5, 17, 18

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: 1999 powerhead tools, alternatives and stand mounting

All 23 numbered rows retain seal sides, jaw profiles, torque-wrench variants and loosening-only restrictions.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • All 23 numbered rows on printed 16 are represented here; rows 15 and 16 each contain two torque-wrench numbers. Jaws profile 3.1 + 4 are distinct from profile 2 used to clamp pan/crankcase. Starter-side protecting and installing sleeves are not the clutch-side press sleeve.
  • Remark 1 says puller 5910 890 4400 is equivalent to 0000 890 4400 but has longer spindle 5910 890 8400. Remark 2 permits setting gauge 1111 890 6400 instead of 1127 890 6400. These explicit alternatives do not establish broad substitutions for other tools.
  • Remark 3 requires a torque wrench when tightening DG/P screws. Remark 4 identifies visual/acoustic signalling wrench variants 5910 890 0302 and 5910 890 0312. Remark 5 restricts screwdriver 5910 890 2400 to RELEASING printed “GD/P” screws; the table’s transposed GD wording is not silently normalized.
  • The introduction specifically permits assembly stand5910 890 3100 with clamp5910 890 8800 for shaft machines FS/FC/HL. Secure the clamp to the stand with two washers and two M8 nuts; the mounted unit can swivel for the repair. No stand-fastener torque or washer size is supplied. This FS guidance was not transferable to the earlier BG/SH lane.
  • A tool roster is not a complete service procedure. The available August1999 FS55 powerhead procedures and applicable October2003 component access are now separately source-reviewed; earlier FS45 evidence is retained separately. Available CombiTools gearbox procedures are separately source-reviewed; distinct unavailable external handbooks remain named source gaps.
  • The August1999 powerhead introduction explicitly names FS55. This is separately dated FS55 evidence, not automatic extension of an FS45 note or proof of the precise revision delegated by TI38. No R/C/RC/T/2-MIX variant, serial cutoff, physical interchange or hardware validation is inferred. Available CombiTools gearbox procedures are separately source-reviewed; distinct unavailable external handbooks remain named source gaps; available powerhead and applicable component procedures are separately source-reviewed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: 1999 powerhead tools, alternatives and stand mounting.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover/introduction explicitly FS55; safety/stand; section3.3 complete torque table and9 complete tool table/remarks;10 solvent wording only, not blanket aids/accessory acceptance, PDF pages 1, 2, 3, 5, 17, 18

Part numbers (28)
  • 4221 893 5900 — Piston locking stripBlock crankshaft · FS 55 within the August1999 powerhead manual scope
  • 5910 890 4400 — PullerRemove oil seals · FS 55 within the August1999 powerhead manual scope
  • 0000 893 3706 — Puller jawsProfiles 3.1 and 4 · FS 55 within the August1999 powerhead manual scope
  • 0000 893 3700 — Puller jawsProfile 2; clamp pan and crankcase · FS 55 within the August1999 powerhead manual scope
  • 1108 893 4500 — Screw bushPuller accessory · FS 55 within the August1999 powerhead manual scope
  • 1106 850 2905 — Carburetor/crankcase testerLeak testing · FS 55 within the August1999 powerhead manual scope
  • 0000 850 3501 — Vacuum pumpCrankcase leakage test · FS 55 within the August1999 powerhead manual scope
  • 0000 855 8106 — Sealing plateSeal exhaust for leakage test · FS 55 within the August1999 powerhead manual scope
  • 1128 850 4200 — Test flangeLeakage test · FS 55 within the August1999 powerhead manual scope
  • 1129 893 4600 — Assembly sleeveProtect starter-side oil seal · FS 55 within the August1999 powerhead manual scope
  • 1114 893 4601 — Press sleeveInstall starter-side oil seal · FS 55 within the August1999 powerhead manual scope
  • 1120 893 2400 — Press sleeveInstall clutch-side oil seal · FS 55 within the August1999 powerhead manual scope
  • 1127 890 6400 — Setting gaugeIgnition module/flywheel air gap · FS 55 within the August1999 powerhead manual scope
  • 5910 890 8210 — Crimping toolElectrical connectors · FS 55 within the August1999 powerhead manual scope
  • 5910 890 0301 — Torque wrench0.5–18 Nm · FS 55 within the August1999 powerhead manual scope
  • 5910 890 0302 — Torque wrench0.5–18 Nm; visual/acoustic signal · FS 55 within the August1999 powerhead manual scope
  • 5910 890 0311 — Torque wrench6–80 Nm · FS 55 within the August1999 powerhead manual scope
  • 5910 890 0312 — Torque wrench6–80 Nm; visual/acoustic signal · FS 55 within the August1999 powerhead manual scope
  • 0812 542 2104 — T27x125 socketSocket-head screws · FS 55 within the August1999 powerhead manual scope
  • 5910 890 2400 — Q-T27x150 screwdriverRelease only on printed GD/P screws · FS 55 within the August1999 powerhead manual scope
  • 5910 890 3100 — Assembly standHold FS units · FS 55 within the August1999 powerhead manual scope
  • 5910 890 8800 — ClampHold FS drive tube with stand · FS 55 within the August1999 powerhead manual scope
  • 1114 893 4700 — Assembly driftInstall piston pin · FS 55 within the August1999 powerhead manual scope
  • 1108 893 4800 — Wooden assembly blockFit piston · FS 55 within the August1999 powerhead manual scope
  • 0000 893 2600 — Clamping strapCompress piston ring · FS 55 within the August1999 powerhead manual scope
  • 0000 890 4400 — Equivalent pullerRemark1;5910 version has longer spindle · FS 55; explicit section9 remark only
  • 5910 890 8400 — Longer puller spindleRemark1 for puller5910 890 4400 · FS 55; explicit section9 remark only
  • 1111 890 6400 — Alternative setting gaugeRemark2 instead of1127 890 6400 · FS 55; explicit section9 remark only

Service note · FS 55

FS 55: bike-handle trigger and contact-spring versions

Keep the printed up-to/from-2001 designs separate; no serial boundary or retrofit equivalence is supplied.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Bike-handle control, except HL: remove its retaining screw and pull the control handle off the handlebar, then separate the handle moldings. In the up-to-2001 trigger branch, lift and turn the trigger to unload its torsion spring before pulling it from the pivot; disconnect the cable, remove the spring, carefully pry out the interlock rivet and remove interlock and its spring. Refit in reverse order with the spring engaging the trigger and the short-circuit wires/cable correctly routed.
  • From 2001: remove trigger and spring from their pivot, disconnect the cable, and remove the interlock and its spring. On assembly the interlock spring engages the lever and locates behind the molding web; the trigger engages behind the interlock. Cable, wires and tube each occupy their illustrated seats. These are distinct illustrations, not evidence the old and new pieces interchange.
  • Up-to-2001 contact/detent springs are expressly FS models only: remove trigger, disconnect short-circuit wires, withdraw contact spring, collar screw/detent spring, slide control and rivet/contact spring. On reassembly the contact spring must engage the collar-screw groove. The from-2001 branch instead removes the collar screw/contact spring from its pivot, slide control and stop switch with wires; refit with correct wire routing and contact-plate tag pointing up toward the stop switch.
  • The year headings overlap at 2001 as printed; no month or serial number resolves that boundary. Identify the installed design instead of assigning a unique version from the year alone. Cable replacement, adjustment and conditional insulation are separately recorded; fastener torques still refer to section 3.3.
  • October 2003 Components manual explicitly names FS 55; these are later, configuration-specific service references, not proof of the precise 1999 revision delegated by TI 38. No serial cutoff, universal R/C/RC/T/2-MIX applicability, physical interchange or hardware validation is inferred. Available FS55 powerhead/component procedures and torque/tool tables are separately source-reviewed; Available CombiTools gearbox procedures are separately source-reviewed; unavailable owner/general/head instruction dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 7.1.1–7.1.5; PDF31 left-column continuation only.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 7.1.1–7.1.5; PDF31 left-column continuation only, PDF pages 1, 2, 3, 4, 27, 28, 29, 30, 31

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: separate loop-control housing and interlock seating

USA, Canada and Australia scope; retain the housing groove, slide groove and interlock peg engagements.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Section 7.2 expressly names FS 46/55 and its procedure says USA, Canada, Australia. This note binds only FS 55 in that regional separate-control/loop-handle configuration, not every loop-handled or R-suffixed machine.
  • Remove housing screws and right half, retaining its lever and spring if removed. Pull the interlock from the left-half pivot; remove the left half together with trigger and torsion spring, then disconnect cable/spring. Remove stop switch, disconnect short-circuit wires and remove its slide. Reassemble in reverse order.
  • Push the slide onto the switch, connect wires and seat the switch so the housing edge engages the slide-control groove. Attach spring and cable to the trigger and place trigger over the left-half peg. Both housing halves must engage the handle-support groove; wires, spring and cable must occupy their illustrated positions.
  • Refit interlock on its pivot, seat the lever and spring in the right half, then join the halves with the right-half peg engaging the interlock hole. Tightening is delegated to section 3.3; no unspecified torque is invented here. The separate cable-replacement branch first removes the drive tube and shroud; it is not the bike-handle access sequence.
  • October 2003 Components manual explicitly names FS 55; these are later, configuration-specific service references, not proof of the precise 1999 revision delegated by TI 38. No serial cutoff, universal R/C/RC/T/2-MIX applicability, physical interchange or hardware validation is inferred. Available FS55 powerhead/component procedures and torque/tool tables are separately source-reviewed; Available CombiTools gearbox procedures are separately source-reviewed; unavailable owner/general/head instruction dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 7.2.1–7.2.2, FS 46/55 separate-loop-control branch.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 7.2.1–7.2.2, FS 46/55 separate-loop-control branch, PDF pages 1, 2, 3, 4, 31, 32, 33

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: cable routing, full-throttle stop and catalytic heat sleeve

Preserve separate access routes, idle-screw conditions and the from-2003 catalytic-converter sleeve requirement.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Bike-handle cable replacement: remove shroud; disconnect cable from carburetor slotted pin, ease its sleeve from the adjuster without kinking it, and remove cable from the rear of the engine housing. Pull the retainer and tube/cable out of the front; disconnect the trigger end using the installed up-to/from-2001 handle branch and pull cable out of the tube. Reverse to install, seat cable in its guides, apply conditional insulation and adjust.
  • Separate-loop-control branch: remove drive tube and shroud; disconnect carburetor slotted pin, ease cable sleeve out without kinking, withdraw cable at the rear, push retainer out from below and remove cable from housing. Disconnect trigger end under 7.2.1. Refit into retainers, check correct seating, apply conditional insulation and adjust. Preserve the offset cable end when removing the handle hose.
  • Section 7.4: without an idle-speed screw, the throttle lever must meet the end-cover stop at full trigger travel. With an idle-speed screw, it must also meet that screw at idle; first check idle adjustment under 9.3.2. Remove shroud, hold trigger fully open and turn the cable adjusting screw clockwise until the lever meets the end-cover stop; confirm the additional idle-stop condition where fitted, then refit shroud. This is a cable-travel check, not a new LD/LA speed setting.
  • Section 7.5: on machines with a catalytic converter from 2003, or when a from 2003 converter is installed as a replacement, an insulating tube must cover the throttle cable below the muffler against radiated heat. Disconnect at the carburetor end, slide the insulating tube on from that end, install cable, push insulation as far as the slot and fix it on the cable retainer. No sleeve part number, retrofit compatibility or applicability to an original 1999 non-catalytic machine is supplied.
  • October 2003 Components manual explicitly names FS 55; these are later, configuration-specific service references, not proof of the precise 1999 revision delegated by TI 38. No serial cutoff, universal R/C/RC/T/2-MIX applicability, physical interchange or hardware validation is inferred. Available FS55 powerhead/component procedures and torque/tool tables are separately source-reviewed; Available CombiTools gearbox procedures are separately source-reviewed; unavailable owner/general/head instruction dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 7.1.5, 7.2.2, 7.4, 7.5.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 7.1.5, 7.2.2, 7.4, 7.5, PDF pages 1, 2, 3, 4, 30, 31, 33, 37

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: drive-tube alignment and handle-position reference points

About 18 cm is an alignment-hole location, 15 cm a bike-handle position, and 20 cm has configuration-specific reference points.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • To separate drive tube from powerhead, components can remain on the tube except where the control handle is not integrated in the engine housing: remove that control first using its actual branch. For USA/CAN/AUS FS 55 separate controls, remove handle hose without bending the offset cable end and free wires/cable from the handle support. Remove locating screw, loosen clamp screws and withdraw tube.
  • Refit with the clamp area degreased using the manual’s solvent restriction: no chlorinated or halogenated hydrocarbons. Loop-handle machines align the tube/housing holes. Bike-handle machines align the hole about 18 cm from the tube end with the hose. Rotate shaft to and fro while inserting so the square shaft end engages the clutch-drum recess. Fit/tighten locating screw first, then clamp screws per 3.3; check instruction-label legibility and damage.
  • Bike handle: remove control, clamp screws, lower clamp, clamp block, handle and upper clamp. Cut off an old left grip if replacement is needed; use protective prism jaws in the vise and a little STIHL OH 723 press fluid inside the new grip. Its long ends point toward the gearbox at 10–15 degrees to the drive tube. Position bike handle about 15 cm forward of engine housing, then secure. The illustration labels approximately 10 degrees while the accompanying text gives 10–15 degrees; neither is a manufacturing tolerance.
  • Loop handles with upper/lower clamps, with or without barrier bar: remove screws/clamps, retaining square nuts (in the barrier bar where fitted), and refit about 20 cm forward of the CONTROL HANDLE. The without-barrier branch explicitly excludes KM 55; it does not authorize a metal cutting tool without the required barrier bar on FS 55.
  • The separate wingnut-style loop-handle branch removes wingnut/washer, screw, optional spacer, handle and friction pad; refit about 20 cm forward of the ENGINE HOUSING. These 20 cm reference points are not interchangeable. No unsupported model suffix assignment is made from the illustration alone.
  • Carrying rings retain their separate one-piece clamp versus two-piece ring disassembly. Remove the drive tube before pulling off the cable retainer or sleeve. Section 10.2.5 deflector is FS 45/46 only and is not admitted for FS 55. Section 10.3.1 split tube is FS 55T only, not automatically part of this plain-FS 55 review.
  • October 2003 Components manual explicitly names FS 55; these are later, configuration-specific service references, not proof of the precise 1999 revision delegated by TI 38. No serial cutoff, universal R/C/RC/T/2-MIX applicability, physical interchange or hardware validation is inferred. Available FS55 powerhead/component procedures and torque/tool tables are separately source-reviewed; Available CombiTools gearbox procedures are separately source-reviewed; unavailable owner/general/head instruction dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 10.1, 10.2.1–10.2.4, 10.2.6–10.2.7;10.2.5 explicitly excluded.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 10.1, 10.2.1–10.2.4, 10.2.6–10.2.7;10.2.5 explicitly excluded, PDF pages 1, 2, 3, 4, 52, 53, 54, 55

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: shaft discoloration, engine-end plug and star-shaped liner

Use the FS 55 branch, not the adjacent FS 45/46 or illustrated HL 45-only operations; gearbox procedures remain delegated.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Section 10.3.3 explicitly names FS 55, FC 55 and HL 45. For FS 55 remove drive tube, fitted bike/loop handle using its proper branch, and gearbox under 10.4. Pull shaft from the ENGINE END. If the shaft has turned blue, install a new one; no temperature threshold or permitted straightening/reuse is stated.
  • FS 55 removes the plug at the engine end only. The instruction to remove plugs at BOTH ends is HL 45-only. Withdraw the flexible liner; the manual warns that the pictured liner is HL 45 and the other liners are star-shaped. Do not assign the pictured HL 45 shape to FS 55.
  • Inspect drive-tube instruction label and replace if damaged or illegible. Reverse assembly, coating the liner with a little press fluid to ease fitting. The hose-cutting/replacement and hole-between-spokes alignment instructions are expressly HL 45-only, not FS 55.
  • Coat the drive shaft evenly with STIHL gear lubricant for HEDGE TRIMMERS before installing; do not pump grease directly into the drive tube. After shaft installation check that the cutting tool rotates. This is shaft lubrication, not substitution for the separate brushcutter gearbox lubricant.
  • Section 10.4 delegates gearbox removal/installation and disassembly/reassembly to CombiTools. The available February2007 sections7.1.1/7.2 and supporting tables are now separately source-reviewed, preserving the FS55 bearing exception and input/output wording conflict; the exact 1999 delegated edition remains unestablished. Neighboring10.3.2 FS45/46 curved-tube instructions are not substituted for FS55.
  • October 2003 Components manual explicitly names FS 55; these are later, configuration-specific service references, not proof of the precise 1999 revision delegated by TI 38. No serial cutoff, universal R/C/RC/T/2-MIX applicability, physical interchange or hardware validation is inferred. Available FS55 powerhead/component procedures and torque/tool tables are separately source-reviewed; Available CombiTools gearbox procedures are separately source-reviewed; cutting-head context is now dispositioned; owner/general/head instructions remain dependencies. CombiTools6 expressly covers split drive tubes and CombiTools, not this plain FS55 shaft: its20±0.5 mm liner recess,50°C knurled sleeve fitting and coupling-lug geometry are NOT substituted for Components10.3.3.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 10.3.3 and 10.4; adjacent10.3.2 context excluded.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 10.3.3 and 10.4; adjacent10.3.2 context excluded, PDF pages 1, 2, 3, 4, 58, 59 · STIHL CombiTools (2007-02), section 6 printed14–15 explicitly split drive tube/CombiTools; excluded from plain FS55, PDF pages 1, 15, 16

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: component torques by fastener and installed configuration

Keep 23 applicable rows separate from T-model coupling and other-model rows, including binding-head restrictions.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Torque pairs below preserve the printed lbf.ft / Nm values rather than recalculating their rounding. Remark 1 identifies FS55; 2 FS46; 3 FS45; 4 KM55/FC55; 5 HL45; 6 means with binding head. The unmarked spark-plug row is general within the introduction’s model scope. Twenty-three plain-FS55/general rows are retained; configuration wording still controls.
  • Controls: B3.9x19 US loop-handle right/left switch-housing molding: 1.8 / 2.5; IS-P4x16 bike-handle right/left molding: 0.75 / 1.0; IS-M5x30 control handle to handlebar WITH WASHER: 1.5 / 2.0; IS-M6x35 bike-handle clamp/handle support/clamp: 3.3 / 4.5; IS-M6x25 loop-handle clamp/square nut: 3.3 / 4.5; P3.5x9.0 collar screw, bike-handle detent spring/slide control: 0.8 / 1.1.
  • Fuel and ignition: M5 filter housing/carburetor/spacer-flange nut: 2.6 / 3.5; IS-P5x20 tank housing/retainer: 1.5 / 2.0; IS-DG5x24 spacer flange/cylinder WITH BINDING HEAD: 4.4 / 6.0; M14x1.25 spark plug: 15.0 / 20.0.
  • Clutch and housing: IS-8-32 clutch drum/crankshaft: 3.0 / 4.0; 3/8-inch-24 carrier/crankshaft: 12.5 / 17.0; IS-DG5x24 engine housing/clutch-drum mounting: 1.5 / 2.0; IS-DG5x24 engine housing/shroud: 3.3 / 4.5; IS-DG5x24 engine housing/crankcase WITH BINDING HEAD: 5.9 / 8.0. Identical thread designations do not mean identical joint torques.
  • Exhaust: IS-DG5x60 muffler/cylinder: 6.6 / 9.0; IS-DG5x24 muffler/cylinder, catalytic-converter version: 6.6 / 9.0; printed M14x7 stub/muffler, version with spark-arresting screen in muffler, marked WITH BINDING HEAD: 7.5 / 10.0. The unusual printed thread and binding-head remark on that stub row are retained, not silently corrected.
  • Drive tube and starter: IS-DG5x12 centering drive tube/engine housing: 3.0 / 4.0; IS-M6x14 clamp/drive tube/harness ring: 3.3 / 4.5; IS-DG5x20Z rewind starter/crankcase: 4.4 / 6.0; IS-DG5x20Z rewind starter/engine pan: 4.4 / 6.0; M8x1 starter cup/crankshaft: 10.3 / 14.0. The starter-cup value is an attributed 2003 table value, not resolution of earlier cross-edition torque conflicts.
  • Excluded from plain FS55: M6x30 coupling-sleeve wing screw 4.4 / 6.0 and IS-M6x25 coupling-sleeve clamp nut 6.6 / 9.0 are explicitly T model, despite carrying remark 1. IS-M5x8 clamp/drive-tube/guide 5.9 / 8.0 is remarks 2/3 (FS46/45), and IS-DG5x24 engine housing/crankcase 6.6 / 9.0 is remark 5 (HL45), not the FS55 housing value.
  • DG/P screws form permanent threads in polymer/light metal: use a torque wrench. For an existing thread turn counterclockwise until the screw drops slightly, then clockwise to specified torque, avoiding a new weakening thread. Polymer power-screwdriver limits are Plastoform maximum 600 rpm and DG maximum 500 rpm. Do not mix screws WITH and WITHOUT binding heads.
  • October 2003 Components manual explicitly names FS55. This later, configuration-specific evidence does not establish the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX applicability, physical interchange or hardware validation. Earlier attributed conflicts remain unresolved; remaining procedures and external handbook dependencies are still pending.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section3.3, printed5–6, complete table and remarks.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section3.3, printed5–6, complete table and remarks, PDF pages 1, 2, 3, 4, 6, 7

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: component tools and the conflicting clamp reference

Seventeen numbered tool rows plus two explicit wrench alternatives; introduction and tool-table clamp numbers remain attributed.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • The 17 numbered tool rows and two explicit torque-wrench alternatives are represented below. Torque wrench 5910 890 0301 covers 0.5–18 Nm; 5910 890 0311 covers 6–80 Nm. Remarks 2/3 allow corresponding optical/acoustic-signal alternatives 5910 890 0302 and 5910 890 0312. Always use a torque wrench to tighten DG or P screws.
  • T-handle Q-T27x150 screwdriver 5910 890 2400 is ONLY for releasing/removing DG or P screws, not tightening them. The T27x125 socket is also listed for torque-wrench tightening. The two hooks have different jobs: clutch springs versus fuel pickup body. The installing tool flares the starter-rope guide bush; it is not a shaft-liner installation tool.
  • Printed 59 lists assembly stand 5910 890 3100 and drive-tube clamp 5910 890 8800. The same manual’s printed 2 introduction instead prints 5910 890 3100 for BOTH stand and clamping fixture. This internal conflict is retained; no correction, substitution or physical compatibility is established. Its mounting instruction specifies two washers and two M8 nuts, without torque or washer size.
  • The component locking strip is 0000 893 5903; the separately admitted August1999 powerhead roster lists 4221 893 5900. The different source numbers are not declared equivalent or superseding. A roster alone does not establish a complete safe repair procedure.
  • October 2003 Components manual explicitly names FS55. This later, configuration-specific evidence does not establish the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX applicability, physical interchange or hardware validation. Earlier attributed conflicts remain unresolved; remaining procedures and external handbook dependencies are still pending.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section11, printed59, complete tool table/remarks; introduction printed2.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section11, printed59, complete tool table/remarks; introduction printed2, PDF pages 1, 2, 3, 4, 60

Part numbers (19)
  • 0000 893 5903 — Locking stripBlock crankshaft · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0812 540 1112 — SocketSpline socket-head screws with electric/pneumatic screwdrivers; remove clutch drum · FS 55 within October 2003 Components scope; actual component/configuration required
  • 4130 890 3600 — WrenchUnscrew/tighten clutch, FS units · FS 55 within October 2003 Components scope; actual component/configuration required
  • 1106 850 2905 — Carburetor and crankcase testerTest crankcase and carburetor for leaks · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0000 855 9200 — NippleTest carburetor for leaks · FS 55 within October 2003 Components scope; actual component/configuration required
  • 1110 141 8600 — Leakage-test hoseTest carburetor for leaks · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2420 — Q-SW8x200 screwdriverCarburetor nuts · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 8210 — Crimping toolAttach electrical-wire connectors · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 0301 — Torque wrench0.5–18 Nm · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 0311 — Torque wrench6–80 Nm · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0812 542 2104 — T27x125 socketSpline socket-head screws; torque-wrench tightening · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2400 — Q-T27x150 T-handle screwdriverRelease/remove DG/P screws ONLY · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 3100 — Assembly standMount FS units; conflicting introduction also calls this the clamp · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 8800 — ClampHold FS drive tube with stand; section11 value conflicts with introduction · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2800 — HookDetach springs from clutch shoes · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 893 8800 — HookRemove fuel pickup body · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2204 — Installing toolInstall and flare rope guide bush · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 0302 — Alternative torque wrench0.5–18 Nm; optical/acoustic signal · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 0312 — Alternative torque wrench6–80 Nm; optical/acoustic signal · FS 55 within October 2003 Components scope; actual component/configuration required

Service note · FS 55

FS 55: component sealants, lubricants and press fluid

Retain each printed application and the solvent-wording conflict; blank table cells are not inferred applications.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Dirko gray 0783 830 2120 is listed as a 100 g tube for the GUARD ON MUFFLER; Dirko HT red 0783 830 2000 is for MUFFLER SCREWS. These distinct jobs do not replace TI38’s engine-pan/cylinder sealing-face application for its Dirko entry. This roster does not specify a bead, curing time or universal screw-sealing requirement.
  • Special lubricating oil 0781 417 1315 is for the rope-rotor bearing bore and rewind spring. Hedge-trimmer gear lubricant appears as 80 g 0781 120 1109 and 225 g 0781 120 1110 with a BLANK application cell in this table; the earlier shaft note and TI38 supply their own attributed applications. Do not infer brushcutter gearbox use from that blank cell.
  • Lubricating grease 0781 120 1111 is listed for the needle bearing in the bushing of the driver in the drive tube. This is component-conditional, not proof every plain FS55 has that driver/bearing. The table prints “greaset”; no new grease grade is inferred. OH723 press fluid 0781 957 9000 is listed for installing AV-system rubber elements, not proof of a particular FS55 AV assembly.
  • The unnumbered commercial solvent-based degreasant is for cleaning sealing faces and must contain NO chlorinated OR halogenated hydrocarbons. TI38 page5 instead prints hydrogenated hydrocarbons. Both wordings remain attributed and unresolved; no substitute chemical, product number or interchange approval is invented.
  • October 2003 Components manual explicitly names FS55. This later, configuration-specific evidence does not establish the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX applicability, physical interchange or hardware validation. Earlier attributed conflicts remain unresolved; remaining procedures and external handbook dependencies are still pending.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section12, printed60, complete servicing-aids table.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section12, printed60, complete servicing-aids table, PDF pages 1, 2, 3, 4, 61

Part numbers (7)
  • 0783 830 2120 — Dirko gray sealant, 100 g tubeGuard on muffler · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0783 830 2000 — Dirko HT red sealantMuffler screws · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0781 417 1315 — STIHL special lubricating oilRope-rotor bearing bore and rewind spring · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0781 120 1109 — Hedge-trimmer gear lubricant, 80 g tubeApplication cell blank in section12 · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0781 120 1110 — Hedge-trimmer gear lubricant, 225 g tubeApplication cell blank in section12 · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0781 120 1111 — STIHL lubricating greaseNeedle bearing in drive-tube driver bushing, where fitted · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0781 957 9000 — STIHL OH723 press fluidAV-system rubber-element installation, where fitted · FS 55 within October 2003 Components scope; actual component/configuration required

Service note · FS 55

FS 55: replacement shroud and reflector-foil seating

The 2003 replacement statement excludes HL 45 and requires the reflector foil to be correctly seated.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • The October 2003 manual says only the new shrouds with reflector foil for catalytic-converter units from 2003 are available as replacements for all machine versions EXCEPT HL 45. This is a dated service-supply statement, not a current-stock guarantee or an unnumbered universal fitment claim.
  • For both loop-handle and bike-handle machines, remove the illustrated shroud screws and lift off the shroud; install in reverse sequence. The screw positions are shown separately for the two configurations in PDF 14. No count or shroud part number is invented.
  • For the catalytic-converter version from 2003, check correct seating of the reflector foil before fitting the shroud. Its stated purpose is protection from high temperatures; the foil is not optional merely because the outer shroud fits.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 5.1, printed 13.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 5.1, printed 13, PDF pages 1, 2, 3, 4, 14

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: clutch wear limit, paired springs and matched washer

Keep the cup-spring-dependent washer thickness and the procedure/table locking-strip conflict explicit.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Remove the engine via 5.3, remove the spark plug and block the piston with the PROCEDURE-listed locking strip 4221 893 5900. Section 11 of this same 2003 manual lists 0000 893 5903 instead. The discrepancy is therefore internal as well as cross-source; neither equivalence nor a safe substitute is established.
  • Use bit 0812 540 1112 to unscrew and remove the clutch drum. Inspect for scoring/excessive wear. If noticeable wear is present on its inside diameter, check WALL THICKNESS: replace when less than ABOUT 80% of original thickness. This is not an 80% diameter limit; no absolute wall thickness is supplied.
  • Engage wrench 4130 890 3600 pins in the clutch semicircular recesses and unscrew the clutch. Remove washer and spacer sleeve, and cup spring IF FITTED. When installing a NEW CLUTCH, also replace the washer:1.2 mm WITH cup spring,1.5 mm WITHOUT cup spring. Do not mix these stacks or infer a serial changeover.
  • Clutch shoes, carrier, springs, cup spring and required washer are supplied as a complete clutch assembly; the springs may be replaced but ALWAYS IN PAIRS. Push the carrier out of the shoes, then detach springs with hook 5910 890 2800. Refit springs as illustrated so they do not project sideways; hold the carrier angled, pull shoes slightly outward and press the carrier home to its stop.
  • Fit spacer sleeve, matched washer and cup spring if fitted on the crankshaft. Screw the clutch home with the arrow and OFF facing OUTWARDS. Keep the cup spring correctly seated so it cannot slip while installing. Tighten the clutch with 4130 890 3600 and the internal drum screw with 0812 540 1112 to the distinct 3.3 table values; reverse the remaining removal steps. Prior torque conflicts remain attributed, not resolved by this sequence.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 5.2, printed 13–15, complete clutch procedure.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 5.2, printed 13–15, complete clutch procedure; compared with section 11 tool table, printed 59, PDF pages 1, 2, 3, 4, 14, 15, 16, 60

Part numbers (4)
  • 4221 893 5900 — Procedure-listed locking stripSection 5.2 piston block; conflicts with section 11 number · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0812 540 1112 — Screwdriver bitRemove/tighten internal clutch-drum screw · FS 55 within October 2003 Components scope; actual component/configuration required
  • 4130 890 3600 — Clutch wrenchPins engage semicircular clutch recesses · FS 55 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2800 — Clutch-spring hookDetach springs; replace springs in pairs · FS 55 within October 2003 Components scope; actual component/configuration required

Service note · FS 55

FS 55: engine housing and throttle-cable removal

Preserve the prerequisite removals, separate wires and no-kink routing for both tensioner types.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • First remove the drive tube under 10.1, shroud under 5.1 and fuel tank under 9.5.1. The fuel-tank procedure is now separately source-reviewed in the fuel-tank-service note (Components 9.5.1, PDF 50–51); these linked prerequisites are not hardware execution or a complete standalone engine-removal instruction.
  • Disconnect short-circuit wire 1 and ground wire 2 from the ignition module. Disconnect throttle cable 1 from slotted pin 2 on the throttle lever. Ease the cable from the early tensioner, or from the guide of the illustrated other tensioner, WITHOUT KINKING the cable. No connector pinout or electrical identity beyond the named wires is inferred.
  • Take out screws 1 and remove the engine housing. The separately labeled screw 2 is to be REPLACED ONLY IF DAMAGED, not routinely renewed. Install in reverse sequence. The drawing distinguishes this screw from the housing-removal screws; it supplies no new part number or universal screw torque.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 5.3, printed 15–16.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 5.3, printed 15–16, PDF pages 1, 2, 3, 4, 16, 17

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: non-catalytic muffler and removable exhaust stub

Retain the new gasket, under-head sealant and conditional 15 mm removable-stub instructions.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Before seeking engine faults, check and if needed repair fuel system, carburetor, air filter and ignition. This note is for the version WITHOUT catalytic converter; it does not authorize removing or converting a catalytic system.
  • Remove rewind-starter screws and the starter under 6.2. Remove muffler screws, muffler and exhaust gasket. Reassemble in reverse, using a NEW exhaust gasket and applying section 12 sealant to the UNDERSIDE OF THE SCREW HEAD before tightening to 3.3. Do not change this into an instruction to coat the whole screw thread.
  • Only on machines with a REMOVABLE STUB, with or without a spark-arresting screen: use a 15 mm wrench to unscrew the stub, clean the screen or fit a new stub if necessary. Clean the stub thread and coat it with sealant per 12, following the sealant maker’s instructions, then tighten to 3.3.
  • The stub operation delegates sealant choice to 12 without naming a product here. The admitted table separately assigns gray Dirko to the muffler guard and red Dirko HT to muffler screws; this is not proof of a specific stub-thread chemistry or curing time. No screen, stub or gasket number is printed in this procedure.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 5.4/5.4.1 and 6.2, printed 16–17/20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 5.4/5.4.1 and 6.2, printed 16–17/20; section 12 servicing-aids comparison, printed 60, PDF pages 1, 2, 3, 4, 17, 18, 21, 61

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: up-to-2003 catalytic muffler and exhaust-flow gasket

Kit 4140 140 0651 and the fragile gas-guiding gasket belong to this illustrated branch, not every FS 55.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • The catalytic converter in the muffler is described as maintenance-free; NEVER attempt repairs to the converter itself. Check fuel system, carburetor, air filter and ignition before engine fault-finding. Screen service below is not converter repair.
  • This section is labeled catalytic converter UP TO 2003. Remove the rewind starter under 6.2; undo muffler screws through the gasket openings. Remove muffler with gasket 2, then flange 3 and gasket 4. Gasket 2 controls EXHAUST GAS FLOW: do not pull, twist, knock or bend it. Replace it if damaged or deformed; do not treat it as a generic flat exhaust gasket.
  • If removing gasket 2, including for screen access, disengage it from its guide. To install, attach it to the muffler, with screws fitted BEFORE wrapping the gasket around the muffler. Clean sealing faces and use a NEW exhaust gasket. Position the preassembled muffler with flange and exhaust gasket; tighten screws through gasket holes to 3.3.
  • For screen access remove muffler and gasket, take out the retaining screw, pull the exhaust duct out of its guide and remove the screen. Clean the screen or replace as necessary; reverse removal steps. The branch says always use replacement muffler kit 4140 140 0651.
  • The adjacent from 2003 branch specifies 4140 140 0653 instead. The overlapping calendar-year headings are retained without inventing a date/serial boundary, interchange or a universal supersession between the kits.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 5.4/5.4.2 and 6.2, printed 16–18/20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 5.4/5.4.2 and 6.2, printed 16–18/20, PDF pages 1, 2, 3, 4, 17, 18, 19, 21

Part numbers (1)
  • 4140 140 0651 — Catalytic muffler kitReplacement for section 5.4.2 up-to-2003 configuration · FS 55 within October 2003 Components scope; actual component/configuration required

Service note · FS 55

FS 55: from-2003 catalytic muffler, mat and screen

Kit 4140 140 0653 stays separate from the earlier kit and retains the specific solvent restriction.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • This branch says always use muffler kit 4140 140 0653 for catalytic-converter mufflers FROM 2003. It is not declared interchangeable with the up-to 2003 kit 4140 140 0651; no precise serial/date cutoff is printed. The converter itself is maintenance-free and must not be repaired.
  • Remove rewind starter under 6.2, then muffler screws. Remove muffler with gasket 2, then flange 3 and gasket 4. Remove the separately illustrated screws 1/2 and baffle plate 3. Remove insulating mat 1 and exhaust gasket 3, then take spark-arresting screen 2 out of the muffler. These numbers are local drawing callouts, not interchangeable part identities across illustrations.
  • Clean the screen with standard solvent-based degreasant containing NO chlorinated OR halogenated hydrocarbons; replace a damaged screen. Reassemble in reverse sequence. The TI 38 page 5 hydrogenated wording remains an unresolved source difference, not silently rewritten or approved as an alternative chemical specification.
  • The from 2003 catalytic shroud must have its reflector foil correctly seated per 5.1. The mat, baffle, flange, gaskets and screen remain distinct; the muffler kit number alone does not establish an enumerated kit inventory or authorize deleting any heat-protection component.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 5.4/5.4.3 and 6.2, printed 16/19–20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 5.4/5.4.3 and 6.2, printed 16/19–20, PDF pages 1, 2, 3, 4, 17, 20, 21

Part numbers (1)
  • 4140 140 0653 — Catalytic muffler kitReplacement for section 5.4.3 from-2003 configuration · FS 55 within October 2003 Components scope; actual component/configuration required

Service note · FS 55

FS 55: damaged starter spacer and retaining lugs

Remove the starter for access, release the spacer inward and confirm its lugs engage on reassembly.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Always replace a damaged spacer. Remove the rewind-starter screws and starter under 6.2 for access. With a screwdriver, lever the spacer lug behind the starter-housing edge and push the spacer INWARDS to remove it.
  • Install in reverse sequence and check the lugs engage properly in the rewind-starter housing. The drawing supplies no spacer part number, adhesive or dimensional repair specification.
  • Spacer 5.5 and starter removal/installation 6.2 are the scope of this note. Adjacent starter cleaning, rotor/spring/rope/pawl/guide-bush procedures have separate source-reviewed notes with their own unresolved conflicts. This spacer is not the separate clutch spacer sleeve or carburetor spacer flange.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 5.5/6.2, printed 20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 5.5/6.2, printed 20, PDF pages 1, 2, 3, 4, 21

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: slow starter rewind and source cleaning guidance

Distinguish the manual’s cold-oil explanation from dirt/pitch disassembly, without treating a symptom as proof.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • The source says very stiff rope with slow/incomplete rewind can indicate an otherwise intact mechanism plugged with dirt; at very low temperatures thickened spring oil can make windings stick. These are attributed diagnostic suggestions, not a verified fault diagnosis for an individual machine.
  • For the cold/sticking case it specifies a few drops of standard solvent-based degreasant on the rewind spring, containing NO chlorinated OR halogenated hydrocarbons, then carefully pulling and allowing the rope to rewind several times until smooth. TI 38’s hydrogenated wording remains conflicting; no chemical substitute is inferred.
  • If clogged with dirt or pitch, remove and disassemble the entire starter including spring; take particular care when removing the spring. Clean per 12 and lubricate rewind spring and starter post with STIHL special lubricant before installation. The previously admitted aids roster is not a license to choose an unspecified lubricant or ignore the spring’s stored energy.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 6.1, printed 20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 6.1, printed 20, PDF pages 1, 2, 3, 4, 21

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: starter cup, spring unloading and rope-rotor engagement

Unloading is clockwise; the installed rotor driver and counterclockwise-pointing spring clip have separate checks.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • For the starter cup: remove starter, unscrew spark plug and block piston using PROCEDURE-listed 4221 893 5900; unscrew the cup from the crankshaft and reassemble in reverse. Section 11 lists 0000 893 5903 instead; the internal locking-strip conflict and earlier starter-cup torque conflicts remain unresolved.
  • For rotor removal the rewind spring MUST NOT be under tension. The manual states a broken rope leaves it untensioned. Otherwise pull out about 20 cm of rope, hold rotor steady, engage rope in the rotor notch to make a loop, and turn rotor CLOCKWISE until spring tension is relieved. Do not confuse this unloading direction with counterclockwise tensioning under 6.6.
  • Remove spring clip, washer and pawl, then carefully lift rotor from post. Replace broken/worn rope under 6.7. Lubricate rotor bore per 12; fit rotor so its driver slips BEHIND THE INNER SPRING LOOP. Turn rotor slightly and release: it must spring back, confirming engagement.
  • Lubricate/refit pawl under 6.8; fit washer and clip into the starter-post groove. The clip must engage the pawl guide peg and point COUNTERCLOCKWISE. A deformed clip can prevent proper function, so handle it carefully. Tension under 6.6, then reinstall starter under 6.2.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 6.3/6.4, printed 21–22.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 6.3/6.4, printed 21–22; compared with section 11 tool table, printed 59, PDF pages 1, 2, 3, 4, 22, 23, 60

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: rewind spring geometry and seven-turn tensioning

Retain the 55 mm recoiling diameter, 2 mm loop clearance and half-turn reserve without overtensioning.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Remove rotor under 6.4 with tension relieved; remove broken spring pieces from rotor/cover. Lubricate the new spring with a few drops of STIHL special lubricant. Set spring in starter with its outer loop pressed over the lug. It may POP OUT AND UNCOIL if the rotor is not installed carefully.
  • If it pops out, the source describes winding from INSIDE OUTWARDS to a 55 mm diameter, gripping with pointed-nose pliers ABOUT 10 mm from the end of the outer loop and placing it in the starter. The inner-loop-to-hub distance A must be NO MORE THAN 2 mm. These are different dimensions, not a spring part number or universal spring specification.
  • After fitting rotor, loop unwound rope in rotor notch, grip near rotor and turn SEVEN FULL TURNS COUNTERCLOCKWISE. Hold rotor, pull out and straighten rope with grip, hold grip firmly to maintain tension, then release rotor and slowly let grip return so rope winds onto rotor.
  • The grip must sit firmly in the guide bush without drooping; if not, add ONE TURN. With rope fully extended there must still be AT LEAST ANOTHER HALF TURN available before maximum spring tension. If not, pull rope out, hold rotor and TAKE OFF ONE TURN of rope. Do not overtension: the source warns this breaks the spring.
  • Check the illustrated plug in the fuel tank is in place before mounting starter and tightening screws to 3.3. This is a stated installation check, not proof of a plug function/part number or a fuel-system service completion.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 6.5/6.6, printed 22–23.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 6.5/6.6, printed 22–23, PDF pages 1, 2, 3, 4, 23, 24

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: starter rope knots, ElastoStart grip and pawl-only repair

Keep the optional spring-element grip separate and leave the rotor on its post during pawl replacement.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Remove starter under 6.2. For broken rope remove remnants from rotor/grip; for worn rope first relieve spring tension under 6.4. Pull the rotor end out, undo its knot and remove rope from grip, housing and rotor. Thread new rope through rotor/housing, tie a SIMPLE OVERHAND KNOT and pull it into the rotor recess. Thread other end through standard grip and tie another simple overhand knot.
  • Only on ElastoStart-equipped machines, pass new rope through grip AND SPRING ELEMENT, tie simple overhand knot, pull rope and element into grip, then fit cap. Tension spring under 6.6 and reinstall starter. No rope diameter/length, grip retrofit, spring-element number or universal ElastoStart fitment is specified here.
  • For PAWL-ONLY replacement remove starter, ease clip off post and pull pawl from rotor; DO NOT PULL THE ROPE ROTOR OFF THE STARTER POST. Lubricate new pawl per 12 and fit. Push clip into post groove, engage pawl guide peg and orient clip COUNTERCLOCKWISE. Avoid deforming it: the source warns that deformation can impair starter function.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 6.7/6.8, printed 24.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 6.7/6.8, printed 24, PDF pages 1, 2, 3, 4, 25

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: rope guide-bush flaring and conflicting instructions

The procedure’s installing-tool number and opening instruction conflict with other sections; neither is silently corrected.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Sideways rope pulling accelerates bush wear; its wall can wear through and the bush become loose. Section 6.9 opens with INSTALL THE REWIND STARTER, referencing 6.2, before describing internal disassembly. This opening is retained as printed, not silently changed to remove. It is inconsistent with the access implied by subsequent operations; do not use this transcription as a resolved standalone work sequence.
  • The text then removes remaining rope and rotor per 6.4, pulls the rope knot from its rotor recess, undoes it and withdraws rope from rotor/guide bush. Pry damaged bush from fan housing/starter cover with a suitable tool. The order/redundancy is reported as printed, not a fabricated corrected procedure.
  • Place replacement bush in its seat. Section 6.9 names installing tool 0000 890 2201; section 11 instead names 5910 890 2204 for installing/flaring this bush. This INTERNAL TOOL-NUMBER CONFLICT remains unresolved; no equivalence, supersession or substitute is approved.
  • The illustrated operation puts the spindle through the bush FROM INSIDE the housing, fits thrust sleeve TAPERED END FIRST and hex nut, then tightens until bush is firmly seated. The tool flares the LOWER END of the bush; remove tool, feed rope through bush FROM OUTSIDE and fit rope/rotor per 6.7/6.4. No tightening torque or bush part number is supplied.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI 38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 6.9, printed 25, including original opening instruction.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 6.9, printed 25, including original opening instruction; compared with section 11 tool table, printed 59, PDF pages 1, 2, 3, 4, 26, 60

Part numbers (1)
  • 0000 890 2201 — Procedure-listed rope-bush installing toolSection 6.9 spindle/flaring operation; conflicts with section 11 number · FS 55 within October 2003 Components scope; actual component/configuration required

Service note · FS 55

FS 55: foam and felt filters require different cleaning

Wash only the optional foam filter; felt cleaning is temporary and damaged filters require replacement.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Dirty air filters reduce power, increase fuel consumption and make starting harder. With noticeable power loss, check for a plugged filter. Before removing it, CLOSE THE CHOKE SHUTTER and remove loose dirt around the filter.
  • Wash the FOAM FILTER, IF FITTED, in a clean non-flammable solution such as soapy water, then dry it. The FELT FILTER must NOT be washed: replace it; as a TEMPORARY measure knock it on the palm of the hand or blow it clear with compressed air. Replace a heavily loaded felt filter and any damaged filter immediately. No compressed-air pressure limit is printed.
  • Press the filter-cover tab inward, swing the cover aside and take it off its housing lugs. Remove the prefilter IF FITTED from the cover, then the felt element. Reinstall in reverse sequence. Optional foam/prefilter wording does not establish a universal filter stack or a replacement part number.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 8/8.1/8.1.1, printed 37.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 8/8.1/8.1.1, printed 37, PDF pages 1, 2, 3, 4, 38

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: choke-shutter guide and new push nut

The shutter must seat in its lever guide; the housing-removal cross-reference remains explicit.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Section 8.1.2 says REMOVE THE FILTER HOUSING and points to 8.1.1. That referenced section describes the cover/filter removal, whereas 8.2.2 explicitly removes housing nuts, housing and its gasket. This cross-reference mismatch is retained, not silently corrected or treated as proof that unclipping the cover removes the housing.
  • With the filter housing removed, remove push nut 1 and pull choke shutter 2 out of lever 3. Reinstall in reverse sequence, ensuring the shutter is properly located in the lever guide. USE A NEW PUSH NUT. The local drawing numbers are not orderable part numbers, and no shutter direction/setting beyond the illustrated guide is invented.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 8.1.2, printed 37; housing-removal comparison 8.2.2, printed 39.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 8.1.2, printed 37; housing-removal comparison 8.2.2, printed 39, PDF pages 1, 2, 3, 4, 38, 40

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: carburetor leakage test at approximately 0.8 bar

Keep the pressure-hold interpretation separate from the tank-vent vacuum check.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • For suspected fuel faults the manual points to troubleshooting 4.3, now separately source-reviewed with its alternative causes and retained lever-remedy discrepancy, and requires checking the tank vent under 9.4 as well. This is the CARBURETOR PRESSURE test, not a crankcase or fuel-tank pressure specification, even though tester 1106 850 2905 is named a carburetor and crankcase tester.
  • Remove the filter cover under 8.1.1 and disconnect the fuel hose from the carburetor elbow. Fit fuel line 1110 141 8600 to nipple 0000 855 9200, fit this line to the carburetor elbow, and connect the tester pressure hose to the nipple. Close the rubber-bulb vent screw and pump until the gauge reads APPROXIMATELY 0.8 bar.
  • If pressure remains CONSTANT, the manual calls the carburetor airtight. A pressure drop points to either an inlet needle not sealing (foreign matter, damaged sealing cone or sticking inlet control lever) or a damaged metering diaphragm; service the carburetor in either case. No numerical hold time, allowed decay, pop-off pressure or unique diagnosis is specified.
  • After the test OPEN THE VENT SCREW before pulling off the test line. Reconnect the machine fuel hose to the elbow and reverse remaining assembly steps; use a new gasket if necessary. Carburetor internals/settings 9.1–9.3 are now separately source-reviewed in the linked carburetor notes; this test description still does not establish a completed repair.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 8.2/8.2.1, printed 38.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 8.2/8.2.1, printed 38, PDF pages 1, 2, 3, 4, 39

Part numbers (3)
  • 1106 850 2905 — Carburetor and crankcase testerPressure test of carburetor only in this section · FS 55 within October 2003 Components scope; actual component/configuration required
  • 1110 141 8600 — Test fuel lineConnect nipple to carburetor elbow · FS 55 within October 2003 Components scope; actual component/configuration required
  • 0000 855 9200 — Test nippleJoin test fuel line and tester pressure hose · FS 55 within October 2003 Components scope; actual component/configuration required

Service note · FS 55

FS 55: carburetor removal and hose orientation

Use a new gasket, avoid kinks and point the hose bead toward the drive tube.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Remove the air filter under 8.1.1. Use screwdriver 5910 890 2420 to remove the housing nuts, then remove the filter housing and the gasket behind it. Disconnect the throttle cable from the slotted pin on the carburetor throttle lever and disconnect the fuel hoses from the elbow connectors.
  • Pull the carburetor off the screws and remove its gasket. Install in reverse sequence using a NEW GASKET. Route the fuel hoses WITHOUT KINKS. The explicit FS 45/46/55 branch directs the orientation bead on the fuel hose TOWARDS THE DRIVE TUBE when fitted to the carburetor elbow.
  • The tool number is not a carburetor, gasket or machine-hose part number. The carburetor gasket and filter-housing gasket remain distinct locations; no universal gasket inventory, hose length or carburetor suffix is inferred.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 8.2.2, printed 39; filter prerequisite 8.1.1.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 8.2.2, printed 39; filter prerequisite 8.1.1, PDF pages 1, 2, 3, 4, 38, 40

Part numbers (1)
  • 5910 890 2420 — ScrewdriverRemove filter-housing nuts for carburetor access · FS 55 within October 2003 Components scope; actual component/configuration required

Service note · FS 55

FS 55: spacer flange with secured or loose cable tensioner

Retain both tensioner arrangements, new gaskets and the preinstalled hex-head screws.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • First remove the carburetor under 8.2.2 and fuel tank under 9.5.1. On the PIN-AND-PUSH-NUT tensioner version, pull the throttle cable out of the tensioner, remove the screws and lift off the flange with tensioner and hex-head screws. If needed, lever off the push nut and remove the tensioner; reinstall with a NEW PUSH NUT.
  • On the LOOSELY MOUNTED tensioner version, pull tensioner WITH THROTTLE CABLE out of the flange, remove its screws and remove the flange with hex-head screws. These are configuration branches, not serial cutoffs or interchangeable tensioners.
  • Remove the gasket. Fit the hex-head screws IN THE SPACER FLANGE BEFORE INSTALLING it. Reverse remaining steps, use NEW GASKETS and observe the separately admitted section 3.3 torques. This intake spacer flange is not the starter spacer or clutch spacer sleeve.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 8.2.3, printed 40; fuel-tank prerequisite 9.5.1, printed 49–50.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 8.2.3, printed 40; fuel-tank prerequisite 9.5.1, printed 49–50, PDF pages 1, 2, 3, 4, 41, 50, 51

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: tank-vent vacuum decay and integrated filler cap

Slowly disappearing vacuum indicates venting; unchanged vacuum calls for cap replacement.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • The tank vent equalizes internal tank and atmospheric pressure. Check it when carburetor or fuel-supply trouble occurs. Open the cap SLOWLY, drain the tank and refit the cap tightly. Disconnect BOTH fuel hoses at the carburetor, plug one with a suitable plug and connect vacuum pump 0000 850 3501 to the other.
  • Operate the pump quickly to produce a vacuum. If vacuum remains UNCHANGED, replace the tank vent; if it SLOWLY DISAPPEARS, the manual says the vent is in order. No numerical vacuum level or decay interval is printed. This is deliberately the opposite hold interpretation from the carburetor pressure test; do not use the 0.8-bar carburetor value here.
  • On these machines the vent is INTEGRATED IN THE FUEL FILLER CAP. If the test shows no pressure equalization, replace the CAP. As a TEMPORARY measure only, the cap may be disassembled and individual parts cleaned with a little solvent-based degreasant containing NO chlorinated OR halogenated hydrocarbons, referring to section 12. The earlier TI hydrogenated wording remains an unresolved difference.
  • The exploded drawing identifies cap 1, valve body 2, sintered filter 3, fuel filler cap 4, cup spring 5, sintered filter 6, valve 7 and sealing ring 8. Keep the two filters and two differently named caps distinct. These are drawing callouts, not a replacement-parts list or cap kit number. The adjacent left-column limiter-cap procedure 9.3.3 is NOT closed by this vent review.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 9.4/9.4.1/9.4.2, printed 48 middle/right columns; left column 9.3.3 remains pending.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 9.4/9.4.1/9.4.2, printed 48 middle/right columns; left column 9.3.3 remains pending, PDF pages 1, 2, 3, 4, 49

Part numbers (1)
  • 0000 850 3501 — Vacuum pumpTest fuel-tank vent through one hose with the other plugged · FS 55 within October 2003 Components scope; actual component/configuration required

Service note · FS 55

FS 55: fuel-tank removal, supports and retainer sequence

Seat the support plugs over their lugs and tighten the retainer only after the starter cover is installed.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • The diaphragm pump draws fuel through the pickup-body filter; clogged fine pores restrict flow and can cause starvation. For supply trouble check the tank and pickup body first, cleaning the tank if needed. Follow section 2 fuel precautions. The stated tank-cleaning method is drain, add a SMALL amount of clean gasoline, close the cap, shake the machine vigorously, reopen and drain; dispose of fuel properly. No solvent substitution, volume or agitation duration is specified.
  • For removal, unscrew the filler cap and drain the tank, remove the air-filter cover, disconnect the fuel hoses at the carburetor elbows, remove the rewind starter under 6.2 and remove the tank. Remove the support plugs from the tank and replace worn plugs.
  • Remove retainer screw 1 and retainer 2; pull out sleeve 1 and remove grommet 2 in the NEXT drawing. Remove the hoses under 9.5.2. These are local illustration callouts, not the same numbered components across drawings.
  • Reassemble in reverse sequence. The support PLUGS MUST ENGAGE OVER THE LUGS, and the throttle cable must NOT BE PINCHED. Tighten the retainer screw ONLY AFTER INSTALLING THE STARTER COVER; the continuation on printed 50 shows the retainer screw being tightened. No tank, plug, sleeve, grommet or screw part number is supplied.
  • This note closes the source-reading prerequisite 9.5.1 previously left pending in the engine-housing-removal note. It does not claim hardware execution, a leak-free repair or closure of separate handbook dependencies. The available August1999 powerhead is now separately source-reviewed.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 9.5/9.5.1, printed 49–50, including PDF51 left-column continuation.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 9.5/9.5.1, printed 49–50, including PDF51 left-column continuation, PDF pages 1, 2, 3, 4, 50, 51

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: pickup-body inspection and grommet installation

Keep oil on the lower grommet half and the hose orientation bead toward the drive tube.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Remove the tank under 9.5.1, pry the grommet out of the tank housing and pull out the fuel hoses WITH the pickup body. Pull the pickup body off its hose, inspect it for contamination and replace if necessary. No filter mesh rating, service interval or pickup-body part number is printed.
  • Reassemble in reverse sequence. Coat only the LOWER HALF OF THE GROMMET with oil to ease insertion; no oil product or quantity is specified. At the carburetor elbow position the fuel hose so its ORIENTATION BEAD POINTS TOWARDS THE DRIVE TUBE. This agrees with the explicit FS 45/46/55 branch in 8.2.2 and is not a hose-length or universal fitment claim.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 9.5.2, printed 50; tank removal prerequisite 9.5.1.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.5.2, printed 50; tank removal prerequisite 9.5.1, PDF pages 1, 2, 3, 4, 50, 51

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: pump diaphragm, gasket and fuel strainer

Preserve the pump-side stack and end-cover locating pegs.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Remove the carburetor under 8.2.2, take out the end-cover screw, remove the end cover, gasket and pump diaphragm. If gasket and diaphragm stick together, separate them VERY CAREFULLY. Inspect both and replace if necessary; distortion or swelling from fatigue requires diaphragm replacement.
  • Inspect the fuel strainer for contamination and damage, replacing if necessary. Reverse the removal sequence. The diagram places the GASKET BETWEEN END COVER AND PUMP DIAPHRAGM; the cover pegs locate both pieces. Do not transfer the metering-side gasket/diaphragm stack to this pump side. No diaphragm, gasket, strainer kit number or mesh size is supplied.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. Carburetor type and installed limiter-cap design must be identified; these alternatives do not establish a universal FS 55 setting or carburetor replacement.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 9.1, printed 41 left/middle columns.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.1, printed 41 left/middle columns, PDF pages 1, 2, 3, 4, 42

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: oval and square manual-fuel-pump covers

Keep the two cover designs and oval-cover screw lengths separate.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • For BOTH designs first perform the leakage test under 8.2 and remove the carburetor under 8.2.2. For the OVAL END COVER, remove the M3x12 screws and end cover with cap, then the M3x8 screws and flange; take the cap out of the cover. Inspect metering diaphragm and gasket under 9.2.2 and reassemble in reverse sequence. Additional gasket/diaphragm holes, IF PRESENT, must align with holes in the carburetor and flange.
  • For the SQUARE END COVER, remove its screws and end cover with cap, take the cap out, then remove the flange. Inspect the metering diaphragm and gasket under 9.2.2 and reverse the sequence. This branch prints NO screw lengths; do not copy the oval-cover lengths into it. Neither cover shape establishes a carburetor suffix, serial boundary or interchangeable primer-bulb kit.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. Carburetor type and installed limiter-cap design must be identified; these alternatives do not establish a universal FS 55 setting or carburetor replacement.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Sections 9.2/9.2.1, printed 41 right column through 42.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 9.2/9.2.1, printed 41 right column through 42, PDF pages 1, 2, 3, 4, 42, 43

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: metering diaphragm and compensating bore

Place the gasket on the body, then the diaphragm, with both holes aligned.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Remove the flange by the matching OVAL (9.2) or SQUARE (9.2.1) manual-pump procedure, not both in succession. Remove metering diaphragm and gasket from the body; separate stuck pieces carefully. Inspect and replace as necessary; a fatigued, distorted or swollen diaphragm must be replaced.
  • Fit the GASKET ON THE CARBURETOR BODY, aligning its hole with the compensating bore. Place the METERING DIAPHRAGM ON THE GASKET, again aligning its hole with the bore and gasket. Reassemble remaining parts in reverse sequence. The holes are functional passages, not optional locating marks; no hole diameter or diaphragm part number is inferred.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. Carburetor type and installed limiter-cap design must be identified; these alternatives do not establish a universal FS 55 setting or carburetor replacement.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 9.2.2, printed 43 left/middle columns.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.2.2, printed 43 left/middle columns, PDF pages 1, 2, 3, 4, 44

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: inlet needle wear and flush control lever

Retain the loose spring and align the lever with the carburetor-body top.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Remove the metering diaphragm under 9.2.2 and the retaining screw, then inlet control lever, spindle, spring and needle. The SPRING MAY POP OUT and must not be lost. An ANNULAR INDENTATION on the needle sealing cone requires replacement because the needle will no longer seal properly.
  • Reassemble in reverse sequence. Engage the clevis in the annular groove on the needle head, locate the helical spring on the control-lever nipple and check that the lever moves freely. The UPPER EDGE OF THE LEVER MUST BE FLUSH WITH THE TOP OF THE CARBURETOR BODY; reinstall the metering diaphragm. No numeric lever height, spring preload, bending method or gauge is supplied.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. Carburetor type and installed limiter-cap design must be identified; these alternatives do not establish a universal FS 55 setting or carburetor replacement.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 9.2.3, printed 43 right column through 44 left column.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.2.3, printed 43 right column through 44 left column, PDF pages 1, 2, 3, 4, 44, 45

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: fixed-jet access retains printed carburetor designations

The two illustrations have distinct suffix lists; neither assigns jet size or universal FS 55 fitment.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • Remove the metering diaphragm under 9.2.2 and avoid damaging the fixed jet. The upper illustration is explicitly for C1Q-S44A, C1Q-53A, C1Q-S58 ONLY; the lower is for C1Q-S44, C1Q-S53, C1Q-S66 ONLY. Each directs unscrewing the fixed jet and reversing the sequence for installation.
  • The upper list visibly prints C1Q-53A WITHOUT S after the hyphen. Preserve that spelling as a source discrepancy; do not silently normalize it to C1Q-S53A or assert that either is the installed FS 55 carburetor. The lists describe this multi-model manual branch, not an assignment of every listed carburetor to FS 55. No jet bore, jet order number, tightening torque or suffix interchange is given.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. Carburetor type and installed limiter-cap design must be identified; these alternatives do not establish a universal FS 55 setting or carburetor replacement.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 9.2.4, printed 44 middle column.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.2.4, printed 44 middle column, PDF pages 1, 2, 3, 4, 45

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: LD-only carburetor setting and idle branches

LD is left-hand threaded; exclude the different hedge-trimmer idle offsets.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • This branch has LD only, with NO H or L mixture screws. For the standard setting carefully turn LD COUNTERCLOCKWISE onto its seat (LEFT-HAND THREAD), then TWO FULL TURNS CLOCKWISE. Check the air filter and spark-arresting screen, replacing/cleaning as specified. For FS units fit an approved cutting tool; nylon lines must reach the deflector line-limiter blade.
  • After the standard setting start and warm the engine. If it stops while idling, turn LD slowly CLOCKWISE until smooth running; the FS cutting tool MUST NOT ROTATE. If the FS tool rotates at idle, turn LD COUNTERCLOCKWISE until it stops, then ABOUT ONE MORE TURN in that direction. For erratic idle/poor acceleration turn LD slowly NO MORE THAN HALF A TURN COUNTERCLOCKWISE.
  • The separate HL instructions (clockwise until blades run then back half a turn, or counterclockwise until blades stop then another one and a half turns) are EXCLUDED from this FS 55 note. No numeric idle rpm or maximum engine speed appears in this section. These later settings do not resolve any conflicting earlier source setting.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. Carburetor type and installed limiter-cap design must be identified; these alternatives do not establish a universal FS 55 setting or carburetor replacement.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 9.3.1, printed 44 right column through 45 middle column.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.3.1, printed 44 right column through 45 middle column, PDF pages 1, 2, 3, 4, 45, 46

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: capped H/L/LA standard setting and fine correction

Keep standard setting separate from cap-off basic setting, and preserve the L/LA wording discrepancy.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • For STANDARD SETTING DO NOT REMOVE THE H LIMITER CAP. Check the air filter and spark-arresting screen; for FS fit an approved cutting tool with nylon lines reaching the deflector line-limiter blade. Turn H COUNTERCLOCKWISE to the stop, NO MORE THAN 3/4 TURN. Carefully seat L clockwise, then open it ONE FULL TURN COUNTERCLOCKWISE. Warm the engine and use LA so that the tool DOES NOT ROTATE.
  • For fine tuning first perform the standard setting, warm the engine and open the throttle wide. At HIGH ALTITUDE turn H clockwise (leaner); at SEA LEVEL turn H counterclockwise (richer), in either case NO FURTHER THAN THE STOP and until no noticeable speed increase. The source notes that the standard setting may already yield highest rpm. No numeric speed target or permission to defeat the stop is supplied.
  • The idle subsection on printed 46 says "Open the idle speed screw (L) one full turn", while the same page calls L the LOW SPEED screw and LA the IDLE SPEED screw. Retain this naming discrepancy; do not silently reinterpret it as one turn of LA. The earlier standard-setting text explicitly seats and opens L.
  • If the engine stops at idle, turn LA slowly clockwise until smooth running without tool rotation. If the tool runs at idle, turn LA counterclockwise until it stops, then ABOUT ANOTHER HALF TO ONE FULL TURN. Erratic idle WITH POOR ACCELERATION is described as too lean: turn L about a quarter turn counterclockwise until smooth. The separate too-rich erratic-idle branch turns L about a quarter turn clockwise. LA usually needs readjustment after each L correction; the symptom is not a unique diagnosis.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. Carburetor type and installed limiter-cap design must be identified; these alternatives do not establish a universal FS 55 setting or carburetor replacement.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 9.3.2, printed 45 right column through 46.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.3.2, printed 45 right column through 46, PDF pages 1, 2, 3, 4, 46, 47

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: basic H/L setting and short versus long limiter caps

Use a new cap; short caps stop at the second detent, long caps against the body.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • The source limits H-cap removal to replacing the H screw, cleaning the carburetor or adjusting from scratch; removal requires the BASIC setting. For a SHORT cap, insert puller 5910 890 4501 with its groove facing the operator between cap and body and pry off; if stuck, reverse the puller groove toward the body and pry. For a LONG cap use suitable pliers. Removed caps may be damaged and MUST NOT BE REUSED; always fit a new cap.
  • With the cap removed, seat H and L clockwise, then open H ONE AND A HALF TURNS COUNTERCLOCKWISE and L ONE FULL TURN COUNTERCLOCKWISE. These basic settings are distinct from capped standard H adjustment within 3/4 turn, not additive turns beyond the cap stop.
  • SHORT CAP: align the new H cap against the rich stop and press ONLY TO THE SECOND NOTICEABLE DETENT. Its stop limits adjustment to 3/4 turn (270 degrees). DO NOT PRESS AGAINST THE CARBURETOR BODY, which would damage it. Then perform the standard setting under 9.3.2.
  • LONG CAP: align the new H cap against the rich stop so H can turn only 3/4 turn CLOCKWISE, then push it UNTIL IT BUTTS AGAINST THE CARBURETOR BODY. Then perform the standard setting under 9.3.2. This opposite seating instruction is intentional configuration branching, not permission to interchange cap types or reuse a cap. No cap part number or serial boundary is printed.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. Carburetor type and installed limiter-cap design must be identified; these alternatives do not establish a universal FS 55 setting or carburetor replacement.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 9.3.3, printed 47 through 48 left column.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.3.3, printed 47 through 48 left column, PDF pages 1, 2, 3, 4, 48, 49

Part numbers (1)
  • 5910 890 4501 — Limiter-cap pullerShort H limiter-cap removal only; groove orientation depends on whether cap is stuck · FS 55 only with the described carburetor/cap configuration; October 2003 Components evidence

Service note · FS 55

FS 55: clutch symptoms do not uniquely identify the fault

Separate load slip, idle rotation and noise; exclude the hedge-trimmer blade lock.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • TOOL STOPS AT FULL THROTTLE UNDER LOAD: badly worn clutch shoes lead to new shoes or a new clutch; a badly worn drum leads to drum replacement. TOOL RUNS AT IDLE: excessive idle speed leads to counterclockwise idle-screw adjustment; stretched/fatigued clutch springs or broken spring hooks lead to new springs. Select LD or LA through the separately reviewed carburetor branch, not a mixture screw.
  • LOUD NOISES: stretched/fatigued springs lead to replacing ALL clutch springs; a broken shoe retainer/carrier leads to a new retainer/carrier or clutch; worn shoes AND carrier lead to a new clutch. These alternatives are not a parts-kit inventory or confirmed fault.
  • The final two rows concern HEDGE-TRIMMER BLADES moving at starting throttle with the blade lock engaged: broken tension spring or stretched/worn/broken brake band. Those blade-lock branches are EXCLUDED from FS 55, not evidence that its cutting head has that lock.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. These are possible cause/remedy pairs, not unique diagnoses or instructions to run hardware; select the actual carburetor and component configuration.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 4.1, printed 7.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.1, printed 7, PDF pages 1, 2, 3, 4, 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: starter faults retain distinct causes and remedies

Differentiate broken rope/spring, no crankshaft motion and slow rewind.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • BROKEN ROPE: excessive pull to the stop or over an edge rather than vertically, OR normal wear; both call for a new rope. BROKEN REWIND SPRING: overtension with no reserve at full rope extension, OR heavy dirt/corrosion; both call for a new spring. The table supplies no tension-turn count; use the separate starter procedure.
  • ROPE PULLS ALMOST WITHOUT RESISTANCE AND CRANKSHAFT DOES NOT TURN: worn pawl guide peg or pawl calls for a new pawl; a fatigued spring clip calls for a new clip. These two causes are not the same component.
  • HARD PULL AND VERY SLOW REWIND: a very dirty mechanism calls for thorough cleaning; oil becoming viscous in very cold conditions and sticking spring windings calls for coating the spring with solvent-based degreasant containing NO chlorinated OR halogenated hydrocarbons, then pulling carefully several times until normal action returns. No temperature threshold is printed. Retain the earlier TI hydrogenated-versus-halogenated wording conflict.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. These are possible cause/remedy pairs, not unique diagnoses or instructions to run hardware; select the actual carburetor and component configuration.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 4.2, printed 8.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.2, printed 8, PDF pages 1, 2, 3, 4, 9

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: idle stall and load-power fault alternatives

Keep blocked passages, mixture settings, supply leaks and linkage checks separate.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • ENGINE STALLS AT IDLE: blocked idle-jet bores/ports call for cleaning and compressed-air clearing; an L setting too rich OR too lean calls for correctly resetting L; an incorrect LA setting closing the throttle shutter completely calls for correctly resetting LA. These L/LA branches apply ONLY WHERE THOSE SCREWS EXIST, not to an LD-only carburetor; no air-pressure limit is printed.
  • SPEED DROPS QUICKLY UNDER LOAD / LOW POWER: plugged air filter calls for cleaning or replacement; faulty tank vent for a new vent; a leak between tank and fuel pump for sealed/renewed connections and fuel line; damaged/fatigued pump diaphragm for a new diaphragm; blocked main-jet bores/ports for cleaning; dirty pickup body for a new pickup body; H too rich for correct H setting; shutter not fully open for a linkage check.
  • The generic filter-cleaning row does NOT override section8.1: FELT MUST NOT BE WASHED, foam cleaning depends on its presence, and heavily loaded/damaged filters need replacement. The generic vent row does NOT invent a separate replaceable vent: section9.4 locates it IN THE FILLER CAP. No unique diagnosis, universal H/L settings or parts interchange follows from this table.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. These are possible cause/remedy pairs, not unique diagnoses or instructions to run hardware; select the actual carburetor and component configuration.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 4.3, printed 9; specific filter and vent procedures 8.1/9.4, printed 37/48.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.3, printed 9; specific filter and vent procedures 8.1/9.4, printed 37/48, PDF pages 1, 2, 3, 4, 10, 38, 49

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: poor acceleration has seven listed fuel causes

Retain capped richening limits and the flush-to-body lever datum.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • For POOR ACCELERATION the source lists seven alternatives: idle jet too lean (turn L counterclockwise/richer NO FURTHER THAN STOP); main jet too lean (turn H counterclockwise/richer NO FURTHER THAN STOP); inlet lever too low (set it FLUSH WITH TOP OF CARBURETOR BODY); inlet needle sticking to its seat (remove, clean and refit); blocked atmospheric connecting bore (clean it); leaking diaphragm gasket (new gasket); damaged/shrunken metering diaphragm (new diaphragm). H/L actions apply only to equipped carburetors.
  • The separate WILL NOT IDLE / IDLE TOO HIGH row attributes this to the idle-speed screw holding the shutter too far open and calls for correct idle-speed resetting. No rotation offset is specified here; retain the separate LD/LA procedures.
  • The next printed page lists the same INLET CONTROL LEVER TOO LOW wording under FLOODING but calls for a NEW LEVER rather than flush-height adjustment. Keep both symptom-specific rows and their different remedies visible; do not silently change either too-low statement to too-high or collapse them into one confirmed diagnosis.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. These are possible cause/remedy pairs, not unique diagnoses or instructions to run hardware; select the actual carburetor and component configuration.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 4.3, printed 10; comparison with flooding table printed 11.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.3, printed 10; comparison with flooding table printed 11, PDF pages 1, 2, 3, 4, 11, 12

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: flooding table preserves a lever-remedy discrepancy

Five possible causes are listed; the low-lever replacement row is not silently corrected.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • CARBURETOR FLOODS / ENGINE STALLS: a non-sealing inlet needle from foreign matter in the seat or damaged cone calls for needle removal/cleaning or replacement, plus cleaning tank, pickup body and line IF NECESSARY. Lever sticking on its spindle calls for freeing it. Spring not on the lever nipple calls for lever removal and correct refit. A deformed diaphragm perforated disc constantly pressing the lever calls for a new metering diaphragm.
  • The fifth row explicitly says INLET CONTROL LEVER TOO LOW relative to correct position and prescribes a NEW INLET CONTROL LEVER. Printed10 instead associates a too-low lever with poor acceleration and prescribes setting it flush with the body. This different remedy/association is preserved as printed, without silently substituting too-high or treating the symptom alone as proof of which remedy is needed. No spring preload, lever part number or adjustment gauge is supplied.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. These are possible cause/remedy pairs, not unique diagnoses or instructions to run hardware; select the actual carburetor and component configuration.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 4.3, printed 11; poor-acceleration comparison printed 10.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.3, printed 11; poor-acceleration comparison printed 10, PDF pages 1, 2, 3, 4, 11, 12

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: engine fault checks preserve powerhead prerequisites

Check air, fuel, carburetor and ignition before attributing symptoms to the engine.

No exact-model IPL link: FS 55 explicitly named in October 2003 Components introduction; select actual handle, region and component configuration. Exact TI 38-delegated revision not established.

  • BEFORE LOOKING FOR ENGINE FAULTS always check and repair if needed: air filter, fuel system, carburetor and ignition. Ignition is explicitly footnoted to the separate SERIES4140 POWERHEAD manual; the applicable powerhead procedures are now separately source-reviewed in the FS55 cylinder/piston, crankshaft/seal, leakage and ignition notes. Reading this table alone still does not provide those procedures or establish a repair.
  • HARD START / STALL AT IDLE BUT NORMAL FULL THROTTLE: faulty crankcase oil seals call for new seals; leaking/cracked crankcase calls for sealing/replacement; leaking muffler calls for sealing/replacement. Oil-seal and crankcase remedies are footnoted to the powerhead manual, not standalone procedures here.
  • LOW POWER OR ERRATIC RUNNING: worn/broken piston rings call for new rings (powerhead-manual footnote); carbonized muffler/spark-arresting screen calls for cleaning muffler inlet/outlet openings and replacing the screen; dirty air-filter element calls for a new element; kinked/cracked fuel or impulse lines call for new lines or kink-free routing. No ring count or model-specific seal/line part number is inferred.
  • OVERHEATING: blocked fan-housing air inlets or very dirty cylinder fins causing insufficient cooling call for thoroughly cleaning ALL cooling-air passages and fins. No temperature limit, measured diagnosis or authorized engine run is established.
  • October 2003 Components manual explicitly names FS 55. Later configuration-specific evidence, not the exact 1999 edition delegated by TI38, a serial cutoff, R/C/RC/T/2-MIX extension or physical interchange proof. Select the installed configuration; retain the owner-manual precautions and unresolved torque, tool-number and solvent conflicts. Fuel work is outdoors only, away from fire, flame, sparks and heat, with spilled fuel wiped away immediately. Remaining procedures and external handbook dependencies are pending; no hardware procedure has been performed. These are possible cause/remedy pairs, not unique diagnoses or instructions to run hardware; select the actual carburetor and component configuration.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — Section 4.4, printed 12, including footnote1.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.4, printed 12, including footnote1, PDF pages 1, 2, 3, 4, 13

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: 1999 powerhead values and the 0.5 bar / 5 kPa conflict

The printed pressure units disagree by a factor of ten.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Printed 3 specifies 27.2 cm³, 34 mm bore, 30 mm stroke, 0.75 kW (1 HP) at 7,000 rpm to ISO 8893; deep-groove crankshaft ball bearings, needle cages at small/big ends and an 8 mm piston pin. These are the dated powerhead values; do not project them onto every later FS 55 variant.
  • The original image shows 9,500 ±800 rpm WITHOUT CUTTING TOOL and idle 2,800 ±300 rpm; plain text extraction lost the minus strokes. These equal 8,700–10,300 and 2,500–3,100 rpm respectively. The unlined centrifugal clutch engages at 3,800 rpm. Do not apply the no-tool speed range to mounted-tool idle adjustment.
  • Both crankcase gauge-pressure and vacuum rows print 0.5 bar (5 kPa). These units are inconsistent: 0.5 bar converts to 50 kPa, not 5 kPa. The printed assertion is retained as a conflict, not a verified test setting. The separately reviewed sections 6–6.3 repeat this conflict and add a 0.3 bar / 3 kPa mismatch; see the companion pressure/vacuum note.
  • Ignition is breakerless electronic magneto with integral trigger, air gap 0.15–0.45 mm. Suppressed plugs are Bosch WSR 6F, NGK BPMR 7 A or Champion RCJ 6Y; electrode gap 0.5 mm. This is the dated manual specification, not a claim of every later ignition revision.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: 1999 powerhead values and the 0.5 bar / 5 kPa conflict.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover, introduction, safety, complete specification/torque/tool/aids/accessory tables; printed 1–4,16–17, PDF pages 1, 2, 3, 4, 5, 17, 18

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: later cleaner wording and gear-lubricant labels differ

Keep the dated table labels, distinct shaft/gearhead applications and grease-package discrepancy.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Printed 17 lists oil-seal grease 0781 120 1111 (370 g), special lubricant 0781 417 1315 for rope-rotor bearing bore and rewind spring, electrical repair kit 5910 007 1050 and Dirko 0783 830 2120 for engine-pan/cylinder sealing. No quantity or interval is specified. TI38 page 5 labels the SAME grease number 0781 120 1111 as a 225 g tube, whereas this manual says 370 g. Retain the package-size discrepancy; no supersession or package changeover is established.
  • For cleaning the crankshaft stub, this manual says solvent-based degreasant containing neither CHLORINATED nor HALOGENATED hydrocarbons. TI38/1999 says CHLORINATED or HYDROGENATED. Preserve both wordings and the crankshaft-stub scope; the later wording does not silently correct the earlier source.
  • The accessory list labels 0781 120 1117 (80 g) and 0781 120 1118 (225 g) as brushcutter gear lubricant; 0781 120 1109 (80 g) and 0781 120 1110 (225 g) as hedge-trimmer gear lubricant. TI38 page 5 specifically assigns 1117/1118 to the GEARHEAD and 1109/1110 to the DRIVE SHAFT IN TUBE. Preserve those distinct applications: generic accessory labels do not authorize substituting gearhead grease for shaft lubricant.
  • Safety glasses have no number in this table. ElastoStart 0000 190 3400 is starter rope WITH grip, listed as a user accessory; it is not proof of standard equipment. Blank cells do not create inferred part numbers.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: later cleaner wording and gear-lubricant labels differ.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover, introduction, safety, complete specification/torque/tool/aids/accessory tables; printed 1–4,16–17, PDF pages 1, 2, 3, 4, 5, 17, 18

Part numbers (9)
  • 0781 120 1111 — Grease,370 gOil seals; manual370 g versus TI38 225 g package discrepancy · FS 55 within the cited manual edition
  • 0781 417 1315 — Special lubricantRope-rotor bore and rewind spring · FS 55 within the cited manual edition
  • 5910 007 1050 — Electrical repair kitElectrical system · FS 55 within the cited manual edition
  • 0783 830 2120 — Dirko sealantEngine pan/cylinder · FS 55 within the cited manual edition
  • 0781 120 1117 — Brushcutter gear lubricant,80 gBrushcutter-labelled lubricant; TI38 assigns it to gearhead · FS 55 within the cited manual edition
  • 0781 120 1118 — Brushcutter gear lubricant,225 gBrushcutter-labelled lubricant; TI38 assigns it to gearhead · FS 55 within the cited manual edition
  • 0781 120 1109 — Hedge-trimmer gear lubricant,80 gHedge-trimmer-labelled lubricant; TI38 assigns it to drive shaft in tube · FS 55 within the cited manual edition
  • 0781 120 1110 — Hedge-trimmer gear lubricant,225 gHedge-trimmer-labelled lubricant; TI38 assigns it to drive shaft in tube · FS 55 within the cited manual edition
  • 0000 190 3400 — ElastoStartStarter rope with grip; user accessory · FS 55 within the cited manual edition

Service note · FS 55

FS 55: pressure and vacuum tests are separate checks

The 20-second criteria retain the manual’s repeated unit conflicts.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Sections 6–6.3 (printed 10–12) explain that leaks at oil seals, gaskets or spacer-flange castings can admit extra air, disturb idle and cause poor transition. A pressure test alone is insufficient: seal lips may lift under induction vacuum without internal counterpressure. This is a source explanation, not a diagnosis of a connected machine.
  • Preparation delegates shroud, carburetor and starter-cover removal to the components manual. Set the piston to top dead centre, checked through the inlet port; check the plug is tight; fit a NEW spacer-flange gasket and test flange 1128 850 4200 with nuts tightened to 3.5 Nm. Slacken muffler screws halfway and insert sealing plate 0000 855 8106 BETWEEN gasket and cylinder exhaust port. It must fill the entire space between screws; retighten moderately for the test, not the final 9.0 Nm torque yet.
  • Pressure test: connect tester 1106 850 2905 to the test flange, close the bulb vent and pump to printed 0.5 bar (5 kPa). The source requires CONSTANT pressure for AT LEAST 20 seconds. A drop requires locating and replacing the faulty part; oil on a suspect area reveals bubbles under pressure. Repeat the pressure test, then perform the separate vacuum test. The bar/kPa conflict remains unresolved as an operational setting: 0.5 bar equals 50 kPa.
  • Vacuum test: connect pump 0000 850 3501 to the test flange, close its vent and operate the lever to printed 0.5 bar (5 kPa) vacuum. The text says a constant reading, or a rise to no more than 0.3 bar (3 kPa) WITHIN 20 seconds, indicates sound seals; continuing pressure rise (REDUCED vacuum) calls for replacement. Preserve that wording and direction. The second conversion is also inconsistent: 0.3 bar equals 30 kPa, not 3 kPa. Do not turn this into an unqualified signed-pressure threshold.
  • After testing, open the vent before disconnecting, remove the test flange, slacken the muffler screws, remove the sealing plate and tighten screws to 9.0 Nm. Pressure-test cleanup explicitly lists starter cover, carburetor and shroud; vacuum cleanup lists carburetor and shroud. Do not infer that an omitted starter cover may be left off. Access/reassembly instructions are still delegated to the components manual.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: pressure and vacuum tests are separate checks.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Explicit FS55 scope and complete sections6–6.3,printed10–12; pressure/vacuum setup,hold,leak location and cleanup, PDF pages 1, 2, 11, 12, 13

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: matched cylinder/piston and protected removal

The manual leaves the flywheel-side ring in place and holds the crankcase together.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Section 4.1 first requires checking and, if necessary, repairing the fuel system, carburetor, air filter and ignition before looking for engine faults. It delegates troubleshooting to Standard Repairs, Troubleshooting and housing, muffler, ignition-module and spacer-flange access to the components handbook. Remove the spark plug before the described cylinder work.
  • Use puller 5910 890 4400 with profile-2 jaws 0000 893 3700 and spindle screw bush 1108 893 4500 to hold crankcase and engine pan together during cylinder removal. After undoing the cylinder-base screws, clamp the puller in a vice and lift the cylinder from the piston. This clamping use is not the profile-3.1 seal-pulling setup.
  • Inspect the cylinder; a new cylinder requires its MATCHING piston, and the source says new cylinders are supplied only with a piston. Remove the cylinder gasket. Remove the B8x0.7 snap ring on the STARTER-CUP side; the hookless ring on the FLYWHEEL side REMAINS in its groove.
  • Drive the pin out with a 7 mm drift. If stuck, tap only lightly while holding the piston steady so impact is not transmitted to the connecting rod. Inspect the needle cage and replace the crankshaft if necessary. The printed cross-reference says 5.1, but 5.1 is Oil seals; the inseparable crankshaft/rod/needle-bearing rule appears in section 5. Preserve this locator discrepancy, not an instruction to replace only an oil seal.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: matched cylinder/piston and protected removal.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Section 4.1 printed 5, with sections 5/5.1 printed 7–9 for cross-reference conflict, PDF pages 1, 2, 6, 8, 9, 10

Part numbers (3)
  • 5910 890 4400 — PullerHold crankcase and engine pan together · FS 55 within the 1999-08 powerhead reference
  • 0000 893 3700 — Profile-2 jawsCylinder-removal clamping setup · FS 55 within the 1999-08 powerhead reference
  • 1108 893 4500 — Screw bushFit on puller spindle · FS 55 within the 1999-08 powerhead reference

Service note · FS 55

FS 55: two-ring listing, piston orientation and retained wording conflict

FS55 appears in the two-ring group; the duplicated FS45 wording does not establish interchange.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Printed 5, 6 and 7 each say one (FS 45) or two (FS 45, 55) piston rings depending on model. FS55 appears ONLY IN THE TWO-RING GROUP, while FS45 appears in BOTH groups. Preserve the printed wording and its FS45 discrepancy; it does not establish one-ring FS55 fitment, a universal later piston configuration or interchange between ring counts. No serial, piston part number or revision boundary is supplied.
  • Section 4.2 requires a clean gasket seat and oiled connecting-rod needle cage. It suggests heating the piston to ease assembly but gives NO temperature. Piston marking faces the EXHAUST side; the adjacent illustration labels the flywheel separately. Push the pin against the retained hookless snap ring with drift 1114 893 4700. Fit the B8x0.7 ring with its gap on the piston VERTICAL axis, up or down.
  • Fit a NEW cylinder gasket; oil piston and rings and rest the piston on wooden block 1108 893 4800. Ring-gap radii meet the locating pin when compressed. Use strap 0000 893 2600, check ring position, oil the cylinder bore and align it in its final installed orientation before sliding it over the piston; incorrect alignment can break rings.
  • The descending cylinder pushes the strap down as rings enter. Remove strap and block, align cylinder/gasket and tighten cylinder-base screws to 9.0 Nm with socket 0812 542 2104; restore other parts in reverse sequence. The torque table’s without-locking-teeth qualification remains applicable.
  • Section 4.3 requires removing the piston before ring replacement and groove cleaning so debris cannot fall into the crankcase. Remove old rings, clean grooves with a piece of old ring, and install new rings with gap radii facing the fixing pin; reinstall under section 4.2. This is not permission to scrape grooves over an open crankcase.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: two-ring listing, piston orientation and retained wording conflict.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Sections 4.1–4.3 printed 5–7; torque qualification printed 4, PDF pages 1, 2, 5, 6, 7, 8

Part numbers (4)
  • 1114 893 4700 — Assembly driftPush piston pin against retained ring · FS 55 within the 1999-08 powerhead reference
  • 1108 893 4800 — Wooden assembly blockSupport piston · FS 55 within the 1999-08 powerhead reference
  • 0000 893 2600 — Clamping strapCompress correctly located rings · FS 55 within the 1999-08 powerhead reference
  • 0812 542 2104 — SocketCylinder-base screws, 9.0 Nm · FS 55 within the 1999-08 powerhead reference

Service note · FS 55

FS 55: crankshaft unit, bearing washers and seal orientation

Replacement crankshafts require new bearings and seals.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Section 5 removes cylinder, flywheel, starter cup and piston before removing the holding puller, separating engine pan and lifting the crankshaft from the crankcase. Inspect bearings and oil seals. Crankshaft, connecting rod and needle bearing are an INSEPARABLE unit, always replaced together; a replacement crankshaft always requires NEW oil seals and ball bearings.
  • Remove seals and bearings, then washers. Reassembly places a washer on EACH crankshaft stub before bearings. Heat the ball bearings to approximately 50 °C and push them fully home. This temperature is specified for BEARINGS, not for the piston-heating suggestion.
  • Grease seal lips and slide seals onto the crankshaft with their OPEN sides facing the BALL BEARINGS. Remove all old sealant from crankcase and engine-pan faces. Position the rod toward the cylinder and the SHORT crankshaft stub on the WIDE side of the crankcase, as illustrated.
  • Apply a thin bead of the section-10 sealant to the engine-pan mating face, following the sealant manufacturer’s instructions. Fit the pan and clamp it to the crankcase with the section-4.1 puller arrangement, then restore remaining parts in reverse sequence. No bead dimension, cure time or bearing/shaft part number is supplied here.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: crankshaft unit, bearing washers and seal orientation.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Section 5 printed 7–8 and section 10 sealant reference printed 17, PDF pages 1, 2, 8, 9, 18

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: two oil-seal sides use different pressing sleeves

The complete engine need not be dismantled for this seal procedure.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Section 5.1 says complete engine disassembly is unnecessary. Starter-side access removes starter cup (8.2) and housing parts (components handbook); clutch-side access removes the flywheel (7.2). Both sides use puller 5910 890 4400 with profile-3.1 jaws 0000 893 3706, tension the arms and extract the seal without damaging the crankshaft stub.
  • Clean the sealing surface with the manual’s solvent-based degreasant containing neither chlorinated nor HALOGENATED hydrocarbons, then grease the sealing lips under section 10. This retains the later wording; TI38’s HYDROGENATED wording is a separate unresolved source conflict.
  • STARTER side: protect the crankshaft stub with assembly sleeve 1129 893 4600; slide on the seal OPEN side toward the CRANKCASE; press fully home with 1114 893 4601, then refit housing and starter cup.
  • CLUTCH side: the text also says to slide the seal over an assembly sleeve, OPEN side toward the CRANKCASE, but gives no new sleeve number in that paragraph. The continuation on printed 10 specifies pressing sleeve 1120 893 2400 and refitting the flywheel. Do not silently give both sides the starter-side pressing sleeve or invent a separate clutch-side protective sleeve number.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: two oil-seal sides use different pressing sleeves.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Section 5.1 printed 9–10, with section 10 cleaner/lubricant printed 17, PDF pages 1, 2, 10, 11, 18

Part numbers (5)
  • 5910 890 4400 — PullerExtract oil seals · FS 55 within the 1999-08 powerhead reference
  • 0000 893 3706 — Profile-3.1 jawsOil-seal extraction on both sides · FS 55 within the 1999-08 powerhead reference
  • 1129 893 4600 — Assembly sleeveStarter-side crankshaft protection · FS 55 within the 1999-08 powerhead reference
  • 1114 893 4601 — Press sleeveSeat starter-side seal · FS 55 within the 1999-08 powerhead reference
  • 1120 893 2400 — Press sleeveSeat clutch-side seal · FS 55 within the 1999-08 powerhead reference

Service note · FS 55

FS 55: a visible spark does not prove correct ignition timing

Nonadjustable timing can still be wrong after an internal electronic fault.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Section 7 warns of potentially fatal ignition voltage and starts troubleshooting at the spark plug, referring to Standard Repairs, Troubleshooting. The system comprises module and flywheel; module connections are high-voltage lead and short-circuit tag. Accurate module testing requires sophisticated equipment; the workshop spark check is limited evidence.
  • Section 7.1 calls for module replacement when no spark is obtained AFTER checking wiring and stop switch. Section 7.1.1 says timing is NOT ADJUSTABLE, but an internal circuit fault may shift the switching point outside tolerance while a spark test still appears normal. Thus a spark does not prove correct timing or explain away poor starting/running. No timing angle or electronic adjustment procedure is supplied.
  • For removal, obtain housing access from the components handbook, disconnect short-circuit and ground wires, pull the boot off the plug, undo mounting screws and remove the module. The ignition lead is MOULDED to the module; do not infer a separately removable lead.
  • For installation, leave screws loose initially, secure the ground-wire connector tag with the UPPER screw, insert gauge 1127 890 6400 between module arms and flywheel magnet poles, press the module against the gauge and tighten screws to 4.5 Nm. Restore remaining parts in reverse order. This air-gap setup is not ignition-timing adjustment.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: a visible spark does not prove correct ignition timing.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Sections 7–7.1.2 printed 12–14, PDF pages 1, 2, 13, 14, 15

Part numbers (1)
  • 1127 890 6400 — Setting gaugeModule-to-flywheel air-gap setup · FS 55 within the 1999-08 powerhead reference

Service note · FS 55

FS 55: flywheel damage, hub cleaning and plug restoration

Inspect the magnet poles and slot position; clutch access remains separately sourced.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Section 7.2 delegates clutch removal to the components handbook. Lightly tap the crankshaft-stub end with a RUBBER mallet to free the flywheel, then pull it off. Replace the flywheel if cracks or other damage are visible in the wheel or magnet poles. This is not a general metal-hammer or puller instruction.
  • Before installation, degrease both crankshaft stub and flywheel-hub bore with the section-10 solvent-based cleaner containing neither chlorinated nor HALOGENATED hydrocarbons. Fit the wheel and check SLOT position; the source gives no key dimension or replacement part number here.
  • Reinstall the clutch under the components instructions, pull the locking strip out of the cylinder, fit the spark plug at 20 Nm and check/retighten a separate terminal nut IF the plug has one; refit the boot. The separately reviewed component clutch procedure supplies its own locking/access prerequisites; removal of a locking strip here does not replace those steps or resolve the locking-strip number conflict.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: flywheel damage, hub cleaning and plug restoration.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Section 7.2 printed 14, section 10 cleaner printed 17, PDF pages 1, 2, 15, 18

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: cold or dirty rewind mechanism and starter-cup torque

Cold thickening and contamination call for different source-described treatment.

No exact-model IPL link: FS55 explicitly named in August1999 powerhead introduction; exact TI38-delegated revision and later variant configuration are not established.

  • Section 8.1 treats stiff rope with slow or incomplete rewind as potentially an otherwise sound mechanism clogged with dirt; at very low temperature, spring lubricant may thicken and make coils stick. For that cold-sticking case it specifies a FEW DROPS of paraffin (kerosine), then carefully cycling the rope until smooth action returns. This is a dated source explanation, not proof that every slow rewind is harmless.
  • For dirt or pitch, remove and dismantle the entire starter including the rewind spring, taking particular care with spring removal. Wash parts in paraffin or white spirit; lubricate the rewind spring and starter post with STIHL special lubricant under section 10 before installation. Detailed rope/spring access remains in the components handbook; no spring pre-tension turn count is given here.
  • Section 8.2 removes the starter cover via the components handbook, unscrews the spark plug, and inserts locking strip 4221 893 5900 before unscrewing the starter cup. Refit the cup at 17.0 Nm and restore the other parts in reverse sequence, including removing the locking strip before replacing the plug. This is not a cutting-head or clutch torque.
  • Cross-edition conflict: the 2003-10 component table (printed 6) lists M8x1 starter cup at 14.0 Nm, while this 1999-08 powerhead source specifies 17.0 Nm. Neither a serial changeover nor supersession is established; retain both dated values, not a universal torque. See the companion component starter-torque note.
  • FS 55 is explicitly named in the August 1999 powerhead introduction. This is a dated source reference, not proof of the exact TI38-delegated revision, every later configuration, universal interchange or a hardware test. October 2003 component access is separately reviewed; the separate Carburetors dependency is now dispositioned; Standard Repairs/Troubleshooting and exact owner-safety editions remain named source gaps, not replaced by this powerhead review.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — FS 55: cold or dirty rewind mechanism and starter-cup torque.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Sections 8–8.2 printed 15 and section 10 lubricant printed 17, PDF pages 1, 2, 16, 18 · STIHL Components 4140 FC, FS, HL, KM (2003-10), section Component section 3.3 printed 5–6, including 14 Nm starter-cup row and model remarks, PDF pages 1, 3, 6, 7

Part numbers (1)
  • 4221 893 5900 — Locking stripBlock piston for starter-cup removal · FS 55 within the 1999-08 powerhead reference

Service note · FS 55

FS 55: angle gearbox removal and square-drive engagement

Keep the FS branch separate from FCS, HT and sweeper installation geometry.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • The assignment table identifies FS 55 under FS angle gears (AG), not worm gears. Section 7.1.1 applies to all gearboxes EXCEPT FCS, HT and KW: remove cutting tools and deflector as necessary, loosen the mounting screws and pull the gearbox from the tube.
  • For installation degrease the clamp mounting area. Slide the gearbox onto the tube while turning the OUTPUT shaft back and forth so that the square end of the drive shaft engages the square socket in the drive pinion. Push fully to the stop and align before tightening.
  • The FS55-specific 4.1 row is DG 6x28 gearbox/drive-tube clamp at 12.0 Nm. Do not substitute adjacent FC/FH/HL 8/9/10 Nm clamp rows, FCS locating-hole instructions, HT 22 mm shaft projection or KW sleeve/slot geometry.
  • The FC/FCB deflector and gearbox-wheel steps are explicitly those models only. The generic picture does not establish the exact number or part identity of FS55 mounting screws. FS deflector removal is separately reviewed under 9.1.
  • Section 2 requires protective gloves for attachment work, fuel work outdoors, immediate spill cleanup and no smoking/fire/flame/heat near fuel; engine-running repairs also refer to local rules and the owner instruction manual. The housing-heating steps below are source references, not authorization to heat a fueled machine.
  • February 2007 CombiTools cover and section 3 explicitly name FS 55. This later, configuration-specific reference does not establish the exact 1999 revision delegated by TI38, a serial boundary, universal variant applicability or physical interchange. No hardware work performed. Owner safety, distinct general handbooks and exact mowing-head operating instructions remain separate dependencies; available cutting-head context is now dispositioned and split-drive-tube section6 is excluded for plain FS55.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — 7.1.1 printed16; section3 model assignment;4.1 FS55 clamp row.

Later manual evidence: STIHL CombiTools (2007-02), section 7.1.1 printed16; section3 model assignment;4.1 FS55 clamp row, PDF pages 1, 3, 4, 5, 6, 7, 17

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: gearbox circlips, removal order and matched pinion set

Input components come out before output components; the gear pair is not supplied as independent gears.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • After gearbox removal under 7.1.1, remove the circlip at the INPUT end of the housing and the circlip in the OUTPUT-end groove. Heat the gearbox housing to about 110–140 °C, then remove components from the INPUT END FIRST and OUTPUT END SECOND by knocking the housing against a wooden base.
  • Pull the ball bearing and bevel gear off the shaft illustrated in 227RA063. Remove the drive-pinion circlip and press the pinion out of its bearing arrangement. Clean all parts and inspect for serviceability; no acceptance dimensions are supplied here.
  • The drive pinion and bevel gear are available only as a MATCHING PINION SET. No set, bearing or circlip part number is printed in 7.2; do not invent identities or infer cross-model interchange.
  • The opening FC/FCB deflector/wheel steps are not FS55 requirements. The oil-seal puller and press-arbor steps after the 7.3 FCS heading on printed20 belong to a different branch, not this FS55 procedure.
  • February 2007 CombiTools cover and section 3 explicitly name FS 55. This later, configuration-specific reference does not establish the exact 1999 revision delegated by TI38, a serial boundary, universal variant applicability or physical interchange. No hardware work performed. Owner safety, distinct general handbooks and exact mowing-head operating instructions remain separate dependencies; available cutting-head context is now dispositioned and split-drive-tube section6 is excluded for plain FS55.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — 7.2 printed18, with7.1.1 context.

Later manual evidence: STIHL CombiTools (2007-02), section 7.2 printed18, with7.1.1 context, PDF pages 1, 3, 4, 5, 17, 19

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: single input bearing and conflicting shaft labels

Keep the FS55 exception, separate bearing/housing temperatures and the printed input/output discrepancy.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • The generic drive-pinion illustration shows an OPEN bearing against the pinion and a CLOSED bearing at the circlip-groove end, heated to about 50 °C for fitting. Immediately below, the manual says FS 55 HAS ONLY ONE BALL BEARING. This exception belongs to the INPUT-PINION arrangement; it does not say the entire gearbox has only one bearing. Do not add the second illustrated generic bearing to FS55 or invent an unprinted FS55 seal orientation.
  • Fit the pinion circlip. On printed19 the left column says heat a ball bearing to about 50 °C and push it to the stop on the INPUT shaft, then fit the bevel gear TEETH FIRST onto the INPUT shaft. The same illustrated assembly is called the preassembled OUTPUT shaft in the next column (227RA068/069 versus 227RA071). Preserve this INPUT/OUTPUT labeling discrepancy; do not silently redirect bevel-gear installation to the input pinion.
  • Heat the gearbox HOUSING to about 140 °C for installation, press the bearing into the housing to its stop, seat the preassembled output shaft, then insert the preassembled drive pinion to its stop. Check that the pinion and bevel-gear teeth mesh properly. Refit circlips in both input- and output-end housing grooves.
  • Bearing heating around 50 °C is distinct from housing removal at 110–140 °C and assembly at about 140 °C. Lubricate under the separately retained 4.3/7.2 rule, remove the grease tube, fit/tighten the plug under 4.1, and reassemble remaining parts in reverse order. No live heating or mechanical acceptance is claimed.
  • February 2007 CombiTools cover and section 3 explicitly name FS 55. This later, configuration-specific reference does not establish the exact 1999 revision delegated by TI38, a serial boundary, universal variant applicability or physical interchange. No hardware work performed. Owner safety, distinct general handbooks and exact mowing-head operating instructions remain separate dependencies; available cutting-head context is now dispositioned and split-drive-tube section6 is excluded for plain FS55.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — 7.2 printed18–20; final continuation before7.3.

Later manual evidence: STIHL CombiTools (2007-02), section 7.2 printed18–20; final continuation before7.3, PDF pages 1, 3, 4, 5, 19, 20, 21

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: 15 g initial fill and conditional 5 g maximum top-up

FS4140 uses brushcutter gear grease; it is not the 9 g FS4137 row or drive-shaft grease.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • The FS 4140 row specifies type A grease, 15 g INITIAL FILL and maximum 5 g RE-LUBRICATION; footnote 1 explicitly binds that row to FS55/55T gearboxes. Type A means STIHL gear lubricant for BRUSHCUTTERS. The neighboring FS4137 initial 9 g row is not the FS55 quantity.
  • Section 7.2 directs removal of the gearbox screw plug and screwing the grease tube into the hole. For maintenance, TOP UP ONLY IF NO GREASE IS VISIBLE on the inside of the screw plug. The 5 g figure is a maximum top-up, not a mandatory dose at every check or a second initial fill. Unscrew the tube afterward and refit the plug; FS55 IS-M11x10 plug torque is 10.0 Nm.
  • Section 11 identifies brushcutter gear lubricant 0781 120 1117 in an 80 g tube and 0781 120 1118 in a 225 g tube. Tube package mass is not the quantity to inject. The table also lists hedge-trimmer lubricant for gearbox/drive shaft generally, but 7.2 and 4.3 specifically select BRUSHCUTTER grease here.
  • Retain the earlier TI38/Components distinction: HEDGE-TRIMMER lubricant is used on the drive shaft inside the tube, not substituted for the FS55 gearhead grease. Generic service-aid labels do not authorize grease interchange.
  • February 2007 CombiTools cover and section 3 explicitly name FS 55. This later, configuration-specific reference does not establish the exact 1999 revision delegated by TI38, a serial boundary, universal variant applicability or physical interchange. No hardware work performed. Owner safety, distinct general handbooks and exact mowing-head operating instructions remain separate dependencies; available cutting-head context is now dispositioned and split-drive-tube section6 is excluded for plain FS55.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — 4.3 printed7;7.2 printed19–20;11 printed73.

Later manual evidence: STIHL CombiTools (2007-02), section 4.3 printed7;7.2 printed19–20;11 printed73, PDF pages 1, 3, 4, 5, 6, 7, 8, 20, 21, 74

Part numbers (2)
  • 0781 120 1117 — STIHL gear lubricant for brushcutters, 80 g tubeFS4140 gearbox lubricant; package size is not fill mass · FS 55 gearbox under CombiTools4.3/7.2
  • 0781 120 1118 — STIHL gear lubricant for brushcutters, 225 g tubeFS4140 gearbox lubricant; package size is not fill mass · FS 55 gearbox under CombiTools4.3/7.2

Service note · FS 55

FS 55: five FS55 torque rows and screwdriver-speed conflict

Use model remark5; identical plug thread labels do not imply identical torque.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • Five table rows carry remark 5 = FS55: IS-P6x14 line-limiter blade/deflector 2.5 Nm; M10x1 LI cutting-tool locknut 25.0 Nm; IS-M5x16 cutting-tool deflector/gearbox housing 4.3 Nm; IS-M11x10 gearbox screw plug 10.0 Nm; DG 6x28 gearbox/drive-tube clamp 12.0 Nm. The cutting-tool row applies where that locknut is actually fitted; it is not blanket approval for all listed attachments.
  • The adjacent IS-M11x10 screw-plug row at 9.5 Nm is remark 7 = FS80/85, NOT FS55. FS75/80/85 deflector screws and FC/FH/HL/HT rows are not promoted to FS55 merely because they share a component label.
  • DG and P screws form permanent threads in polymer/light metal; use a torque wrench. In existing threads rotate counterclockwise until the screw drops slightly, then tighten clockwise to the specified torque, avoiding a new weakening thread. Adhesive-secured screws are released after hot-air heating, with special care around plastic.
  • This February2007 table limits polymer P-screw power-driver speed to 500 rpm. The accepted October2003 Components table says Plastoform maximum 600 rpm and DG maximum 500 rpm. Preserve the 500/600 rpm P-screw difference as source-specific, not an established supersession or silently normalized setting.
  • February 2007 CombiTools cover and section 3 explicitly name FS 55. This later, configuration-specific reference does not establish the exact 1999 revision delegated by TI38, a serial boundary, universal variant applicability or physical interchange. No hardware work performed. Owner safety, distinct general handbooks and exact mowing-head operating instructions remain separate dependencies; available cutting-head context is now dispositioned and split-drive-tube section6 is excluded for plain FS55.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — 4.1 printed5–6; comparison with accepted Components3.3.

Later manual evidence: STIHL CombiTools (2007-02), section 4.1 printed5–6; comparison with accepted Components3.3, PDF pages 1, 3, 4, 5, 6, 7 · STIHL Components 4140 FC, FS, HL, KM (2003-10), section 3.3 printed5–6; accepted power-driver speed comparison, PDF pages 6, 7

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: deflector branches are not cutting-tool approval

Retain the two deflector removal descriptions without granting circular-saw compatibility.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • Section 9.1 starts with gearbox removal from the drive tube under 7.1.1. For the mowing-head deflector, remove its screws, backing plate and deflector, then reverse assembly. The separate branch headed deflector for all cutting tools likewise removes screws, backing plate and deflector before reverse assembly.
  • Those are branch names in a multi-model FS service manual, NOT approval of every cutting tool on FS55. No deflector/backing-plate part numbers, interchangeable hole pattern or exact FS55 variant allocation are supplied here. Match the actually approved configuration using model-specific tool/guard/handle instructions.
  • The neighboring circular-saw limit-stop branch is not admitted as FS55 fitment: this general manual provides no FS55-specific circular-saw approval. The existing TI38 eight-tool list and barrier-bar restrictions remain controlling evidence, not broadened by a shared repair chapter. BC deflector geometry and its 100 mm spacing are outside this FS55 branch.
  • February 2007 CombiTools cover and section 3 explicitly name FS 55. This later, configuration-specific reference does not establish the exact 1999 revision delegated by TI38, a serial boundary, universal variant applicability or physical interchange. No hardware work performed. Owner safety, distinct general handbooks and exact mowing-head operating instructions remain separate dependencies; available cutting-head context is now dispositioned and split-drive-tube section6 is excluded for plain FS55.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — 9.1 printed62;7.1.1 prerequisite.

Later manual evidence: STIHL CombiTools (2007-02), section 9.1 printed62;7.1.1 prerequisite, PDF pages 1, 3, 4, 5, 17, 63

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: torque tools and unassigned footnote in the CombiTools table

General tool listings do not import FCS seal and bearing operations into FS55.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • The table lists torque wrenches 5910 890 0301 and 5910 890 0302 at 0.5–18 Nm (remark1: always use a torque wrench on DG/P screws), and 5910 890 0311 and 5910 890 0312 at 6–80 Nm (remark2: optical/acoustic signal). Select the range for the specified joint; the 25 Nm cutting-tool locknut is outside the listed 18 Nm range.
  • Spline socket T27x125 0812 542 2104 is listed for tightening IS screws, and T-handle QI-T27x150 5910 890 2400 for all IS screws. Remark3 says on DG/P screws use for releasing only, but no printed row visibly carries marker3. Preserve the UNASSIGNED FOOTNOTE; do not silently attach it to a guessed row or use the T-handle listing to override the torque-wrench requirement.
  • The same general table lists oil-seal puller 5910 890 4400, jaws 0000 893 3700, press arbor 4119 893 7200 and needle-sleeve drift 1111 893 4700. None is explicitly assigned by FS55 section7.2. The visible puller/arbor operations in7.3 are FCS-only, so these four are retained as excluded table context, not FS55 required-tool inventory.
  • February 2007 CombiTools cover and section 3 explicitly name FS 55. This later, configuration-specific reference does not establish the exact 1999 revision delegated by TI38, a serial boundary, universal variant applicability or physical interchange. No hardware work performed. Owner safety, distinct general handbooks and exact mowing-head operating instructions remain separate dependencies; available cutting-head context is now dispositioned and split-drive-tube section6 is excluded for plain FS55.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — 10 printed72;7.2/7.3 boundary.

Later manual evidence: STIHL CombiTools (2007-02), section 10 printed72;7.2/7.3 boundary, PDF pages 1, 3, 4, 5, 19, 20, 21, 73

Part numbers (6)
  • 5910 890 0301 — Torque wrench 0.5–18 NmDated CombiTools general tool listing; joint/range restrictions apply · FS 55 applicable fasteners; not a gearbox-part interchange claim
  • 5910 890 0302 — Torque wrench 0.5–18 NmDated CombiTools general tool listing; joint/range restrictions apply · FS 55 applicable fasteners; not a gearbox-part interchange claim
  • 5910 890 0311 — Torque wrench 6–80 NmDated CombiTools general tool listing; joint/range restrictions apply · FS 55 applicable fasteners; not a gearbox-part interchange claim
  • 5910 890 0312 — Torque wrench 6–80 NmDated CombiTools general tool listing; joint/range restrictions apply · FS 55 applicable fasteners; not a gearbox-part interchange claim
  • 0812 542 2104 — Spline screw socket T27x125Dated CombiTools general tool listing; joint/range restrictions apply · FS 55 applicable fasteners; not a gearbox-part interchange claim
  • 5910 890 2400 — T-handle screwdriver QI-T27x150Dated CombiTools general tool listing; joint/range restrictions apply · FS 55 applicable fasteners; not a gearbox-part interchange claim

Service note · FS 55

FS 55: TrimCut fault rows and the not-TrimCut bump-feed footnote

The shared Polymatic/TrimCut heading does not make TrimCut an automatic bump-feed head.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • TI38 lists TrimCut30-2 for FS55. The later table combines Polymatic/TrimCut, but its first bump-the-rotating-head remedy has an asterisk explicitly saying NOT TrimCut. Do not apply that bump-feed remedy to the listed TrimCut or add Polymatic to the FS55 attachment list.
  • The same table includes sporadic automatic feed → full throttle then bump the head, and worn automatic feed → replace the head under BOTH poor cutting and no cutting. These automatic-mechanism rows do not establish such a mechanism on TrimCut30-2. All four automatic/bump-feed rows are excluded from this TrimCut-specific procedure binding; the unstarred automatic rows remain attributed mixed-family context rather than silently extending the footnote.
  • For a head that does not cut: line broken at the spool housing → open the head and pull the line out; empty spool → wind fresh line; fused/jammed lines → open, correct the fault (cut off fused line) and pull out line; line wound in the wrong direction → rewind correctly. These are alternative cause/remedy pairs, not a unique diagnosis.
  • Rapid line wear after prolonged dry storage → keep new or long-unused line in a water bath for several days in a cool place before use. The manual attributes greater toughness/durability to this treatment; no measured duration beyond several days or verified improvement is supplied.
  • February2007 CombiTools family-level troubleshooting is bound to the historical TI38 FS55 head list, not a new attachment approval, unique fault diagnosis or proof of each suffix/configuration. Preserve the original model/handle/deflector restrictions. Engine-running remedies require the separate owner/head operating instructions; no hardware operation performed.

TI dependency: TI 38/1999, p. 1 · TI 38/1999, p. 3 · TI 38/1999, p. 4 · TI 38/1999, p. 5 · TI 38/1999, p. 6 — 5.1 troubleshooting printed8; historical TI38 head and line list.

Later manual evidence: STIHL CombiTools (2007-02), section 5.1 troubleshooting printed8; historical TI38 head and line list, PDF pages 1, 3, 4, 5, 9

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: AutoCut short line, jammed spool and worn feed

Apply the family fault table to the historically listed AutoCut21-2/25-2 without changing line-size restrictions.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • TI38 lists AutoCut21-2 and25-2 for FS55. For poor cutting: line too short → bump the rotating head on the ground; sporadic automatic feed → open throttle wide then bump; worn feed mechanism → install a new head. These are the printed operational remedies, not instructions to open a head while it is rotating.
  • For a head that does not cut: line broken at the spool housing → open the head and pull the line out; empty spool → wind fresh line; fused/jammed lines → open, correct the fault (cut off fused line) and pull out line; line wound in the wrong direction → rewind correctly. These are alternative cause/remedy pairs, not a unique diagnosis.
  • For no cutting, the additional worn automatic-feed row again says install a new head. It remains a separate printed cause/remedy row, not a second independent diagnosis.
  • Rapid line wear after prolonged dry storage → keep new or long-unused line in a water bath for several days in a cool place before use. The manual attributes greater toughness/durability to this treatment; no measured duration beyond several days or verified improvement is supplied.
  • The historical TI38 accessory table lists AutoCut21-2 under BOTH 2.0 and2.4 mm line, but25-2 under2.4 mm. This generic troubleshooting table supplies no reason to collapse the21-2 ambiguity or broaden either diameter to every AutoCut suffix.
  • February2007 CombiTools family-level troubleshooting is bound to the historical TI38 FS55 head list, not a new attachment approval, unique fault diagnosis or proof of each suffix/configuration. Preserve the original model/handle/deflector restrictions. Engine-running remedies require the separate owner/head operating instructions; no hardware operation performed.

TI dependency: TI 38/1999, p. 1 · TI 38/1999, p. 3 · TI 38/1999, p. 4 · TI 38/1999, p. 5 · TI 38/1999, p. 6 — 5.1 troubleshooting printed9; historical TI38 head and line list.

Later manual evidence: STIHL CombiTools (2007-02), section 5.1 troubleshooting printed9; historical TI38 head and line list, PDF pages 1, 3, 4, 5, 10

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: SuperCut feed response, pawl oil and suffix limits

Retain the head-instruction dependency; special1-2/2-2/40-2 adjustments are not20-2 instructions.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • TI38 lists SuperCut20-2 for FS55. For poor cutting, the later generic SuperCut table links short line to opening throttle wide and lifting the head out of the cut if necessary; sporadic feed to full-throttle operation; worn feed to a new head; dry pawl bearings to oil lubrication with the direction SEE INSTRUCTIONS. No oil grade, quantity or pawl-service method is supplied here; the exact head instructions remain a named dependency.
  • The fifth poor-cutting row, incorrect automatic-feed adjustment → adjust correctly, is expressly for SuperCut1-2,2-2,40-2 ONLY. Exclude it from SuperCut20-2, rather than supplying an imagined adjustment.
  • For a head that does not cut: line broken at the spool housing → open the head and pull the line out; empty spool → wind fresh line; fused/jammed lines → open, correct the fault (cut off fused line) and pull out line; line wound in the wrong direction → rewind correctly. These are alternative cause/remedy pairs, not a unique diagnosis.
  • The no-cutting worn automatic-feed row separately says install a new head. For high line consumption, the table explicitly names SuperCut10 and20 only: too-small line → use2.4 mm instead of2.0 mm. It does not enumerate every suffix. TI38 independently lists2.4 mm for20-2; no new head/suffix approval follows.
  • Rapid line wear after prolonged dry storage → keep new or long-unused line in a water bath for several days in a cool place before use. The manual attributes greater toughness/durability to this treatment; no measured duration beyond several days or verified improvement is supplied.
  • February2007 CombiTools family-level troubleshooting is bound to the historical TI38 FS55 head list, not a new attachment approval, unique fault diagnosis or proof of each suffix/configuration. Preserve the original model/handle/deflector restrictions. Engine-running remedies require the separate owner/head operating instructions; no hardware operation performed.

TI dependency: TI 38/1999, p. 1 · TI 38/1999, p. 3 · TI 38/1999, p. 4 · TI 38/1999, p. 5 · TI 38/1999, p. 6 — 5.1 troubleshooting printed10; historical TI38 head and line list.

Later manual evidence: STIHL CombiTools (2007-02), section 5.1 troubleshooting printed10; historical TI38 head and line list, PDF pages 1, 3, 4, 5, 11

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: PolyCut blades or line, bushing lubricant and diameter difference

Never combine blades and nylon line; retain the later3.0 mm reference without rewriting TI38.

No exact-model IPL link: FS 55 explicitly named in February 2007 CombiTools cover, gearbox assignment and FS4140 grease footnote. Exact TI38-delegated revision and installed configuration not established.

  • TI38 lists PolyCut20-3 for FS55. For poor cutting, worn/broken blades → replace ALL blades; short line → fit new line; stiff collar-screw bearing bushings → clean and dry bushings and collar screws, then lubricate with STIHL gear lubricant for HEDGE TRIMMERS; using nylon line AND blades together → operate with EITHER nylon line OR blades, never both.
  • For no cutting: all blades broken → replace ALL blades; line broken at the spool housing → fit new line. Blade replacement quantity is all, not only a visibly broken blade; no blade or collar-screw part numbers are printed here.
  • For rapidly wearing line OR blades after dry storage, keep new or long-unused material in a water bath for several days in a cool place before use; the table applies this remedy to blades as well as line. No measured improvement or exact soaking interval is established.
  • The final row is explicitly PolyCut10/20/40 only: too-small line → use2.7 OR3.0 mm instead of2.4 mm. It does not enumerate suffixes. TI38 lists2.4 and2.7 mm for20-3 and does NOT list3.0 mm there. Preserve that later family-level3.0 mm advice and the different historical listing; do not silently replace the TI sizes or declare a universal20-3 changeover.
  • February2007 CombiTools family-level troubleshooting is bound to the historical TI38 FS55 head list, not a new attachment approval, unique fault diagnosis or proof of each suffix/configuration. Preserve the original model/handle/deflector restrictions. Engine-running remedies require the separate owner/head operating instructions; no hardware operation performed.

TI dependency: TI 38/1999, p. 1 · TI 38/1999, p. 3 · TI 38/1999, p. 4 · TI 38/1999, p. 5 · TI 38/1999, p. 6 — 5.1 troubleshooting printed11; historical TI38 head and line list.

Later manual evidence: STIHL CombiTools (2007-02), section 5.1 troubleshooting printed11; historical TI38 head and line list, PDF pages 1, 3, 4, 5, 12

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: dry versus wetted leakage-test limits

The 0.8 bar test assumes fuel-wetted passages and moist diaphragms; it is not a dry-carburetor pressure.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Check the tester itself for leakage. DRY carburetors must not see more than 0.35 bar (5 psi); flush with fuel before the normal test because sealing points and passages must be wetted. For this wetted test pump to approximately 0.8 bar (11.6 psi), and do not exceed 1 bar (14.5 psi). The stated concern above that limit is control-valve opening and possible overstretching of the metering diaphragm; it is not a measured pop-off specification.
  • Connect test fuel line1110 141 8600 with nipple0000 855 9200 to the intake fitting and tester1106 850 2905. Close the bulb vent screw, apply the bounded pressure, and interpret constant pressure as airtight. Falling pressure can reflect foreign matter at the inlet needle seat, damaged needle cone, sticking lever or distorted metering diaphragm; inspect/service rather than assume one cause.
  • Open the tester vent screw before removing the test line. No hold duration or allowed pressure decay is printed. The accepted Components test at approximately0.8 bar is not contradicted by this separate wet/dry qualification; neither test is a tank-vent or crankcase pressure specification.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.1 printed25.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.1 printed25, PDF pages 1, 2, 25

Part numbers (3)
  • 1106 850 2905 — Carburetor and crankcase testerGeneral handbook leakage-test equipment · FS55 delegated carburetor service; actual connection/configuration required
  • 1110 141 8600 — Test fuel lineGeneral handbook leakage-test equipment · FS55 delegated carburetor service; actual connection/configuration required
  • 0000 855 9200 — Test nippleGeneral handbook leakage-test equipment · FS55 delegated carburetor service; actual connection/configuration required

Service note · FS 55

FS 55 handbook: blocked passages and cleaning restrictions

Water droplets can obstruct fine jets; do not use wires or needles to clean them.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Blocked jets, bores and strainers are listed causes of carburetor trouble. Water droplets restrict fine-bore fuel flow through surface tension and may freeze in winter; this is a possible mechanism, not a diagnosis of a particular machine.
  • Section7.2 says strip the carburetor and remove adjusting screws, jets and inlet needle, then clean the body with a brush or clean leather cloth and fresh fuel; blow ports and jets clear with compressed air. NEVER use needles, wires, similar tools or fibrous cloths for cleaning carburetor or jets. No compressed-air pressure is specified.
  • This generic stripping statement does not make every jet removable:7.7 explicitly says the part-load fixed jet cannot be replaced and can only be blown clear. Likewise model-specific adjusting-screw/cap and fixed-jet limits remain in force. Fuel work must be outdoors, with no smoking, fire or flame nearby and immediate spill cleanup under section1.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.2 printed25.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.2 printed25, PDF pages 1, 2, 25

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: opposite stacks and a printed diaphragm-label conflict

Pump and metering gaskets are not interchangeable stack instructions.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Pump side7.3: remove screws/end cover, carefully separate stuck gasket and diaphragm, inspect both and replace damaged/fatigued parts. The source describes fatigue distortion and swelling. Place gasket ON END COVER, wet pump diaphragm with fuel and place it ON GASKET; cast cover pegs locate these parts before cover installation and secure screw tightening. No numerical torque is given.
  • Metering side7.4: remove cover (manual-pump configurations refer to7.9), separate diaphragm/gasket carefully and inspect. Put gasket ON CARBURETOR BODY and metering diaphragm ON GASKET, locating on the cast pegs. If the locating peg is on the end cover, the pictured alternative locates diaphragm then gasket on that cover; it does not reverse the final metering-side stack.
  • Printed27 middle column under7.4 literally says fit PUMP diaphragm so its perforated plate faces the inlet control lever, although surrounding heading, preceding instruction and alternative-cover instruction call it the METERING diaphragm. Preserve this wording discrepancy; do not interpret it as moving a fuel-pump diaphragm into the metering chamber. The illustrated perforated plate faces the lever.
  • For a carburetor WITH COMPENSATOR fit the end cover with connector. This conditional branch does not establish that FS55 has a compensator. Refit cover/screws securely; no universal screw count, repair-kit number or diaphragm interchange is established.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.3–7.4 printed26–27.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.3–7.4 printed26–27, PDF pages 1, 2, 26, 27

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: needle wear and two lever-height datums

A worn needle cone and a bent control lever have separate replacement criteria.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • After metering-diaphragm removal, remove retaining screw and lever with spindle, or the illustrated plate/lever/gasket arrangement, then withdraw inlet needle. An annular indentation on its sealing cone requires replacement because the source says it will no longer seal properly.
  • Refit needle, place helical spring in blind hole and spindle in lever; engage lever clevis in the needle-head annular groove. Depress lever and secure screw, ensuring the spring locates on the lever nipple. Check free movement.
  • The lever top must be level with EITHER the bottom of the metering chamber (figure1) OR the top face of the carburetor body (figure2), depending on the pictured design. No universal FS55 datum is assigned by this general page. If not level the handbook calls the lever bent and requires replacement, then metering-diaphragm reinstallation.
  • This replacement instruction does not erase the accepted Components troubleshooting tension between flush adjustment and new-lever remedies. No bend-to-adjust instruction, universal lever height in millimetres or part identity is invented.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.5 printed27–28.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.5 printed27–28, PDF pages 1, 2, 27, 28

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: replaceable full-load versus nonreplaceable part-load jet

Keep generic press-fit directions separate from the named WS-26A, HS-262B and HD-5 exceptions.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • For the general7.6 main-jet branch, a check-valve plate that no longer moves freely requires a new main jet. After metering-diaphragm removal, press the main jet toward the venturi with a suitable pin punch, wash in white spirit, and install exactly vertical and flush with the metering-chamber bottom. This is conditional construction guidance, not assignment of a removable jet to every FS55 carburetor.
  • Section7.7 explicitly makes the PART-LOAD fixed jet nonreplaceable: blow clear with compressed air only. Its general FULL-LOAD jet branch presses toward the venturi, cleans in white spirit and compressed air, replaces a damaged jet and installs vertical/flush with the metering-chamber bottom; reinstall metering diaphragm afterward.
  • Named exceptions are NOT FS55 assignments: WS-26A uses a screwdriver from inside the venturi for its valve jet; HS-262B unscrews its full-load jet; HD-5 uses a retaining ring and O-ring with flat-side-up installation. Their presence in the handbook does not establish installed suffix or cross-model fitment.
  • Section7.8 control-valve replacement is explicitly WT-227E/WT-264 only. Its copper washer, Loctite and4 Nm instructions are excluded from this FS55 service branch; do not borrow their torque or imply FS55 has that screw-in valve.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.6–7.8 printed28–29.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.6–7.8 printed28–29, PDF pages 1, 2, 28, 29

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: manual-pump valve and separate check-valve branch

The pump-flange valve is not the separately extracted metering-chamber check valve.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • For the illustrated manual-pump design7.9, remove cover screws, cover with bulb, bulb, flange and flange valve. Inspect valve and replace if the metering-chamber filling circuit malfunctions or the valve is dirty, distorted or damaged. Inspect metering diaphragm and sealing ring under7.4, replace as needed and reassemble in reverse order.
  • Separate7.10 first removes the metering diaphragm, then uses a2.5x13 mm self-tapping screw in the CHECK-VALVE bore to pull that valve out. A4 mm (approximately5/32 inch) pin punch presses the replacement squarely into the metering chamber to its stop, followed by metering-diaphragm installation.
  • These are different illustrated valve operations. The extracting screw is a service tool, not an installed carburetor fastener; the4 mm punch is not a jet-size specification. Neither general illustration establishes this check valve in every FS55 carburetor or authorizes drilling an unverified body. No valve part number, pump interchange or universal disassembly claim is made.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.9–7.10 printed30.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.9–7.10 printed30, PDF pages 1, 2, 26, 27, 30

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: sealing plugs are destroyed during removal

The LD screw has a left-hand thread; generic H/L pictures do not create those screws on fixed-jet carburetors.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Remove pump diaphragm, inlet needle, valve jet and, IF FITTED, full-load fixed jet and check valve under their separate sections. Pry out the fuel strainer with a scriber and clean it; always replace a damaged strainer. This removal tool is not permission to poke or scrape the fine jets prohibited by7.2.
  • Remove the applicable adjusting screws; the idle speed screw LD has a LEFT-HAND thread. Generic H/L/idle illustrations do not override the actual screw complement, limiter caps or accepted Components suffix-specific procedures.
  • Press the centre of the sealing plug or plate with a pin punch until it buckles and can be removed. It is DESTROYED by removal, not a reusable cover. Wash body in fresh white spirit and clear ports/bores with compressed air. Body replacement also requires throttle shaft and, if fitted, choke shaft removal under7.12/7.13.
  • Put a NEW plug/plate into its bore CONVEX SIDE UP, lightly flatten it with a large pin punch and apply the specified adhesive in the gap between body and plug/plate. Section8.2 identifies medium-strength Loctite242,0786 111 1101. Reverse remaining assembly. No plug diameter, flattening force, shaft clearance or universal body interchange is given.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.11 printed31;8.2 printed65.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.11 printed31;8.2 printed65, PDF pages 1, 2, 31, 65

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: conditional retainers and shutter seating

Excess shaft play may admit secondary air; named lever orientations are not FS55 assignments.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Automatic-choke carburetors are expressly referred to7.15.1, not this branch. For the ordinary illustrated arrangement remove shutter screw/shutter, E-clip and washer if fitted; on applicable designs remove lever screw/lever, spacer sleeve, or screw-secured clip before carefully withdrawing shaft. Some require pump end-cover removal7.3; accelerator-pump versions also require7.14.
  • Inspect for excessive shaft play as a possible secondary-air source; no numerical wear limit is given. Remove torsion spring; if there is a slotted pin, remove its E-clip and pin from lever. On refitting check spring position. The spring illustration is explicitly WT-227F and only described as similar on other carburetors, not verified FS55 geometry.
  • Seat the throttle shutter with its ENTIRE CIRCUMFERENCE against the venturi wall. Secure its screw with the8.2 medium-strength Loctite242 and tighten securely; refit E-clip or clip in its groove and clip screw where fitted. No torque value is supplied.
  • C1Q-S11G spring/groove, WT-230 and C1Q-SK6 slotted-pin-toward-metering-cover, and HD-3A/WT-253 intake-facing lever details are named exceptions, excluded from FS55 assignment without an actual matching carburetor. Do not choose a lever direction from a similar-looking illustration.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.12 printed32–33;8.2 printed65.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.12 printed32–33;8.2 printed65, PDF pages 1, 2, 32, 33, 65

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: torsion-spring versus detent-ball designs

Keep the spring-loaded detent ball captured; this does not establish an internal FS55 choke shaft.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Automatic-choke versions are referred to7.15.1. Remove lever if fitted, shutter screw/shutter and E-clip if fitted. The WITH-TORSION-SPRING branch withdraws shaft with spring; remove/refit spring and check its position after shaft installation.
  • The WITHOUT-TORSION-SPRING branch requires careful withdrawal so the detent ball does not pop out and get lost; remove ball and spring. Refit spring then ball and push shaft home until ball engages the groove. This is distinct from the torsion-spring design, not a combined universal assembly.
  • Seat the choke shutter around its entire circumference against the venturi wall, secure screw with8.2 Loctite242 and tighten securely. Fit E-clip on the torsion-spring version and refit removed lever. No numeric torque or universal shutter orientation is provided.
  • The C1Q-S11G-specific paragraphs under the CHOKE SHAFT heading literally refer to its THROTTLE shaft groove (same915RA078/090 illustrations used in7.12). Preserve that printed cross-shaft reference, do not silently rewrite it as choke; this named branch is not assigned to FS55. The accepted Components choke-shutter arrangement is not replaced by these generic internal-shaft pictures.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.13 printed34–35;8.2 printed65.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.13 printed34–35;8.2 printed65, PDF pages 1, 2, 34, 35, 65

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: piston closed end faces outward

An accelerator pump is a conditional throttle-shaft feature, not the manual priming bulb.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • For a carburetor actually fitted with the illustrated accelerator pump, remove throttle shaft under7.12, knock piston and spring out of the bore, and remove the piston sealing ring. Inspect piston and spring, replacing as necessary.
  • Fit a NEW sealing ring in the piston groove, put spring in bore and install piston CLOSED END OUTWARD. Reinstall throttle shaft while pressing piston down so shaft can be pushed home.
  • No pump-stroke setting, piston clearance, part numbers or FS55 suffix assignment is printed in7.14. This throttle-operated piston is not7.9 manual fuel-pump bulb or7.3 pump diaphragm. Presence in the general handbook does not prove an accelerator pump on the owner’s machine.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 7.14 printed35 with7.12.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.14 printed35 with7.12, PDF pages 1, 2, 32, 33, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: adhesive specification and a short printed tool number

Preserve the three-digit screwdriver prefix rather than silently correcting it.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Section8.1 repeats leakage-test equipment1106 850 2905, fuel line1110 141 8600 and nipple0000 855 9200. Puller5910 890 4500 is for REMOVING LIMITER CAPS ONLY under footnote1; it is not universal carburetor-disassembly equipment or permission to alter settings.
  • The table lists screwdriver5910 890 2305 OR the literally printed000 890 2300 for installing adjusting screws and adjustment. The second prefix has THREE zeros, not four. Retain that uncertain printed identifier as text; do not create a normalized part identity or assume either is correct for every installed adjuster.
  • Section8.2 specifies white spirit for cleaning components and medium-strength Loctite242,0786 111 1101, for control valve, sealing plug, sealing plate, throttle-shutter screw and choke-shutter screw. This list does not broaden the WT-227E/WT-264 control-valve branch or authorize adhesive on diaphragms, jets or arbitrary fuel parts.
  • Section7.2 says fresh fuel for body cleaning,7.6/7.7/7.11 specify white spirit, and8.2 lists white spirit generally. Keep those locators distinct; do not replace them with an invented solvent or concentration. Previously retained TI hydrogenated versus Components halogenated wording remains unresolved.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; unavailable exact owner safety and separate handbook dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 8.1–8.2 printed65.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 8.1–8.2 printed65, PDF pages 1, 2, 65

Part numbers (3)
  • 5910 890 4500 — Limiter-cap pullerGeneral handbook tool or aid; configuration limits apply · FS55 delegated carburetor service only where referenced operation applies
  • 5910 890 2305 — Carburetor adjusting screwdriverGeneral handbook tool or aid; configuration limits apply · FS55 delegated carburetor service only where referenced operation applies
  • 0786 111 1101 — Medium-strength adhesive Loctite242General handbook tool or aid; configuration limits apply · FS55 delegated carburetor service only where referenced operation applies

Service note · FS 55

FS 55 handbook: identify the complete carburetor, not just its family

The assignment table has no FS55 row; general mixture theory is not a tuning target.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Section3.1 distinguishes a stamped or printed complete designation from a cast family such as C3M or HD plus a separate stamped/printed suffix. Read both. Section3 tables on printed3–7 do not list FS55; FS550 is a different model. The tables therefore do not assign any listed carburetor or equipment option to FS55. Footnote1 means CARB/EPA and footnote2 accelerator pump, not interchange approval.
  • Section4 describes atomization into droplets, with complete vaporization occurring later and absorbing heat from engine components. It prints an ideal air-to-fuel MASS ratio of14.8kg to1kg at lambda1, and a combustible lambda range0.7–1.25. These are attributed theory, NOT an FS55 adjustment target, exhaust measurement or fuel-to-oil premix ratio.
  • The handbook associates too-lean mixture with reduced power, reduced vaporization cooling, inadequate oil-bearing fresh-charge lubrication and seizure risk; rich mixture with incomplete combustion and unburned fuel/smoke. Temperature, humidity, pressure and operating phase change requirements. These are possible mechanisms, not proof that any symptom uniquely diagnoses mixture.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 3–4 printed3–8.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 3–4 printed3–8, PDF pages 1, 2, 3, 4, 5, 6, 7, 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: impulse pump, metering needle and priming circuit

The manual bulb returns fuel to the tank; it is not a direct injection pump.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • The illustrated floatless diaphragm carburetor has a venturi, throttle shutter and a separate-function integral fuel pump. Crankcase low pressure on the piston upstroke flexes the pump diaphragm and admits fuel through its inlet flap while the outlet closes. Downstroke overpressure reduces chamber volume, closes the inlet and opens the outlet toward the carburetor inlet needle. The two flap valves are formed in the pump diaphragm; the impulse path is not a fuel feed hose.
  • As jets draw fuel from the metering chamber, pressure on the outside of the metering diaphragm moves the inlet lever and lifts the needle to replenish fuel. Outside reference is atmospheric pressure, or clean-side filter pressure WITH a compensator. Printed10 refers to chapter4.3.4, but the compensator heading is5.3.4; retain this cross-reference discrepancy.
  • On the illustrated manual-pump design, releasing the bulb draws fuel through the metering system into the bulb; pressing it sends air/fuel back to the tank. The chamber check valve closes during manual pumping to exclude air from the venturi/idle bores and opens during running. The handbook separately describes a main-jet check valve that prevents air entering at idle. Do not confuse these valves or assign the illustrated construction to every carburetor.
  • The lower-tank discussion explains why a carburetor can need re-priming after storage; it supplies no universal bulb-press count. The chainsaw separate-bulb remark is not an FS55 mounting instruction. This is circuit context, not a new starting procedure.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 5–5.1 printed9–11.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5–5.1 printed9–11, PDF pages 1, 2, 9, 10, 11

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: adjustable, semi-fixed and fixed full-load circuits

A fixed full-load jet has no H adjustment; a semi-fixed jet is not the same circuit.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • At wide-open throttle the illustrated carburetor draws fuel from both main and idle jets. The main valve jet is at the venturi throat and its check valve prevents reverse air entry into the metering chamber at idle; an H screw controls flow only in the adjustable configuration.
  • A semi-fixed full-load jet supplies a defined baseline independently of H; the handbook gives approximately80% at H=1 as its example, not an FS55 calibration. It may be separate or formed in the main jet and is connected to that jet through a passage rather than opening directly into the venturi.
  • In the FULLY FIXED full-load arrangement all full-load fuel passes through that jet and there is NO H screw or adjustable full-load setting. It too may be separate or integral. These alternative diagrams do not identify the installed FS55 version, prescribe jet bore/part number, or authorize alteration of fixed jets.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 5.2.1 printed11–12.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.2.1 printed11–12, PDF pages 1, 2, 11, 12

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: independent and dependent idle circuits differ

Changing L can change total full-load fuel in one circuit but not the other.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • With the shutter almost closed, primary-idle fuel enters at the narrow air gap; the main jet has little vacuum and supplies no fuel in the illustrated idle state. Secondary bypass bores upstream supply air to the idle chamber; as the shutter opens, vacuum reaches them and they also deliver fuel for acceleration. L meters the passage into the idle chamber, whereas the idle-speed screw positions the shutter.
  • INDEPENDENT idle and main circuits run in parallel. Changing idle fuel with L changes total full-load fuel and the handbook calls for H readjustment; leaning L can raise speed and overheating risk. DEPENDENT idle circuits branch downstream of H and have no direct metering-chamber connection; changing L does not change overall fuel volume in that described circuit.
  • The words independent/dependent refer to circuit topology, not permission to ignore L/H interaction on an unidentified carburetor. No one diagram is assigned to all FS55 units, and LD-only or fixed-jet configurations do not acquire absent screws.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 5.2.2 printed12–13.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.2.2 printed12–13, PDF pages 1, 2, 12, 13

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: primary-mixture control and part-load enrichment

Fixed idle, fixed part-load and fixed full-load jets perform different jobs.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Section5.2.3 mixes fuel from a fixed idle jet with bypass air in an idle chamber. The primary-mixture screw changes how much of that mixture reaches the engine: opening enriches, closing leans; LA separately adjusts idle speed. The printed approximately one-turn basic setting is for this illustrated system, NOT a universal FS55 setting.
  • Opening the throttle exposes secondary idle bores; the source says main-jet delivery starts at about20degrees for this diagram. The fixed idle jet limits enrichment and full-load idle-system fuel, so the primary-mixture screw has no effect on full-load fuel volume in this design. The round fixed orifice is described as less sensitive to cold viscous fuel than a narrow annular adjusting-screw gap; no viscosity or temperature calibration is specified.
  • Section5.2.5 describes the partially open-throttle range and the risk of an over-lean part-load flat spot and seizure. A separate PART-LOAD fixed jet opening between idle and main jets provides enrichment. This is not the full-load jet or permission to drill/replace it;7.7 already limits part-load-jet cleaning to compressed air. Balanced-idle5.2.4, including printed16 left-column continuation, is covered by the earlier accepted note and is not reinterpreted here.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 5.2.3 and5.2.5 printed14/16.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.2.3 and5.2.5 printed14/16, PDF pages 1, 2, 14, 16

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: starting enrichment is not automatic-choke fitment

Cold-start theory does not establish a bellows-operated choke on FS55.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Starter cranking produces less venturi flow/vacuum than running idle, and fuel responds more slowly than air. Cold walls additionally condense fuel; closing the choke enriches the starting mixture. The handbook says to open it after firing/running to avoid over-rich stalling as deposited fuel evaporates. Follow the actual machine owner instructions; this explanation supplies no universal control position or pull count.
  • The separate automatic-choke branch uses cylinder-temperature-dependent venting, crankcase pressure pulses, a control valve, bellows and linkage. Its3.5second cold/about0.1second hot timing and37degree throttle illustration are NOT FS55 timing or idle-angle specifications. Sections7.15/7.15.1 service that specific linkage and longer shaft; they are excluded as FS55 assembly instructions because this configuration is not established for the target.
  • A wording difference remains in that excluded branch: printed18 places37degrees just before the choke fully opens, whereas printed37 calls the choke-closed37degree arrangement the idle position. Do not silently convert either into the actual FS55 idle position. No bellows, linkage or shaft interchange is established.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 5.3.1 printed17–18;7.15–7.15.1 printed36–38.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.3.1 printed17–18;7.15–7.15.1 printed36–38, PDF pages 1, 2, 17, 18, 36, 37, 38

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: icing and accelerator-pump context

Icing can occur above freezing; a flat spot does not prove a failed accelerator pump.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • The handbook describes intake icing at high humidity below+10°C (50°F): pressure/temperature drop reduces moisture capacity, condensation freezes and can obstruct jets. This is a possible operating condition, not an exact universal onset threshold. Its electric-heater element, thermostatic switch on the pump cover and generator feed concern SOME models only; no heater fitment or retrofit is established for FS55.
  • During rapid throttle opening, air accelerates before the more sluggish fuel, producing a possible lean flat spot. On carburetors WITH an accelerator pump, the throttle-shaft cam pushes a spring-loaded piston inward and injects the fuel beneath it through the valve jet. Closing the throttle lets the spring return the piston and refill from the metering system.
  • This functional context supports the already conditional7.14 service note; it does not prove every FS55 has an accelerator pump or provide a stroke, delivery volume, jet number or unique fault diagnosis.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 5.3.2–5.3.3 printed19–20.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.3.2–5.3.3 printed19–20, PDF pages 1, 2, 19, 20

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: compensation preserves mixture, not lost airflow

A dirty-filter compensator does not restore full power or approve a different filter.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • WITH a compensator, the metering-diaphragm pressure reference comes from the clean side of the air filter (Pi), not atmosphere (Pa). As restriction lowers Pi, the diaphragm and inlet valve reduce fuel to match reduced air. The diagram labels Pr as metering-chamber pressure; these are pressure locations, not test limits.
  • The handbook says mixture need not be readjusted as that filter becomes dirty or after cleaning, but power still falls with airflow and cleaning is needed to restore it. Its HD-textile/wire-mesh conversion statement is conditional on this compensator discussion; it does NOT establish those filters, an approved conversion, an H screw or a compensator on FS55. Model-specific replace-versus-clean instructions remain controlling.
  • Section5.4 separately illustrates a resonance-operated enriching control valve on some directly flange-mounted carburetors and an airflow-vane governor that progressively closes the choke against a torsion spring. These are different speed-limiting mechanisms, not electronic ignition limiters. No cutoff RPM, spring preload or either governor installation is established for FS55; their adjustments are excluded from the FS55 procedure.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 5.3.4–5.4 printed20–22.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.3.4–5.4 printed20–22, PDF pages 1, 2, 20, 21, 22

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: twelve flooding and acceleration cause/remedy rows

The troubleshooting chart allows lever adjustment where the servicing chapter requires replacement.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Flooding/stalling: (1) nonsealing needle from foreign matter or cone damage: remove/clean or replace needle, cleaning tank/pickup/line as necessary; (2) lever sticking on spindle: free it; (3) spring off the lever nipple: remove/refit lever correctly; (4) deformed diaphragm disc pressing the lever: replace metering diaphragm; (5) lever too high: set flush with body top OR metering-chamber bottom according to design.
  • Poor acceleration: (1) idle too lean: back L off slightly; (2) main too lean: back H off slightly; (3) lever too low: set to the design-specific flush datum; (4) inlet needle stuck to seat: remove, clean, refit; (5) atmospheric connecting bore blocked: clean bore; (6) diaphragm gasket leaking: replace gasket; (7) metering diaphragm damaged/shrunk: replace diaphragm.
  • These are twelve alternative printed cause/remedy pairs, not twelve verified diagnoses. H/L remedies require those screws actually to exist; no fraction-turn or universal setting is supplied. Printed23 says ADJUST a high/low lever, while7.5 printed28 says a nonlevel lever is bent and must be REPLACED. Retain this internal conflict alongside the earlier Components conflict; do not silently select one repair. Two different level datums depend on construction.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 6 printed23.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 6 printed23, PDF pages 1, 2, 23

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: sixteen idle and load cause/remedy rows

Generic cleaning remedies do not override the actual FS55 filter and vent construction.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • No idle/idle too high: throttle held too far open by idle screw, LD opened too far, or LA opened too far each calls for correct idle-screw adjustment; machine leakage calls for locating and repairing the leak. These four rows are alternative configuration-specific causes, not proof that every machine has both LA and LD.
  • Stalls at idle: blocked idle jets/ports: clean with compressed air; idle too rich: screw L down slightly; wrong idle setting with throttle fully closed: correct idle-speed screw; wrong LD setting: correct LD; nonclosing plastic plate in valve jet: clean or renew valve jet. These are five rows; no air pressure, screw angle or fixed-jet replacement permission is added.
  • Speed drops quickly under load/low power: plugged air filter: clean; faulty tank vent: clean or replace as necessary; leaking tank-to-pump line: seal/renew connections and line; damaged/fatigued pump diaphragm: replace; blocked main jet bores/ports: clean; dirty pickup body: clean and fit new filter; dirty strainers: clean. Seven rows are retained, with actual component replacement/cleaning restrictions and nonreplaceable-jet limits from accepted model-specific instructions. A generic clean-filter or replace-vent row does not establish a separately replaceable FS55 cap vent or washable paper filter.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 6 printed24.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 6 printed24, PDF pages 1, 2, 24

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: named specialist carburetors are not FS55 substitutions

HL/LA and WYL specialist chapters are excluded by their named scope.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Section7.16 explicitly services HL-324A, HL-327D and LA-S8A; the assignment table places these with070/090, TS360 and08S respectively. Section7.17 explicitly services WYL-63/WYL-73 rotary-valve carburetors; assignment rows name FS25-4 and FS65-4, not FS55.
  • Those complete named specialist branches, including shafts, governors, control valves and the printed49 rotary-valve3100±200rpm/idle-needle adjustment, are excluded from this FS55 dependency. This is an applicability disposition based on the chapter headings and assignment rows, not a new detailed review of every internal part or a claim those other models are semantically complete.
  • Do not borrow their torque, shaft orientation, idle setting or control-valve parts. The remaining FS55 general service guidance is separately admitted; sharing the same handbook does not prove carburetor interchange.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 3 printed5–6;7.16–7.17 printed38–49.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 3 printed5–6;7.16–7.17 printed38–49, PDF pages 1, 2, 5, 6, 38, 45, 49

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55 handbook: named setting tables do not provide an FS55 calibration

FS550 is not FS55, and the cap-setting flowchart has an explicit carburetor list.

No exact-model IPL link: TI38 section6.3 delegates general carburetor service; exact handbook revision and installed carburetor configuration unestablished. No all-model or suffix assignment.

  • Section7.18.1 fixed-jet Walbro settings name WT-283B/323/325A/326C/360/396/403A/493/498A/503. Section7.18.2 names the listed HD/WY/WT/WJ capped carburetors and gives model-specific tables including FS550, not FS55. Neither its chain-tension preparation nor its brushcutter loading advice creates an FS55 calibration.
  • Section7.19.1 names C1Q-S30C/S37A/S41/S42/S34B/S36B; the FS300–450 LD and HS75/80/85 branches remain for those models. Section7.19.2 names C1Q-SK7 and C3A-S39A. Section7.20 names HS-275A/279B fixed-jet and HL-366A/HS-280A/281A/HT-12A capped types. The section3 assignment tables do not bind these branches to FS55. Their screw turns, RPMs, cap colors/orientations and stop ranges are excluded as FS55 settings, not adopted from a similar model.
  • Section7.21 is explicitly for the printed HD/WY/WT/WJ list plus C1Q-SK7/C3A-S39A, not every carburetor. Its sequence checks running before and after securing caps, looping back to idle adjustment (after removing both caps if the second check fails). No FS55 cap removal or engine operation is authorized or performed. Reuse the accepted configuration-specific Components instructions, not this unbound chart.
  • Printed50,56,60 were blank in Poppler with parser errors; a bounded Ghostscript render recovered their visible headings and contents. Both renderer diagnostics are retained. Only the visible named scope is used for exclusion; no assumption of complete rendering or new source gap is needed to make this applicability decision.
  • TI38 section6.3 delegates carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming 021/023/025 is not its actual title. These are conditional general service references for the FS55 dependency, not proof that every illustrated carburetor, jet, compensator or valve is fitted to FS55. Match the installed carburetor and retain the accepted Components-specific instructions and conflicts. No hardware work performed; exact owner safety and separate Standard Repairs/Troubleshooting dependencies remain named source gaps.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6.3; Carburetors 3 printed3–7;7.18–7.21 printed50–64.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 3 printed3–7;7.18–7.21 printed50–64, PDF pages 1, 2, 3, 4, 5, 6, 7, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45 / FS 55 / FS 55 R

FS 45 / FS 55: later repair allowances include diagnosis and testing

2012 flat-rate warranty allowances are not additive owner repair estimates.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • The cover identifies2012-01 and copyright2012 STIHL Incorporated. Printed34/PDF35 explicitly says repair times are in MINUTES. Printed2 describes authorized-dealer warranty labor reimbursement at an assigned hourly rate, not a promise that an owner will complete the work in that time. Diagnostic time, cleaning, repair and test running are included where applicable.
  • Printed2 allows one labor code per historical warranty claim: the highest allowance usually covers related work. Cylinder/piston replacement includes air-leak testing, seals or carburetor repair as needed; ignition-module work includes stop-switch/wire testing; carburetor work includes fuel-line/vent checks and replacement. Do not simply add rows or charge all included diagnostic work again. Separate repairs with different access/diagnoses required the distributor service department to authorize extra time under that2012 policy.
  • The source assumes STIHL-trained technicians using the prescribed tools and workshop procedures. Printed2–3 claim-submission and parts-return/retention administration is outside this owner repair/fitment review; it is not adopted as current policy, a disposal instruction or a requirement to contact anyone. The warranty-policy pages and other-model tables are not FS45/55 repair procedures.
  • Later2012 USA reference only; not the missing1999 parent timetable, a current warranty entitlement, an owner repair estimate or hardware validation. Combined2012 model columns do not establish identical equipment, interchange or approval for every1999 machine. TI38 original minutes and all prior conflicts remain unchanged.

TI dependency: TI 38/1999, p. 7 — TI38 section6.4;2012-01 Repair Timetables Manual printed2–3/34.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 4, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55 / FS 55 R

FS 55: later engine and fuel-system labor allowances

The2012 FS55 family column is not the1999 numbered procedure list.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • Printed34 groups FS55, FS55C, FS55R and FS55RC in one column. These notes bind only catalog FS55/FS55R references; they do not extend every TI38 attachment or engine configuration to C/RC variants. Code1 short-block replacement is BLANK in this column, not zero or an approved operation.
  • Codes2–6, minutes:2 crankcase/gasket/reseal including air-leak test50;3 main bearings including air-leak test50;4 crankshaft seals including air-leak test50;5 tank filler cap3;6 cylinder and/or piston including air-leak test and repair of components causing failure50.
  • Codes7–12:7 ignition module or flywheel including stop-circuit test30;8 tank fuel line, vent or pickup body20;9 intake manifold/flange20;10 carburetor repair/replacement including fuel-system testing30;11 throttle-control repair20;12 rewind-starter repair/replacement15. These are later allowance scopes, not extra servicing steps, part fitment or permission to operate hardware.
  • Later2012 USA reference only; not the missing1999 parent timetable, a current warranty entitlement, an owner repair estimate or hardware validation. Combined2012 model columns do not establish identical equipment, interchange or approval for every1999 machine. TI38 original minutes and all prior conflicts remain unchanged.

TI dependency: TI 38/1999, p. 7 — TI38 section6.4;2012-01 Repair Timetables Manual printed2–3/34.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 4, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55 / FS 55 R

FS 55: later drive-system allowances and explicit zero

Blank valve-service cells are not the printed zero for code50.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • 2012 codes13–18, minutes:13 clutch/shoes/springs30;14 muffler15;15 air filter or filter housing15;16 stop switch including circuit testing25;17 clutch housing20;18 drive shaft and/or drive tube30.
  • Codes19–22:19 bearing liner in drive tube20;20 limit stop or deflector15;21 complete gearbox assembly OR arbor shaft assembly15;22 fuel tank20. Code26 replaces gears and/or bearings INSIDE the gearbox30; do not confuse it with code21 assembly replacement.
  • Codes23 valve clearance,24 exhaust-valve decarbonizing/leak-down and25 intake/exhaust-valve replacement/leak-down are BLANK for FS55. The presence of generic row labels does not establish valves on this engine. Code35 diagnosis ONLY to determine failures requiring unit replacement25;40 miscellaneous/unlisted repair15;45 handling allowance only, no labor5;50 no labor0. Code50 is an explicit numerical ZERO; blank cells mean no allowance supplied here, not0.
  • Later2012 USA reference only; not the missing1999 parent timetable, a current warranty entitlement, an owner repair estimate or hardware validation. Combined2012 model columns do not establish identical equipment, interchange or approval for every1999 machine. TI38 original minutes and all prior conflicts remain unchanged.

TI dependency: TI 38/1999, p. 7 — TI38 section6.4;2012-01 Repair Timetables Manual printed2–3/34.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 4, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45

FS 45: later trimmer column leaves three drive repairs blank

The FS45 column cannot inherit the neighboring FS55 liner and gearbox allowances.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • The2012 printed34 column heading groups FS40C, FS45, FS45C, FS46 and FS46C. Only the named FS45 reference is admitted here; common allowance values do not prove common parts, shaft geometry, cutting-tool approval or C-version equipment.
  • Compared with the FS55 family column, FS45 has BLANK cells at19 bearing liner,21 gearbox/arbor-shaft assembly and26 gearbox gears/bearings. Do not copy FS55 values20,15,30 into those cells. Both columns leave1 short block and23–25 valve-related work blank. Blanks are no printed allowance, not proof the procedure is impossible and not a zero-minute service.
  • The remaining printed FS45 values equal the FS55 column:2/3/4/6=50;5=3;7=30;8/9=20;10=30;11=20;12=15;13=30;14/15=15;16=25;17=20;18=30;20=15;22=20;35=25;40=15;45=5;50=0 minutes. Repair meanings are those of the2012 rows, not identically numbered TI38 rows.
  • Later2012 USA reference only; not the missing1999 parent timetable, a current warranty entitlement, an owner repair estimate or hardware validation. Combined2012 model columns do not establish identical equipment, interchange or approval for every1999 machine. TI38 original minutes and all prior conflicts remain unchanged.

TI dependency: TI 38/1999, p. 7 — TI38 section6.4;2012-01 Repair Timetables Manual printed2–3/34.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 4, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45 / FS 55 / FS 55 R

FS 45 / FS 55: repair numbers changed meaning between editions

Code5 means leakage testing in1999 but a filler-cap replacement in2012.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • TI38/1999 uses row1 remove/refit engine10 and row5 crankcase leakage test/test run55;2012 uses code1 short-block replacement (blank for these columns) and code5 tank filler cap3. TI38 row19 gearhead/bearing-housing replacement5 differs from2012 code19 drive-tube bearing liner (FS55=20,FS45 blank). Numeric row identity is NOT a cross-edition task key.
  • TI38 row21 drive shaft10 becomes2012 code18 drive shaft and/or tube30;2012 code21 is gearbox or arbor-shaft ASSEMBLY replacement (FS55=15,FS45 blank). TI38 row26 crankshaft is blank, whereas2012 code26 gearbox gears/bearings is FS55=30 and FS45 blank. TI38 row23 compression check is not2012 code23 valve-clearance adjustment. No automatic crosswalk or supersession is inferred.
  • Even broadly related work differs: TI38 crankshaft/bearings/pressure-test row3=55 versus2012 main-bearing code3=50; TI38 carburetor-check row10=25 versus2012 repair/replacement with fuel-system testing code10=30. Different wording and included operations prevent treating the later figures as corrections to the original. Preserve TI38 asterisks (test run under load), dashes and all29 original entries separately.
  • Later2012 USA reference only; not the missing1999 parent timetable, a current warranty entitlement, an owner repair estimate or hardware validation. Combined2012 model columns do not establish identical equipment, interchange or approval for every1999 machine. TI38 original minutes and all prior conflicts remain unchanged.

TI dependency: TI 38/1999, p. 7 — TI38 section6.4;2012-01 Repair Timetables Manual printed2–3/34.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 4, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45 / FS 55 / FS 55 R

FS 45 / FS 55: separate handbook and original timetable gaps

Available model troubleshooting and later allowances do not fill two named literature gaps.

No exact-model IPL link: The retained SCS 01-2012 combined series4140 sheets do not establish exact original TI38/1999 configuration or attachment/handle combinations.

  • TI38 section6.3 names the separate handbook “Standard Repairs, Troubleshooting”. No standalone applicable source was identified in the bounded local inventory:non-bulletin service-documentation PDFs and41 owner-pool PDF openings, reconciled to current filenames/sizes, plus current document titles and model associations. This is bounded absence, not a claim that the handbook never existed. Accepted Carburetors and component/powerhead troubleshooting chapters are not missing and are not substituted for the separate title.
  • Section6.4 refers to a parent STIHL repair-times table. No contemporary1999 edition was identified in that bounded inventory. Available2012-01 Repair Timetables Manual has been dispositioned for the FS45/FS55 labor columns and scope; it is later evidence, not the original parent source. Reopen both named gaps when an applicable source is supplied.
  • Follow-on review has separately dispositioned the available2012 cutting-attachment catalog and2013 KombiTools candidate evidence. Exact owner/head standalone editions are now documented bounded source gaps; SuperCut20-2 pawl-oil/applicability remains unresolved. Launch IPL and exact delegated-workshop revisions are separately dispositioned as named bounded gaps; retainedTI04/2004,TI16/2004,TI54/2006,TI48/2008 now have targeted dependency dispositions; their independent full-bulletin queues remain open. No completeness or safe-start procedure is inferred.
  • Later2012 USA reference only; not the missing1999 parent timetable, a current warranty entitlement, an owner repair estimate or hardware validation. Combined2012 model columns do not establish identical equipment, interchange or approval for every1999 machine. TI38 original minutes and all prior conflicts remain unchanged.

TI dependency: TI 38/1999, p. 6 · TI 38/1999, p. 7 — TI38 sections6.3/6.4; bounded literature inventory;2012-01 timetable.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: the later attachment catalog is not an operating manual

January2012 catalog descriptions and symbols do not supply missing head-service instructions.

No exact-model IPL link: FS55 appears in TI38 and the later source headings. Exact1999 delegated revision and installed head configuration are not established; no exact-model IPL assembly binding inferred.

  • The cover says Effective January2012; the back cover carries copyright2011 and publication 0456 681 3023, M10.K11. These are distinct dates, neither a1999 issue nor evidence that every pictured attachment remains available. PDF2 explicitly says some items are shown for reference only.
  • The catalog requires the separate Instruction Manual, correct installed deflector and eye protection. Its general rigid-blade and circular-saw warnings do not authorize a saw blade on FS55 or replace the exact permitted combination. Other-model blade-use techniques are outside this SuperCut dependency review.
  • The back-cover legend defines the square as included item numbers, A as not illustrated, B as option, C as no longer available and D as not available as a separate item. A blank part-number cell does not authorize copying a number from the next row. These are2012 catalog meanings, not current availability guarantees.
  • Later reference evidence only, not a replacement for the exact machine/head Instruction Manual, an approval for all FS55 variants or hardware validation. Preserve TI38 model, handle and deflector restrictions; no hardware operation performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later SuperCut head evidence.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Cover; important information; back-cover symbol key, PDF pages 1, 2, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: automatic feed is not bump feed

SuperCut, AutoCut and TrimCut describe different line-feed mechanisms.

No exact-model IPL link: FS55 appears in TI38 and the later source headings. Exact1999 delegated revision and installed head configuration are not established; no exact-model IPL assembly binding inferred.

  • Printed4/PDF6 describes SuperCut as an automatic nylon-line head needing no manual line-length adjustment; AutoCut as semi-automatic with bump feed; TrimCut as manual. All describe edging and trimming around obstacles; TrimCut also names small to medium grass areas. Do not transfer AutoCut bump-feed instructions to SuperCut or TrimCut.
  • The same page describes PolyCut with thermoplastic blades or nylon line, and FixCut with precut line lengths. These are family descriptions, not approvals for every head size or model. They do not supply opening, winding, direction-of-rotation, torque or lubrication procedures.
  • Printed12/PDF14 places SuperCut20-2 number 4002 710 2184 under FS44/55/55RT. That corroborates the exact head identity for this FS55 reference; it does not merge FS55RT with FS55R or admit the entire page of mounting alternatives. Those detailed diagrams and other head combinations remain separately actionable.
  • Later reference evidence only, not a replacement for the exact machine/head Instruction Manual, an approval for all FS55 variants or hardware validation. Preserve TI38 model, handle and deflector restrictions; no hardware operation performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later SuperCut head evidence.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Mowing-head applications printed4; exact SuperCut20-2 identity printed12, PDF pages 1, 6, 14

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: SuperCut20-2 parts stay separate from SuperCut2-1

The20-2 top, index plate and bow arrangement must not inherit neighboring2-1 pawls.

No exact-model IPL link: FS55 appears in TI38 and the later source headings. Exact1999 delegated revision and installed head configuration are not established; no exact-model IPL assembly binding inferred.

  • Printed66/PDF68 identifies SuperCut20-2 complete head 4002 710 2184 as including positions1–8. Its list is:1 top 4002 710 9615 quantity1;2 index plate 4002 713 7315 quantity1;3 base 4002 713 9715 quantity1;4 bow 4002 713 3400 quantity2;5 sleeve 4002 713 8310 quantity2;6 collar nut 4002 713 6805 quantity1, M10x1 LEFT-HAND thread. No tightening torque is printed in this table.
  • Spool with nylon line 4002 710 4309 includes7 and8:7 spool insert 4002 713 3015 quantity1;8 two round line lengths, each2.4mm ×3.5m, with no individual part number supplied. Position9 is an optional pair of Quiet Line lengths, each2.4mm ×3m, outside the complete-head1–8 inclusion statement. Exploded index numbers are source locators, not invented interactive IPL hotspots.
  • The lower half of the SAME page is SuperCut2-1 number 4002 710 2148, marked C (no longer available in this2012 catalog). Its position4 pawl 4002 713 7205 and adjusting-ring mechanism belong to that separate head. The20-2 upper table labels bows/sleeves, not that pawl. This does not prove absence of any pawl-like function; it prevents borrowing the2-1 part identity or oiling procedure by adjacency.
  • Later reference evidence only, not a replacement for the exact machine/head Instruction Manual, an approval for all FS55 variants or hardware validation. Preserve TI38 model, handle and deflector restrictions; no hardware operation performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later SuperCut head evidence.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section FS55 head identity printed12; SuperCut20-2 versus2-1 printed66; legend, PDF pages 1, 14, 68, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: SuperCut20-2 line options conflict within the later catalog

Keep the Quiet Line option alongside the separate Premium Round-only restriction.

No exact-model IPL link: FS55 appears in TI38 and the later source headings. Exact1999 delegated revision and installed head configuration are not established; no exact-model IPL assembly binding inferred.

  • Printed66 lists unillustrated optional2.4mm ×15m round line 0000 930 2587 and 0000 930 2528, and optional Quiet Line 0000 930 2530,2.4mm ×15m. It also shows two2.4mm ×3m Quiet Line lengths at position9. Retain both round-line numbers; no duplicate, alias, successor or regional explanation is supplied here.
  • Printed78/PDF80 separately says SuperCut heads should ONLY be used with Premium Round Line .095-inch grade. Its .095-inch orange group is2.4mm:0000 930 2587 ×15m;0000 930 2582 ×43.5m;0000 930 2579 ×87m;0000 930 2246 ×261m;0000 930 2247 ×434m. These are package lengths, not lengths to load onto a spool.
  • The Premium Round-only note conflicts with printed66 Quiet Line options. Both are retained; do not silently resolve the conflict in favor of a broader line choice or erase the option. The table supplies no equivalence for 0000 930 2528 and no instruction that a different diameter becomes acceptable because it appears elsewhere on the Premium Round page. Exact head instructions remain necessary.
  • Later reference evidence only, not a replacement for the exact machine/head Instruction Manual, an approval for all FS55 variants or hardware validation. Preserve TI38 model, handle and deflector restrictions; no hardware operation performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later SuperCut head evidence.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section SuperCut20-2 printed66; Premium Round printed78 restriction; legend, PDF pages 1, 68, 80, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: the2013 SuperCut table still does not specify pawl oil

A later repetition of “see instructions” is not an oil grade or a20-2 adjustment procedure.

No exact-model IPL link: FS55 appears in TI38 and the later source headings. Exact1999 delegated revision and installed head configuration are not established; no exact-model IPL assembly binding inferred.

  • August2013 KombiTools cover explicitly names FS55. Section4.1.3, printed12/PDF13, repeats the generic SuperCut dry-pawl-bearing remedy: lubricate with oil, SEE INSTRUCTIONS. It supplies no oil grade, quantity, access method or exact20-2 pawl identity. This candidate does not resolve the existing head-instruction dependency.
  • The automatic-feed adjustment row remains expressly restricted to SuperCut1-2,2-2,40-2, not20-2. The SuperCut10/20 line-shredding row says use2.4mm instead of2.0mm; it does not enumerate every suffix. The2012 catalog independently lists2.4mm for20-2, while retaining its separate Quiet Line/Premium Round conflict.
  • The full12-row2013 SuperCut table was compared with the accepted2007 table: eleven generic/conditional rows and one excluded adjustment row retain the earlier dispositions. No duplicate troubleshooting notes or new operation authorization are created. Other2013 chapters are not silently accepted by this targeted check.
  • Later reference evidence only, not a replacement for the exact machine/head Instruction Manual, an approval for all FS55 variants or hardware validation. Preserve TI38 model, handle and deflector restrictions; no hardware operation performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later SuperCut head evidence.

Later manual evidence: STIHL KombiTools (2013-08), section Cover;4.1.3 SuperCut printed12;13 aids printed110, PDF pages 1, 13, 111 · Cutting Attachments, Parts & Accessories (2012-01), section SuperCut20-2 identity and unresolved line conflict, PDF pages 68, 80

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: starter lubricant is not a documented SuperCut pawl oil

The2013 servicing-aid table binds products to other named applications.

No exact-model IPL link: FS55 appears in TI38 and the later source headings. Exact1999 delegated revision and installed head configuration are not established; no exact-model IPL assembly binding inferred.

  • Section13, printed110/PDF111, assigns STIHL special lubricant 0781 417 1315 to the rope-rotor bearing bore and rewind spring in the fan housing. It does NOT name SuperCut pawl bearings. Do not infer a head-oil recommendation from its general product name.
  • The same table assigns multipurpose grease 0781 120 1021,0781 120 1109,0781 120 1110 and gear lubricant 0781 120 1022,0781 120 1117,0781 120 1118 to gearbox/drive shaft; resin solvent 0782 420 1002 to lubricating/cleaning cutting blades. None is identified as the oil delegated by4.1.3. Other rows cover oil seals/oil-pump drive/chain sprocket bearing, handle hose and gearbox sealing/cleaning; they do not close the head-oil dependency.
  • The unknown oil specification and uncertain applicability of the generic pawl wording to this exact20-2 construction remain explicit. This is a bounded failure of these candidate sources to answer the question, not proof that the exact head instructions are absent from all local sources or that no maintenance is required.
  • Later reference evidence only, not a replacement for the exact machine/head Instruction Manual, an approval for all FS55 variants or hardware validation. Preserve TI38 model, handle and deflector restrictions; no hardware operation performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later SuperCut head evidence.

Later manual evidence: STIHL KombiTools (2013-08), section 4.1.3 delegated oil versus13 explicit aid applications, PDF pages 1, 13, 111 · Cutting Attachments, Parts & Accessories (2012-01), section Separate20-2 and2-1 constructions printed66, PDF pages 68

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45

FS 45: four later head combinations and their mounting parts

The FS45 diagram does not inherit FS40 deflector or FS55 head hardware.

No exact-model IPL link: TI38 model reference plus later2012 catalog. Grouped catalog headings do not establish every variant, serial range or exact1999 assembly binding.

  • Printed6/PDF8 marks four heads in the grouped FS40/45/46 column: AutoCut5-2 4006 710 2103; AutoCutC5-2 4006 710 2106; FixCut5-2 4006 710 2118; PolyCut6-3 4006 710 2104. The FS45 column has no marks for the other17 head rows or any of the14 metal-blade rows on printed8. A blank is no approval shown, not a fabricated printed dash.
  • Printed14/PDF16 separately assigns deflector 4140 710 8100 to FS45/46 and 4140 710 8101 to FS40 only. Blade 4130 713 4100 is included in either listed deflector kit. The asterisk from2008 belongs to FS40 in this heading, not a new FS45 production cutoff.
  • Thrust plate 4140 713 1501 is shown on the FixCut5-2/PolyCut6-3 branches and is included in those heads. FixCut5-2 additionally includes thrust washer 4130 713 1600 and collar nut 4006 713 6801; PolyCut6-3 includes nut 4006 713 6800. The two AutoCut branches connect directly to the deflector-side diagram; do not add the neighboring FixCut/PolyCut stack by proximity.
  • Footnote2 explicitly makes FixCut5-2 4006 710 2118 a replacement for discontinued 4006 710 2130. This narrow replacement statement is not a general head-family supersession, and does not make a later head an original1999 fitment.
  • January2012 reference evidence, not the1999 launch IPL or a substitute for the exact machine/head Instruction Manual. Correct model, handle, deflector and mounting configuration remain required. No physical interchange, installation or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later attachment combinations.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed6/8 target table columns;9 key;14 FS45 mounting, PDF pages 1, 8, 10, 11, 16

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: seven heads in the2012 reference table

The grouped model columns and blank cells retain their exact scope.

No exact-model IPL link: TI38 model reference plus later2012 catalog. Grouped catalog headings do not establish every variant, serial range or exact1999 assembly binding.

  • Printed6/PDF8 marks seven heads in BOTH the FS55/56 column and the separate FS55R/55RT/56R/70R column: SuperCut20-2 4002 710 2184; AutoCut25-2 4002 710 2191; AutoCutC25-2 4002 710 2196; TrimCut31-2 4002 710 2156; FixCut25-2 4002 710 2158; FixCut30-2 4001 710 2103; PolyCut20-3 4002 710 2189.
  • The remaining14 of21 head rows are blank in those target columns. In particular AutoCut30-2 4002 710 2187 has no target-column mark even though its name resembles the approved FixCut30-2. No mark is not a printed not-approved dash and is not evidence of physical impossibility.
  • Printed9/PDF11 defines a dot as approved, a parenthesized dot as approved only for loop handle(R) with barrier bar and deflector, and a dash as not approved. Its note directs older models to the following mounting pages. The footnote9 from2008 markers attach to FS40/56/56R, not FS55; do not manufacture an FS55 year threshold.
  • Grouped FS55R and FS55RT table headings do not make those variants identical. Printed12–13 mounting headings say FS44/55/55RT, not a separately enumerated FS55R. Keep the table association and mounting heading distinct; no all-variant retrofit or extension of TI38 approval is inferred.
  • January2012 reference evidence, not the1999 launch IPL or a substitute for the exact machine/head Instruction Manual. Correct model, handle, deflector and mounting configuration remain required. No physical interchange, installation or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later attachment combinations.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed6 target head columns;9 symbol/date key;12–13 model headings, PDF pages 1, 8, 11, 14, 15

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: historical heads remain reference entries, not current availability

The mounting page retains earlier heads beside the later approved combinations.

No exact-model IPL link: TI38 model reference plus later2012 catalog. Grouped catalog headings do not establish every variant, serial range or exact1999 assembly binding.

  • Printed12/PDF14 upper mounting diagram includes the later SuperCut20-2, AutoCut25-2/C25-2, TrimCut31-2 and PolyCut20-3. It also lists SuperCut20-1 4002 710 2185; TrimCut30-2 4002 710 2193; AutoCut20-2 4002 710 2106; AutoCut21-2 4002 710 2192; Polymatic30-2 4002 710 2120. All five latter entries bear footnote3, no longer available in this2012 catalog.
  • The shared drawing and discontinued markers do not establish that each old head is replaced by the adjacent new one, nor that any stock remains available today. AutoCut20-2 and AutoCutC5-2 end in2106 but have different4002/4006 prefixes; retain complete numbers.
  • PolyCut20-3 and Polymatic30-2 use the illustrated alternative 4126 713 1600 / 4130 713 1600 thrust-plate forms; washer 4112 713 8500 is shown above the Polymatic branch. These lower mounting pieces are not drawn as the direct-thread SuperCut/AutoCut/TrimCut branches. Pictorial footnote4 relates the alternative shaft/seat forms; it supplies no serial cutoff or dimensional selection rule. Do not stack alternatives or claim universal interchange.
  • January2012 reference evidence, not the1999 launch IPL or a substitute for the exact machine/head Instruction Manual. Correct model, handle, deflector and mounting configuration remain required. No physical interchange, installation or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later attachment combinations.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed12 upper mowing-head mounting diagram and footnotes, PDF pages 1, 14

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: deflector kits and included parts remain distinct

A deflector, skirt and line blade are not interchangeable part names.

No exact-model IPL link: TI38 model reference plus later2012 catalog. Grouped catalog headings do not establish every variant, serial range or exact1999 assembly binding.

  • Printed12/PDF14 shows kit 4133 007 1007 with line blade 4133 713 4110 included. Earlier 4133 007 1006 and 4133 710 8101 carry the no-longer-available marker. The diagram does not expressly declare a universal replacement chain for these entries.
  • The other deflector group lists 4119 710 8103 as included in kit 4119 007 1027; 4119 710 8102 is included in kit 4119 007 1013 and marked no longer available. Deflector 4119 713 4500 is also marked no longer available.
  • Skirt 4119 716 3203 and line blade 4119 710 6000 are identified as included in kit 4119 007 1013 on both upper and lower head diagrams. Do not silently carry those inclusion footnotes over to kit 4119 007 1027, or infer that every pictured deflector is complete with every neighboring accessory.
  • The metal-blade diagram on printed13 uses the4119 deflector group, not the4133 line-head group. Its configuration omits the separate line-head skirt and line blade shown on printed12. Exact mounting selection and handle restrictions still apply; the repeated footnote numbers are local to each diagram.
  • January2012 reference evidence, not the1999 launch IPL or a substitute for the exact machine/head Instruction Manual. Correct model, handle, deflector and mounting configuration remain required. No physical interchange, installation or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later attachment combinations.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed12 upper/lower kit inclusion notes;13 metal-blade deflector, PDF pages 1, 14, 15

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: FixCut25-2 versions use different hardware

Three FixCut25-2 numbers are not one interchangeable assembly.

No exact-model IPL link: TI38 model reference plus later2012 catalog. Grouped catalog headings do not establish every variant, serial range or exact1999 assembly binding.

  • Printed12/PDF14 lower diagram marks fixed-line head 4001 713 2100 and FixCut25-2 4001 710 2102 / 4001 710 2131 as no longer available. FixCut25-2 4002 710 2158 is a separate entry without that marker. No explicit supersession chain is printed for these25-2 variants.
  • FixCut30-2 4001 710 2103 has footnote5: for FS55 and55RT only, excluding FS44 despite the shared page heading. This restriction belongs to that head, not all entries on the page.
  • Footnote6 says part 4001 710 9400 is included in FixCut25-2 4001 710 2102. Footnote8 says thrust washer 4130 713 1600 and collar nut 4126 642 7600 are included in FixCut25-2 4001 710 2131 and FixCut30-2. These inclusion notes do not name the later 4002 710 2158 version.
  • The drawing also shows the alternative 4126 713 1600 / 4130 713 1600 plate forms under pictorial footnote4. Preserve the branch-specific arrangement and original drawing; it does not supply torque, serial changeover or permission to combine all illustrated pieces into one stack.
  • January2012 reference evidence, not the1999 launch IPL or a substitute for the exact machine/head Instruction Manual. Correct model, handle, deflector and mounting configuration remain required. No physical interchange, installation or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later attachment combinations.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed12 lower fixed-line/FixCut diagram, all footnotes, PDF pages 1, 14

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: the blade mounting warning still requires a barrier bar

Plain approval dots do not erase explicit loop-handle restrictions.

No exact-model IPL link: TI38 model reference plus later2012 catalog. Grouped catalog headings do not establish every variant, serial range or exact1999 assembly binding.

  • Printed8/PDF10 marks grass blades230-4 4001 713 3801 and230-8 4001 713 3803 in the FS55/56 and FS55R/55RT/56R/70R columns. Both are230mm diameter with25.4mm mounting bore; do not substitute the20mm-bore230-4 4000 713 3801 from the adjacent row.
  • Those target marks are plain dots, unlike the parenthesized dots used in other loop-handle columns and defined on printed9. Yet printed13/PDF15 explicitly says these two blades are NOT approved for loop-handle units without a barrier bar; transport guard mandatory for metal cutting attachments. Keep this table-versus-mounting qualification discrepancy visible. A plain target-column dot is not permission to omit the barrier bar or guard.
  • The other12 metal-blade rows, including brush knives and circular-saw blades, are blank in these target columns. The catalog supplies no FS55 saw-blade approval here. The general footnote10 requirement for a limit stop and double shoulder harness on marked saw-blade rows cannot create an FS55 approval.
  • TI38 restrictions remain independent evidence; a later grouped table is not a silent supersession. For an actual machine, the exact Instruction Manual, handle, correct deflector and mounting configuration must be established before use.
  • January2012 reference evidence, not the1999 launch IPL or a substitute for the exact machine/head Instruction Manual. Correct model, handle, deflector and mounting configuration remain required. No physical interchange, installation or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later attachment combinations.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed8 target blade columns;9 legend;13 explicit barrier-bar/transport-guard restrictions, PDF pages 1, 10, 11, 15

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: grass-blade mounting stack is not the line-head stack

The diagram identifies alternative plates, rider plate and collar nut separately.

No exact-model IPL link: TI38 model reference plus later2012 catalog. Grouped catalog headings do not establish every variant, serial range or exact1999 assembly binding.

  • Printed13/PDF15 shows the4119 deflector group with grass blades230-4 4001 713 3801 or230-8 4001 713 3803. Beneath the blade it shows alternative plate forms 4126 713 1600 / 4130 713 1600 under pictorial footnote4, rider plate 4126 713 3100 and collar nut 4126 642 7600. The pictured alternatives are not an instruction to stack both plates.
  • Deflector 4119 710 8103 belongs to kit 4119 007 1027; 4119 710 8102 belongs to kit 4119 007 1013 and is marked no longer available, as is 4119 713 4500. The diagram does not specify a torque, nut thread direction, serial threshold or universal adapter conversion.
  • Footnotes2/3 apply to both blades: no loop-handle use without barrier bar, and a transport guard is mandatory. The drawing gives no transport-guard part number here. Do not promote the illustration to a complete operating procedure or a clickable IPL import; branch geometry and exact original locators are retained as reference evidence.
  • January2012 reference evidence, not the1999 launch IPL or a substitute for the exact machine/head Instruction Manual. Correct model, handle, deflector and mounting configuration remain required. No physical interchange, installation or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; later attachment combinations.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed13 blade mounting parts, alternatives and footnotes, PDF pages 1, 15

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45

FS 45: PolyCut6-3 has pins, its own collar nut and a locking pin

Do not borrow the neighboring PolyCut10-3 fastening arrangement.

No exact-model IPL link: Later2012 head-parts reference connected through the catalog FS45/55 combinations; no exact1999 assembly, serial or all-variant binding.

  • Printed70/PDF72 identifies PolyCut6-3 4006 710 2104, including items1–7: top 4004 713 9601; three pins 4004 713 6600; replacement blades 4111 007 1001; base 4004 713 9701; collar nut 4006 713 6800; thrust plate 4140 713 1501; locking pin 4130 893 7800. Except the pins and blade row, each quantity is one.
  • The blade row prints quantity3 with the description replacement blades (pack of12); the drawing shows three fitted blades and a separate package illustration. Preserve fitted quantity and pack description separately: do not infer that a complete head contains three retail packs or36 installed blades.
  • The neighboring PolyCut10-3 4004 710 2188 is marked no longer available and uses collar screws/M6 nuts rather than the6-3 pins. Adjacency and a shared replacement-blade number do not establish interchange or FS45 approval for10-3. The6-3 collar-nut thread is not specified on this page.
  • January2012 catalog evidence, not the1999 launch IPL or a complete mounting/operating procedure. Retain the accepted model/handle/deflector restrictions and consult the exact machine/head instructions. No physical interchange or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later PolyCut/FixCut parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed14 accepted FS45 binding;70 upper6-3 entry and lower10-3 comparison;back-cover key, PDF pages 1, 16, 72, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: PolyCut20-3 parts list has an unresolved item-range mismatch

The catalog says includes1–7 but identifies only six numbered items.

No exact-model IPL link: Later2012 head-parts reference connected through the catalog FS45/55 combinations; no exact1999 assembly, serial or all-variant binding.

  • Printed71/PDF73 identifies PolyCut20-3 4002 710 2189: top 4002 710 9601 (one), base 4002 713 9700 (one), sleeves 4002 713 8300 (two), collar screws 4111 710 8700 (three), hexagon nuts M6 9210 319 0900 (three), replacement blades 4111 007 1001 (quantity3; pack of12). The drawing also shows only item numbers1–6.
  • The complete-head line nevertheless prints includes1–7. Keep that source inconsistency explicit: no item7, part number or missing component is reconstructed from the neighboring PolyCut40-3 list. The blade quantity3 and pack-of12 description do not establish three included retail packs.
  • PolyCut40-3 4111 710 2190 below it is marked no longer available and has its own ring, top and base. PolyCut41-3 on printed72 uses larger alternative collar-nut threads. Shared sleeves, screws, nuts or blades are component-reference overlap, not whole-head interchange or approval for FS55.
  • No tightening torque, line-loading method or new mounting-stack instruction is specified in this20-3 spare-parts entry. The previously reviewed FS55 mounting diagram and exact owner/head instructions remain separate dependencies.
  • January2012 catalog evidence, not the1999 launch IPL or a complete mounting/operating procedure. Retain the accepted model/handle/deflector restrictions and consult the exact machine/head instructions. No physical interchange or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later PolyCut/FixCut parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed12 accepted FS55 binding;71 upper20-3 full list/drawing and40-3 comparison;72 upper41-3 context;key, PDF pages 1, 14, 73, 74, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45

FS 45: FixCut5-2 uses paired pawls and M8 mounting hardware

The top is not separately available; the included line is not every listed option.

No exact-model IPL link: Later2012 head-parts reference connected through the catalog FS45/55 combinations; no exact1999 assembly, serial or all-variant binding.

  • Printed72/PDF74 identifies FixCut5-2 4006 710 2118, including items1–8 and10. Top item1 has no separate number and carries(D), not available as separate item. Base 4002 713 9702 is one; pawls 4001 713 7200, torsion springs 4001 998 0400 and sleeves 4001 713 8300 are two each.
  • Included mounting items6–8 are thrust washer 4130 713 1600, collar nut M8 4006 713 6801 and thrust plate 4140 713 1501, one each. Do not replace that nut by the FixCut25-2 M10x1 left-hand nut just because the internal pawls/base are shared.
  • Included item10 is two Quiet mowing-line pieces,2.4mm diameter by203mm long, marked(D). Separately listed option(B) 0000 930 2310 is a50-piece package of that line. Option item9 0000 930 2315 is round2.4x203mm,50 pieces; item11 0000 930 3316 is pentagonal2.4x203mm,50 pieces. These optional packages are not included by the1–8,10 item range.
  • This5-2 entry lists only2.4mm line. The3.3mm round/Quiet and3mm pentagonal choices on the neighboring25-2 page do not transfer to5-2. A parts drawing is not a pawl-lubrication or release procedure.
  • January2012 catalog evidence, not the1999 launch IPL or a complete mounting/operating procedure. Retain the accepted model/handle/deflector restrictions and consult the exact machine/head instructions. No physical interchange or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later PolyCut/FixCut parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed14 FS45 binding;72 lower FixCut5-2 complete entry;key, PDF pages 1, 16, 74, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: later FixCut25-2 excludes the thrust piece from its inclusion range

The4002 version must stay distinct from earlier4001 assemblies.

No exact-model IPL link: Later2012 head-parts reference connected through the catalog FS45/55 combinations; no exact1999 assembly, serial or all-variant binding.

  • Printed73/PDF75 identifies FixCut25-2 4002 710 2158 with includes1–6,10. Item1 top has no number and is(D), not available separately; item2 is hexagon nut M10x1 left-hand thread 9211 260 1350; item3 base 4002 713 9702. Pawls 4001 713 7200, torsion springs 4001 998 0400 and sleeves 4001 713 8300 at items4–6 are two each.
  • Item7 thrust piece 4001 710 9400 is drawn and listed, quantityone, but is outside the explicit1–6,10 complete-head inclusion range. Do not silently include it, discard it as unnecessary, or transfer the earlier4001 head inclusion notes to this4002 head. The spare-part entry does not resolve every mounting configuration.
  • Item10 is two Quiet line pieces,2.4x203mm, marked(D); its separately listed50-piece option is 0000 930 2310. This is not a spool-fed head. No part number is fabricated for the separately unavailable top or bare included line.
  • January2012 catalog evidence, not the1999 launch IPL or a complete mounting/operating procedure. Retain the accepted model/handle/deflector restrictions and consult the exact machine/head instructions. No physical interchange or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later PolyCut/FixCut parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed12 accepted version-specific FS55 mounting;73 FixCut25-2 full entry;key, PDF pages 1, 14, 75, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: FixCut25-2 line choices retain diameter, section and package size

The pentagonal3mm option is not the3.3mm round option.

No exact-model IPL link: Later2012 head-parts reference connected through the catalog FS45/55 combinations; no exact1999 assembly, serial or all-variant binding.

  • Printed73/PDF75 lists round2.4x203mm 0000 930 2315 and round3.3x203mm 0000 930 2316; Quiet round2.4x203mm 0000 930 2310 and Quiet round3.3x203mm 0000 930 2312; pentagonal2.4x203mm 0000 930 3316 and pentagonal3x203mm 0000 930 3318. Each numbered retail option is50 pieces, not50mm of line and not50 pieces installed in the head.
  • The head includes item10 only among those line indices: two2.4x203mm Quiet pieces. Optional larger diameter, different section and package choices are not all included. Nothing in this table establishes those larger choices for FixCut5-2.
  • Printed82/PDF84 independently calls the pentagonal stock8-inch pre-cut line: orange .095-inch/2.4mm comes in50 pieces 0000 930 3316 or100 pieces 0000 930 3317; yellow .120-inch/3mm in50 pieces 0000 930 3318 or100 pieces 0000 930 3319. The head entry names the50-piece versions; retail100-piece rows are package alternatives, not different fitted geometry or automatic new head approval.
  • January2012 catalog evidence, not the1999 launch IPL or a complete mounting/operating procedure. Retain the accepted model/handle/deflector restrictions and consult the exact machine/head instructions. No physical interchange or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later PolyCut/FixCut parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed73 full FixCut25-2 line options;82 pre-cut pentagonal retail packages;key, PDF pages 1, 75, 84, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: FixCut30-2 is not the pawl-and-spring FixCut25-2

Its drawing identifies a warning label, washer, collar nut and line.

No exact-model IPL link: Later2012 head-parts reference connected through the catalog FS45/55 combinations; no exact1999 assembly, serial or all-variant binding.

  • Printed74/PDF76 identifies FixCut30-2 4001 710 2103, including items1–4. Item1 warning pictogram 0000 967 3905, item2 thrust washer 4130 713 1600 and item3 collar nut M10x1 left-hand thread 4126 642 7600 each have quantityone. No separately numbered top, base, pawl, torsion spring or sleeve is listed here; that is not a teardown-proven absence of every internal component.
  • Item4 is one2.4x520mm round line length, marked(B) option even though the head inclusion range says1–4. Preserve both markings rather than silently removing the option flag or promising a specific supplied package. The listed15m retail stock 0000 930 2587 is(A,B), not illustrated and optional, USA;15m is not the installed length.
  • The previously reviewed printed12 footnote limits this head to FS55/55RT within the FS44/55/55RT page heading. These parts do not remove that restriction. No25-2 pawl service procedure, automatic-feed claim, torque or serial-range conversion is inferred.
  • January2012 catalog evidence, not the1999 launch IPL or a complete mounting/operating procedure. Retain the accepted model/handle/deflector restrictions and consult the exact machine/head instructions. No physical interchange or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later PolyCut/FixCut parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed12 FixCut30-2 model restriction;74 full FixCut30-2 hardware/inclusion;key, PDF pages 1, 14, 76, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: FixCut30-2 lists520mm lengths separately from retail rolls

Keep each section and diameter distinct; do not load a package-length roll.

No exact-model IPL link: Later2012 head-parts reference connected through the catalog FS45/55 combinations; no exact1999 assembly, serial or all-variant binding.

  • Printed74/PDF76 line items4–13 each list quantityone and520mm length: round2.4/2.7/3.3mm; square2.4/2.7mm; pentagonal2.4/2.7/3.3mm; X-section2.4/2.7mm. All carry(B) option; only item4 is within the stated complete-head1–4 inclusion range. No3.3mm square or X-section option is printed here.
  • The corresponding USA round retail stocks are 0000 930 2587 (2.4mm,15m), 0000 930 2586 (2.7mm,10.7m), 0000 930 2585 (3.3mm,7.6m). Dark-green square stocks are 0000 930 2601 (2.4mm,243m) and 0000 930 2626 (2.7mm,197m). Each retail row has quantityone and(A,B), not illustrated and optional.
  • Pentagonal stocks are 0000 930 3310 (2.4mm,50m), 0000 930 3329 (2.7mm,40m), 0000 930 3326 (3.3mm,20m). X-section stocks are 0000 930 3400 (2.4mm,112m) and 0000 930 3404 (2.7mm,267m). Each is USA,(A,B),quantityone. These lengths are stock packaging, not a head capacity or installation instruction.
  • The520mm entries are not the203mm pre-cut pieces listed for FixCut5-2/25-2. Do not substitute the nearby FixCut25-2 pentagonal3mm diameter for the30-2 pentagonal3.3mm entry, or extend one head’s diameter options to another.
  • January2012 catalog evidence, not the1999 launch IPL or a complete mounting/operating procedure. Retain the accepted model/handle/deflector restrictions and consult the exact machine/head instructions. No physical interchange or hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later PolyCut/FixCut parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed74 all ten FixCut30-2 line choices and matching retail stocks;key, PDF pages 1, 76, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: Polymatic30-2 includes its washer and two line lengths

The neighboring40-2 shares several components but not the complete mounting hardware.

No exact-model IPL link: Later2012 FS55 reference through printed12 mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed44/PDF46 identifies Polymatic30-2 4002 710 2120, marked(C), no longer available in this catalog, including items1–8. Item1 collar screw 4126 713 6500; item2 spool housing 4110 713 3600; item3 two sleeves 4110 713 8300; item4 spool insert 4110 713 3000; item5 compression spring 0000 997 2300; item6 left-hand-thread star nut 4110 713 6801; item7 washer 4112 713 8500. Each hardware quantity is one except the sleeves.
  • Included item8 is two round2.4mm x2.5m line lengths, marked(D), not available separately as that item. Item9 is the optional(B) Quiet round2.4mm x2.5m alternative, also quantitytwo, outside the1–8 inclusion range. These are not two15m loads.
  • Round15m retail stocks are 0000 930 2587 and 0000 930 2528; Quiet15m stock is 0000 930 2530. Each is quantityone,(A,B), not illustrated and optional. No difference in material or region is specified between the two round stock numbers on this page.
  • The neighboring discontinued Polymatic40-2 4003 710 2100 uses collar screw 4003 713 6500 and does not list the30-2 washer. Its shifted indices and shared housing, insert, spring and star nut are comparison context, not an FS55 approval for40-2. The30-2 mounting page and exact head instructions still govern installation; no torque or thread size is supplied here.
  • January2012 catalog evidence, connected through the accepted FS44/55/55RT mounting page, not an exact1999 launch IPL or a complete winding/mounting/operating procedure. Preserve model, handle and deflector restrictions. Shared components and adjacent drawings do not establish whole-head interchange, supersession or present parts availability. No hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later TrimCut/Polymatic and historical SuperCut20-1 parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed12 historical FS55 binding;44 entire Polymatic30-2 entry and40-2 comparison;symbol key, PDF pages 1, 14, 46, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: TrimCut30-2 housing and star nut stay head-specific

The discontinued30-2 is not silently replaced by the neighboring31-2.

No exact-model IPL link: Later2012 FS55 reference through printed12 mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed45–46/PDF47–48 identifies TrimCut30-2 4002 710 2193, marked(C), no longer available, including1–7 and11. Spool housing 4002 710 3600 includes item2 warning pictogram 0000 967 3706 and item3 two sleeves 4002 713 8302. Item4 collar screw is 4002 713 6502; item5 spool insert 4002 713 3016; item6 compression spring 0000 997 3800; item7 left-hand-thread star nut 4002 740 6700. Hardware quantities are one except the two sleeves.
  • Included item11 is two Quiet round2.4mm x5m line lengths, marked(D). Other line indices8–10 and12–20 are optional(B);13,18 and20 additionally carry(A), not illustrated, even though the drawing groups line-section symbols. Preserve the printed flags rather than treating every drawing symbol as an included item.
  • The30-2 housing, insert and star-nut numbers differ from31-2 despite shared sleeves, collar screw and compression spring. This is not an express replacement chain or permission to mix assemblies. Neither drawing supplies a winding direction, tightening torque or star-nut thread diameter.
  • January2012 catalog evidence, connected through the accepted FS44/55/55RT mounting page, not an exact1999 launch IPL or a complete winding/mounting/operating procedure. Preserve model, handle and deflector restrictions. Shared components and adjacent drawings do not establish whole-head interchange, supersession or present parts availability. No hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later TrimCut/Polymatic and historical SuperCut20-1 parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed12 historical FS55 binding;45–46 complete TrimCut30-2 hardware/inclusions and line continuation;key, PDF pages 1, 14, 47, 48, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: TrimCut31-2 spool includes its specified Quiet line

Its instruction label and loaded-spool number are distinct from the30-2 parts.

No exact-model IPL link: Later2012 FS55 reference through printed12 mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed46–47/PDF48–49 identifies TrimCut31-2 4002 710 2156, including1–7 and11, without the(C) discontinued marker. Item1 spool housing 4002 713 3602; item2 instruction label 4002 967 4617; item3 two sleeves 4002 713 8302; item4 collar screw 4002 713 6502; item5 spool insert 4002 713 3004; item6 compression spring 0000 997 3800; item7 left-hand-thread star nut 4002 740 6701. All hardware quantities are one except the sleeves.
  • Spool assembly 4002 710 4314 includes items5 and11. Item11 is two Quiet round2.4mm x8m line lengths, marked(D), not separately available as that item. That loaded-spool inclusion differs from a bare insert and from buying a15m retail roll.
  • Optional line indices8–10 and12–20 carry(B);13,18 and20 also carry(A), not illustrated. The full head includes item11, not every optional line shape or diameter. The absent(C) flag is an edition-specific catalog observation, not evidence that this head or its parts are available today.
  • The parts page lists an instruction-label number, not the full instructions printed on that label. No operating or winding procedure is reconstructed from the parts drawing; retain the exact head instruction dependency.
  • January2012 catalog evidence, connected through the accepted FS44/55/55RT mounting page, not an exact1999 launch IPL or a complete winding/mounting/operating procedure. Preserve model, handle and deflector restrictions. Shared components and adjacent drawings do not establish whole-head interchange, supersession or present parts availability. No hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later TrimCut/Polymatic and historical SuperCut20-1 parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed6/12 accepted FS55 binding;46–47 entire TrimCut31-2 hardware/spool/inclusion entry;key, PDF pages 1, 8, 14, 48, 49, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: TrimCut30-2 and31-2 list different line lengths

The30-2 pentagonal2.4mm row is8m, unlike its other2.4mm rows.

No exact-model IPL link: Later2012 FS55 reference through printed12 mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed45–47/PDF47–49 gives quantitytwo for every indexed line choice on both heads. TrimCut30-2 round2.4/2.7/3mm lengths are5/3.5/2.5m respectively; Quiet round2.4/2.7mm lengths are5/3.5m; square2.4/2.7/3mm lengths are5/3.5/2.5m; pentagonal2.4/2.7/3mm lengths are8/3.5/2.5m; X-section2.4/2.7mm lengths are5/3.5m.
  • The30-2 pentagonal2.4mm item16 explicitly prints8m, not5m. Retain the printed outlier without normalizing it to the adjacent round/square/X-section values or claiming it has been physically load-tested. These are source-listed lengths, not a verified safe fill capacity or a winding method.
  • TrimCut31-2 round, square and pentagonal2.4/2.7/3mm lengths are8/6/5m respectively. Its Quiet round and X-section2.4/2.7mm lengths are8/6m. Neither table lists a3mm Quiet or3mm X-section choice.
  • Both complete-head inclusion ranges select item11 Quiet2.4mm: two5m lengths for30-2, two8m lengths for31-2. Do not collapse quantitytwo into one length, transfer31-2 lengths to30-2 or interpret a retail stock length as the amount to load.
  • January2012 catalog evidence, connected through the accepted FS44/55/55RT mounting page, not an exact1999 launch IPL or a complete winding/mounting/operating procedure. Preserve model, handle and deflector restrictions. Shared components and adjacent drawings do not establish whole-head interchange, supersession or present parts availability. No hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later TrimCut/Polymatic and historical SuperCut20-1 parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed45–47 all thirteen indexed line choices for each TrimCut head;key, PDF pages 1, 14, 47, 48, 49, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: TrimCut retail line numbers identify stock, not spool capacity

Both head lists reuse stock numbers while specifying different loaded lengths.

No exact-model IPL link: Later2012 FS55 reference through printed12 mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed45–47/PDF47–49 gives these round retail stocks:2.4mm x15m 0000 930 2587 and 0000 930 2528;2.7mm x10.7m 0000 930 2586;3mm x57m 0000 930 2273. Quiet round stocks are2.4mm x15m 0000 930 2530 and2.7mm x10.7m 0000 930 2519. Each retail row is quantityone,(A,B), not illustrated and optional; the line indices separately have quantitytwo.
  • Square stock is2.4mm x243m 0000 930 2601 or2.7mm x197m 0000 930 2626, both described dark green, and3mm x56m 0000 930 2618. Pentagonal stock is2.4mm x50m 0000 930 3310,2.7mm x40m 0000 930 3329, or3mm x60m 0000 930 3304. All are quantityone,(A,B).
  • X-section stock is2.4mm x112m 0000 930 3400 or2.7mm x89m 0000 930 3403, quantityone,(A,B). Do not substitute the neighboring FixCut30-2 catalog’s267m 0000 930 3404 package or its3.3mm pentagonal choice for the TrimCut-listed89m package or3mm choice.
  • The same stock number appearing in both TrimCut entries establishes a shared listed consumable, not equal spool capacity, identical internal parts or whole-head interchange. No distinction between the two round2.4mm x15m stock numbers is specified here.
  • January2012 catalog evidence, connected through the accepted FS44/55/55RT mounting page, not an exact1999 launch IPL or a complete winding/mounting/operating procedure. Preserve model, handle and deflector restrictions. Shared components and adjacent drawings do not establish whole-head interchange, supersession or present parts availability. No hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later TrimCut/Polymatic and historical SuperCut20-1 parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed45–47 complete TrimCut retail stock rows, including page-break round3mm continuation;key, PDF pages 1, 14, 47, 48, 49, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: historical SuperCut20-1 uses a bow, not the20-2 pawl list

Keep the20-1 collar nut, spool and single line quantity separate.

No exact-model IPL link: Later2012 FS55 reference through printed12 mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed65/PDF67 identifies SuperCut20-1 4002 710 2185, marked(C), no longer available, including1–7. Item1 top 4002 710 9605; item2 two sleeves 4002 713 8310; item3 bow 4002 713 3400; item4 spool insert 4002 713 3010; item5 collar nut M10x1 left-hand thread 4002 713 6804; item6 base 4002 713 9710. All hardware quantities are one except the sleeves.
  • Loaded spool 4002 710 4304 includes4 and7. Item7 is quantityone round2.4mm x5m line, marked(D). Optional item8 is quantityone Quiet round2.4mm x5m,(B), outside the1–7 head inclusion range. Preserve quantityone rather than borrowing the two lengths listed for TrimCut or Polymatic.
  • Optional, not-illustrated retail stocks(A,B), each quantityone, are round2.4mm x15m 0000 930 2587 / 0000 930 2528 and Quiet2.4mm x15m 0000 930 2530. The15m rolls are not a declared head capacity or winding length.
  • The neighboring SuperCut10-1 4004 710 2189 shares sleeves, bow, insert and base but has top 4004 710 9600, loaded spool 4004 710 4302 and M12 collar nut 4004 713 6800. That comparison does not approve10-1 for FS55 or make the two complete heads interchangeable.
  • No pawl, adjusting ring or lubrication method is listed in this20-1 entry. Do not import SuperCut20-2 or2-1 pawl instructions into it, or use the20-1 bow drawing to resolve the remaining exact20-2 pawl-oil/applicability question. The historical mounting entry does not establish a20-1 to20-2 supersession.
  • January2012 catalog evidence, connected through the accepted FS44/55/55RT mounting page, not an exact1999 launch IPL or a complete winding/mounting/operating procedure. Preserve model, handle and deflector restrictions. Shared components and adjacent drawings do not establish whole-head interchange, supersession or present parts availability. No hardware test performed.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later TrimCut/Polymatic and historical SuperCut20-1 parts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Printed12 historical FS55 binding;65 lower entire20-1 entry and upper10-1 comparison;key, PDF pages 1, 14, 67, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45

FS 45: AutoCut5-2 has a snap-ring cap and two3m lengths

The standard5-2 does not use the C5-2 spool, spring or cap.

No exact-model IPL link: Later2012 reference through accepted model/head mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed54/PDF56 identifies AutoCut5-2 4006 710 2103 including1–7. Item1 spool housing 4006 710 3600 includes item2 two sleeves 4004 713 8300. Item3 compression spring 0000 997 3100; item4 spool insert 4004 713 3000; item5 cap 4006 710 4000 includes item6 snap ring22 9465 620 2771. Hardware quantities are one except the two sleeves.
  • Loaded spool 4004 710 4300 includes4 and7. Included item7 is two round2mm x3m lengths,(D), not separately available as that indexed item. Optional(B) item8 is two Quiet round2mm x3m lengths. Retail stocks, quantityone,(A,B), not illustrated/optional, are round2mm x15m 0000 930 2588 and 0000 930 2526, and Quiet2mm x15m 0000 930 2584. The15m packages are not loaded lengths.
  • Accepted FS40/45/46 table and FS45/46 mounting identities support this FS45 reference with its own deflector and restrictions. The FS55 table column has no approval marks for5-2 or C5-2; neither appears in the FS44/55/55RT mounting diagram. This is not an FS55 approval. Neighboring C4-2 is context, not an additional target approval. Do not transplant the C5-2 spring, insert or cap, or infer a winding procedure from this drawing.
  • January2012 catalog evidence through accepted FS45 combinations and mounting identities, not an exact1999 launch IPL, full winding/installation procedure or physical interchange test. Preserve model, handle, deflector and configuration restrictions. Shared components do not prove whole-head interchange or supersession; present parts availability is unverified.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later AutoCut spare-part entries.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Accepted mounting/model binding and complete AutoCut entry; printed page = PDF page minus2; symbol key PDF94, PDF pages 1, 8, 16, 56, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45

FS 45: AutoCutC5-2 retains a one-versus-two line discrepancy

Its unnumbered housing is not separately available; optional ordinary line is quantityone.

No exact-model IPL link: Later2012 reference through accepted model/head mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed55/PDF57 identifies AutoCutC5-2 4006 710 2106 including1–5 and7. Item1 spool housing has no part number and is marked(D), not available separately. Item2 spool insert 4006 713 3000; item3 compression spring 0000 997 2000; item4 cap 4006 710 4001; item5 warning pictogram 0000 967 3706. Hardware quantities are one. No separate sleeve or snap-ring item is listed in this entry.
  • Included item7 is quantitytwo Quiet round2mm x2.5m,(D). Optional(B) item6 ordinary round2mm x2.5m is printed quantityone, unlike item7 and the standard5-2 quantitytwo. Preserve that discrepancy without correcting it to two or claiming an operating configuration has been verified.
  • Retail stocks are ordinary2mm x15m 0000 930 2588 and Quiet2mm x15m 0000 930 2584, each quantityone,(A,B), not illustrated/optional. This entry does not list the standard5-2 alternative ordinary stock 0000 930 2526. Adjacent discontinued AutoCut10-2 is comparison context, not an FS45/55 approval. No loaded-spool assembly number, tightening torque or complete winding method is supplied for C5-2 here.
  • The FS40/45/46 table column and FS45/46 mounting page bind this entry to FS45. The FS55 column is blank for C5-2 and5-2; no FS55 approval is inferred from the head family name or the shared TI dependency.
  • January2012 catalog evidence through accepted FS45 combinations and mounting identities, not an exact1999 launch IPL, full winding/installation procedure or physical interchange test. Preserve model, handle, deflector and configuration restrictions. Shared components do not prove whole-head interchange or supersession; present parts availability is unverified.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later AutoCut spare-part entries.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Accepted mounting/model binding and complete AutoCut entry; printed page = PDF page minus2; symbol key PDF94, PDF pages 1, 8, 16, 57, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: historical AutoCut20-2 and21-2 differ at the housing

Their shared M12 cap hardware does not make the complete heads interchangeable.

No exact-model IPL link: Later2012 FS55 historical mounting name binding; AutoCut20-2 complete-head number conflicts:4002 710 2106 on PDF14 versus4002 710 2108 on PDF59. No exact-number interchange,1999 assembly or serial binding.

  • Printed57–58/PDF59–60 identifies AutoCut20-2 4002 710 2108 and21-2 4002 710 2192, both(C), no longer available in this catalog, both including1–8 and10. Item1 housing is 4004 710 3601 on20-2 but 4004 710 3600 on21-2; each includes item2 two sleeves 4004 713 8300.
  • The historical mounting page printed12/PDF14 calls AutoCut20-2 4002 710 2106, whereas the exact parts entry printed57/PDF59 calls it 4002 710 2108. Retain both conflicting complete-head numbers; neither is silently corrected, equated or promoted as a supersession. This note is bound by the printed head name with unresolved exact complete-head-number agreement, not an exact-number fitment claim. AutoCutC5-2 4006 710 2106 is a different prefix and is not a resolution of this conflict.
  • Both list item3 compression spring 0000 997 2100; item4 spool insert 4002 713 3007; item5 cap 4002 710 4000 including item6 hexagon nut M12 9210 260 1410 and item7 snap ring22 9465 620 2771; item8 collar screw 4002 713 6501. Hardware quantities are one except two sleeves. Loaded spool 4002 710 4307 includes4 and10.
  • Both include item10 two round2.4mm x2.5m lengths,(D). Optional item9 is two round2mm x3m, but20-2 marks it(A,B) while21-2 marks it(B), despite both drawings grouping9,10. Retain the not-illustrated flag discrepancy rather than deleting it. Optional(B) item11 is two Quiet round2mm x3m; item12 two Quiet round2.4mm x2.5m.
  • Both entries list quantityone retail stocks,(A,B): round2mm x15m 0000 930 2588; round2.4mm x15m 0000 930 2587 and 0000 930 2528; Quiet2mm x15m 0000 930 2584; Quiet2.4mm x15m 0000 930 2530. These are packages, not the indexed two-length loads. Shared cap and spool numbers do not establish a20-2 to21-2 replacement chain or permit mixing housings.
  • January2012 catalog evidence through accepted FS45/55 combinations and mounting identities, not an exact1999 launch IPL, full winding/installation procedure or physical interchange test. Preserve model, handle, deflector and configuration restrictions. Shared components do not prove whole-head interchange or supersession; present parts availability is unverified.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later AutoCut spare-part entries.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Accepted mounting/model binding and complete AutoCut entry; printed page = PDF page minus2; symbol key PDF94, PDF pages 1, 14, 59, 60, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: AutoCut25-2 includes its Quiet-loaded spool

Keep its sleeves, top, base and insert distinct from C25-2.

No exact-model IPL link: Later2012 reference through accepted model/head mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed59–60/PDF61–62 identifies AutoCut25-2 4002 710 2191 including1–6 and9. Item1 top 4002 713 9608; item2 collar nut M10x1 left-hand thread 4002 713 6801; item3 helical spring 0000 997 1501; item4 two sleeves 4003 713 8301; item5 spool insert 4002 713 3017; item6 base 4002 713 9708. Hardware quantities are one except two sleeves.
  • Loaded spool 4002 710 4313 includes5 and9. Included item9 is two Quiet round2.4mm x5m lengths,(D). The other indexed line choices7,8 and10–16 are optional(B), not all included with the head. Neither the head nor the loaded spool includes a15m retail roll.
  • Neighboring discontinued AutoCut24-2 is outside this target admission. Its collar screw, cover and7.5m row must not be imported into25-2. The25-2 sleeve number begins4003; C25-2 sleeve begins4002. Shared collar nut and spring do not make the top, base, insert or loaded spool interchangeable. No tightening torque or winding instructions are supplied here.
  • January2012 catalog evidence through accepted FS45/55 combinations and mounting identities, not an exact1999 launch IPL, full winding/installation procedure or physical interchange test. Preserve model, handle, deflector and configuration restrictions. Shared components do not prove whole-head interchange or supersession; present parts availability is unverified.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later AutoCut spare-part entries.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Accepted mounting/model binding and complete AutoCut entry; printed page = PDF page minus2; symbol key PDF94, PDF pages 1, 8, 14, 61, 62, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: AutoCut25-2 lists3.5m,5m and8m at2.4mm

The pentagonal8m row is not normalized to the round or Quiet values.

No exact-model IPL link: Later2012 reference through accepted model/head mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed59–60/PDF61–62 gives quantitytwo for every indexed25-2 line choice. At2.4mm: ordinary round item7 is3.5m; Quiet round item9 is5m; square item11 is5m; pentagonal item13 is8m; X-section item15 is5m. Preserve the different printed lengths; they are not a physical fill-capacity test or an invitation to substitute one shape for another.
  • At2.7mm all five shapes are3.5m: ordinary round item8, Quiet round item10, square item12, pentagonal item14 and X-section item16. No3mm choice is listed in this entry. Only item9 is included(D); the remaining choices are optional(B).
  • Retail stocks, each quantityone,(A,B), not illustrated/optional: round2.4mm x15m 0000 930 2587 / 0000 930 2528; round2.7mm x10.7m 0000 930 2586; Quiet2.4mm x15m 0000 930 2530; Quiet2.7mm x10.7m 0000 930 2519. Square dark-green stocks are2.4mm x243m 0000 930 2601 and2.7mm x197m 0000 930 2626.
  • Pentagonal stocks are2.4mm x50m 0000 930 3310 and2.7mm x40m 0000 930 3329; X-section stocks are2.4mm x112m 0000 930 3400 and2.7mm x89m 0000 930 3403. Each is quantityone,(A,B). Stock length is not spool loading length; the adjacent C25-2 lists4m lengths and cannot supply missing25-2 instructions.
  • January2012 catalog evidence through accepted FS45/55 combinations and mounting identities, not an exact1999 launch IPL, full winding/installation procedure or physical interchange test. Preserve model, handle, deflector and configuration restrictions. Shared components do not prove whole-head interchange or supersession; present parts availability is unverified.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later AutoCut spare-part entries.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Accepted mounting/model binding and complete AutoCut entry; printed page = PDF page minus2; symbol key PDF94, PDF pages 1, 14, 61, 62, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: AutoCutC25-2 lists only2.4mm x4m line choices

Its loaded spool and instruction label are specific to C25-2.

No exact-model IPL link: Later2012 reference through accepted model/head mounting identities; no exact1999 assembly, serial or all-variant binding.

  • Printed61/PDF63 identifies AutoCutC25-2 4002 710 2196 including1–7 and9. Item1 top 4002 713 9601; item2 two sleeves 4002 713 8301; item3 instruction label 4002 967 4608; item4 collar nut M10x1 left-hand thread 4002 713 6801; item5 spool insert 4002 713 3003; item6 helical spring 0000 997 1501; item7 base 4002 713 9701. Hardware quantities are one except two sleeves.
  • Loaded spool 4002 710 4301 includes5 and9. Included item9 is two Quiet round2.4mm x4m lengths,(D). Optional(B) ordinary round item8, square item10, pentagonal item11 and X-section item12 are also quantitytwo,2.4mm x4m. No2.7mm or3mm choice is listed here; do not import25-2 dimensions or its8m pentagonal row.
  • Retail stocks are round2.4mm x15m 0000 930 2587; Quiet2.4mm x15m 0000 930 2530; square dark-green2.4mm x243m 0000 930 2601; pentagonal2.4mm x50m 0000 930 3310; X-section2.4mm x112m 0000 930 3400. Each is quantityone,(A,B), not illustrated/optional. This entry does not list ordinary stock 0000 930 2528. The instruction-label part number is not a full winding procedure; exact standalone head instructions remain a named source gap; available head-related TI supplements are separately dispositioned.
  • January2012 catalog evidence through accepted FS45/55 combinations and mounting identities, not an exact1999 launch IPL, full winding/installation procedure or physical interchange test. Preserve model, handle, deflector and configuration restrictions. Shared components do not prove whole-head interchange or supersession; present parts availability is unverified.

TI dependency: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 sections5/6 dependencies; exact later AutoCut spare-part entries.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Accepted mounting/model binding and complete AutoCut entry; printed page = PDF page minus2; symbol key PDF94, PDF pages 1, 8, 14, 63, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45 / FS 55

FS 45 / FS 55: exact owner safety instructions remain a source gap

The FS55-named PDF is a workshop manual, not the owner manual required by TI38.

No exact-model IPL link: Exact owner/head instruction editions not established; later service/catalog evidence is not a substitute.

  • TI38 page6 section6 expressly requires the local and national safety regulations and the owner-manual safety precautions when starting the unit during repair or maintenance. No exact applicable FS45/FS55 owner edition was identified in the retained source inventory. The bulletin does not specify an owner-manual publication number or revision; none is invented.
  • The bounded search reconcilednon-bulletin service-documentation PDFs and41 owner-pool PDFs against their retained opening texts, freshly hashed all116 PDFs, and queried current document titles and FS45/FS55 associations. The owner-pool file named01271-fs55 contains the August1999 Series4140 powerhead workshop manual and is byte-identical to RA_931_00_01_02.pdf. Its filename does not establish owner instructions.
  • Thethe reviewed service documentation were separately hash-verified and their opening titles checked. ADG1,ADG2 and MDG1 instruction manuals, diagnostic-software safety sheets and M-Tronic test literature are not FS45/FS55 owner manuals. No analyzer instruction, later workshop chapter or accepted parts table substitutes for the missing owner safety edition.
  • Available powerhead,Components,CombiTools and catalog assertions remain accepted at their stated editions. Launch IPL and exact delegated-workshop revisions have separate named gap dispositions; none of these source-availability notes authorizes starting a machine.
  • Bounded source availability, not universal absence, safe-start instructions or hardware proof. Reopen named gaps when an applicable source is supplied. Existing model, handle, deflector, suffix and edition restrictions and all conflicts remain intact.

Source: TI 38/1999, p. 6 — TI38 section6 owner safety dependency; bounded instruction-source inventory.

No additional parts-table entry added.

Service note · FS 55

FS 55: head parts listings do not supply the missing instruction leaflets

SuperCut20-2 pawl oil remains unresolved; related retained TIs are still actionable.

No exact-model IPL link: Exact owner/head instruction editions not established; later service/catalog evidence is not a substitute.

  • No standalone applicable mowing-head instruction leaflet was identified in the bounded116-PDF opening/title inventory, current catalogue title/model associations orthe reviewed service documentation. Available AutoCut,PolyCut,FixCut,TrimCut and SuperCut metadata entries are typed Spare Parts List, not instruction manuals. A missing PDF link on a structured parts entry is not evidence that its parts data is absent.
  • Accepted2007 CombiTools generic SuperCut troubleshooting says to oil dry pawl bearings and refers to instructions; the2013 comparison and2012 head catalog did not establish an exact20-2 oil grade, quantity or pawl-service method. Preserve the pawl-versus-bow/sleeve applicability uncertainty and Premium Round-versus-Quiet Line conflict. No engine oil, gear grease or other service aid is substituted.
  • Title discovery also located retained head-related TI04/2004(FixCut5-2/25-2),TI16/2004(pentagonal line/symbols),TI54/2006(PolyCut20-3/FixCut25-2 with FS100RX scope),andTI48/2008(FixCut changes). Those four entries now have targeted TI38 dependency dispositions, while their independent full-bulletin semantic reviews remain queued. They supply conditional head-specific supplements, not complete standalone instructions, automatic FS55 approvals or proof of an exact1999 edition.
  • TI30/1996 andTI13/2003 already have terminal queue dispositions and are not reopened by a title match. Unrelated FSA65/85 and FS490C/510C/560C workshop opening matches, warranty administration and diagnostic-device literature do not establish the target head instruction edition. The named standalone-source gap does not mean all locally available head-related assertions are exhausted.
  • Bounded source availability, not universal absence, safe-start instructions or hardware proof. Reopen named gaps when an applicable source is supplied. Existing model, handle, deflector, suffix and edition restrictions and all conflicts remain intact.

Source: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 section6 owner safety dependency; bounded instruction-source inventory.

No additional parts-table entry added.

Service note · FS 45 / FS 55

FS 45 / FS 55: workshop title does not identify the original revision

The available powerhead is dated1999-08; Components is2003-10 and includes chapters TI38 says were separate.

No exact-model IPL link: Exact1999 delegated revision or launch IPL is not established by the retained later catalog; no variant interchange inferred.

  • TI38 page6 section6.3 permits the Series4140 powerhead and STIHL4140 power-tool components manuals for FS45/FS55 servicing and repairs, but supplies no publication number or revision. Section6.2 has a Tightening Torques heading but only repeats the special-servicing-tools reference; it prints no torque values.
  • The retained RA_931_00_01_02.pdf cover explicitly dates Series4140 powerhead to1999-08. Its PDF2 introduction names FS45,46,55 and delegates machine components, Carburetors and Standard Repairs, Troubleshooting separately. This is a known available edition with explicit FS45/55 scope, not proof that it is exactly the unspecified issue used when TI38 was written. The FS55-named owner-pool copy has the same bytes and is not an independent revision.
  • The retained RA_241_01_01_02.pdf is Components4140 FC,FS,HL,KM dated2003-10. Its PDF2 contents explicitly include chapter4 Troubleshooting and chapter9 Servicing the Carburetor, while TI38 section6.3 says those chapters are absent from the referenced manuals and delegated to separate handbooks. Preserve that edition difference; the later contents must not silently rewrite the1999 statement. The contents also distinguish up-to/from2001 controls and up-to/from2003 catalyst versions, not one universal FS55 configuration.
  • Current2012 USA catalog associations identify these files but have no document version_dates value. The bounded116-PDF opening/hash inventory found no independently identified launch-era Components revision or proof of the exact delegated powerhead issue. Exact original revision identity remains a named source gap; this does not mean the available1999-08 powerhead or accepted2003-10 model-specific procedures are missing.
  • Available workshop sections remain accepted at their recorded editions and model restrictions. No new procedure, torque, C/RC/T/2-MIX coverage, owner instruction, parts interchange or hardware proof is inferred. Existing unit, torque, tool-number, suffix and adjustment conflicts remain unchanged.

TI dependency: TI 38/1999, p. 6 — TI38 sections6.2/6.3/7; exact edition and launch IPL source boundaries.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover and introduction printed1; explicit FS45/55 scope and separate handbook/parts-list references, PDF pages 1, 2 · STIHL Components 4140 FC, FS, HL, KM (2003-10), section Cover and contents; troubleshooting/carburetor chapters and dated control/catalyst branches, PDF pages 1, 2

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45 / FS 55

FS 45 / FS 55: later structured parts lists are not the launch IPL

The1999 IPL announcement has no edition;2012 combined-model parts data remains available.

No exact-model IPL link: Exact1999 delegated revision or launch IPL is not established by the retained later catalog; no variant interchange inferred.

  • TI38 page7 section7 says an illustrated parts list is available for the new models, without a publication number, date or edition. The August1999 powerhead introduction instructs repairers to use illustrated parts lists for installed positions and the latest edition to check replacement numbers; it says microfiche/CD-ROM lists are more up to date than printed lists. A later replacement reference is not a reconstruction of the launch configuration.
  • The mounted catalog contains eight catalog editions from2012 through2026. Exact-token FS45/FS55 document associations select the2012 USA catalog: product108 combines FS55,C,R,RC,T and its expanded label also includes2-MIX and other suffixes; product229 combines FS38,45,45C,45L,46,46C. These combined labels must not broaden a1999 plain FS45/FS55 assertion.
  • Product108 has28 linked structured Spare Parts List documents with667 BOM rows; product229 has23 with552 rows. All51 have no PDF link, but their structured rows are present. Missing document_pdf links are not missing IPL data. Those counts describe the retained associations, not51 independently reviewed drawings, historical completeness or a new interactive import.
  • The2012 FS55 list includes titles for2-MIX cylinders and carburetors, FS55T drive tube (14.2002), C1Q-S71 (25.2004), C1Q-S66 (36.2002) and C1Q-S58A (27.2001). These title markers and mixed variants show why the whole retained list cannot be assigned to the1999 launch. They are source labels, not newly verified serial cutoffs or fitment promotions.
  • No exact launch IPL edition was established by the bounded mounted docs/STIHL service catalogue PDF inventory,116 resource/owner opening texts and current catalog associations. This is an exact-edition gap, not universal absence: existing structured IPLs and their original rows remain intact. No parts are imported, superseded or declared interchangeable here; reopen the launch-source gap on an applicable dated original. All prior head-number, line-length, handle and deflector conflicts remain unresolved where recorded.

TI dependency: TI 38/1999, p. 7 — TI38 sections6.2/6.3/7; exact edition and launch IPL source boundaries.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover and introduction printed1; explicit FS45/55 scope and separate handbook/parts-list references, PDF pages 1, 2

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 45 / FS 55

FS 45 / FS 55: later FixCut mounting systems stay distinct

TI04/2004 names FixCut5-2 for FS45 and FixCut25-2 for FS55, with different fastening hardware.

No exact-model IPL link: Later head-specific evidence only; not original1999 equipment, current approval or physical interchange. Exact head, mounting hardware and machine restrictions remain required.

  • TI04/2004 section1.1 explicitly lists FS45/46 with FixCut5-2 and FS55/55RT among the FixCut25-2 machines. Every FixCut installation requires a deflector equipped with a line limiting blade. These are2004 approvals, not evidence of1999 launch equipment or permission for unlisted suffixes.
  • FixCut5-2 is 4006 710 2130. Its supplied thrust plate 4140 713 1501, thrust washer 4130 713 1600 and collar fastener 4006 713 6801 are distinct from the FixCut25-2 kit. Section1.3.1 calls the fastener a collar screw and tightens it clockwise with a19mm (3/4in) wrench; table item10 calls it Collar nut M8. Preserve that nomenclature difference, not a silently substituted fastener. The head locates on the thrust-plate shoulder and its washer must seat properly.
  • FixCut25-2 is 4001 710 2131 with collar locknut 4126 642 7600 and thrust washer 4130 713 1600. Section1.3.2 removes the previous cutting tool and mounting hardware, replaces any circular-saw limit stop with a mowing-head/tool deflector including skirt and line limiting blade, locates the head on the guard-washer shoulder, seats the washer and locks the shaft with the pin. The nut tightens counterclockwise; a nut that turns too easily or becomes loose must be replaced. No torque value is printed.
  • Section1.3.3 distinguishes splined shafts using supplied washer 4130 713 1600 from two-flat shafts requiring 4126 713 1600; it says some previously listed models had shaft modifications without identifying their serials. Do not assign one shaft or washer to every FS55. The separately listed older machines and deflectors are not additional FS45/FS55 approvals.

Source: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 pages5/6 dependency disposition: FS 45 / FS 55: later FixCut mounting systems stay distinct.

Referenced bulletin evidence: TI 4/2004, p. 1 · TI 4/2004, p. 2 · TI 4/2004, p. 3 · TI 4/2004, p. 4 · TI 4/2004, p. 7 — 1.1–1.3.3 and spare-parts items1–12.

No additional parts-table entry added.

Service note · FS 45 / FS 55

FS 45 / FS 55: FixCut pawls are not SuperCut lubrication evidence

The later FixCut leaflet covers line retention, wear and paired pawl/spring replacement, without an oil specification.

No exact-model IPL link: Later head-specific evidence only; not original1999 equipment, current approval or physical interchange. Exact head, mounting hardware and machine restrictions remain required.

  • TI04/2004 describes pre-cut line0.080–0.130in, regardless of shape, and twelve supplied8in lengths of0.095in round line. Section1.5 specifies one203mm line inserted from outside each sleeve until the exposed length A is6in, then pulling firmly to seat the pawls. Always fit two lines of equal length and diameter; a single line increases vibration. Pull worn remnants inward by the inner ends. These head-capacity statements do not override the machine/deflector-approved diameter.
  • Check raised base moldings before fitting line; a base with missing/worn moldings as illustrated must be replaced, or replace the complete head. If one tooth side is dull, rotate both pawls180degrees; if both sides of one pawl are dull, replace both pawls. Always install a new spring with a new pawl, and replace both springs if one is fatigued. Note installed positions before removal.
  • Section1.6.1 assembles pawl and spring together, engages the spring leg in the housing slot, then rotates clockwise until both seat fully on the post. Items2–6 identify base 4001 713 9700, pawl 4001 713 7200, spring 4001 998 0400 and sleeve 4001 713 8300; the top is not a separate replacement. These are FixCut components, not proof of SuperCut20-2 pawl/bow equivalence.
  • The service note specifies no oil grade,quantity or application method. Section1.5.2 mentions pre-cut0.095/0.120/0.130in sizes but its own section1.7 table lists round quiet0.095/0.130in and pentagonal0.095in packs; preserve that prose/table mismatch. Do not manufacture a0.120in part row.0.080/0.105in lengths are cut from a reel. Standalone applicable head instructions remain a separate source gap.

Source: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 pages5/6 dependency disposition: FS 45 / FS 55: FixCut pawls are not SuperCut lubrication evidence.

Referenced bulletin evidence: TI 4/2004, p. 1 · TI 4/2004, p. 4 · TI 4/2004, p. 5 · TI 4/2004, p. 6 · TI 4/2004, p. 7 — 1.4–1.7 full wear,line,pawl/spring context.

No additional parts-table entry added.

Service note · FS 55

FS 55: pentagonal-line approval excludes SuperCut automatic feed

TI16/2004 requires upgraded heads for shaped line and reserves SuperCut automatic systems for round line.

No exact-model IPL link: Later head-specific evidence only; not original1999 equipment, current approval or physical interchange. Exact head, mounting hardware and machine restrictions remain required.

  • TI16/2004 section1.3 permits pentagonal line in the TrimCut30-2/40-2/50-2 and AutoCut25-2/30-2/40-2/40-4 heads modified for square line under TI13/2003. Unupgraded AutoCut heads are recommended to use only round line. Naming a head does not approve every listed line diameter for FS55.
  • Cut lengths of pentagonal line may be used in PolyCut10-3/20-3/40-3 only after removing the blades, and in the fixed-line head, FixCut5-2 and FixCut25-2. SuperCut automatic systems are designed exclusively for round nylon line. This does not choose between the later Premium Round-only wording and Quiet Line parts option already recorded for SuperCut20-2.
  • Pentagonal nominal size is the enclosing-circle diameter, with a slightly smaller cross-section than an equal nominal round line; colors/sizes are0.095in orange,0.105in red,0.120in yellow and0.130in black. X-shaped line uses edge length a instead, has a larger sectional area than equal nominal round line and is uniformly neon-green, unlike dark-green square line. Do not compare shapes by area as though their nominal sizes use the same geometry.
  • The page3/4 retail pack tables and page5 symbol legend are head-line context, not universal FS55 combinations or a SuperCut oil specification. Complete all-model/retail-row review remains in the separate TI16/2004 queue; this dependency note does not semantically close that bulletin.

Source: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 pages5/6 dependency disposition: FS 55: pentagonal-line approval excludes SuperCut automatic feed.

Referenced bulletin evidence: TI 16/2004, p. 1 · TI 16/2004, p. 2 · TI 16/2004, p. 3 · TI 16/2004, p. 4 · TI 16/2004, p. 5 — Sections1–3, with exact head restrictions and size definitions.

No additional parts-table entry added.

Service note · FS 55

FS 55: FS100RX head revisions do not broaden machine approval

TI54/2006 changes PolyCut tops and FixCut mounting hardware; its FS100RX restrictions remain target-specific.

No exact-model IPL link: Later head-specific evidence only; not original1999 equipment, current approval or physical interchange. Exact head, mounting hardware and machine restrictions remain required.

  • TI54/2006 is explicitly about the FS100RX gearhead recess. PolyCut20-3 top 4002 710 9600 becomes 4002 710 9601, which is compatible with previous head versions; the complete head number 4002 710 2189 stays unchanged. The new top marking ending2149 identifies the version that can mount on FS100RX. This does not identify a previous FS55 head by a complete-head number alone or approve FS100RX hardware indiscriminately on FS55.
  • FixCut25-2 complete kit 4001 710 2131 becomes 4001 710 2102, but the head itself is unchanged: only supplied mounting hardware changes. Old locknut 4126 642 7600 and washer 4130 713 1600 may not mount this head on FS100RX. They remain available for other series, not globally obsolete or prohibited.
  • New thrust pad 4001 710 9400 is supplied with the new kit and may also mount FixCut25-2 on other approved series instead of the old nut/washer. It is ONLY for FixCut25-2, never metal or other cutting tools. TI04/2004 explicitly supplies FS55 approval context; no extension to unlisted machines or exact unknown shaft versions is inferred.
  • The summary introduces PolyCut changes immediately and FixCut changes in the future, without a serial/date cutoff; old PolyCut top remains while stocks last. Page4 contains only the bulletin header/footer, not a hidden fitment table. No SuperCut20-2 oil specification appears.

Source: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 pages5/6 dependency disposition: FS 55: FS100RX head revisions do not broaden machine approval.

Referenced bulletin evidence: TI 4/2004, p. 2 — Explicit FS55 FixCut25-2 approval.

Referenced bulletin evidence: TI 54/2006, p. 1 · TI 54/2006, p. 2 · TI 54/2006, p. 3 · TI 54/2006, p. 4 — All sections/summary and quiet page4; target-specific hardware boundaries.

No additional parts-table entry added.

Service note · FS 45 / FS 55

FS 45 / FS 55: FixCut revisions retain prior approved machine scope

TI48/2008 changes both complete-head numbers and the shared base, but does not print a new machine list.

No exact-model IPL link: Later head-specific evidence only; not original1999 equipment, current approval or physical interchange. Exact head, mounting hardware and machine restrictions remain required.

  • TI48/2008 replaces FixCut25-2 kit 4001 710 2102 with 4002 710 2158. The new version mounts/removes without combination wrench or locking pin; the top has a central dome holding the fastening hexagon nut and a molded ring skirt. The top is not separately supplied: replace the complete head. This later arrangement must not be conflated with the2004 kit.
  • The modified base has larger inner/outer ring beads and may be used in previous head versions. Base 4001 713 9700 becomes 4002 713 9702. FixCut5-2 receives the base modification, not all25-2 top/mounting changes, and complete head 4006 710 2130 becomes 4006 710 2118.
  • Both revised heads retain approval for the same machines as their predecessors, referring to the FS Cutting Tools catalog and head information sheet rather than printing a model list. TI04/2004 supplies the explicit FS45/FixCut5-2 and FS55/FixCut25-2 historical anchors; TI54/2006 supplies the intervening25-2 kit revision. This linked history is not a new1999 attachment approval or exact current leaflet.
  • The2008 summary says old complete heads are no longer available from factory, old thrust piece 4001 710 9400 remains available, and old base lasts while stocks remain; other parts stay as before. Introduction is continuous with no serial cutoff. Do not equate historical factory supply with current inventory or universal interchange.

Source: TI 38/1999, p. 5 · TI 38/1999, p. 6 — TI38 pages5/6 dependency disposition: FS 45 / FS 55: FixCut revisions retain prior approved machine scope.

Referenced bulletin evidence: TI 4/2004, p. 2 · TI 4/2004, p. 7 — Historical exact-model approvals and original kits.

Referenced bulletin evidence: TI 54/2006, p. 2 · TI 54/2006, p. 3 — Intervening25-2 hardware/kit revision.

Referenced bulletin evidence: TI 48/2008, p. 1 · TI 48/2008, p. 2 · TI 48/2008, p. 3 — Complete revision,shared-base and summary footnotes.

No additional parts-table entry added.

Full text

Page 1 of 8

TI 38/1999 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                            38.1999
New Model FS 45, 55 Brushcutters - Series 4140

Contents
1.   Technical Description
2.   Specifications

3.   Cutting Tools

4.   Special Accessories for Users
5.   Service Accessories
6.   Repairs

7.   Spare Parts

The new FS 45 and FS 55 lightweight brushcutters       The FS 45 features a curved drive tube. Its cutting
round off the bottom end of the STIHL line of          tool mounting is as on the FS 36, but with an M8
brushcutters and clearing saws.                        thread on the shaft.
                                                       Model FS 55 has a straight drive tube. The cutting
The engine is accommodated in a compact housing
                                                       tool mounting is the same as that of the FS 44. The
which is extended forwards to incorporate the multi-
                                                       gearhead has been modified and now features only
function control handle.
                                                       one clamp screw.
Ergonomically designed controls and a favorable
                                                       Recommended applications are the same as for the
power to weight ratio ensure easy handling and less
                                                       FS 36 and FS 44.
operator fatigue.

TI_38_1999_01_01.fm                                                                     englisch / english

Page 2 of 8

TI 38/1999 page 2
Text of page 2 — search, copy, screen readers
Page 2                                                                         Technical Information 38.1999

1.     Technical Description
Crankshaft
.    Five parts presed together to form torsionally
     rigid assembly.
.    Both ends supported in bearings.

Cylinder
.    Four port technology (better mixture control,
     clean combustion, lower emissions).

.    Large cooling area.

Carburetor

.    Only one adjusting screw (LD).
.    Balanced idle system with fixed idle jet*.

.    Fixed full-load jet

Air filter
.    Improved filter material with longer life
.    Large effective filter surface area

Exhaust muffler
.    Dual-chamber muffler

Easy start system

.    Manual fuel pump
.    ElastoStart (available as option)

Controls
.    Multi-function control handle

Clutch
.    Two clutch shoes without linings

Drive shaft

.    Drive tube with flexible shaft supported in a
     flexible liner

Gearhead (FS 55)
.    Construction as FS 44
.    Only one clamp screw

* Balanced idle system is described in detail in the “Carburetors” handbook.

                                                                                           TI_38_1999_01_01.fm

Page 3 of 8

TI 38/1999 page 3
Text of page 3 — search, copy, screen readers
Technical Information 38.1999                                                                      Page 3

2.    Specifications

2.1   Powerhead

2.1.1 Engine
Single cylinder two-stroke engine
Displacement:             27.2 cm3 (1.66 cu.in)
Bore:                     34 mm (1.34 in)
Stroke:                   30 mm (1.10 in)
Engine power to           0.75 kW (1 HP)

ISO 8893:                 at 7,000 rpm

Engine speeds:            see 2.1.2
Rewind starter:           Single pawl system
Starter rope:             3 mm (0.12 in) dia.,

                          800 mm (31.5 in) long
Clutch engages at:        3,800 rpm

Model          Cutting tool      Sound pressure Sound              Vibration            Vibration
                                 level
                                 Lpeq
                                                power level
                                                Lweq
                                                            fo     measurement
                                                                   to ISO 7916
                                                                                        measurement
                                                                                        to ISO 7916
                                 ISO 7917 1)    ISO 108841)        Idle speed           Max. RPM
                                                                   (m/s2)               (m/s2)
                                                                   Handle               Handle

                                 dB (A)           dB (A)           right     left       right   left
FS 45          Nylon head        94               104              3.4       4.2        7.5     4.5
FS 55 2)       Nylon head        92               105              1.8       2.0        4.2     3.5

FS 55 2)       Metal tool        93               104              1.8       2.0        6.0     6.0

FS 55 R 3)     Nylon head        91               104              3.0       6.1        6.8     9.5
FS 55 R 4)     Metal tool        91               103              3.0       6.0        8.2     8.4
1) Weighted equivalent level includes idling and racing with the same duration of exposure

2) Bike handle version, provisional data only
3) Loop handle version

4) Loop handle version with barrier bar

2.1.2 Fuel System

Carburetor: All position diaphragm carburetor with integral fuel pump

Idle speed screw LD (standard setting)                            Open 2 full turns (see 6.1)
Idle speed                                                        2,500 to 3,100 rpm
Cutoff speed range without cutting tool (electronic speed
governor)                                                         8,700 to 10,300 rpm

Fuel tank capacity:       0.3 L (0.63 US pt)
Fuel mix:                 Branded regular grade gasoline (leaded or unleaded) and brand-name two-stroke
                          engine oil
Mix ratio:                50:1 with STIHL 50:1 two-stroke engine oil
                          25:1 with other brand-name two-stroke engine oils

TI_38_1999_01_01.fm

Page 4 of 8

TI 38/1999 page 4
Text of page 4 — search, copy, screen readers
Page 4                                                              Technical Information 38.1999

2.1.3 Ignition System

Ignition module:       with integral electronic speed
                       governor
Spark plug             Bosch WSR 6F,
(suppressed):          NGK BPMR 7 A or
                       Champion RCJ 6Y

2.2   Weight

Without cutting tool and deflector

FS 45:                                     4.1 kg
                                           (9.0 lb)

FS 55:                                     4.9 kg
                                           (10.8 lb)
FS 55 R:                                   4.6 kg

                                           (10.1 lb)

3.    Cutting Tools                                          fo
The following cutting tools are approved
FS 45:
                                                                1                   2
1     STIHL Autocut 5-2              4006 710 2100

2     STIHL Polycut 6-3              4006 710 2110

FS 55:

3     STIHL Supercut 20-2            4002 710 2162              3                   4

4     STIHL Autocut 21-2             4002 710 2113
5     STIHL Autocut 25-2             4002 710 2108
6     STIHL Trimcut 30-2             4002 710 2122

7     STIHL Polycut 20-3             4002 710 2130
8     Cutting blade 230-2*           4001 713 3805
                                                                5                   6

9     Cutting blade 230-4*           4001 713 3801
10    Cutting blade 230-8*           4001 713 3803

*     Not approved for loop                                                         8
      handle version of FS 55
                                                                7

      without barrier bar
                                                                                                 233TI000 KN

                                                                9                  10

                                                                                TI_38_1999_01_01.fm

Page 5 of 8

TI 38/1999 page 5
Text of page 5 — search, copy, screen readers
Technical Information 38.1999                                                                       Page 5

4.    Special Accessories for Users

4.1   General

Part Name                           Part No.              Application
ElastoStart                         0000 190 3400         Rewind starter (grip with rope)

Starter rope                        0000 195 8200         Rewind starter, also for ElastoStart

STIHL gear lubricant for hedge                            Drive shaft in tube
trimmers

- 80 g tube                         0781 120 1109

- 225 g tube                        0781 120 1110

STIHL gear lubricant for                                  Gearhead

brushcutters
- 80 g tube                         0781 120 1117

- 225 g tube                        0781 120 1118

STIHL special oil                                         Rewind spring in starter,
- 100 ml bottle                     0781 417 1315
                                                          bearing bore in rope rotor
4.2   Nylon Line for Cutting Heads

Line diameter / color               Application

2.0 mm / green                      Autocut 5-2, Autocut 21-2
2.4 mm / orange                     Supercut 20-2, Autocut 21-2, Autocut 25-2, Trimcut 30-2, Polycut 20-3
2.7 mm / red                        Polycut 20-3

5.    Service Accessories

5.1   Special Servicing Tools
Special servicing tools are listed in the service manuals for the series 4140 powerhead and

STIHL 4140 power tool components.

5.2   Servicing Aids

Part Name                           Part No.              Application
Carburetor parts kit                4227 007 1060         Zama C1Q S44

Set of gaskets                      4140 007 1050         Engine
Lubricating grease                  0781 120 1111         Oil seals
- 225 g tube
Dirko sealant                       0783 830 2120         Engine pan/cylinder sealing faces
Electrician’s repair kit            5910 007 1050         Electrical system
Standard commercial solvent-                              Cleaning crankshaft stub
based degreasant containing no
chorinated or hydrogenated
hydrocarbons

TI_38_1999_01_01.fm

Page 6 of 8

TI 38/1999 page 6
Text of page 6 — search, copy, screen readers
Page 6                                                                            Technical Information 38.1999

6.      Repairs

If the unit is started up in the course of repairs or maintenance work, it is essential to strictly observe
all local and national safety regulations and the safety precautions outlined in the owner’s manual.

6.1     Carburetor Adjustment

Standard setting
.     Mount the cutting tool
.     Check air filter and fit a new one if necessary

.

      Carefully screw down the idle speed screw (LD) counterclockwise (left-hand thread)
      until it is against its seat, then open it two full turns clockwise.

Adjusting idle speed
.     Carry out standard setting

.     Start and warm up the engine

Engine stops while idling:
.     Turn the idle speed screw (LD) slowly clockwise until engine runs smoothly - the cutting tool must not rotate.

Cutting tool rotates while engine is idling:

.     Turn the idle speed screw (LD) counterclockwise until the cutting tool stops rotating and then turn the screw
      about another full turn in the same direction (counterclockwise).

Erratic idling bahavior, poor acceleration:

.     Turn the idle speed screw (LD) slowly counterclockwise no more than 1/2 turn until engine runs smoothly.

6.2     Tightening Torques

Special servicing tools are listed in the service manuals for the series 4140 powerhead and
STIHL 4140 power tool components.

6.3     Service Note
The service manuals for the STIHL series 4140 powerhead and STIHL 4140 power tool components can be

used for servicing and repair procedures on models FS 45 and FS 55 .
These service manuals do not include the chapters "Servicing the Carburetor", "Troubleshooting" or any repairs
involving standard procedures. Such procedures are described in separate handbooks, i.e. “Carburetors” and
"Standard Repairs, Troubleshooting".

                                                                                                 TI_38_1999_01_01.fm

Page 7 of 8

TI 38/1999 page 7
Text of page 7 — search, copy, screen readers
Technical Information 38.1999                                                                       Page 7

6.4   Repair Times                                    .
The specified repair times assume that the work               Repair procedure                    FS 45, 55
is performed by trained personnel in a properly           1   Remove and refit engine               10
equipped service workshop.
                                                          2   Crankcase, pressure test*             55
                                                          3   Crankshaft, bearings, pressure        55
The repair times are given in minutes.                        test*
                                                       4      Sealing rings, pressure test*         55
                                                       5      Crankcase leakage test, test run      55
Note: This table for models FS 45, 55 can be added
                                                       6      Cylinder, piston, pressure test*      55
to the STIHL repair times table.
                                                       7      Ignition system, contact*             10

                                                       8      Fuel supply, tank vent, test run      10

                                                       9      Manifold or flange, pressure test      -
                                                      10      Carburetor, check*                    25
7.    Spare Parts

                                                      11      Handle and throttle control           10
An illustrated parts list is available for the new    12      Rewind starter, test run              15
models.                                               13      Clutch, test run                      20

                                                      14      Muffler                               10
                                                      15      Air filter                             5
                                                      16
                                                      17
                                                          fo  Stop switch, test run
                                                              Clutch housing
                                                                                                    20
                                                      18      Drive tube                            15
                                                      19      Replace gearhead or bearing            5
                                                              housing

                                                      20      Limit stop or deflector                5
                                                      21      Drive shaft                           10
                                                      22      Fuel tank                             10

                                                      23      Check compression pressure             -

                                                      24      Adjust valve clearance                 -
                                                      25      Replace crankcase, bottom half         -
                                                      26      Replace crankshaft                     -

                                                      27      Replace cylinder, piston               -
                                                      28      Oil supply                             -

                                                      29      Oil pump, test run                     -
                                                                                          ✂

                                                      * Test run under load

TI_38_1999_01_01.fm

Page 8 of 8

TI 38/1999 page 8
Text of page 8 — search, copy, screen readers
Page 8                                                   Technical Information 38.1999

© 1999 Andreas STIHL AG & Co.            Technical Documentation
  Waiblingen                             D1/MTK-na                                6717

                                                                     TI_38_1999_01_01.fm

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.

Report a transcription error →
