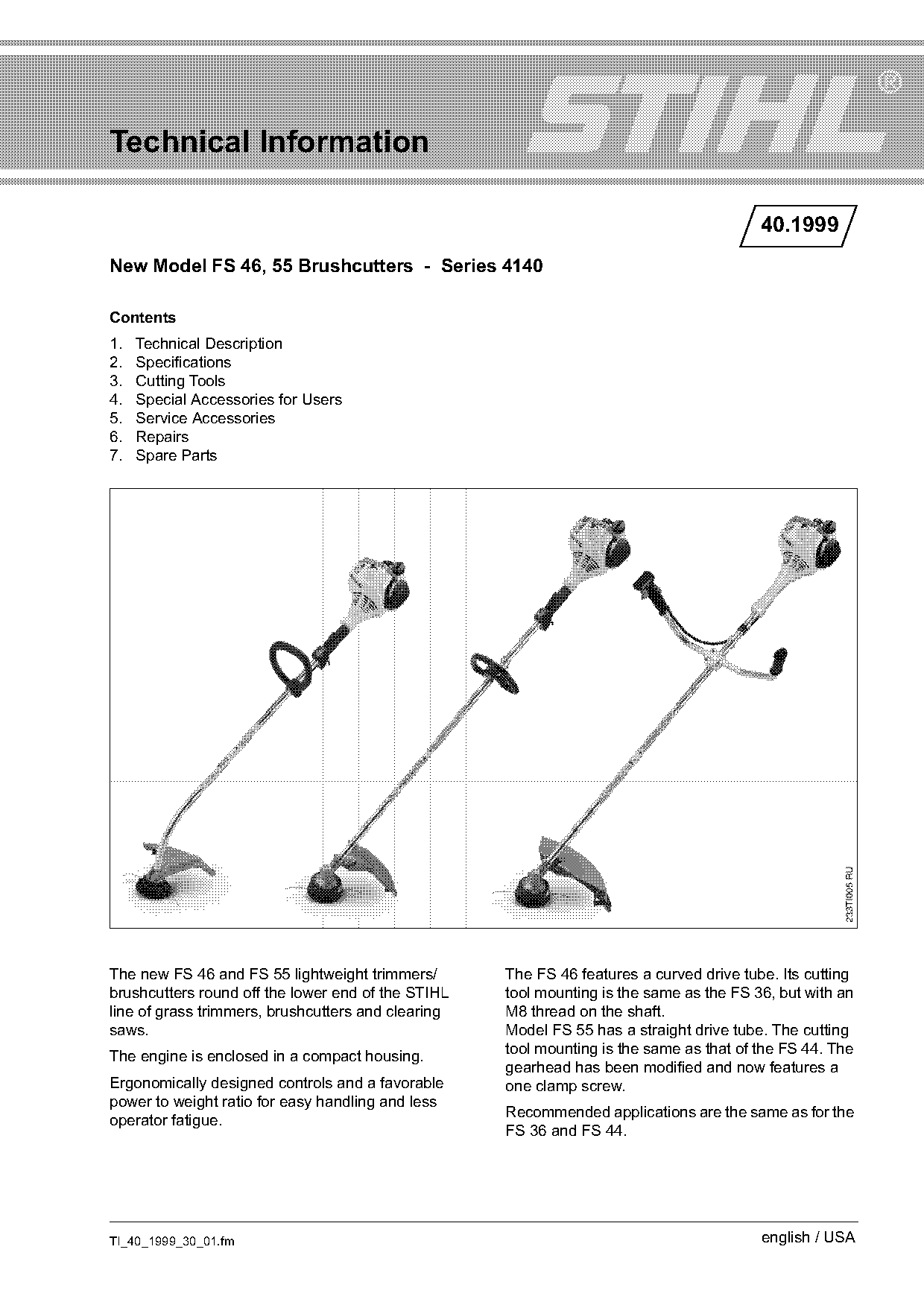

FS 46, 55: New Brushcutters

IssueTI 40/1999

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · FS 46 / FS 55 / FS 55 R

FS 46 / FS 55: USA construction and distinct shaft mountings (TI40 USA)

FS46 has an M8 curved-shaft mounting; the FS55 comparison to FS44 is not blanket interchange.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

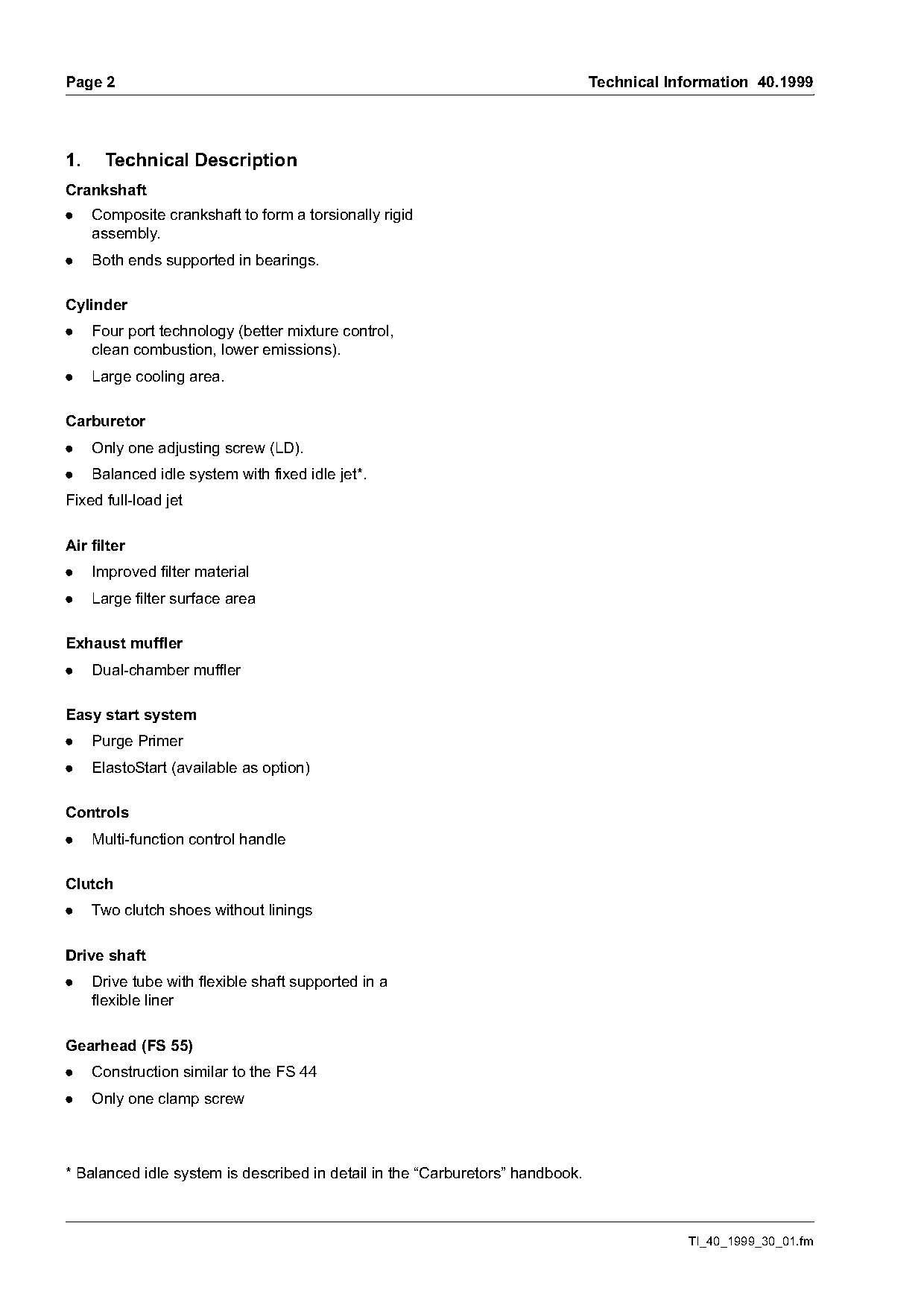

  • FS46 curved drive tube: cutting-tool mounting described as FS36 but with an M8 thread on the shaft. FS55 straight tube: mounting described as FS44, with a modified gearhead using one clamp screw. Recommended applications are compared with FS36/44; no unrestricted shaft, gearhead or complete-system interchange is established.
  • Page1 drawing233TI005 RU shows a curved-shaft loop-handle trimmer and straight-shaft loop/bike-handle machines. It supplies no adapter dimensions or extra head approvals. Compact engine housing, ergonomic controls and favorable power-to-weight/handling are qualitative claims.
  • Composite torsionally rigid crankshaft supported in bearings at both ends; four-port cylinder with large cooling area. Better mixture control, clean combustion and lower emissions are source claims, not measured ratings. This USA issue does not give a crankshaft piece count.
  • One LD adjusting screw, balanced idle with fixed idle jet, fixed full-load jet; improved large-area filter material; dual-chamber muffler; purge primer and optional ElastoStart; multi-function control handle; two unlined clutch shoes; flexible drive shaft in a flexible liner. FS55 gearhead alone is compared to FS44 with one clamp screw.
  • Page2 delegates balanced-idle detail to the Carburetors handbook without an edition date. Do not import TI39's November1998-or-later requirement into TI40. The delegated function is separately reviewed; exact-source gaps are listed in the TI40 repair-reference summary.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 1 · TI 40/1999, p. 2 — FS 46 / FS 55: USA construction and distinct shaft mountings.

No additional parts-table entry added.

Service note · FS 46 / FS 55 / FS 55 R

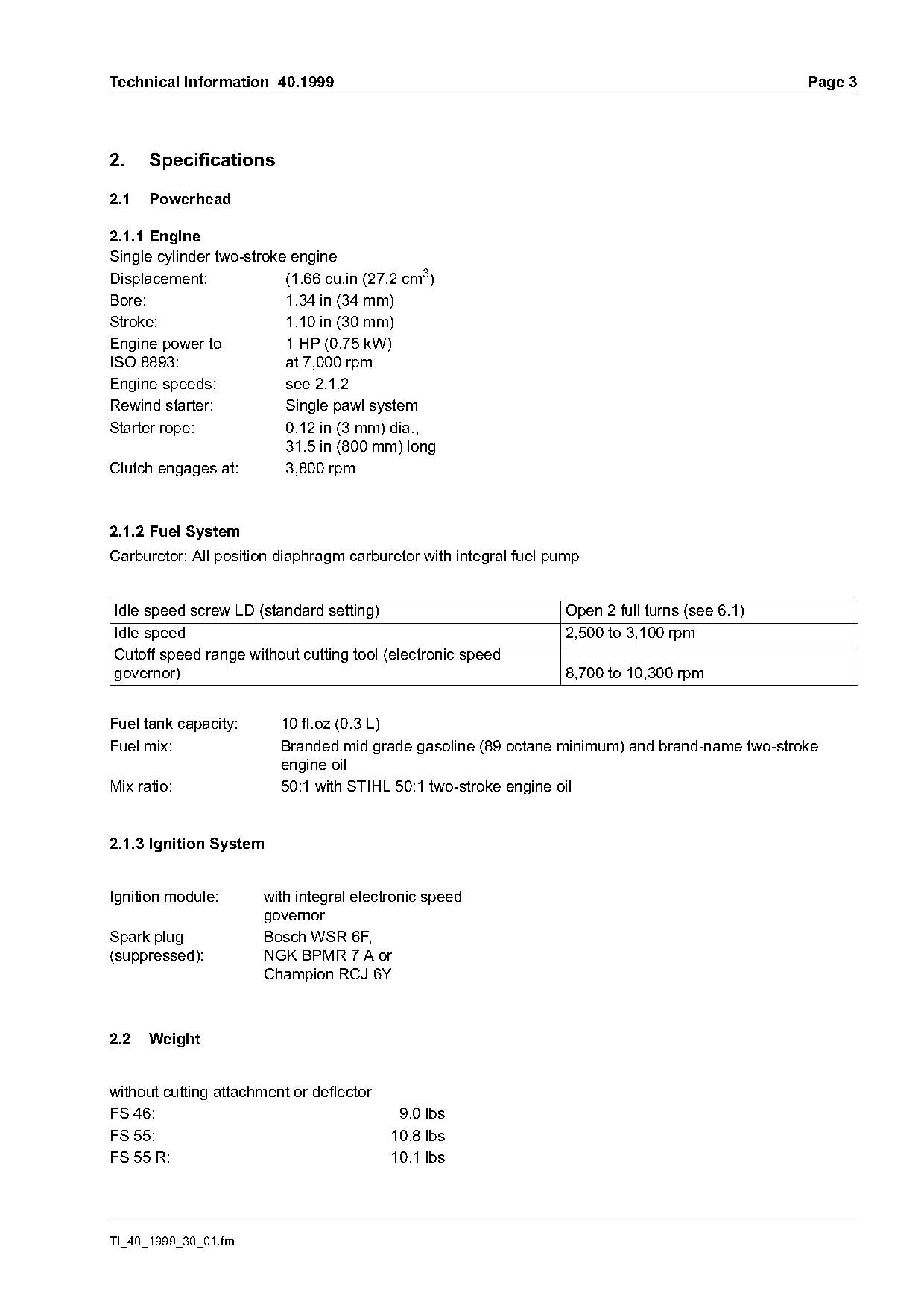

FS 46 / FS 55: USA engine and starter specifications (TI40 USA)

Retain the printed 30 mm / 1.10 in stroke discrepancy; clutch engagement is not an idle-speed target.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • Single-cylinder two-stroke: 27.2 cm³ (1.66 cu.in), bore 34 mm (1.34 in), stroke printed 30 mm (1.10 in). The stroke units are inconsistent; preserve both as printed, without silently correcting the source or treating 1.10 in as a measured conversion.
  • ISO 8893 engine power: 0.75 kW (1 HP) at 7,000 rpm. Single-pawl rewind starter; rope diameter 3 mm (0.12 in), length 800 mm (31.5 in). Clutch engagement at 3,800 rpm is separate from idle and the no-cutting-tool electronic cutoff range.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 3 — FS 46 / FS 55: USA engine and starter specifications.

No additional parts-table entry added.

Service note · FS 46 / FS 55 / FS 55 R

FS 46 / FS 55: USA fuel grade and conditional speed ranges (TI40 USA)

89-octane minimum and STIHL-oil 50:1 belong to this USA issue; no alternative-oil ratio is printed.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • All-position diaphragm carburetor with integral fuel pump. Standard LD setting: open two full turns (section6.1). Idle2,500–3,100rpm; electronic cutoff8,700–10,300rpm WITHOUT CUTTING TOOL. The no-tool condition is specific to the cutoff specification, not the setup procedure, which requires mounting the cutting tool.
  • Fuel tank10fl.oz (0.3L). Branded mid-grade gasoline,89octane minimum, with brand-name two-stroke engine oil. The printed50:1 ratio explicitly names STIHL50:1 two-stroke oil. TI40 does not print a25:1 alternative-oil ratio or an octane measurement method; do not silently inherit either from another issue.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 3 · TI 40/1999, p. 6 — FS 46 / FS 55: USA fuel grade and conditional speed ranges.

No additional parts-table entry added.

Service note · FS 46 / FS 55 / FS 55 R

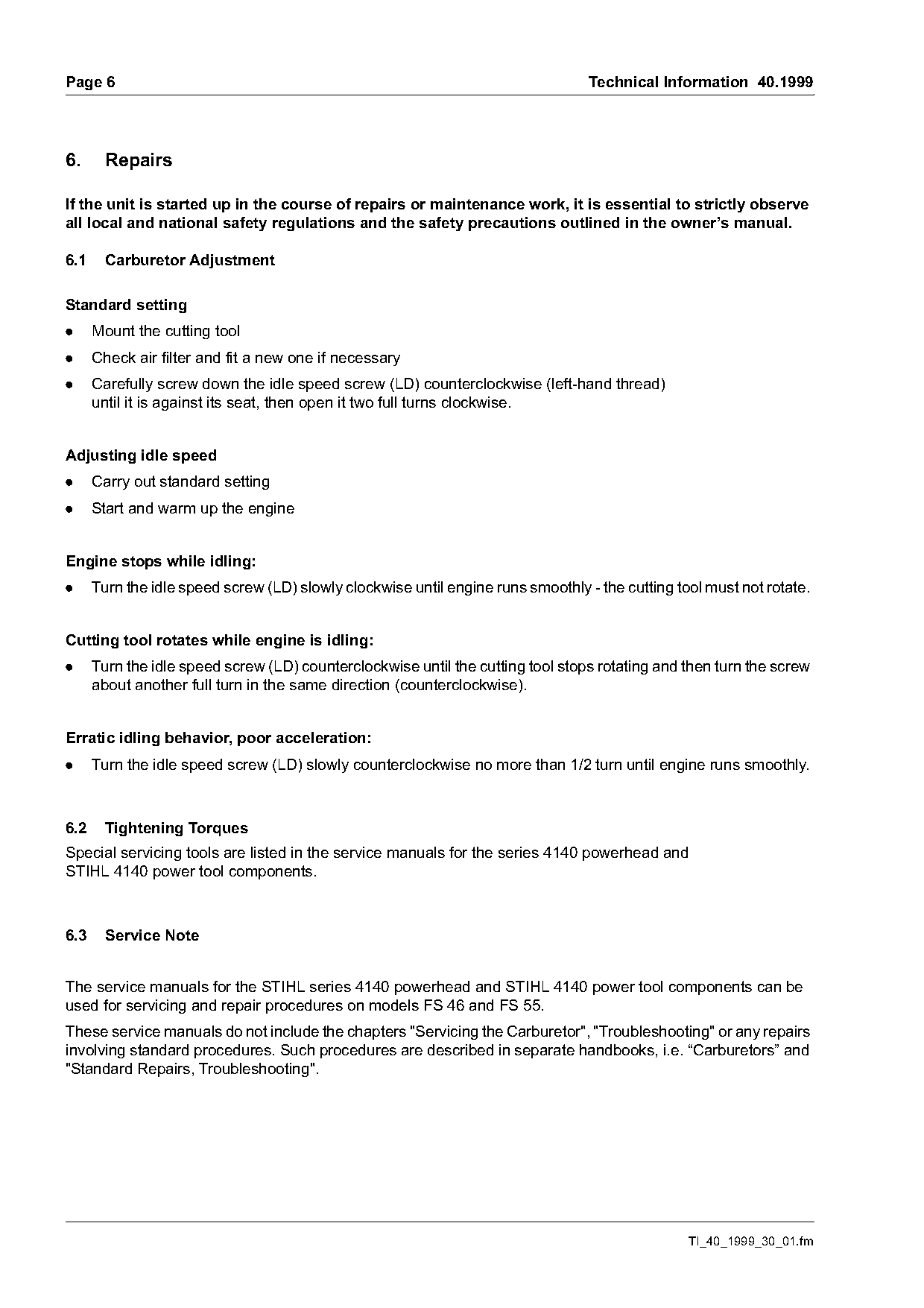

FS 46 / FS 55: left-hand LD and stationary cutting tool (TI40 USA)

Keep left-hand thread directions and the half-turn ceiling; this is a historical procedure, not authorization to run a machine.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • Mount the cutting tool; check the air filter and replace if necessary. Carefully seat LD COUNTERCLOCKWISE (left-hand thread), then open TWO FULL TURNS CLOCKWISE. Carry out this standard setting before starting and warming the engine.
  • Engine stops at idle: slowly turn LD clockwise until smooth; the cutting tool MUST NOT ROTATE. Tool rotates at idle: turn LD counterclockwise until it stops, then about ONE MORE FULL TURN counterclockwise. Erratic idle/poor acceleration: turn slowly counterclockwise NO MORE THAN 1/2 TURN until smooth. These distinct symptom branches must not be collapsed into one direction or unrestricted turn count.
  • If started during repair/maintenance, strictly observe local/national safety regulations and the owner's manual precautions. Exact FS46/55 owner-source applicability remains a pending dependency review; this bulletin is not a complete safety procedure or a hardware test.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 6 — FS 46 / FS 55: left-hand LD and stationary cutting tool.

No additional parts-table entry added.

Service note · FS 46 / FS 55 / FS 55 R

FS 46 / FS 55: USA suppressed plugs and weight exclusions (TI40 USA)

The USA weight table excludes cutting attachment and deflector; it does not state the fuel condition.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • Ignition module incorporates an electronic speed governor. Suppressed spark plugs: Bosch WSR6F, NGK BPMR7A or Champion RCJ6Y. No gap, torque or interchange beyond these printed names is supplied here.
  • Weights WITHOUT CUTTING ATTACHMENT OR DEFLECTOR: FS46 9.0lb; FS55 10.8lb; FS55R 10.1lb. Unlike neighboring issues this table does not explicitly say without fuel. Do not import that exclusion, metric weights, or sound/vibration values absent from TI40.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 3 — FS 46 / FS 55: USA suppressed plugs and weight exclusions.

No additional parts-table entry added.

Service note · FS 46

FS 46: two USA heads, not an FS45 substitution (TI40 USA)

AutoCut5-2 and PolyCut6-3 have issue-specific USA order numbers.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

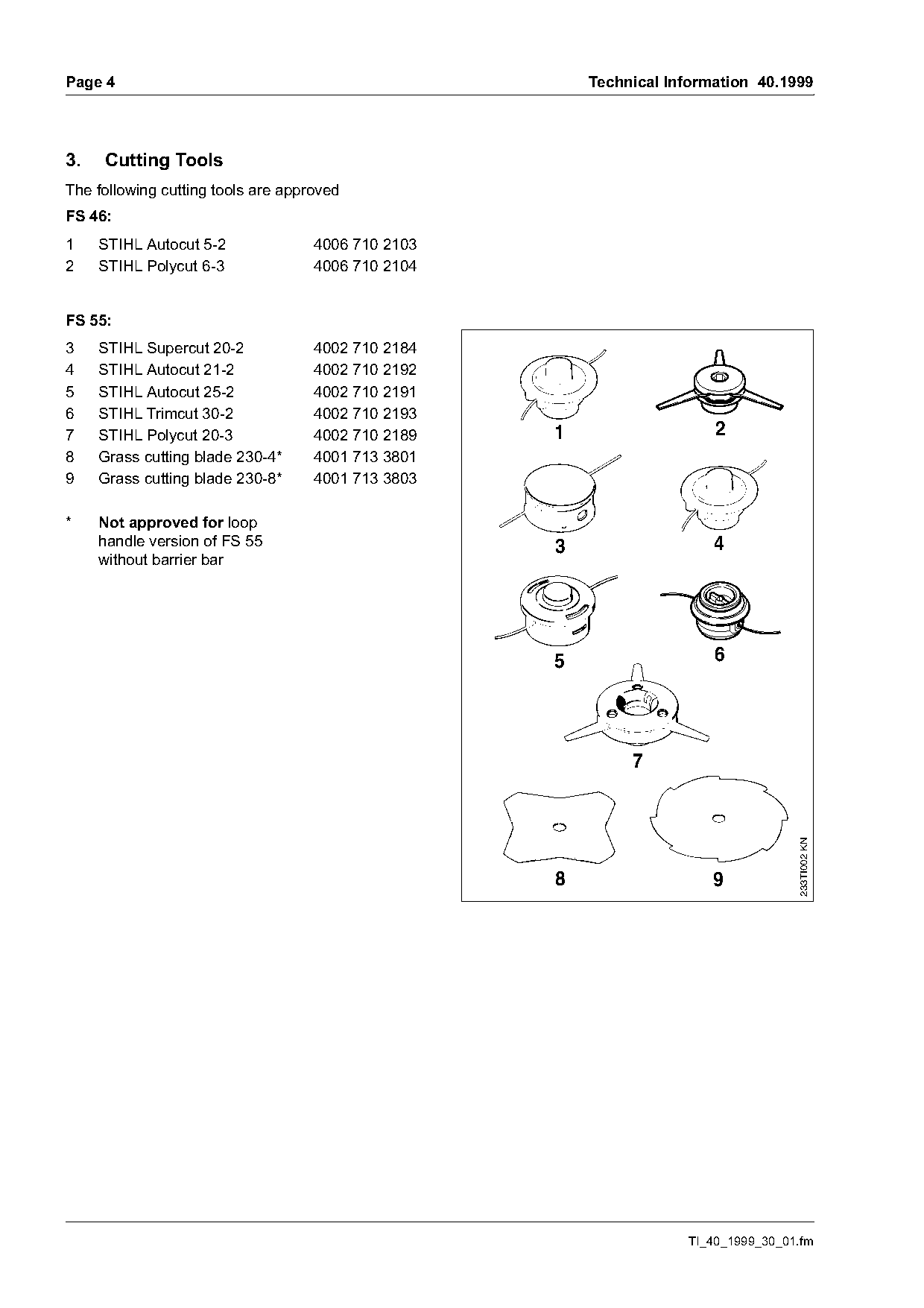

  • Drawing233TI002 KN items1–2 correspond to FS46 AutoCut5-2 and PolyCut6-3. Preserve the M8 shaft statement on page1; the picture supplies no additional mounting specification. FS55 items3–9 are not approvals for FS46.
  • The USA numbers differ from TI38 FS45 head numbers. This is neither a proved supersession nor evidence that FS45 and FS46 are identical; do not normalize either model or order numbers.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 1 · TI 40/1999, p. 4 — FS 46: two USA heads, not an FS45 substitution.

Part numbers (2)
  • 4006 710 2103 — STIHL AutoCut 5-2TI40/1999 listed cutting tool, drawing item 1 · FS 46 only
  • 4006 710 2104 — STIHL PolyCut 6-3TI40/1999 listed cutting tool, drawing item 2 · FS 46 only

Service note · FS 55 / FS 55 R

FS 55: seven USA tools and barrier-bar restriction (TI40 USA)

TI40 uses five different head numbers and lists no230-2 blade; that absence is not a universal prohibition.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • Drawing233TI002 KN items3–9 map in order to the seven FS55 tools. Items8–9 (230-4/230-8 metal blades) are NOT approved for loop-handle FS55 WITHOUT barrier bar. FS46 items1–2 are not FS55 approvals.
  • The five USA head order numbers differ from TI38/TI39. No supersession or equivalence is established. TI40 omits the230-2 blade listed in those issues; do not import its approval into this USA list or interpret silence as a universal ban.
  • All nine drawing silhouettes and table positions were visually reconciled. No mounting hardware, torque, deflector part number or additional metal tool is inferred from the illustration.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 4 — FS 55: seven USA tools and barrier-bar restriction.

Part numbers (7)
  • 4002 710 2184 — STIHL SuperCut 20-2TI40/1999 listed cutting tool, drawing item 3 · FS 55 mowing-head list
  • 4002 710 2192 — STIHL AutoCut 21-2TI40/1999 listed cutting tool, drawing item 4 · FS 55 mowing-head list
  • 4002 710 2191 — STIHL AutoCut 25-2TI40/1999 listed cutting tool, drawing item 5 · FS 55 mowing-head list
  • 4002 710 2193 — STIHL TrimCut 30-2TI40/1999 listed cutting tool, drawing item 6 · FS 55 mowing-head list
  • 4002 710 2189 — STIHL PolyCut 20-3TI40/1999 listed cutting tool, drawing item 7 · FS 55 mowing-head list
  • 4001 713 3801 — Grass cutting blade 230-4TI40/1999 listed cutting tool, drawing item 8 · FS 55; metal blades NOT approved for loop handle without barrier bar
  • 4001 713 3803 — Grass cutting blade 230-8TI40/1999 listed cutting tool, drawing item 9 · FS 55; metal blades NOT approved for loop handle without barrier bar

Service note · FS 46 / FS 55 / FS 55 R

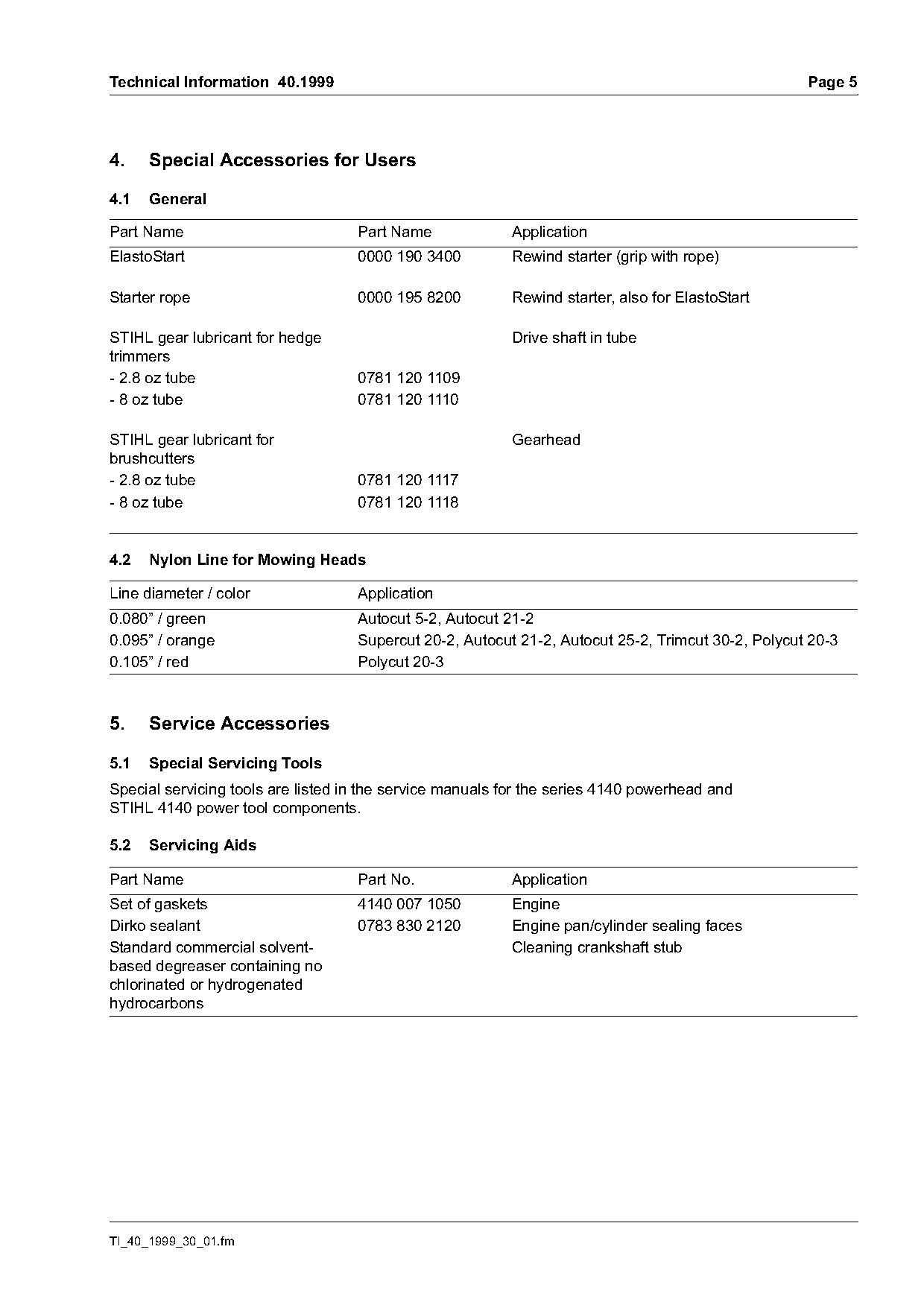

FS 46 / FS 55: USA lubricant tubes and nylon line (TI40 USA)

Preserve shaft-versus-gearhead lubricant applications and the exact inch/color/head rows.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • ElastoStart0000 190 3400 is the rewind-starter grip with rope; starter rope0000 195 8200 is also for ElastoStart. Hedge-trimmer gear lubricant is for the drive shaft IN THE TUBE; brushcutter gear lubricant is for the GEARHEAD. Both have2.8oz and8oz USA tube numbers. Do not assign a gearhead to the FS46 curved-shaft model.
  • 0.080in GREEN: AutoCut5-2 and AutoCut21-2. 0.095in ORANGE: SuperCut20-2, AutoCut21-2, AutoCut25-2, TrimCut30-2 and PolyCut20-3. 0.105in RED: PolyCut20-3 only. No PolyCut6-3 line size, line length, or cross-model head approval is supplied by this table.
  • No graphited-oil row appears here. The gear-lubricant entries do not establish SuperCut20-2 pawl oil grade, quantity, method or applicability; earlier unresolved lubrication and head/line conflicts remain untouched.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 5 — FS 46 / FS 55: USA lubricant tubes and nylon line.

Part numbers (6)
  • 0000 190 3400 — ElastoStart grip with ropeTI40 USA accessory · Rewind starter
  • 0000 195 8200 — Starter ropeTI40 USA accessory · Rewind starter, also ElastoStart
  • 0781 120 1109 — Hedge-trimmer gear lubricant,2.8oz tubeTI40 USA accessory · Drive shaft in tube
  • 0781 120 1110 — Hedge-trimmer gear lubricant,8oz tubeTI40 USA accessory · Drive shaft in tube
  • 0781 120 1117 — Brushcutter gear lubricant,2.8oz tubeTI40 USA accessory · Gearhead; no FS46 gearhead approval inferred
  • 0781 120 1118 — Brushcutter gear lubricant,8oz tubeTI40 USA accessory · Gearhead; no FS46 gearhead approval inferred

Service note · FS 46 / FS 55 / FS 55 R

FS 46 / FS 55: USA service aids and solvent wording (TI40 USA)

TI40 prints hydrogenated, not halogenated; no carburetor kit number is listed.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • Engine gasket set4140 007 1050; Dirko0783 830 2120 for engine-pan/cylinder sealing faces. No Zama C1Q S44 repair-kit number is printed in TI40; do not copy one from TI38/39.
  • Crankshaft stub cleaner: standard commercial solvent-based degreaser containing NO CHLORINATED OR HYDROGENATED HYDROCARBONS, as printed. Previously reviewed workshop wording excludes HALOGENATED hydrocarbons. These terms are not silently substituted or chemically reconciled; the conflict remains and no solvent product is verified.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 5 — FS 46 / FS 55: USA service aids and solvent wording.

Part numbers (2)
  • 4140 007 1050 — Set of gasketsTI40 service aid · Engine
  • 0783 830 2120 — Dirko sealantTI40 service aid · Engine pan/cylinder sealing faces

Service note · FS 46 / FS 55 / FS 55 R

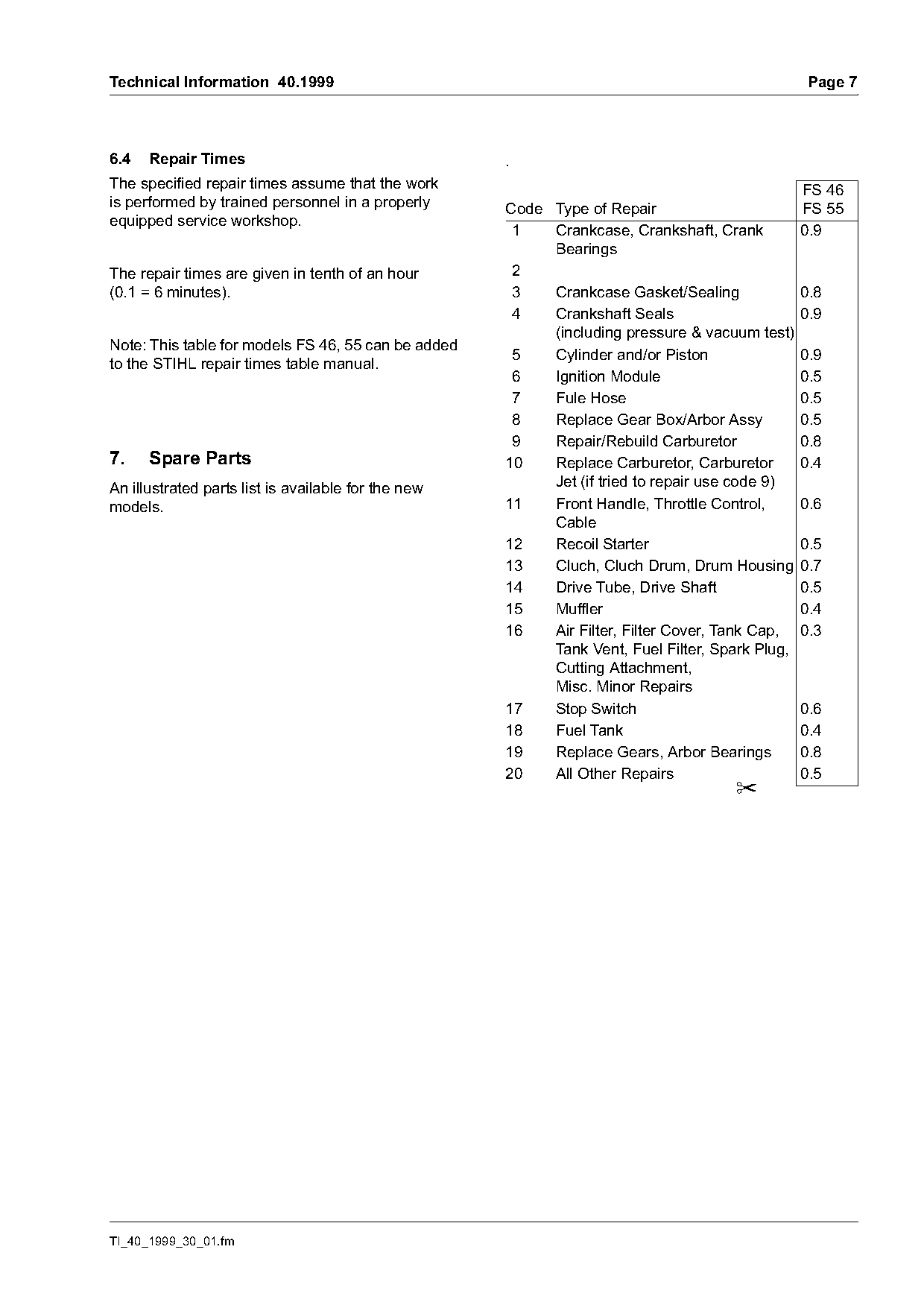

FS 46 / FS 55: USA repair tenths, including blank code2 (TI40 USA)

The USA table uses tenths of an hour, not the neighboring issue's minutes or29-row coding.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • Trained personnel in a properly equipped service workshop are assumed. Times are tenths of an hour:0.1=6minutes. The FS46/55 table may be added to the STIHL repair-times-table manual; this does not supply that parent manual's terms.
  • Codes/time in hours:1 crankcase,crankshaft,crank bearings0.9;2 BLANK (no repair name or time,not zero);3 crankcase gasket/sealing0.8;4 crankshaft seals INCLUDING pressure/vacuum test0.9;5 cylinder/piston0.9;6 ignition module0.5;7 fuel hose0.5;8 replace gearbox/arbor assembly0.5;9 repair/rebuild carburetor0.8;10 replace carburetor/carburetor jet0.4 (IF TRIED TO REPAIR USE CODE9).
  • 11 front handle,throttle control,cable0.6;12 recoil starter0.5;13 clutch,clutch drum,drum housing0.7;14 drive tube/shaft0.5;15 muffler0.4;16 air filter,filter cover,tank cap,tank vent,fuel filter,spark plug,cutting attachment,miscellaneous minor repairs0.3;17 stop switch0.6;18 fuel tank0.4;19 replace gears/arbor bearings0.8;20 all other repairs0.5.
  • Printed Fule/Cluch spelling does not change the identified row meanings. Blank code2 was checked against the original scan. Do not merge these20 numbered positions with TI38/39's29-row minute table, or turn an unlisted operation into a zero-minute repair.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 7 — FS 46 / FS 55: USA repair tenths, including blank code2.

No additional parts-table entry added.

Service note · FS 46 / FS 55 / FS 55 R

FS 46 / FS 55: reviewed USA repair references and exact-source gaps (TI40 USA)

TI40 review is complete with documented source gaps; later reference editions do not establish the original USA configuration.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • Section5.1 refers special servicing tools to the Series4140 powerhead and STIHL4140 power-tool-components service manuals. Section6.2 is headed Tightening Torques but repeats the tools reference and prints NO TORQUE VALUES. Section6.3 permits the manuals for FS46/55 servicing but excludes Servicing the Carburetor,Troubleshooting and standard procedures, delegated to Carburetors and Standard Repairs,Troubleshooting handbooks.
  • Page2 delegates balanced idle to Carburetors without a minimum edition date; page6 requires owner-manual safety precautions if running; page7 announces an available IPL and parent repair-time-table supplement. None supplies exact document numbers or revisions.
  • Available August1999 Series4140 powerhead, October2003 Components and undated Carburetors handbook content is now independently bound to FS46 within the retained configuration and edition limits. No FS46 ring count or loop-clamp torque is established; all earlier source conflicts remain unresolved.
  • No standalone applicable Standard Repairs, Troubleshooting handbook was identified in the current boundednon-bulletin service-documentation PDFs and41 owner-pool PDFs, their checked opening identities and current document metadata. Available model-specific and Carburetors troubleshooting chapters are not missing and do not replace the separately named handbook. This is scoped source unavailability, not proof that the handbook never existed.
  • The two FS46 and five FS55 USA head numbers have independent January2012 catalog bindings with restrictions and conflicts retained. Available workshop, Carburetors, retained head supplements and later2012 timetable dependencies are dispositioned. Exact owner safety editions, original workshop revisions, separate Standard Repairs handbook, standalone head instructions and original USA parent timetable remain bounded source gaps. TI40 review is complete with documented source gaps, not complete historical knowledge; its independent supplemental bulletin queues are unchanged.
  • Section7 announces an illustrated parts list for the new models without a publication number or edition. A fresh exact-token FS46/FS55 catalog query locates51 structured2012 parts sections and1219 BOM rows, but no source PDF/page/version links. Reconciliation of the bounded retained PDF inventory and116 checked opening identities identifies no exact1999 USA launch IPL. This is an exact-edition source gap, not absence of available parts data. Combined later models and head entries do not establish launch configuration, serial applicability or physical interchange. Reopen on a newly available applicable edition.
  • TI40/1999 english/USA historical reference only, not current attachment approval or verified physical interchange. No extension to FS45, later C/RC/T/2-MIX variants or unlisted heads. Original IPL rows and earlier source conflicts remain unchanged.

Source: TI 40/1999, p. 2 · TI 40/1999, p. 5 · TI 40/1999, p. 6 · TI 40/1999, p. 7 — TI40 USA sections1,5.1,6.2–6.4,7; reviewed dependencies and exact-source gaps.

No additional parts-table entry added.

Service note · FS 46

FS 46: regional control housing and interlock seating

USA, Canada and Australia separate-control branch; retain all three groove and peg engagements.

No exact-model IPL link: FS46 explicitly named in Components4140 October2003; regional and installed-configuration limits apply. Original TI40-delegated revision and exact IPL assembly binding remain unestablished.

  • The section heading names FS46/55, and its procedure explicitly restricts this separate-control/loop-handle configuration to USA, Canada and Australia. The left column on printed page30 continues the preceding bike-handle cable procedure; it is not an additional FS46 bike-handle approval.
  • Remove the right housing half and, if needed, its lever and spring; lift the interlock lever off the left-half pivot. Remove the left half together with throttle trigger and torsion spring; disconnect the cable and unhook the spring. Remove the stop switch, disconnect the short-circuit wires and remove its slide.
  • On reassembly push the slide onto the switch, reconnect the wires and seat the switch so the housing edge enters the slide groove. Attach the torsion spring and cable to the trigger, then push the trigger onto its peg. Both housing halves must engage the handle-support groove; position the short-circuit wires and torsion spring as illustrated and seat the cable correctly.
  • Fit the interlock lever to its pivot and the lever/spring to the right housing half. The right-half peg must enter the interlock-lever hole. Screw tightening is delegated to section3.3, not a new inferred torque. The figures supply seating relationships, not interchangeable housing or spring part numbers.
  • Later October2003 workshop evidence explicitly names FS46; not proof of the exact TI40/1999 launch revision, current attachment approval or physical interchange. Select the actual regional handle, carburetor and catalytic configuration. No FS45/FS55 procedure is silently substituted, and earlier source conflicts remain unresolved. These bounded notes do not replace the complete workshop and owner safety instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: 7.2.1, separate control handle, FS46/55 USA/Canada/Australia.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 7.2.1, separate control handle, FS46/55 USA/Canada/Australia, PDF pages 1, 3, 31, 32

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: cable routing, end stops and conditional heat sleeve

Do not kink the cable; the from-2003 catalytic sleeve is conditional, not universal1999 equipment.

No exact-model IPL link: FS46 explicitly named in Components4140 October2003; regional and installed-configuration limits apply. Original TI40-delegated revision and exact IPL assembly binding remain unestablished.

  • Section7.2.2 delegates drive-tube and shroud removal to10.1/5.1. Disconnect the cable from the carburetor throttle-lever slotted pin; ease its sleeve out of the tensioner WITHOUT KINKING the cable. Remove it from the rear housing, push the retainer out from below and disconnect the trigger end under7.2.1. Refit in the illustrated retainers and check correct seating before adjustment.
  • Under7.4, at full trigger travel the throttle lever must contact the end-cover stop. On a carburetor with LA idle-speed screw it must also contact that screw at idle; first check the applicable carburetor adjustment under9.3.2. Moving the tensioner with its adjusting screw adjusts cable travel: hold full throttle and turn the adjusting screw clockwise until the lever meets the end-cover stop, then verify the LA idle contact where fitted and refit the shroud. This cable adjustment is NOT the left-hand LD mixture procedure.
  • Section7.5 requires an insulating tube below the muffler only on machines with a from-2003 catalytic converter, or when that converter is fitted as a replacement. Disconnect the carburetor end, slide the insulation over the cable from that end, reinstall the cable, push the tube to the slot and secure it at the cable retainer. This does not establish that a1999 FS46 has that converter or approve a conversion.
  • Later October2003 workshop evidence explicitly names FS46; not proof of the exact TI40/1999 launch revision, current attachment approval or physical interchange. Select the actual regional handle, carburetor and catalytic configuration. No FS45/FS55 procedure is silently substituted, and earlier source conflicts remain unresolved. These bounded notes do not replace the complete workshop and owner safety instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: 7.2.2,7.4,7.5, regional cable branch and installed-carburetor conditions.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 7.2.2,7.4,7.5, regional cable branch and installed-carburetor conditions, PDF pages 1, 3, 33, 37

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: USA drive-tube separation and square-drive seating

Preserve the offset cable end, loop-handle alignment and screw sequence; do not import bike-handle dimensions.

No exact-model IPL link: FS46 explicitly named in Components4140 October2003; regional and installed-configuration limits apply. Original TI40-delegated revision and exact IPL assembly binding remain unestablished.

  • Components can remain on the drive tube for separation from the powerhead except where the control handle is not integrated in the engine housing: remove that handle by the applicable7.1/7.2 branch first. For FS46/55 USA,CAN,AUS, pull the handle hose off its support without bending the offset cable end, then remove the short-circuit wires from their slot and the cable from its seat.
  • For the loop-handle machine remove screw1, loosen screws2 and withdraw the tube. On installation degrease the clamp area with the specified standard solvent-based degreaser containing no chlorinated or HALOGENATED hydrocarbons. TI40 page5 says HYDROGENATED for its crankshaft-stub cleaner; retain the different wording and applications, not a silent chemical correction.
  • Push the loop-handle drive tube home until the holes align. Turn the drive shaft to and fro by rotating the cutting tool while inserting, so the square shaft end engages the clutch-drum square recess. Fit and tighten screw1 BEFORE tightening screws2; use section3.3 for the installed fasteners. Check the tube instruction label for damage/legibility and replace if needed.
  • The adjacent bike-handle branch uses a hole about18cm from the tube end aligned with a hose; that dimension is NOT the loop-handle datum and is not admitted here as FS46 bike-handle fitment. No powered test or ignition operation was performed.
  • Later October2003 workshop evidence explicitly names FS46; not proof of the exact TI40/1999 launch revision, current attachment approval or physical interchange. Select the actual regional handle, carburetor and catalytic configuration. No FS45/FS55 procedure is silently substituted, and earlier source conflicts remain unresolved. These bounded notes do not replace the complete workshop and owner safety instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: 10.1 drive-tube removal/installation, FS46 regional loop-handle branch;12 cleaner.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 10.1 drive-tube removal/installation, FS46 regional loop-handle branch;12 cleaner, PDF pages 1, 3, 52, 53, 61

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: curved-shaft loop handle uses the engine-housing datum

The10.2.4 handle is positioned about20cm forward of the engine housing, not the separate control handle.

No exact-model IPL link: FS46 explicitly named in Components4140 October2003; regional and installed-configuration limits apply. Original TI40-delegated revision and exact IPL assembly binding remain unestablished.

  • The FS45/46 curved-shaft section10.3.2 explicitly delegates loop-handle removal to10.2.4. Unscrew the wingnut and remove the washer, screw and spacer IF FITTED; slide the loop handle off and remove the friction pad. Reassemble in reverse order, position the handle about20cm forward of the ENGINE HOUSING and tighten firmly.
  • The neighboring10.2.2/10.2.3 handle branches use about20cm forward of the CONTROL HANDLE, while10.2.1 bike-handle positioning uses about15cm from the engine housing. These distinct reference points are not interchangeable; neither adjacent branch supplies an FS46 metal-blade approval. The optional spacer remains conditional.
  • Later October2003 workshop evidence explicitly names FS46; not proof of the exact TI40/1999 launch revision, current attachment approval or physical interchange. Select the actual regional handle, carburetor and catalytic configuration. No FS45/FS55 procedure is silently substituted, and earlier source conflicts remain unresolved. These bounded notes do not replace the complete workshop and owner safety instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: 10.2.4 loop handle, explicitly selected by FS45/46 section10.3.2.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 10.2.4 loop handle, explicitly selected by FS45/46 section10.3.2, PDF pages 1, 3, 54, 58

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: curved-shaft deflector removal is not a head approval

The FS45/46-only branch separates the deflector and its clamp without supplying replacement part numbers.

No exact-model IPL link: FS46 explicitly named in Components4140 October2003; regional and installed-configuration limits apply. Original TI40-delegated revision and exact IPL assembly binding remain unestablished.

  • Section10.2.5 explicitly applies to FS45/46 only. Remove the clamp screw, pull the deflector FORWARDS and off, then remove the screw and pull off the clamp. Install in reverse sequence. The illustrations distinguish deflector and clamp removal; no deflector part number or torque is printed in this branch.
  • Section10.3.2 requires removal of the cutting tool and deflector before drive-shaft work. The neighboring carrying-ring, cable-retainer and sleeve procedures are separate subsections, not extra deflector steps. This does not prove interchange with FS55 or resolve TI40 USA head-order-number differences.
  • Later October2003 workshop evidence explicitly names FS46; not proof of the exact TI40/1999 launch revision, current attachment approval or physical interchange. Select the actual regional handle, carburetor and catalytic configuration. No FS45/FS55 procedure is silently substituted, and earlier source conflicts remain unresolved. These bounded notes do not replace the complete workshop and owner safety instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: 10.2.5 deflector, FS45/46 only, and10.3.2 prerequisites.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 10.2.5 deflector, FS45/46 only, and10.3.2 prerequisites, PDF pages 1, 3, 55, 58

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: flexible shaft discoloration and grease application

Replace a blue shaft; coat the shaft evenly and never pump grease directly into the tube.

No exact-model IPL link: FS46 explicitly named in Components4140 October2003; regional and installed-configuration limits apply. Original TI40-delegated revision and exact IPL assembly binding remain unestablished.

  • For the FS45/46-only branch remove the drive tube under10.1, loop handle under10.2.4, and cutting tool/deflector under10.2.5. The drive shaft runs in a flexible liner. Pull it out; if it has turned BLUE, install a new shaft. This branch does not describe the FS55 engine-end plug or star-shaped-liner procedure.
  • Before installation coat the shaft evenly with STIHL gear lubricant for HEDGE TRIMMERS; do NOT pump grease directly into the drive tube. Push the shaft in as far as the stop and check that the cutting tool rotates, then reassemble in reverse order. This is a mechanical engagement check, not an instruction to start the engine.
  • The section12 table identifies80g tube0781 120 1109 and225g tube0781 120 1110. These exact numbers agree with TI40's hedge-trimmer shaft-lubricant entries, whose USA table uses2.8oz/8oz packaging. No shaft grease quantity, FS46 gearbox or SuperCut20-2 pawl-oil specification is inferred.
  • Later October2003 workshop evidence explicitly names FS46; not proof of the exact TI40/1999 launch revision, current attachment approval or physical interchange. Select the actual regional handle, carburetor and catalytic configuration. No FS45/FS55 procedure is silently substituted, and earlier source conflicts remain unresolved. These bounded notes do not replace the complete workshop and owner safety instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: 10.3.2 FS45/46 drive tube and12 hedge-trimmer gear lubricant.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 10.3.2 FS45/46 drive tube and12 hedge-trimmer gear lubricant, PDF pages 1, 3, 55, 58, 61

Part numbers (2)
  • 0781 120 1109 — Hedge-trimmer gear lubricant,80g tubeOctober2003 Components section12 lubricant · FS46 drive shaft under10.3.2; not an FS46 gearbox or head pawl
  • 0781 120 1110 — Hedge-trimmer gear lubricant,225g tubeOctober2003 Components section12 lubricant · FS46 drive shaft under10.3.2; not an FS46 gearbox or head pawl

Service note · FS 46

FS 46: five 1999 powerhead torques and existing-thread limits

The manual specifies 17 Nm for the starter cup and distinguishes screws without locking teeth.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead introduction; exact TI40-delegated revision and model-specific piston-ring count are not established.

  • Printed 4 gives all five torque rows in Nm: IS-DG5x60 engine pan/crankcase/cylinder 9.0; IS-DG5x60 muffler/cylinder 9.0; M8 starter cup 17.0; M14x1.25 spark plug 20.0; IS-DG4x20 ignition module/cylinder 4.5. Both DG5x60 rows and the DG4x20 row carry remark 2, WITHOUT locking teeth. Starter cup and plug have no remark. Do not conflate fasteners with and without underhead locking teeth.
  • For DG/P screws in an EXISTING thread, turn counterclockwise until the screw drops slightly into the old thread, then clockwise to the specified torque using a torque wrench. This avoids cutting another thread and weakening the assembly; it is not a direction for installing into a new hole.
  • For polymer, maximum power-screwdriver speed is 600 rpm for Plastoform screws and 500 rpm for DG screws. These are tool-speed limits, not engine speeds or permission to omit torque control.
  • TI40 section6.3 prints NO TORQUE VALUES. These five values come from the dated August1999 powerhead table, not the TI heading. October2003 Components section3.3 printed6 explicitly includes FS46 under remark2 for the M8x1 starter-cup row at14.0Nm, versus the powerhead17.0Nm. Preserve both dated values: no serial changeover or supersession is established. This comparison does not accept every component torque row.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Cover/introduction explicitly FS46/55; safety/stand; section3.3 complete torque table and9 complete tool table/remarks;10 solvent wording only, not blanket aids/accessory acceptance.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover/introduction explicitly FS46/55; safety/stand; section3.3 complete torque table and9 complete tool table/remarks;10 solvent wording only, not blanket aids/accessory acceptance, PDF pages 1, 2, 3, 5, 17, 18 · STIHL Components 4140 FC, FS, HL, KM (2003-10), section Component section 3.3 printed 5–6, including 14 Nm starter-cup row and model remarks, PDF pages 1, 3, 6, 7

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: 1999 powerhead values and the 0.5 bar / 5 kPa conflict

The printed pressure units disagree by a factor of ten.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead introduction; exact TI40-delegated revision and model-specific piston-ring count are not established.

  • Printed 3 specifies 27.2 cm³, 34 mm bore, 30 mm stroke, 0.75 kW (1 HP) at 7,000 rpm to ISO 8893; deep-groove crankshaft ball bearings, needle cages at small/big ends and an 8 mm piston pin. These are the dated powerhead values; do not project them onto every later FS 46 variant. TI40 prints the separate30mm/1.10in stroke discrepancy; this metric-only manual row does not resolve it.
  • The original image shows 9,500 ±800 rpm WITHOUT CUTTING TOOL and idle 2,800 ±300 rpm; plain text extraction lost the minus strokes. These equal 8,700–10,300 and 2,500–3,100 rpm respectively. The unlined centrifugal clutch engages at 3,800 rpm. Do not apply the no-tool speed range to mounted-tool idle adjustment.
  • Both crankcase gauge-pressure and vacuum rows print 0.5 bar (5 kPa). These units are inconsistent: 0.5 bar converts to 50 kPa, not 5 kPa. The printed assertion is retained as a conflict, not a verified test setting. The separately reviewed sections 6–6.3 repeat this conflict and add a 0.3 bar / 3 kPa mismatch; see the companion pressure/vacuum note.
  • Ignition is breakerless electronic magneto with integral trigger, air gap 0.15–0.45 mm. Suppressed plugs are Bosch WSR 6F, NGK BPMR 7 A or Champion RCJ 6Y; electrode gap 0.5 mm. This is the dated manual specification, not a claim of every later ignition revision.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Cover, introduction, safety, complete specification/torque/tool/aids/accessory tables; printed 1–4,16–17.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover, introduction, safety, complete specification/torque/tool/aids/accessory tables; printed 1–4,16–17, PDF pages 1, 2, 3, 4, 5, 17, 18

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: pressure and vacuum tests are separate checks

The 20-second criteria retain the manual’s repeated unit conflicts.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead introduction; exact TI40-delegated revision and model-specific piston-ring count are not established.

  • Sections 6–6.3 (printed 10–12) explain that leaks at oil seals, gaskets or spacer-flange castings can admit extra air, disturb idle and cause poor transition. A pressure test alone is insufficient: seal lips may lift under induction vacuum without internal counterpressure. This is a source explanation, not a diagnosis of a connected machine.
  • Preparation delegates shroud, carburetor and starter-cover removal to the components manual. Set the piston to top dead centre, checked through the inlet port; check the plug is tight; fit a NEW spacer-flange gasket and test flange 1128 850 4200 with nuts tightened to 3.5 Nm. Slacken muffler screws halfway and insert sealing plate 0000 855 8106 BETWEEN gasket and cylinder exhaust port. It must fill the entire space between screws; retighten moderately for the test, not the final 9.0 Nm torque yet.
  • Pressure test: connect tester 1106 850 2905 to the test flange, close the bulb vent and pump to printed 0.5 bar (5 kPa). The source requires CONSTANT pressure for AT LEAST 20 seconds. A drop requires locating and replacing the faulty part; oil on a suspect area reveals bubbles under pressure. Repeat the pressure test, then perform the separate vacuum test. The bar/kPa conflict remains unresolved as an operational setting: 0.5 bar equals 50 kPa.
  • Vacuum test: connect pump 0000 850 3501 to the test flange, close its vent and operate the lever to printed 0.5 bar (5 kPa) vacuum. The text says a constant reading, or a rise to no more than 0.3 bar (3 kPa) WITHIN 20 seconds, indicates sound seals; continuing pressure rise (REDUCED vacuum) calls for replacement. Preserve that wording and direction. The second conversion is also inconsistent: 0.3 bar equals 30 kPa, not 3 kPa. Do not turn this into an unqualified signed-pressure threshold.
  • After testing, open the vent before disconnecting, remove the test flange, slacken the muffler screws, remove the sealing plate and tighten screws to 9.0 Nm. Pressure-test cleanup explicitly lists starter cover, carburetor and shroud; vacuum cleanup lists carburetor and shroud. Do not infer that an omitted starter cover may be left off. Access/reassembly instructions are still delegated to the components manual.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Explicit FS46/55 scope and complete sections6–6.3,printed10–12; pressure/vacuum setup,hold,leak location and cleanup.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Explicit FS46/55 scope and complete sections6–6.3,printed10–12; pressure/vacuum setup,hold,leak location and cleanup, PDF pages 1, 2, 11, 12, 13

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: matched cylinder/piston and protected removal

The manual leaves the flywheel-side ring in place and holds the crankcase together.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead introduction; exact TI40-delegated revision and model-specific piston-ring count are not established.

  • Section 4.1 first requires checking and, if necessary, repairing the fuel system, carburetor, air filter and ignition before looking for engine faults. It delegates troubleshooting to Standard Repairs, Troubleshooting and housing, muffler, ignition-module and spacer-flange access to the components handbook. Remove the spark plug before the described cylinder work.
  • Use puller 5910 890 4400 with profile-2 jaws 0000 893 3700 and spindle screw bush 1108 893 4500 to hold crankcase and engine pan together during cylinder removal. After undoing the cylinder-base screws, clamp the puller in a vice and lift the cylinder from the piston. This clamping use is not the profile-3.1 seal-pulling setup.
  • Inspect the cylinder; a new cylinder requires its MATCHING piston, and the source says new cylinders are supplied only with a piston. Remove the cylinder gasket. Remove the B8x0.7 snap ring on the STARTER-CUP side; the hookless ring on the FLYWHEEL side REMAINS in its groove.
  • Drive the pin out with a 7 mm drift. If stuck, tap only lightly while holding the piston steady so impact is not transmitted to the connecting rod. Inspect the needle cage and replace the crankshaft if necessary. The printed cross-reference says 5.1, but 5.1 is Oil seals; the inseparable crankshaft/rod/needle-bearing rule appears in section 5. Preserve this locator discrepancy, not an instruction to replace only an oil seal.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 4.1 printed 5, with sections 5/5.1 printed 7–9 for cross-reference conflict.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Section 4.1 printed 5, with sections 5/5.1 printed 7–9 for cross-reference conflict, PDF pages 1, 2, 6, 8, 9, 10

Part numbers (3)
  • 5910 890 4400 — PullerHold crankcase and engine pan together · FS 46 within the 1999-08 powerhead reference
  • 0000 893 3700 — Profile-2 jawsCylinder-removal clamping setup · FS 46 within the 1999-08 powerhead reference
  • 1108 893 4500 — Screw bushFit on puller spindle · FS 46 within the 1999-08 powerhead reference

Service note · FS 46

FS 46: piston orientation with ring count unestablished

The manual names FS46 in scope but omits it from the piston-ring count notes.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead introduction; exact TI40-delegated revision and model-specific piston-ring count are not established.

  • Printed5,6and7 each say one (FS45) or two (FS45,55) piston rings depending on model. FS46 is NOT NAMED IN EITHER RING-COUNT GROUP, even though the introduction names FS46. FS45 is duplicated and FS55 appears only in the two-ring group. Do not infer one or two rings for FS46 from either neighboring model, from the illustrations or from the common powerhead title. No FS46 piston number, serial or revision boundary is supplied; verify the exact installed configuration and applicable IPL before selecting rings.
  • Section 4.2 requires a clean gasket seat and oiled connecting-rod needle cage. It suggests heating the piston to ease assembly but gives NO temperature. Piston marking faces the EXHAUST side; the adjacent illustration labels the flywheel separately. Push the pin against the retained hookless snap ring with drift 1114 893 4700. Fit the B8x0.7 ring with its gap on the piston VERTICAL axis, up or down.
  • Fit a NEW cylinder gasket; oil piston and rings and rest the piston on wooden block 1108 893 4800. Ring-gap radii meet the locating pin when compressed. Use strap 0000 893 2600, check ring position, oil the cylinder bore and align it in its final installed orientation before sliding it over the piston; incorrect alignment can break rings.
  • The descending cylinder pushes the strap down as rings enter. Remove strap and block, align cylinder/gasket and tighten cylinder-base screws to 9.0 Nm with socket 0812 542 2104; restore other parts in reverse sequence. The torque table’s without-locking-teeth qualification remains applicable.
  • Section 4.3 requires removing the piston before ring replacement and groove cleaning so debris cannot fall into the crankcase. Remove old rings, clean grooves with a piece of old ring, and install new rings with gap radii facing the fixing pin; reinstall under section 4.2. This is not permission to scrape grooves over an open crankcase.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 4.1–4.3 printed 5–7; torque qualification printed 4.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Sections 4.1–4.3 printed 5–7; torque qualification printed 4, PDF pages 1, 2, 5, 6, 7, 8

Part numbers (4)
  • 1114 893 4700 — Assembly driftPush piston pin against retained ring · FS 46 within the 1999-08 powerhead reference
  • 1108 893 4800 — Wooden assembly blockSupport piston · FS 46 within the 1999-08 powerhead reference
  • 0000 893 2600 — Clamping strapCompress correctly located rings · FS 46 within the 1999-08 powerhead reference
  • 0812 542 2104 — SocketCylinder-base screws, 9.0 Nm · FS 46 within the 1999-08 powerhead reference

Service note · FS 46

FS 46: crankshaft unit, bearing washers and seal orientation

Replacement crankshafts require new bearings and seals.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead introduction; exact TI40-delegated revision and model-specific piston-ring count are not established.

  • Section 5 removes cylinder, flywheel, starter cup and piston before removing the holding puller, separating engine pan and lifting the crankshaft from the crankcase. Inspect bearings and oil seals. Crankshaft, connecting rod and needle bearing are an INSEPARABLE unit, always replaced together; a replacement crankshaft always requires NEW oil seals and ball bearings.
  • Remove seals and bearings, then washers. Reassembly places a washer on EACH crankshaft stub before bearings. Heat the ball bearings to approximately 50 °C and push them fully home. This temperature is specified for BEARINGS, not for the piston-heating suggestion.
  • Grease seal lips and slide seals onto the crankshaft with their OPEN sides facing the BALL BEARINGS. Remove all old sealant from crankcase and engine-pan faces. Position the rod toward the cylinder and the SHORT crankshaft stub on the WIDE side of the crankcase, as illustrated.
  • Apply a thin bead of the section-10 sealant to the engine-pan mating face, following the sealant manufacturer’s instructions. Fit the pan and clamp it to the crankcase with the section-4.1 puller arrangement, then restore remaining parts in reverse sequence. No bead dimension, cure time or bearing/shaft part number is supplied here.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 5 printed 7–8 and section 10 sealant reference printed 17.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Section 5 printed 7–8 and section 10 sealant reference printed 17, PDF pages 1, 2, 8, 9, 18

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: two oil-seal sides use different pressing sleeves

The complete engine need not be dismantled for this seal procedure.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead introduction; exact TI40-delegated revision and model-specific piston-ring count are not established.

  • Section 5.1 says complete engine disassembly is unnecessary. Starter-side access removes starter cup (8.2) and housing parts (components handbook); clutch-side access removes the flywheel (7.2). Both sides use puller 5910 890 4400 with profile-3.1 jaws 0000 893 3706, tension the arms and extract the seal without damaging the crankshaft stub.
  • Clean the sealing surface with the manual’s solvent-based degreasant containing neither chlorinated nor HALOGENATED hydrocarbons, then grease the sealing lips under section 10. This retains the later wording; TI40’s HYDROGENATED wording is a separate unresolved source conflict.
  • STARTER side: protect the crankshaft stub with assembly sleeve 1129 893 4600; slide on the seal OPEN side toward the CRANKCASE; press fully home with 1114 893 4601, then refit housing and starter cup.
  • CLUTCH side: the text also says to slide the seal over an assembly sleeve, OPEN side toward the CRANKCASE, but gives no new sleeve number in that paragraph. The continuation on printed 10 specifies pressing sleeve 1120 893 2400 and refitting the flywheel. Do not silently give both sides the starter-side pressing sleeve or invent a separate clutch-side protective sleeve number.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 5.1 printed 9–10, with section 10 cleaner/lubricant printed 17.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Section 5.1 printed 9–10, with section 10 cleaner/lubricant printed 17, PDF pages 1, 2, 10, 11, 18

Part numbers (5)
  • 5910 890 4400 — PullerExtract oil seals · FS 46 within the 1999-08 powerhead reference
  • 0000 893 3706 — Profile-3.1 jawsOil-seal extraction on both sides · FS 46 within the 1999-08 powerhead reference
  • 1129 893 4600 — Assembly sleeveStarter-side crankshaft protection · FS 46 within the 1999-08 powerhead reference
  • 1114 893 4601 — Press sleeveSeat starter-side seal · FS 46 within the 1999-08 powerhead reference
  • 1120 893 2400 — Press sleeveSeat clutch-side seal · FS 46 within the 1999-08 powerhead reference

Service note · FS 46

FS 46: a visible spark does not prove correct ignition timing

Nonadjustable timing can still be wrong after an internal electronic fault.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead introduction; exact TI40-delegated revision and model-specific piston-ring count are not established.

  • Section 7 warns of potentially fatal ignition voltage and starts troubleshooting at the spark plug, referring to Standard Repairs, Troubleshooting. The system comprises module and flywheel; module connections are high-voltage lead and short-circuit tag. Accurate module testing requires sophisticated equipment; the workshop spark check is limited evidence.
  • Section 7.1 calls for module replacement when no spark is obtained AFTER checking wiring and stop switch. Section 7.1.1 says timing is NOT ADJUSTABLE, but an internal circuit fault may shift the switching point outside tolerance while a spark test still appears normal. Thus a spark does not prove correct timing or explain away poor starting/running. No timing angle or electronic adjustment procedure is supplied.
  • For removal, obtain housing access from the components handbook, disconnect short-circuit and ground wires, pull the boot off the plug, undo mounting screws and remove the module. The ignition lead is MOULDED to the module; do not infer a separately removable lead.
  • For installation, leave screws loose initially, secure the ground-wire connector tag with the UPPER screw, insert gauge 1127 890 6400 between module arms and flywheel magnet poles, press the module against the gauge and tighten screws to 4.5 Nm. Restore remaining parts in reverse order. This air-gap setup is not ignition-timing adjustment.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 7–7.1.2 printed 12–14.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Sections 7–7.1.2 printed 12–14, PDF pages 1, 2, 13, 14, 15

Part numbers (1)
  • 1127 890 6400 — Setting gaugeModule-to-flywheel air-gap setup · FS 46 within the 1999-08 powerhead reference

Service note · FS 46

FS 46: flywheel damage, hub cleaning and plug restoration

Inspect the magnet poles and slot position; clutch access remains separately sourced.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead introduction; exact TI40-delegated revision and model-specific piston-ring count are not established.

  • Section 7.2 delegates clutch removal to the components handbook. Lightly tap the crankshaft-stub end with a RUBBER mallet to free the flywheel, then pull it off. Replace the flywheel if cracks or other damage are visible in the wheel or magnet poles. This is not a general metal-hammer or puller instruction.
  • Before installation, degrease both crankshaft stub and flywheel-hub bore with the section-10 solvent-based cleaner containing neither chlorinated nor HALOGENATED hydrocarbons. Fit the wheel and check SLOT position; the source gives no key dimension or replacement part number here.
  • Reinstall the clutch under the applicable components instructions, pull the locking strip out of the cylinder, fit the spark plug at20Nm and check/retighten a separate terminal nut IF the plug has one; refit the boot. FS46 component clutch/access binding remains pending; removal of a locking strip here does not replace those prerequisites or resolve previously retained tool-number conflicts.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 7.2 printed 14, section 10 cleaner printed 17.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Section 7.2 printed 14, section 10 cleaner printed 17, PDF pages 1, 2, 15, 18

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: 1999 powerhead tools, alternatives and stand mounting

All 23 numbered rows retain seal sides, jaw profiles, torque-wrench variants and loosening-only restrictions.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead; exact TI40 launch revision remains unestablished. Accessory labels alone do not prove installed fitment.

  • All 23 numbered rows on printed 16 are represented here; rows 15 and 16 each contain two torque-wrench numbers. Jaws profile 3.1 + 4 are distinct from profile 2 used to clamp pan/crankcase. Starter-side protecting and installing sleeves are not the clutch-side press sleeve.
  • Remark 1 says puller 5910 890 4400 is equivalent to 0000 890 4400 but has longer spindle 5910 890 8400. Remark 2 permits setting gauge 1111 890 6400 instead of 1127 890 6400. These explicit alternatives do not establish broad substitutions for other tools.
  • Remark 3 requires a torque wrench when tightening DG/P screws. Remark 4 identifies visual/acoustic signalling wrench variants 5910 890 0302 and 5910 890 0312. Remark 5 restricts screwdriver 5910 890 2400 to RELEASING printed “GD/P” screws; the table’s transposed GD wording is not silently normalized.
  • The introduction specifically permits assembly stand5910 890 3100 with clamp5910 890 8800 for shaft machines FS/FC/HL. Secure the clamp to the stand with two washers and two M8 nuts; the mounted unit can swivel for the repair. No stand-fastener torque or washer size is supplied. This FS guidance was not transferable to the earlier BG/SH lane.
  • A tool roster is not a complete service procedure. Available dated powerhead sections are bound separately; common-component access, external handbooks and original owner safety instructions remain separate TI40 dependencies. No BG/SH mounting guidance or later FS variant is inferred from this FS46 binding.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: FS 46: 1999 powerhead tools, alternatives and stand mounting.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover/introduction explicitly FS46/55; safety/stand; section3.3 complete torque table and9 complete tool table/remarks;10 solvent wording only, not blanket aids/accessory acceptance, PDF pages 1, 2, 3, 5, 17, 18

Part numbers (28)
  • 4221 893 5900 — Piston locking stripBlock crankshaft · FS 46 within the August1999 powerhead manual scope
  • 5910 890 4400 — PullerRemove oil seals · FS 46 within the August1999 powerhead manual scope
  • 0000 893 3706 — Puller jawsProfiles 3.1 and 4 · FS 46 within the August1999 powerhead manual scope
  • 0000 893 3700 — Puller jawsProfile 2; clamp pan and crankcase · FS 46 within the August1999 powerhead manual scope
  • 1108 893 4500 — Screw bushPuller accessory · FS 46 within the August1999 powerhead manual scope
  • 1106 850 2905 — Carburetor/crankcase testerLeak testing · FS 46 within the August1999 powerhead manual scope
  • 0000 850 3501 — Vacuum pumpCrankcase leakage test · FS 46 within the August1999 powerhead manual scope
  • 0000 855 8106 — Sealing plateSeal exhaust for leakage test · FS 46 within the August1999 powerhead manual scope
  • 1128 850 4200 — Test flangeLeakage test · FS 46 within the August1999 powerhead manual scope
  • 1129 893 4600 — Assembly sleeveProtect starter-side oil seal · FS 46 within the August1999 powerhead manual scope
  • 1114 893 4601 — Press sleeveInstall starter-side oil seal · FS 46 within the August1999 powerhead manual scope
  • 1120 893 2400 — Press sleeveInstall clutch-side oil seal · FS 46 within the August1999 powerhead manual scope
  • 1127 890 6400 — Setting gaugeIgnition module/flywheel air gap · FS 46 within the August1999 powerhead manual scope
  • 5910 890 8210 — Crimping toolElectrical connectors · FS 46 within the August1999 powerhead manual scope
  • 5910 890 0301 — Torque wrench0.5–18 Nm · FS 46 within the August1999 powerhead manual scope
  • 5910 890 0302 — Torque wrench0.5–18 Nm; visual/acoustic signal · FS 46 within the August1999 powerhead manual scope
  • 5910 890 0311 — Torque wrench6–80 Nm · FS 46 within the August1999 powerhead manual scope
  • 5910 890 0312 — Torque wrench6–80 Nm; visual/acoustic signal · FS 46 within the August1999 powerhead manual scope
  • 0812 542 2104 — T27x125 socketSocket-head screws · FS 46 within the August1999 powerhead manual scope
  • 5910 890 2400 — Q-T27x150 screwdriverRelease only on printed GD/P screws · FS 46 within the August1999 powerhead manual scope
  • 5910 890 3100 — Assembly standHold FS units · FS 46 within the August1999 powerhead manual scope
  • 5910 890 8800 — ClampHold FS drive tube with stand · FS 46 within the August1999 powerhead manual scope
  • 1114 893 4700 — Assembly driftInstall piston pin · FS 46 within the August1999 powerhead manual scope
  • 1108 893 4800 — Wooden assembly blockFit piston · FS 46 within the August1999 powerhead manual scope
  • 0000 893 2600 — Clamping strapCompress piston ring · FS 46 within the August1999 powerhead manual scope
  • 0000 890 4400 — Equivalent pullerRemark1;5910 version has longer spindle · FS 46; explicit section9 remark only
  • 5910 890 8400 — Longer puller spindleRemark1 for puller5910 890 4400 · FS 46; explicit section9 remark only
  • 1111 890 6400 — Alternative setting gaugeRemark2 instead of1127 890 6400 · FS 46; explicit section9 remark only

Service note · FS 46

FS 46: powerhead service aids and accessory-list limits

Manual lubricant labels do not establish an FS46 gearbox or a current accessory approval.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead; exact TI40 launch revision remains unestablished. Accessory labels alone do not prove installed fitment.

  • Printed17 lists oil-seal grease0781 120 1111 (370g), special lubricant0781 417 1315 for rope-rotor bearing bore and rewind spring, electrical repair kit5910 007 1050 and Dirko0783 830 2120 for engine-pan/cylinder sealing. No application quantity or interval is specified. TI40 does NOT list the oil-seal grease; do not transplant the TI38 package-size discrepancy into this USA issue.
  • For cleaning the crankshaft stub, this manual says solvent-based degreasant containing neither CHLORINATED nor HALOGENATED hydrocarbons. TI40/1999 says CHLORINATED or HYDROGENATED. Preserve both wordings and the crankshaft-stub scope; the later wording does not silently correct the earlier source.
  • The generic accessory list labels0781 120 1117 (80g) and0781 120 1118 (225g) as brushcutter gear lubricant, and0781 120 1109 (80g) and0781 120 1110 (225g) as hedge-trimmer gear lubricant. TI40 distinguishes gearhead and drive-shaft-in-tube applications, with USA2.8oz/8oz packaging. FS46 section10.3.2 in the separately bound Components manual uses HEDGE-TRIMMER lubricant for its flexible shaft. Listing brushcutter gear lubricant here does NOT establish an FS46 gearbox or authorize substituting it for shaft grease; it does not resolve head-pawl oil guidance.
  • Safety glasses have no number in this table. ElastoStart 0000 190 3400 is starter rope WITH grip, listed as a user accessory; it is not proof of standard equipment. Blank cells do not create inferred part numbers.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: FS 46: later cleaner wording and gear-lubricant labels differ.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover, introduction, safety, complete specification/torque/tool/aids/accessory tables; printed 1–4,16–17, PDF pages 1, 2, 3, 4, 5, 17, 18

Part numbers (9)
  • 0781 120 1111 — Grease,370 gOil seals;370g manual package;not a TI40 grease row · FS 46 within the cited manual edition
  • 0781 417 1315 — Special lubricantRope-rotor bore and rewind spring · FS 46 within the cited manual edition
  • 5910 007 1050 — Electrical repair kitElectrical system · FS 46 within the cited manual edition
  • 0783 830 2120 — Dirko sealantEngine pan/cylinder · FS 46 within the cited manual edition
  • 0781 120 1117 — Brushcutter gear lubricant,80 gBrushcutter-labelled lubricant; TI40 assigns it to gearhead · Generic manual accessory list only; NOT evidence that FS46 has a gearbox
  • 0781 120 1118 — Brushcutter gear lubricant,225 gBrushcutter-labelled lubricant; TI40 assigns it to gearhead · Generic manual accessory list only; NOT evidence that FS46 has a gearbox
  • 0781 120 1109 — Hedge-trimmer gear lubricant,80 gHedge-trimmer-labelled lubricant; TI40 assigns it to drive shaft in tube · FS 46 within the cited manual edition
  • 0781 120 1110 — Hedge-trimmer gear lubricant,225 gHedge-trimmer-labelled lubricant; TI40 assigns it to drive shaft in tube · FS 46 within the cited manual edition
  • 0000 190 3400 — ElastoStartStarter rope with grip; user accessory · FS 46 within the cited manual edition

Service note · FS 46

FS 46: cold or dirty rewind mechanism and starter-cup torque

Cold thickening and contamination call for different source-described treatment.

No exact-model IPL link: FS46 explicitly named in August1999 powerhead; exact TI40 launch revision remains unestablished. Accessory labels alone do not prove installed fitment.

  • Section 8.1 treats stiff rope with slow or incomplete rewind as potentially an otherwise sound mechanism clogged with dirt; at very low temperature, spring lubricant may thicken and make coils stick. For that cold-sticking case it specifies a FEW DROPS of paraffin (kerosine), then carefully cycling the rope until smooth action returns. This is a dated source explanation, not proof that every slow rewind is harmless.
  • For dirt or pitch, remove and dismantle the entire starter including the rewind spring, taking particular care with spring removal. Wash parts in paraffin or white spirit; lubricate the rewind spring and starter post with STIHL special lubricant under section 10 before installation. Detailed rope/spring access remains in the components handbook; no spring pre-tension turn count is given here.
  • Section 8.2 removes the starter cover via the components handbook, unscrews the spark plug, and inserts locking strip 4221 893 5900 before unscrewing the starter cup. Refit the cup at 17.0 Nm and restore the other parts in reverse sequence, including removing the locking strip before replacing the plug. This is not a cutting-head or clutch torque.
  • Cross-edition conflict: October2003 Components section3.3 printed6 lists M8x1 starter cup/crankshaft at14.0Nm, explicitly including FS46 under remark2. August1999 powerhead section8.2 and its torque table specify17.0Nm. Neither a serial changeover nor supersession is established; retain both dated values, not a universal torque. Other component torque rows and detailed starter access still require their own binding.
  • The August1999 powerhead introduction explicitly names FS46 and FS55. These notes bind the available dated manual to the TI40 workshop dependency; they do not establish the exact launch revision, later C/R/RC/2-MIX configurations, physical interchange or hardware validation. Component access, separate handbooks, owner safety instructions and launch IPL remain separate dependencies. This bounded reference does not replace the complete workshop or owner instructions.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: FS 46: cold or dirty rewind mechanism and starter-cup torque.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Sections 8–8.2 printed 15 and section 10 lubricant printed 17, PDF pages 1, 2, 16, 18 · STIHL Components 4140 FC, FS, HL, KM (2003-10), section Component section 3.3 printed 5–6, including 14 Nm starter-cup row and model remarks, PDF pages 1, 3, 6, 7

Part numbers (1)
  • 4221 893 5900 — Locking stripBlock piston for starter-cup removal · FS 46 within the 1999-08 powerhead reference

Service note · FS 46

FS 46: component torques by fastener and installed configuration

Eighteen FS46/general rows retain exact footnotes; the loop-handle clamp value is not attributed to FS46.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • Torque pairs preserve printed lbf.ft / Nm rounding. Remark1 identifies FS55;2 FS46;3 FS45;4 KM55/FC55;5 HL45;6 means WITH BINDING HEAD. Select the seventeen rows explicitly carrying remark2 plus the unmarked general spark-plug row: eighteen FS46/general rows, not the twenty-three plain-FS55 rows. Configuration wording still controls.
  • Controls: B3.9x19 US loop-handle right/left switch-housing molding:1.8 / 2.5. This is NOT the loop-handle clamp torque.
  • Fuel and ignition: M5 filter housing/carburetor/spacer-flange nut: 2.6 / 3.5; IS-P5x20 tank housing/retainer: 1.5 / 2.0; IS-DG5x24 spacer flange/cylinder WITH BINDING HEAD: 4.4 / 6.0; M14x1.25 spark plug: 15.0 / 20.0.
  • Clutch and housing: IS-8-32 clutch drum/crankshaft: 3.0 / 4.0; 3/8-inch-24 carrier/crankshaft: 12.5 / 17.0; IS-DG5x24 engine housing/clutch-drum mounting: 1.5 / 2.0; IS-DG5x24 engine housing/shroud: 3.3 / 4.5; IS-DG5x24 engine housing/crankcase WITH BINDING HEAD: 5.9 / 8.0. Identical thread designations do not mean identical joint torques.
  • Exhaust: IS-DG5x60 muffler/cylinder: 6.6 / 9.0; IS-DG5x24 muffler/cylinder, catalytic-converter version: 6.6 / 9.0; printed M14x7 stub/muffler, version with spark-arresting screen in muffler, marked WITH BINDING HEAD: 7.5 / 10.0. The unusual printed thread and binding-head remark on that stub row are retained, not silently corrected.
  • Drive tube and starter: IS-DG5x12 centering drive tube/engine housing:3.0 / 4.0; IS-M5x8 clamp/drive tube/guide:5.9 / 8.0 (remarks2/3). IS-DG5x20Z rewind starter/crankcase:4.4 / 6.0; IS-DG5x20Z rewind starter/engine pan:4.4 / 6.0; M8x1 starter cup/crankshaft:10.3 / 14.0. The August1999 powerhead table instead gives17Nm for the starter cup; neither supersession nor a serial boundary is established.
  • Not assigned to FS46 by this table: IS-M6x25 loop-handle clamp/square nut3.3 / 4.5 carries remarks1/4/5, NOT remark2. Section10.2.2 refers to3.3 but does not repair this missing FS46 table binding. Do not transfer the FS55 clamp value merely because FS46 has a loop handle. Also exclude the four bike-handle rows, both T-model coupling rows and IS-M6x14 harness-ring clamp (remark1 only), and the9Nm engine-housing/crankcase row (remark5 HL45 only). The FS46 housing/crankcase row is8Nm WITH BINDING HEAD.
  • DG/P screws form permanent threads in polymer/light metal: use a torque wrench. For an existing thread turn counterclockwise until the screw drops slightly, then clockwise to specified torque, avoiding a new weakening thread. Polymer power-screwdriver limits are Plastoform maximum 600 rpm and DG maximum 500 rpm. Do not mix screws WITH and WITHOUT binding heads.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section3.3, printed5–6, complete table and remarks.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section3.3, printed5–6, complete table and remarks, PDF pages 1, 2, 3, 4, 6, 7

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: replacement shroud and reflector-foil seating

The 2003 replacement statement excludes HL 45 and requires the reflector foil to be correctly seated.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • The October 2003 manual says only the new shrouds with reflector foil for catalytic-converter units from 2003 are available as replacements for all machine versions EXCEPT HL 45. This is a dated service-supply statement, not a current-stock guarantee or an unnumbered universal fitment claim.
  • For FS46 use the illustrated LOOP-HANDLE branch: remove the shroud screws and lift off the shroud; install in reverse sequence. The adjacent bike-handle drawing is not an FS46 configuration authorization. No screw count or shroud part number is invented.
  • For the catalytic-converter version from 2003, check correct seating of the reflector foil before fitting the shroud. Its stated purpose is protection from high temperatures; the foil is not optional merely because the outer shroud fits.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 5.1, printed 13.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 5.1, printed 13, PDF pages 1, 2, 3, 4, 14

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: clutch wear limit, paired springs and matched washer

Keep the cup-spring-dependent washer thickness and the procedure/table locking-strip conflict explicit.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • Remove the engine via 5.3, remove the spark plug and block the piston with the PROCEDURE-listed locking strip 4221 893 5900. Section 11 of this same 2003 manual lists 0000 893 5903 instead. The discrepancy is therefore internal as well as cross-source; neither equivalence nor a safe substitute is established.
  • Use bit 0812 540 1112 to unscrew and remove the clutch drum. Inspect for scoring/excessive wear. If noticeable wear is present on its inside diameter, check WALL THICKNESS: replace when less than ABOUT 80% of original thickness. This is not an 80% diameter limit; no absolute wall thickness is supplied.
  • Engage wrench 4130 890 3600 pins in the clutch semicircular recesses and unscrew the clutch. Remove washer and spacer sleeve, and cup spring IF FITTED. When installing a NEW CLUTCH, also replace the washer:1.2 mm WITH cup spring,1.5 mm WITHOUT cup spring. Do not mix these stacks or infer a serial changeover.
  • Clutch shoes, carrier, springs, cup spring and required washer are supplied as a complete clutch assembly; the springs may be replaced but ALWAYS IN PAIRS. Push the carrier out of the shoes, then detach springs with hook 5910 890 2800. Refit springs as illustrated so they do not project sideways; hold the carrier angled, pull shoes slightly outward and press the carrier home to its stop.
  • Fit spacer sleeve, matched washer and cup spring if fitted on the crankshaft. Screw the clutch home with the arrow and OFF facing OUTWARDS. Keep the cup spring correctly seated so it cannot slip while installing. Tighten the clutch with 4130 890 3600 and the internal drum screw with 0812 540 1112 to the distinct 3.3 table values; reverse the remaining removal steps. Prior torque conflicts remain attributed, not resolved by this sequence.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 5.2, printed 13–15, complete clutch procedure.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 5.2, printed 13–15, complete clutch procedure; compared with section 11 tool table, printed 59, PDF pages 1, 2, 3, 4, 14, 15, 16, 60

Part numbers (4)
  • 4221 893 5900 — Procedure-listed locking stripSection 5.2 piston block; conflicts with section 11 number · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0812 540 1112 — Screwdriver bitRemove/tighten internal clutch-drum screw · FS 46 within October 2003 Components scope; actual component/configuration required
  • 4130 890 3600 — Clutch wrenchPins engage semicircular clutch recesses · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2800 — Clutch-spring hookDetach springs; replace springs in pairs · FS 46 within October 2003 Components scope; actual component/configuration required

Service note · FS 46

FS 46: engine housing and throttle-cable removal

Preserve the prerequisite removals, separate wires and no-kink routing for both tensioner types.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • First remove drive tube under10.1, shroud under5.1 and fuel tank under9.5.1. FS46 drive-tube, shroud and fuel-tank notes are now separately source-bound, including the tank retainer/starter-cover order and no-pinched-cable requirement. Existing FS55 fuel-tank acceptance is NOT transferred by implication. These prerequisites are not hardware execution or a complete standalone engine-removal instruction.
  • Disconnect short-circuit wire 1 and ground wire 2 from the ignition module. Disconnect throttle cable 1 from slotted pin 2 on the throttle lever. Ease the cable from the early tensioner, or from the guide of the illustrated other tensioner, WITHOUT KINKING the cable. No connector pinout or electrical identity beyond the named wires is inferred.
  • Take out screws 1 and remove the engine housing. The separately labeled screw 2 is to be REPLACED ONLY IF DAMAGED, not routinely renewed. Install in reverse sequence. The drawing distinguishes this screw from the housing-removal screws; it supplies no new part number or universal screw torque.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 5.3, printed 15–16.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 5.3, printed 15–16, PDF pages 1, 2, 3, 4, 16, 17, 50, 51

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: non-catalytic muffler and removable exhaust stub

Retain the new gasket, under-head sealant and conditional 15 mm removable-stub instructions.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • Before seeking engine faults, check and if needed repair fuel system, carburetor, air filter and ignition. This note is for the version WITHOUT catalytic converter; it does not authorize removing or converting a catalytic system.
  • Remove rewind-starter screws and the starter under 6.2. Remove muffler screws, muffler and exhaust gasket. Reassemble in reverse, using a NEW exhaust gasket and applying section 12 sealant to the UNDERSIDE OF THE SCREW HEAD before tightening to 3.3. Do not change this into an instruction to coat the whole screw thread.
  • Only on machines with a REMOVABLE STUB, with or without a spark-arresting screen: use a 15 mm wrench to unscrew the stub, clean the screen or fit a new stub if necessary. Clean the stub thread and coat it with sealant per 12, following the sealant maker’s instructions, then tighten to 3.3.
  • The stub operation delegates sealant choice to 12 without naming a product here. The section12 table separately assigns gray Dirko to the muffler guard and red Dirko HT to muffler screws; this is not proof of a specific stub-thread chemistry or curing time. No screen, stub or gasket number is printed in this procedure.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 5.4/5.4.1 and 6.2, printed 16–17/20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 5.4/5.4.1 and 6.2, printed 16–17/20; section 12 servicing-aids comparison, printed 60, PDF pages 1, 2, 3, 4, 17, 18, 21, 61

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: up-to-2003 catalytic muffler and exhaust-flow gasket

Kit 4140 140 0651 and the fragile gas-guiding gasket belong to this illustrated branch, not every FS 46.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • The catalytic converter in the muffler is described as maintenance-free; NEVER attempt repairs to the converter itself. Check fuel system, carburetor, air filter and ignition before engine fault-finding. Screen service below is not converter repair.
  • This section is labeled catalytic converter UP TO 2003. Remove the rewind starter under 6.2; undo muffler screws through the gasket openings. Remove muffler with gasket 2, then flange 3 and gasket 4. Gasket 2 controls EXHAUST GAS FLOW: do not pull, twist, knock or bend it. Replace it if damaged or deformed; do not treat it as a generic flat exhaust gasket.
  • If removing gasket 2, including for screen access, disengage it from its guide. To install, attach it to the muffler, with screws fitted BEFORE wrapping the gasket around the muffler. Clean sealing faces and use a NEW exhaust gasket. Position the preassembled muffler with flange and exhaust gasket; tighten screws through gasket holes to 3.3.
  • For screen access remove muffler and gasket, take out the retaining screw, pull the exhaust duct out of its guide and remove the screen. Clean the screen or replace as necessary; reverse removal steps. The branch says always use replacement muffler kit 4140 140 0651.
  • The adjacent from 2003 branch specifies 4140 140 0653 instead. The overlapping calendar-year headings are retained without inventing a date/serial boundary, interchange or a universal supersession between the kits.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 5.4/5.4.2 and 6.2, printed 16–18/20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 5.4/5.4.2 and 6.2, printed 16–18/20, PDF pages 1, 2, 3, 4, 17, 18, 19, 20, 21

Part numbers (1)
  • 4140 140 0651 — Catalytic muffler kitReplacement for section 5.4.2 up-to-2003 configuration · FS 46 within October 2003 Components scope; actual component/configuration required

Service note · FS 46

FS 46: from-2003 catalytic muffler, mat and screen

Kit 4140 140 0653 stays separate from the earlier kit and retains the specific solvent restriction.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • This branch says always use muffler kit 4140 140 0653 for catalytic-converter mufflers FROM 2003. It is not declared interchangeable with the up-to 2003 kit 4140 140 0651; no precise serial/date cutoff is printed. The converter itself is maintenance-free and must not be repaired.
  • Remove rewind starter under 6.2, then muffler screws. Remove muffler with gasket 2, then flange 3 and gasket 4. Remove the separately illustrated screws 1/2 and baffle plate 3. Remove insulating mat 1 and exhaust gasket 3, then take spark-arresting screen 2 out of the muffler. These numbers are local drawing callouts, not interchangeable part identities across illustrations.
  • Clean the screen with standard solvent-based degreasant containing NO chlorinated OR halogenated hydrocarbons; replace a damaged screen. Reassemble in reverse sequence. The TI 40 page 5 hydrogenated wording remains an unresolved source difference, not silently rewritten or approved as an alternative chemical specification.
  • The from 2003 catalytic shroud must have its reflector foil correctly seated per 5.1. The mat, baffle, flange, gaskets and screen remain distinct; the muffler kit number alone does not establish an enumerated kit inventory or authorize deleting any heat-protection component.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 5.4/5.4.3 and 6.2, printed 16/19–20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 5.4/5.4.3 and 6.2, printed 16/19–20, PDF pages 1, 2, 3, 4, 14, 17, 19, 20, 21

Part numbers (1)
  • 4140 140 0653 — Catalytic muffler kitReplacement for section 5.4.3 from-2003 configuration · FS 46 within October 2003 Components scope; actual component/configuration required

Service note · FS 46

FS 46: damaged starter spacer and retaining lugs

Remove the starter for access, release the spacer inward and confirm its lugs engage on reassembly.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • Always replace a damaged spacer. Remove the rewind-starter screws and starter under 6.2 for access. With a screwdriver, lever the spacer lug behind the starter-housing edge and push the spacer INWARDS to remove it.
  • Install in reverse sequence and check the lugs engage properly in the rewind-starter housing. The drawing supplies no spacer part number, adhesive or dimensional repair specification.
  • Spacer5.5 and starter removal/installation6.2 are this note's scope. Adjacent cleaning, rotor/spring/rope/pawl/guide-bush procedures now have separately bound FS46 notes, preserving their conflicts and configuration limits. This spacer is not the clutch spacer sleeve or carburetor spacer flange.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 5.5/6.2, printed 20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 5.5/6.2, printed 20, PDF pages 1, 2, 3, 4, 21

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: slow starter rewind and source cleaning guidance

Distinguish the manual’s cold-oil explanation from dirt/pitch disassembly, without treating a symptom as proof.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • The source says very stiff rope with slow/incomplete rewind can indicate an otherwise intact mechanism plugged with dirt; at very low temperatures thickened spring oil can make windings stick. These are attributed diagnostic suggestions, not a verified fault diagnosis for an individual machine.
  • For the cold/sticking case it specifies a few drops of standard solvent-based degreasant on the rewind spring, containing NO chlorinated OR halogenated hydrocarbons, then carefully pulling and allowing the rope to rewind several times until smooth. TI 40’s hydrogenated wording remains conflicting; no chemical substitute is inferred.
  • If clogged with dirt or pitch, remove and disassemble the entire starter including spring; take particular care when removing the spring. Clean per 12 and lubricate rewind spring and starter post with STIHL special lubricant before installation. The section12 reference is not a license to choose an unspecified lubricant or ignore the spring’s stored energy.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 6.1, printed 20.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 6.1, printed 20, PDF pages 1, 2, 3, 4, 21

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: starter cup, spring unloading and rope-rotor engagement

Unloading is clockwise; the installed rotor driver and counterclockwise-pointing spring clip have separate checks.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • For the starter cup: remove starter, unscrew spark plug and block piston using PROCEDURE-listed 4221 893 5900; unscrew the cup from the crankshaft and reassemble in reverse. Section 11 lists 0000 893 5903 instead; the internal locking-strip conflict and earlier starter-cup torque conflicts remain unresolved.
  • For rotor removal the rewind spring MUST NOT be under tension. The manual states a broken rope leaves it untensioned. Otherwise pull out about 20 cm of rope, hold rotor steady, engage rope in the rotor notch to make a loop, and turn rotor CLOCKWISE until spring tension is relieved. Do not confuse this unloading direction with counterclockwise tensioning under 6.6.
  • Remove spring clip, washer and pawl, then carefully lift rotor from post. Replace broken/worn rope under 6.7. Lubricate rotor bore per 12; fit rotor so its driver slips BEHIND THE INNER SPRING LOOP. Turn rotor slightly and release: it must spring back, confirming engagement.
  • Lubricate/refit pawl under 6.8; fit washer and clip into the starter-post groove. The clip must engage the pawl guide peg and point COUNTERCLOCKWISE. A deformed clip can prevent proper function, so handle it carefully. Tension under 6.6, then reinstall starter under 6.2.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 6.3/6.4, printed 21–22.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 6.3/6.4, printed 21–22; compared with section 11 tool table, printed 59, PDF pages 1, 2, 3, 4, 22, 23, 60

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: rewind spring geometry and seven-turn tensioning

Retain the 55 mm recoiling diameter, 2 mm loop clearance and half-turn reserve without overtensioning.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • Remove rotor under 6.4 with tension relieved; remove broken spring pieces from rotor/cover. Lubricate the new spring with a few drops of STIHL special lubricant. Set spring in starter with its outer loop pressed over the lug. It may POP OUT AND UNCOIL if the rotor is not installed carefully.
  • If it pops out, the source describes winding from INSIDE OUTWARDS to a 55 mm diameter, gripping with pointed-nose pliers ABOUT 10 mm from the end of the outer loop and placing it in the starter. The inner-loop-to-hub distance A must be NO MORE THAN 2 mm. These are different dimensions, not a spring part number or universal spring specification.
  • After fitting rotor, loop unwound rope in rotor notch, grip near rotor and turn SEVEN FULL TURNS COUNTERCLOCKWISE. Hold rotor, pull out and straighten rope with grip, hold grip firmly to maintain tension, then release rotor and slowly let grip return so rope winds onto rotor.
  • The grip must sit firmly in the guide bush without drooping; if not, add ONE TURN. With rope fully extended there must still be AT LEAST ANOTHER HALF TURN available before maximum spring tension. If not, pull rope out, hold rotor and TAKE OFF ONE TURN of rope. Do not overtension: the source warns this breaks the spring.
  • Check the illustrated plug in the fuel tank is in place before mounting starter and tightening screws to 3.3. This is a stated installation check, not proof of a plug function/part number or a fuel-system service completion.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 6.5/6.6, printed 22–23.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 6.5/6.6, printed 22–23, PDF pages 1, 2, 3, 4, 23, 24

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: starter rope knots, ElastoStart grip and pawl-only repair

Keep the optional spring-element grip separate and leave the rotor on its post during pawl replacement.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • Remove starter under 6.2. For broken rope remove remnants from rotor/grip; for worn rope first relieve spring tension under 6.4. Pull the rotor end out, undo its knot and remove rope from grip, housing and rotor. Thread new rope through rotor/housing, tie a SIMPLE OVERHAND KNOT and pull it into the rotor recess. Thread other end through standard grip and tie another simple overhand knot.
  • Only on ElastoStart-equipped machines, pass new rope through grip AND SPRING ELEMENT, tie simple overhand knot, pull rope and element into grip, then fit cap. Tension spring under 6.6 and reinstall starter. No rope diameter/length, grip retrofit, spring-element number or universal ElastoStart fitment is specified here.
  • For PAWL-ONLY replacement remove starter, ease clip off post and pull pawl from rotor; DO NOT PULL THE ROPE ROTOR OFF THE STARTER POST. Lubricate new pawl per 12 and fit. Push clip into post groove, engage pawl guide peg and orient clip COUNTERCLOCKWISE. Avoid deforming it: the source warns that deformation can impair starter function.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 6.7/6.8, printed 24.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 6.7/6.8, printed 24, PDF pages 1, 2, 3, 4, 25

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: rope guide-bush flaring and conflicting instructions

The procedure’s installing-tool number and opening instruction conflict with other sections; neither is silently corrected.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual configuration required. Exact TI40 launch revision not established.

  • Sideways rope pulling accelerates bush wear; its wall can wear through and the bush become loose. Section 6.9 opens with INSTALL THE REWIND STARTER, referencing 6.2, before describing internal disassembly. This opening is retained as printed, not silently changed to remove. It is inconsistent with the access implied by subsequent operations; do not use this transcription as a resolved standalone work sequence.
  • The text then removes remaining rope and rotor per 6.4, pulls the rope knot from its rotor recess, undoes it and withdraws rope from rotor/guide bush. Pry damaged bush from fan housing/starter cover with a suitable tool. The order/redundancy is reported as printed, not a fabricated corrected procedure.
  • Place replacement bush in its seat. Section 6.9 names installing tool 0000 890 2201; section 11 instead names 5910 890 2204 for installing/flaring this bush. This INTERNAL TOOL-NUMBER CONFLICT remains unresolved; no equivalence, supersession or substitute is approved.
  • The illustrated operation puts the spindle through the bush FROM INSIDE the housing, fits thrust sleeve TAPERED END FIRST and hex nut, then tightens until bush is firmly seated. The tool flares the LOWER END of the bush; remove tool, feed rope through bush FROM OUTSIDE and fit rope/rotor per 6.7/6.4. No tightening torque or bush part number is supplied.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed catalytic equipment, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number and solvent conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 6.9, printed 25, including original opening instruction.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 6.9, printed 25, including original opening instruction; compared with section 11 tool table, printed 59, PDF pages 1, 2, 3, 4, 26, 60

Part numbers (1)
  • 0000 890 2201 — Procedure-listed rope-bush installing toolSection 6.9 spindle/flaring operation; conflicts with section 11 number · FS 46 within October 2003 Components scope; actual component/configuration required

Service note · FS 46

FS 46: foam and felt filters require different cleaning

Wash only the optional foam filter; felt cleaning is temporary and damaged filters require replacement.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • Dirty air filters reduce power, increase fuel consumption and make starting harder. With noticeable power loss, check for a plugged filter. Before removing it, CLOSE THE CHOKE SHUTTER and remove loose dirt around the filter.
  • Wash the FOAM FILTER, IF FITTED, in a clean non-flammable solution such as soapy water, then dry it. The FELT FILTER must NOT be washed: replace it; as a TEMPORARY measure knock it on the palm of the hand or blow it clear with compressed air. Replace a heavily loaded felt filter and any damaged filter immediately. No compressed-air pressure limit is printed.
  • Press the filter-cover tab inward, swing the cover aside and take it off its housing lugs. Remove the prefilter IF FITTED from the cover, then the felt element. Reinstall in reverse sequence. Optional foam/prefilter wording does not establish a universal filter stack or a replacement part number.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 8/8.1/8.1.1, printed 37.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 8/8.1/8.1.1, printed 37, PDF pages 1, 2, 3, 4, 38

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: choke-shutter guide and new push nut

The shutter must seat in its lever guide; the housing-removal cross-reference remains explicit.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • Section 8.1.2 says REMOVE THE FILTER HOUSING and points to 8.1.1. That referenced section describes the cover/filter removal, whereas 8.2.2 explicitly removes housing nuts, housing and its gasket. This cross-reference mismatch is retained, not silently corrected or treated as proof that unclipping the cover removes the housing.
  • With the filter housing removed, remove push nut 1 and pull choke shutter 2 out of lever 3. Reinstall in reverse sequence, ensuring the shutter is properly located in the lever guide. USE A NEW PUSH NUT. The local drawing numbers are not orderable part numbers, and no shutter direction/setting beyond the illustrated guide is invented.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 8.1.2, printed 37; housing-removal comparison 8.2.2, printed 39.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 8.1.2, printed 37; housing-removal comparison 8.2.2, printed 39, PDF pages 1, 2, 3, 4, 38, 40

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: carburetor leakage test at approximately 0.8 bar

The approximately0.8 bar test requires a fuel-wetted carburetor; dry units have a separate0.35 bar limit. Keep pressure-hold interpretation separate from the tank-vent check.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Carburetors handbook leakage qualification now separately bound; exact TI40 launch revision and remaining handbook sections still unestablished.

  • For suspected fuel faults the manual points to troubleshooting4.3, now separately source-bound for FS46 with its alternative causes and retained lever-remedy discrepancy, and requires checking the tank vent under9.4 as well. This is the CARBURETOR PRESSURE test, not a crankcase or fuel-tank pressure specification, even though tester1106 850 2905 is named a carburetor and crankcase tester.
  • Remove the filter cover under 8.1.1 and disconnect the fuel hose from the carburetor elbow. Fit fuel line 1110 141 8600 to nipple 0000 855 9200, fit this line to the carburetor elbow, and connect the tester pressure hose to the nipple. Close the rubber-bulb vent screw and pump until the gauge reads APPROXIMATELY 0.8 bar.
  • If pressure remains CONSTANT, the manual calls the carburetor airtight. A pressure drop points to either an inlet needle not sealing (foreign matter, damaged sealing cone or sticking inlet control lever) or a damaged metering diaphragm; service the carburetor in either case. No numerical hold time, allowed decay, pop-off pressure or unique diagnosis is specified.
  • After the test OPEN THE VENT SCREW before pulling off the test line. Reconnect the machine fuel hose to the elbow and reverse remaining assembly steps; use a new gasket if necessary. Carburetor internals/settings 9.1–9.3 are now separately source-reviewed in the linked carburetor notes; this test description still does not establish a completed repair.
  • Separate Carburetors handbook7.1, now bound in the FS46 dry/wetted-pressure note, qualifies the approximately0.8 bar test: passages/sealing points must be fuel-wetted and diaphragms moist; DRY carburetors must not exceed0.35 bar(5 psi), and the wetted test must not exceed1 bar(14.5 psi). This is not a pop-off measurement. No hold time or permitted pressure decay is supplied. Keep the handbook qualification with this Components test; exact handbook revision remains unknown.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 8.2/8.2.1, printed 38.

Manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 8.2/8.2.1, printed 38, PDF pages 1, 2, 3, 4, 39 · Carburetors (publication revision unestablished; ©1999), section 7.1 printed25, PDF pages 1, 2, 25

Part numbers (3)
  • 1106 850 2905 — Carburetor and crankcase testerPressure test of carburetor only in this section · FS 46 within October 2003 Components scope; actual component/configuration required
  • 1110 141 8600 — Test fuel lineConnect nipple to carburetor elbow · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0000 855 9200 — Test nippleJoin test fuel line and tester pressure hose · FS 46 within October 2003 Components scope; actual component/configuration required

Service note · FS 46

FS 46: carburetor removal and hose orientation

Use a new gasket, avoid kinks and point the hose bead toward the drive tube.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • Remove the air filter under 8.1.1. Use screwdriver 5910 890 2420 to remove the housing nuts, then remove the filter housing and the gasket behind it. Disconnect the throttle cable from the slotted pin on the carburetor throttle lever and disconnect the fuel hoses from the elbow connectors.
  • Pull the carburetor off the screws and remove its gasket. Install in reverse sequence using a NEW GASKET. Route the fuel hoses WITHOUT KINKS. The explicit FS 45/46/55 branch directs the orientation bead on the fuel hose TOWARDS THE DRIVE TUBE when fitted to the carburetor elbow.
  • The tool number is not a carburetor, gasket or machine-hose part number. The carburetor gasket and filter-housing gasket remain distinct locations; no universal gasket inventory, hose length or carburetor suffix is inferred.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 8.2.2, printed 39; filter prerequisite 8.1.1.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 8.2.2, printed 39; filter prerequisite 8.1.1, PDF pages 1, 2, 3, 4, 38, 40

Part numbers (1)
  • 5910 890 2420 — ScrewdriverRemove filter-housing nuts for carburetor access · FS 46 within October 2003 Components scope; actual component/configuration required

Service note · FS 46

FS 46: spacer flange with secured or loose cable tensioner

Retain both tensioner arrangements, new gaskets and the preinstalled hex-head screws.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • First remove the carburetor under 8.2.2 and fuel tank under 9.5.1. On the PIN-AND-PUSH-NUT tensioner version, pull the throttle cable out of the tensioner, remove the screws and lift off the flange with tensioner and hex-head screws. If needed, lever off the push nut and remove the tensioner; reinstall with a NEW PUSH NUT.
  • On the LOOSELY MOUNTED tensioner version, pull tensioner WITH THROTTLE CABLE out of the flange, remove its screws and remove the flange with hex-head screws. These are configuration branches, not serial cutoffs or interchangeable tensioners.
  • Remove the gasket. Fit the hex-head screws IN THE SPACER FLANGE BEFORE INSTALLING it. Reverse remaining steps, use NEW GASKETS and observe the separately admitted section 3.3 torques. This intake spacer flange is not the starter spacer or clutch spacer sleeve.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 8.2.3, printed 40; fuel-tank prerequisite 9.5.1, printed 49–50.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 8.2.3, printed 40; fuel-tank prerequisite 9.5.1, printed 49–50, PDF pages 1, 2, 3, 4, 41, 50, 51

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: tank-vent vacuum decay and integrated filler cap

Slowly disappearing vacuum indicates venting; unchanged vacuum calls for cap replacement.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • The tank vent equalizes internal tank and atmospheric pressure. Check it when carburetor or fuel-supply trouble occurs. Open the cap SLOWLY, drain the tank and refit the cap tightly. Disconnect BOTH fuel hoses at the carburetor, plug one with a suitable plug and connect vacuum pump 0000 850 3501 to the other.
  • Operate the pump quickly to produce a vacuum. If vacuum remains UNCHANGED, replace the tank vent; if it SLOWLY DISAPPEARS, the manual says the vent is in order. No numerical vacuum level or decay interval is printed. This is deliberately the opposite hold interpretation from the carburetor pressure test; do not use the 0.8-bar carburetor value here.
  • On these machines the vent is INTEGRATED IN THE FUEL FILLER CAP. If the test shows no pressure equalization, replace the CAP. As a TEMPORARY measure only, the cap may be disassembled and individual parts cleaned with a little solvent-based degreasant containing NO chlorinated OR halogenated hydrocarbons, referring to section 12. The earlier TI hydrogenated wording remains an unresolved difference.
  • The exploded drawing identifies cap 1, valve body 2, sintered filter 3, fuel filler cap 4, cup spring 5, sintered filter 6, valve 7 and sealing ring 8. Keep the two filters and two differently named caps distinct. These are drawing callouts, not a replacement-parts list or cap kit number. The adjacent left-column limiter-cap procedure9.3.3 is separately bound in the FS46 basic-cap note; it is not a vent instruction.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 9.4/9.4.1/9.4.2, printed 48 middle/right columns; left column 9.3.3 remains pending.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 9.4/9.4.1/9.4.2, printed 48 middle/right columns; left column 9.3.3 remains pending, PDF pages 1, 2, 3, 4, 49

Part numbers (1)
  • 0000 850 3501 — Vacuum pumpTest fuel-tank vent through one hose with the other plugged · FS 46 within October 2003 Components scope; actual component/configuration required

Service note · FS 46

FS 46: fuel-tank removal, supports and retainer sequence

Seat the support plugs over their lugs and tighten the retainer only after the starter cover is installed.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • The diaphragm pump draws fuel through the pickup-body filter; clogged fine pores restrict flow and can cause starvation. For supply trouble check the tank and pickup body first, cleaning the tank if needed. Follow section 2 fuel precautions. The stated tank-cleaning method is drain, add a SMALL amount of clean gasoline, close the cap, shake the machine vigorously, reopen and drain; dispose of fuel properly. No solvent substitution, volume or agitation duration is specified.
  • For removal, unscrew the filler cap and drain the tank, remove the air-filter cover, disconnect the fuel hoses at the carburetor elbows, remove the rewind starter under 6.2 and remove the tank. Remove the support plugs from the tank and replace worn plugs.
  • Remove retainer screw 1 and retainer 2; pull out sleeve 1 and remove grommet 2 in the NEXT drawing. Remove the hoses under 9.5.2. These are local illustration callouts, not the same numbered components across drawings.
  • Reassemble in reverse sequence. The support PLUGS MUST ENGAGE OVER THE LUGS, and the throttle cable must NOT BE PINCHED. Tighten the retainer screw ONLY AFTER INSTALLING THE STARTER COVER; the continuation on printed 50 shows the retainer screw being tightened. No tank, plug, sleeve, grommet or screw part number is supplied.
  • This note closes the source-reading prerequisite 9.5.1 previously left pending in the engine-housing-removal note. It does not claim hardware execution, a leak-free repair or closure of separate handbook dependencies. The available August1999 powerhead is now separately source-reviewed.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 9.5/9.5.1, printed 49–50, including PDF51 left-column continuation.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 9.5/9.5.1, printed 49–50, including PDF51 left-column continuation, PDF pages 1, 2, 3, 4, 50, 51

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: pickup-body inspection and grommet installation

Keep oil on the lower grommet half and the hose orientation bead toward the drive tube.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • Remove the tank under 9.5.1, pry the grommet out of the tank housing and pull out the fuel hoses WITH the pickup body. Pull the pickup body off its hose, inspect it for contamination and replace if necessary. No filter mesh rating, service interval or pickup-body part number is printed.
  • Reassemble in reverse sequence. Coat only the LOWER HALF OF THE GROMMET with oil to ease insertion; no oil product or quantity is specified. At the carburetor elbow position the fuel hose so its ORIENTATION BEAD POINTS TOWARDS THE DRIVE TUBE. This agrees with the explicit FS 45/46/55 branch in 8.2.2 and is not a hose-length or universal fitment claim.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 9.5.2, printed 50; tank removal prerequisite 9.5.1.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.5.2, printed 50; tank removal prerequisite 9.5.1, PDF pages 1, 2, 3, 4, 40, 50, 51

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: pump diaphragm, gasket and fuel strainer

Preserve the pump-side stack and end-cover locating pegs.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • Remove the carburetor under 8.2.2, take out the end-cover screw, remove the end cover, gasket and pump diaphragm. If gasket and diaphragm stick together, separate them VERY CAREFULLY. Inspect both and replace if necessary; distortion or swelling from fatigue requires diaphragm replacement.
  • Inspect the fuel strainer for contamination and damage, replacing if necessary. Reverse the removal sequence. The diagram places the GASKET BETWEEN END COVER AND PUMP DIAPHRAGM; the cover pegs locate both pieces. Do not transfer the metering-side gasket/diaphragm stack to this pump side. No diaphragm, gasket, strainer kit number or mesh size is supplied.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 9.1, printed 41 left/middle columns.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.1, printed 41 left/middle columns, PDF pages 1, 2, 3, 4, 42

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: oval and square manual-fuel-pump covers

Keep the two cover designs and oval-cover screw lengths separate.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • For BOTH designs first perform the leakage test under 8.2 and remove the carburetor under 8.2.2. For the OVAL END COVER, remove the M3x12 screws and end cover with cap, then the M3x8 screws and flange; take the cap out of the cover. Inspect metering diaphragm and gasket under 9.2.2 and reassemble in reverse sequence. Additional gasket/diaphragm holes, IF PRESENT, must align with holes in the carburetor and flange. The oval-cover continuation literally points to9.2.2 for diaphragm inspection; the square-cover continuation prints the same reference. Neither branch supplies a carburetor model assignment.
  • For the SQUARE END COVER, remove its screws and end cover with cap, take the cap out, then remove the flange. Inspect the metering diaphragm and gasket under 9.2.2 and reverse the sequence. This branch prints NO screw lengths; do not copy the oval-cover lengths into it. Neither cover shape establishes a carburetor suffix, serial boundary or interchangeable primer-bulb kit.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Sections 9.2/9.2.1, printed 41 right column through 42.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Sections 9.2/9.2.1, printed 41 right column through 42, PDF pages 1, 2, 3, 4, 42, 43

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: metering diaphragm and compensating bore

Place the gasket on the body, then the diaphragm, with both holes aligned.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • Remove the flange by the matching OVAL (9.2) or SQUARE (9.2.1) manual-pump procedure, not both in succession. Remove metering diaphragm and gasket from the body; separate stuck pieces carefully. Inspect and replace as necessary; a fatigued, distorted or swollen diaphragm must be replaced.
  • Fit the GASKET ON THE CARBURETOR BODY, aligning its hole with the compensating bore. Place the METERING DIAPHRAGM ON THE GASKET, again aligning its hole with the bore and gasket. Reassemble remaining parts in reverse sequence. The holes are functional passages, not optional locating marks; no hole diameter or diaphragm part number is inferred.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 9.2.2, printed 43 left/middle columns.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.2.2, printed 43 left/middle columns, PDF pages 1, 2, 3, 4, 44

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: inlet needle wear and flush control lever

Retain the loose spring and align the lever with the carburetor-body top.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • Remove the metering diaphragm under 9.2.2 and the retaining screw, then inlet control lever, spindle, spring and needle. The SPRING MAY POP OUT and must not be lost. An ANNULAR INDENTATION on the needle sealing cone requires replacement because the needle will no longer seal properly.
  • Reassemble in reverse sequence. Engage the clevis in the annular groove on the needle head, locate the helical spring on the control-lever nipple and check that the lever moves freely. The UPPER EDGE OF THE LEVER MUST BE FLUSH WITH THE TOP OF THE CARBURETOR BODY; reinstall the metering diaphragm. No numeric lever height, spring preload, bending method or gauge is supplied.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 9.2.3, printed 43 right column through 44 left column.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.2.3, printed 43 right column through 44 left column, PDF pages 1, 2, 3, 4, 44, 45

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: fixed-jet access retains printed carburetor designations

The two illustrations have distinct suffix lists; neither assigns jet size or universal FS 46 fitment.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • Remove the metering diaphragm under 9.2.2 and avoid damaging the fixed jet. The upper illustration is explicitly for C1Q-S44A, C1Q-53A, C1Q-S58 ONLY; the lower is for C1Q-S44, C1Q-S53, C1Q-S66 ONLY. Each directs unscrewing the fixed jet and reversing the sequence for installation.
  • The upper list visibly prints C1Q-53A WITHOUT S after the hyphen. Preserve that spelling as a source discrepancy; do not silently normalize it to C1Q-S53A or assert that either is the installed FS 46 carburetor. The lists describe this multi-model manual branch, not an assignment of every listed carburetor to FS 46. No jet bore, jet order number, tightening torque or suffix interchange is given.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 9.2.4, printed 44 middle column.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.2.4, printed 44 middle column, PDF pages 1, 2, 3, 4, 45

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: LD-only carburetor setting and idle branches

LD is left-hand threaded; exclude the different hedge-trimmer idle offsets.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • This branch has LD only, with NO H or L mixture screws. For the standard setting carefully turn LD COUNTERCLOCKWISE onto its seat (LEFT-HAND THREAD), then TWO FULL TURNS CLOCKWISE. Check the air filter and spark-arresting screen, replacing/cleaning as specified. For FS units fit an approved cutting tool; nylon lines must reach the deflector line-limiter blade.
  • After the standard setting start and warm the engine. If it stops while idling, turn LD slowly CLOCKWISE until smooth running; the FS cutting tool MUST NOT ROTATE. If the FS tool rotates at idle, turn LD COUNTERCLOCKWISE until it stops, then ABOUT ONE MORE TURN in that direction. For erratic idle/poor acceleration turn LD slowly NO MORE THAN HALF A TURN COUNTERCLOCKWISE.
  • The separate HL instructions (clockwise until blades run then back half a turn, or counterclockwise until blades stop then another one and a half turns) are EXCLUDED from this FS 46 note. No numeric idle rpm or maximum engine speed appears in this section. These later settings do not resolve any conflicting earlier source setting.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 9.3.1, printed 44 right column through 45 middle column.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.3.1, printed 44 right column through 45 middle column, PDF pages 1, 2, 3, 4, 45, 46

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: capped H/L/LA standard setting and fine correction

Keep standard setting separate from cap-off basic setting, and preserve the L/LA wording discrepancy.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • For STANDARD SETTING DO NOT REMOVE THE H LIMITER CAP. Check the air filter and spark-arresting screen; for FS fit an approved cutting tool with nylon lines reaching the deflector line-limiter blade. Turn H COUNTERCLOCKWISE to the stop, NO MORE THAN 3/4 TURN. Carefully seat L clockwise, then open it ONE FULL TURN COUNTERCLOCKWISE. Warm the engine and use LA so that the tool DOES NOT ROTATE.
  • For fine tuning first perform the standard setting, warm the engine and open the throttle wide. At HIGH ALTITUDE turn H clockwise (leaner); at SEA LEVEL turn H counterclockwise (richer), in either case NO FURTHER THAN THE STOP and until no noticeable speed increase. The source notes that the standard setting may already yield highest rpm. No numeric speed target or permission to defeat the stop is supplied.
  • The idle subsection on printed 46 says "Open the idle speed screw (L) one full turn", while the same page calls L the LOW SPEED screw and LA the IDLE SPEED screw. Retain this naming discrepancy; do not silently reinterpret it as one turn of LA. The earlier standard-setting text explicitly seats and opens L.
  • If the engine stops at idle, turn LA slowly clockwise until smooth running without tool rotation. If the tool runs at idle, turn LA counterclockwise until it stops, then ABOUT ANOTHER HALF TO ONE FULL TURN. Erratic idle WITH POOR ACCELERATION is described as too lean: turn L about a quarter turn counterclockwise until smooth. The separate too-rich erratic-idle branch turns L about a quarter turn clockwise. LA usually needs readjustment after each L correction; the symptom is not a unique diagnosis.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 9.3.2, printed 45 right column through 46.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.3.2, printed 45 right column through 46, PDF pages 1, 2, 3, 4, 46, 47

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: basic H/L setting and short versus long limiter caps

Use a new cap; short caps stop at the second detent, long caps against the body.

No exact-model IPL link: FS46 explicitly named in October2003 Components introduction; actual carburetor/configuration required. Exact TI40 launch revision and separate handbook binding remain pending.

  • The source limits H-cap removal to replacing the H screw, cleaning the carburetor or adjusting from scratch; removal requires the BASIC setting. For a SHORT cap, insert puller 5910 890 4501 with its groove facing the operator between cap and body and pry off; if stuck, reverse the puller groove toward the body and pry. For a LONG cap use suitable pliers. Removed caps may be damaged and MUST NOT BE REUSED; always fit a new cap.
  • With the cap removed, seat H and L clockwise, then open H ONE AND A HALF TURNS COUNTERCLOCKWISE and L ONE FULL TURN COUNTERCLOCKWISE. These basic settings are distinct from capped standard H adjustment within 3/4 turn, not additive turns beyond the cap stop.
  • SHORT CAP: align the new H cap against the rich stop and press ONLY TO THE SECOND NOTICEABLE DETENT. Its stop limits adjustment to 3/4 turn (270 degrees). DO NOT PRESS AGAINST THE CARBURETOR BODY, which would damage it. Then perform the standard setting under 9.3.2.
  • LONG CAP: align the new H cap against the rich stop so H can turn only 3/4 turn CLOCKWISE, then push it UNTIL IT BUTTS AGAINST THE CARBURETOR BODY. Then perform the standard setting under 9.3.2. This opposite seating instruction is intentional configuration branching, not permission to interchange cap types or reuse a cap. No cap part number or serial boundary is printed.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 workshop dependency: Section 9.3.3, printed 47 through 48 left column.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 9.3.3, printed 47 through 48 left column, PDF pages 1, 2, 3, 4, 48, 49

Part numbers (1)
  • 5910 890 4501 — Limiter-cap pullerShort H limiter-cap removal only; groove orientation depends on whether cap is stuck · FS 46 only with the described carburetor/cap configuration; October 2003 Components evidence

Service note · FS 46

FS 46: component tools and the conflicting clamp reference

Seventeen numbered tool rows plus two explicit wrench alternatives; introduction and tool-table clamp numbers remain attributed.

No exact-model IPL link: FS46 explicitly named in October2003 Components; conditional configuration and exact-later-edition evidence, not exact TI40 launch revision or external handbook acceptance.

  • The 17 numbered tool rows and two explicit torque-wrench alternatives are represented below. Torque wrench 5910 890 0301 covers 0.5–18 Nm; 5910 890 0311 covers 6–80 Nm. Remarks 2/3 allow corresponding optical/acoustic-signal alternatives 5910 890 0302 and 5910 890 0312. Always use a torque wrench to tighten DG or P screws.
  • T-handle Q-T27x150 screwdriver 5910 890 2400 is ONLY for releasing/removing DG or P screws, not tightening them. The T27x125 socket is also listed for torque-wrench tightening. The two hooks have different jobs: clutch springs versus fuel pickup body. The installing tool flares the starter-rope guide bush; it is not a shaft-liner installation tool.
  • Printed 59 lists assembly stand 5910 890 3100 and drive-tube clamp 5910 890 8800. The same manual’s printed 2 introduction instead prints 5910 890 3100 for BOTH stand and clamping fixture. This internal conflict is retained; no correction, substitution or physical compatibility is established. Its mounting instruction specifies two washers and two M8 nuts, without torque or washer size.
  • The component locking strip is 0000 893 5903; the separately admitted August1999 powerhead roster lists 4221 893 5900. The different source numbers are not declared equivalent or superseding. A roster alone does not establish a complete safe repair procedure.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 dependency: Section11, printed59, complete tool table/remarks; introduction printed2.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section11, printed59, complete tool table/remarks; introduction printed2, PDF pages 1, 2, 3, 4, 60

Part numbers (19)
  • 0000 893 5903 — Locking stripBlock crankshaft · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0812 540 1112 — SocketSpline socket-head screws with electric/pneumatic screwdrivers; remove clutch drum · FS 46 within October 2003 Components scope; actual component/configuration required
  • 4130 890 3600 — WrenchUnscrew/tighten clutch, FS units · FS 46 within October 2003 Components scope; actual component/configuration required
  • 1106 850 2905 — Carburetor and crankcase testerTest crankcase and carburetor for leaks · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0000 855 9200 — NippleTest carburetor for leaks · FS 46 within October 2003 Components scope; actual component/configuration required
  • 1110 141 8600 — Leakage-test hoseTest carburetor for leaks · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2420 — Q-SW8x200 screwdriverCarburetor nuts · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 8210 — Crimping toolAttach electrical-wire connectors · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 0301 — Torque wrench0.5–18 Nm · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 0311 — Torque wrench6–80 Nm · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0812 542 2104 — T27x125 socketSpline socket-head screws; torque-wrench tightening · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2400 — Q-T27x150 T-handle screwdriverRelease/remove DG/P screws ONLY · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 3100 — Assembly standMount FS units; conflicting introduction also calls this the clamp · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 8800 — ClampHold FS drive tube with stand; section11 value conflicts with introduction · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2800 — HookDetach springs from clutch shoes · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 893 8800 — HookRemove fuel pickup body · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 2204 — Installing toolInstall and flare rope guide bush · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 0302 — Alternative torque wrench0.5–18 Nm; optical/acoustic signal · FS 46 within October 2003 Components scope; actual component/configuration required
  • 5910 890 0312 — Alternative torque wrench6–80 Nm; optical/acoustic signal · FS 46 within October 2003 Components scope; actual component/configuration required

Service note · FS 46

FS 46: component sealants, lubricants and press fluid

Retain each printed application and the solvent-wording conflict; blank table cells are not inferred applications.

No exact-model IPL link: FS46 explicitly named in October2003 Components; conditional configuration and exact-later-edition evidence, not exact TI40 launch revision or external handbook acceptance.

  • Dirko gray 0783 830 2120 is listed as a 100 g tube for the GUARD ON MUFFLER; Dirko HT red 0783 830 2000 is for MUFFLER SCREWS. These distinct jobs do not replace TI40’s engine-pan/cylinder sealing-face application for its Dirko entry. This roster does not specify a bead, curing time or universal screw-sealing requirement.
  • Special lubricating oil0781 417 1315 is for the rope-rotor bearing bore and rewind spring. Hedge-trimmer gear lubricant appears as80g0781 120 1109 and225g0781 120 1110 with a BLANK application cell in this table. The FS46 drive-shaft note has its own attributed application. Do not infer brushcutter gearbox use, or resolve TI40's differently numbered grease packages, from that blank cell.
  • Lubricating grease 0781 120 1111 is listed for the needle bearing in the bushing of the driver in the drive tube. This is component-conditional, not proof every plain FS46 has that driver/bearing. The table prints “greaset”; no new grease grade is inferred. OH723 press fluid 0781 957 9000 is listed for installing AV-system rubber elements, not proof of a particular FS46 AV assembly.
  • The unnumbered commercial solvent-based degreasant is for cleaning sealing faces and must contain NO chlorinated OR halogenated hydrocarbons. TI40 page5 instead prints hydrogenated hydrocarbons. Both wordings remain attributed and unresolved; no substitute chemical, product number or interchange approval is invented.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 dependency: Section12, printed60, complete servicing-aids table.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section12, printed60, complete servicing-aids table, PDF pages 1, 2, 3, 4, 61

Part numbers (7)
  • 0783 830 2120 — Dirko gray sealant, 100 g tubeGuard on muffler · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0783 830 2000 — Dirko HT red sealantMuffler screws · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0781 417 1315 — STIHL special lubricating oilRope-rotor bearing bore and rewind spring · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0781 120 1109 — Hedge-trimmer gear lubricant, 80 g tubeApplication cell blank in section12 · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0781 120 1110 — Hedge-trimmer gear lubricant, 225 g tubeApplication cell blank in section12 · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0781 120 1111 — STIHL lubricating greaseNeedle bearing in drive-tube driver bushing, where fitted · FS 46 within October 2003 Components scope; actual component/configuration required
  • 0781 957 9000 — STIHL OH723 press fluidAV-system rubber-element installation, where fitted · FS 46 within October 2003 Components scope; actual component/configuration required

Service note · FS 46

FS 46: clutch symptoms do not uniquely identify the fault

Separate load slip, idle rotation and noise; exclude the hedge-trimmer blade lock.

No exact-model IPL link: FS46 explicitly named in October2003 Components; conditional configuration and exact-later-edition evidence, not exact TI40 launch revision or external handbook acceptance.

  • TOOL STOPS AT FULL THROTTLE UNDER LOAD: badly worn clutch shoes lead to new shoes or a new clutch; a badly worn drum leads to drum replacement. TOOL RUNS AT IDLE: excessive idle speed leads to counterclockwise idle-screw adjustment; stretched/fatigued clutch springs or broken spring hooks lead to new springs. Select LD or LA through the separately reviewed carburetor branch, not a mixture screw.
  • LOUD NOISES: stretched/fatigued springs lead to replacing ALL clutch springs; a broken shoe retainer/carrier leads to a new retainer/carrier or clutch; worn shoes AND carrier lead to a new clutch. These alternatives are not a parts-kit inventory or confirmed fault.
  • The final two rows concern HEDGE-TRIMMER BLADES moving at starting throttle with the blade lock engaged: broken tension spring or stretched/worn/broken brake band. Those blade-lock branches are EXCLUDED from FS 46, not evidence that its cutting head has that lock.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 dependency: Section 4.1, printed 7.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.1, printed 7, PDF pages 1, 2, 3, 4, 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: starter faults retain distinct causes and remedies

Differentiate broken rope/spring, no crankshaft motion and slow rewind.

No exact-model IPL link: FS46 explicitly named in October2003 Components; conditional configuration and exact-later-edition evidence, not exact TI40 launch revision or external handbook acceptance.

  • BROKEN ROPE: excessive pull to the stop or over an edge rather than vertically, OR normal wear; both call for a new rope. BROKEN REWIND SPRING: overtension with no reserve at full rope extension, OR heavy dirt/corrosion; both call for a new spring. The table supplies no tension-turn count; use the separate starter procedure.
  • ROPE PULLS ALMOST WITHOUT RESISTANCE AND CRANKSHAFT DOES NOT TURN: worn pawl guide peg or pawl calls for a new pawl; a fatigued spring clip calls for a new clip. These two causes are not the same component.
  • HARD PULL AND VERY SLOW REWIND: a very dirty mechanism calls for thorough cleaning; oil becoming viscous in very cold conditions and sticking spring windings calls for coating the spring with solvent-based degreasant containing NO chlorinated OR halogenated hydrocarbons, then pulling carefully several times until normal action returns. No temperature threshold is printed. Retain the earlier TI hydrogenated-versus-halogenated wording conflict.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 dependency: Section 4.2, printed 8.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.2, printed 8, PDF pages 1, 2, 3, 4, 9

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: idle stall and load-power fault alternatives

Keep blocked passages, mixture settings, supply leaks and linkage checks separate.

No exact-model IPL link: FS46 explicitly named in October2003 Components; conditional configuration and exact-later-edition evidence, not exact TI40 launch revision or external handbook acceptance.

  • ENGINE STALLS AT IDLE: blocked idle-jet bores/ports call for cleaning and compressed-air clearing; an L setting too rich OR too lean calls for correctly resetting L; an incorrect LA setting closing the throttle shutter completely calls for correctly resetting LA. These L/LA branches apply ONLY WHERE THOSE SCREWS EXIST, not to an LD-only carburetor; no air-pressure limit is printed.
  • SPEED DROPS QUICKLY UNDER LOAD / LOW POWER: plugged air filter calls for cleaning or replacement; faulty tank vent for a new vent; a leak between tank and fuel pump for sealed/renewed connections and fuel line; damaged/fatigued pump diaphragm for a new diaphragm; blocked main-jet bores/ports for cleaning; dirty pickup body for a new pickup body; H too rich for correct H setting; shutter not fully open for a linkage check.
  • The generic filter-cleaning row does NOT override section8.1: FELT MUST NOT BE WASHED, foam cleaning depends on its presence, and heavily loaded/damaged filters need replacement. The generic vent row does NOT invent a separate replaceable vent: section9.4 locates it IN THE FILLER CAP. No unique diagnosis, universal H/L settings or parts interchange follows from this table.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 dependency: Section 4.3, printed 9; specific filter and vent procedures 8.1/9.4, printed 37/48.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.3, printed 9; specific filter and vent procedures 8.1/9.4, printed 37/48, PDF pages 1, 2, 3, 4, 10, 38, 49

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: poor acceleration has seven listed fuel causes

Retain capped richening limits and the flush-to-body lever datum.

No exact-model IPL link: FS46 explicitly named in October2003 Components; conditional configuration and exact-later-edition evidence, not exact TI40 launch revision or external handbook acceptance.

  • For POOR ACCELERATION the source lists seven alternatives: idle jet too lean (turn L counterclockwise/richer NO FURTHER THAN STOP); main jet too lean (turn H counterclockwise/richer NO FURTHER THAN STOP); inlet lever too low (set it FLUSH WITH TOP OF CARBURETOR BODY); inlet needle sticking to its seat (remove, clean and refit); blocked atmospheric connecting bore (clean it); leaking diaphragm gasket (new gasket); damaged/shrunken metering diaphragm (new diaphragm). H/L actions apply only to equipped carburetors.
  • The separate WILL NOT IDLE / IDLE TOO HIGH row attributes this to the idle-speed screw holding the shutter too far open and calls for correct idle-speed resetting. No rotation offset is specified here; retain the separate LD/LA procedures.
  • The next printed page lists the same INLET CONTROL LEVER TOO LOW wording under FLOODING but calls for a NEW LEVER rather than flush-height adjustment. Keep both symptom-specific rows and their different remedies visible; do not silently change either too-low statement to too-high or collapse them into one confirmed diagnosis.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 dependency: Section 4.3, printed 10; comparison with flooding table printed 11.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.3, printed 10; comparison with flooding table printed 11, PDF pages 1, 2, 3, 4, 11, 12

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: flooding table preserves a lever-remedy discrepancy

Five possible causes are listed; the low-lever replacement row is not silently corrected.

No exact-model IPL link: FS46 explicitly named in October2003 Components; conditional configuration and exact-later-edition evidence, not exact TI40 launch revision or external handbook acceptance.

  • CARBURETOR FLOODS / ENGINE STALLS: a non-sealing inlet needle from foreign matter in the seat or damaged cone calls for needle removal/cleaning or replacement, plus cleaning tank, pickup body and line IF NECESSARY. Lever sticking on its spindle calls for freeing it. Spring not on the lever nipple calls for lever removal and correct refit. A deformed diaphragm perforated disc constantly pressing the lever calls for a new metering diaphragm.
  • The fifth row explicitly says INLET CONTROL LEVER TOO LOW relative to correct position and prescribes a NEW INLET CONTROL LEVER. Printed10 instead associates a too-low lever with poor acceleration and prescribes setting it flush with the body. This different remedy/association is preserved as printed, without silently substituting too-high or treating the symptom alone as proof of which remedy is needed. No spring preload, lever part number or adjustment gauge is supplied.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 dependency: Section 4.3, printed 11; poor-acceleration comparison printed 10.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.3, printed 11; poor-acceleration comparison printed 10, PDF pages 1, 2, 3, 4, 11, 12

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: engine fault checks preserve powerhead prerequisites

Check air, fuel, carburetor and ignition before attributing symptoms to the engine.

No exact-model IPL link: FS46 explicitly named in October2003 Components; conditional configuration and exact-later-edition evidence, not exact TI40 launch revision or external handbook acceptance.

  • BEFORE LOOKING FOR ENGINE FAULTS always check and repair if needed: air filter, fuel system, carburetor and ignition. Ignition is explicitly footnoted to the separate SERIES4140 POWERHEAD manual; the applicable powerhead procedures are now separately source-reviewed in the FS46 cylinder/piston, crankshaft/seal, leakage and ignition notes. Reading this table alone still does not provide those procedures or establish a repair.
  • HARD START / STALL AT IDLE BUT NORMAL FULL THROTTLE: faulty crankcase oil seals call for new seals; leaking/cracked crankcase calls for sealing/replacement; leaking muffler calls for sealing/replacement. Oil-seal and crankcase remedies are footnoted to the powerhead manual, not standalone procedures here.
  • LOW POWER OR ERRATIC RUNNING: worn/broken piston rings call for new rings (powerhead-manual footnote); carbonized muffler/spark-arresting screen calls for cleaning muffler inlet/outlet openings and replacing the screen; dirty air-filter element calls for a new element; kinked/cracked fuel or impulse lines call for new lines or kink-free routing. No ring count or model-specific seal/line part number is inferred.
  • OVERHEATING: blocked fan-housing air inlets or very dirty cylinder fins causing insufficient cooling call for thoroughly cleaning ALL cooling-air passages and fins. No temperature limit, measured diagnosis or authorized engine run is established.
  • October2003 Components introduction explicitly names FS46 and says unqualified procedures are common within its named scope. These later configuration-specific notes do not establish the exact TI40/1999 launch edition, installed carburetor suffix, serial cutoff, C/R/RC/T/2-MIX applicability, current attachment approval or physical interchange. TI40 delegates carburetor servicing to a separate handbook: the later Components chapter does not close that external dependency. Select the actual configuration and retain complete owner/workshop precautions. Fuel work is outdoors only, away from fire, flame, sparks and heat; wipe spilled fuel away immediately. Torque, tool-number, solvent and source-label conflicts remain unresolved; no hardware operation performed.

TI dependency: TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 sections5.1/6.3 dependency: Section 4.4, printed 12, including footnote1.

Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section Section 4.4, printed 12, including footnote1, PDF pages 1, 2, 3, 4, 13

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: dry versus wetted leakage-test limits

The 0.8 bar test assumes fuel-wetted passages and moist diaphragms; it is not a dry-carburetor pressure.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Check the tester itself for leakage. DRY carburetors must not see more than 0.35 bar (5 psi); flush with fuel before the normal test because sealing points and passages must be wetted. For this wetted test pump to approximately 0.8 bar (11.6 psi), and do not exceed 1 bar (14.5 psi). The stated concern above that limit is control-valve opening and possible overstretching of the metering diaphragm; it is not a measured pop-off specification.
  • Connect test fuel line1110 141 8600 with nipple0000 855 9200 to the intake fitting and tester1106 850 2905. Close the bulb vent screw, apply the bounded pressure, and interpret constant pressure as airtight. Falling pressure can reflect foreign matter at the inlet needle seat, damaged needle cone, sticking lever or distorted metering diaphragm; inspect/service rather than assume one cause.
  • Open the tester vent screw before removing the test line. No hold duration or allowed pressure decay is printed. The accepted Components test at approximately0.8 bar is not contradicted by this separate wet/dry qualification; neither test is a tank-vent or crankcase pressure specification.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.1 printed25.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.1 printed25, PDF pages 1, 2, 25

Part numbers (3)
  • 1106 850 2905 — Carburetor and crankcase testerGeneral handbook leakage-test equipment · FS46 delegated carburetor service; actual connection/configuration required
  • 1110 141 8600 — Test fuel lineGeneral handbook leakage-test equipment · FS46 delegated carburetor service; actual connection/configuration required
  • 0000 855 9200 — Test nippleGeneral handbook leakage-test equipment · FS46 delegated carburetor service; actual connection/configuration required

Service note · FS 46

FS 46 handbook: blocked passages and cleaning restrictions

Water droplets can obstruct fine jets; do not use wires or needles to clean them.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Blocked jets, bores and strainers are listed causes of carburetor trouble. Water droplets restrict fine-bore fuel flow through surface tension and may freeze in winter; this is a possible mechanism, not a diagnosis of a particular machine.
  • Section7.2 says strip the carburetor and remove adjusting screws, jets and inlet needle, then clean the body with a brush or clean leather cloth and fresh fuel; blow ports and jets clear with compressed air. NEVER use needles, wires, similar tools or fibrous cloths for cleaning carburetor or jets. No compressed-air pressure is specified.
  • This generic stripping statement does not make every jet removable:7.7 explicitly says the part-load fixed jet cannot be replaced and can only be blown clear. Likewise model-specific adjusting-screw/cap and fixed-jet limits remain in force. Fuel work must be outdoors, with no smoking, fire or flame nearby and immediate spill cleanup under section1.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.2 printed25.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.2 printed25, PDF pages 1, 2, 25

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: opposite stacks and a printed diaphragm-label conflict

Pump and metering gaskets are not interchangeable stack instructions.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Pump side7.3: remove screws/end cover, carefully separate stuck gasket and diaphragm, inspect both and replace damaged/fatigued parts. The source describes fatigue distortion and swelling. Place gasket ON END COVER, wet pump diaphragm with fuel and place it ON GASKET; cast cover pegs locate these parts before cover installation and secure screw tightening. No numerical torque is given.
  • Metering side7.4: remove cover (manual-pump configurations refer to7.9), separate diaphragm/gasket carefully and inspect. Put gasket ON CARBURETOR BODY and metering diaphragm ON GASKET, locating on the cast pegs. If the locating peg is on the end cover, the pictured alternative locates diaphragm then gasket on that cover; it does not reverse the final metering-side stack.
  • Printed27 middle column under7.4 literally says fit PUMP diaphragm so its perforated plate faces the inlet control lever, although surrounding heading, preceding instruction and alternative-cover instruction call it the METERING diaphragm. Preserve this wording discrepancy; do not interpret it as moving a fuel-pump diaphragm into the metering chamber. The illustrated perforated plate faces the lever.
  • For a carburetor WITH COMPENSATOR fit the end cover with connector. This conditional branch does not establish that FS46 has a compensator. Refit cover/screws securely; no universal screw count, repair-kit number or diaphragm interchange is established.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.3–7.4 printed26–27.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.3–7.4 printed26–27, PDF pages 1, 2, 26, 27

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: needle wear and two lever-height datums

A worn needle cone and a bent control lever have separate replacement criteria.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • After metering-diaphragm removal, remove retaining screw and lever with spindle, or the illustrated plate/lever/gasket arrangement, then withdraw inlet needle. An annular indentation on its sealing cone requires replacement because the source says it will no longer seal properly.
  • Refit needle, place helical spring in blind hole and spindle in lever; engage lever clevis in the needle-head annular groove. Depress lever and secure screw, ensuring the spring locates on the lever nipple. Check free movement.
  • The lever top must be level with EITHER the bottom of the metering chamber (figure1) OR the top face of the carburetor body (figure2), depending on the pictured design. No universal FS46 datum is assigned by this general page. If not level the handbook calls the lever bent and requires replacement, then metering-diaphragm reinstallation.
  • This replacement instruction does not erase the accepted Components troubleshooting tension between flush adjustment and new-lever remedies. No bend-to-adjust instruction, universal lever height in millimetres or part identity is invented.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.5 printed27–28.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.5 printed27–28, PDF pages 1, 2, 27, 28

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: replaceable full-load versus nonreplaceable part-load jet

Keep generic press-fit directions separate from the named WS-26A, HS-262B and HD-5 exceptions.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • For the general7.6 main-jet branch, a check-valve plate that no longer moves freely requires a new main jet. After metering-diaphragm removal, press the main jet toward the venturi with a suitable pin punch, wash in white spirit, and install exactly vertical and flush with the metering-chamber bottom. This is conditional construction guidance, not assignment of a removable jet to every FS46 carburetor.
  • Section7.7 explicitly makes the PART-LOAD fixed jet nonreplaceable: blow clear with compressed air only. Its general FULL-LOAD jet branch presses toward the venturi, cleans in white spirit and compressed air, replaces a damaged jet and installs vertical/flush with the metering-chamber bottom; reinstall metering diaphragm afterward.
  • Named exceptions are NOT FS46 assignments: WS-26A uses a screwdriver from inside the venturi for its valve jet; HS-262B unscrews its full-load jet; HD-5 uses a retaining ring and O-ring with flat-side-up installation. Their presence in the handbook does not establish installed suffix or cross-model fitment.
  • Section7.8 control-valve replacement is explicitly WT-227E/WT-264 only. Its copper washer, Loctite and4 Nm instructions are excluded from this FS46 service branch; do not borrow their torque or imply FS46 has that screw-in valve.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.6–7.8 printed28–29.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.6–7.8 printed28–29, PDF pages 1, 2, 28, 29

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: manual-pump valve and separate check-valve branch

The pump-flange valve is not the separately extracted metering-chamber check valve.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • For the illustrated manual-pump design7.9, remove cover screws, cover with bulb, bulb, flange and flange valve. Inspect valve and replace if the metering-chamber filling circuit malfunctions or the valve is dirty, distorted or damaged. Inspect metering diaphragm and sealing ring under7.4, replace as needed and reassemble in reverse order.
  • Separate7.10 first removes the metering diaphragm, then uses a2.5x13 mm self-tapping screw in the CHECK-VALVE bore to pull that valve out. A4 mm (approximately5/32 inch) pin punch presses the replacement squarely into the metering chamber to its stop, followed by metering-diaphragm installation.
  • These are different illustrated valve operations. The extracting screw is a service tool, not an installed carburetor fastener; the4 mm punch is not a jet-size specification. Neither general illustration establishes this check valve in every FS46 carburetor or authorizes drilling an unverified body. No valve part number, pump interchange or universal disassembly claim is made.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.9–7.10 printed30.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.9–7.10 printed30, PDF pages 1, 2, 26, 27, 30

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: sealing plugs are destroyed during removal

The LD screw has a left-hand thread; generic H/L pictures do not create those screws on fixed-jet carburetors.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Remove pump diaphragm, inlet needle, valve jet and, IF FITTED, full-load fixed jet and check valve under their separate sections. Pry out the fuel strainer with a scriber and clean it; always replace a damaged strainer. This removal tool is not permission to poke or scrape the fine jets prohibited by7.2.
  • Remove the applicable adjusting screws; the idle speed screw LD has a LEFT-HAND thread. Generic H/L/idle illustrations do not override the actual screw complement, limiter caps or accepted Components suffix-specific procedures.
  • Press the centre of the sealing plug or plate with a pin punch until it buckles and can be removed. It is DESTROYED by removal, not a reusable cover. Wash body in fresh white spirit and clear ports/bores with compressed air. Body replacement also requires throttle shaft and, if fitted, choke shaft removal under7.12/7.13.
  • Put a NEW plug/plate into its bore CONVEX SIDE UP, lightly flatten it with a large pin punch and apply the specified adhesive in the gap between body and plug/plate. Section8.2 identifies medium-strength Loctite242,0786 111 1101. Reverse remaining assembly. No plug diameter, flattening force, shaft clearance or universal body interchange is given.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.11 printed31;8.2 printed65.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.11 printed31;8.2 printed65, PDF pages 1, 2, 31, 65

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: conditional retainers and shutter seating

Excess shaft play may admit secondary air; named lever orientations are not FS46 assignments.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Automatic-choke carburetors are expressly referred to7.15.1, not this branch. For the ordinary illustrated arrangement remove shutter screw/shutter, E-clip and washer if fitted; on applicable designs remove lever screw/lever, spacer sleeve, or screw-secured clip before carefully withdrawing shaft. Some require pump end-cover removal7.3; accelerator-pump versions also require7.14.
  • Inspect for excessive shaft play as a possible secondary-air source; no numerical wear limit is given. Remove torsion spring; if there is a slotted pin, remove its E-clip and pin from lever. On refitting check spring position. The spring illustration is explicitly WT-227F and only described as similar on other carburetors, not verified FS46 geometry.
  • Seat the throttle shutter with its ENTIRE CIRCUMFERENCE against the venturi wall. Secure its screw with the8.2 medium-strength Loctite242 and tighten securely; refit E-clip or clip in its groove and clip screw where fitted. No torque value is supplied.
  • C1Q-S11G spring/groove, WT-230 and C1Q-SK6 slotted-pin-toward-metering-cover, and HD-3A/WT-253 intake-facing lever details are named exceptions, excluded from FS46 assignment without an actual matching carburetor. Do not choose a lever direction from a similar-looking illustration.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.12 printed32–33;8.2 printed65.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.12 printed32–33;8.2 printed65, PDF pages 1, 2, 32, 33, 65

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: torsion-spring versus detent-ball designs

Keep the spring-loaded detent ball captured; this does not establish an internal FS46 choke shaft.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Automatic-choke versions are referred to7.15.1. Remove lever if fitted, shutter screw/shutter and E-clip if fitted. The WITH-TORSION-SPRING branch withdraws shaft with spring; remove/refit spring and check its position after shaft installation.
  • The WITHOUT-TORSION-SPRING branch requires careful withdrawal so the detent ball does not pop out and get lost; remove ball and spring. Refit spring then ball and push shaft home until ball engages the groove. This is distinct from the torsion-spring design, not a combined universal assembly.
  • Seat the choke shutter around its entire circumference against the venturi wall, secure screw with8.2 Loctite242 and tighten securely. Fit E-clip on the torsion-spring version and refit removed lever. No numeric torque or universal shutter orientation is provided.
  • The C1Q-S11G-specific paragraphs under the CHOKE SHAFT heading literally refer to its THROTTLE shaft groove (same915RA078/090 illustrations used in7.12). Preserve that printed cross-shaft reference, do not silently rewrite it as choke; this named branch is not assigned to FS46. The accepted Components choke-shutter arrangement is not replaced by these generic internal-shaft pictures.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.13 printed34–35;8.2 printed65.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.13 printed34–35;8.2 printed65, PDF pages 1, 2, 34, 35, 65

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: piston closed end faces outward

An accelerator pump is a conditional throttle-shaft feature, not the manual priming bulb.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • For a carburetor actually fitted with the illustrated accelerator pump, remove throttle shaft under7.12, knock piston and spring out of the bore, and remove the piston sealing ring. Inspect piston and spring, replacing as necessary.
  • Fit a NEW sealing ring in the piston groove, put spring in bore and install piston CLOSED END OUTWARD. Reinstall throttle shaft while pressing piston down so shaft can be pushed home.
  • No pump-stroke setting, piston clearance, part numbers or FS46 suffix assignment is printed in7.14. This throttle-operated piston is not7.9 manual fuel-pump bulb or7.3 pump diaphragm. Presence in the general handbook does not prove an accelerator pump on the owner’s machine.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 7.14 printed35 with7.12.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 7.14 printed35 with7.12, PDF pages 1, 2, 32, 33, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: adhesive specification and a short printed tool number

Preserve the three-digit screwdriver prefix rather than silently correcting it.

No exact-model IPL link: Explicit TI40 section6.3 FS46 delegation; general construction-dependent handbook only. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Section8.1 repeats leakage-test equipment1106 850 2905, fuel line1110 141 8600 and nipple0000 855 9200. Puller5910 890 4500 is for REMOVING LIMITER CAPS ONLY under footnote1; it is not universal carburetor-disassembly equipment or permission to alter settings.
  • The table lists screwdriver5910 890 2305 OR the literally printed000 890 2300 for installing adjusting screws and adjustment. The second prefix has THREE zeros, not four. Retain that uncertain printed identifier as text; do not create a normalized part identity or assume either is correct for every installed adjuster.
  • Section8.2 specifies white spirit for cleaning components and medium-strength Loctite242,0786 111 1101, for control valve, sealing plug, sealing plate, throttle-shutter screw and choke-shutter screw. This list does not broaden the WT-227E/WT-264 control-valve branch or authorize adhesive on diaphragms, jets or arbitrary fuel parts.
  • Section7.2 says fresh fuel for body cleaning,7.6/7.7/7.11 specify white spirit, and8.2 lists white spirit generally. Keep those locators distinct; do not replace them with an invented solvent or concentration. Previously retained TI hydrogenated versus Components halogenated wording remains unresolved.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook. This available copy has copyright1999 but unknown revision; its filename naming021/023/025 is not its actual title. These are conditional general service references for FS46, not proof that every illustrated carburetor, jet, compensator, shaft or valve is fitted to FS46. Match the actual installed carburetor and retain the accepted Components-specific instructions and unresolved conflicts. This is not an exact TI40 launch-edition or installed-suffix assignment. Owner/head instructions, exact editions, remaining handbook sections and the separate Standard Repairs/Troubleshooting dependency remain pending review; no source gap is declared by this batch. Observe complete owner/workshop precautions: fuel work outdoors only, no smoking/fire/flame near fuel, immediate spill cleanup. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 8.1–8.2 printed65.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 8.1–8.2 printed65, PDF pages 1, 2, 65

Part numbers (3)
  • 5910 890 4500 — Limiter-cap pullerGeneral handbook tool or aid; configuration limits apply · FS46 delegated carburetor service only where referenced operation applies
  • 5910 890 2305 — Carburetor adjusting screwdriverGeneral handbook tool or aid; configuration limits apply · FS46 delegated carburetor service only where referenced operation applies
  • 0786 111 1101 — Medium-strength adhesive Loctite242General handbook tool or aid; configuration limits apply · FS46 delegated carburetor service only where referenced operation applies

Service note · FS 46

FS 46 handbook: identify the complete carburetor, not just its family

The assignment table has no FS46 row; general mixture theory is not a tuning target.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Section3.1 distinguishes a stamped or printed complete designation from a cast family such as C3M or HD plus a separate stamped/printed suffix. Read both. Section3 tables on printed3–7 do not list FS46; The 046 chainsaw and FS550 rows are different models, not FS46. The tables therefore do not assign any listed carburetor or equipment option to FS46. Footnote1 means CARB/EPA and footnote2 accelerator pump, not interchange approval.
  • Section4 describes atomization into droplets, with complete vaporization occurring later and absorbing heat from engine components. It prints an ideal air-to-fuel MASS ratio of14.8kg to1kg at lambda1, and a combustible lambda range0.7–1.25. These are attributed theory, NOT an FS46 adjustment target, exhaust measurement or fuel-to-oil premix ratio.
  • The handbook associates too-lean mixture with reduced power, reduced vaporization cooling, inadequate oil-bearing fresh-charge lubrication and seizure risk; rich mixture with incomplete combustion and unburned fuel/smoke. Temperature, humidity, pressure and operating phase change requirements. These are possible mechanisms, not proof that any symptom uniquely diagnoses mixture.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 3–4 printed3–8.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 3–4 printed3–8, PDF pages 1, 2, 3, 4, 5, 6, 7, 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: impulse pump, metering needle and priming circuit

The manual bulb returns fuel to the tank; it is not a direct injection pump.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • The illustrated floatless diaphragm carburetor has a venturi, throttle shutter and a separate-function integral fuel pump. Crankcase low pressure on the piston upstroke flexes the pump diaphragm and admits fuel through its inlet flap while the outlet closes. Downstroke overpressure reduces chamber volume, closes the inlet and opens the outlet toward the carburetor inlet needle. The two flap valves are formed in the pump diaphragm; the impulse path is not a fuel feed hose.
  • As jets draw fuel from the metering chamber, pressure on the outside of the metering diaphragm moves the inlet lever and lifts the needle to replenish fuel. Outside reference is atmospheric pressure, or clean-side filter pressure WITH a compensator. Printed10 refers to chapter4.3.4, but the compensator heading is5.3.4; retain this cross-reference discrepancy.
  • On the illustrated manual-pump design, releasing the bulb draws fuel through the metering system into the bulb; pressing it sends air/fuel back to the tank. The chamber check valve closes during manual pumping to exclude air from the venturi/idle bores and opens during running. The handbook separately describes a main-jet check valve that prevents air entering at idle. Do not confuse these valves or assign the illustrated construction to every carburetor.
  • The lower-tank discussion explains why a carburetor can need re-priming after storage; it supplies no universal bulb-press count. The chainsaw separate-bulb remark is not an FS46 mounting instruction. This is circuit context, not a new starting procedure.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 5–5.1 printed9–11.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5–5.1 printed9–11, PDF pages 1, 2, 9, 10, 11

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: adjustable, semi-fixed and fixed full-load circuits

A fixed full-load jet has no H adjustment; a semi-fixed jet is not the same circuit.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • At wide-open throttle the illustrated carburetor draws fuel from both main and idle jets. The main valve jet is at the venturi throat and its check valve prevents reverse air entry into the metering chamber at idle; an H screw controls flow only in the adjustable configuration.
  • A semi-fixed full-load jet supplies a defined baseline independently of H; the handbook gives approximately80% at H=1 as its example, not an FS46 calibration. It may be separate or formed in the main jet and is connected to that jet through a passage rather than opening directly into the venturi.
  • In the FULLY FIXED full-load arrangement all full-load fuel passes through that jet and there is NO H screw or adjustable full-load setting. It too may be separate or integral. These alternative diagrams do not identify the installed FS46 version, prescribe jet bore/part number, or authorize alteration of fixed jets.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 5.2.1 printed11–12.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.2.1 printed11–12, PDF pages 1, 2, 11, 12

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: independent and dependent idle circuits differ

Changing L can change total full-load fuel in one circuit but not the other.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • With the shutter almost closed, primary-idle fuel enters at the narrow air gap; the main jet has little vacuum and supplies no fuel in the illustrated idle state. Secondary bypass bores upstream supply air to the idle chamber; as the shutter opens, vacuum reaches them and they also deliver fuel for acceleration. L meters the passage into the idle chamber, whereas the idle-speed screw positions the shutter.
  • INDEPENDENT idle and main circuits run in parallel. Changing idle fuel with L changes total full-load fuel and the handbook calls for H readjustment; leaning L can raise speed and overheating risk. DEPENDENT idle circuits branch downstream of H and have no direct metering-chamber connection; changing L does not change overall fuel volume in that described circuit.
  • The words independent/dependent refer to circuit topology, not permission to ignore L/H interaction on an unidentified carburetor. No one diagram is assigned to all FS46 units, and LD-only or fixed-jet configurations do not acquire absent screws.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 5.2.2 printed12–13.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.2.2 printed12–13, PDF pages 1, 2, 12, 13

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: primary-mixture control and part-load enrichment

Fixed idle, fixed part-load and fixed full-load jets perform different jobs.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Section5.2.3 mixes fuel from a fixed idle jet with bypass air in an idle chamber. The primary-mixture screw changes how much of that mixture reaches the engine: opening enriches, closing leans; LA separately adjusts idle speed. The printed approximately one-turn basic setting is for this illustrated system, NOT a universal FS46 setting.
  • Opening the throttle exposes secondary idle bores; the source says main-jet delivery starts at about20degrees for this diagram. The fixed idle jet limits enrichment and full-load idle-system fuel, so the primary-mixture screw has no effect on full-load fuel volume in this design. The round fixed orifice is described as less sensitive to cold viscous fuel than a narrow annular adjusting-screw gap; no viscosity or temperature calibration is specified.
  • Section5.2.5 describes the partially open-throttle range and the risk of an over-lean part-load flat spot and seizure. A separate PART-LOAD fixed jet opening between idle and main jets provides enrichment. This is not the full-load jet or permission to drill/replace it;7.7 already limits part-load-jet cleaning to compressed air. Balanced-idle5.2.4, including printed16 left-column continuation, is independently bound in the companion FS46 balanced-idle note in this batch.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 5.2.3 and5.2.5 printed14/16.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.2.3 and5.2.5 printed14/16, PDF pages 1, 2, 14, 16

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: starting enrichment is not automatic-choke fitment

Cold-start theory does not establish a bellows-operated choke on FS46.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Starter cranking produces less venturi flow/vacuum than running idle, and fuel responds more slowly than air. Cold walls additionally condense fuel; closing the choke enriches the starting mixture. The handbook says to open it after firing/running to avoid over-rich stalling as deposited fuel evaporates. Follow the actual machine owner instructions; this explanation supplies no universal control position or pull count.
  • The separate automatic-choke branch uses cylinder-temperature-dependent venting, crankcase pressure pulses, a control valve, bellows and linkage. Its3.5second cold/about0.1second hot timing and37degree throttle illustration are NOT FS46 timing or idle-angle specifications. Sections7.15/7.15.1 service that specific linkage and longer shaft; they are excluded as FS46 assembly instructions because this configuration is not established for the target.
  • A wording difference remains in that excluded branch: printed18 places37degrees just before the choke fully opens, whereas printed37 calls the choke-closed37degree arrangement the idle position. Do not silently convert either into the actual FS46 idle position. No bellows, linkage or shaft interchange is established.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 5.3.1 printed17–18;7.15–7.15.1 printed36–38.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.3.1 printed17–18;7.15–7.15.1 printed36–38, PDF pages 1, 2, 17, 18, 36, 37, 38

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: icing and accelerator-pump context

Icing can occur above freezing; a flat spot does not prove a failed accelerator pump.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • The handbook describes intake icing at high humidity below+10°C (50°F): pressure/temperature drop reduces moisture capacity, condensation freezes and can obstruct jets. This is a possible operating condition, not an exact universal onset threshold. Its electric-heater element, thermostatic switch on the pump cover and generator feed concern SOME models only; no heater fitment or retrofit is established for FS46.
  • During rapid throttle opening, air accelerates before the more sluggish fuel, producing a possible lean flat spot. On carburetors WITH an accelerator pump, the throttle-shaft cam pushes a spring-loaded piston inward and injects the fuel beneath it through the valve jet. Closing the throttle lets the spring return the piston and refill from the metering system.
  • This functional context supports the already conditional7.14 service note; it does not prove every FS46 has an accelerator pump or provide a stroke, delivery volume, jet number or unique fault diagnosis.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 5.3.2–5.3.3 printed19–20.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.3.2–5.3.3 printed19–20, PDF pages 1, 2, 19, 20

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: compensation preserves mixture, not lost airflow

A dirty-filter compensator does not restore full power or approve a different filter.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • WITH a compensator, the metering-diaphragm pressure reference comes from the clean side of the air filter (Pi), not atmosphere (Pa). As restriction lowers Pi, the diaphragm and inlet valve reduce fuel to match reduced air. The diagram labels Pr as metering-chamber pressure; these are pressure locations, not test limits.
  • The handbook says mixture need not be readjusted as that filter becomes dirty or after cleaning, but power still falls with airflow and cleaning is needed to restore it. Its HD-textile/wire-mesh conversion statement is conditional on this compensator discussion; it does NOT establish those filters, an approved conversion, an H screw or a compensator on FS46. Model-specific replace-versus-clean instructions remain controlling.
  • Section5.4 separately illustrates a resonance-operated enriching control valve on some directly flange-mounted carburetors and an airflow-vane governor that progressively closes the choke against a torsion spring. These are different speed-limiting mechanisms, not electronic ignition limiters. No cutoff RPM, spring preload or either governor installation is established for FS46; their adjustments are excluded from the FS46 procedure.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 5.3.4–5.4 printed20–22.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 5.3.4–5.4 printed20–22, PDF pages 1, 2, 20, 21, 22

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: twelve flooding and acceleration cause/remedy rows

The troubleshooting chart allows lever adjustment where the servicing chapter requires replacement.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • Flooding/stalling: (1) nonsealing needle from foreign matter or cone damage: remove/clean or replace needle, cleaning tank/pickup/line as necessary; (2) lever sticking on spindle: free it; (3) spring off the lever nipple: remove/refit lever correctly; (4) deformed diaphragm disc pressing the lever: replace metering diaphragm; (5) lever too high: set flush with body top OR metering-chamber bottom according to design.
  • Poor acceleration: (1) idle too lean: back L off slightly; (2) main too lean: back H off slightly; (3) lever too low: set to the design-specific flush datum; (4) inlet needle stuck to seat: remove, clean, refit; (5) atmospheric connecting bore blocked: clean bore; (6) diaphragm gasket leaking: replace gasket; (7) metering diaphragm damaged/shrunk: replace diaphragm.
  • These are twelve alternative printed cause/remedy pairs, not twelve verified diagnoses. H/L remedies require those screws actually to exist; no fraction-turn or universal setting is supplied. Printed23 says ADJUST a high/low lever, while7.5 printed28 says a nonlevel lever is bent and must be REPLACED. Retain this internal conflict alongside the earlier Components conflict; do not silently select one repair. Two different level datums depend on construction.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 6 printed23.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 6 printed23, PDF pages 1, 2, 23

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: sixteen idle and load cause/remedy rows

Generic cleaning remedies do not override the actual FS46 filter and vent construction.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • No idle/idle too high: throttle held too far open by idle screw, LD opened too far, or LA opened too far each calls for correct idle-screw adjustment; machine leakage calls for locating and repairing the leak. These four rows are alternative configuration-specific causes, not proof that every machine has both LA and LD.
  • Stalls at idle: blocked idle jets/ports: clean with compressed air; idle too rich: screw L down slightly; wrong idle setting with throttle fully closed: correct idle-speed screw; wrong LD setting: correct LD; nonclosing plastic plate in valve jet: clean or renew valve jet. These are five rows; no air pressure, screw angle or fixed-jet replacement permission is added.
  • Speed drops quickly under load/low power: plugged air filter: clean; faulty tank vent: clean or replace as necessary; leaking tank-to-pump line: seal/renew connections and line; damaged/fatigued pump diaphragm: replace; blocked main jet bores/ports: clean; dirty pickup body: clean and fit new filter; dirty strainers: clean. Seven rows are retained, with actual component replacement/cleaning restrictions and nonreplaceable-jet limits from accepted model-specific instructions. A generic clean-filter or replace-vent row does not establish a separately replaceable FS46 cap vent or washable paper filter.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 6 printed24.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 6 printed24, PDF pages 1, 2, 24

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: balanced-idle bypass flow and left-hand LD

The handbook explains zero flow at equal chamber pressures and reversal with further clockwise LD rotation; no jet identity or extra adjustment turns are inferred.

No exact-model IPL link: Explicit TI40 FS46 delegation; general construction-dependent handbook. Exact revision and installed carburetor suffix unestablished; no automatic cross-model fitment.

  • TI40/1999 page2 explicitly identifies a balanced idle system with fixed idle jet and delegates its detailed description to the Carburetors handbook. That footnote supplies no edition date; copyright1999 is not an exact revision. The misleading saw-model filename is not a machine-manual identity.
  • Section5.2.4 describes a fixed idle jet and calibrated air bypass system. The throttle shutter is completely closed at idle. Most idle-mixture air goes through the hole in the shutter; the additional air used to adjust idle speed is controlled by the single LD screw through the bypass/idle chambers. This is not the separate primary-mixture-control system in section5.2.3 or a conventional H/L mixture-screw adjustment.
  • At low idle, LD restricts the bypass port. Engine-side vacuum Pu behind shutter7 draws air through hole8 and produces pressure P3 in idle chamber3 via primary idle bore6, and P11 in bypass chamber11 via bypass port10. When P11 is below upstream atmospheric pressure, air enters chamber11 through port9. When P11 is above P3, air flows from chamber11 through connecting passage4 to idle chamber3.
  • Idle chamber3 also receives air through secondary idle bore5 and fuel from metering-diaphragm chamber1 through fixed idle jet2. Its primary mixture passes through primary idle bore6 to the engine side of the shutter. That mixture combines with air from bypass port10 and shutter hole8 to form the idle mixture. The numbered features are functional diagram labels, not orderable part numbers.
  • Clockwise LD rotation increases idle speed; counterclockwise reduces it. The handbook explicitly explains that LD has a left-hand thread. Clockwise rotation lowers P11, increases throughput at port10 and reduces the pressure difference between P3 and P11, so less air flows through passage4 toward the idle chamber. On PDF16, passage4 flow stops when P3 equals P11. Further clockwise rotation makes P11 lower than P3, reversing flow: primary mixture from chamber3 passes through passage4 into the bypass air flowing through ports9 and10. Do not describe that reversal as a fault or reverse the LD directions.
  • The handbook claims smooth idle, good acceleration, lower emissions, stable adjustment across ambient temperatures and simpler single-screw adjustment. These are source claims, not measured performance here. Its lambda/CO-versus-rpm graphic labels 2500,2800,3100 but supplies no numerical lambda/CO values in the reviewed rendering; do not derive emissions limits, adjustment targets or a calibrated curve from it. TI40 supplies the separately admitted historical idle range and two-turn setting. No further number of turns, pressure value or engine test is established by these functional diagrams.
  • The adjacent section5.2.5 part-load discussion and limbing example are separate general context, not an FS46 part-load-jet assignment. This note explains the BIS architecture explicitly identified by TI40, not a particular Walbro/Zama/Tillotson carburetor, drilling, suffix, supersession or physical interchange. It does not extend automatically to later combined-catalog variants.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 2 · TI 40/1999, p. 6 — TI40 page2 footnote and section6.3; Carburetors5.2.4 including PDF16 left-column continuation.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section Contents/copyright; safety/introduction;5.2.4 balanced-idle system, including PDF16 left-column continuation, PDF pages 1, 2, 15, 16

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: named specialist carburetors are not FS46 substitutions

HL/LA and WYL specialist chapters are excluded by their named scope.

No exact-model IPL link: Named specialist service/setting scope and assignment tables do not identify FS46. Exact handbook revision and installed FS46 carburetor suffix remain unestablished.

  • Section7.16 explicitly services HL-324A, HL-327D and LA-S8A; the assignment table places these with070/090, TS360 and08S respectively. Section7.17 explicitly services WYL-63/WYL-73 rotary-valve carburetors; assignment rows name FS25-4 and FS65-4, not FS46.
  • Those complete named specialist branches, including shafts, governors, control valves and the printed49 rotary-valve3100±200rpm/idle-needle adjustment, are excluded from this FS46 dependency. This is an applicability disposition based on the chapter headings and assignment rows, not an admission of the specialist internal parts as FS46 guidance or a claim those other models are semantically complete.
  • Do not borrow their torque, shaft orientation, idle setting or control-valve parts. The remaining FS46 general service guidance is separately admitted; sharing the same handbook does not prove carburetor interchange.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 3 printed5–6;7.16–7.17 printed38–49.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 3 printed5–6;7.16–7.17 printed38–49, PDF pages 1, 2, 5, 6, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46 handbook: named setting tables do not provide an FS46 calibration

FS550 is not FS46, and the cap-setting flowchart has an explicit carburetor list.

No exact-model IPL link: Named specialist service/setting scope and assignment tables do not identify FS46. Exact handbook revision and installed FS46 carburetor suffix remain unestablished.

  • Section7.18.1 fixed-jet Walbro settings name WT-283B/323/325A/326C/360/396/403A/493/498A/503. Section7.18.2 names the listed HD/WY/WT/WJ capped carburetors and gives model-specific tables including FS550, not FS46. Neither its chain-tension preparation nor its brushcutter loading advice creates an FS46 calibration.
  • Section7.19.1 names C1Q-S30C/S37A/S41/S42/S34B/S36B; the FS300–450 LD and HS75/80/85 branches remain for those models. Section7.19.2 names C1Q-SK7 and C3A-S39A. Section7.20 names HS-275A/279B fixed-jet and HL-366A/HS-280A/281A/HT-12A capped types. The section3 assignment tables do not bind these branches to FS46. Their screw turns, RPMs, cap colors/orientations and stop ranges are excluded as FS46 settings, not adopted from a similar model.
  • Section7.21 is explicitly for the printed HD/WY/WT/WJ list plus C1Q-SK7/C3A-S39A, not every carburetor. Its sequence checks running before and after securing caps, looping back to idle adjustment (after removing both caps if the second check fails). No FS46 cap removal or engine operation is authorized or performed. Reuse the accepted configuration-specific Components instructions, not this unbound chart.
  • Printed50,56,60 rendered blank in Poppler; a bounded Ghostscript render recovered visible headings and contents. Current renderer diagnostics are retained. Only the visible named scope is used for exclusion; no assumption of complete rendering or new source gap is needed for this applicability decision.
  • TI40 section6.3 explicitly delegates FS46/FS55 carburetor service to the separate Carburetors handbook; page2 additionally delegates balanced-idle description. Available copy: copyright1999, exact revision unknown; the saw-model filename is not its actual title. Conditional construction-dependent explanations and alternative troubleshooting rows do not identify an installed FS46 carburetor suffix, jet, heater, compensator, governor or automatic choke. Match the actual configuration and retain model-specific instructions and all unresolved conflicts. No exact launch edition or physical interchange established. The named specialist service/setting branches are excluded by scope. Standard Repairs/Troubleshooting, USA heads, owner/head instructions and exact editions remain pending; no source gap is declared by this batch. Follow applicable owner/workshop precautions: fuel work outdoors, no smoking/flames near fuel, immediate spill cleanup and cutting-tool precautions. No hardware work performed.

TI dependency: TI 40/1999, p. 6 — TI40 section6.3; Carburetors 3 printed3–7;7.18–7.21 printed50–64.

Manual evidence: Carburetors (publication revision unestablished; ©1999), section 3 printed3–7;7.18–7.21 printed50–64, PDF pages 1, 2, 3, 4, 5, 6, 7, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: four later head combinations and their mounting parts

The FS46 diagram does not inherit FS40 deflector or FS55 head hardware.

No exact-model IPL link: USA TI40 page4 independently identifies the FS46 AutoCut5-2 and PolyCut6-3 order numbers; the January2012 catalog explicitly names FS46. Later reference only, not an exact1999 launch edition, serial assignment or physical-interchange verification.

  • Printed6/PDF8 marks four heads in the grouped FS40/45/46 column: AutoCut5-2 4006 710 2103; AutoCutC5-2 4006 710 2106; FixCut5-2 4006 710 2118; PolyCut6-3 4006 710 2104. TI40 page4 lists only the standard5-2 and PolyCut6-3 for FS46, with these exact numbers. The later C5-2 and FixCut5-2 rows are not evidence of their original1999 fitment.
  • Printed14/PDF16 separately assigns deflector 4140 710 8100 to FS45/46 and 4140 710 8101 to FS40 only. Blade 4130 713 4100 is included in either listed deflector kit. The asterisk from2008 belongs to FS40 in this heading, not a new FS46 production cutoff.
  • Thrust plate 4140 713 1501 is shown on the FixCut5-2/PolyCut6-3 branches and is included in those heads. FixCut5-2 additionally includes thrust washer 4130 713 1600 and collar nut 4006 713 6801; PolyCut6-3 includes nut 4006 713 6800. The two AutoCut branches connect directly to the deflector-side diagram; do not add the neighboring FixCut/PolyCut stack by proximity.
  • Footnote2 explicitly makes FixCut5-2 4006 710 2118 a replacement for discontinued 4006 710 2130. This narrow replacement statement is not a general head-family supersession, and does not make a later head an original1999 fitment.
  • January2012 reference evidence, not the1999 launch IPL or a substitute for the exact machine/head Instruction Manual. Correct model, handle, deflector and mounting configuration remain required. No physical interchange, installation or hardware test performed.

TI dependency: TI 40/1999, p. 4 — TI40 USA page4 exact FS46 head identities; later attachment catalog dependency.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Cover and safety context; explicit FS46 model/head binding and relevant parts entry; printed pages equal PDF minus2; symbol key PDF94, PDF pages 1, 2, 8, 11, 16, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: AutoCut5-2 has a snap-ring cap and two3m lengths

Keep the snap-ring cap, loaded spool and retail line rolls distinct.

No exact-model IPL link: USA TI40 page4 independently identifies the FS46 AutoCut5-2 and PolyCut6-3 order numbers; the January2012 catalog explicitly names FS46. Later reference only, not an exact1999 launch edition, serial assignment or physical-interchange verification.

  • Printed54/PDF56 identifies AutoCut5-2 4006 710 2103 including1–7. Item1 spool housing 4006 710 3600 includes item2 two sleeves 4004 713 8300. Item3 compression spring 0000 997 3100; item4 spool insert 4004 713 3000; item5 cap 4006 710 4000 includes item6 snap ring22 9465 620 2771. Hardware quantities are one except the two sleeves.
  • Loaded spool 4004 710 4300 includes4 and7. Included item7 is two round2mm x3m lengths,(D), not separately available as that indexed item. Optional(B) item8 is two Quiet round2mm x3m lengths. Retail stocks, quantityone,(A,B), not illustrated/optional, are round2mm x15m 0000 930 2588 and 0000 930 2526, and Quiet2mm x15m 0000 930 2584. The15m packages are not loaded lengths.
  • TI40 page4 names FS46 AutoCut5-2 4006 710 2103. The later FS40/45/46 table and explicit FS45/46 mounting drawing independently support this FS46 reference. No FS55 approval is shown for5-2 in that table. Neighboring C4-2 is context, not an additional FS46 approval. Do not infer a winding procedure or interchangeable head internals from adjacency.
  • January2012 catalog evidence through accepted FS46 combinations and mounting identities, not an exact1999 launch IPL, full winding/installation procedure or physical interchange test. Preserve model, handle, deflector and configuration restrictions. Shared components do not prove whole-head interchange or supersession; present parts availability is unverified.

TI dependency: TI 40/1999, p. 4 — TI40 USA page4 exact FS46 head identities; later attachment catalog dependency.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Cover and safety context; explicit FS46 model/head binding and relevant parts entry; printed pages equal PDF minus2; symbol key PDF94, PDF pages 1, 2, 8, 11, 16, 56, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: PolyCut6-3 has pins, its own collar nut and a locking pin

Do not borrow the neighboring PolyCut10-3 fastening arrangement.

No exact-model IPL link: USA TI40 page4 independently identifies the FS46 AutoCut5-2 and PolyCut6-3 order numbers; the January2012 catalog explicitly names FS46. Later reference only, not an exact1999 launch edition, serial assignment or physical-interchange verification.

  • Printed70/PDF72 identifies PolyCut6-3 4006 710 2104, including items1–7: top 4004 713 9601; three pins 4004 713 6600; replacement blades 4111 007 1001; base 4004 713 9701; collar nut 4006 713 6800; thrust plate 4140 713 1501; locking pin 4130 893 7800. Except the pins and blade row, each quantity is one.
  • The blade row prints quantity3 with the description replacement blades (pack of12); the drawing shows three fitted blades and a separate package illustration. Preserve fitted quantity and pack description separately: do not infer that a complete head contains three retail packs or36 installed blades.
  • The neighboring PolyCut10-3 4004 710 2188 is marked no longer available and uses collar screws/M6 nuts rather than the6-3 pins. Adjacency and a shared replacement-blade number do not establish interchange or FS46 approval for10-3. The6-3 collar-nut thread is not specified on this page.
  • January2012 catalog evidence, not the1999 launch IPL or a complete mounting/operating procedure. Retain the accepted model/handle/deflector restrictions and consult the exact machine/head instructions. No physical interchange or hardware test performed.

TI dependency: TI 40/1999, p. 4 — TI40 USA page4 exact FS46 head identities; later attachment catalog dependency.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Cover and safety context; explicit FS46 model/head binding and relevant parts entry; printed pages equal PDF minus2; symbol key PDF94, PDF pages 1, 2, 16, 72, 94

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 55

FS 55: five USA head numbers match later reference entries (TI40 USA)

Exact numbers connect the USA list to reviewed head evidence, without substituting later heads or resolving source conflicts.

No exact-model IPL link: Independent TI40 USA page4 and January2012 catalog exact-head/model binding; not an exact1999 launch edition, serial range, all-variant approval or physical-interchange test.

  • TI40 page4 items3–7 list SuperCut20-2 4002 710 2184, AutoCut21-2 4002 710 2192, AutoCut25-2 4002 710 2191, TrimCut30-2 4002 710 2193 and PolyCut20-3 4002 710 2189. All five exact numbers also appear under FS44/55/55RT on catalog printed12/PDF14 and in their individual parts entries. This is independent USA-list binding, not equivalence with the different TI38/TI39 order numbers.
  • AutoCut21-2 printed58/PDF60 matches 4002 710 2192 exactly and is marked(C), no longer available in this2012 catalog. Its housing is 4004 710 3600, not the neighboring20-2 housing. Included item10 is two round2.4mm x2.5m lengths, not a15m retail roll. The adjacent AutoCut20-2 complete-number conflict remains unresolved and does not invalidate the independently matching21-2 number; no20-2 replacement chain is inferred.
  • TrimCut30-2 printed45–46/PDF47–48 matches 4002 710 2193 and is marked(C). It includes1–7 and11: item11 is two Quiet2.4mm x5m lengths. Its pentagonal2.4mm item16 prints8m, retained as a source-listed outlier, not a verified loading capacity. Do not replace it with31-2 4002 710 2156 or borrow that head’s housing, insert, star nut or8m Quiet loading.
  • AutoCut25-2 printed59–60/PDF61–62 matches 4002 710 2191, including1–6 and9; loaded spool 4002 710 4313 includes5 and9, with two Quiet2.4mm x5m lengths. Ordinary round2.4mm prints3.5m, square and X-section5m, pentagonal8m. These differences remain explicit; C25-2 is not a substitute and its4m entry does not supply missing25-2 winding instructions.
  • SuperCut20-2 printed66/PDF68 matches 4002 710 2184; the upper entry uses bows and sleeves, not the lower SuperCut2-1 pawl identity. Two included round2.4mm x3.5m lengths and optional Quiet2.4mm x3m remain distinct. Printed78/PDF80 says SuperCut should ONLY use Premium Round .095-inch line, conflicting with the Quiet options. The conflict stays unresolved; no pawl oil, substitute lubricant or broader line approval is inferred.
  • PolyCut20-3 printed71/PDF73 matches 4002 710 2189. Its complete-head line says includes1–7 but drawing and list identify only1–6. No seventh part is invented. Blade item6 has quantity3 and a pack-of12 description, not three included retail packs. Adjacent40-3 parts do not resolve the missing index or prove whole-head interchange.
  • January2012 reference only. AutoCut21-2 and TrimCut30-2 remain historical entries, not present availability or a supersession. The later FixCut and C-head choices do not become original USA TI40 approvals. Preserve TI40 model, handle and deflector restrictions; its metal blades are not approved for loop-handle FS55 without barrier bar. Exact machine/head instructions remain necessary; parts diagrams are not winding, mounting or operating procedures. No hardware test performed.

TI dependency: TI 40/1999, p. 4 — TI40 USA page4 five exact FS55 head numbers; independently matched later catalog entries and retained conflicts.

Later manual evidence: Cutting Attachments, Parts & Accessories (2012-01), section Cover/context, FS55 exact-number mounting list, five complete head entries, SuperCut restriction and legend; printed pages equal PDF minus2, PDF pages 1, 2, 14, 47, 48, 60, 61, 62, 68, 73, 80, 94

Part numbers (5)
  • 4002 710 2184 — STIHL SuperCut 20-2TI40/1999 listed cutting tool, drawing item 3 · FS 55 mowing-head list
  • 4002 710 2192 — STIHL AutoCut 21-2TI40/1999 listed cutting tool, drawing item 4 · FS 55 mowing-head list
  • 4002 710 2191 — STIHL AutoCut 25-2TI40/1999 listed cutting tool, drawing item 5 · FS 55 mowing-head list
  • 4002 710 2193 — STIHL TrimCut 30-2TI40/1999 listed cutting tool, drawing item 6 · FS 55 mowing-head list
  • 4002 710 2189 — STIHL PolyCut 20-3TI40/1999 listed cutting tool, drawing item 7 · FS 55 mowing-head list

Service note · FS 46 / FS 55

FS 46 / FS 55: exact owner safety instructions remain a source gap

TI40 requires the owner manual; workshop and analyzer instructions do not replace it.

No exact-model IPL link: Independently reviewed TI40 USA dependency; exact original edition remains unidentified. Available dated procedures retain their existing model restrictions.

  • TI40 page6 section6 requires local and national safety regulations and the owner-manual safety precautions when starting the unit during repair or maintenance. It supplies no owner-manual publication number or revision. No exact applicable FS46/FS55 owner edition was identified in the bounded sources checked; no safety procedure is reconstructed from this absence.
  • Independently reconcilednon-bulletin service-documentation PDFs and41 owner-pool PDFs against all116 retained opening texts and fresh PDF hashes, plus current exact-token FS46/FS55 associations and instruction-title metadata. The FS55-named01271 PDF is byte-identical to the August1999 Series4140 powerhead workshop manual RA_931_00_01_02.pdf, not an owner manual. Compact FS45,46,55 introductory wording was checked explicitly rather than excluded by a literal-name search.
  • The22 retained extracted diagnostic software PDFs and opening-text identities were independently verified. ADG1,ADG2 and MDG1 instruction manuals concern analyzers; diagnostic-software safety sheets, M-Tronic checklists and unrelated machine diagnostic guides do not supply FS46/FS55 owner safety instructions. FSA65/85 and FS490C/510C/560C workshop covers likewise do not establish an exact FS46/FS55 owner edition.
  • Available powerhead,Components,CombiTools and parts-catalog assertions remain accepted at their stated editions. Head instruction leaflets and applicable retained head supplements remain separately actionable; this owner-manual disposition does not close them. Original workshop revisions, parent repair timetable and launch IPL have separate review boundaries.
  • Bounded availability only, not universal absence, operating authorization or hardware proof. Reopen on an applicable owner source. Preserve all model, handle, deflector, suffix, torque, line and head-number conflicts.

Source: TI 40/1999, p. 6 — TI40 USA page6 owner safety and sections6.2/6.3 workshop delegation; independent source-availability review.

No additional parts-table entry added.

Service note · FS 46 / FS 55

FS 46 / FS 55: original workshop revisions remain unidentified

Available1999-08 powerhead and2003-10 Components editions do not establish TI40’s unspecified original issues.

No exact-model IPL link: Independently reviewed TI40 USA dependency; exact original edition remains unidentified. Available dated procedures retain their existing model restrictions.

  • TI40 page6 section6.3 expressly permits Series4140 powerhead and STIHL4140 power-tool components manuals for FS46 and FS55, without identifying a publication number or revision. Section6.2 is headed Tightening Torques but only refers to special servicing tools in those manuals; no torque value is printed there.
  • The available Series4140 powerhead cover is dated1999-08. PDF2 explicitly lists FS45,46,55 and delegates machine components, Carburetors and Standard Repairs, Troubleshooting to separate handbooks. This independently establishes FS46/FS55 scope for that available edition, not proof that it is the exact unspecified original issue referenced by TI40. The FS55-named owner-pool copy has identical bytes, not a second revision.
  • The available Components4140 FC,FS,HL,KM cover is dated2003-10. Its PDF2 contents include chapter4 Troubleshooting and chapter9 Servicing the Carburetor, whereas TI40 section6.3 explicitly says those chapters are absent and separately delegated. Preserve the edition difference instead of rewriting the1999 statement. The contents explicitly name FS46/55 separate-loop-handle controls and distinguish up-to/from2001 controls and up-to/from2003 catalyst versions; these are not one universal launch configuration.
  • Current exact-token FS46/FS55 catalog associations identify the same powerhead,Components and CombiTools files; their document version_dates fields are empty. The bounded116-PDF opening/hash reconciliation establishes no independently identified original Components revision or exact original powerhead issue. This is an exact-revision source gap, not missing available procedures or proof that no original survives elsewhere.
  • Existing accepted procedures remain tied to their recorded editions and models. No new torque, adjustment, suffix coverage, interchange, serial cutoff or hardware proof is inferred. The unresolved FS46 loop-clamp torque and all previous source conflicts remain unchanged.

TI dependency: TI 40/1999, p. 6 — TI40 USA page6 owner safety and sections6.2/6.3 workshop delegation; independent source-availability review.

Manual evidence: STIHL Series 4140 powerhead (1999-08), section Cover and introduction printed1; explicit FS46/55 scope and separate handbook/parts-list references, PDF pages 1, 2 · STIHL Components 4140 FC, FS, HL, KM (2003-10), section Cover and contents; troubleshooting/carburetor chapters and dated control/catalyst branches, PDF pages 1, 2

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: later FixCut5-2 mounting and fastener limits

TI04/2004 explicitly names FS46; the clockwise5-2 fastener is not the25-2 mounting system.

No exact-model IPL link: Later head-specific evidence only; not original1999 equipment, current approval or physical interchange. Exact head, mounting hardware and machine restrictions remain required.

  • TI04/2004 section1.1 explicitly lists FS45/46 with FixCut5-2 and FS55/55RT among the FixCut25-2 machines. Every FixCut installation requires a deflector equipped with a line limiting blade. These are2004 approvals, not evidence of1999 launch equipment or permission for unlisted suffixes.
  • FixCut5-2 is 4006 710 2130. Its supplied thrust plate 4140 713 1501, thrust washer 4130 713 1600 and collar fastener 4006 713 6801 are distinct from the FixCut25-2 kit. Section1.3.1 calls the fastener a collar screw and tightens it clockwise with a19mm (3/4in) wrench; table item10 calls it Collar nut M8. Preserve that nomenclature difference, not a silently substituted fastener. The head locates on the thrust-plate shoulder and its washer must seat properly.
  • Lay the brushcutter with the mowing head/output shaft facing upward, remove the existing head and fit the supplied thrust plate if none is present. The shoulder must locate in the head bore and the washer must seat against the bottom. Hold the head and tighten the collar screw clockwise firmly with the19mm wrench. No torque value is printed. These are the2004 instructions, not evidence that FixCut was original TI40/1999 equipment.
  • The counterclockwise locknut, locking pin, splined-versus-two-flat washers and older-machine deflector list in sections1.3.2/1.3.3 concern FixCut25-2, not this FS46/FixCut5-2 installation. Do not substitute that hardware or infer a FS46 shaft variant. Retain the machine-specific line diameter and complete owner/head safety instructions.

Source: TI 40/1999, p. 4 · TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 USA head dependency; independently compared later head-specific supplements.

Referenced bulletin evidence: TI 4/2004, p. 1 · TI 4/2004, p. 2 · TI 4/2004, p. 3 · TI 4/2004, p. 4 · TI 4/2004, p. 7 — 1.1–1.3.3 and spare-parts items1–12.

No additional parts-table entry added.

Service note · FS 46

FS 46: later FixCut line, wear and paired pawl service

The explicitly approved FixCut5-2 has conditional line and service instructions, not SuperCut lubrication data.

No exact-model IPL link: Later head-specific evidence only; not original1999 equipment, current approval or physical interchange. Exact head, mounting hardware and machine restrictions remain required.

  • FS46 applicability is independently established by the explicit FixCut5-2 row on TI04/2004 page2, not by relabeling FS45. TI40 itself lists AutoCut5-2 and PolyCut6-3; this later supplement does not replace that historical list.
  • TI04/2004 describes pre-cut line0.080–0.130in, regardless of shape, and twelve supplied8in lengths of0.095in round line. Section1.5 specifies one203mm line inserted from outside each sleeve until the exposed length A is6in, then pulling firmly to seat the pawls. Always fit two lines of equal length and diameter; a single line increases vibration. Pull worn remnants inward by the inner ends. These head-capacity statements do not override the machine/deflector-approved diameter.
  • Check raised base moldings before fitting line; a base with missing/worn moldings as illustrated must be replaced, or replace the complete head. If one tooth side is dull, rotate both pawls180degrees; if both sides of one pawl are dull, replace both pawls. Always install a new spring with a new pawl, and replace both springs if one is fatigued. Note installed positions before removal.
  • Section1.6.1 assembles pawl and spring together, engages the spring leg in the housing slot, then rotates clockwise until both seat fully on the post. Items2–6 identify base 4001 713 9700, pawl 4001 713 7200, spring 4001 998 0400 and sleeve 4001 713 8300; the top is not a separate replacement. These are FixCut components, not proof of SuperCut20-2 pawl/bow equivalence.
  • The service note specifies no oil grade,quantity or application method. Section1.5.2 mentions pre-cut0.095/0.120/0.130in sizes but its own section1.7 table lists round quiet0.095/0.130in and pentagonal0.095in packs; preserve that prose/table mismatch. Do not manufacture a0.120in part row.0.080/0.105in lengths are cut from a reel. Standalone applicable head instructions remain a separate source gap.

Source: TI 40/1999, p. 4 · TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 USA head dependency; independently compared later head-specific supplements.

Referenced bulletin evidence: TI 4/2004, p. 1 · TI 4/2004, p. 2 · TI 4/2004, p. 4 · TI 4/2004, p. 5 · TI 4/2004, p. 6 · TI 4/2004, p. 7 — 1.4–1.7 full wear,line,pawl/spring context.

No additional parts-table entry added.

Service note · FS 46

FS 46: FixCut5-2 base revision does not inherit25-2 mounting changes

The later5-2 number changes to4006 710 2118 while only the shared base upgrade transfers.

No exact-model IPL link: Later head-specific evidence only; not original1999 equipment, current approval or physical interchange. Exact head, mounting hardware and machine restrictions remain required.

  • The modified base has larger inner/outer ring beads and may be used in previous head versions. Base 4001 713 9700 becomes 4002 713 9702. FixCut5-2 receives the base modification, not all25-2 top/mounting changes, and complete head 4006 710 2130 becomes 4006 710 2118.
  • TI48/2008 section2 and page3 retain the same approved machines as the previous FixCut5-2, citing the FS Cutting Tools catalog and head information sheet. TI04/2004 page2 explicitly names FS46 for the predecessor4006 710 2130. This is a linked later reference, not original1999 equipment or an exact current instruction leaflet.
  • The tool-free mounting, central fastening-nut dome and molded skirt apply to the revised FixCut25-2, not automatically to FixCut5-2. TI54/2006 concerns FS100RX/PolyCut20-3/FixCut25-2 and supplies no FS46/PolyCut6-3 or FixCut5-2 mounting revision. No25-2 thrust pad or FS100RX restriction is transferred to FS46.
  • The2008 summary says old complete heads are no longer available from factory, old thrust piece 4001 710 9400 remains available, and old base lasts while stocks remain; other parts stay as before. Introduction is continuous with no serial cutoff. Do not equate historical factory supply with current inventory or universal interchange.

Source: TI 40/1999, p. 4 · TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 USA head dependency; independently compared later head-specific supplements.

Referenced bulletin evidence: TI 4/2004, p. 2 · TI 4/2004, p. 7 — Historical exact-model approvals and original kits.

Referenced bulletin evidence: TI 54/2006, p. 2 · TI 54/2006, p. 3 — Intervening25-2 hardware/kit revision.

Referenced bulletin evidence: TI 48/2008, p. 1 · TI 48/2008, p. 2 · TI 48/2008, p. 3 — Complete revision,shared-base and summary footnotes.

No additional parts-table entry added.

Service note · FS 46 / FS 55

FS 46 / FS 55: head supplements do not replace exact instructions

Standalone head instructions and SuperCut20-2 lubrication remain bounded gaps after the applicable supplements are reviewed.

No exact-model IPL link: Exact owner/head instruction editions not established; later service/catalog evidence is not a substitute.

  • No applicable standalone exact head instruction leaflet is identified in the bounded116-PDF opening/title inventory andthe reviewed service documentation independently reconciled for TI40 in batch407. Current metadata identifies AutoCut,PolyCut,FixCut,TrimCut and SuperCut entries as Spare Parts List, not instruction manuals; missing PDF links do not mean the structured parts are absent. This is bounded availability, not universal absence.
  • TI04/2004 page2 expressly says each head comes with an instruction sheet for line fitting, mounting and use. Its retained seven-page bulletin supplies useful conditional FixCut5-2/25-2 instructions but not that complete standalone sheet. FS46 is explicitly approved for5-2; FS55 for25-2. TI40 page4 original USA heads remain unchanged and later FixCut is not retroactively launch equipment.
  • TI16/2004 section1.3 allows pentagonal cut line in FixCut5-2/25-2; its PolyCut list names10-3,20-3,40-3, NOT FS46 PolyCut6-3. Its modified AutoCut list names25-2,30-2,40-2,40-4, NOT FS46 AutoCut5-2 or FS55 AutoCut21-2. Unupgraded AutoCut heads are recommended to use only round line. No broad pentagonal-line or diameter approval is inferred for these omitted heads. Preserve the machine/deflector limits.
  • Five existing FS55 supplement notes were independently compared against the originals for this USA dependency:2004 FixCut mounting and paired pawl/line service,2004 shaped-line limits,2006 FS100RX-specific revision boundaries and2008 FixCut revision history. Reuse only their exact FS55/head scope; no FS55R/RT or FS46 extension follows from a shared label. Their prior source/conflict evidence is unchanged.
  • TI54/2006 is not FS46 PolyCut6-3 evidence. TI48/2008 transfers only the shared-base modification to FixCut5-2, not the25-2 tool-free mounting design. Full model/retail review of these four retained TIs remains separately queued; targeted dependency review does not semantically close them.
  • None of these supplements supplies a SuperCut20-2 oil grade,quantity or method, or establishes equivalence between generic pawls and the exact20-2 bow/sleeve roster. Do not substitute engine oil or gear grease. Premium Round-versus-Quiet Line, part-number, unit, torque and suffix conflicts remain unresolved. Reopen on an applicable standalone source; no physical interchange or hardware proof is claimed.

Source: TI 40/1999, p. 4 · TI 40/1999, p. 5 · TI 40/1999, p. 6 — TI40 USA head dependency; independently compared later head-specific supplements.

Referenced bulletin evidence: TI 4/2004, p. 1 · TI 4/2004, p. 2 · TI 4/2004, p. 3 · TI 4/2004, p. 4 · TI 4/2004, p. 5 · TI 4/2004, p. 6 · TI 4/2004, p. 7 — Targeted TI40 head-instruction dependency and applicability limits.

Referenced bulletin evidence: TI 16/2004, p. 1 · TI 16/2004, p. 2 · TI 16/2004, p. 3 · TI 16/2004, p. 4 · TI 16/2004, p. 5 — Targeted TI40 head-instruction dependency and applicability limits.

Referenced bulletin evidence: TI 54/2006, p. 1 · TI 54/2006, p. 2 · TI 54/2006, p. 3 · TI 54/2006, p. 4 — Targeted TI40 head-instruction dependency and applicability limits.

Referenced bulletin evidence: TI 48/2008, p. 1 · TI 48/2008, p. 2 · TI 48/2008, p. 3 — Targeted TI40 head-instruction dependency and applicability limits.

No additional parts-table entry added.

Service note · FS 46 / FS 55

FS 46 / FS 55: later labor allowances include diagnosis and testing

The2012 warranty table uses minutes and inclusive labor scopes, not additive owner estimates.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • The cover identifies2012-01 and copyright2012 STIHL Incorporated. Printed34/PDF35 explicitly says repair times are in MINUTES. Printed2 describes authorized-dealer warranty labor reimbursement at an assigned hourly rate, not a promise that an owner will complete the work in that time. Diagnostic time, cleaning, repair and test running are included where applicable.
  • Printed2 allows one labor code per historical warranty claim: the highest allowance usually covers related work. Cylinder/piston replacement includes air-leak testing, seals or carburetor repair as needed; ignition-module work includes stop-switch/wire testing; carburetor work includes fuel-line/vent checks and replacement. Do not simply add rows or charge all included diagnostic work again. Separate repairs with different access/diagnoses required the distributor service department to authorize extra time under that2012 policy.
  • The source assumes STIHL-trained technicians using the prescribed tools and workshop procedures. Printed2–3 claim-submission and parts-return/retention administration is outside this owner repair/fitment review; it is not adopted as current policy, a disposal instruction or a requirement to contact anyone. The warranty-policy pages and other-model tables are not FS46/55 repair procedures.
  • Later2012 USA reference only, not the exact1999 parent manual, current warranty policy, an owner repair estimate or hardware validation. TI40 original tenths-of-hour values, blank code2, model restrictions and all unresolved conflicts remain unchanged. Shared allowance columns do not prove parts interchange or identical equipment.

TI dependency: TI 40/1999, p. 7 — TI40 USA section6.4;2012-01 Repair Timetables Manual printed2–3/34.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 4, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46

FS 46: later repair minutes and unassigned drive repairs

The explicitly named FS46 column leaves liner and gearbox cells blank; it does not inherit FS55 values.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • Printed34/PDF35 explicitly groups FS40C,FS45,FS45C,FS46,FS46C. This note independently binds FS46 only. Codes1 short block,19 bearing liner,21 gearbox/arbor-shaft assembly,23 valve clearance,24 exhaust-valve decarbonizing/leak-down,25 valve replacement/leak-down and26 gearbox gears/bearings are BLANK. Blank means no allowance printed, not zero, mechanical impossibility or a new fitment restriction. Do not copy FS55 values20,15,30 into FS46 codes19,21,26.
  • Codes2–6, minutes:2 crankcase/gasket/reseal including air-leak test50;3 main bearings including air-leak test50;4 crankshaft seals including air-leak test50;5 tank filler cap3;6 cylinder/piston including air-leak test and repair of components causing failure50.
  • Codes7–12:7 ignition module OR flywheel including stop-circuit test30;8 tank fuel line,vent OR pickup body20;9 intake manifold/flange20;10 carburetor repair/replacement including fuel-system testing30;11 throttle-control repair20;12 rewind-starter repair/replacement15.
  • Codes13–18:13 clutch/shoes/springs30;14 muffler15;15 air filter OR filter housing15;16 stop switch including circuit testing25;17 clutch housing20;18 drive shaft and/or drive tube30. Code20 limit stop OR deflector15;22 fuel tank20. Generic row alternatives do not independently approve every named component on FS46.
  • Code35 engine diagnosis ONLY to determine failures requiring unit replacement25;40 miscellaneous/unlisted repair15;45 handling allowance only,NO LABOR5;50 no labor0. Code50 is an explicit numerical ZERO, distinct from the blank cells. This is the complete named FS46 column, not an instruction to perform those operations.
  • Later2012 USA reference only, not the exact1999 parent manual, current warranty policy, an owner repair estimate or hardware validation. TI40 original tenths-of-hour values, blank code2, model restrictions and all unresolved conflicts remain unchanged. Shared allowance columns do not prove parts interchange or identical equipment.

TI dependency: TI 40/1999, p. 7 — TI40 USA section6.4;2012-01 Repair Timetables Manual printed2–3/34.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 4, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46 / FS 55

FS 46 / FS 55: USA repair codes and units changed between editions

TI40 code5 is cylinder/piston0.9hour;2012 code5 is filler cap3minutes.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • TI40/1999 USA page7 uses tenths of an hour,0.1=6minutes, with20 numbered positions and code2 entirely blank. The2012 printed34 table uses minutes and30 printed codes (1–26,35,40,45,50). TI38/39 use a separate29-row minute system; neither numbering scheme is the USA TI40 table.
  • TI40 code1 crankcase/crankshaft/crank bearings0.9hour contrasts with2012 code1 short block,blank for both named columns. TI40 code2 is blank;2012 code2 crankcase/gasket/reseal including air-leak test50minutes. TI40 code5 cylinder/piston0.9hour is not2012 code5 filler cap3minutes. Numeric codes are NOT a stable cross-edition task key.
  • TI40 code8 gearbox/arbor assembly0.5hour differs from2012 code8 fuel line/vent/pickup20minutes. Later gearbox assembly is code21 (FS55=15minutes,FS46 blank); TI40 code19 gears/arbor bearings0.8hour differs from2012 code19 drive-tube liner (FS55=20,FS46 blank). Later gearbox internals are code26 (FS55=30,FS46 blank). The combined1999 allowance does not fill later blanks or prove actual FS46 gearbox fitment.
  • TI40 code9 repair/rebuild carburetor0.8hour and code10 replace carburetor/jet0.4hour with IF TRIED TO REPAIR USE CODE9 differ from2012 code9 intake manifold/flange20minutes and code10 repair/replacement including fuel testing30minutes. TI40 code14 drive tube/shaft0.5hour corresponds only broadly to2012 code18 drive shaft/tube30minutes; equal converted time is not evidence of identical scope or supersession.
  • Two existing FS55 detailed2012 engine and chassis notes were independently compared with the original FS55/C/R/RC column and retained unchanged. Use only the exact FS55 applicability for this USA dependency; no FS46,FS55T or other variant transfer. Original TI40 values and2012 allowances coexist as edition-specific evidence, not corrections to each other.
  • Later2012 USA reference only, not the exact1999 parent manual, current warranty policy, an owner repair estimate or hardware validation. TI40 original tenths-of-hour values, blank code2, model restrictions and all unresolved conflicts remain unchanged. Shared allowance columns do not prove parts interchange or identical equipment.

TI dependency: TI 40/1999, p. 7 — TI40 USA section6.4;2012-01 Repair Timetables Manual printed2–3/34.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 4, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · FS 46 / FS 55

FS 46 / FS 55: original USA parent timetable remains unavailable

The retained2012 manual cannot supply the unprinted terms of TI40’s1999 parent edition.

No exact-model IPL link: The combined SCS 01-2012 series4140 IPL does not establish the original USA TI40/1999 configuration or exact launch edition. No invented assembly binding.

  • TI40 page7 section6.4 says its table can be added to the STIHL repair-times-table manual but supplies no publication number or edition. It prints its own trained-personnel/workshop assumption and tenths-of-hour units. No other parent-manual terms are reconstructed from this short note.
  • No contemporary1999 USA parent timetable is identified in the bounded116-PDF resource/owner opening inventory independently reconciled for TI40, itsthe reviewed service documentation identities, and the fresh timetable/title/PDF metadata query. The retained timetable cover explicitly identifies2012-01 and copyright2012. This is a bounded exact-source gap, not universal absence.
  • The available2012 instructions and complete FS46 column have now been reviewed, and exact FS55 engine/chassis evidence independently rebound without changing its detailed notes. Different units, code meanings and included operations prevent applying2012 warranty rules or minutes retroactively to TI40. Reopen only on an applicable original parent edition.
  • Later2012 USA reference only, not the exact1999 parent manual, current warranty policy, an owner repair estimate or hardware validation. TI40 original tenths-of-hour values, blank code2, model restrictions and all unresolved conflicts remain unchanged. Shared allowance columns do not prove parts interchange or identical equipment.

TI dependency: TI 40/1999, p. 7 — TI40 USA section6.4;2012-01 Repair Timetables Manual printed2–3/34.

Later manual evidence: Repair Timetables Manual (2012-01), section Dealer instructions printed2–3;Trimmer repair times printed34, PDF pages 1, 3, 4, 35

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Full text

Page 1 of 8

TI 40/1999 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                         40.1999
New Model FS 46, 55 Brushcutters - Series 4140

Contents
1.   Technical Description
2.   Specifications
3.   Cutting Tools
4.   Special Accessories for Users
5.   Service Accessories
6.   Repairs
7.   Spare Parts

The new FS 46 and FS 55 lightweight trimmers/       The FS 46 features a curved drive tube. Its cutting
brushcutters round off the lower end of the STIHL   tool mounting is the same as the FS 36, but with an
line of grass trimmers, brushcutters and clearing   M8 thread on the shaft.
saws.                                               Model FS 55 has a straight drive tube. The cutting
                                                    tool mounting is the same as that of the FS 44. The
The engine is enclosed in a compact housing.
                                                    gearhead has been modified and now features a
Ergonomically designed controls and a favorable     one clamp screw.
power to weight ratio for easy handling and less
                                                    Recommended applications are the same as for the
operator fatigue.
                                                    FS 36 and FS 44.

TI_40_1999_30_01.fm                                                                      english / USA

Page 2 of 8

TI 40/1999 page 2
Text of page 2 — search, copy, screen readers
Page 2                                                                         Technical Information 40.1999

1.     Technical Description
Crankshaft
.    Composite crankshaft to form a torsionally rigid
     assembly.
.    Both ends supported in bearings.

Cylinder
.    Four port technology (better mixture control,
     clean combustion, lower emissions).
.    Large cooling area.

Carburetor
.    Only one adjusting screw (LD).
.    Balanced idle system with fixed idle jet*.
Fixed full-load jet

Air filter
.    Improved filter material
.    Large filter surface area

Exhaust muffler
.    Dual-chamber muffler

Easy start system
.    Purge Primer
.    ElastoStart (available as option)

Controls
.    Multi-function control handle

Clutch
.    Two clutch shoes without linings

Drive shaft
.    Drive tube with flexible shaft supported in a
     flexible liner

Gearhead (FS 55)
.    Construction similar to the FS 44
.    Only one clamp screw

* Balanced idle system is described in detail in the “Carburetors” handbook.

                                                                                           TI_40_1999_30_01.fm

Page 3 of 8

TI 40/1999 page 3
Text of page 3 — search, copy, screen readers
Technical Information 40.1999                                                                   Page 3

2.    Specifications

2.1   Powerhead

2.1.1 Engine
Single cylinder two-stroke engine
Displacement:             (1.66 cu.in (27.2 cm3)
Bore:                     1.34 in (34 mm)
Stroke:                   1.10 in (30 mm)
Engine power to           1 HP (0.75 kW)
ISO 8893:                 at 7,000 rpm
Engine speeds:            see 2.1.2
Rewind starter:           Single pawl system
Starter rope:             0.12 in (3 mm) dia.,
                          31.5 in (800 mm) long
Clutch engages at:        3,800 rpm

2.1.2 Fuel System
Carburetor: All position diaphragm carburetor with integral fuel pump

Idle speed screw LD (standard setting)                            Open 2 full turns (see 6.1)
Idle speed                                                        2,500 to 3,100 rpm
Cutoff speed range without cutting tool (electronic speed
governor)                                                         8,700 to 10,300 rpm

Fuel tank capacity:      10 fl.oz (0.3 L)
Fuel mix:                Branded mid grade gasoline (89 octane minimum) and brand-name two-stroke
                         engine oil
Mix ratio:               50:1 with STIHL 50:1 two-stroke engine oil

2.1.3 Ignition System

Ignition module:      with integral electronic speed
                      governor
Spark plug            Bosch WSR 6F,
(suppressed):         NGK BPMR 7 A or
                      Champion RCJ 6Y

2.2   Weight

without cutting attachment or deflector
FS 46:                                     9.0 lbs
FS 55:                                    10.8 lbs
FS 55 R:                                  10.1 lbs

TI_40_1999_30_01.fm

Page 4 of 8

TI 40/1999 page 4
Text of page 4 — search, copy, screen readers
Page 4                                                  Technical Information 40.1999

3.   Cutting Tools
The following cutting tools are approved
FS 46:
1    STIHL Autocut 5-2              4006 710 2103
2    STIHL Polycut 6-3              4006 710 2104

FS 55:
3    STIHL Supercut 20-2            4002 710 2184
4    STIHL Autocut 21-2             4002 710 2192
5    STIHL Autocut 25-2             4002 710 2191
6    STIHL Trimcut 30-2             4002 710 2193
7    STIHL Polycut 20-3             4002 710 2189   1                   2
8    Grass cutting blade 230-4*     4001 713 3801
9    Grass cutting blade 230-8*     4001 713 3803

*    Not approved for loop
     handle version of FS 55                        3                   4
     without barrier bar

                                                    5                   6

                                                             7
                                                                                     233TI002 KN

                                                    8                   9

                                                                    TI_40_1999_30_01.fm

Page 5 of 8

TI 40/1999 page 5
Text of page 5 — search, copy, screen readers
Technical Information 40.1999                                                                       Page 5

4.    Special Accessories for Users

4.1   General

Part Name                           Part Name             Application
ElastoStart                         0000 190 3400         Rewind starter (grip with rope)

Starter rope                        0000 195 8200         Rewind starter, also for ElastoStart

STIHL gear lubricant for hedge                            Drive shaft in tube
trimmers
- 2.8 oz tube                       0781 120 1109
- 8 oz tube                         0781 120 1110

STIHL gear lubricant for                                  Gearhead
brushcutters
- 2.8 oz tube                       0781 120 1117
- 8 oz tube                         0781 120 1118

4.2   Nylon Line for Mowing Heads

Line diameter / color               Application
0.080” / green                      Autocut 5-2, Autocut 21-2
0.095” / orange                     Supercut 20-2, Autocut 21-2, Autocut 25-2, Trimcut 30-2, Polycut 20-3
0.105” / red                        Polycut 20-3

5.    Service Accessories

5.1   Special Servicing Tools
Special servicing tools are listed in the service manuals for the series 4140 powerhead and
STIHL 4140 power tool components.

5.2   Servicing Aids

Part Name                           Part No.              Application
Set of gaskets                      4140 007 1050         Engine
Dirko sealant                       0783 830 2120         Engine pan/cylinder sealing faces
Standard commercial solvent-                              Cleaning crankshaft stub
based degreaser containing no
chlorinated or hydrogenated
hydrocarbons

TI_40_1999_30_01.fm

Page 6 of 8

TI 40/1999 page 6
Text of page 6 — search, copy, screen readers
Page 6                                                                            Technical Information 40.1999

6.      Repairs

If the unit is started up in the course of repairs or maintenance work, it is essential to strictly observe
all local and national safety regulations and the safety precautions outlined in the owner’s manual.

6.1     Carburetor Adjustment

Standard setting
.     Mount the cutting tool
.     Check air filter and fit a new one if necessary
.     Carefully screw down the idle speed screw (LD) counterclockwise (left-hand thread)
      until it is against its seat, then open it two full turns clockwise.

Adjusting idle speed
.     Carry out standard setting
.     Start and warm up the engine

Engine stops while idling:
.     Turn the idle speed screw (LD) slowly clockwise until engine runs smoothly - the cutting tool must not rotate.

Cutting tool rotates while engine is idling:
.     Turn the idle speed screw (LD) counterclockwise until the cutting tool stops rotating and then turn the screw
      about another full turn in the same direction (counterclockwise).

Erratic idling behavior, poor acceleration:
.     Turn the idle speed screw (LD) slowly counterclockwise no more than 1/2 turn until engine runs smoothly.

6.2     Tightening Torques
Special servicing tools are listed in the service manuals for the series 4140 powerhead and
STIHL 4140 power tool components.

6.3     Service Note

The service manuals for the STIHL series 4140 powerhead and STIHL 4140 power tool components can be
used for servicing and repair procedures on models FS 46 and FS 55.
These service manuals do not include the chapters "Servicing the Carburetor", "Troubleshooting" or any repairs
involving standard procedures. Such procedures are described in separate handbooks, i.e. “Carburetors” and
"Standard Repairs, Troubleshooting".

                                                                                                 TI_40_1999_30_01.fm

Page 7 of 8

TI 40/1999 page 7
Text of page 7 — search, copy, screen readers
Technical Information 40.1999                                                                 Page 7

6.4   Repair Times                                   .
The specified repair times assume that the work                                               FS 46
is performed by trained personnel in a properly      Code Type of Repair                      FS 55
equipped service workshop.
                                                      1   Crankcase, Crankshaft, Crank        0.9
                                                          Bearings
The repair times are given in tenth of an hour        2
(0.1 = 6 minutes).                                    3   Crankcase Gasket/Sealing            0.8
                                                      4   Crankshaft Seals                    0.9
                                                          (including pressure & vacuum test)
Note: This table for models FS 46, 55 can be added
                                                      5   Cylinder and/or Piston              0.9
to the STIHL repair times table manual.
                                                      6   Ignition Module                     0.5
                                                      7   Fule Hose                           0.5
                                                      8   Replace Gear Box/Arbor Assy         0.5
                                                      9   Repair/Rebuild Carburetor           0.8
7.    Spare Parts                                    10   Replace Carburetor, Carburetor      0.4
An illustrated parts list is available for the new        Jet (if tried to repair use code 9)
models.                                              11   Front Handle, Throttle Control,     0.6
                                                          Cable
                                                     12   Recoil Starter                      0.5
                                                     13   Cluch, Cluch Drum, Drum Housing 0.7
                                                     14   Drive Tube, Drive Shaft             0.5
                                                     15   Muffler                             0.4
                                                     16   Air Filter, Filter Cover, Tank Cap, 0.3
                                                          Tank Vent, Fuel Filter, Spark Plug,
                                                          Cutting Attachment,
                                                          Misc. Minor Repairs
                                                     17   Stop Switch                         0.6
                                                     18   Fuel Tank                           0.4
                                                     19   Replace Gears, Arbor Bearings       0.8
                                                     20   All Other Repairs                   0.5
                                                                                    ✂

TI_40_1999_30_01.fm

Page 8 of 8

TI 40/1999 page 8
Text of page 8 — search, copy, screen readers
Page 8                                          Technical Information 40.1999

© 1999 Andreas STIHL AG & Co.   Technical Documentation
  Waiblingen                    D1/MTK-na                                6717

                                                            TI_40_1999_30_01.fm

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.

Report a transcription error →
