Technical Information · issue 41 of 1999
FC 55: New Model Edger
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Service note · FC 55

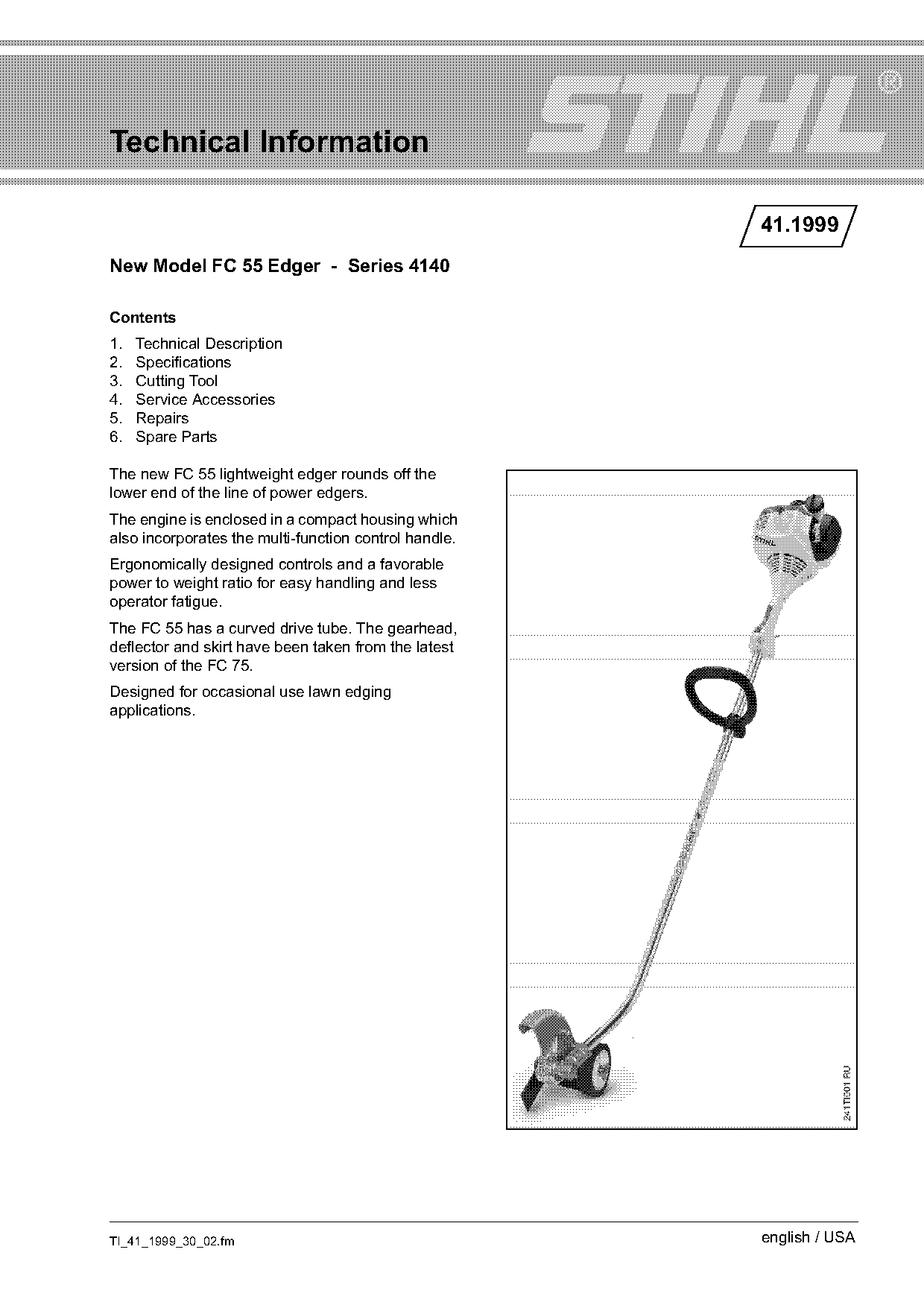

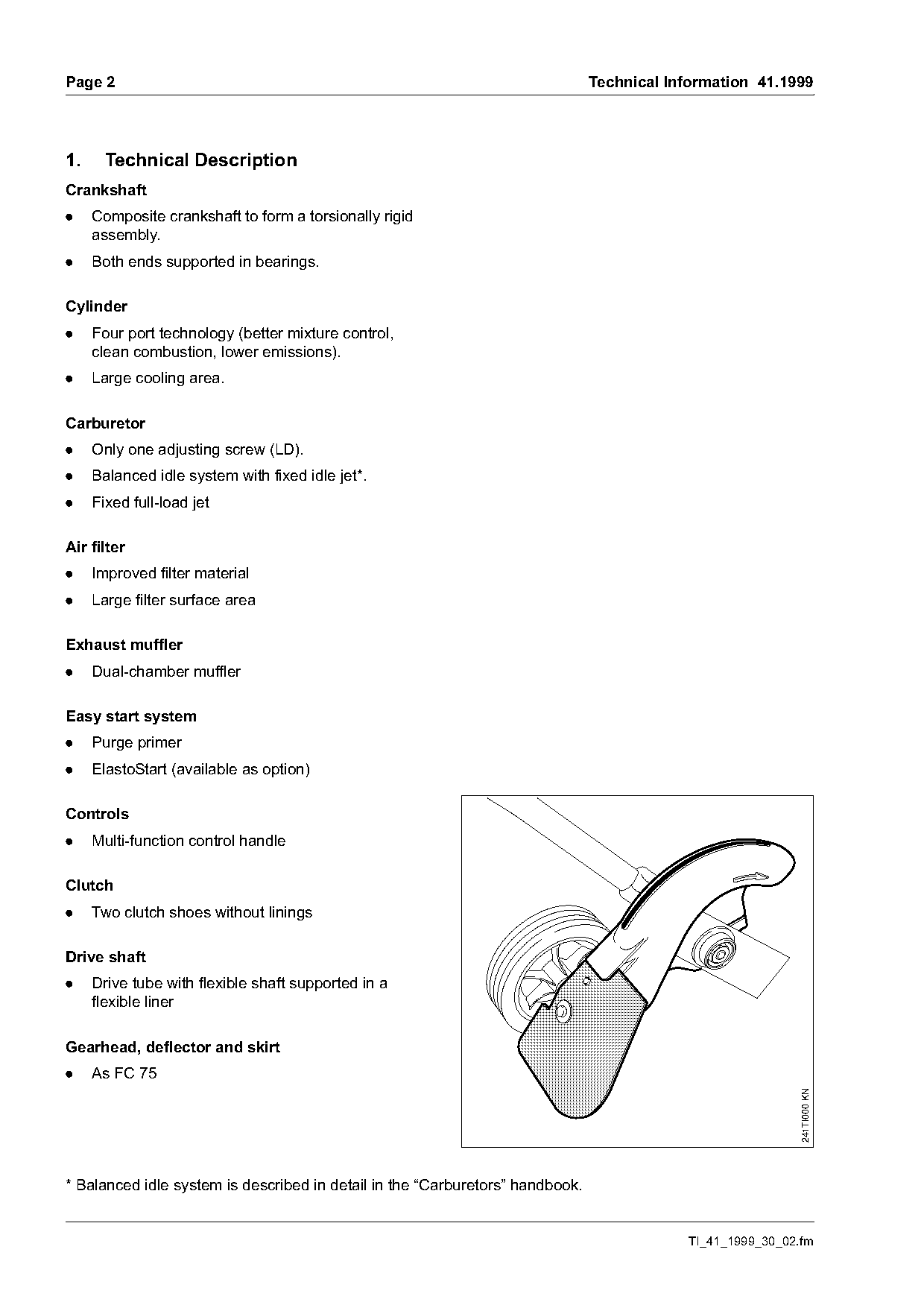

FC 55: launch construction and FC75 relationship (TI41 USA)
Curved-shaft occasional-use edger; the FC75 relationship is limited to named components.
No exact-model IPL link: TI41 names the FC55 series4140 launch model but supplies no launch IPL edition or assembly identifiers. Exact original configuration and later catalog associations remain pending independent review; no guessed assembly binding.
- Introductory text describes a lightweight edger for occasional lawn edging, compact engine housing incorporating a multi-function control handle, ergonomic controls and favorable power-to-weight ratio. The FC55 has a curved drive tube; the gearhead, deflector and skirt are taken from the LATEST VERSION of FC75, not every FC75 configuration. No component numbers or changeover serials identify that version.
- Section1: composite, torsionally rigid crankshaft supported in bearings at both ends; four-port cylinder with large cooling area and claimed improved mixture control/combustion/emissions; improved air-filter material and large filter area; dual-chamber muffler.
- Carburetor has ONE adjusting screw (LD), balanced idle with fixed idle jet and fixed full-load jet. Purge primer; ElastoStart is OPTIONAL, not standard equipment. Two clutch shoes WITHOUT LININGS. Flexible drive shaft supported in a flexible liner; multi-function control handle.
- Page1 whole-machine illustration and page2 gearhead/deflector/skirt drawing are unnumbered construction views, not dimensioned fitment drawings or blade part-number evidence. Balanced-idle details are delegated to the Carburetors handbook without an edition date; that locally actionable dependency remains pending.
- TI41/1999 english/USA historical reference only; no current service approval, serial applicability or verified physical interchange is inferred. Original IPL data and earlier records remain unchanged.
Source: TI 41/1999, p. 1 · TI 41/1999, p. 2 — launch construction and FC75 relationship.
No additional parts-table entry added.
Service note · FC 55

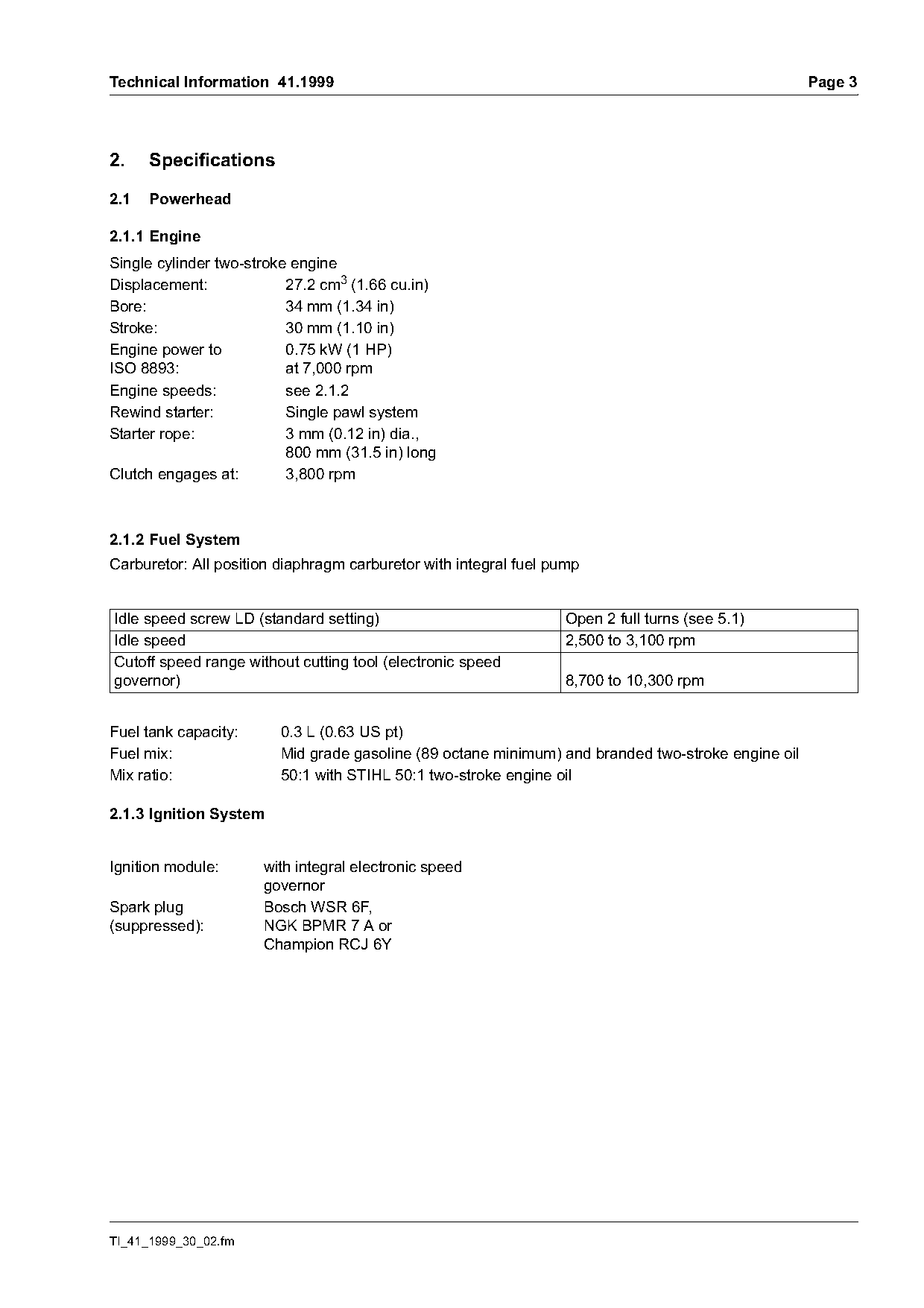

FC 55: engine and starter specifications (TI41 USA)
Printed metric/inch stroke values conflict; neither is silently corrected.
No exact-model IPL link: TI41 names the FC55 series4140 launch model but supplies no launch IPL edition or assembly identifiers. Exact original configuration and later catalog associations remain pending independent review; no guessed assembly binding.
- Single-cylinder two-stroke engine: displacement27.2 cm³ (1.66 cu.in), bore34 mm (1.34 in), stroke30 mm (1.10 in) AS PRINTED. The stroke conversion is inconsistent:30 mm is approximately1.18 in, not1.10 in. Both printed values remain visible as an unresolved source conflict, not a verified measurement.
- Engine power to ISO8893:0.75 kW (1 HP) at7,000 rpm. Rewind starter: single-pawl system; rope3 mm (0.12 in) diameter,800 mm (31.5 in) long. Clutch engagement3,800 rpm. No starter-rope part number or engine production range is printed.
- TI41/1999 english/USA historical reference only; no current service approval, serial applicability or verified physical interchange is inferred. Original IPL data and earlier records remain unchanged.
Source: TI 41/1999, p. 3 — engine and starter specifications.
No additional parts-table entry added.
Service note · FC 55
FC 55: USA fuel and governed-speed specifications (TI41 USA)
Cutoff speed is explicitly without the cutting tool; idle uses its own range.
No exact-model IPL link: TI41 names the FC55 series4140 launch model but supplies no launch IPL edition or assembly identifiers. Exact original configuration and later catalog associations remain pending independent review; no guessed assembly binding.
- All-position diaphragm carburetor with integral fuel pump. Standard LD setting: open2 full turns, referring to section5.1 for left-hand-thread direction and mounted-blade setup. Idle speed2,500–3,100 rpm. Electronic-governor cutoff range8,700–10,300 rpm WITHOUT CUTTING TOOL; this is not a mounted-blade operating speed or an instruction to run a machine.
- Fuel tank0.3 L (0.63 US pt). Fuel: mid-grade gasoline,89 octane minimum, and branded two-stroke engine oil. Ratio50:1 with STIHL50:1 two-stroke oil. TI41 supplies no25:1 alternative or octane-rating-method label; do not import either from another market edition.
- TI41/1999 english/USA historical reference only; no current service approval, serial applicability or verified physical interchange is inferred. Original IPL data and earlier records remain unchanged.
Source: TI 41/1999, p. 3 — USA fuel and governed-speed specifications.
No additional parts-table entry added.
Service note · FC 55
FC 55: ignition alternatives and blade-inclusive weight (TI41 USA)
TI41 lists three suppressed plugs and a weight with blade, without a fuel-state qualifier.
No exact-model IPL link: TI41 names the FC55 series4140 launch model but supplies no launch IPL edition or assembly identifiers. Exact original configuration and later catalog associations remain pending independent review; no guessed assembly binding.
- Ignition module includes an electronic speed governor. Suppressed spark-plug alternatives: Bosch WSR6F, NGK BPMR7A or Champion RCJ6Y. No spark-plug gap or tightening torque is printed here.
- Weight WITH BLADE:12.8 lbs (5.8 kg). Section2.2 does not explicitly specify with or without fuel. Do not relabel this as dry weight or borrow another model’s weight exclusions.
- TI41/1999 english/USA historical reference only; no current service approval, serial applicability or verified physical interchange is inferred. Original IPL data and earlier records remain unchanged.
Source: TI 41/1999, p. 3 · TI 41/1999, p. 4 — ignition alternatives and blade-inclusive weight.
No additional parts-table entry added.
Service note · FC 55
FC 55: blade-balance servicing aid (TI41 USA)
The cutting-tool section identifies a balancer, not a blade order number.
No exact-model IPL link: TI41 names the FC55 series4140 launch model but supplies no launch IPL edition or assembly identifiers. Exact original configuration and later catalog associations remain pending independent review; no guessed assembly binding.
- Section3 Cutting Tool /3.1 Servicing Aid lists STIHL balancer5910 850 2600 for CHECKING BLADE BALANCE. It gives no blade dimensions, material, maximum speed, blade order number or blade sharpening procedure. The balancer is not a cutting attachment.
- FC75 gearhead/deflector/skirt inheritance on pages1–2 does not independently establish a shared blade or universal attachment interchange. Available exact FC55 component and IPL evidence remains to be reviewed.
- TI41/1999 english/USA historical reference only; no current service approval, serial applicability or verified physical interchange is inferred. Original IPL data and earlier records remain unchanged.
Source: TI 41/1999, p. 4 — blade-balance servicing aid.
Part numbers (1)
- 5910 850 2600 — STIHL balancerTI41 listed servicing aid · Checking FC55 blade balance
Service note · FC 55
FC 55: USA engine and electrical servicing aids (TI41 USA)
Four numbered aids and the printed solvent restriction are retained.
No exact-model IPL link: TI41 names the FC55 series4140 launch model but supplies no launch IPL edition or assembly identifiers. Exact original configuration and later catalog associations remain pending independent review; no guessed assembly binding.
- Section4.2: gasket set4140 007 1050 for the engine; lubricating grease0781 120 1111,225 g tube, for oil seals; Dirko0783 830 2120 for engine-pan/cylinder sealing faces; electrician’s repair kit5910 007 1050 for the electrical system. No carburetor repair-kit number is printed.
- Crankshaft-stub cleaner is a standard commercial solvent-based degreaser containing NO CHLORINATED OR HYDROGENATED HYDROCARBONS, as printed. Preserve HYDROGENATED; do not silently substitute HALOGENATED or claim that a particular cleaner has been verified. Exact manual wording and any conflicts remain for the dependency review.
- Section4.1 delegates special tools to the series4140 powerhead and STIHL4140 power-tool-components service manuals. These are pending review for exact FC55 scope, not absent merely because TI41 does not list them.
- TI41/1999 english/USA historical reference only; no current service approval, serial applicability or verified physical interchange is inferred. Original IPL data and earlier records remain unchanged.
Source: TI 41/1999, p. 4 — USA engine and electrical servicing aids.
Part numbers (4)
- 4140 007 1050 — Set of gasketsTI41 listed servicing aid · FC55 engine
- 0781 120 1111 — Lubricating grease, 225 g tubeTI41 listed servicing aid · FC55 oil seals
- 0783 830 2120 — Dirko sealantTI41 listed servicing aid · FC55 engine pan/cylinder sealing faces
- 5910 007 1050 — Electrician’s repair kitTI41 listed servicing aid · FC55 electrical system
Service note · FC 55

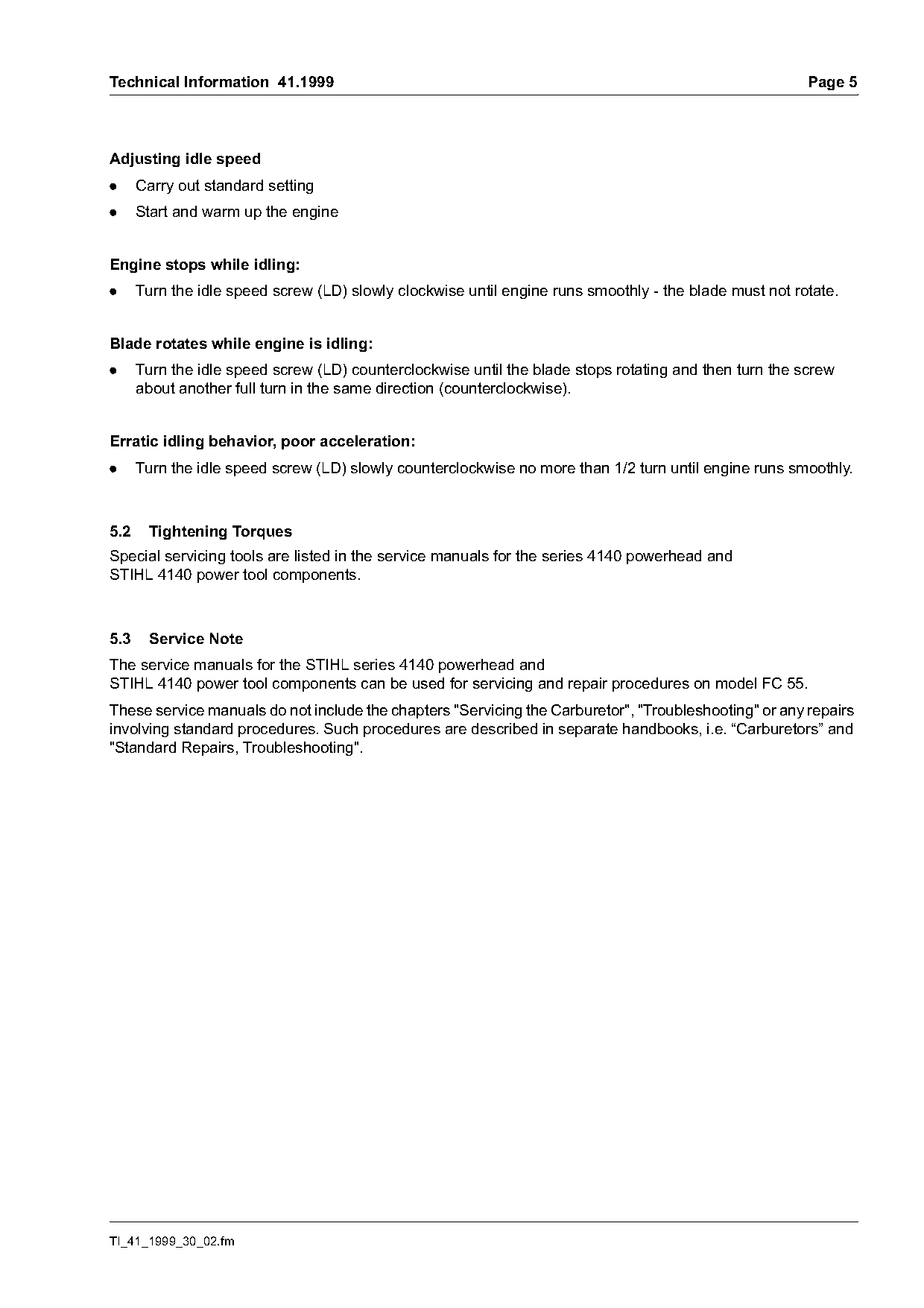

FC 55: left-hand LD adjustment and idle limits (TI41 USA)
Mounted blade, left-hand screw direction and blade-stopped conditions remain explicit.
No exact-model IPL link: TI41 names the FC55 series4140 launch model but supplies no launch IPL edition or assembly identifiers. Exact original configuration and later catalog associations remain pending independent review; no guessed assembly binding.
- Section5 requires local/national safety regulations and owner-manual safety precautions whenever the machine is started during repair or maintenance. This is an offline transcription, not authorization to start or adjust hardware; the applicable owner manual remains a dependency.
- Standard setting: MOUNT THE BLADE; check air filter and replace if necessary. Carefully seat LD COUNTERCLOCKWISE (left-hand thread), then open TWO FULL TURNS CLOCKWISE. For idle adjustment, first perform standard setting, then start and warm the engine as the historical source specifies.
- Engine stops at idle: slowly turn LD CLOCKWISE until smooth; the BLADE MUST NOT ROTATE. Blade rotates at idle: turn LD COUNTERCLOCKWISE until it stops, then ABOUT ONE MORE FULL TURN COUNTERCLOCKWISE.
- Erratic idle/poor acceleration: slowly turn LD COUNTERCLOCKWISE NO MORE THAN 1/2 TURN until smooth. No H/L adjustment, limiter-cap procedure or unprinted final rpm is added; the separate printed idle range is2,500–3,100 rpm.
- TI41/1999 english/USA historical reference only; no current service approval, serial applicability or verified physical interchange is inferred. Original IPL data and earlier records remain unchanged.
Source: TI 41/1999, p. 4 · TI 41/1999, p. 5 — left-hand LD adjustment and idle limits.
No additional parts-table entry added.
Service note · FC 55

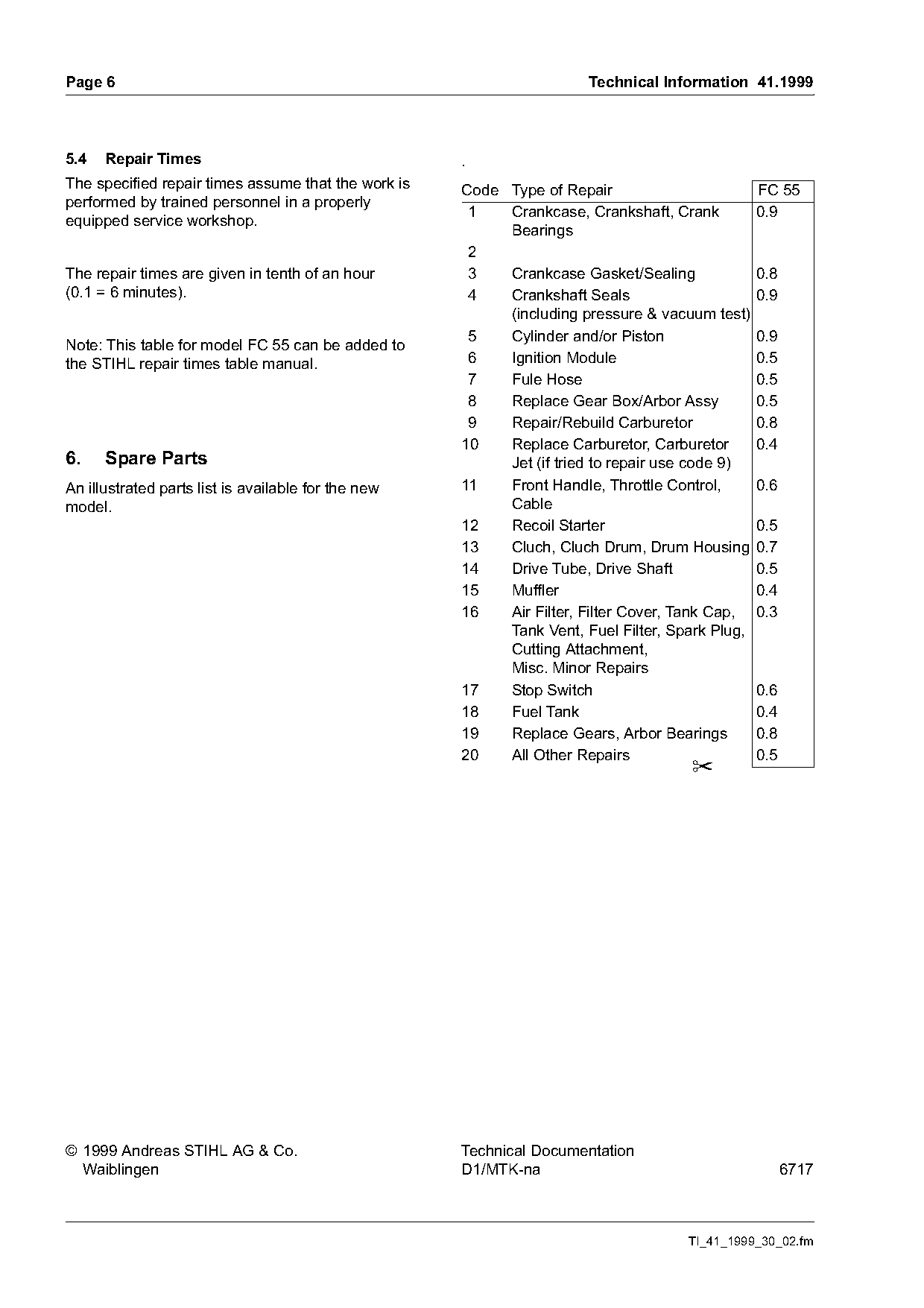

FC 55: USA repair-time table and blank code2 (TI41 USA)
Twenty printed code positions use tenths of an hour, with code2 blank rather than zero.
No exact-model IPL link: TI41 names the FC55 series4140 launch model but supplies no launch IPL edition or assembly identifiers. Exact original configuration and later catalog associations remain pending independent review; no guessed assembly binding.
- Section5.4 assumes trained personnel in a properly equipped service workshop. Values are tenths of an hour:0.1=6 minutes, NOT minutes. The table may be added to the STIHL repair-times-table manual; that parent edition is not identified.
- Codes1–10:1 crankcase/crankshaft/crank bearings0.9;2 BLANK (no repair name or time, not zero);3 crankcase gasket/sealing0.8;4 crankshaft seals0.9 INCLUDING pressure and vacuum test;5 cylinder and/or piston0.9;6 ignition module0.5;7 fuel hose0.5 (printed Fule);8 replace gear box/arbor assembly0.5;9 repair/rebuild carburetor0.8;10 replace carburetor/carburetor jet0.4, IF TRIED TO REPAIR USE CODE9.
- Codes11–20:11 front handle/throttle control/cable0.6;12 recoil starter0.5;13 clutch/clutch drum/drum housing0.7 (Cluch printed twice);14 drive tube/drive shaft0.5;15 muffler0.4;16 air filter/filter cover/tank cap/tank vent/fuel filter/spark plug/cutting attachment/miscellaneous minor repairs0.3;17 stop switch0.6;18 fuel tank0.4;19 replace gears/arbor bearings0.8;20 all other repairs0.5.
- The FC55 column does not establish interchange with FC75 or identical labor allowances for other series4140 models. No additive labor total, current warranty rule or owner time estimate is inferred.
- TI41/1999 english/USA historical reference only; no current service approval, serial applicability or verified physical interchange is inferred. Original IPL data and earlier records remain unchanged.
Source: TI 41/1999, p. 6 — USA repair-time table and blank code2.
No additional parts-table entry added.
Service note · FC 55
FC 55: reviewed references and five source gaps (TI41 USA)
Available FC55 references are reviewed; five named source gaps limit historical completeness.
No exact-model IPL link: TI41 supplies no launch IPL edition or assembly identifiers. Later2012 FC55/FC75 associations were independently reviewed but do not establish original1999 configuration or universal interchange.
- Pages2,4–5 delegate balanced-idle details and servicing to Carburetors and the series4140 powerhead/components manuals. Available FC55 branches, gearbox referral,2012 catalog/timetable context and Carburetors1–8 have been independently reviewed. Neither FS45 nor FS55 evidence is automatically FC55 evidence.
- Section5.2 is headed Tightening Torques but prints NO TORQUE VALUES: its text again says special servicing tools are listed in the manuals. No torque values are inferred from the heading.
- Section5.3 says those manuals omit Servicing the Carburetor, Troubleshooting and standard-procedure repairs; these are delegated to Carburetors and Standard Repairs, Troubleshooting handbooks. TI41 supplies no revision date or publication number for any of them; no minimum-edition requirement is copied from another bulletin.
- Section5 requires owner-manual safety precautions; section5.4 refers to a repair-times-table parent and section6 announces a launch IPL without edition or publication number. Exact FC55 owner instructions, original referred manual issues, contemporary1999 USA parent timetable and exact launch IPL were not identified in the bounded source inquiry.
- TI41 is reviewed with five documented source gaps: Standard Repairs, Troubleshooting; FC55 owner instructions; original powerhead/components manual issues; contemporary1999 USA repair timetable; exact launch IPL. All six original pages have semantic dispositions. Available procedures and later parts data are not missing. This is not exhaustive historical knowledge or verified physical interchange. Reopen on a newly available applicable edition.
- TI41/1999 english/USA historical reference only; no current service approval, serial applicability or verified physical interchange is inferred. Original IPL data and earlier records remain unchanged.
Source: TI 41/1999, p. 2 · TI 41/1999, p. 4 · TI 41/1999, p. 5 · TI 41/1999, p. 6 — service-reference scope and documented source gaps.
No additional parts-table entry added.
Service note · FC 55
FC 55: integrated throttle trigger and interlock seating
The FC55 integrated-control branch is distinct from FS46/55 separate-control procedures.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; integrated controls independently matched to TI41 construction. Exact launch IPL assembly identity and original manual revision remain unestablished.
- TI41 describes the control handle integrated into the FC55 engine housing. Components4140 introduction explicitly names FC55 and makes unrestricted procedures common to the listed models. Section7.3 is the integrated-control branch; section7.2 FS46/55 separate controls and section7.1 bike-handle controls are not relabeled as FC55.
- For the interlock, remove the stop-switch/interlock support under7.3.2, pry the interlock out of its mounts and remove it. Inspect the torsion spring and replace if necessary; reinstall in reverse order. For the trigger, remove that support, pull the trigger from its housing seat, push the lock lever slightly toward the trigger, remove trigger and torsion spring, and disconnect the throttle cable. Refit the spring in the trigger as shown in232RA073.
- The support procedure removes shroud/housing components under5.1, presses down the interlock and pulls the support out. On installation, press the interlock and engage BOTH support pegs in their holes (932RA278). Drawings identify seating and routing, not replacement part numbers or dimensions; shroud/engine details remain for the next component branch review.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration; no other model’s restricted branch is silently substituted. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 7.3.1–7.3.2, integrated-control trigger/interlock and support.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 7.3.1–7.3.2, integrated-control trigger/interlock and support, PDF pages 1, 3, 34, 35
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: integrated stop switch and ignition-wire routing
Keep the wires in their retainers and engine-housing guides, including the flywheel area.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; integrated controls independently matched to TI41 construction. Exact launch IPL assembly identity and original manual revision remain unestablished.
- After removal of the stop-switch/interlock support, remove the wires from their retainer, pry the stop switch from the support and disconnect the short-circuit and ground wires. Install in reverse, engaging the support pegs with their holes while the interlock is depressed.
- For short-circuit/ground-wire replacement, remove the stop switch and disconnect both wires from the ignition module. Remove the wires from the housing guides and from the retainers in the flywheel area (232RA005,053,054). Reverse the sequence and ensure both wires are properly seated in the engine-housing guides. The page gives no wire resistance, color code, terminal torque or FC75 interchange claim.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration; no other model’s restricted branch is silently substituted. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 7.3.2–7.3.3, stop switch and short-circuit/ground wires.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 7.3.2–7.3.3, stop switch and short-circuit/ground wires, PDF pages 1, 3, 35, 36
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: throttle-cable routing, adjustment and conditional heat protection
The cable tensioner is not the LD fuel-adjustment screw; 2003 catalyst insulation is conditional.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; integrated controls independently matched to TI41 construction. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Remove the throttle trigger; disconnect the cable from the slotted pin on the carburetor throttle lever. Ease the cable sleeve from the tensioner WITHOUT KINKING the cable, disconnect it from the trigger and remove it from the rear and front housing portions. Refit in reverse: seat the sleeve in the engine housing and cable in all retainers (232RA138,075), then adjust under7.4.
- For adjustment, remove the shroud and hold the throttle trigger at full travel. Turn the CABLE TENSIONER adjusting screw CLOCKWISE until the throttle lever meets the stop on the carburetor end cover. This mechanical cable adjustment is NOT the left-hand LD fuel adjustment. On a carburetor WITH an LA idle screw, verify its setting under9.3.2 and ensure the lever also meets LA at idle; the LA condition does not turn the TI41 fixed-jet LD carburetor into an H/L/LA carburetor.
- Section7.5 requires an insulating tube below the muffler ONLY on machines with a catalytic converter from2003, or when that converter is installed as a replacement. Disconnect at the carburetor, slide the tube over the cable from that end, reinstall the cable, move insulation as far as the slot and secure it on the cable retainer (932RA338). No claim that the1999 launch FC55 had this converter, tube, or a universal retrofit requirement.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration; no other model’s restricted branch is silently substituted. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 7.3.4–7.5, integrated cable replacement, adjustment and insulation.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 7.3.4–7.5, integrated cable replacement, adjustment and insulation, PDF pages 1, 3, 36, 37
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: drive-tube removal and integrated-handle loop position
Align the loop-machine holes; the approximately20cm handle distance starts at the engine housing.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; integrated controls independently matched to TI41 construction. Exact launch IPL assembly identity and original manual revision remain unestablished.
- For separation from the powerhead alone, components may remain on the drive tube when the control handle is integrated into the housing. On the loop-handled branch remove screw1, loosen screws2 and withdraw the tube. On reassembly degrease the clamp area and push the tube fully home until its hole aligns with the housing hole (232RA110); turn the drive shaft to and fro via the cutting tool so its square end engages the clutch-drum square recess. The continuation on printed52 requires fitting and tightening screw1 FIRST, THEN tightening screws2 under3.3; check the drive-tube instruction label for damage/legibility and replace if necessary. Refit remaining parts in reverse order. Section3.3 torque-table review remains pending; no unprinted torque is invented.
- The FS46/55-only USA/CAN/AUS handle-hose, short-circuit-wire slot and throttle-cable seat steps on the same page are NOT FC55 steps. The bike-handle18cm hole reference is likewise not the FC55 loop-handle insertion measurement.
- Section10.2.4 removes wingnut and washer, screw and spacer IF FITTED, then loop handle and friction pad. Refit in reverse; position the loop handle ABOUT20cm forward of the ENGINE HOUSING and tighten firmly (932RA304). The adjacent split-clamp/barrier-bar branches measure20cm from the CONTROL HANDLE; no barrier-bar option, common handle part number or unprinted torque is inferred for FC55.
- The clamp-area solvent wording is no CHLORINATED OR HALOGENATED hydrocarbons. TI41 page4 instead prints HYDROGENATED for crankshaft-stub cleaner. Preserve the differing words AND applications; this is not a silent correction or verification of a particular solvent.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration; no other model’s restricted branch is silently substituted. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 10.1 and10.2.4, drive tube and integrated-control loop handle.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 10.1 and10.2.4, drive tube and integrated-control loop handle, PDF pages 1, 3, 52, 53, 54
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: drive shaft, flexible liner and lubrication
Section10.3.3 explicitly includes FC55; FS45/46 and HL45-only instructions remain separate.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; integrated controls independently matched to TI41 construction. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Section10.3.3 explicitly covers FS55, FC55 and HL45. Remove drive tube, applicable handle and gearbox (10.4 delegates the gearbox procedure). Pull the shaft from the ENGINE END of the tube. A shaft that has turned BLUE must be replaced. The adjacent10.3.2 FS45/46 procedure is not the basis for FC55 applicability.
- Pull the flexible liner out. The illustrated liner is HL45; the OTHER LINERS ARE STAR-SHAPED. HL45 both-end plug removal, FS55 engine-end plug removal, and HL45 hose cutting/refitting and hole-between-spokes orientation are model-specific, not FC55 steps. Check the instruction label for damage/legibility and replace if necessary. Reassemble in reverse; a little press fluid on the flexible liner eases insertion.
- Coat the drive shaft evenly with STIHL gear lubricant for HEDGE TRIMMERS before installation; DO NOT PUMP GREASE DIRECTLY INTO THE DRIVE TUBE. After installation check that the cutting tool rotates. Section12 lists this lubricant in80g tube 0781 120 1109 and225g tube 0781 120 1110; these are not the different lubricating grease 0781 120 1111 listed for a driver-bushing needle bearing.
- Section12 lists STIHL OH723 press fluid 0781 957 9000;10.3.3 refers to this aids section for liner installation. Its table application says rubber AV elements, not proof that FC55 has an AV system. These numbers identify procedure materials, not an FC55 replacement shaft or verified attachment fitment. Gearbox work remains pending the independently bound CombiTools branch.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration; no other model’s restricted branch is silently substituted. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 10.3.3 and12, FC55 drive shaft/liner and servicing aids.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 10.3.3 and12, FC55 drive shaft/liner and servicing aids, PDF pages 1, 3, 58, 59, 61
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: gearbox procedure delegated to CombiTools
The explicit gearbox cross-reference is useful evidence, not universal FC75 interchange.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; integrated controls independently matched to TI41 construction. Exact launch IPL assembly identity and original manual revision remain unestablished.
- FC55 is explicitly included in10.3.3, which calls for gearbox removal under10.4. Section10.4 delegates gearbox removal/installation and disassembly/reassembly to the CombiTools service manual, without supplying an edition, gearbox ratio, shim dimensions, blade number or tightening values.
- This is a concrete FC55 component-reference path for further review of available CombiTools evidence. The pinned February2007 CombiTools cover names FC75 but not FC55; TI41 limits FC75 inheritance to gearhead, deflector and skirt of the LATEST VERSION. Those facts do not yet bind every2007 FC75 procedure or component to the1999 FC55. Exact configuration and launch-IPL identity remain locally actionable inquiries, not declared source gaps.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration; no other model’s restricted branch is silently substituted. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 10.3.3–10.4, gearbox delegation and model-binding boundary.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 10.3.3–10.4, gearbox delegation and model-binding boundary, PDF pages 1, 3, 58, 59
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: replacement shroud reflector and loop-handle access
The October2003 replacement-shroud statement is not evidence of a catalyst on every1999 FC55.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- The introduction names FC55 and applies unrestricted procedures to listed models. Section5.1 says only the new shrouds with reflector foil for catalytic-converter units from2003 are available as replacements for all machine versions EXCEPT HL45. This is a later service-replacement statement, not a1999 production changeover or a shroud part number.
- Use the LOOP-HANDLE illustrations932RA149/150: remove the indicated screws and lift away the shroud; install in reverse order. The bike-handle illustration is not silently substituted. For the version with catalytic converter from2003, check reflector foil1 is correctly seated before fitting the shroud (932RA337).
- Manual section2 requires all fuel work outdoors, immediate removal of spilled fuel and no fire, flame, spark or heat near fuel. Any service running remains subject to local safety rules and the complete instruction-manual warnings; no machine is operated in this offline review.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table and related starter/fuel procedures remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 5.1, shroud.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 5.1, shroud, PDF pages 1, 3, 4, 14
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: clutch wear limit, paired springs and washer variants
Cup-spring clutches use a1.2mm washer; clutches without it use1.5mm. Replace the washer with a new clutch.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Remove the engine under5.3 and the spark plug; locking strip 4221 893 5900 blocks the piston. Screwdriver bit 0812 540 1112 removes the clutch drum. Inspect for scoring/excessive wear; if visible internal wear is present, check wall thickness and replace the drum below ABOUT80% of original thickness (148RA101). No absolute wall-thickness dimension is supplied here.
- Engage wrench 4130 890 3600 in the semicircular clutch recesses. The removable stack is spacer sleeve3, washer2 and cup spring1 IF FITTED. A new clutch requires a new washer:1.2mm WITH cup spring versus1.5mm WITHOUT. Shoes, carrier, springs, cup spring and required washer are supplied as an assembly; replace separately serviceable clutch springs IN PAIRS. Use 5910 890 2800 to detach springs after pressing the carrier out.
- Fit springs without sideways projection (232RA015); angle the carrier, spread shoes slightly and press the carrier fully home (932RA270). Refit sleeve/washer/conditional cup spring; install clutch with arrow and OFF facing OUTWARD. On cup-spring versions ensure it remains seated during installation. Tighten clutch with the wrench and internal drum screw with the bit per3.3; this branch does not invent a torque, universal cup-spring fitment, or washer order number.
- Manual section2 requires all fuel work outdoors, immediate removal of spilled fuel and no fire, flame, spark or heat near fuel. Any service running remains subject to local safety rules and the complete instruction-manual warnings; no machine is operated in this offline review.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table and related starter/fuel procedures remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 5.2, clutch.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 5.2, clutch, PDF pages 1, 3, 4, 14, 15, 16
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: engine separation and starter-housing spacer
Do not kink the throttle cable; replace housing screw2 only if damaged.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Remove drive tube under10.1, shroud under5.1 and fuel tank under9.5.1. Disconnect short-circuit wire1 and ground wire2 at the ignition module; disconnect the throttle cable from the slotted throttle-lever pin. Both the early tensioner232RA007 and later guide932RA148 require easing out the cable WITHOUT KINKING it.
- Remove housing screws1 and the engine housing; replace screw2 ONLY IF DAMAGED (232RA008). Reassemble in reverse. Drawings identify locations, not replacement part numbers. Fuel-tank removal and fastener torques remain pending independent branch review.
- Always replace a damaged spacer. Remove the rewind starter under6.2 to reach it; lever its lug behind the starter-housing edge and push the spacer inward to remove (932RA199). Reinstall in reverse and check the lugs engage properly. Section6.2 shows starter securing screws232RA055 and reverse reassembly; internal starter work is not closed here.
- Manual section2 requires all fuel work outdoors, immediate removal of spilled fuel and no fire, flame, spark or heat near fuel. Any service running remains subject to local safety rules and the complete instruction-manual warnings; no machine is operated in this offline review.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table and related starter/fuel procedures remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 5.3 and5.5, engine removal and spacer.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 5.3 and5.5, engine removal and spacer, PDF pages 1, 3, 4, 16, 17, 21
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: non-catalyst muffler and removable exhaust stub
Keep the non-catalyst and catalyst procedures separate; not every exhaust stub contains a screen.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Before investigating engine faults, check and if necessary repair fuel system, carburetor, air filter and ignition. The integrated catalytic converter, WHERE FITTED, is maintenance-free and must never be repaired; that restriction does not prohibit the separately described spark-screen service.
- For the version WITHOUT catalytic converter, remove the rewind starter then muffler screws, muffler and exhaust gasket. Refit with a NEW exhaust gasket; sealant belongs under the screw HEAD, with material per12 and torque per3.3. No muffler-kit number or torque is supplied in this branch.
- On machines with a REMOVABLE STUB, with OR without spark screen, use a15mm wrench to unscrew the stub. Clean the screen or fit a new stub as necessary. Clean its thread, coat with sealant per12 following the sealant maker instructions and tighten per3.3. Do not imply all FC55 mufflers have this removable stub.
- Manual section2 requires all fuel work outdoors, immediate removal of spilled fuel and no fire, flame, spark or heat near fuel. Any service running remains subject to local safety rules and the complete instruction-manual warnings; no machine is operated in this offline review.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table and related starter/fuel procedures remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 5.4–5.4.1, non-catalyst muffler and spark screen.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 5.4–5.4.1, non-catalyst muffler and spark screen, PDF pages 1, 3, 4, 17, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: up-to2003 catalyst muffler kit and gas-flow gasket
The up-to2003 catalyst branch specifies kit 4140 140 0651; its shaped gasket controls exhaust flow.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- This is conditional on the installed UP-TO2003 catalyst configuration, not proof of a catalyst in the1999 launch FC55. Remove starter and access muffler screws through gasket openings. Remove muffler1 with gasket2, flange3 and gasket4. Gasket2 controls exhaust flow: do not pull, twist, knock or bend it; replace it if damaged or deformed.
- If gasket removal is necessary, withdraw it from its guide. Before wrapping it back around the muffler, FIT THE SCREWS IN THE MUFFLER. Clean sealing faces, use a new exhaust gasket, and install the preassembled muffler with flange and exhaust gasket. The branch says always use muffler kit 4140 140 0651 as replacement; tightening through the gasket holes refers to3.3, not an invented torque.
- For the spark screen, remove muffler and gasket, undo retaining screw1, pull exhaust duct1 out of its guide, and remove screen2 (932RA197/198). Clean or replace the screen if necessary and reverse the sequence. Do not transfer the later kit0653 to this branch or infer reciprocal interchange.
- Manual section2 requires all fuel work outdoors, immediate removal of spilled fuel and no fire, flame, spark or heat near fuel. Any service running remains subject to local safety rules and the complete instruction-manual warnings; no machine is operated in this offline review.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table and related starter/fuel procedures remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 5.4.2, catalyst version up to2003.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 5.4.2, catalyst version up to2003, PDF pages 1, 3, 4, 17, 18, 19
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: from2003 catalyst muffler kit and screen cleaning
Kit 4140 140 0653 is tied to machines with a from2003 catalyst muffler, not all FC55s.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- The October2003 manual twice specifies muffler kit 4140 140 0653 for the FROM2003 catalyst configuration. This later installed-configuration boundary is not an FC55 serial number,1999 launch fitment, or evidence that early kit0651 and late kit0653 interchange.
- Remove starter then muffler screws. Remove muffler1 with gasket2, flange3 and gasket4 (932RA334). Undo screws1/2 and remove baffle plate3 (932RA335); remove insulating mat1, exhaust gasket3 and screen2 (932RA336). Clean the screen with a standard solvent-based degreasant containing NO CHLORINATED OR HALOGENATED hydrocarbons; replace a damaged screen and reverse the sequence. The converter itself remains non-repairable.
- The manual says HALOGENATED, whereas TI41 section5.1 prints HYDROGENATED in its cleaning-aid warning. Preserve that wording conflict; do not silently normalize the bulletin. No cleaner brand, gasket order number or tightening value is inferred from these drawings.
- Manual section2 requires all fuel work outdoors, immediate removal of spilled fuel and no fire, flame, spark or heat near fuel. Any service running remains subject to local safety rules and the complete instruction-manual warnings; no machine is operated in this offline review.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table and related starter/fuel procedures remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 5.4.3, catalyst version from2003.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 5.4.3, catalyst version from2003, PDF pages 1, 3, 4, 17, 20
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: stiff rewind action and starter cup access
Separate dirt or cold-thickened lubricant from a proven mechanical failure; the starter cup procedure uses a piston locking strip.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- The manual treats stiff rope with slow or incomplete rewind as possible contamination, and describes cold-thickened spring lubricant making adjacent windings stick. For that cold-sticking case it specifies a few drops of standard solvent-based degreasant without CHLORINATED or HALOGENATED hydrocarbons, followed by careful repeated rope extension and rewind. This is not a diagnosis of every slow starter. TI41 prints HYDROGENATED instead; that wording conflict remains unresolved.
- For dirt or pitch, remove and disassemble the entire starter including its spring, taking particular care with spring removal. Clean under section12 and lubricate the rewind spring and starter post with STIHL special lubricant before assembly; this branch does not infer a lubricant number. Starter removal uses the securing screws shown in232RA055; refit in reverse.
- For the starter cup, remove the starter and spark plug, block the piston using locking strip 4221 893 5900, then unscrew the cup from the crankshaft (232RA028). Reassemble in reverse. No thread direction, cup part number or torque is inferred from the arrow.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 6.1–6.3, general care, removal and starter cup.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 6.1–6.3, general care, removal and starter cup, PDF pages 1, 3, 4, 21, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: rope rotor engagement and pawl-only replacement
The spring clip must engage the pawl guide peg and point counterclockwise; pawl-only replacement leaves the rotor on its post.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Before rotor removal the rewind spring MUST NOT BE UNDER TENSION. Section6.4 says a broken rope leaves the spring without tension; for an intact rope, pull out about20cm, hold the rotor, engage a loop in its notch and turn CLOCKWISE until tension is relieved. Remove clip1, washer2 and pawl3, then lift the rotor carefully. This tension-relieving direction is distinct from spring tensioning.
- Lubricate the rotor bore with STIHL special lubricant under12. Seat driver1 behind inner spring loop2 (932RA275); turn the rotor slightly and release to check it springs back. Lubricate and install the pawl, fit the washer and clip in the post groove. The clip must engage the pawl guide peg and point COUNTERCLOCKWISE. A deformed clip can impair starter operation; handle it carefully. Tension under6.6 before reinstalling the starter.
- For PAWL-ONLY replacement under6.8, ease off the clip and remove the pawl WITHOUT pulling the rope rotor off its post. Lubricate the new pawl and refit it; the same groove, guide-peg and counterclockwise clip requirements apply. No pawl or clip order number is supplied by these figure labels.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 6.4 and6.8, rope rotor and pawl.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 6.4 and6.8, rope rotor and pawl, PDF pages 1, 3, 4, 22, 23, 25
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: replacement spring seating dimensions
The rewound spring diameter is55mm; the inner loop must be no more than2mm from the hub.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- After relieving tension and removing the rotor under6.4, remove broken spring pieces from rotor and starter cover. Lubricate the new spring with a few drops of STIHL special lubricant under12. Position it in the starter and press its OUTER loop over the lug (232RA056). The spring may pop out and uncoil if rotor installation is not careful.
- If the spring has popped out, the manual describes rewinding from INSIDE OUTWARDS to55mm diameter, gripping with pointed-nose pliers about10mm from the end of the OUTER loop and placing it in the starter (232RA057). Check dimension A, inner spring loop to hub, is NO MORE THAN2mm; correct if needed (250RA121). These dimensions are assembly checks, not a spring part identity or interchange proof.
- Reinstall the rotor under6.4 and tension under6.6, retaining its driver-to-inner-loop engagement, clip orientation and remaining-travel checks. The manual warns of uncontrolled uncoiling; this offline evidence is not authorization for spring handling.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 6.4–6.6, replacement rewind spring and related context.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 6.4–6.6, replacement rewind spring and related context, PDF pages 1, 3, 4, 22, 23, 24
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: seven-turn preload and remaining spring travel
Seven counterclockwise turns are qualified by grip seating and at least another half-turn at full rope extension.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Engage a loop of unwound starter rope in the rotor notch; grip near the rotor and turn it SEVEN full turns COUNTERCLOCKWISE (932RA186). Hold the rotor still, pull and straighten the rope with the grip, then keep the grip firm while releasing the rotor and slowly allowing the rope to wind back.
- The grip must sit firmly in the guide bush without drooping to one side. Only if it does not, add ONE turn of spring tension. At FULL rope extension there must still be at least ANOTHER HALF TURN of rotor travel before maximum spring tension. If not, pull out the rope, hold the rotor and take off ONE turn of rope. Do not overtension: the manual says this causes spring breakage. Seven turns alone is not the acceptance criterion.
- Before securing the starter, check the fuel-tank plug shown in232RA062 is in place. Fit the starter and tighten securing screws under3.3; no numerical torque is invented here.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 6.6 with6.4–6.5 context, rewind spring tension.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 6.6 with6.4–6.5 context, rewind spring tension, PDF pages 1, 3, 4, 22, 23, 24
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: rope knots, optional ElastoStart and guide-bush tooling
Ordinary and ElastoStart grips have distinct rope routing; guide-bush tool 0000 890 2201 flares the lower bush end.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- For a broken rope remove remnants from grip and rotor; for a WORN intact rope first relieve spring tension under6.4. Undo the rotor knot and withdraw the old rope. Thread new rope through rotor and housing, tie a simple OVERHAND knot and pull it into the rotor recess. Thread the other end through the ordinary grip and tie another overhand knot. No rope length, diameter or replacement part number is given here.
- ONLY ON MACHINES WITH ELASTOSTART, route through grip1 and spring element2, knot the end, draw rope and spring element into the grip and refit cap3 (380RA065). This conditional procedure does not establish standard1999 fitment. Tension under6.6 and refit under6.2.
- Guide-bush wear is accelerated by SIDEWAYS rope pulling; its wall can wear through and the bush become loose. Section6.9 begins with the printed instruction "Install the rewind starter" referring to6.2, then describes removing rope and rotor. Preserve that sequencing ambiguity rather than silently changing Install to Remove. Release spring tension under6.4 before rotor removal; undo the knot and withdraw rope, then pry out the damaged bush.
- Seat the new bush. Pass the screw spindle of installing tool 0000 890 2201 through it FROM INSIDE the housing; fit the thrust sleeve TAPERED END FIRST and hex nut. Tighten until seated: the tool flares the LOWER end of the bush. Remove the tool, thread rope from OUTSIDE through the bush and fit to rotor under6.7, then install rotor under6.4. No bush order number or force/torque is inferred.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 6.7 and6.9 with6.4–6.6 context, starter rope and guide bush.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 6.7 and6.9 with6.4–6.6 context, starter rope and guide bush, PDF pages 1, 3, 4, 22, 23, 24, 25, 26
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: felt versus foam filter and choke-shutter retention
Do not wash the felt filter; foam washing is conditional on that element being fitted.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Dirty filters reduce power, increase fuel consumption and impair starting. Close the choke shutter and remove loose dirt before filter removal. Wash a FOAM element, IF FITTED, in clean non-flammable solution such as soapy water, then dry. Replace FELT elements; temporary palm tapping or compressed-air cleaning is described, but DO NOT WASH felt. Replace damaged elements immediately and heavily dirt-loaded felt with new.
- Press the cover tab, swing the cover aside and off its housing lugs (932RA282); remove prefilter IF FITTED and felt element (932RA283). Reassemble in reverse. Do not infer that all FC55 filter stacks contain foam or a prefilter.
- The choke-shutter subsection says remove the FILTER HOUSING and refers to8.1.1, whose illustrated steps describe cover/filter access. Preserve this cross-reference ambiguity; do not equate cover and housing or invent missing fasteners. Remove push nut1, withdraw shutter2 from lever3 (932RA229), then reinstall with the shutter correctly in the lever guide and a NEW push nut. No nut order number or complete housing-removal procedure is established by this page.
- Section8.2.2 (printed39) independently supplies housing-nut removal with screwdriver 5910 890 2420 and removal of the housing and its gasket. This supplies the missing access detail but does not correct the printed8.1.2 cross-reference.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 8.1–8.1.2, air filter and choke shutter.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 8.1–8.1.2, air filter and choke shutter, PDF pages 1, 3, 4, 38, 40
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: integrated filler-cap vent and temporary cleaning
A vacuum that slowly dissipates is the printed normal result; no equalization requires replacement of the cap-integrated vent.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Section2 requires all fuel work OUTDOORS, with no fire, flame, spark or other heat source, and immediate removal of spills; gasoline is extremely flammable and may be explosive. These are historical workshop instructions, not an instruction to perform a live test during this review.
- For carburetor or supply trouble, check the tank vent. Open the cap SLOWLY, drain the tank and refit the cap tightly. Disconnect both carburetor fuel hoses, plug one and connect vacuum pump 0000 850 3501 to the other; the manual specifies quick pump operation to create vacuum. An UNCHANGED vacuum indicates replacement; a vacuum that SLOWLY DISAPPEARS indicates correct vent operation. No numeric vacuum, duration or pressure test is supplied here.
- The vent is integrated into the fuel filler cap; if pressure does not equalize, replace the FILLER CAP. Disassembly/cleaning is explicitly TEMPORARY, using a little standard solvent-based degreasant without chlorinated or HALOGENATED hydrocarbons under12; TI41 instead prints HYDROGENATED. Figure232RA093 labels cap1, valve body2, sintered filter3, filler cap4, cup spring5, sintered filter6, valve7 and sealing ring8. These labels are not order numbers or a permanent repair kit.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 2 and9.4–9.4.2, fuel safety and tank vent.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 2 and9.4–9.4.2, fuel safety and tank vent, PDF pages 1, 3, 4, 49
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: tank plugs, retainer sequence and fuel-hose orientation
Tighten the retainer only after fitting the starter cover; point the hose orientation bead towards the drive tube.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- The pickup-body filter can clog and starve the carburetor diaphragm pump of fuel. For supply trouble the manual says first check tank and pickup body. Its tank-cleaning method drains the tank, adds a small amount of CLEAN GASOLINE, closes and shakes it, then drains again with proper fuel disposal. Section2 requires OUTDOORS fuel work, no flame/spark/heat and immediate spill cleanup; this is not a general solvent substitution or permission for live fuel work.
- Drain the tank, remove filter cover under8.1.1, disconnect hoses at elbow connectors, remove starter under6.2 and remove tank. Remove tank plugs and replace worn ones. Remove screw1 and retainer2 (232RA096), sleeve1 and grommet2 (232RA097), then hoses under9.5.2. Reverse reassembly requires plugs1 engaged over lugs2 and an UNPINCHED throttle cable. Tighten the retainer screw ONLY AFTER installing the starter cover; the continuation is on printed50 (232RA099).
- For pickup/hoses, remove tank, pry out grommet, withdraw hoses with pickup body, and disconnect/inspect the pickup body; replace it if contaminated as necessary. Oil only the LOWER HALF of the grommet to aid refitting. On the carburetor elbow connector the fuel-hose ORIENTATION BEAD points TOWARDS THE DRIVE TUBE (932RA028). No hose length, pickup-body order number or universal later-model interchange is inferred.
- Scope conflict: printed39 section8.2.2 marks the same932RA028 bead illustration "FS 45, 46, 55 only", while printed50 section9.5.2 has no model qualifier. This FC55 note uses the unrestricted9.5.2 plus the introduction; the conflicting scope is preserved, not proof of universal FC55 hose orientation.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 2,9.5–9.5.2 and access context, fuel tank and pickup hoses.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 2,9.5–9.5.2 and access context, fuel tank and pickup hoses, PDF pages 1, 3, 4, 21, 38, 40, 50, 51
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: carburetor pressure test and leak interpretation
The manual specifies approximately0.8bar, but no hold time or permitted pressure decay.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- For suspected carburetor or supply trouble, also check the tank vent under9.4 and troubleshooting under4.3. The carburetor/crankcase tester is 1106 850 2905. After removing the filter cover and disconnecting the carburetor fuel hose, fit test fuel line 1110 141 8600 to nipple 0000 855 9200, attach it to the carburetor elbow, and connect the tester pressure hose.
- Close the bulb vent screw and pump to APPROXIMATELY0.8bar. Constant pressure is the manual's airtight result. A pressure drop may indicate an inlet needle not sealing (foreign matter, damaged sealing cone or sticking inlet control lever), or a damaged metering diaphragm; carburetor servicing is required in either case. The page gives NO HOLD TIME and no acceptable decay threshold, so neither is inferred.
- After the test, OPEN THE VENT SCREW before removing the test line, reconnect the fuel hose and reassemble in reverse; use a new gasket if necessary. Section2 fuel precautions apply. This documents an offline historical procedure, not a performed pressure test or authorization to operate hardware.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 8.2.1 with8.1.1/9.4 context, carburetor leakage test.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 8.2.1 with8.1.1/9.4 context, carburetor leakage test, PDF pages 1, 3, 4, 38, 39, 49
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: filter housing removal and hose-orientation scope conflict
Section8.2.2 establishes the housing fasteners but restricts its hose-bead illustration to FS45/46/55.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- After removing the air filter under8.1.1, use screwdriver 5910 890 2420 to undo the nuts in232RA085; remove the FILTER HOUSING and gasket behind it. This independently supplies housing-removal evidence absent from the8.1.1 cover/filter instructions cited by8.1.2. Do not silently change that printed cross-reference or equate housing with cover.
- Disconnect throttle cable1 from slotted throttle-lever pin2, disconnect fuel hoses at carburetor elbows, pull the carburetor off the screws, then remove its gasket (232RA089). Refit in reverse with a NEW gasket and hoses routed WITHOUT KINKS. No carburetor replacement number or fastener torque is supplied here.
- Printed39 labels the hose-bead direction drawing932RA028 "FS 45, 46, 55 only". Do NOT promote that restricted instruction as FC55 evidence. Printed50 section9.5.2 repeats the same drawing and bead-towards-drive-tube instruction WITHOUT a model qualifier. The existing FC55 tank note rests on that unrestricted section plus the introduction, while this inconsistent scope remains unresolved; do not erase either statement or infer universal fitment.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 8.1.2,8.2.2 and9.5.2, housing access and hose-scope comparison.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 8.1.2,8.2.2 and9.5.2, housing access and hose-scope comparison, PDF pages 1, 3, 4, 38, 40, 51
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: secured versus loose throttle-cable tensioner
Select the installed tensioner arrangement; a pin/push-nut attachment is not assumed on every spacer flange.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models. Exact launch IPL assembly identity and original manual revision remain unestablished.
- Remove carburetor under8.2.2 and tank under9.5.1. On the PIN-AND-PUSH-NUT secured tensioner variant, withdraw the throttle cable from the tensioner, remove screws2 and remove flange with tensioner and hex-head screws3 (932RA244). If necessary, lever off the push nut to remove the tensioner; use a NEW PUSH NUT when reinstalling it.
- On the LOOSELY MOUNTED tensioner variant, pull tensioner1 WITH THE THROTTLE CABLE out of the flange (932RA245), remove screws1 and flange with hex-head screws2 (932RA246). Remove gasket1 (932RA247). These are alternative installed configurations, not a dated or serial-number changeover.
- Fit the HEX-HEAD SCREWS IN THE FLANGE BEFORE installing (232RA029). Reverse the remaining sequence, use NEW GASKETS and follow3.3 for tightening torques. Neither the flange, tensioner, gasket order numbers nor numerical torques are invented.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Offline historical reference only; these notes do not replace the complete workshop/owner safety instructions or authorize hardware operation. Torque values, servicing-aid table, carburetor internals/settings and troubleshooting remain separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 8.2.3 with8.2.2/9.5.1 context, spacer flange.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 8.2.3 with8.2.2/9.5.1 context, spacer flange, PDF pages 1, 3, 4, 40, 41, 50, 51
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: pump diaphragm, gasket and fuel-strainer service
Do not confuse the pump-side layer arrangement with the metering-side gasket order.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models, subject to the installed carburetor/configuration. Exact launch IPL assembly and carburetor identity remain unestablished.
- Remove the carburetor under8.2.2, then screw1 and end cover2 (936RA032). Remove gasket1 (936RA033) and pump diaphragm1 (936RA034). If they stick together, remove and separate them VERY CAREFULLY. A distorted or swollen diaphragm is fatigued and requires replacement; inspect the gasket too.
- Inspect fuel strainer1 (936RA086) for contamination and damage and replace if necessary. Reverse reassembly uses the end-cover locating PEGS to position pump diaphragm1 and gasket2 (932RA259). That exploded drawing places gasket2 BETWEEN end cover3 and pump diaphragm1; do not substitute the metering-side body/gasket/diaphragm order. No diaphragm, strainer or gasket part number is supplied here.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed carburetor and cover configuration; no listed carburetor is thereby proved original to every FC55. Offline historical reference only; these notes do not replace the full workshop/owner safety instructions or authorize hardware operation. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Remaining specifications, torques, tools/aids and troubleshooting are separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 9.1, pump diaphragm and fuel strainer.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 9.1, pump diaphragm and fuel strainer, PDF pages 1, 3, 4, 42
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: oval versus square manual-pump end covers
The oval cover has separate M3x12 and M3x8 fasteners; those sizes are not specified for the square-cover branch.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models, subject to the installed carburetor/configuration. Exact launch IPL assembly and carburetor identity remain unestablished.
- Both cover branches first call for the8.2 leakage test and carburetor removal under8.2.2. On the OVAL end cover, remove M3x12 screws1 and end cover with cap2 (936RA223), then M3x8 screws1 and flange2 (936RA224). Take the cap out of the cover and inspect the metering diaphragm and gasket under9.2.2.
- On the SQUARE end cover, remove screws1 (936RA023), remove end cover with cap, take out the cap (932RA285), then remove the flange (936RA024) and inspect the metering diaphragm/gasket. This branch prints NO SCREW SIZE; do not copy the oval-cover lengths to it.
- Reassemble in reverse. The oval-cover continuation specifically requires ADDITIONAL HOLES, IF PRESENT, in the gasket and diaphragm to align with the carburetor and flange. Section9.2.2 independently requires the metering gasket and diaphragm compensating holes to align for both access branches. Neither cap geometry establishes a dated changeover or universal FC55 replacement kit.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed carburetor and cover configuration; no listed carburetor is thereby proved original to every FC55. Offline historical reference only; these notes do not replace the full workshop/owner safety instructions or authorize hardware operation. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Remaining specifications, torques, tools/aids and troubleshooting are separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 9.2–9.2.2, manual fuel pump covers and metering access.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 9.2–9.2.2, manual fuel pump covers and metering access, PDF pages 1, 3, 4, 42, 43, 44
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: metering diaphragm and compensating-hole alignment
Place the gasket on the carburetor body first, then the metering diaphragm.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models, subject to the installed carburetor/configuration. Exact launch IPL assembly and carburetor identity remain unestablished.
- Remove the manual-pump flange by the applicable oval9.2 or square9.2.1 branch. Lift metering diaphragm1 and gasket2 from the body (936RA026); separate stuck layers VERY CAREFULLY. Inspect both; a distorted or swollen diaphragm must be replaced because alternating stresses fatigue the delicate material.
- Fit the GASKET ON THE CARBURETOR BODY first and align its hole with the COMPENSATING BORE (936RA027). Place the METERING DIAPHRAGM ON THE GASKET, again aligning its hole with the carburetor and gasket compensating bore (936RA028). Reassemble the other parts in reverse. This metering-side order is not an interchangeable instruction for the pump-side stack.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed carburetor and cover configuration; no listed carburetor is thereby proved original to every FC55. Offline historical reference only; these notes do not replace the full workshop/owner safety instructions or authorize hardware operation. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Remaining specifications, torques, tools/aids and troubleshooting are separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 9.2–9.2.2, metering diaphragm.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 9.2–9.2.2, metering diaphragm, PDF pages 1, 3, 4, 42, 43, 44
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: inlet needle wear and control-lever height
A ring-shaped indentation in the sealing cone requires replacement; the lever top must be flush with the carburetor body.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models, subject to the installed carburetor/configuration. Exact launch IPL assembly and carburetor identity remain unestablished.
- After metering-diaphragm removal, remove screw1 (936RA029), inlet control lever4, spindle3, spring2 and needle1 (932RA260). The spring MAY POP OUT during disassembly; do not lose it. An ANNULAR INDENTATION in the needle sealing cone (372RA120) means it no longer seals properly and must be replaced.
- On reassembly engage the clevis in the ANNULAR GROOVE ON THE NEEDLE HEAD, locate the helical spring on the control-lever NIPPLE and check that the lever moves freely. The UPPER EDGE OF THE LEVER MUST BE FLUSH with the TOP OF THE CARBURETOR BODY. No alternative gauge datum, bend allowance or numerical offset is stated. Refit the metering diaphragm under9.2.2.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed carburetor and cover configuration; no listed carburetor is thereby proved original to every FC55. Offline historical reference only; these notes do not replace the full workshop/owner safety instructions or authorize hardware operation. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Remaining specifications, torques, tools/aids and troubleshooting are separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 9.2.3 with9.2.2 context, inlet needle.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 9.2.3 with9.2.2 context, inlet needle, PDF pages 1, 3, 4, 44, 45
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: fixed-jet access restricted by carburetor identity
Two figure groups name specific carburetors; one prints C1Q-53A without the S.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models, subject to the installed carburetor/configuration. Exact launch IPL assembly and carburetor identity remain unestablished.
- Remove the metering diaphragm under9.2.2 and take care NOT TO DAMAGE THE FIXED JET. Figure936RA225 applies ONLY to C1Q-S44A, C1Q-53A and C1Q-S58 as printed. Figure936RA031 applies ONLY to C1Q-S44, C1Q-S53 and C1Q-S66. Unscrew fixed jet1 and reinstall in reverse.
- The first group literally prints C1Q-53A, whereas the second prints C1Q-S53. Preserve that missing-S naming ambiguity; do not silently normalize it to C1Q-S53A or infer a supersession. The figures give NO JET SIZE, order number or serial range and do not prove which carburetor was installed on the1999 FC55. The removal instruction is conditional on exact installed identity, not every series4140 carburetor.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed carburetor and cover configuration; no listed carburetor is thereby proved original to every FC55. Offline historical reference only; these notes do not replace the full workshop/owner safety instructions or authorize hardware operation. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Remaining specifications, torques, tools/aids and troubleshooting are separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 9.2.4 with9.2.2 access, fixed jet.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 9.2.4 with9.2.2 access, fixed jet, PDF pages 1, 3, 4, 44, 45
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: later-manual LD setting and FC-only setup
LD remains left-hand threaded; FC uses a clean, undamaged mounted cutting tool and must not rotate at idle.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models, subject to the installed carburetor/configuration. Exact launch IPL assembly and carburetor identity remain unestablished.
- This branch has an idle-speed LD screw and NO H OR L adjusting screws. Carefully seat LD COUNTERCLOCKWISE (LEFT-HAND THREAD), then open TWO FULL TURNS CLOCKWISE. Check the air filter and spark-arresting screen under8.1/5.4 and replace or clean as indicated. The FC-only prerequisite is a MOUNTED CUTTING TOOL, clean and in good condition, NOT BENT. FS nylon-line/deflector and HL blade-motion instructions are NOT FC55 instructions.
- The printed idle procedure first uses the standard setting, then starts and warms the engine under the source safety instructions. If it stops at idle, turn LD slowly CLOCKWISE until smooth; FC cutting tools MUST NOT ROTATE. If the tool rotates at idle, turn LD COUNTERCLOCKWISE until it stops, then ABOUT ONE ADDITIONAL TURN in that direction.
- For erratic idle/poor acceleration, turn LD slowly COUNTERCLOCKWISE NO MORE THAN HALF A TURN. Do not copy the HL-specific half-turn running-blade or additional one-and-a-half-turn stopped-blade rules to FC. This later manual independently supports the existing TI41 LD directions; it is not proof that every later FC55 uses LD, nor a numerical rpm specification or a performed adjustment.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed carburetor and cover configuration; no listed carburetor is thereby proved original to every FC55. Offline historical reference only; these notes do not replace the full workshop/owner safety instructions or authorize hardware operation. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Remaining specifications, torques, tools/aids and troubleshooting are separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 9.3.1, carburetor with LD screw.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 9.3.1, carburetor with LD screw, PDF pages 1, 3, 4, 45, 46
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: H/L/LA standard setting and altitude correction
Standard adjustment retains the limiter cap; H movement is bounded by its stop.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models, subject to the installed carburetor/configuration. Exact launch IPL assembly and carburetor identity remain unestablished.
- Only for an installed carburetor with H, L and LA screws. DO NOT REMOVE THE LIMITER CAP for the standard setting; H adjustment is possible only within fine limits. Check the filter and spark-arresting screen under8.1/5.4. FC requires a mounted, clean, undamaged cutting tool, NOT BENT; neighboring FS nylon-line and HL instructions are excluded.
- Turn H COUNTERCLOCKWISE AS FAR AS STOP, NO MORE THAN3/4 TURN. Carefully seat L CLOCKWISE and open it ONE FULL TURN COUNTERCLOCKWISE. The source then starts/warms the engine and uses LA to set idle with the tool NOT ROTATING. Do not substitute these directions for left-hand LD or the separate cap-removed basic setting.
- Fine tuning first requires the standard setting, warmed engine and wide-open throttle in the historical procedure. At HIGH ALTITUDE, H turns CLOCKWISE (LEANER); at SEA LEVEL, COUNTERCLOCKWISE (RICHER). Neither direction may go beyond its STOP; the stated endpoint is no noticeable further speed increase. The standard setting may already give the highest rpm. No target maximum speed is printed here; this is not authorization or evidence of a live running test.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed carburetor and cover configuration; no listed carburetor is thereby proved original to every FC55. Offline historical reference only; these notes do not replace the full workshop/owner safety instructions or authorize hardware operation. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Remaining specifications, torques, tools/aids and troubleshooting are separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 9.3.2, H/L/LA standard setting and fine tuning.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 9.3.2, H/L/LA standard setting and fine tuning, PDF pages 1, 3, 4, 46, 47
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: H/L/LA idle symptoms and printed L-name ambiguity
The source distinguishes lean/rich L correction from LA speed adjustment, but calls L an idle-speed screw once.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models, subject to the installed carburetor/configuration. Exact launch IPL assembly and carburetor identity remain unestablished.
- The idle subsection literally says "Open the idle speed screw (L) one full turn". Elsewhere on this same page L is the LOW SPEED screw and LA the IDLE SPEED screw. Preserve this NAME/LETTER AMBIGUITY; do not silently relabel that sentence as LA. The preceding standard-setting paragraph explicitly seats L clockwise and opens it one full turn counterclockwise.
- After warming, engine stops at idle: turn LA slowly CLOCKWISE until smooth, with the tool NOT ROTATING. Tool runs at idle: turn LA COUNTERCLOCKWISE until it stops, then ABOUT HALF TO ONE ADDITIONAL FULL TURN in the same direction. That is not the LD-specific one-turn instruction.
- Erratic idle/poor acceleration is the printed LEAN idle case: turn L COUNTERCLOCKWISE ABOUT A QUARTER TURN until smooth acceleration. Erratic idle is also separately listed as the RICH case: turn L CLOCKWISE ABOUT A QUARTER TURN until smooth. These are conditional diagnosis branches, not an unconditional prescription from the shared symptom. The manual says LA usually needs readjustment after EVERY L correction.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed carburetor and cover configuration; no listed carburetor is thereby proved original to every FC55. Offline historical reference only; these notes do not replace the full workshop/owner safety instructions or authorize hardware operation. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Remaining specifications, torques, tools/aids and troubleshooting are separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 9.3.2, H/L/LA idle adjustment.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 9.3.2, H/L/LA idle adjustment, PDF pages 1, 3, 4, 46, 47
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: basic H/L setting and short/long limiter-cap depth
Short caps stop at the second detent, while long caps seat against the body; removed caps must not be reused.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted procedures apply to listed models, subject to the installed carburetor/configuration. Exact launch IPL assembly and carburetor identity remain unestablished.
- Cap removal is specified ONLY when necessary to replace H, clean the carburetor or adjust from scratch. Once removed, carry out the BASIC setting and ALWAYS fit a NEW limiter cap; removed caps may be damaged and MUST NOT BE REUSED. This is not a recommendation to remove the cap for standard adjustment.
- SHORT cap: use puller 5910 890 4501 between cap and body with its groove FACING YOU; if the cap is stuck on the screw, reverse the tool with the groove FACING THE CARBURETOR BODY and pry off (932RA316). LONG cap: use suitable pliers (932RA315). No universal removal-tool substitution is implied.
- For basic setting, seat BOTH H and L CLOCKWISE; open H ONE AND A HALF TURNS COUNTERCLOCKWISE and L ONE FULL TURN COUNTERCLOCKWISE. Fit a NEW short cap aligned at the RICH STOP, pressing ONLY TO THE SECOND NOTICEABLE DETENT. Its limit is3/4 turn (270 degrees); DO NOT PRESS IT AGAINST THE BODY because it can be damaged (932RA320).
- The printed48 continuation gives the DIFFERENT LONG-CAP depth: align at the RICH STOP so H can rotate ONLY3/4 TURN CLOCKWISE, then push the cap UNTIL IT BUTTS AGAINST THE CARBURETOR BODY (392RA318). Both branches then require the STANDARD setting under9.3.2. Do not combine the short-cap depth with the long-cap instruction; no cap order number or original FC55 configuration is inferred.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed carburetor and cover configuration; no listed carburetor is thereby proved original to every FC55. Offline historical reference only; these notes do not replace the full workshop/owner safety instructions or authorize hardware operation. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Remaining specifications, torques, tools/aids and troubleshooting are separately pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 9.3.3 with9.3.2, basic setting and limiter caps.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 9.3.3 with9.3.2, basic setting and limiter caps, PDF pages 1, 3, 4, 46, 47, 48, 49
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: later-manual fuel and vent specifications
Vent pressure and vacuum numbers are table specifications, not a timed leakage-test procedure.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- Diaphragm carburetor leakage-test GAUGE PRESSURE is0.8 bar (11.6 psi). Tank-vent operation is listed at GAUGE PRESSURE0.3 bar (4.4 psi) and UNDER VACUUM0.05 bar (0.725 psi). These are distinct components and quantities; do not use the carburetor pressure as the vent setting. Section9.4 describes vacuum slowly disappearing versus remaining unchanged, but gives NO DURATION or numerical hold criterion. The table supplies numbers without turning that qualitative procedure into a timed pass/fail test.
- Fuel refers to the instruction manual. Minimum octane is90 RON, or USA/CAN pump octane87 UNLEADED. The fuel-mixture row lists regular brand-name gasoline with STIHL50:1 two-stroke oil OR brand-name25:1 two-stroke oil; the separate mix-ratio row expressly gives50:1 WITH STIHL50:1 oil. For CATALYTIC-CONVERTER units it restricts the mix to STIHL50:1 two-stroke oil with UNLEADED gasoline. Do not rewrite the historical alternative as universal50:1 with any oil or assert a present-day fuel recommendation.
- Section3.2.1 explicitly labels FS UNITS (spiral-toothed bevel drive,1:1.235), and3.2.2 prints HS45 (straight-toothed spur gear,1:5.1). Neither is labeled FC55. Do NOT import those gearbox ratios, bearings or lubricant assignments to FC55; retain the printed HS45 label rather than silently correcting it to HL45. FC gearbox review remains under the10.4 referral.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 3.1–3.2 with9.4 comparison.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 3.1–3.2 with9.4 comparison, PDF pages 1, 3, 4, 5, 49
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: FC-qualified engine and drive torque rows
Torque-table remark4 names KM55 and FC55; the same screw size alone does not select the torque.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- Values below preserve the printed pair in Nm (lbf.ft), NOT an independent conversion. Remark4 explicitly means KM55, FC55. M5 filter-housing/carburetor/spacer-flange nut:3.5 Nm (2.6 lbf.ft); IS-8-32 clutch-drum/crankshaft screw:4.0 Nm (3.0 lbf.ft); 3/8-inch-24 carrier/crankshaft:17.0 Nm (12.5 lbf.ft).
- IS-DG5x24 engine-housing/clutch-drum mounting:2.0 Nm (1.5 lbf.ft); IS-DG5x24 engine-housing/shroud:4.5 Nm (3.3 lbf.ft); IS-DG5x24 engine-housing/crankcase:8.0 Nm (5.9 lbf.ft), WITH BINDING HEAD under remark6. The OTHER engine-housing/crankcase row on printed6 is9.0 Nm (6.6 lbf.ft), remark5 HL45 ONLY, NOT FC55.
- IS-DG5x60 muffler/cylinder:9.0 Nm (6.6 lbf.ft); IS-DG5x24 muffler/cylinder WITH CATALYTIC CONVERTER:9.0 Nm (6.6 lbf.ft). IS-DG5x12 centering drive-tube/engine-housing:4.0 Nm (3.0 lbf.ft). IS-M6x25 clamp/loop-handle/square-nut on loop-handled machine:4.5 Nm (3.3 lbf.ft). M14x1.25 spark plug:20.0 Nm (15.0 lbf.ft), an UNRESTRICTED row with no numbered model remark. These component relationships and configuration conditions must travel with each value.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 3.3, FC-qualified engine and drive torque rows.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 3.3, FC-qualified engine and drive torque rows, PDF pages 1, 3, 4, 6, 7
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: starter, tank, spacer and exhaust torque rows
The muffler stub and spacer-flange rows carry a binding-head qualifier as printed.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- FC55 is included by remark4. IS-DG5x20Z rewind-starter/crankcase AND rewind-starter/engine-pan each:6.0 Nm (4.4 lbf.ft). M8x1 starter-cup/crankshaft:14.0 Nm (10.3 lbf.ft). IS-P5x20 tank-housing/retainer:2.0 Nm (1.5 lbf.ft).
- M14x7 stub/muffler, VERSION WITH SPARK-ARRESTING SCREEN IN MUFFLER:10.0 Nm (7.5 lbf.ft). IS-DG5x24 spacer-flange/cylinder:6.0 Nm (4.4 lbf.ft). BOTH rows print remark6, WITH BINDING HEAD, as well as remark4. Preserve the unusual printed M14x7 thread and the stub-row qualifier; no silent thread-size correction or universal exhaust torque.
- Excluded from FC55 by their remarks: B3.9x19 control-handle/switch-housing/US-loop-handle row is FS55/FS46 only; bike-handle molding, handlebar, clamp/support and slide-control detent rows are FS55 only; the T-model wing-screw/coupling rows and drive-tube/harness-ring row are FS55 only; IS-M5x8 drive-tube/guide clamp is FS46/FS45 only; the9.0 Nm crankcase row is HL45 only. Do not borrow a control-housing torque merely because FC55 shares another procedure.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 3.3, continuation and excluded torque rows.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 3.3, continuation and excluded torque rows, PDF pages 1, 3, 4, 6, 7
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: DG and Plastoform thread reuse and driver limits
Re-engage the existing thread and distinguish binding-head screws.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- DG and P (Plastoform) screws form a permanent thread in polymer/light metal on first installation. The manual permits repeated removal/refitting without weakening the assembly ONLY IF the specified tightening torque is observed; a TORQUE WRENCH is essential. This is not permission to reuse damaged threads or replace a screw by a similar size.
- When refitting in an EXISTING thread, rotate COUNTERCLOCKWISE until the screw DROPS DOWN SLIGHTLY, then tighten CLOCKWISE to its specified torque. Starting another thread weakens the assembly. Power-screwdriver limits FOR POLYMER are max.600 rpm for Plastoform and max.500 rpm for DG. Do not mix screws WITH and WITHOUT BINDING HEAD.
- Section11 remark4 restricts T-handle Q-T27x150 screwdriver 5910 890 2400 to RELEASING/REMOVING DG or P screws; it does not replace a torque wrench for tightening. Driver-speed limits do not remove the torque-wrench requirement.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 3.3 with11 remarks, screw installation rules.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 3.3 with11 remarks, screw installation rules, PDF pages 1, 3, 4, 6, 7, 60
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: clutch symptoms and hedge-trimmer exclusion
A moving tool at idle can reflect adjustment or damaged springs, not one certain diagnosis.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- Tool stops at FULL THROTTLE UNDER LOAD: badly worn shoes lead to new shoes or clutch; a badly worn drum leads to drum replacement. TOOL RUNS AT IDLE: high idle speed leads to counterclockwise idle-speed-screw adjustment, while stretched/fatigued springs or broken spring hooks lead to new springs. Use the installed-carburetor procedure, not an assumed screw identity.
- LOUD NOISES: stretched/fatigued springs lead to replacement of ALL clutch springs; a broken retainer/carrier leads to new retainer/carrier or clutch; worn shoes AND carrier lead to a new clutch. Each cause/remedy is an alternative conditional diagnosis, not evidence that every noisy clutch needs every listed part.
- The final condition expressly concerns HEDGE-TRIMMER BLADES running in starting-throttle position WITH BLADE LOCK ENGAGED. Its broken tension-spring and stretched/worn/broken brake-band remedies are NOT FC55 blade-lock claims. No brake-band order number or FC55 blade lock is established.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 4.1, clutch and blade-lock troubleshooting.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 4.1, clutch and blade-lock troubleshooting, PDF pages 1, 3, 4, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: starter resistance, broken rope and slow rewind
No crankshaft motion and a slow rewind have different listed causes.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- BROKEN ROPE: pulling too vigorously to the stop or over an edge rather than vertically, OR normal wear; remedy new rope. BROKEN REWIND SPRING: overtension with no reserve at full rope extension, OR severe dirt/corrosion; remedy new spring. These diagnoses retain the travel-reserve requirement instead of treating breakage as ordinary wear only.
- ROPE PULLS ALMOST WITHOUT RESISTANCE AND CRANKSHAFT DOES NOT TURN: worn pawl/guide peg leads to a new pawl; fatigued spring clip leads to a new clip. These are separate candidate causes, not a conclusive compression test.
- DIFFICULT PULL AND VERY SLOW REWIND: a dirty mechanism calls for thorough cleaning. At very low temperatures, viscous oil can stick spring windings together; the table says coat the spring with standard solvent-based degreasant containing NO CHLORINATED OR HALOGENATED HYDROCARBONS and carefully pull several times until normal action returns. Preserve the printed HALOGENATED wording; do not substitute a heat source or arbitrary solvent.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 4.2, starter troubleshooting.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 4.2, starter troubleshooting, PDF pages 1, 3, 4, 9
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: fuel-system idle stall and power-loss alternatives
H, L and LA remedies apply only when those adjusters are installed.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- ENGINE STALLS AT IDLE: blocked idle jet bores/ports call for cleaning and compressed-air clearing; an L setting too rich OR too lean calls for resetting L; incorrect LA with the throttle shutter completely closed calls for resetting LA. The table names H/L/LA configurations; it does NOT add those screws to the LD-only carburetor or override9.3.1.
- ENGINE SPEED DROPS QUICKLY UNDER LOAD / LOW POWER: plugged air filter—clean or replace; faulty tank vent—new vent; leak between tank and fuel pump—seal or renew fuel connections/line; damaged/fatigued pump diaphragm—new diaphragm; blocked main jet bores/ports—clean; dirty pickup body—new pickup body; H too rich—reset H; throttle shutter not fully open—check linkage. These eight possibilities are not interchangeable or proof of a failed carburetor.
- ENGINE WILL NOT IDLE / IDLE SPEED TOO HIGH is separately linked to the throttle shutter opened too far by the idle-speed screw, with correct resetting as the remedy. Match the installed carburetor, source safety and idle no-tool-motion rules before any physical diagnosis; this review performs none.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 4.3, idle stall and speed drop under load.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 4.3, idle stall and speed drop under load, PDF pages 1, 3, 4, 10, 11
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: poor acceleration and metering-control alternatives
Lean jets are only two of the seven listed acceleration causes.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- Poor acceleration with idle jet too LEAN: L COUNTERCLOCKWISE (RICHER), NO FURTHER THAN STOP. Main jet too LEAN: H COUNTERCLOCKWISE (RICHER), NO FURTHER THAN STOP. These named adjusters are conditional on their presence; do not use the H/L table to invent adjusters on an LD-only unit.
- Inlet control lever TOO LOW: set it FLUSH WITH TOP OF CARBURETOR BODY. Inlet needle stuck to seat: remove, clean and refit. Connecting bore to ATMOSPHERE blocked: clean bore. Diaphragm gasket leaking: replace gasket. Metering diaphragm damaged or SHRUNK: replace diaphragm. These five other cause/remedy pairs remain distinct; no numerical lever offset or jet number is supplied.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 4.3, poor acceleration.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 4.3, poor acceleration, PDF pages 1, 3, 4, 11
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: flooding table and too-low-lever ambiguity
The source lists a too-low inlet lever for both poor acceleration and flooding, with different remedies.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- CARBURETOR FLOODS / ENGINE STALLS: inlet needle not sealing because of foreign material in the seat or damaged cone—remove and clean or replace needle, and clean tank/pickup/line if necessary. Lever sticking on spindle—free the lever. Helical spring not on the lever nipple—remove and correctly refit lever. Deformed perforated diaphragm disc constantly pressing the lever—new metering diaphragm.
- The final FLOODING row literally states INLET CONTROL LEVER TOO LOW (relative to correct installed position), with FIT NEW INLET CONTROL LEVER. The preceding acceleration page ALSO says TOO LOW but prescribes setting flush with the body. Preserve this SOURCE AMBIGUITY; do NOT silently change the flooding row to TOO HIGH or convert it into an adjustment instruction. No causal resolution or universal lever replacement follows from this review.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 4.3, flooding versus acceleration ambiguity.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 4.3, flooding versus acceleration ambiguity, PDF pages 1, 3, 4, 11, 12
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: engine prechecks, leakage and cooling diagnosis
Air filter, fuel, carburetor and ignition checks precede internal engine fault-finding.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- FIRST check and if necessary repair AIR FILTER, FUEL SYSTEM, CARBURETOR and IGNITION SYSTEM. Ignition carries the footnote referral to the SERIES4140 POWERHEAD manual; the table is not a substitute for that pending procedure.
- Hard starting and idle stalling BUT NORMAL FULL-THROTTLE operation: faulty crankcase oil seals—new seals; leaking/cracked crankcase—seal or replace; leaking muffler—seal or replace. Oil-seal and crankcase remedies explicitly refer to the Powerhead manual. These alternatives do not establish a crankcase leak from the symptom alone.
- Low power or erratic running: worn/broken piston rings—new rings, again with Powerhead referral; carbonized muffler/spark screen—clean muffler inlet/exhaust openings and REPLACE SCREEN; dirty air filter—new element; kinked/cracked fuel or impulse line—new line or reposition without kinks. Overheating from blocked fan-housing air inlets/dirty cylinder fins calls for thorough cleaning of ALL COOLING PASSAGES AND FINS. Do not turn this table into proof that all FC55 variants use a separate external impulse hose.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 4.4, engine troubleshooting and powerhead referral.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 4.4, engine troubleshooting and powerhead referral, PDF pages 1, 3, 4, 13
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: listed tools, ranges and model-qualified fixtures
Two torque-wrench ranges and FS-only fixture labels remain distinct.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- Leak-test tools: tester 1106 850 2905 for crankcase/carburetor; nipple 0000 855 9200 and hose 1110 141 8600 for carburetor leakage. Q-SW8x200 screwdriver 5910 890 2420 is for carburetor nuts; crimping tool 5910 890 8210 attaches electrical-wire connectors. This list is not a complete test procedure or proof a crankcase test has been performed.
- Torque wrench 5910 890 0301 covers0.5–18 Nm; alternative 5910 890 0302 has optical/acoustic signal. Torque wrench 5910 890 0311 covers6–80 Nm; alternative 5910 890 0312 has optical/acoustic signal. Use a torque wrench for DG/P tightening; do not confuse overlapping tool ranges with a component torque.
- Socket 0812 540 1112 is for powered spline-socket screws and clutch-drum removal; T27x125 socket 0812 542 2104 also supports torque-wrench tightening. T-handle Q-T27x150 5910 890 2400 is for IS screws, with DG/P RELEASING/REMOVING ONLY. Hook 5910 890 2800 detaches clutch springs, hook 5910 893 8800 removes pickup body, tool 5910 890 2204 installs/flares rope guide bush.
- Wrench 4130 890 3600 explicitly says clutch on FS UNITS. Assembly stand 5910 890 3100 says MOUNTING FS UNITS; clamp 5910 890 8800 says holding FS drive tubes with that stand. These are retained as model-qualified table entries, NOT independent FC55 fixture applicability or interchangeable replacement-part claims.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 11, special servicing-tool table.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 11, special servicing-tool table, PDF pages 1, 3, 4, 60
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: locking-strip and clamping-fixture numbering conflicts
Procedure and tool-table numbers disagree; no supersession is established.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- The section11 table lists locking strip 0000 893 5903 for blocking the crankshaft. BOTH5.2 clutch and6.3 starter-cup procedures instead specify 4221 893 5900 to block the piston after spark-plug removal. Retain BOTH NUMBERS with their locators; this evidence does NOT establish supersession, interchangeability or which tool is correct for a particular installed engine.
- The introduction names assembly stand2 as 5910 890 3100 AND gives the SAME NUMBER for clamping fixture1. The section11 table instead distinguishes stand 5910 890 3100 from clamp 5910 890 8800, both labeled for FS units. Preserve the DUPLICATE-NUMBER CONFLICT and FS wording, rather than silently repairing the introduction or treating the clamp as verified for FC55. These are historical tool-reference discrepancies, not new machine parts.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 1/5.2/6.3/11, tool-number comparisons.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 1/5.2/6.3/11, tool-number comparisons, PDF pages 1, 3, 4, 14, 22, 60
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: sealants, oils and conditional servicing aids
Table applications do not prove that every FC55 contains the named subsystem.
No exact-model IPL link: FC55 explicitly named in Components4140 introduction; unrestricted sections and torque remark4 apply, subject to installed configuration. Neighbor-model restrictions are not FC55 fitment. Exact launch IPL assembly remains unestablished.
- Dirko GRAY sealant 0783 830 2120 is listed as a100 g tube for the GUARD ON MUFFLER. Dirko HT RED 0783 830 2000 is for MUFFLER SCREWS; the table gives NO PACK SIZE for this red product. STIHL special lubricating oil 0781 417 1315 is for the ROPE-ROTOR BEARING BORE and REWIND SPRING. Do not interchange gray/red applications or infer a sealant on every fastener.
- HEDGE-TRIMMER gear lubricant:80 g tube 0781 120 1109 and225 g tube 0781 120 1110; the application column is BLANK for that row. Lubricating grease (printed greaset) 0781 120 1111 is for the NEEDLE BEARING IN THE BUSHING OF THE DRIVER IN THE DRIVE TUBE. These table entries do not extend hedge-trimmer gearbox lubrication to the FC55 gearbox, replace the existing shaft-lubrication instructions or establish an FC55 needle-bearing configuration.
- Standard commercial solvent-based degreasant WITHOUT CHLORINATED OR HALOGENATED HYDROCARBONS is for cleaning SEALING FACES; no order number is printed. STIHL OH723 press fluid 0781 957 9000 is for installing RUBBER ELEMENTS OF THE AV SYSTEM. This multi-model aid list alone does not prove FC55 has those AV elements. No chemical formulation, modern substitute or universal grease compatibility is inferred.
- Independently reviewed FC55 dependency in Components4140, October2003, not proof of the exact 1999 launch revision or universal FC75 interchange. Select the installed configuration. Historical workshop reference, not a performed diagnosis or authorization to operate hardware; the complete workshop and owner safety instructions still apply. Section2 requires fuel work outdoors, no fire/flame/spark/heat and immediate spill cleanup. Powerhead, gearbox and other delegated-source review remains pending.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 manual dependency: 12, complete servicing-aid table.
Later manual evidence: STIHL Components 4140 FC, FS, HL, KM (2003-10), section 12, complete servicing-aid table, PDF pages 1, 3, 4, 61
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: cylinder removal and matched piston requirement
The crankcase and engine pan stay clamped together while the cylinder is removed.
No exact-model IPL link: FC55 explicitly named in Powerhead1999-08 introduction. Model-specific ring-count labels do not establish FC55 ring count. Exact launch IPL assembly remains unestablished.
- Check and if necessary repair fuel system, carburetor, air filter and ignition BEFORE internal engine fault-finding. Troubleshooting refers to Standard Repairs, Troubleshooting. Remove housing parts, muffler, ignition module and spacer flange under Components4140, then unscrew spark plug. Fit No. 2-profile jaws 0000 893 3700 on puller 5910 890 4400 with screw bush 1108 893 4500 on its spindle; hold crankcase and engine pan together with the puller. Unscrew cylinder-base screws, clamp PULLER in a vice and pull cylinder from piston.
- Inspect cylinder; a NEW CYLINDER requires its MATCHING PISTON, and the manual says new cylinders are supplied only with piston. Remove cylinder gasket. Remove B8x0.7 snap ring on STARTER-CUP SIDE; leave the HOOKLESS FLYWHEEL-SIDE ring in its groove. Drive piston pin out with a 7 mm drift; if stuck, tap lightly while HOLDING PISTON STEADY to avoid transmitting jolts to the connecting rod. Remove piston, inspect needle cage and rings.
- The needle-cage/crankshaft replacement sentence refers to 5.1, but that section is titled OIL SEALS; crankshaft replacement is in 5. Preserve this CROSS-REFERENCE DISCREPANCY. The ring note says one (FS45) or two (FS45,55), repeating FS45 and NOT naming FC55. Do not silently change a model label or infer FC55 ring count from engine-family membership.
- FC55 is explicitly named in the August 1999 Series 4140 powerhead introduction. This is a historical workshop reference, not proof of the exact launch IPL assembly, universal FC75 interchange or a performed repair/test. Use the installed configuration and full workshop/owner safety instructions; section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining ignition, starter, reference-table and delegated-source review is pending. No hardware operation is authorized by this note.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 powerhead dependency: 4.1.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 4.1, PDF pages 1, 2, 3, 6
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: piston orientation, pin and cylinder installation
Exhaust-side marking, vertical snap-ring gap and ring locating pins must remain distinct.
No exact-model IPL link: FC55 explicitly named in Powerhead1999-08 introduction. Model-specific ring-count labels do not establish FC55 ring count. Exact launch IPL assembly remains unestablished.
- Clean gasket seating surface; oil connecting-rod needle cage. The source says HEAT PISTON to simplify fitting over the rod but gives NO TEMPERATURE: do not borrow the ball-bearing 50°C value. Piston MARKING faces EXHAUST SIDE; illustration separately identifies the flywheel. Use assembly drift 1114 893 4700 to push piston pin fully against the retained hookless ring. Fit B8x0.7 snap ring with its GAP ON VERTICAL AXIS, pointing UP OR DOWN.
- Fit NEW CYLINDER GASKET. Oil piston/rings, support piston on wooden assembly block 1108 893 4800, position ring-gap radii at the fixing pin when compressed, and compress with strap 0000 893 2600. Recheck ring positions; oil cylinder bore and align cylinder in its FINAL INSTALLED ORIENTATION before sliding it over piston, otherwise rings may break.
- As cylinder slides down, clamping strap is displaced downward by the entering rings. Remove strap and block; align cylinder and gasket. Use socket 0812 542 2104 for cylinder-base screws at 9.0 Nm, then reassemble remaining parts in reverse order. The repeated one (FS45)/two (FS45,55) ring note does NOT establish FC55 ring count or an interchangeable cylinder/piston kit.
- FC55 is explicitly named in the August 1999 Series 4140 powerhead introduction. This is a historical workshop reference, not proof of the exact launch IPL assembly, universal FC75 interchange or a performed repair/test. Use the installed configuration and full workshop/owner safety instructions; section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining ignition, starter, reference-table and delegated-source review is pending. No hardware operation is authorized by this note.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 powerhead dependency: 4.2 including printed7 continuation.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 4.2 including printed7 continuation, PDF pages 1, 2, 3, 7, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: ring-groove cleaning and replacement orientation
Remove the piston so cleaning residue cannot fall into the crankcase.
No exact-model IPL link: FC55 explicitly named in Powerhead1999-08 introduction. Model-specific ring-count labels do not establish FC55 ring count. Exact launch IPL assembly remains unestablished.
- Remove piston under 4.1 BEFORE ring removal and groove cleaning; the stated reason is to keep residues OUT OF CRANKCASE. Remove old rings, use a piece of old piston ring to scrape grooves clean, and install new rings with the RADII AT THEIR GAP facing the FIXING PIN in each groove. Reinstall piston under 4.2; this is not permission to clean grooves on an installed piston.
- The source repeats one (FS45) or two (FS45,55) rings. Retain the duplicated FS45 labeling and absent FC55-specific count. No FC55 ring quantity, ring dimension, part number or piston substitution is established here.
- FC55 is explicitly named in the August 1999 Series 4140 powerhead introduction. This is a historical workshop reference, not proof of the exact launch IPL assembly, universal FC75 interchange or a performed repair/test. Use the installed configuration and full workshop/owner safety instructions; section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining ignition, starter, reference-table and delegated-source review is pending. No hardware operation is authorized by this note.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 powerhead dependency: 4.3 with4.1/4.2 ring-label context.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 4.3 with4.1/4.2 ring-label context, PDF pages 1, 2, 3, 6, 7, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: crankshaft assembly, bearings and engine-pan sealing
Crankshaft, connecting rod and needle bearing are replaced as an inseparable unit.
No exact-model IPL link: FC55 explicitly named in Powerhead1999-08 introduction. Model-specific ring-count labels do not establish FC55 ring count. Exact launch IPL assembly remains unestablished.
- Remove cylinder under 4.1, flywheel, starter cup and piston, then remove the holding puller. Pull engine pan from crankcase and lift crankshaft out; inspect ball bearings and oil seals. CRANKSHAFT, CONNECTING ROD AND NEEDLE BEARING form an INSEPARABLE UNIT and must be replaced together. A REPLACEMENT CRANKSHAFT always requires NEW OIL SEALS AND BALL BEARINGS; no separate connecting-rod or needle-bearing replacement is established.
- Pull off seals/bearings and remove washers. Refit washers to RIGHT AND LEFT stubs, heat BALL BEARINGS to APPROXIMATELY 50°C and push fully home. Grease seal lips; slide seals over crankshaft ends with OPEN SIDE TOWARD BALL BEARINGS. Thoroughly remove all old sealant from crankcase and engine-pan sealing faces.
- Position connecting rod toward CYLINDER SIDE and SHORT CRANKSHAFT STUB on WIDE SIDE of crankcase, as illustrated. Apply THIN BEAD of sealant to engine-pan mating face, following manufacturer instructions; refit pan and clamp to crankcase with puller under 4.1, then reverse remaining disassembly. Section10 lists oil-seal grease 0781 120 1111 (370 g tube) and Dirko sealant 0783 830 2120 for ENGINE PAN/CYLINDER. Keep that table application alongside the engine-pan mating-face procedure; no modern substitute, cure time or bead dimension is supplied.
- FC55 is explicitly named in the August 1999 Series 4140 powerhead introduction. This is a historical workshop reference, not proof of the exact launch IPL assembly, universal FC75 interchange or a performed repair/test. Use the installed configuration and full workshop/owner safety instructions; section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining ignition, starter, reference-table and delegated-source review is pending. No hardware operation is authorized by this note.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 powerhead dependency: 5 with10 sealing aids.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 5 with10 sealing aids, PDF pages 1, 2, 3, 8, 9, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: starter-side oil seal without full engine disassembly
The protective assembly sleeve and pressing sleeve have different jobs.
No exact-model IPL link: FC55 explicitly named in Powerhead1999-08 introduction. Model-specific ring-count labels do not establish FC55 ring count. Exact launch IPL assembly remains unestablished.
- The manual says oil seals can be replaced WITHOUT DISASSEMBLING THE COMPLETE ENGINE. For STARTER SIDE, remove starter cup under 8.2 and housing under Components4140. Apply puller 5910 890 4400 with No. 3.1 jaws 0000 893 3706, tension arms and extract seal WITHOUT DAMAGING CRANKSHAFT STUB.
- Clean sealing surface with standard solvent-based degreasant containing NEITHER CHLORINATED NOR HALOGENATED HYDROCARBONS; section10 identifies this for crankshaft-stub cleaning, without a product number. Grease seal lips with listed oil-seal grease 0781 120 1111. Slip ASSEMBLY SLEEVE 1129 893 4600 over stub, slide seal with OPEN SIDE TOWARD CRANKCASE, then PRESS FULLY HOME using PRESS SLEEVE 1114 893 4601. Refit housing and starter cup. No seal order number or extra insertion depth is supplied.
- FC55 is explicitly named in the August 1999 Series 4140 powerhead introduction. This is a historical workshop reference, not proof of the exact launch IPL assembly, universal FC75 interchange or a performed repair/test. Use the installed configuration and full workshop/owner safety instructions; section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining ignition, starter, reference-table and delegated-source review is pending. No hardware operation is authorized by this note.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 powerhead dependency: 5.1 starter side with10.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 5.1 starter side with10, PDF pages 1, 2, 3, 10, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: clutch-side oil seal and continuation-page press tool
The branch labeled clutch side starts by removing the flywheel.
No exact-model IPL link: FC55 explicitly named in Powerhead1999-08 introduction. Model-specific ring-count labels do not establish FC55 ring count. Exact launch IPL assembly remains unestablished.
- The branch is literally labeled CLUTCH SIDE and directs removal of FLYWHEEL under 7.2. Preserve those labels instead of silently renaming the side. Extract with puller 5910 890 4400 and No. 3.1 jaws 0000 893 3706; tension arms and protect crankshaft stub. Clean with solvent-based degreasant containing neither chlorinated nor halogenated hydrocarbons, and grease lips under 10 (oil-seal grease 0781 120 1111).
- Slide seal over ASSEMBLY SLEEVE with OPEN SIDE TOWARD CRANKCASE; this branch does NOT REPRINT an assembly-sleeve number. The continuation on printed 10 expressly specifies PRESS SLEEVE 1120 893 2400 to press fully home, then refit flywheel. Do not substitute starter-side press sleeve 1114 893 4601 or claim the unnumbered clutch-side assembly sleeve has an independently printed identity.
- FC55 is explicitly named in the August 1999 Series 4140 powerhead introduction. This is a historical workshop reference, not proof of the exact launch IPL assembly, universal FC75 interchange or a performed repair/test. Use the installed configuration and full workshop/owner safety instructions; section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining ignition, starter, reference-table and delegated-source review is pending. No hardware operation is authorized by this note.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 powerhead dependency: 5.1 clutch side through printed10 continuation.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 5.1 clutch side through printed10 continuation, PDF pages 1, 2, 3, 10, 11, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: crankcase leakage symptoms and test preparation
Pressure and vacuum testing share a sealed inlet/exhaust setup.
No exact-model IPL link: FC55 explicitly named in Powerhead1999-08 introduction. Model-specific ring-count labels do not establish FC55 ring count. Exact launch IPL assembly remains unestablished.
- The source describes defective oil seals/gaskets and cracks in spacer-flange castings as usual leakage causes: supplementary air changes fuel-air mixture, impedes idle setting and causes poor transition to part/full throttle. These are possible causes, not a diagnosis from symptoms alone. It calls for BOTH crankcase pressure and vacuum checks.
- Remove shroud, carburetor and starter cover under Components4140. Set piston to TOP DEAD CENTRE, checked through INLET PORT; ensure spark plug is properly tightened. Fit NEW GASKET on spacer flange and test flange 1128 850 4200; tighten its nuts to 3.5 Nm.
- Slacken muffler screws HALFWAY; slide sealing plate 0000 855 8106 BETWEEN GASKET AND CYLINDER EXHAUST PORT, completely filling the space BETWEEN THE SCREWS. Retighten MODERATELY for testing; no numerical temporary torque is given. This preparation does not resolve the bar/kPa disagreement in 6.2/6.3 or constitute a completed leak test.
- FC55 is explicitly named in the August 1999 Series 4140 powerhead introduction. This is a historical workshop reference, not proof of the exact launch IPL assembly, universal FC75 interchange or a performed repair/test. Use the installed configuration and full workshop/owner safety instructions; section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining ignition, starter, reference-table and delegated-source review is pending. No hardware operation is authorized by this note.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 powerhead dependency: 6 and6.1.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 6 and6.1, PDF pages 1, 2, 3, 11, 12
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: pressure-test hold, leak location and unit conflict
The printed 0.5 bar (5 kPa) pair is internally inconsistent.
No exact-model IPL link: FC55 explicitly named in Powerhead1999-08 introduction. Model-specific ring-count labels do not establish FC55 ring count. Exact launch IPL assembly remains unestablished.
- After 6.1 preparation, connect tester 1106 850 2905 pressure hose to test-flange nipple and close bulb vent screw. The source says pump until gauge indicates 0.5 bar (5 kPa); if CONSTANT FOR AT LEAST 20 SECONDS it calls the crankcase airtight. Preserve the PRINTED UNIT CONFLICT: 0.5 bar is50 kPa by unit conversion, NOT 5 kPa. The specification table repeats the same pair. This review does NOT silently choose a pressure or declare either printed quantity hardware-verified.
- If indicated pressure falls, locate leak and replace faulty part. The stated locator method coats suspect area with OIL and repressurizes; BUBBLES identify leakage. REPEAT PRESSURE TEST, then carry out VACUUM TEST under 6.3: a pressure-only pass does not replace it.
- After testing OPEN VENT SCREW before disconnecting hose, remove test flange, slacken muffler screws and remove sealing plate. Tighten muffler screws to9.0 Nm and refit starter cover, carburetor and shroud under Components4140. No test was executed, and the pressure-unit discrepancy remains unresolved for a target-specific physical procedure.
- FC55 is explicitly named in the August 1999 Series 4140 powerhead introduction. This is a historical workshop reference, not proof of the exact launch IPL assembly, universal FC75 interchange or a performed repair/test. Use the installed configuration and full workshop/owner safety instructions; section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining ignition, starter, reference-table and delegated-source review is pending. No hardware operation is authorized by this note.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 powerhead dependency: 3.1 and6.1–6.2.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 3.1 and6.1–6.2, PDF pages 1, 2, 3, 4, 11, 12
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: vacuum-test complement and ambiguous printed threshold
Vacuum can expose seal-lip leakage that pressure does not.
No exact-model IPL link: FC55 explicitly named in Powerhead1999-08 introduction. Model-specific ring-count labels do not establish FC55 ring count. Exact launch IPL assembly remains unestablished.
- The source explains that a seal lip may lift away from crankshaft during induction without internal counterpressure, so an ADDITIONAL VACUUM TEST is needed. After 6.1 preparation connect suction hose of vacuum pump 0000 850 3501 to test flange, close pump-cylinder vent and operate lever until gauge shows the printed 0.5 bar (5 kPa) vacuum.
- The acceptance sentence literally says the vacuum reading remains CONSTANT OR RISES TO NO MORE THAN 0.3 bar (3 kPa) WITHIN 20 SECONDS, then oil seals may be assumed good; if pressure CONTINUES TO RISE (REDUCED VACUUM), replace seals. Preserve this VACUUM-READING DIRECTION AMBIGUITY; do not silently rewrite it as a positive-pressure threshold or an executable pass/fail predicate. The printed bar/kPa pairs are also inconsistent: 0.5 bar corresponds to 50 kPa and 0.3 bar to 30 kPa, not 5/3 kPa. No physical threshold was verified.
- After testing OPEN VENT, disconnect hose, remove test flange, loosen muffler screws and remove sealing plate; retighten muffler screws to9.0 Nm. This branch names CARBURETOR AND SHROUD for refitting, whereas 6.1 also removes STARTER COVER and 6.2 explicitly restores it. Keep the section 6.2 restoration context; do not interpret the shortened 6.3 list as permission to leave the starter cover off.
- FC55 is explicitly named in the August 1999 Series 4140 powerhead introduction. This is a historical workshop reference, not proof of the exact launch IPL assembly, universal FC75 interchange or a performed repair/test. Use the installed configuration and full workshop/owner safety instructions; section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining ignition, starter, reference-table and delegated-source review is pending. No hardware operation is authorized by this note.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections4.1/5.2/5.3 powerhead dependency: 3.1 and6.1–6.3.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 3.1 and6.1–6.3, PDF pages 1, 2, 3, 4, 11, 12, 13
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: powerhead dimensions, speed and clutch reference
The engine table specifies cut-off speed WITHOUT a cutting tool.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- Single-cylinder two-stroke engine with special impregnated cylinder bore: 27.2 cm³ displacement, 34 mm bore, 30 mm stroke and 0.75 kW (1 HP) to ISO 8893 at 7000 rpm. Maximum permissible engine speed WITHOUT CUTTING TOOL (cut-off speed) is 9500 ± 800 rpm; idle is 2800 ± 300 rpm. The ± signs were checked on the original page, not the text extraction that loses the minus stroke. These historical quantities do not authorize a no-tool running test.
- Crankshaft runs in heavy-duty deep-groove ball bearings, with needle cages at small and big ends. Piston pin diameter is 8 mm. Centrifugal clutch WITHOUT LININGS engages at 3800 rpm. These are table specifications, not measurements of a connected FC 55.
- The crankcase pressure and vacuum rows both print 0.5 bar (5 kPa). This is the same unresolved unit conflict retained in the pressure/vacuum notes: 0.5 bar converts to 50 kPa, not 5 kPa. Do not turn this table into an executable test threshold.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 3.1.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 3.1, PDF pages 1, 2, 3, 4
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: magneto air gap and suppressed plugs
The ignition table separates the module air gap from the plug electrode gap.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- Electronic magneto ignition is breakerless with integral trigger unit. Module/flywheel air gap is 0.15–0.45 mm; suppressed spark plugs are Bosch WSR 6F, NGK BPMR 7 A and Champion RCJ 6Y. Plug electrode gap is 0.5 mm. These are edition-specific table alternatives, not evidence of a later supersession or an interchangeable ignition module.
- Section 7 warns that ignition-system high voltage can cause serious or fatal accidents; begin troubleshooting at the spark plug and use Standard Repairs, Troubleshooting. A visible spark alone does not prove correct ignition timing (7.1.1).
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 3.2.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 3.2, PDF pages 1, 2, 3, 4, 13, 14
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: powerhead fasteners and existing formed threads
Five torque rows distinguish thread sizes and underhead locking teeth.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- IS-DG5x60 engine pan/crankcase/cylinder screws: 9.0 Nm; IS-DG5x60 muffler/cylinder screws: 9.0 Nm; M8 starter cup: 17.0 Nm; M14x1.25 spark plug: 20.0 Nm; IS-DG4x20 ignition module/cylinder screws: 4.5 Nm. The three spline-screw rows carry remark 2, WITHOUT underhead locking teeth. Do not confuse screws with and without teeth; the table defines remark 1 as WITH teeth but does not attach it to those rows.
- DG and P (Plastoform) screws form permanent threads in polymer/lightmetal on first installation. The source permits removal/reinstallation only with the specified torque and requires a TORQUE WRENCH. To reuse a thread, turn counterclockwise until the screw drops slightly, then clockwise to specified torque; do not cut a second thread. Polymer power-screwdriver maxima are 600 rpm for Plastoform and 500 rpm for DG. These speeds do not replace torque control.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 3.3.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 3.3, PDF pages 1, 2, 3, 5
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: spark-test limitations and fixed ignition timing
A spark can remain visible when an internal fault shifts ignition timing.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- The breakerless system comprises module and flywheel. The coil body has a high-voltage output with ignition lead and a connector tag for the short-circuit wire. Accurate module testing needs sophisticated equipment; the workshop instruction calls for a spark test, and module replacement if there is no spark AFTER checking wiring and stop switch. Start with the spark plug under Standard Repairs, Troubleshooting. High voltage can cause serious or fatal accidents.
- Ignition timing is NOT ADJUSTABLE. Although there is no mechanical timing wear, an internal circuit fault can change the switching point: a spark test may look satisfactory while timing is outside permissible tolerance and starting/running is impaired. No timing angle, permissible numeric tolerance or replacement module number is supplied here; none is inferred.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 7, 7.1 and 7.1.1.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 7, 7.1 and 7.1.1, PDF pages 1, 2, 3, 13, 14
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: moulded ignition lead and module setting gauge
The ground-wire connector tag belongs under the upper mounting screw.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- Remove shroud or relevant housing under Machine components 4140, disconnect short-circuit and ground wires, pull spark-plug boot, undo screws and remove module. The ignition lead is MOULDED TO THE MODULE, not described as a separately renewable lead in this branch.
- Position module and loosely insert screws. Secure GROUND-WIRE CONNECTOR TAG with UPPER SCREW. Put setting gauge 1127 890 6400 between module arms and flywheel magnet poles, press module against gauge and tighten mounting screws to 4.5 Nm. Reassemble remaining parts in reverse sequence. Tool-table remark 2 expressly permits gauge 1111 890 6400 instead. This is a setting-gauge alternative, not an ignition-module interchange claim.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 7.1.2 with 9 gauge alternative.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 7.1.2 with 9 gauge alternative, PDF pages 1, 2, 3, 14, 15, 17
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: flywheel damage, seating and plug restoration
The flywheel and magnet poles must be free of cracks or other damage.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- Remove clutch under Components, Basic Engine 4140. LIGHTLY tap the crankshaft stub end with a RUBBER MALLET to release flywheel, then pull it off. Replace flywheel if it or its magnet poles show cracks or other damage. This branch does not specify a flywheel puller, key replacement or timing adjustment.
- Before installation degrease crankshaft stub AND flywheel hub bore with commercial solvent-based degreasant containing NEITHER CHLORINATED NOR HALOGENATED hydrocarbons. Fit flywheel and CHECK POSITION OF SLOT; reinstall clutch under the components handbook. Remove locking strip from cylinder, fit spark plug at 20 Nm and fit boot. If the plug has a SEPARATE TERMINAL NUT, check it is securely tightened and retighten if necessary. No terminal-nut torque is printed.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 7.2 with 10.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 7.2 with 10, PDF pages 1, 2, 3, 15, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: cold or dirty rewind-starter action
The cold-thickened-lubricant branch differs from full dirty-starter cleaning.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- The manual associates stiff rope and slow/incomplete rewind with dirt, and at very low temperatures with thickened spring lubricant causing coils to stick. In the cold-lubricant branch it specifies a FEW DROPS of paraffin (kerosine) on the spring, then carefully drawing out and rewinding the rope several times until smooth. These are possible explanations, not proof that a particular starter is otherwise sound.
- If clogged with dirt or pitch, remove and disassemble the ENTIRE STARTER MECHANISM INCLUDING REWIND SPRING, taking particular care with spring removal. Wash in paraffin or white spirit, then lubricate rewind spring and starter post before assembly. Section 10 identifies STIHL special lubricant 0781 417 1315 for rope-rotor bearing bore and rewind spring. The text gives no quantity for that final lubrication.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 8.1 with 10.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 8.1 with 10, PDF pages 1, 2, 3, 16, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: starter-cup locking strip and torque
The powerhead branch explicitly names locking strip 4221 893 5900.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- Remove starter cover under Components, Basic Engine 4140, unscrew spark plug, then fit locking strip 4221 893 5900. Unscrew starter cup, fit cup and torque to 17.0 Nm; reinstall other parts in reverse sequence. The illustrated arrows were checked on the original page; no left-hand-thread statement or alternative cup is invented.
- The powerhead tool table repeats 4221 893 5900 for blocking the crankshaft. This does NOT resolve the separately retained locking-strip discrepancy in the Components 4140 material. Keep each edition/branch identity instead of silently substituting a tool number.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 8.2 with 9.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 8.2 with 9, PDF pages 1, 2, 3, 16, 17
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: powerhead tools and limited puller equivalence
Puller equivalence explicitly depends on the longer spindle.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- Puller 5910 890 4400 for oil seals is stated equivalent to 0000 890 4400 BUT WITH LONGER SPINDLE 5910 890 8400. Jaws profile No. 3.1 + 4 are 0000 893 3706; No. 2 jaws 0000 893 3700 clamp engine pan/crankcase; screw bush is 1108 893 4500. This table does not authorize all jaw profiles for every procedure: use the exact section-specific profile.
- Carburetor/crankcase tester 1106 850 2905 tests leaks; vacuum pump 0000 850 3501 tests crankcase; sealing plate 0000 855 8106 closes exhaust port; test flange is 1128 850 4200. Starter-side seal protection uses assembly sleeve 1129 893 4600; starter-side pressing uses 1114 893 4601; CLUTCH-SIDE pressing uses 1120 893 2400. No clutch-side protective assembly-sleeve number is established by relabeling these rows.
- Assembly drift 1114 893 4700 installs piston pin; wooden block 1108 893 4800 supports piston fitting; strap 0000 893 2600 compresses piston ring. Listed tools are workshop references, not replacement machine parts, proof of every model application or authorization to perform a leakage test.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 9 mechanical and leakage tools.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 9 mechanical and leakage tools, PDF pages 1, 2, 3, 17
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: torque tools, driver restriction and shaft support
The introduction explicitly includes FC shaft machines in the stand instructions.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- Crimping tool 5910 890 8210 attaches wire connectors. Torque wrenches 5910 890 0301 and 5910 890 0302 cover 0.5–18 Nm; 5910 890 0311 and 5910 890 0312 cover 6–80 Nm. The 0302/0312 versions have visual/acoustic signals. Always use a torque wrench for DG/P screws. Socket T27x125 is 0812 542 2104; Q-T27x150 screwdriver is 5910 890 2400. Its remark says only for RELEASING GD/P screws: retain the printed GD/P spelling against the DG/P wording elsewhere, not a new fastener class.
- The tool table describes stand 5910 890 3100 and drive-tube clamp 5910 890 8800 as holding FS units. The introduction independently and explicitly extends this setup to shaft tools FS, FC and HL: secure clamp to stand with TWO WASHERS AND TWO M8 NUTS, then swivel complete unit to suit the repair. Preserve the narrower table label and broader introductory instruction together. Do not confuse this clamp identity with the separate Components-table discrepancy.
- The introduction refers specific machine components to Machine components 4140, standardized assemblies to Standard Repairs, Troubleshooting and Carburetors, and replacement numbers to the relevant latest IPL. It says TIs supplement the IPL until revised. Neither this review nor its source edition establishes the exact FC 55 launch IPL. Publication notices and symbol/arrow legends are retained in the original source, not treated as new mechanical fitment assertions.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 1 continuation and 9 workshop tools.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 1 continuation and 9 workshop tools, PDF pages 1, 2, 3, 17
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: powerhead grease, sealant and electrical kit
Service aids have distinct applications; they are not one interchangeable lubricant.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- Oil-seal lubricating grease is 0781 120 1111 (370 g tube). Crankshaft-stub cleaning calls for commercial solvent-based degreasant with NEITHER CHLORINATED NOR HALOGENATED hydrocarbons; no part number is printed. STIHL special lubricant 0781 417 1315 is for the rope-rotor bearing bore and rewind spring. Electrical repair kit 5910 007 1050 is listed for the electrical system; no kit contents or individual connector compatibility is established.
- Dirko sealant 0783 830 2120 is listed for engine pan/cylinder. Do not infer that grease, starter lubricant, sealant and accessory gear lubricants are substitutes. Historical numbers are source references, not current availability or revised chemical-formulation claims.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 10.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 10, PDF pages 1, 2, 3, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: ElastoStart listing and accessory scope limits
A shared-powerhead accessory table is not universal FC 55 gearbox fitment.
No exact-model IPL link: FC 55 explicitly named in Powerhead 1999-08 introduction; shared-engine accessory listings are not universal model fitment. Exact launch IPL assembly remains unestablished.
- Safety glasses are listed WITHOUT a part number. STIHL ElastoStart (starter rope with grip) is 0000 190 3400. This is an ACCESSORY LISTING, not proof of standard equipment, every starter configuration or a complete retrofit procedure.
- Gear lubricant for BRUSHCUTTERS is 0781 120 1117 (80 g) or 0781 120 1118 (225 g). HEDGE-TRIMMER gear lubricant is separately 0781 120 1109 (80 g) or 0781 120 1110 (225 g). The shared-powerhead table does not label either group as FC 55 edger-gearbox lubricant; do NOT promote those numbers to FC 55 gearbox fitment or a substitution rule. Exact gearbox instructions remain a delegated dependency.
- FC 55 is explicitly named in the August 1999 Series 4140 powerhead introduction. Historical workshop reference only: no exact launch IPL assembly, universal FC 75 interchange, performed repair or hardware test is established. Use the installed configuration and full workshop/owner instructions. Section 2 requires fuel work outdoors, no smoking/fire/flame and immediate spill cleanup. Remaining delegated sources are pending; this note does not authorize hardware operation.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 powerhead dependency: 11.
Manual evidence: STIHL Series 4140 powerhead (1999-08), section 11, PDF pages 1, 2, 3, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: segment-adjusted FC/FCB angle-gear assignment
The assignment table names FC 55 even though the cover omits it.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- Section 3 assigns FC 55, 73, 75, 90, 100 and FCE 60 to FC/FCB, type AG (angle gear), with remark 2: depth-wheel height adjustment ON SEGMENT. The separate FC row names FC 44, 72, 75 and EC 70 with remark 1: adjustment ON DEFLECTOR. FC 75 appears in BOTH rows; model name alone cannot select its configuration.
- The FCS row instead names FC 83, 85, 95 and 110. Do not silently substitute the FCS gearbox or its procedures for FC 55. The introduction allows common procedures only absent an individual-machine restriction; it delegates engine/component repairs, replacement numbers to the relevant IPL and later changes to TIs. This review does not establish a gear ratio or new assembly part number.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 1–3.
Later manual evidence: STIHL CombiTools (2007-02), section 1–3, PDF pages 1, 2, 3, 4, 5
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: gearbox torque-table limits and thread reuse
FC 75 and FC 85 torque remarks are not automatically FC 55 values.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- Every numeric torque row in this table has a model remark. Remark 1 is FC 75, remark 2 is FC 85, remark 5 is FS 55; none says FC 55. In particular, 9.0 Nm for the IS-M6x20 gearbox/drive-tube screw, 5.0 Nm for IS-M6x25 deflector/clamp, 5.5 Nm for IS-DG5x12 skirt, 15.0 Nm for M10x18 segment, 10.0 Nm for IS-M11x10 plug and 25.0 Nm for M8x25L blade carry FC 75 remark 1 (plug also FS 55). These are comparison rows, NOT admitted FC 55 torque specifications. The 8.0 Nm M6x30 drive-tube and 25.0 Nm M8x24 blade rows are FC 85, not FC 55. A procedure referring to 4.1 does not erase these restrictions.
- DG/P formed threads in polymer/lightmetal require a torque wrench and the correct separately established torque. On reuse, turn counterclockwise until the screw drops slightly, then tighten clockwise without forming a new thread. Adhesive-secured screws are heated before release, with care around plastic. This edition gives P screws in polymer a maximum power-screwdriver speed of 500 rpm; it does not supply a DG speed here. These general instructions do not resolve the FC 55 numeric-torque dependency.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 4.1.
Later manual evidence: STIHL CombiTools (2007-02), section 4.1, PDF pages 1, 3, 4, 5, 6, 7
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: FC/FCB grease quantity and top-up condition
The capacity table separates initial filling from conditional maintenance top-up.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- FC and FC/FCB gearboxes use grease type A: STIHL gear lubricant for BRUSHCUTTERS. Initial filling is 15 g; re-lubrication is MAXIMUM 5 g. The FCS initial fill is 28 g and must not be substituted. Neither the separate FS 4140 row nor the shared-powerhead accessory listing is needed to establish this FC/FCB binding.
- Section 7.2 removes the screw plug and screws the grease tube into the hole. During maintenance, top up ONLY IF NO GREASE IS VISIBLE on the inside of the screw plug; do not treat 5 g as an unconditional addition or refill the housing with another 15 g. Section 11 lists brushcutter lubricant 0781 120 1117 (80 g tube) and 0781 120 1118 (225 g tube). Hedge-trimmer lubricant is a different listed application, not a substitution.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 4.3,7.2,11.
Later manual evidence: STIHL CombiTools (2007-02), section 4.3,7.2,11, PDF pages 1, 3, 4, 5, 8, 20, 74
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: gearbox mounting and wheel-reference ambiguity
The common removal branch excludes FCS, HT and KW.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- Section 7.1.1 removes tools and deflector as necessary, loosens the clamp screws and withdraws the gearbox. For installation it degreases the clamp mounting area, slides the gearbox on while turning the output shaft to engage the square drive-shaft end in the drive-pinion socket, pushes fully to the stop and aligns it. Screw tightening refers to 4.1; no FC 55 numerical torque is inferred from its other-model rows.
- The source says FC/FCB deflector installation uses 9.4.1 or 9.4.2, but section 3 selects the segment configuration for FC 55, hence 9.4.1. Sections 7.1.1 and 7.2 also send FC/FCB gearbox-wheel work to 9.3.3. That destination lies under FCS in the contents and depicts a separate gearbox wheel with circlip and washer, not the segment-adjusted depth wheel of 9.4.5. Preserve this referral conflict; it does NOT establish that FC 55 has the depicted FCS wheel. The FCS-only 7.1.2 and KW-only 7.1.3 neighboring instructions are not FC 55 steps.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 7.1.1,7.2 with9.3.3/9.4 comparison.
Later manual evidence: STIHL CombiTools (2007-02), section 7.1.1,7.2 with9.3.3/9.4 comparison, PDF pages 1, 2, 3, 4, 5, 17, 19, 65, 66, 68
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: FC/FCB pinion-set disassembly
Housing heat and component-removal order are source instructions, not a performed repair.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- After the applicable deflector and gearbox removal (with the wheel-referral ambiguity retained), remove the input-end housing circlip and output-end groove circlip. The manual heats the housing to about 110–140 °C, then knocks it against a WOODEN BASE to release components from the INPUT END FIRST, then the OUTPUT END. Remove the ball bearing and bevel gear from the drive shaft, remove the drive-pinion circlip, press the pinion out of its bearings, then clean and inspect all parts.
- The drive pinion and bevel gear are available ONLY AS A MATCHING PINION SET. No individual gear interchange, bearing part number or ratio is established by the illustrations. Later assembly text calls the bevel-gear shaft an input shaft in two captions but then calls its preassembly the output shaft; retain this naming inconsistency rather than swapping the two shafts.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 7.2 disassembly.
Later manual evidence: STIHL CombiTools (2007-02), section 7.2 disassembly, PDF pages 1, 3, 4, 5, 19, 20
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: pinion bearings, shaft naming and circlip restoration
The one-bearing exception explicitly says FS 55, not FC 55.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- Heat pinion ball bearings to about 50 °C and push them on: OPEN bearing against the pinion, CLOSED bearing at the end with the circlip groove; install the circlip. The text says FS 55 has only one ball bearing. Do not transfer that exception to FC 55 merely because both names contain 55.
- The next page heats another ball bearing to about 50 °C and pushes it fully onto the shaft, then pushes the bevel gear on TEETH FIRST. Its captions say input shaft, while the subsequent instruction identifies the preassembly as output shaft: this is a retained source-label ambiguity. Heat the housing to about 140 °C, press the housing bearing fully home, press the preassembled output shaft to its stop, then seat the drive pinion. Check tooth mesh and fit BOTH input- and output-end housing circlips. Grease filling and conditional top-up follow 4.3/7.2; no test of actual mesh or temperature has been performed.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 7.2 assembly.
Later manual evidence: STIHL CombiTools (2007-02), section 7.2 assembly, PDF pages 1, 3, 4, 5, 19, 20
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: segment deflector and skirt configuration limits
Section 9.4.1 is the explicit segment-adjustment branch.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- For the segment-adjusted FC deflector, remove the clamp screws, clamp and deflector from the gearhead. When replacing the deflector, first remove the depth wheel using 9.4.5, then remove the skirt screw, WASHERS and skirt. Install in reverse sequence. Do not graft the knob/retainer/new self-locking-nut steps of 9.4.2 onto this branch: that section describes wheel adjustment ON DEFLECTOR.
- The separately headed 9.4.3 skirt procedure depicts a slot-and-lug attachment: remove screw/washer, disengage skirt from lug and slot; if the wheel is on the LEFT, the skirt projects RIGHT; engage the lug and refit washer/screw. This illustration differs from the bolt-and-washers segment skirt in 9.4.1 and is not proof that every FC 55 has the slot-and-lug design. Likewise 9.4.4 depicts a wheel bearing screw and two washers attached directly to the deflector; 9.4.5 is the explicit segment-wheel procedure. Keep those configuration boundaries rather than combining the drawings into one repair.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 9.4.1–9.4.5 comparison.
Later manual evidence: STIHL CombiTools (2007-02), section 9.4.1–9.4.5 comparison, PDF pages 1, 3, 4, 5, 66, 67, 68
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: segment depth wheel, new fasteners and spring washer
The source requires replacement fasteners and retaining the caulked thread end.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- Replace a worn or damaged depth wheel. Remove wingnut and spring washer (the wingnut can resist because the thread end is CAULKED), withdraw the wheel WITH BOTH BUSHINGS, then remove the bearing screw. Installation requires a NEW WINGNUT AND NEW BEARING SCREW; fit the screw in the segment, then bushings and wheel on the screw.
- Tighten the new wingnut with the spring washer firmly. Early machines used a cup washer, but this procedure says ALWAYS INSTALL A SPRING WASHER. Caulk the end of the bearing-screw thread with a center punch to prevent the wingnut working loose. No numerical wingnut torque, replacement part number or serial changeover is stated here. Do not confuse this depth wheel with the separately illustrated FCS gearbox wheel.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 9.4.5 including middle-column continuation.
Later manual evidence: STIHL CombiTools (2007-02), section 9.4.5 including middle-column continuation, PDF pages 1, 3, 4, 5, 68
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: split-boom instructions are not an FC 55 conversion
Section 6 is explicitly introduced for split drive tubes and CombiTools.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- The wing-screw/coupling-sleeve branch is introduced for machines with a SPLIT DRIVE TUBE and CombiTools. It is not evidence that the complete FC 55 edger has that coupling. Do not replace its independently reviewed Components4140 drive-tube procedure with this branch, or infer a retrofit from the FC/FCB gearbox assignment.
- The 20 ± 0.5 mm liner recess, heated sleeve, handle-hose/Press Fluid and hedge-trimmer-lubricated drive-shaft steps on the continuation remain within that split-boom scope. No FC 55 liner dimension or alternate gearbox lubricant is admitted from these pages. Neighbor-model shaft arrangements remain outside this FC 55 review.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 6 scope exclusion.
Later manual evidence: STIHL CombiTools (2007-02), section 6 scope exclusion, PDF pages 1, 3, 4, 5, 15, 16
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: CombiTools tool-table applications and unkeyed remark
A multi-machine appendix does not make every tool mandatory for FC 55.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- The appendix lists puller 5910 890 4400 with jaws No. 1/2 (0000 893 3700) for gearbox oil seals; press arbor 4119 893 7200 for ball bearings; and drift 1111 893 4700 for needle sleeves. These are application listings across CombiTools, not evidence that every FC 55 gearbox contains the depicted oil seal or needle sleeves, or that 7.2 explicitly specifies each tool.
- Torque wrenches 5910 890 0301/0302 cover 0.5–18 Nm; 5910 890 0311/0312 cover 6–80 Nm. The first pair has remark 1 requiring torque-wrench tightening for DG/P screws; the second pair has remark 2, optical/acoustic signal. T27x125 socket is 0812 542 2104; QI-T27x150 T-handle driver is 5910 890 2400. Remark 3 says use only for RELEASING DG/P screws, but no row visibly carries marker 3. Preserve the unkeyed footnote; do not invent its row attachment or a tightening-torque value.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 10 with7.2 context.
Later manual evidence: STIHL CombiTools (2007-02), section 10 with7.2 context, PDF pages 1, 3, 4, 5, 19, 20, 73
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: gearbox service aids retain separate applications
Brushcutter gearbox grease is independently bound; the other appendix rows remain application-qualified.
No exact-model IPL link: Explicit FC55 assignment in CombiTools2007-02 section3; not an exact launch IPL binding, universal FC75 interchange or transfer of other models' torque rows.
- Brushcutter gear lubricant 0781 120 1117 (80 g) / 0781 120 1118 (225 g) is bound to FC/FCB by 4.3 and 7.2. Hedge-trimmer lubricant 0781 120 1109 (80 g) / 0781 120 1110 (225 g) is separately listed for gearbox/drive shaft, with a split-boom shaft use in section 6; it is not an FC/FCB gearbox substitute.
- The shared appendix also lists grease 0781 120 1111 (225 g) for oil seals/oil-pump drive/chain-sprocket bearing; Press Fluid OH 723 0781 957 9000 for handle hose; special lubricant 0781 417 1315 for rope-rotor bore and rewind springs; red Dirko 0783 830 2000 (90 g, −50 to +250 °C) for gearbox sealing faces; commercial solvent degreasant WITHOUT chlorinated or halogenated hydrocarbons for sealing faces; and resin solvent 0782 420 1002 (300 ml) for cutting blades. These application rows do not prove FC 55 oil-pump, needle-bearing, rewind-spring or blade-service requirements in this gearbox branch. No instruction here substitutes Dirko for grease or establishes chemical equivalence to a different edition.
- FC 55 is explicitly assigned to the FC/FCB angle gear with segment-adjusted depth wheel in CombiTools, February 2007, section 3. This later manual is not proof of the exact 1999 launch assembly or universal FC 75 interchange. Select the installed configuration; use the complete workshop and owner instructions. Section 2 requires protective gloves on attachments, fuel work outdoors, no smoking/fire/flame/heat and immediate spill cleanup. Historical reference only, not a performed repair or authorization to operate hardware.
TI dependency: TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 sections 4.1/5.2/5.3 gearbox dependency via Components4140 section10.4: 11 with4.3/6/7.2.
Later manual evidence: STIHL CombiTools (2007-02), section 11 with4.3/6/7.2, PDF pages 1, 3, 4, 5, 8, 15, 16, 20, 74
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: 2012 labor allowances and overlap rules
The timetable is for trained dealer warranty work, with diagnostic and test time included when applicable.
No exact-model IPL link: Exact FC 55 column in 2012-01 USA timetable; not an exact 1999 parent-edition binding, mechanical interchange or current warranty determination.
- The dealer instructions define flat-rate reimbursement for approved STIHL warranty repairs performed by authorized dealers, using the hourly rate assigned at the time. Diagnostic time, cleaning, repair and test running are INCLUDED whenever applicable. Technicians are assumed to have STIHL service training and the proper workshop procedures and tools; these allowances are not stopwatch measurements for an owner repair.
- Only ONE labor code is entered on a claim. In most multiple-repair cases the highest individual allowance covers the other repairs; it is not permission to SUM every listed allowance. The manual gives cylinder/piston work as including leak tests, seals or carburetor work; ignition-module work generally includes stop-switch/wiring tests; carburetor work includes fuel lines and tank vents. Where distinct diagnoses and access make the highest allowance insufficient, the historical policy requires service-department authorization for an increase. This record does not submit a claim or contact anyone.
- Historical USA warranty-labor reference from the January 2012 Repair Timetables Manual, not a measured repair duration, customer price, current warranty entitlement, hardware procedure or exact 1999 parent timetable. The explicit FC 55 column is used; other-model allowances are not imported. Times are in MINUTES and labor codes are edition/table-specific. No physical repair or test was performed.
TI dependency: TI 41/1999, p. 6 — TI 41 section 5.4 repair-times dependency: Dealer instructions printed 2; Edger Repair Times printed 21.
Later manual evidence: STIHL Repair Timetables Manual (USA) (2012-01), section Dealer instructions printed 2; Edger Repair Times printed 21, PDF pages 1, 3, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: 2012 engine-sealing and piston allowances
Four FC 55 engine-operation rows each list 50 minutes.
No exact-model IPL link: Exact FC 55 column in 2012-01 USA timetable; not an exact 1999 parent-edition binding, mechanical interchange or current warranty determination.
- Code 2: replace crankcase, crankcase gasket or re-seal crankcase, INCLUDING AIR LEAK TEST — 50 min. Code 3: replace crankshaft main bearing(s), INCLUDING AIR LEAK TEST — 50 min. Code 4: replace crankshaft seal(s), INCLUDING AIR LEAK TEST — 50 min. Code 6: replace cylinder and/or piston, INCLUDING AIR LEAK TEST AND REPAIR OF COMPONENTS CAUSING FAILURE — 50 min.
- These are four alternate labor classifications, not four additive stages of a 200-minute overhaul. They establish no pressure, vacuum, hold-time specification or verified test result. The FC 44/FC 72/FC 73 and other columns have different values; their proximity does not change the FC 55 cells.
- Historical USA warranty-labor reference from the January 2012 Repair Timetables Manual, not a measured repair duration, customer price, current warranty entitlement, hardware procedure or exact 1999 parent timetable. The explicit FC 55 column is used; other-model allowances are not imported. Times are in MINUTES and labor codes are edition/table-specific. No physical repair or test was performed.
TI dependency: TI 41/1999, p. 6 — TI 41 section 5.4 repair-times dependency: Edger Repair Times printed 21 codes 2,3,4,6.
Later manual evidence: STIHL Repair Timetables Manual (USA) (2012-01), section Edger Repair Times printed 21 codes 2,3,4,6, PDF pages 1, 3, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: 2012 fuel, induction and muffler allowances
FC 55 fuel-system rows retain their included tests and separate operation codes.
No exact-model IPL link: Exact FC 55 column in 2012-01 USA timetable; not an exact 1999 parent-edition binding, mechanical interchange or current warranty determination.
- Code 5: replace tank filler cap — 3 min. Code 8: replace fuel tank line, tank vent OR fuel pick-up body — 20 min. Code 9: replace intake manifold OR intake flange — 20 min. Code 10: repair OR replace carburetor, INCLUDING FUEL SYSTEM TESTING — 30 min.
- Code 14: replace muffler — 15 min. Code 15: replace air filter OR filter housing — 15 min. Code 22: replace fuel tank — 20 min. These grouped alternatives are not a requirement to replace every named component. The general one-code/overlap rule applies; the codes are not part numbers or serial changeovers.
- Historical USA warranty-labor reference from the January 2012 Repair Timetables Manual, not a measured repair duration, customer price, current warranty entitlement, hardware procedure or exact 1999 parent timetable. The explicit FC 55 column is used; other-model allowances are not imported. Times are in MINUTES and labor codes are edition/table-specific. No physical repair or test was performed.
TI dependency: TI 41/1999, p. 6 — TI 41 section 5.4 repair-times dependency: Edger Repair Times printed 21 codes 5,8,9,10,14,15,22.
Later manual evidence: STIHL Repair Timetables Manual (USA) (2012-01), section Edger Repair Times printed 21 codes 5,8,9,10,14,15,22, PDF pages 1, 3, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: 2012 ignition, starter and clutch allowances
Stop-circuit and circuit-testing inclusions remain attached to the correct operations.
No exact-model IPL link: Exact FC 55 column in 2012-01 USA timetable; not an exact 1999 parent-edition binding, mechanical interchange or current warranty determination.
- Code 7: replace ignition module OR flywheel, INCLUDING STOP CIRCUIT TEST — 30 min. Code 11: repair throttle control — 20 min. Code 12: repair OR replace rewind starter — 15 min.
- Code 13: repair OR replace clutch, clutch shoes OR clutch springs — 30 min. Code 16: repair OR replace stop switch, INCLUDING CIRCUIT TESTING — 25 min. Code 17: replace clutch housing — 20 min. A labor row is not an instruction to replace a sound component and does not identify a compatible ignition module or clutch revision.
- Historical USA warranty-labor reference from the January 2012 Repair Timetables Manual, not a measured repair duration, customer price, current warranty entitlement, hardware procedure or exact 1999 parent timetable. The explicit FC 55 column is used; other-model allowances are not imported. Times are in MINUTES and labor codes are edition/table-specific. No physical repair or test was performed.
TI dependency: TI 41/1999, p. 6 — TI 41 section 5.4 repair-times dependency: Edger Repair Times printed 21 codes 7,11,12,13,16,17.
Later manual evidence: STIHL Repair Timetables Manual (USA) (2012-01), section Edger Repair Times printed 21 codes 7,11,12,13,16,17, PDF pages 1, 3, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: 2012 shaft, deflector and gearbox allowances
Gearbox assembly repair and internal gear/bearing replacement have distinct entries.
No exact-model IPL link: Exact FC 55 column in 2012-01 USA timetable; not an exact 1999 parent-edition binding, mechanical interchange or current warranty determination.
- Code 18: replace drive shaft AND/OR drive tube — 30 min. Code 19: replace bearing liner in drive tube — 20 min. Code 20: replace deflector — 15 min. Code 21: REPAIR gearbox assembly — 15 min. Code 26: REPLACE gears AND/OR bearings in gearbox — 30 min. Do not relabel code 21 as whole-assembly replacement or add 21 and 26 automatically.
- The separate Gearbox Attachment Repair Times table has a generic FC column but does not name FC 55. There, code 1 means guard/deflector, code 4 internal gears and code 10 gearbox bearings. Those attachment codes are NOT the FC 55 edger code namespace; equal 30-minute values do not establish the same assembly or compatible parts. Use the explicitly named FC 55 edger column for these notes.
- Historical USA warranty-labor reference from the January 2012 Repair Timetables Manual, not a measured repair duration, customer price, current warranty entitlement, hardware procedure or exact 1999 parent timetable. The explicit FC 55 column is used; other-model allowances are not imported. Times are in MINUTES and labor codes are edition/table-specific. No physical repair or test was performed.
TI dependency: TI 41/1999, p. 6 — TI 41 section 5.4 repair-times dependency: Edger Repair Times printed 21 codes 18,19,20,21,26; attachment-table comparison printed 35.
Later manual evidence: STIHL Repair Timetables Manual (USA) (2012-01), section Edger Repair Times printed 21 codes 18,19,20,21,26; attachment-table comparison printed 35, PDF pages 1, 3, 22, 36
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: 2012 blank cells, diagnosis and no-labor rows
An empty FC 55 cell is not a zero-minute allowance.
No exact-model IPL link: Exact FC 55 column in 2012-01 USA timetable; not an exact 1999 parent-edition binding, mechanical interchange or current warranty determination.
- FC 55 cells for code 1 short-block replacement, code 23 valve-clearance adjustment, code 24 exhaust-valve de-carbonizing/leak-down test and code 25 intake/exhaust-valve replacement/leak-down test are BLANK. No FC 55 allowance is supplied in those cells; do not fill from FC 90/100 or FC 95/110 or convert a blank to zero. A blank alone is not a complete hardware configuration statement.
- Code 35: engine diagnosis ONLY to determine failures requiring unit replacement — 25 min. Code 40: miscellaneous repairs and other repairs not listed — 15 min. Code 45: HANDLING ALLOWANCE ONLY, NO LABOR — 5 min. Code 50: NO LABOR — explicitly 0 min. Neither code 45 nor 50 is evidence that a physical repair takes five or zero minutes. The separate model-unspecific MISC table repeats 40/45/50 with 15/5/0, but does not replace the FC 55-specific table.
- Historical USA warranty-labor reference from the January 2012 Repair Timetables Manual, not a measured repair duration, customer price, current warranty entitlement, hardware procedure or exact 1999 parent timetable. The explicit FC 55 column is used; other-model allowances are not imported. Times are in MINUTES and labor codes are edition/table-specific. No physical repair or test was performed.
TI dependency: TI 41/1999, p. 6 — TI 41 section 5.4 repair-times dependency: Edger Repair Times printed 21 codes 1,23–25,35,40,45,50; miscellaneous comparison printed 24.
Later manual evidence: STIHL Repair Timetables Manual (USA) (2012-01), section Edger Repair Times printed 21 codes 1,23–25,35,40,45,50; miscellaneous comparison printed 24, PDF pages 1, 3, 22, 25
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: 1999 and 2012 labor codes are not interchangeable
Carburetor, starter and seal allowances retain changed units, operation grouping and edition-specific labor codes.
No exact-model IPL link: Exact FC 55 column in 2012-01 USA timetable; not an exact 1999 parent-edition binding, mechanical interchange or current warranty determination.
- TI 41/1999 section 5.4 states tenths of an hour, with 0.1=6 minutes. Its code 9 repair/rebuild carburetor is 0.8 h (48 min), while code 10 replace carburetor/carburetor jet is 0.4 h (24 min), with an attempted repair referred back to code 9. The 2012 FC 55 code 10 instead combines repair OR replacement with fuel-system testing at 30 min;2012 code 9 is intake manifold/flange at 20 min. Do not use code number alone to join these editions.
- The 1999 recoil-starter code 12 is 0.5 h (30 min), versus 15 min in 2012. The 1999 crankshaft-seal code 4 is 0.9 h (54 min), including pressure and vacuum test, versus 2012 code 4 at 50 min with air-leak test wording. These are retained edition differences, not corrections to the 1999 source. The 2012 cover proves 2012-01 only; it cannot close the exact 1999 parent-timetable dependency or date the intervening revisions.
- Historical USA warranty-labor reference from the January 2012 Repair Timetables Manual, not a measured repair duration, customer price, current warranty entitlement, hardware procedure or exact 1999 parent timetable. The explicit FC 55 column is used; other-model allowances are not imported. Times are in MINUTES and labor codes are edition/table-specific. No physical repair or test was performed.
TI dependency: TI 41/1999, p. 6 — TI 41 section 5.4 repair-times dependency: TI 41 original 5.4 versus 2012 printed 2/21.
Later manual evidence: STIHL Repair Timetables Manual (USA) (2012-01), section TI 41 original 5.4 versus 2012 printed 2/21, PDF pages 1, 3, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: failure categories are not labor or ECU codes
The generic appendix classifies reported failures, not automatic diagnoses.
No exact-model IPL link: Exact FC 55 column in 2012-01 USA timetable; not an exact 1999 parent-edition binding, mechanical interchange or current warranty determination.
- The failure appendix uses a CATEGORY plus a two-digit failure code: category 1 Carburetor code 03 means inlet needle leaking; category 7 Gear Boxes code 01 means broken gear; category 9 Ignition Parts code 01 means no spark; category 14 Fuel System code 01 means tank leaking. These are examples of a separate warranty failure vocabulary, NOT labor codes, electronic trouble codes or proof that a particular FC 55 has a particular failed component.
- The appendix says to mark only the replaced part that CAUSED the failure with its corresponding code; if the cause is uncertain, assign the failure code to the major part being replaced. Preserve that administrative fallback as uncertainty, not a confirmed causal diagnosis. The appendix also includes saw chain, guide bar, electric motor and valve-train categories; their presence does not add those systems to FC 55. No complete failure taxonomy or current warranty-claim integration is asserted.
- Historical USA warranty-labor reference from the January 2012 Repair Timetables Manual, not a measured repair duration, customer price, current warranty entitlement, hardware procedure or exact 1999 parent timetable. The explicit FC 55 column is used; other-model allowances are not imported. Times are in MINUTES and labor codes are edition/table-specific. No physical repair or test was performed.
TI dependency: TI 41/1999, p. 6 — TI 41 section 5.4 repair-times dependency: Failure Code Listing printed 38 with printed 21 labor-code comparison.
Later manual evidence: STIHL Repair Timetables Manual (USA) (2012-01), section Failure Code Listing printed 38 with printed 21 labor-code comparison, PDF pages 1, 3, 22, 39
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55 / FC 75
FC 55 / FC 75: shared 2012 gearhead and housing numbers
The later catalog lists the same gearhead, housing and output hardware for both models.
No exact-model IPL link: Exact 1999 launch IPL remains unestablished. The named 2012 FC 55 and FC 75 branches are later comparison evidence, not launch-assembly bindings.
- FC 55 branch O (document 3905, drawing 241ET005) and FC 75 branch O (3920, 394ET000) both list gearhead 4133 640 0107, quantity 1, with a BLANK drawing position. It must not be converted to position 0 or attached to an arbitrary numbered hotspot. Gear housing 4133 641 0306 is FC 55 position 10 but FC 75 position 7; matching part identity does not mean matching callout number.
- Both branches list drive shaft 4133 642 0600 (FC 55 position 18 / FC 75 position 15), thrust plate 4133 713 1501 (23 / 20), guard ring 4133 717 2701 (24 / 21), collar nut 4133 642 7601 (25 / 22), screw plug 4119 713 6500 (21 / 18) and IS-M6x20 spline screw 9022 341 1300 (22 / 19), each quantity 1. This is a catalog-number correspondence, not a recovered assembly contents list: the contains fields are empty.
- Later SCS 01-2012 (USA) catalog comparison, not an exact 1999 launch IPL, universal FC 75 interchange approval or physical fit test. TI41 page 2 says gearhead, deflector and skirt are as FC 75, but gives no part numbers or changeover. Blank serial/version fields in these catalog branches do not establish applicability to every year or serial number. No hardware operation was performed.
Source: TI 41/1999, p. 2 — TI41 page 2 gearhead/deflector comparison with SCS 01-2012 (USA), catalog 1 documents 3905, 3920.
No additional parts-table entry added.
Service note · FC 55 / FC 75
FC 55 / FC 75: pinion set versus unnumbered component rows
The complete set has a number; the two illustrated gear components do not have separate order numbers here.
No exact-model IPL link: Exact 1999 launch IPL remains unestablished. The named 2012 FC 55 and FC 75 branches are later comparison evidence, not launch-assembly bindings.
- Both O branches list set of pinions 4133 640 7300, quantity 1, at a BLANK position. Drive pinion and spur bevel gear are separate quantity-1 reference rows with NO part number and note (D): FC 55 positions 12 and 13; FC 75 positions 9 and 10. Preserve the unnumbered rows and literal note rather than inventing individual order numbers or dropping the illustrated components.
- The drawings show the two gears separately in the exploded view. This does not mean they may be mixed across unmatched sets. The independently reviewed CombiTools instruction requires paired pinion replacement; that procedure is not inferred solely from the catalog note (D). No interpretation of the letter-note legend or exact set package contents is supplied by these rows.
- Later SCS 01-2012 (USA) catalog comparison, not an exact 1999 launch IPL, universal FC 75 interchange approval or physical fit test. TI41 page 2 says gearhead, deflector and skirt are as FC 75, but gives no part numbers or changeover. Blank serial/version fields in these catalog branches do not establish applicability to every year or serial number. No hardware operation was performed.
Source: TI 41/1999, p. 2 — TI41 page 2 gearhead/deflector comparison with SCS 01-2012 (USA), catalog 1 documents 3905, 3920.
No additional parts-table entry added.
Service note · FC 55 / FC 75
FC 55 / FC 75: matching bearing suffixes and retaining rings
Shared bearing numbers retain their distinct open, shielded and seal-designation text.
No exact-model IPL link: Exact 1999 launch IPL remains unestablished. The named 2012 FC 55 and FC 75 branches are later comparison evidence, not launch-assembly bindings.
- Both O branches list 9503 003 9491 grooved ball bearing 629-2Z (FC 55 position 11 / FC 75 position 8), 9503 003 9850 bearing 609 (14 / 11), 9503 003 9853 bearing 609-2Z (15 / 12), and 9503 003 6440 bearing 6201-2RS (19 / 16), each quantity 1. Preserve 609 versus 609-2Z and all suffixes; do not collapse similar bearing names into one interchangeable item or infer unspecified dimensions.
- Circlip 9455 621 0750 is 9x1 (FC 55 position 16 / FC 75 position 13); 9456 621 2660 is 24x1.2 (17 / 14); 9456 621 3600 is 32x1.2 (20 / 17), each quantity 1. These are listed identities and sizes, not torque, installation direction or reuse instructions.
- Later SCS 01-2012 (USA) catalog comparison, not an exact 1999 launch IPL, universal FC 75 interchange approval or physical fit test. TI41 page 2 says gearhead, deflector and skirt are as FC 75, but gives no part numbers or changeover. Blank serial/version fields in these catalog branches do not establish applicability to every year or serial number. No hardware operation was performed.
Source: TI 41/1999, p. 2 — TI41 page 2 gearhead/deflector comparison with SCS 01-2012 (USA), catalog 1 documents 3905, 3920.
No additional parts-table entry added.
Service note · FC 55 / FC 75
FC 55 / FC 75: shared gearbox does not mean shared drive tube
The two models have different drive-tube, flexible-shaft and loop-handle numbers.
No exact-model IPL link: Exact 1999 launch IPL remains unestablished. The named 2012 FC 55 and FC 75 branches are later comparison evidence, not launch-assembly bindings.
- FC 55 O lists drive tube assemblies 4140 710 7103 and 4140 710 7115 at positions 1 and 2; FC 75 O lists 4137 710 7114 and 4137 710 7111 at positions 1 and 2. All four descriptions say diameter 25.4 mm / 1 inch. No variant or serial selector is present in these rows: equal diameter and adjacent alternatives do not establish interchange, supersession order or which version is fitted.
- FC 55 flexible drive shaft is 4140 711 3202 at position 3, with flexible liner 4137 711 7302 at position 5. FC 75 drive shaft is 4137 711 3202 at position 5. Distinguish these long drive-tube shafts from common gearhead output shaft 4133 642 0600. The FC 75 drawing has no separately listed flexible-liner row; that is not proof that the assembly contains no liner.
- FC 55 loop handle 4140 791 2300 uses spacer 4140 791 9100 and friction pad 4140 792 0800; FC 75 loop handle 4130 790 1300 instead lists handle hose 4130 791 2000 and clamp 4130 791 6805. The drawings visibly differ. The TI statement about gearhead, deflector and skirt must not be widened to the complete shaft or handle assembly.
- Later SCS 01-2012 (USA) catalog comparison, not an exact 1999 launch IPL, universal FC 75 interchange approval or physical fit test. TI41 page 2 says gearhead, deflector and skirt are as FC 75, but gives no part numbers or changeover. Blank serial/version fields in these catalog branches do not establish applicability to every year or serial number. No hardware operation was performed.
Source: TI 41/1999, p. 2 — TI41 page 2 gearhead/deflector comparison with SCS 01-2012 (USA), catalog 1 documents 3905, 3920.
No additional parts-table entry added.
Service note · FC 55 / FC 75
FC 55 / FC 75: shared segment-adjusted deflector and skirt
Both P branches identify the same deflector, segment, wheel and skirt arrangement.
No exact-model IPL link: Exact 1999 launch IPL remains unestablished. The named 2012 FC 55 and FC 75 branches are later comparison evidence, not launch-assembly bindings.
- FC 55 P (3906) and FC 75 P (3921) both use drawing 241ET017. Position 1 is deflector 4137 713 4503, position 2 clamp 4137 716 6500, position 5 segment 4137 708 3200, and position 13 skirt 4137 716 3200, each quantity 1. The drawing visibly places the wheel adjustment on the separate segment.
- Wheel 4133 712 1000 at position 10 has TWO sleeves 4137 716 1501 at position 9, one on each side in the drawing. Position 7 is flat head screw M8x60 9027 068 1972; position 11 cup spring 18x8.2 9486 648 0304; position 12 wing nut M8 9245 691 1100. All except the sleeves have quantity 1. No position 8 row or callout is present; do not renumber the following positions.
- The segment uses TWO M10x18 hexagon screws 4201 708 8402 at position 6. Both branches list TWO lock nuts M6 9214 320 0900 at position 3 and TWO IS-M6x25 screws 9022 341 1350 at position 4. Skirt attachment uses one washer 0000 958 0512 at position 14 and one IS-D5x12 screw 9075 478 4095 at position 15. Diagram placement is not an independent torque or assembly-order specification.
- Later SCS 01-2012 (USA) catalog comparison, not an exact 1999 launch IPL, universal FC 75 interchange approval or physical fit test. TI41 page 2 says gearhead, deflector and skirt are as FC 75, but gives no part numbers or changeover. Blank serial/version fields in these catalog branches do not establish applicability to every year or serial number. No hardware operation was performed.
Source: TI 41/1999, p. 2 — TI41 page 2 gearhead/deflector comparison with SCS 01-2012 (USA), catalog 1 documents 3906, 3921.
No additional parts-table entry added.
Service note · FC 55 / FC 75
FC 55 / FC 75: FC 75 also lists a different deflector branch
The FC 75 Q branch cannot be silently substituted for the shared P configuration.
No exact-model IPL link: Exact 1999 launch IPL remains unestablished. The named 2012 FC 55 and FC 75 branches are later comparison evidence, not launch-assembly bindings.
- FC 75 Q (3922, drawing 394ET013) lists deflector 4133 713 4506, clamp 4133 716 6505 and skirt 4133 716 3200, versus P branch 4137 713 4503, 4137 716 6500 and 4137 716 3200. Q uses adjusting screw 4133 710 9500 and clamp 4133 716 6600, with the wheel adjustment attached at the deflector rather than a separate segment. These are distinct catalog configurations; this source supplies no serial, date or supersession rule choosing between P and Q.
- Q lists wheel 4133 712 1000 at position 9 and wheel 4133 712 1001 with note (B) at position 10. P lists only 4133 712 1000 at position 10; identical position numbers across drawings are not a part-identity join. Q lists THREE IS-D5x12 screws 9075 478 4095 at position 8; P lists one at position 15. Q has only ONE IS-M6x25 screw 9022 341 1350 at position 4, compared with TWO in P.
- Only the FC 75 product is associated with this Q document in the reviewed model pair. Do not extend its deflector, wheel alternative, skirt or fastener quantities to FC 55 based on the broad TI41 phrase as FC 75. No claim is made that either retained branch is the exact latest version meant in 1999.
- Later SCS 01-2012 (USA) catalog comparison, not an exact 1999 launch IPL, universal FC 75 interchange approval or physical fit test. TI41 page 2 says gearhead, deflector and skirt are as FC 75, but gives no part numbers or changeover. Blank serial/version fields in these catalog branches do not establish applicability to every year or serial number. No hardware operation was performed.
Source: TI 41/1999, p. 2 — TI41 page 2 gearhead/deflector comparison with SCS 01-2012 (USA), catalog 1 documents 3906, 3921, 3922.
No additional parts-table entry added.
Service note · FC 55 / FC 75
FC 55 / FC 75: blade alternatives retain an imperial-size discrepancy
The shared P blade list is later evidence and its units are not silently corrected.
No exact-model IPL link: Exact 1999 launch IPL remains unestablished. The named 2012 FC 55 and FC 75 branches are later comparison evidence, not launch-assembly bindings.
- Both P branches list blade 4133 713 4101 at position 16, quantity 1, described as diameter 200x2.4 mm / 7 7/8 inch x 1/10 inch. Position 17 lists blade 4133 713 4102, quantity 1, with note (B), described as diameter 200x3.8 mm / 7 7/8 inch x 3/16 inch. Preserve both printed descriptions. The second thickness pair is inconsistent: 3/16 inch equals 4.7625 mm, not 3.8 mm. No corrected blade thickness or measured part is established.
- The same warning pictogram 0000 967 3730 appears once as a quantity-1 table row at position 18, but the drawing labels position 18 on BOTH blade illustrations. Two callout occurrences are not a quantity-2 parts row. The FC 75 Q branch lists only 4133 713 4101 at position 16 and warning pictogram 0000 967 3730 at position 17; it does not independently list the thicker P alternative.
- Later SCS 01-2012 (USA) catalog comparison, not an exact 1999 launch IPL, universal FC 75 interchange approval or physical fit test. TI41 page 2 says gearhead, deflector and skirt are as FC 75, but gives no part numbers or changeover. Blank serial/version fields in these catalog branches do not establish applicability to every year or serial number. No hardware operation was performed.
Source: TI 41/1999, p. 2 — TI41 page 2 gearhead/deflector comparison with SCS 01-2012 (USA), catalog 1 documents 3906, 3921, 3922.
No additional parts-table entry added.
Service note · FC 55 / FC 75
FC 55 / FC 75: shared drawing does not erase accessory-note differences
The P tables agree on tool numbers but differ on the safety-glasses note.
No exact-model IPL link: Exact 1999 launch IPL remains unestablished. The named 2012 FC 55 and FC 75 branches are later comparison evidence, not launch-assembly bindings.
- Both P tables list combination wrench 1129 890 3401 at position 19, locking pin 4133 893 7800 at 20, screwdriver 0000 890 2300 at 21, screwdriver T27x120x70 0812 370 1000 at 22, safety glasses 0000 884 0307 at 23 and tool roll 0000 891 0801 at 24, each quantity 1. Notes (B) occur at 19, 20, 21 and 24 in both. Position 22 has no letter note in either. Safety glasses have (B) in FC 55 but NO note in FC 75: preserve the difference despite the shared drawing and number.
- In O, cap 4133 717 2000 has note (B) for FC 55 position 8 but no note for FC 75 position 6. FC 55 additionally lists gear lubricant 0781 120 1110 (225 g) at position 4 and 0781 120 1117 (80 g) at position 26, each quantity 1 with (B); FC 75 O has no corresponding lubricant row. Neither absent notes nor absent accessory rows prove package contents, no lubrication requirement, or approval to use the 225 g entry at the gearhead. Preserve the manual-specific lubricant applications already reviewed.
- The identical warning pictogram numbers 0000 967 3729 and 0000 967 3653 occur at FC 55 O positions 6/7 versus FC 75 O positions 3/4, each quantity 1. Accessory and warning references are not installed mechanical fitment or a substitute for the owner safety instructions. The note-letter legend has not been established in this comparison.
- Later SCS 01-2012 (USA) catalog comparison, not an exact 1999 launch IPL, universal FC 75 interchange approval or physical fit test. TI41 page 2 says gearhead, deflector and skirt are as FC 75, but gives no part numbers or changeover. Blank serial/version fields in these catalog branches do not establish applicability to every year or serial number. No hardware operation was performed.
Source: TI 41/1999, p. 2 — TI41 page 2 gearhead/deflector comparison with SCS 01-2012 (USA), catalog 1 documents 3905, 3906, 3920, 3921.
No additional parts-table entry added.
Service note · FC 55
FC 55: recovered handbook is not an FC55 carburetor assignment
A misleading 021/023/025 filename contains the Carburetors handbook; its revision and FC55 suffix remain unknown.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The 65-page PDF is named 021 023 025 MS 210 230 250 - service manual.pdf, but its original first page says Carburetors and copyright 1999. Copyright is not an edition or publication-date proof. Assignment pages 3–7 list FC 44 and FC 72, but no FC 55 row. Absence from that table neither disproves TI41 nor authorizes copying another model's carburetor designation, jet specification, emissions footnote or adjustment.
- Section 3.1 shows a complete designation stamped or printed on some bodies; others have a cast family designation with a separate stamped/printed identification suffix. A family mark alone is not an exact carburetor identity. Section 2 requires the applicable illustrated parts list and subsequent Technical Information for engineering changes; a handbook diagram is not an installed-parts inventory.
- The source safety page points to local/national rules and the owner manual, and specifically warns about adjustments without a cutting-tool guard or deflector. That warning is not permission to omit either. Owner instructions remain a separate unresolved dependency.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 1–3.1, identity, safety, assignment and designation.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 1–3.1, identity, safety, assignment and designation, PDF pages 1, 2, 3, 4, 5, 6, 7, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: fuel pumping and metering are separate functions
Crankcase pulses move the pump diaphragm; pressure at the metering diaphragm controls the inlet needle.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The handbook describes an all-position diaphragm carburetor with no float. The pump is functionally separate despite sharing the housing. In its pump drawing, crankcase low pressure flexes diaphragm (3), admits fuel through inlet valve (6), and closes outlet valve (7); the opposite pulse reduces fuel-chamber volume, closes the inlet and opens the outlet toward the carburetor inlet valve. The flaps are cut from, but remain attached to, the pump diaphragm.
- In the separate inlet-needle diagram on page 10, fuel leaves metering chamber (1) through the jets; outside pressure deflects metering diaphragm (2) onto lever (5), lifting needle (6) to replenish the chamber. These callout numbers belong to that diagram, not the preceding pump drawing. This is an operating explanation, not a lever-height, diaphragm-stack or leakage-test specification.
- Page 10 conditionally describes clean-side filter pressure for machines with a compensator. It prints a chapter 4.3.4 referral although the contents locates dirty-air-filter/compensator discussion at 5.3.4. Preserve that cross-reference discrepancy; no compensator is established for the TI41 FC55 by this conditional text. Page 8 mixture ratios and combustion explanation are background, not an FC55 fuel/oil mixing or adjustment specification.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 4–5.1, venturi, pulse pump and inlet needle.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 4–5.1, venturi, pulse pump and inlet needle, PDF pages 1, 2, 8, 9, 10
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: manual purge and running check-valve paths differ
The primer returns fuel to the tank; the check valve blocks an air shortcut while priming.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- In the manual-pump drawings, pressing the bulb opens the return valve and sends air or fuel through the fitting back to the tank. Releasing the bulb creates low pressure in the metering chamber, pulls the diaphragm against the inlet lever and admits fuel through the needle. Excess fuel passes to the bulb and is returned to the tank on the next press. The manual pump is a priming device, distinct from the crankcase-pulse pump.
- Page 11 describes the metering-chamber check valve closing during manual priming to prevent air entering from the venturi and idle bores, then opening during running so fuel can reach the jets. The separate main-jet valve described beside it prevents air entering through the main jet at idle; do not collapse the two descriptions into one identified service part.
- TI41 names a purge primer but gives no bulb-count instruction here. The handbook statement that chainsaw primers are separate components does not relocate the FC55 primer or prove its installed valve/line routing. No press count, hose interchange or service-part identity is inferred.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.1 continuation, manual fuel pump and check valve.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.1 continuation, manual fuel pump and check valve, PDF pages 1, 2, 10, 11
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: fixed full-load jet is not an H adjustment
TI41 specifies a fixed full-load jet; the handbook distinguishes it from semi-fixed and adjustable systems.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- For the fixed full-load branch, all full-load fuel passes through the fixed jet and there is no high-speed adjusting screw. The jet may be separate or formed as a nozzle bore in the main jet; a separate jet connects to the main jet by a passage, not directly to the venturi. TI41 identifies this fixed-full-load configuration for its FC55, not a particular replaceable jet or bore diameter.
- The adjacent semi-fixed system retains an H screw and an approximately 80% contribution at H = 1; that value is not the FC55 fixed-jet specification. The general full-load illustration draws fuel from both main and idle outlets. Do not transplant the adjustable-system H instructions or the semi-fixed percentage into the one-screw LD/BIS branch.
- The conventional idle drawings use an almost-closed throttle and an idle-position stop screw. The BIS section instead explicitly closes the throttle fully and meters bypass air. These are different circuit descriptions, not contradictory instructions to force the same throttle into two positions.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.2.1–5.2.2, full-load types and idle context.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.2.1–5.2.2, full-load types and idle context, PDF pages 1, 2, 11, 12, 13
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: LD bypass control is not primary-mixture control
Independent, dependent, primary-mixture and balanced-idle systems must not share an assumed screw setting.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- Page 13 calls parallel main/idle circuits an independent idle system, while warning that changing idle fuel also changes total full-load fuel and may require an H correction. Its dependent idle system branches after H; changing L redistributes idle flow without changing the overall fuel volume. The labels describe circuit topology, not permission to apply either adjustment to the FC55 LD screw.
- Page 14 describes a different fixed-idle-jet system with primary-mixture control and a separate LA idle-speed screw. Its approximately one-turn mixture baseline, richer-when-open rule, approximately 20-degree main-jet transition and statement that the idle screw does not affect full-load fuel belong to that section. They are not BIS/LD settings or FC55 calibration values.
- For BIS the fixed idle jet is combined with calibrated bypass bores and one LD control. Use the explicit TI41 and matched workshop instructions for settings; the generic adjacent diagrams cannot override the left-hand-thread direction or the blade-must-stop condition.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.2.2–5.2.4, circuit-selection boundaries.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.2.2–5.2.4, circuit-selection boundaries, PDF pages 1, 2, 12, 13, 14, 15, 16
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: balanced idle at restricted bypass
The low-speed diagram mixes fixed-jet fuel with air from the secondary bore and bypass connection.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The BIS drawing identifies fuel chamber (1), fixed idle jet (2), idle chamber (3), connecting passage (4), secondary idle bore (5), primary idle bore (6), fully closed throttle (7), throttle hole (8), upstream bypass port (9), downstream bypass port (10) and bypass chamber (11). These are explanatory diagram callouts, not catalog positions or order numbers.
- Most idle air passes through throttle hole (8). With LD restricting the bypass, engine-side vacuum produces pressure P3 in the idle chamber through bore (6) and P11 in the bypass chamber through port (10). When P11 is below upstream atmospheric pressure, air enters through (9); when P11 is above P3, air flows through passage (4) into idle chamber (3).
- Air from secondary bore (5) and passage (4) mixes with fuel supplied through fixed jet (2). The primary mixture exits bore (6), combining with air from bypass outlet (10) and throttle hole (8). The pressure symbols describe relative flow conditions, not measured FC55 pressures or a leak-test limit.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.2.4, low idle and labeled flow paths.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.2.4, low idle and labeled flow paths, PDF pages 1, 2, 15, 16
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: LD changes the pressure balance, not just a throttle stop
Clockwise LD increases idle speed; the connecting passage eventually reverses from air flow to mixture flow.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The handbook explicitly gives LD a LEFT-HAND THREAD: clockwise increases engine speed and counterclockwise reduces it. Clockwise rotation lowers P11 and increases air throughput at bypass outlet (10); the P3–P11 difference narrows and less air moves from bypass chamber (11) through passage (4) into idle chamber (3).
- The first page-16 diagram shows no flow through connecting passage (4) when P3 equals P11. Further clockwise rotation makes P11 lower than P3; the second diagram reverses flow through (4), drawing primary mixture from idle chamber (3) into the bypass stream. Omitting that continuation would incorrectly describe the passage as always carrying air in one direction.
- This explains the TI41 LD direction but supplies no number of turns to the equal-pressure point, screw-travel limit or target pressure. TI41 separately requires the standard setup and a non-rotating blade at idle; the functional drawing is not an instruction to keep turning the screw until the blade moves.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.2.4 including page16 continuation, equal pressure and reversal.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.2.4 including page16 continuation, equal pressure and reversal, PDF pages 1, 2, 15, 16
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: balanced-idle graph is not an FC55 rpm specification
The graph illustrates mixture stability; its 2500, 2800 and 3100 labels are not a service-speed range.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The original graph labels the horizontal axis with 2500, 2800 and 3100 per minute and the vertical axis with lambda and CO, but gives no numeric vertical calibration. Its horizontal line illustrates the handbook's balanced-mixture claim. It does not specify an FC55 target idle, allowable rpm band, CO percentage or measured emissions result.
- The handbook claims smooth idle, response, lower emissions, stability over ambient temperatures and simpler one-screw adjustment as BIS benefits. These are source claims, not reproduced performance tests on a saw or edger and not a guarantee that a worn or leaking carburetor runs correctly.
- The neighboring part-load section explains a partly open throttle and a separate fixed part-load jet used to prevent a lean flat spot. The section does not establish that this additional jet is present in the TI41 FC55. No part-load jet identity or alteration is inferred from proximity to the BIS continuation.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.2.4 graph and benefits; 5.2.5 context.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.2.4 graph and benefits; 5.2.5 context, PDF pages 1, 2, 15, 16
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: starting-mixture explanation is not an owner starting sequence
Low cranking speed and cold-wall condensation explain enrichment; automatic-choke timing is a separate example.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- Compared with idle, starter cranking produces low venturi flow and vacuum. Fuel responds more slowly than air; cold walls also condense fuel. The handbook illustrates a closed choke enriching the cold-start mixture, then opening it as the engine fires/runs to avoid an over-rich stall. These are functional explanations, not an FC55 hot-start choke position, pull count or complete starting procedure; the owner instructions remain unresolved.
- The automatic-choke example uses cylinder temperature to vary control-valve cross section A and crankcase low-pressure pulses to contract bellows. It describes about 3.5 seconds cold versus about 0.1 seconds hot and a throttle angle of 37 degrees to the mounting flange just before the choke opens fully. Those figures belong to that automatic mechanism, not FC55 starting settings.
- The same example shows the throttle returning to idle when the choke opens fully, bellows refilling through foam and sintered filters, hose and valve after a starting attempt, and contracted bellows holding the choke open while running. Its low whistle is described during refilling, not a general FC55 fault/no-fault test. Neither the drawing nor the handbook referral establishes an automatic choke on FC55.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.3.1, starting and conditional automatic choke.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.3.1, starting and conditional automatic choke, PDF pages 1, 2, 17, 18
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: icing and accelerator-pump examples have equipment limits
The handbook explains damp-cold icing and transient lean response without assigning a heater or accelerator pump to FC55.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The source says intake icing can occur with high humidity below +10 degrees C (50 degrees F): falling pressure and temperature promote condensation and ice that can obstruct jets. A dirty filter lowers flow and venturi pressure. This is a possible mechanism, not a measured FC55 temperature threshold, diagnosis, or winter-conversion instruction.
- Only some models have electric carburetor heating. The illustrated element is on the mounting studs, with a thermostatic switch on the pump-end cover and supply from a heating generator. No heater, switch, generator or retrofit is established for FC55.
- Only some carburetors have an accelerator pump. When the throttle opens quickly, air responds before fuel; the illustrated throttle-shaft control face depresses a piston to inject extra fuel through a valve jet. The spring returns the piston and draws fresh fuel from the metering system as the throttle closes. Page19 labels the spring (3), whereas the page20 sectional drawing labels the spring (2) and valve jet (3); these are separate diagram callouts, not conflicting part numbers.
- The pump explanation spans both pages19–20. It does not identify an installed FC55 accelerator pump, a pump-stroke specification, replacement jet or an instruction to enrich the fixed full-load circuit.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.3.2–5.3.3, temperature/humidity and acceleration.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.3.2–5.3.3, temperature/humidity and acceleration, PDF pages 1, 2, 19, 20
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: compensation preserves mixture, not clean-filter power
Clean-side pressure reduces fuel delivery with a dirty filter, but the handbook still requires filter cleaning to recover power.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- For a compensator-equipped carburetor, the clean side of the air filter supplies pressure Pi to the outside of the metering diaphragm instead of atmospheric pressure Pa. A dirty filter lowers Pi; the diaphragm moves outward and the inlet valve reduces fuel flow. Pr labels metering-chamber pressure, not a specified test pressure.
- The source claims mixture stability and no high-speed-screw readjustment as the filter dirties or is cleaned, but explicitly says reduced air and fuel still reduce power and cleaning restores it. Its HD textile versus standard wire-mesh filter statement belongs to this compensator context, not an FC55 filter interchange approval.
- The power graph labels a = clean filter, b = dirty filter with compensator and c = dirty filter without compensator. Its P and n axes have no numeric scale; it supplies no FC55 horsepower, rpm limit or allowable contamination level. No compensator is established for FC55, and the H-screw discussion does not add an H screw to the TI41 fixed-full-load carburetor.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.3.4, dirty air filter and compensator.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.3.4, dirty air filter and compensator, PDF pages 1, 2, 20, 21
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: two enrichment governors are not an FC55 speed setting
Resonance-valve and cooling-air-vane governors are conditional designs, not identified FC55 hardware.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The resonance control valve may occur on carburetors directly flange-mounted to a cylinder without a resilient manifold. The source describes valve (1) opening at a predetermined resonance speed so passage (2) admits extra fuel and enrichment limits speed. It gives neither an FC55 assignment nor a numeric cut-off speed.
- The separate vane governor uses a torsion spring, lever and rod; cooling airflow deflects the vane against spring tension and partly closes the choke at its limit speed. The note says spring preload can change the cut-off speed, but gives no value or FC55 procedure. These are not electronic ignition limiters or the LD idle control.
- Both sections are dispositioned as conditional background outside confirmed FC55 equipment scope. No governor part, spring setting, modification or installed speed-limiter claim is admitted for FC55.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 5.4, control valve and vane governor.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 5.4, control valve and vane governor, PDF pages 1, 2, 21, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: flooding chart separates needle, lever, spring and diaphragm causes
The chart lists several possible causes; it does not diagnose a particular edger or choose a universal lever-height datum.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The flooding row distinguishes a leaking inlet needle (debris in the seat or damaged cone), a lever sticking on its spindle, a helical spring displaced from the lever nipple, a deformed diaphragm disc continually pressing the lever, and a lever too high relative to its design position. These are alternatives, not proof that one fault is present.
- The corresponding remedies are to clean or replace the needle and, where needed, clean the tank, pickup and line; free the lever; correctly refit the spring/lever; replace the metering diaphragm; or correct the lever height. The chart says flush with the top of the body OR the bottom of the metering chamber. It does not choose the correct datum for an unidentified FC55 carburetor.
- No lever bending, replacement diaphragm selection or numeric height is prescribed from this generic chart. Exact carburetor identity and the applicable servicing branch remain necessary; dry/wet pressure-test limits are not supplied by this troubleshooting row.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 6, carburetor floods and engine stalls.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 6, carburetor floods and engine stalls, PDF pages 1, 2, 23
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: poor acceleration does not justify an unprovided H adjustment
The chart combines adjustable-jet remedies with mechanical fuel-metering faults; the FC55 fixed-jet boundary remains.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The source lists lean idle/main circuits, a lever too low relative to design, a needle sticking to its seat, a blocked atmospheric connecting bore, a leaking diaphragm gasket, and a damaged or shrunken metering diaphragm as alternatives for poor acceleration.
- Its low-speed/high-speed screw back-off remedies belong to carburetors with those adjustments. They do not authorize an H adjustment on the TI41 fixed-full-load system or treating the left-hand-thread LD air-bypass screw as an L fuel-mixture screw.
- Mechanical remedies map respectively to the correct lever datum, cleaning/refitting the needle, cleaning the connecting bore, replacing the gasket, and replacing the metering diaphragm. As in the flooding row, top-of-body versus chamber-bottom remains design-dependent; no numeric FC55 lever height or compensator vent routing is inferred.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 6, poor acceleration.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 6, poor acceleration, PDF pages 1, 2, 23
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: idle troubleshooting keeps LD separate from throttle-stop and LA rows
High idle and stalling have different listed causes; the generic chart does not override BIS screw direction or the closed-throttle design.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- For high idle or failure to idle, the chart separately lists a throttle opened too far by an idle screw, LD opened too far, LA opened too far, and a leaking machine. It calls for correcting the applicable adjustment or locating and repairing the leak; it does not identify the leak location or prescribe a pressure test.
- The phrase LD opened too far is retained as source wording, not interpreted as a clockwise/counterclockwise instruction. Section5.2.4 explicitly gives LD a LEFT-HAND THREAD with clockwise increasing speed and counterclockwise decreasing it. The chart supplies no turn count and does not override that direction.
- For idle stalling the chart lists obstructed idle bores/ports, an over-rich idle circuit, incorrect idle-stop setting with the throttle completely closed, incorrect LD setting, and a valve-jet plastic plate that does not close. Corresponding remedies are cleaning the passages, correcting the relevant adjustment, or cleaning/renewing the valve jet. The conventional L-screw and completely-closed-throttle rows are not BIS instructions: the BIS design deliberately closes its throttle fully.
- TI41 requires the blade to remain stopped at idle. Neither a generic speed-screw remedy nor the functional explanation authorizes accepting a turning blade or compensating for a mechanical leak solely by adjustment.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 4 · TI 41/1999, p. 5 — TI41 handbook dependency: 6, high idle and stalling; 5.2.4 BIS contrast.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 6, high idle and stalling; 5.2.4 BIS contrast, PDF pages 1, 2, 15, 16, 24
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: low-power chart includes air, tank vent and fuel delivery
Rapid speed loss under load has seven listed alternatives, not an automatic jet-adjustment diagnosis.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The chart maps a plugged air filter to cleaning; a faulty tank vent to cleaning or replacement if needed; and a leaking line between tank and pump to sealing or renewing the connections and line. No vent-opening pressure, hose routing or part interchange is given.
- It separately maps a damaged or fatigued pump diaphragm to replacement, blocked main-jet bores/ports to cleaning, a dirty pickup body to cleaning and a new filter, and dirty fuel strainers to cleaning. The pump diaphragm is not the metering diaphragm named in the flooding/acceleration rows.
- These are troubleshooting possibilities for the referred carburetor system, not an observed FC55 diagnosis. No H-screw correction, jet drilling, pressure specification or known-good measurement is inferred from the low-power row; detailed servicing and cleaning constraints remain in section7.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. Apply the functional explanation only to the TI-described LD/BIS configuration, not every later FC 55 carburetor or a guessed carburetor suffix. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 6, speed drops quickly under load and low power.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 6, speed drops quickly under load and low power, PDF pages 1, 2, 24
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: leak-test pressure depends on wet or dry condition
The handbook separates a moist-carburetor test from the lower dry limit; it supplies no timed pressure-decay tolerance.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The source names carburetor/crankcase tester 1106 850 2905, fuel line 1110 141 8600 and nipple 0000 855 9200. It requires checking the tester for leaks before connecting to the carburetor intake fitting. These are historical test accessories, not installed FC55 parts or an ECU test.
- The approximately 0.8 bar (11.6 psi) reading applies only after flushing with fuel, with moist diaphragms and wetted passages/sealing points. Dry carburetors must not exceed 0.35 bar (5 psi). The test pressure must never exceed 1 bar (14.5 psi); higher pressure can open the control valve into the metering chamber and over-stretch the diaphragm. The 1 bar ceiling is not the target and the wet target must not be applied dry.
- A constant reading is the handbook criterion for an airtight carburetor. A drop suggests inlet-needle leakage from debris or a damaged cone, a sticking control lever, or a distorted metering diaphragm requiring inspection/service. No hold duration, permissible decay or measured result is given. The source ends by opening the tester vent screw before removing the fuel line. This is carburetor reference evidence, not a crankcase pressure-test specification or a performed FC55 test.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.1, leakage test.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.1, leakage test, PDF pages 1, 2, 25
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: cleaning excludes wires and fibrous cloths
Water and obstructed passages can interrupt fuel flow; the source forbids probing jet bores with needles or wires.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The handbook identifies blocked jets, bores and strainers, and water droplets carried in fuel, as possible causes. Surface tension can restrict fine bores; freezing droplets can block passages in winter. These are mechanisms, not evidence of contamination in a particular FC55.
- The generic cleaning branch calls for stripping the carburetor and removing its provided adjusting screws, jets and inlet needle; cleaning the body with a brush or clean leather cloth and fresh fuel, then blowing ports and jets clear with compressed air. It expressly prohibits needles, wires, similar tools and fibrous cloths for carburetor or jet cleaning.
- This does not create removable jets or adjustment screws absent from a particular design. Section7.7 separately makes its illustrated part-load jet non-replaceable; exact carburetor identity is needed before selecting a removal branch. No compressed-air pressure, solvent substitution, jet drilling or fuel-system modification is established.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.2, cleaning.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.2, cleaning, PDF pages 1, 2, 25
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: pump diaphragm stack is not the metering stack
The illustrated pump stack puts a fuel-wetted diaphragm on the gasket already placed on the end cover.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The source removes the end-cover screws and cover, carefully removes and separates a stuck gasket and pump diaphragm, then inspects both. Continuous alternating stresses can fatigue, distort and swell the diaphragm and its inlet/outlet valves; damaged components require replacement, not an assumed service interval.
- In the illustrated assembly, gasket (1) goes on end cover (2), then pump diaphragm (3), wetted with fuel, goes on the gasket. Integrally cast cover pegs locate these pieces. The cover is refitted and the screw or screws tightened securely; no numeric torque or universal diaphragm kit is supplied.
- The pump stack must not be substituted for the separate metering stack in7.4. These are section-specific component roles and diagram callouts, not numbered replacement parts or proof that all FC55 carburetor covers share this arrangement.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.3, pump diaphragm.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.3, pump diaphragm, PDF pages 1, 2, 26
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: metering stack retains a printed diaphragm-label inconsistency
The metering section specifies gasket, plate orientation and alternate locating pegs, but one caption says pump diaphragm.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The source removes the end cover, referring manual-fuel-pump versions to7.9; carefully separates stuck gasket/diaphragm; and inspects for fatigue, distortion and swelling. With body locating pegs, the gasket goes on the body and the metering diaphragm on the gasket. With a locating peg on the cover, diaphragm and gasket are placed on the cover, preserving their assembled relationship.
- In section7.4, page27 explicitly prints Fit pump diaphragm so that perforated plate (1) points towards the inlet control lever (2). The section heading, adjacent instructions and drawing concern the metering diaphragm. This wording inconsistency is retained, not silently corrected or used to put the section7.3 pump diaphragm into the metering chamber.
- The end cover is fitted and screws tightened securely, without a numeric torque. A separate compensator-equipped note calls for a cover with connector; it does not establish a compensator on FC55. No particular gasket/diaphragm kit or exact suffix is selected.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.4, metering diaphragm; 7.9 access continuation.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.4, metering diaphragm; 7.9 access continuation, PDF pages 1, 2, 26, 27, 30
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: needle wear and lever datum remain design-specific
The source replaces an indented needle and a bent lever; its two lever-height references are not interchangeable.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- After removing the metering diaphragm, the source removes the lever fastener, spindle/lever or plate/lever/gasket arrangement, then the inlet needle. An annular indentation on the needle sealing cone requires replacement because it will no longer seal properly.
- The illustrated reassembly places the needle, spring in its blind hole and spindle in the lever; the lever clevis engages the annular groove in the needle head. The spring must locate on the lever nipple, the lever is secured and checked for easy movement. These callouts identify components, not replacement part numbers.
- The lever top must be level with the metering-chamber bottom (drawing1) OR the carburetor-body top face (drawing2), according to design. The text says a lever failing this requirement is bent and must be replaced, not bent to a guessed dimension. No FC55-specific datum, numeric height, fastener torque or bend-to-adjust instruction is inferred.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.5, inlet needle and control lever.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.5, inlet needle and control lever, PDF pages 1, 2, 27, 28
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: jet removal has explicit non-replaceable and named exceptions
Main/check-valve jets and full-load/part-load fixed jets have distinct service branches, not a universal punch-out procedure.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- Section7.6 replaces a main jet whose check-valve plate no longer moves freely. The generic illustration presses it out toward the venturi; the WS-26A exception pushes the valve jet from inside the venturi with a screwdriver. The source washes the main jet in white spirit and seats it exactly vertical, flush with the metering-chamber bottom. WS-26A is not assigned to FC55 by this referral.
- Section7.7 says its illustrated part-load fixed jet (1) cannot be replaced and can only be blown clear with compressed air. Its generic full-load fixed jet (2) is pressed out toward the venturi, washed in white spirit and blown clear, replaced if damaged, then seated vertical and flush with the chamber bottom. This is not a jet-sizing, drilling or mixture-adjustment instruction.
- Named alternatives are HS-262B, whose full-load jet unscrews, and HD-5, whose retaining ring is removed so the jet and O-ring can be tapped out onto a wooden base. HD-5 reassembly specifies a new O-ring, flat side of the jet up, seating to the stop and securing with the ring. No HS-262B or HD-5 assignment is established for FC55, and these branches must not be mixed.
- The TI41 fixed-full-load description does not select a suffix or the above retention method. The metering diaphragm is removed and refitted by7.4 in the applicable branch; exact identity remains necessary before choosing parts or applying a removal tool.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.6–7.7, main jet and fixed jets.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.6–7.7, main jet and fixed jets, PDF pages 1, 2, 28, 29
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: WT control-valve procedure is not an FC55 torque specification
The WT-227E/WT-264 branch remains outside confirmed FC55 applicability.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- Section7.8 expressly names WT-227E and WT-264. It removes the manual fuel pump per7.9, unscrews the control valve, removes its copper washer and fits a new washer before installing a new valve. No assignment of either named carburetor to FC55 is established.
- The named branch starts the valve about two full turns, applies Loctite to the still-projecting thread as directed by8.2, then seats and tightens it to 4 Nm (3.0 lbf.ft). Those two turns are an assembly step, not a mixture setting; the torque is not transferred to an FC55 valve, jet, cover or LD screw. The8.2 product choice remains pending review.
- This branch is dispositioned as a named-design exclusion from confirmed FC55 service applicability. It is retained for distinguishing similarly named valves, not as permission to remove a valve on an unidentified carburetor.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.8, WT-227E/WT-264 control valve; 7.9 access.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.8, WT-227E/WT-264 control valve; 7.9 access, PDF pages 1, 2, 29, 30
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: manual-pump valve and metering check valve are separate
The adjacent servicing branches distinguish the pump flange valve from a separately extracted check valve.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- Section7.9 removes screws/end cover with bulb, then the bulb, flange and valve. It inspects the valve and replaces it as needed; malfunction of the metering-chamber filling circuit or a dirty, distorted or damaged valve are replacement indications. It also checks the metering diaphragm and sealing ring with reference to7.4 and assembles in reverse order.
- Section7.10 separately removes the metering diaphragm, uses a 2.5x13 mm self-tapping screw to extract the check valve from its bore, and uses a 4 mm (approximately 5/32 inch) pin punch to press the replacement squarely into the metering chamber to its stop, then refits the diaphragm. The screw is an extraction aid, not a retained fuel-system fastener.
- These illustrations do not establish that the pump flange valve and the check valve are the same part, nor that every FC55 suffix shares the extraction geometry. No replacement number, pop-off pressure, pump stroke count or performed hardware procedure is claimed.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.9–7.10, manual fuel pump and check valve.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.9–7.10, manual fuel pump and check valve, PDF pages 1, 2, 30
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: body service destroys the old sealing plug
The handbook keeps LD left-hand threading and replace-on-removal sealing plugs explicit.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The generic body branch refers pump diaphragm, inlet needle and valve jet removal to 7.3,7.5 and 7.6, and full-load fixed jet and check valve removal only if fitted to 7.7 and 7.10. Its H/L screw illustration does not establish those screws on the TI41 fixed-full-load BIS carburetor. It explicitly cautions that the idle speed screw LD has a left-hand thread; no removal torque or number of turns is given.
- The source uses a scriber to pry out the fuel strainer for cleaning and requires replacement of a damaged strainer. This component-removal instruction is not permission to probe jets with a scriber;7.2 prohibits needles and wires for jet cleaning.
- The sealing plug or plate is pressed at its center until it buckles and can be removed; the source expressly says removal destroys it. The body is washed in fresh white spirit and its ports/bores blown clear with compressed air. A new plug/plate goes into the bore convex side up and is flattened with light pressure from a large pin punch; Loctite is applied to the gap between it and the body, referring product choice to 8.2. No reusable-plug claim, punch diameter, air pressure or universal sealing compound is inferred.
- Body replacement additionally requires throttle-shaft and, if fitted, choke-shaft removal per 7.12–7.13. Remaining parts are reassembled in reverse order. Exact FC55 carburetor identity, replacement body and sealing-plug part numbers remain unbound.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.11, carburetor body.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.11, carburetor body, PDF pages 1, 2, 31
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: throttle-shaft wear and shutter seating are separate checks
Excessive shaft play can admit secondary air; the source gives no numeric wear tolerance.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The branch removes the shutter screw/shutter, shaft-retaining E-clip or screw-secured clip, washer if fitted, applicable lever and spacer, then withdraws the shaft and torsion spring. Slotted-pin versions additionally release the pin from the lever. Some carburetors require the pump end cover removed per 7.3; automatic choke and accelerator-pump versions refer to 7.15.1 and 7.14. These alternatives must not be treated as one common FC55 assembly.
- The handbook checks excessive shaft play as a possible source of secondary air, without a numerical clearance, wear limit or performed diagnosis. Reassembly checks the torsion spring position after pushing the shaft home and seats the entire throttle-shutter circumference against the venturi wall. The shutter screw receives Loctite per 8.2 and is tightened securely; no numeric torque is supplied. Applicable retaining clips are restored and a screw-secured clip is secured with its screw.
- The spring-position picture explicitly depicts WT-227F and says other carburetors are similar; similarity is not proof of identical FC55 shaft, spring or lever geometry. Named lever orientations are retained separately and do not establish a fitted suffix.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.12, throttle shaft.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.12, throttle shaft, PDF pages 1, 2, 32, 33
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: named lever orientations are not interchangeable
WT-230, HD-3A, WT-253 and C1Q-SK6 use different lever reference directions.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- For C1Q-S11G, the handbook detaches and reattaches the torsion spring to the groove in the throttle shaft. Its WT-227F spring illustration is identified explicitly. Neither named design is assigned to FC55 by these pages.
- WT-230 receives a spacer sleeve and a lever with its slotted pin pointing toward the metering-chamber end cover. HD-3A receives a spacer sleeve and a lever with its slotted pin pointing toward the intake fitting. WT-253 has its lever pointing toward the intake fitting; C1Q-SK6 has its slotted pin pointing toward the metering-chamber end cover.
- These are distinct design-specific installation references, not alternate descriptions to normalize into one FC55 orientation. The names and callout numbers do not establish interchangeable levers, shafts, sleeves, springs or replacement parts. No exact FC55 carburetor suffix is inferred.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.12, named throttle-shaft arrangements.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.12, named throttle-shaft arrangements, PDF pages 1, 2, 32, 33
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: choke-shaft retention depends on spring design
The ball-detent version and torsion-spring version have different disassembly and retention details.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- Automatic-choke versions refer to 7.15.1. For the illustrated alternatives the source removes any fitted lever, shutter screw/shutter and E-clip if fitted. A shaft with a torsion spring is withdrawn with that spring, then the spring is removed; the shaft without a torsion spring must be withdrawn carefully to avoid losing the ball, followed by removal of ball and spring.
- Reassembly checks correct torsion-spring position in that version. In the ball-detent version the spring and ball are installed before pushing the choke shaft home until the ball engages its groove. The choke shutter must seat around its entire circumference against the venturi; its screw receives Loctite per 8.2 and is tightened securely, without a numeric torque. The E-clip is fitted on torsion-spring versions and a removed lever refitted.
- The C1Q-S11G instructions on these choke-service pages explicitly detach and reattach a torsion spring at the throttle-shaft groove. That cross-shaft instruction is preserved, not rewritten as a choke-shaft groove. It remains named-design context, not an FC55 shaft identification or a common ball/spring kit.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.13, choke shaft.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.13, choke shaft, PDF pages 1, 2, 34, 35
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: accelerator-pump servicing does not prove FC55 equipment
The piston-pump branch requires a new sealing ring and a defined piston orientation.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The source first removes the throttle shaft per 7.12, then removes the pump piston and spring from the bore and takes the sealing ring off the piston. It inspects piston and spring for replacement as needed, but specifies a new sealing ring in the piston groove.
- The spring goes into the bore, followed by the piston with its closed end facing outward. Reinstalling the throttle shaft requires pressing the piston down so the shaft can be pushed home. No ring size, piston clearance, pump delivery quantity or part number is given.
- TI41 does not establish this accelerator pump on FC55. This branch is retained as conditional design context only, not an installed-equipment assertion, an interchangeable pump or a performed repair.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.14, accelerator pump.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.14, accelerator pump, PDF pages 1, 2, 35
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: automatic-choke geometry is not a BIS idle setting
The 37-degree throttle position belongs to the illustrated automatic-choke lever mechanism, not TI41 balanced idle.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- This branch removes bell crank G, lever H, the lever system and throttle-shaft torsion spring. Reinstallation presses G and H onto their shafts with the body supported so the pressing force travels through only a short shaft length and retaining ring; the source explicitly warns against bending either shaft. Link C joins levers A and B. Spring D goes on throttle shaft E with its bent end away from the carburetor; A goes on the throttle shaft while B goes on the choke shaft.
- B is rotated counterclockwise to its stop. Bell crank G is installed with its flat face toward B and the pin on B between its arms, rotated counterclockwise until its right arm contacts that pin, then pressed onto the choke shaft. LA is turned counterclockwise until the throttle shaft clears its taper. With choke shutter I held open, A is turned counterclockwise to its stop; H is fitted and turned counterclockwise against the pin on A, then pressed home. The source requires the choke held open during these H operations.
- For this automatic-choke lever setup the text states that in the idle position the choke shutter is closed and the throttle shutter is at 37 degrees to the carburetor mounting face. Slowly opening the choke must make the throttle jump closed just before the choke is fully open, with a definite click. This is not an FC55 BIS idle-angle specification and does not override the TI41 closed-throttle balanced-idle description or substitute LA for LD.
- The bent spring end attaches to the pin on H; the straight end goes between the body and pin on A, behind that pin. The final spring check opens both shutters simultaneously and holds them steady so the spring moves A and B into the illustrated positions on page 38. No numeric preload, spring force or measured result is supplied.
- Section 7.15.1 refers mechanism removal to 7.15 and throttle-shaft removal to 7.12, explicitly describing a longer throttle shaft than on carburetors without automatic choke. It refers choke-shutter removal to 7.13, then removes the E-clip, choke shaft, two torsion springs and choke lever, reinstalling in reverse order. That length difference is not a dimension or interchange claim. Automatic choke is not established on FC55 by this referral; 7.16 begins a separate named-carburetor branch in the right column of page 38.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 7.15–7.15.1, automatic-choke mechanism and shafts.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 7.15–7.15.1, automatic-choke mechanism and shafts, PDF pages 1, 2, 36, 37, 38
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: handbook leak-test equipment is not an installed part
The tools index lists tester 1106 850 2905, fuel line 1110 141 8600 and nipple 0000 855 9200.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The index lists carburetor and crankcase tester 1106 850 2905 for testing the carburetor for leaks. The following indented entries are fuel line 1110 141 8600 and nipple 0000 855 9200; their application cells are blank. They are listed test accessories, not installed FC55 fuel-system parts or proof of an included kit.
- The index supplies no adapter dimensions, current replacement, universal port compatibility or pressure setting. The previously reviewed wet and dry test limits in7.1 remain separate and are not replaced by the tester name. No completed leak test, passing result or exact FC55 carburetor connection is inferred.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 8.1, tester and indented accessories.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 8.1, tester and indented accessories, PDF pages 1, 2, 65
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: limiter-cap puller is conditional equipment
Puller 5910 890 4500 is listed only for carburetors with limiter caps.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The puller row gives 5910 890 4500 for removing caps, with footnote1 explicitly limited to carburetors with limiter caps. This is not a general carburetor puller or a body/sealing-plug removal tool.
- The TI41 handbook referral does not establish limiter caps on the FC55 BIS carburetor. Previously reviewed named-cap branches retain their replacement-on-removal requirements; this tools index does not make a removed cap reusable or authorize adjustment on an unidentified carburetor.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 8.1, puller and footnote1.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 8.1, puller and footnote1, PDF pages 1, 2, 65
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: handbook screwdriver numbers disagree
The tools index prints 5910 890 2305 or 000 890 2300; the recovered page56 prints 0000 890 2300.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The index prints screwdriver 5910 890 2305 or 000 890 2300 for installing carburetor adjusting screws and adjusting the carburetor. The second identifier has three leading zeros on original page65. It is retained exactly, not silently padded to a conventional part-number length.
- The recovered page56 note in the C1Q-SK7 limiter-cap branch instead prints 5910 890 2305 or 0000 890 2300, with four leading zeros. This unresolved identifier discrepancy does not establish which number is correct, a supersession or two interchangeable orderable products. Page56 is a derived rendering from the preserved malformed original, with recovery provenance retained in the dependency ledger.
- The tool names and this comparison do not establish H/L screws, limiter caps or the C1Q-SK7 design on FC55. Page56 adjustment settings remain excluded from FC55; no dimension or exact fitted-carburetor screwdriver compatibility is inferred.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 8.1, screwdriver; comparison with recovered7.19.2 page56.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 8.1, screwdriver; comparison with recovered7.19.2 page56, PDF pages 1, 2, 56, 65
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 55
FC 55: cleaner and adhesive retain different applications
White spirit has no listed part number; Loctite 242 is listed as medium-strength adhesive 0786 111 1101.
No exact-model IPL link: TI41 names the handbook and LD/BIS configuration, but this recovered assignment table has no FC55 row. Exact installed carburetor suffix and exact 1999 launch IPL remain unestablished.
- The white spirit row says cleaning all components and leaves the part-number cell blank. Preserve that broad wording as the index description, not a newly verified solvent-compatibility test, instruction to ignore component-specific checks, or an invented orderable part number.
- The next row lists medium-strength adhesive (Loctite 242), part number 0786 111 1101, for the control valve, sealing plug, sealing plate, and screw for throttle and choke shutters. These are the printed applications; do not extend the compound to jets, diaphragms or all fasteners.
- This resolves the product reference to8.2 in the earlier body and shutter notes, but supplies no dose, cure time, thread preparation, torque or modern substitute. Named control-valve designs remain conditional and are not established on FC55 by an adhesive listing.
- TI41 explicitly delegates balanced-idle explanation and carburetor servicing to the Carburetors handbook. This recovered copy has copyright 1999 but an unknown revision; its assignment table does not name FC 55. These generic servicing references and named-design exclusions do not select a procedure for an identified FC55 carburetor. The TI-described LD/BIS configuration does not establish a carburetor suffix or applicability to every later FC 55. Historical reference, not a performed adjustment or a substitute for full workshop and owner safety instructions. Fuel work is outdoors only, with no smoking, fire or flame and immediate spill cleanup. No hardware operation was performed.
TI dependency: TI 41/1999, p. 2 · TI 41/1999, p. 5 — TI41 handbook dependency: 8.2, complete servicing-aids table.
Manual evidence: STIHL Carburetors handbook (publication revision unestablished; ©1999), section 8.2, complete servicing-aids table, PDF pages 1, 2, 65
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Full text
Page 1 of 6
Text of page 1 — search, copy, screen readers
Technical Information
41.1999
New Model FC 55 Edger - Series 4140
Contents
1. Technical Description
2. Specifications
3. Cutting Tool
4. Service Accessories
5. Repairs
6. Spare Parts
The new FC 55 lightweight edger rounds off the
lower end of the line of power edgers.
The engine is enclosed in a compact housing which
also incorporates the multi-function control handle.
Ergonomically designed controls and a favorable
power to weight ratio for easy handling and less
operator fatigue.
The FC 55 has a curved drive tube. The gearhead,
deflector and skirt have been taken from the latest
version of the FC 75.
Designed for occasional use lawn edging
applications.
TI_41_1999_30_02.fm english / USA Page 2 of 6
Text of page 2 — search, copy, screen readers
Page 2 Technical Information 41.1999
1. Technical Description
Crankshaft
. Composite crankshaft to form a torsionally rigid
assembly.
. Both ends supported in bearings.
Cylinder
. Four port technology (better mixture control,
clean combustion, lower emissions).
. Large cooling area.
Carburetor
. Only one adjusting screw (LD).
. Balanced idle system with fixed idle jet*.
. Fixed full-load jet
Air filter
. Improved filter material
. Large filter surface area
Exhaust muffler
. Dual-chamber muffler
Easy start system
. Purge primer
. ElastoStart (available as option)
Controls
. Multi-function control handle
Clutch
. Two clutch shoes without linings
Drive shaft
. Drive tube with flexible shaft supported in a
flexible liner
Gearhead, deflector and skirt
. As FC 75
241TI000 KN
* Balanced idle system is described in detail in the “Carburetors” handbook.
TI_41_1999_30_02.fm Page 3 of 6
Text of page 3 — search, copy, screen readers
Technical Information 41.1999 Page 3
2. Specifications
2.1 Powerhead
2.1.1 Engine
Single cylinder two-stroke engine
Displacement: 27.2 cm3 (1.66 cu.in)
Bore: 34 mm (1.34 in)
Stroke: 30 mm (1.10 in)
Engine power to 0.75 kW (1 HP)
ISO 8893: at 7,000 rpm
Engine speeds: see 2.1.2
Rewind starter: Single pawl system
Starter rope: 3 mm (0.12 in) dia.,
800 mm (31.5 in) long
Clutch engages at: 3,800 rpm
2.1.2 Fuel System
Carburetor: All position diaphragm carburetor with integral fuel pump
Idle speed screw LD (standard setting) Open 2 full turns (see 5.1)
Idle speed 2,500 to 3,100 rpm
Cutoff speed range without cutting tool (electronic speed
governor) 8,700 to 10,300 rpm
Fuel tank capacity: 0.3 L (0.63 US pt)
Fuel mix: Mid grade gasoline (89 octane minimum) and branded two-stroke engine oil
Mix ratio: 50:1 with STIHL 50:1 two-stroke engine oil
2.1.3 Ignition System
Ignition module: with integral electronic speed
governor
Spark plug Bosch WSR 6F,
(suppressed): NGK BPMR 7 A or
Champion RCJ 6Y
TI_41_1999_30_02.fm Page 4 of 6
Text of page 4 — search, copy, screen readers
Page 4 Technical Information 41.1999
2.2 Weight
With blade: 12.8 lbs (5.8 kg)
3. Cutting Tool
3.1 Servicing Aid
Part Name Part No. Application
STIHL balancer 5910 850 2600 Checking blade balance
4. Service Accessories
4.1 Special Servicing Tools
Special servicing tools are listed in the service manuals for the series 4140 powerhead and
STIHL 4140 power tool components.
4.2 Servicing Aids
Part Name Part No. Application
Set of gaskets 4140 007 1050 Engine
Lubricating grease 0781 120 1111 Oil seals
- 225 g tube
Dirko sealant 0783 830 2120 Engine pan/cylinder sealing faces
Electrician’s repair kit 5910 007 1050 Electrical system
Standard commercial solvent- Cleaning crankshaft stub
based degreaser containing no
chlorinated or hydrogenated
hydrocarbons
5. Repairs
If the unit is started up in the course of repairs or maintenance work, it is essential to strictly observe
all local and national safety regulations and the safety precautions outlined in the owner’s manual.
5.1 Carburetor Adjustment
Standard setting
. Mount the blade
. Check air filter and fit a new one if necessary
. Carefully screw down the idle speed screw (LD) counterclockwise (left-hand thread)
until it is against its seat, then open it two full turns clockwise.
TI_41_1999_30_02.fm Page 5 of 6
Text of page 5 — search, copy, screen readers
Technical Information 41.1999 Page 5
Adjusting idle speed
. Carry out standard setting
. Start and warm up the engine
Engine stops while idling:
. Turn the idle speed screw (LD) slowly clockwise until engine runs smoothly - the blade must not rotate.
Blade rotates while engine is idling:
. Turn the idle speed screw (LD) counterclockwise until the blade stops rotating and then turn the screw
about another full turn in the same direction (counterclockwise).
Erratic idling behavior, poor acceleration:
. Turn the idle speed screw (LD) slowly counterclockwise no more than 1/2 turn until engine runs smoothly.
5.2 Tightening Torques
Special servicing tools are listed in the service manuals for the series 4140 powerhead and
STIHL 4140 power tool components.
5.3 Service Note
The service manuals for the STIHL series 4140 powerhead and
STIHL 4140 power tool components can be used for servicing and repair procedures on model FC 55.
These service manuals do not include the chapters "Servicing the Carburetor", "Troubleshooting" or any repairs
involving standard procedures. Such procedures are described in separate handbooks, i.e. “Carburetors” and
"Standard Repairs, Troubleshooting".
TI_41_1999_30_02.fm Page 6 of 6
Text of page 6 — search, copy, screen readers
Page 6 Technical Information 41.1999
5.4 Repair Times .
The specified repair times assume that the work is Code Type of Repair FC 55
performed by trained personnel in a properly
1 Crankcase, Crankshaft, Crank 0.9
equipped service workshop.
Bearings
2
The repair times are given in tenth of an hour 3 Crankcase Gasket/Sealing 0.8
(0.1 = 6 minutes). 4 Crankshaft Seals 0.9
(including pressure & vacuum test)
5 Cylinder and/or Piston 0.9
Note: This table for model FC 55 can be added to
the STIHL repair times table manual. 6 Ignition Module 0.5
7 Fule Hose 0.5
8 Replace Gear Box/Arbor Assy 0.5
9 Repair/Rebuild Carburetor 0.8
10 Replace Carburetor, Carburetor 0.4
6. Spare Parts Jet (if tried to repair use code 9)
An illustrated parts list is available for the new 11 Front Handle, Throttle Control, 0.6
model. Cable
12 Recoil Starter 0.5
13 Cluch, Cluch Drum, Drum Housing 0.7
14 Drive Tube, Drive Shaft 0.5
15 Muffler 0.4
16 Air Filter, Filter Cover, Tank Cap, 0.3
Tank Vent, Fuel Filter, Spark Plug,
Cutting Attachment,
Misc. Minor Repairs
17 Stop Switch 0.6
18 Fuel Tank 0.4
19 Replace Gears, Arbor Bearings 0.8
20 All Other Repairs 0.5
✂
© 1999 Andreas STIHL AG & Co. Technical Documentation
Waiblingen D1/MTK-na 6717
TI_41_1999_30_02.fm Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
