Technical Information · issue 43 of 1999
019 T: Fan housing; ElastoStart; Crankshaft; Filte
Model 019 T Chainsaws - Series 1132
IssueTI 43/1999
Engine family 1132
Part changes (7)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1132 080 2101 | 1132 084 1003 | Fan housing (two-part) The previous fan housing with rewind starter 1132 080 2101 will be replaced by the fan housing 1132 084 1003 and fan cover with rewind starter 1132 080 2800. |
| 1132 080 1801 | 1132 084 1003 | The previous fan housing 1132 080 1801 will be replaced by the fan housing 1132 084 1003 and fan cover 1132 080 3100. |
| 1121 195 3400 | 0000 190 3402 | ElastoStart The previous standard starter grip 1121 195 3400 will be replaced by the ElastoStart 0000 190 3402 from serial number 2 43 983 640. |
| 1132 030 0400 | 1132 030 0401 | Crankshaft (needle bearings) The previous crankshaft 1132 030 0400 will be replaced by the improved crankshaft 1132 030 0401. |
| 1132 141 0500 | 1132 141 0501 | Filter cover The previous filter cover 1132 141 0500 will be replaced by the new version 1132 141 0501. |
| 1132 640 1705 | 1132 640 1706 | Chain sprocket cover The previous chain sprocket cover 1132 640 1705 will be replaced by chain sprocket cover 1132 640 1706. |
| 1132 120 0602 | 1132 120 0603 | Carburetor The previous carburetor 1132 120 0602 has been deleted and replaced by the new version 1132 120 0603. |
Full text
Page 1 of 5
Technical Information
43.1999
Model 019 T Chainsaws - Series 1132
Contents
1. Fan housing (two-part)
2. ElastoStart
3. Crankshaft (needle bearings)
4. Filter cover
5. Chain sprocket cover
6. Fuel tank (hose)
7. Carburetor

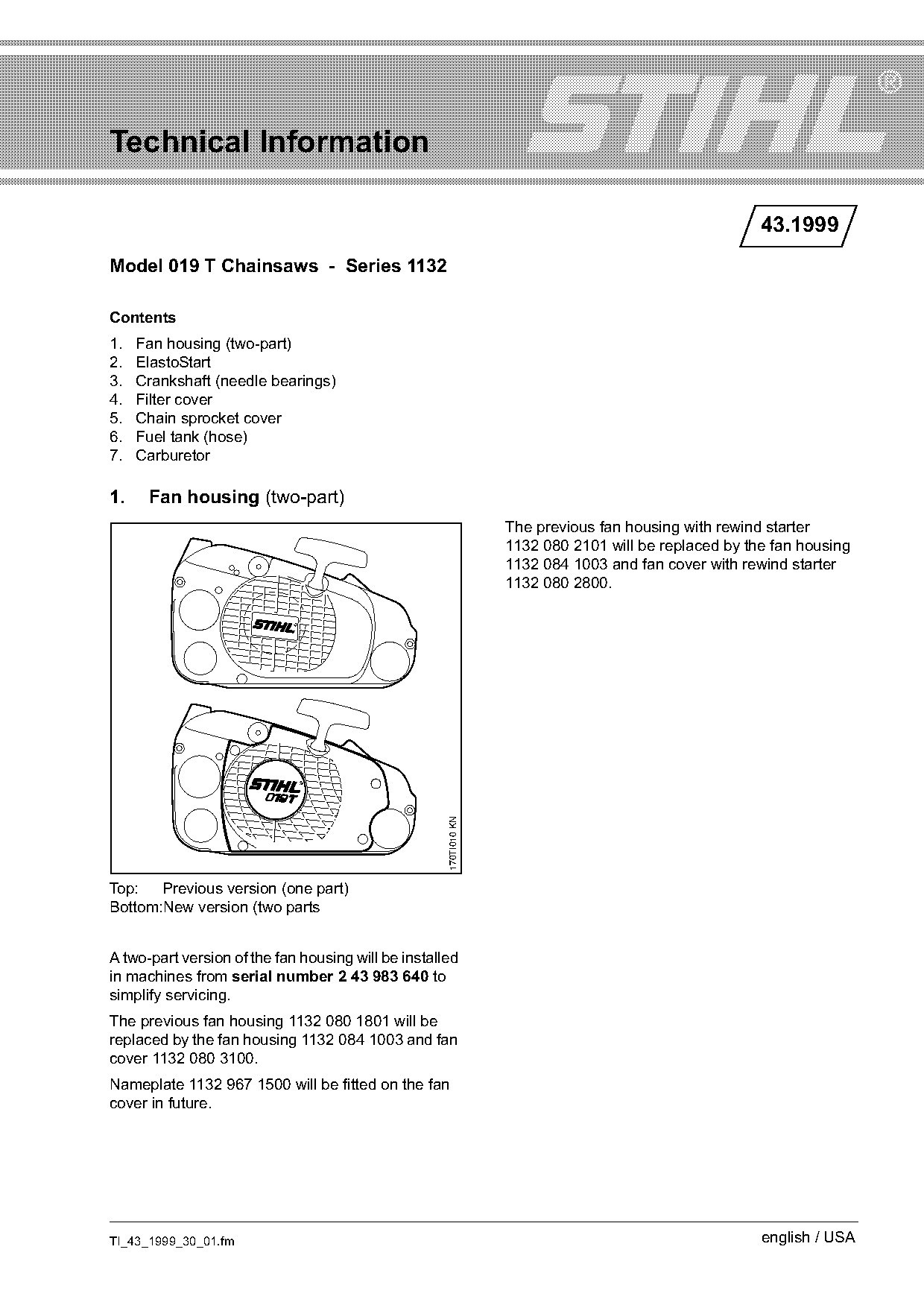

1. Fan housing (two-part)
The previous fan housing with rewind starter
1132 080 2101 will be replaced by the fan housing
1132 084 1003 and fan cover with rewind starter
1132 080 2800.
170TI010 KN
Top: Previous version (one part)
Bottom:New version (two parts
A two-part version of the fan housing will be installed
in machines from serial number 2 43 983 640 to
simplify servicing.
The previous fan housing 1132 080 1801 will be
replaced by the fan housing 1132 084 1003 and fan
cover 1132 080 3100.
Nameplate 1132 967 1500 will be fitted on the fan
cover in future.
TI_43_1999_30_01.fm english / USA
)m~ge 2 Technical Information 43.1999
Summary

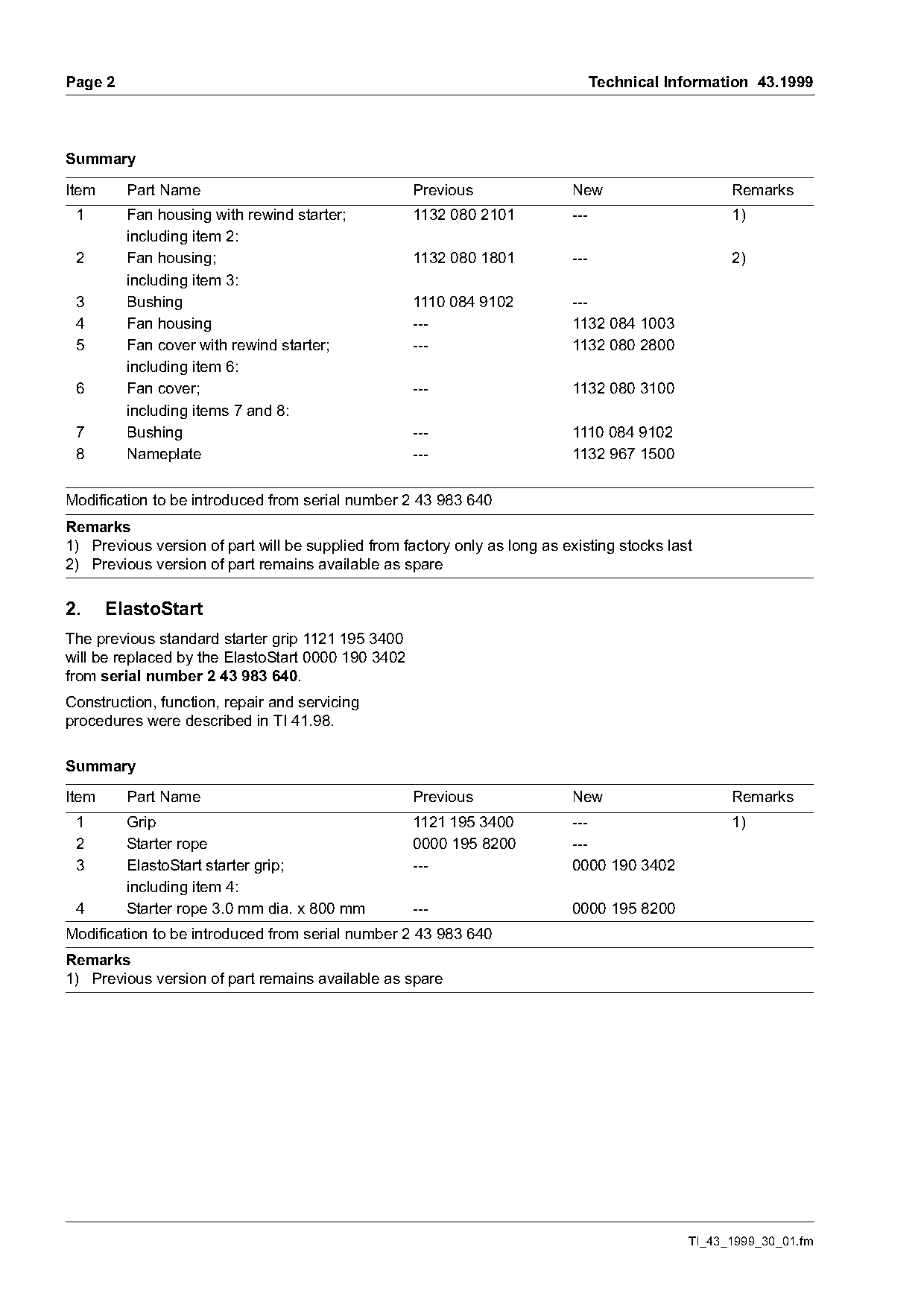

Item Part Name Previous New Remarks
1 Fan housing with rewind starter; 1132 080 2101 --- 1)
including item 2:
2 Fan housing; 1132 080 1801 --- 2)
including item 3:
3 Bushing 1110 084 9102 ---
4 Fan housing --- 1132 084 1003
5 Fan cover with rewind starter; --- 1132 080 2800
including item 6:
6 Fan cover; --- 1132 080 3100
including items 7 and 8:
7 Bushing --- 1110 084 9102
8 Nameplate --- 1132 967 1500
Modification to be introduced from serial number 2 43 983 640
Remarks
1) Previous version of part will be supplied from factory only as long as existing stocks last
2) Previous version of part remains available as spare
2. ElastoStart
The previous standard starter grip 1121 195 3400
will be replaced by the ElastoStart 0000 190 3402
from serial number 2 43 983 640.
Construction, function, repair and servicing
procedures were described in TI 41.98.
Summary
Item Part Name Previous New Remarks
1 Grip 1121 195 3400 --- 1)
2 Starter rope 0000 195 8200 ---
3 ElastoStart starter grip; --- 0000 190 3402
including item 4:
4 Starter rope 3.0 mm dia. x 800 mm --- 0000 195 8200
Modification to be introduced from serial number 2 43 983 640
Remarks
1) Previous version of part remains available as spare
TI_43_1999_30_01.fm Page 2 of 5
Technical Information 43.1999 Page 3

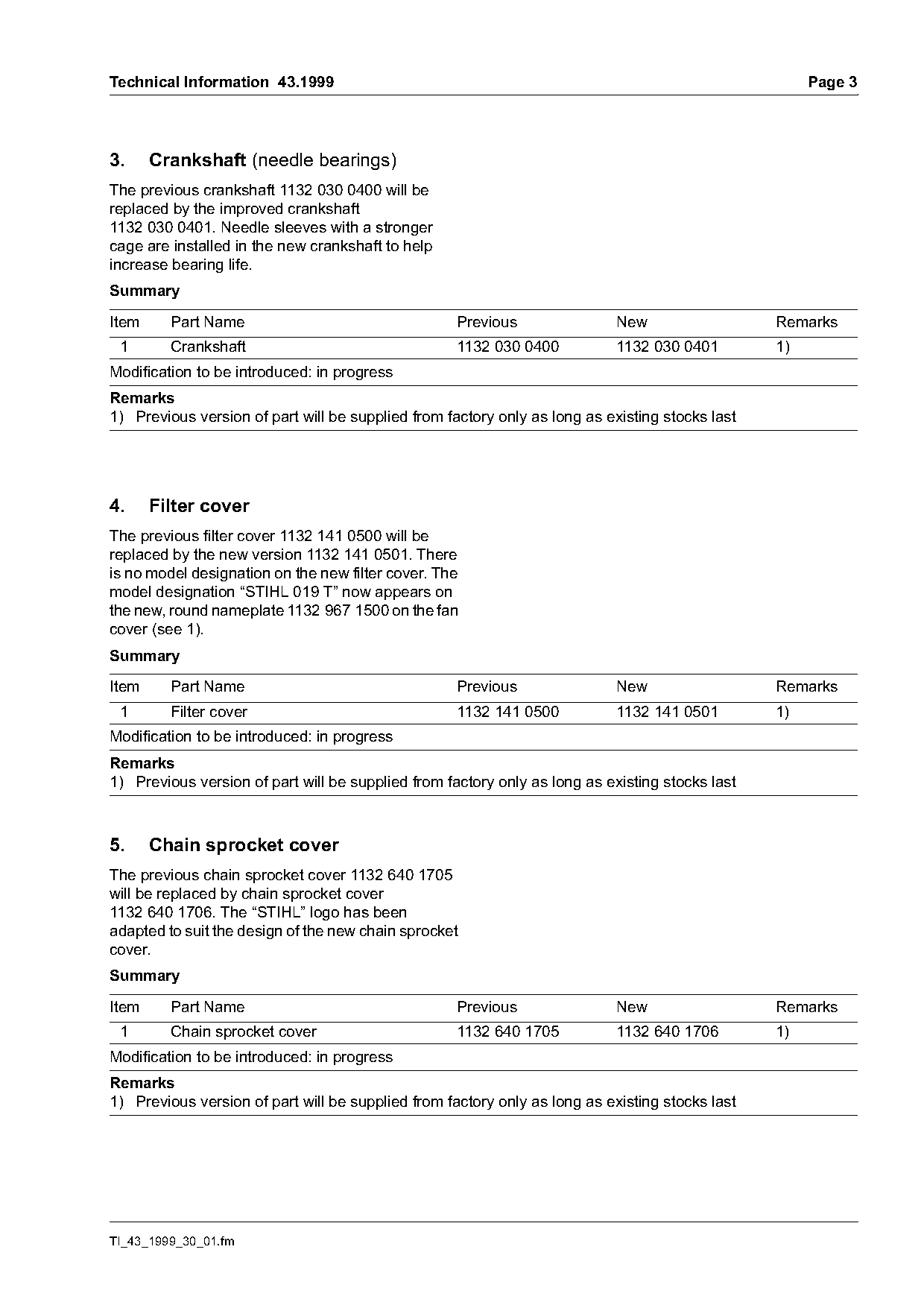

3. Crankshaft (needle bearings)
The previous crankshaft 1132 030 0400 will be
replaced by the improved crankshaft
1132 030 0401. Needle sleeves with a stronger
cage are installed in the new crankshaft to help
increase bearing life.
Summary
Item Part Name Previous New Remarks
1 Crankshaft 1132 030 0400 1132 030 0401 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part will be supplied from factory only as long as existing stocks last
4. Filter cover
The previous filter cover 1132 141 0500 will be
replaced by the new version 1132 141 0501. There
is no model designation on the new filter cover. The
model designation “STIHL 019 T” now appears on
the new, round nameplate 1132 967 1500 on the fan
cover (see 1).
Summary
Item Part Name Previous New Remarks
1 Filter cover 1132 141 0500 1132 141 0501 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part will be supplied from factory only as long as existing stocks last
5. Chain sprocket cover
The previous chain sprocket cover 1132 640 1705
will be replaced by chain sprocket cover
1132 640 1706. The “STIHL” logo has been
adapted to suit the design of the new chain sprocket
cover.
Summary
Item Part Name Previous New Remarks
1 Chain sprocket cover 1132 640 1705 1132 640 1706 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part will be supplied from factory only as long as existing stocks last
TI_43_1999_30_01.fm
)m~ge 4 Technical Information 43.1999

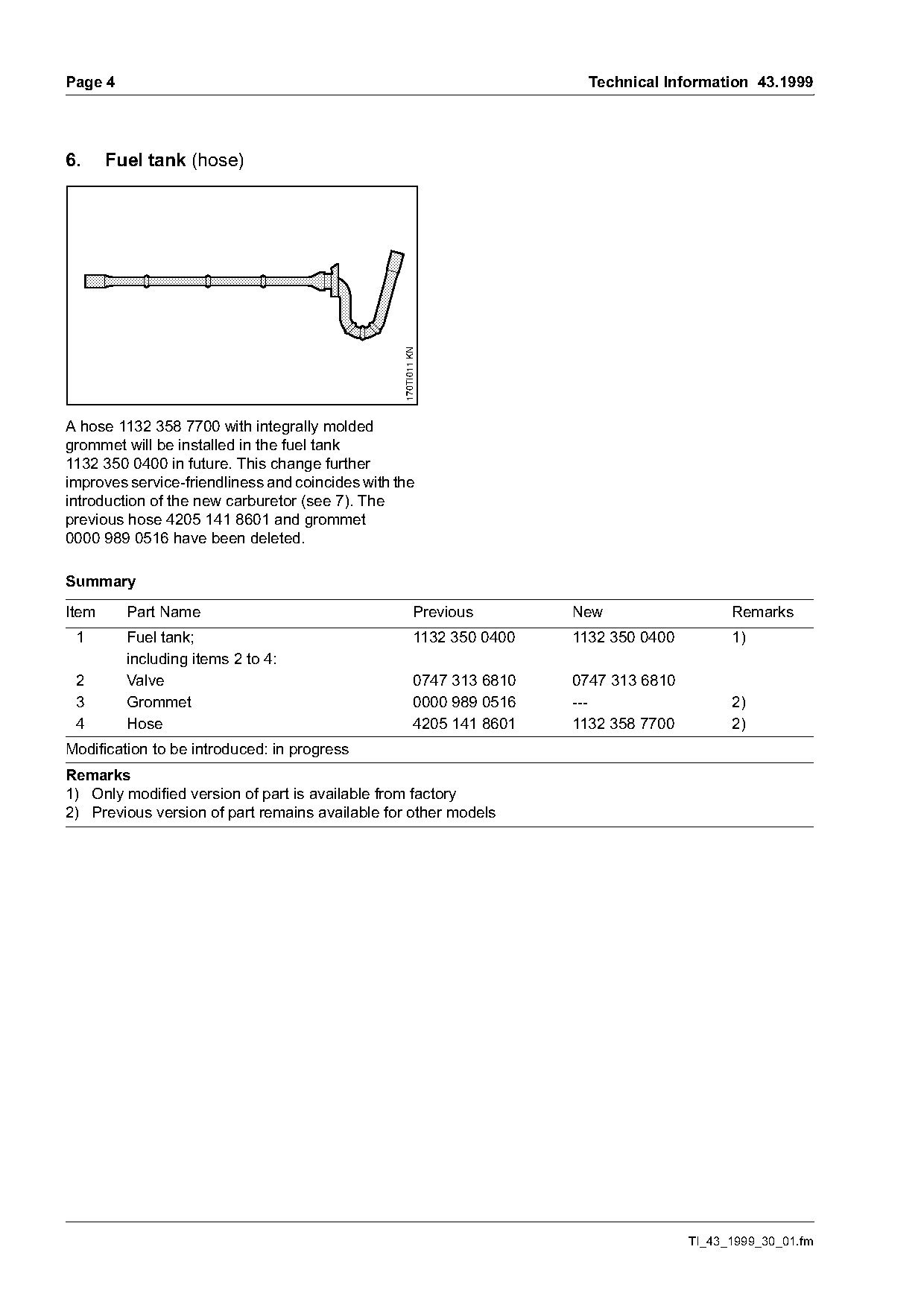

6. Fuel tank (hose)
170TI011 KN
A hose 1132 358 7700 with integrally molded
grommet will be installed in the fuel tank
1132 350 0400 in future. This change further
improves service-friendliness and coincides with the
introduction of the new carburetor (see 7). The
previous hose 4205 141 8601 and grommet
0000 989 0516 have been deleted.
Summary
Item Part Name Previous New Remarks
1 Fuel tank; 1132 350 0400 1132 350 0400 1)
including items 2 to 4:
2 Valve 0747 313 6810 0747 313 6810
3 Grommet 0000 989 0516 --- 2)
4 Hose 4205 141 8601 1132 358 7700 2)
Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from factory
2) Previous version of part remains available for other models
TI_43_1999_30_01.fm Page 3 of 5
Technical Information 43.1999 Page 5

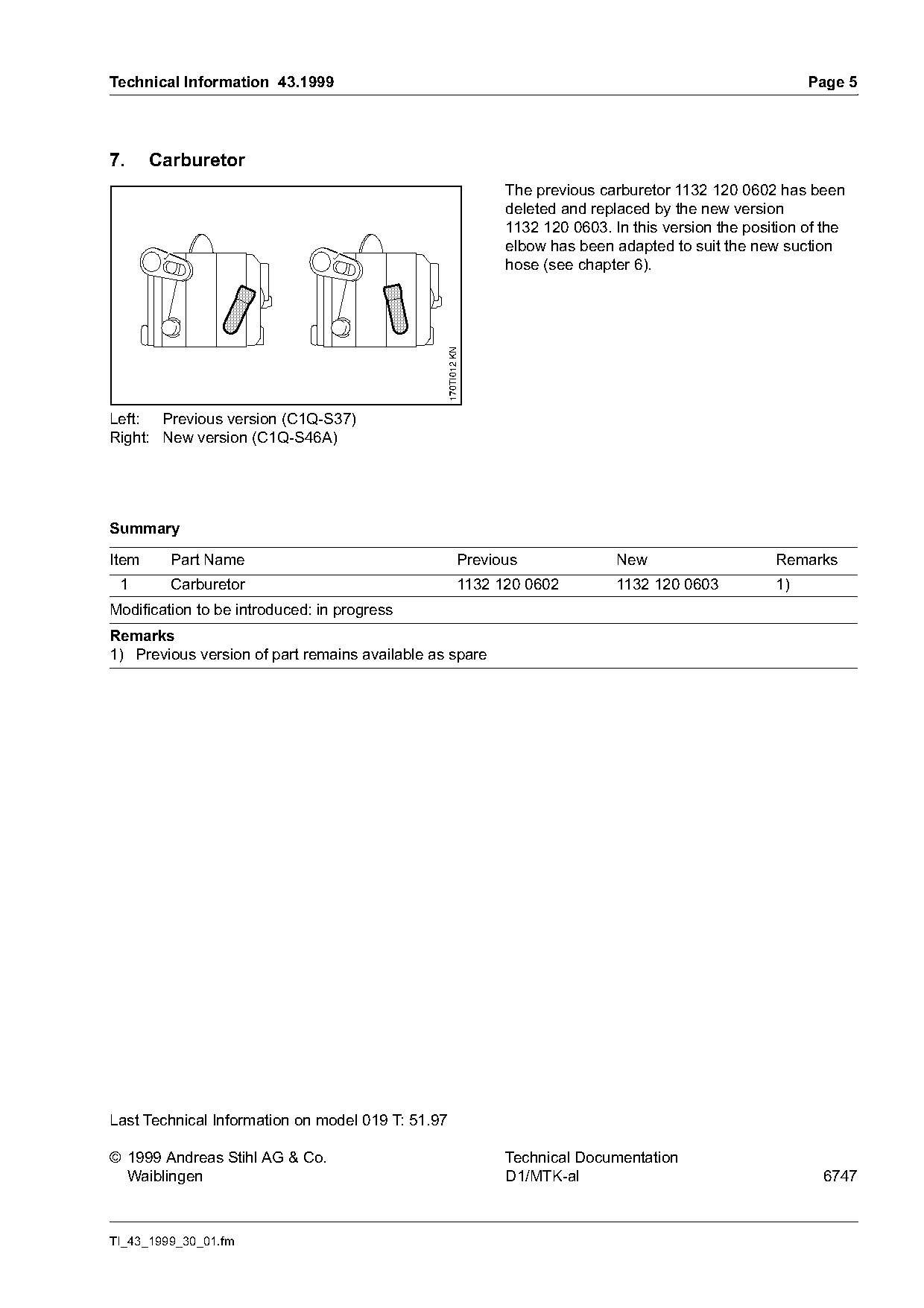

7. Carburetor
The previous carburetor 1132 120 0602 has been
deleted and replaced by the new version
1132 120 0603. In this version the position of the
elbow has been adapted to suit the new suction
hose (see chapter 6).
170TI012 KN
Left: Previous version (C1Q-S37)
Right: New version (C1Q-S46A)
Summary
Item Part Name Previous New Remarks
1 Carburetor 1132 120 0602 1132 120 0603 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available as spare
Last Technical Information on model 019 T: 51.97
© 1999 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-al 6747
TI_43_1999_30_01.fm Page 4 of 5
