Technical Information · issue 46 of 1999
HS 85: Cutter bars; Bump guard; Shroud; ElastoStar
Model HS 85 Hedge Trimmers - Series 4226
IssueTI 46/1999
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 0000 190 3400 | 0000 190 3403 | ElastoStart™ (starter rope) ElastoStart 0000 190 3400 will be replaced by ElastoStart 0000 190 3403 to achieve a further improvement in operation. |
Full text

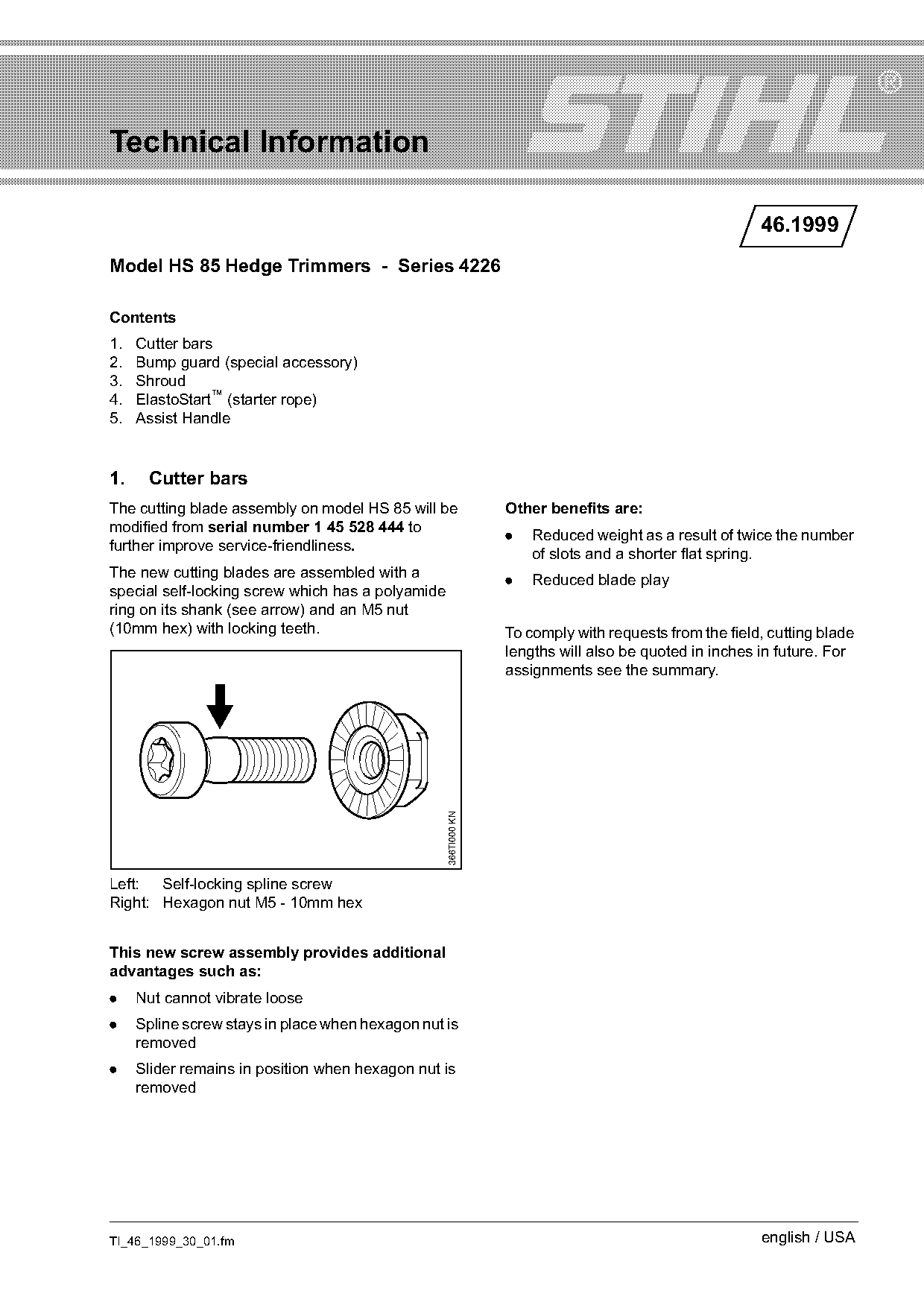

Page 1 of 6
Technical Information
46.1999
Model HS 85 Hedge Trimmers - Series 4226
Contents
1. Cutter bars
2. Bump guard (special accessory)
3. Shroud
4. ElastoStart™ (starter rope)
5. Assist Handle
1. Cutter bars
The cutting blade assembly on model HS 85 will be Other benefits are:
modified from serial number 1 45 528 444 to . Reduced weight as a result of twice the number
further improve service-friendliness. of slots and a shorter flat spring.
The new cutting blades are assembled with a
. Reduced blade play
special self-locking screw which has a polyamide
ring on its shank (see arrow) and an M5 nut
(10mm hex) with locking teeth. To comply with requests from the field, cutting blade
lengths will also be quoted in inches in future. For
assignments see the summary.
366TI000 KN
Left: Self-locking spline screw
Right: Hexagon nut M5 - 10mm hex
This new screw assembly provides additional
advantages such as:
. Nut cannot vibrate loose
. Spline screw stays in place when hexagon nut is
removed
. Slider remains in position when hexagon nut is
removed
TI_46_1999_30_01.fm english / USA

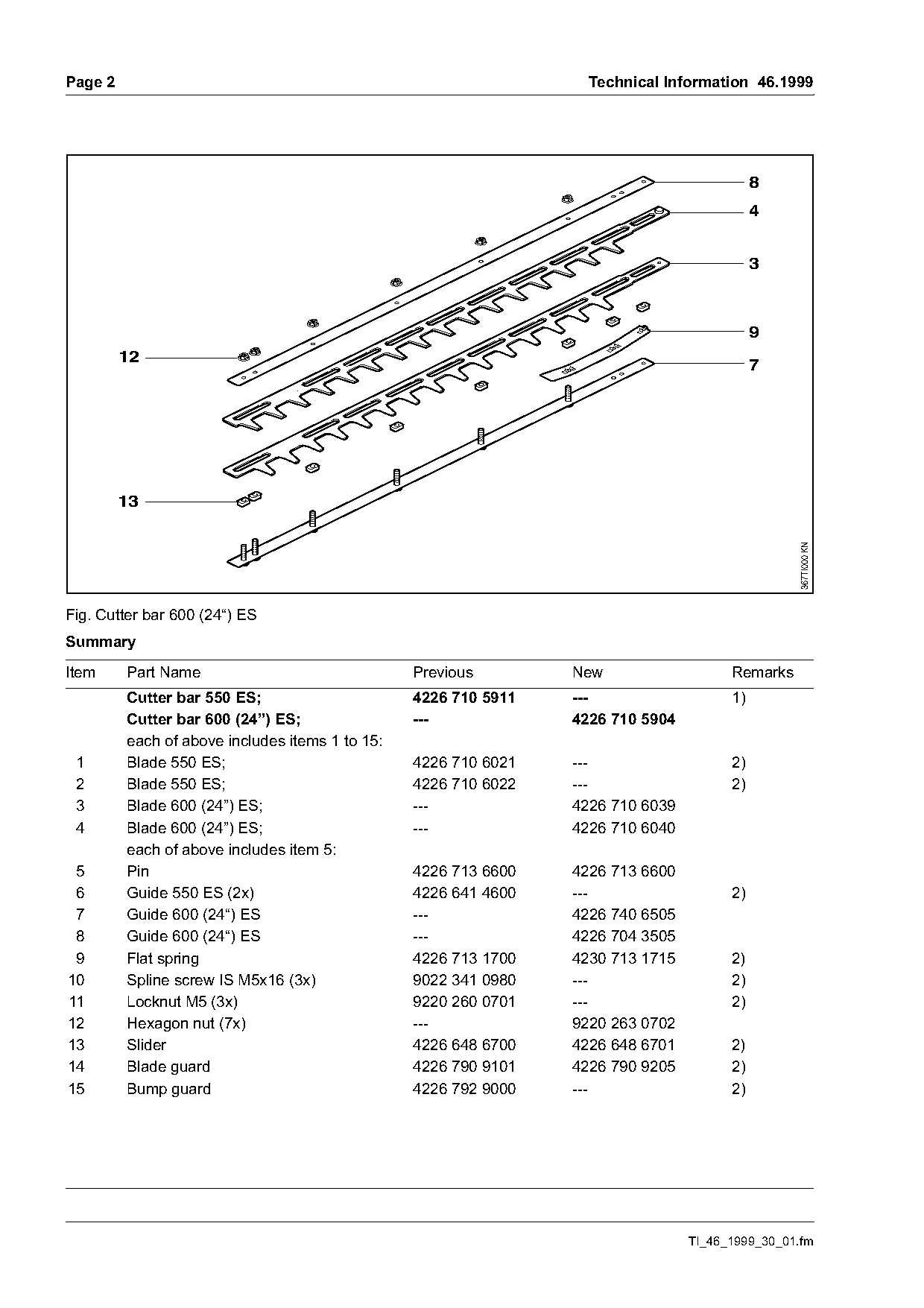

)m~ge 2 Technical Information 46.1999
8
4
9
12 7
367TI000 KN
Fig. Cutter bar 600 (24“) ES
Summary
Item Part Name Previous New Remarks
Cutter bar 550 ES; 4226 710 5911 --- 1)
Cutter bar 600 (24”) ES; --- 4226 710 5904
each of above includes items 1 to 15:
1 Blade 550 ES; 4226 710 6021 --- 2)
2 Blade 550 ES; 4226 710 6022 --- 2)
3 Blade 600 (24”) ES; --- 4226 710 6039
4 Blade 600 (24”) ES; --- 4226 710 6040
each of above includes item 5:
5 Pin 4226 713 6600 4226 713 6600
6 Guide 550 ES (2x) 4226 641 4600 --- 2)
7 Guide 600 (24“) ES --- 4226 740 6505
8 Guide 600 (24“) ES --- 4226 704 3505
9 Flat spring 4226 713 1700 4230 713 1715 2)
10 Spline screw IS M5x16 (3x) 9022 341 0980 --- 2)
11 Locknut M5 (3x) 9220 260 0701 --- 2)
12 Hexagon nut (7x) --- 9220 263 0702
13 Slider 4226 648 6700 4226 648 6701 2)
14 Blade guard 4226 790 9101 4226 790 9205 2)
15 Bump guard 4226 792 9000 --- 2)
TI_46_1999_30_01.fm Page 2 of 6

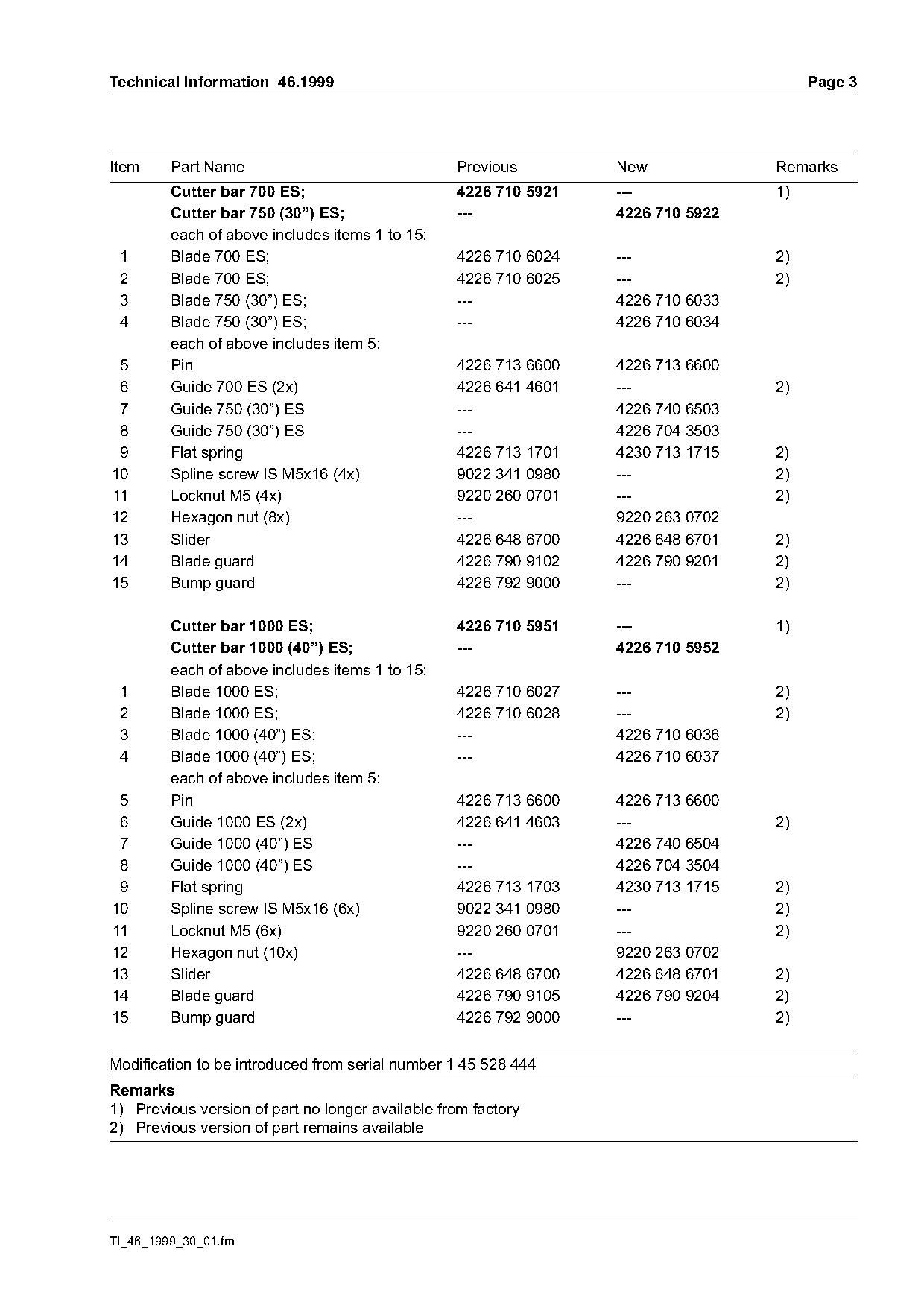

Technical Information 46.1999 Page 3
Item Part Name Previous New Remarks
Cutter bar 700 ES; 4226 710 5921 --- 1)
Cutter bar 750 (30”) ES; --- 4226 710 5922
each of above includes items 1 to 15:
1 Blade 700 ES; 4226 710 6024 --- 2)
2 Blade 700 ES; 4226 710 6025 --- 2)
3 Blade 750 (30”) ES; --- 4226 710 6033
4 Blade 750 (30”) ES; --- 4226 710 6034
each of above includes item 5:
5 Pin 4226 713 6600 4226 713 6600
6 Guide 700 ES (2x) 4226 641 4601 --- 2)
7 Guide 750 (30”) ES --- 4226 740 6503
8 Guide 750 (30”) ES --- 4226 704 3503
9 Flat spring 4226 713 1701 4230 713 1715 2)
10 Spline screw IS M5x16 (4x) 9022 341 0980 --- 2)
11 Locknut M5 (4x) 9220 260 0701 --- 2)
12 Hexagon nut (8x) --- 9220 263 0702
13 Slider 4226 648 6700 4226 648 6701 2)
14 Blade guard 4226 790 9102 4226 790 9201 2)
15 Bump guard 4226 792 9000 --- 2)
Cutter bar 1000 ES; 4226 710 5951 --- 1)
Cutter bar 1000 (40”) ES; --- 4226 710 5952
each of above includes items 1 to 15:
1 Blade 1000 ES; 4226 710 6027 --- 2)
2 Blade 1000 ES; 4226 710 6028 --- 2)
3 Blade 1000 (40”) ES; --- 4226 710 6036
4 Blade 1000 (40”) ES; --- 4226 710 6037
each of above includes item 5:
5 Pin 4226 713 6600 4226 713 6600
6 Guide 1000 ES (2x) 4226 641 4603 --- 2)
7 Guide 1000 (40”) ES --- 4226 740 6504
8 Guide 1000 (40”) ES --- 4226 704 3504
9 Flat spring 4226 713 1703 4230 713 1715 2)
10 Spline screw IS M5x16 (6x) 9022 341 0980 --- 2)
11 Locknut M5 (6x) 9220 260 0701 --- 2)
12 Hexagon nut (10x) --- 9220 263 0702
13 Slider 4226 648 6700 4226 648 6701 2)
14 Blade guard 4226 790 9105 4226 790 9204 2)
15 Bump guard 4226 792 9000 --- 2)
Modification to be introduced from serial number 1 45 528 444
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available
TI_46_1999_30_01.fm

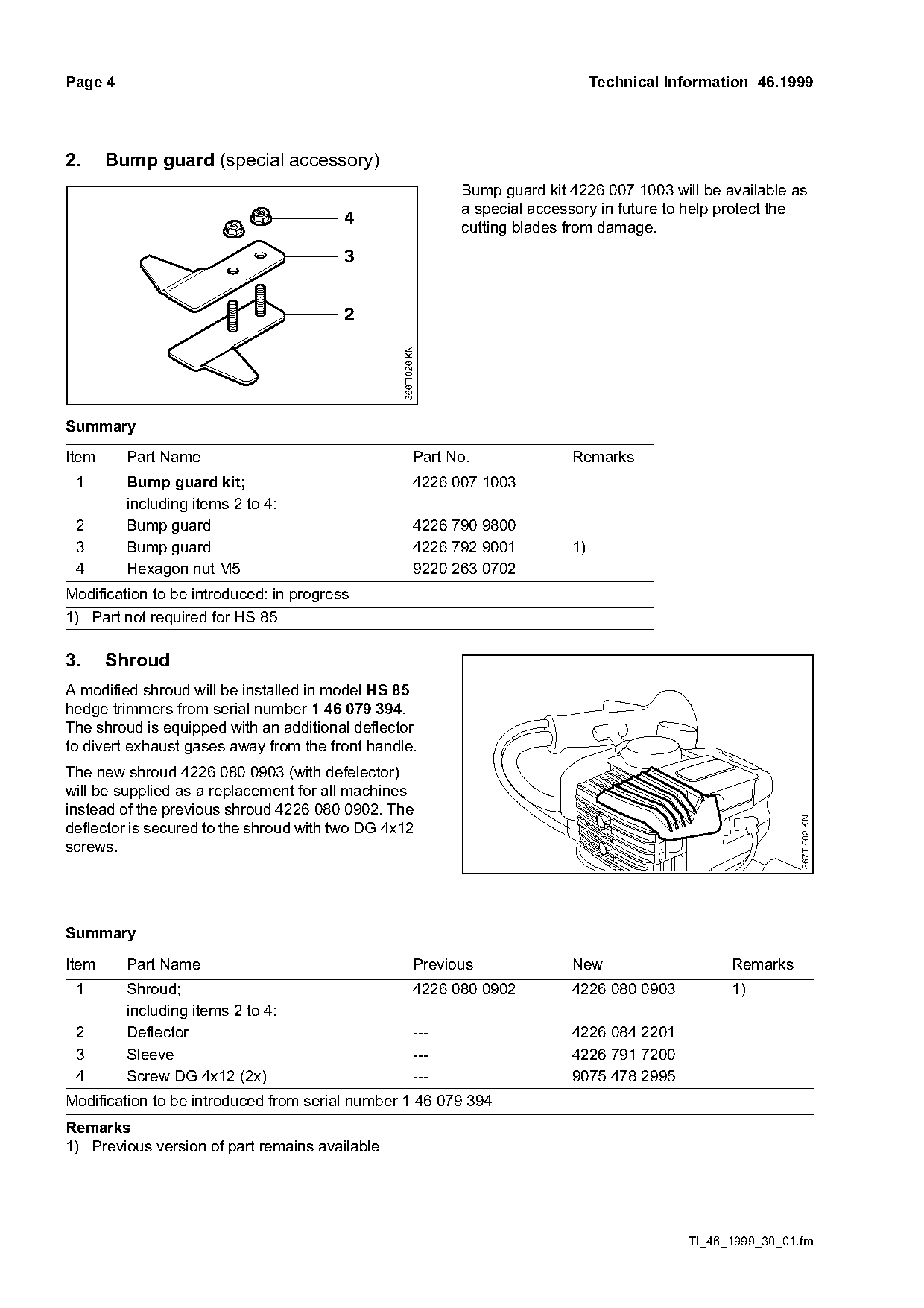

)m~ge 4 Technical Information 46.1999
2. Bump guard (special accessory)
Bump guard kit 4226 007 1003 will be available as
a special accessory in future to help protect the
4 cutting blades from damage.
3
366TI026 KN
Summary
Item Part Name Part No. Remarks
1 Bump guard kit; 4226 007 1003
including items 2 to 4:
2 Bump guard 4226 790 9800
3 Bump guard 4226 792 9001 1)
4 Hexagon nut M5 9220 263 0702
Modification to be introduced: in progress
1) Part not required for HS 85
3. Shroud
A modified shroud will be installed in model HS 85
hedge trimmers from serial number 1 46 079 394.
The shroud is equipped with an additional deflector
to divert exhaust gases away from the front handle.
The new shroud 4226 080 0903 (with defelector)
will be supplied as a replacement for all machines
instead of the previous shroud 4226 080 0902. The 367TI002 KN
deflector is secured to the shroud with two DG 4x12
screws.
Summary
Item Part Name Previous New Remarks
1 Shroud; 4226 080 0902 4226 080 0903 1)
including items 2 to 4:
2 Deflector --- 4226 084 2201
3 Sleeve --- 4226 791 7200
4 Screw DG 4x12 (2x) --- 9075 478 2995
Modification to be introduced from serial number 1 46 079 394
Remarks
1) Previous version of part remains available
TI_46_1999_30_01.fm Page 3 of 6

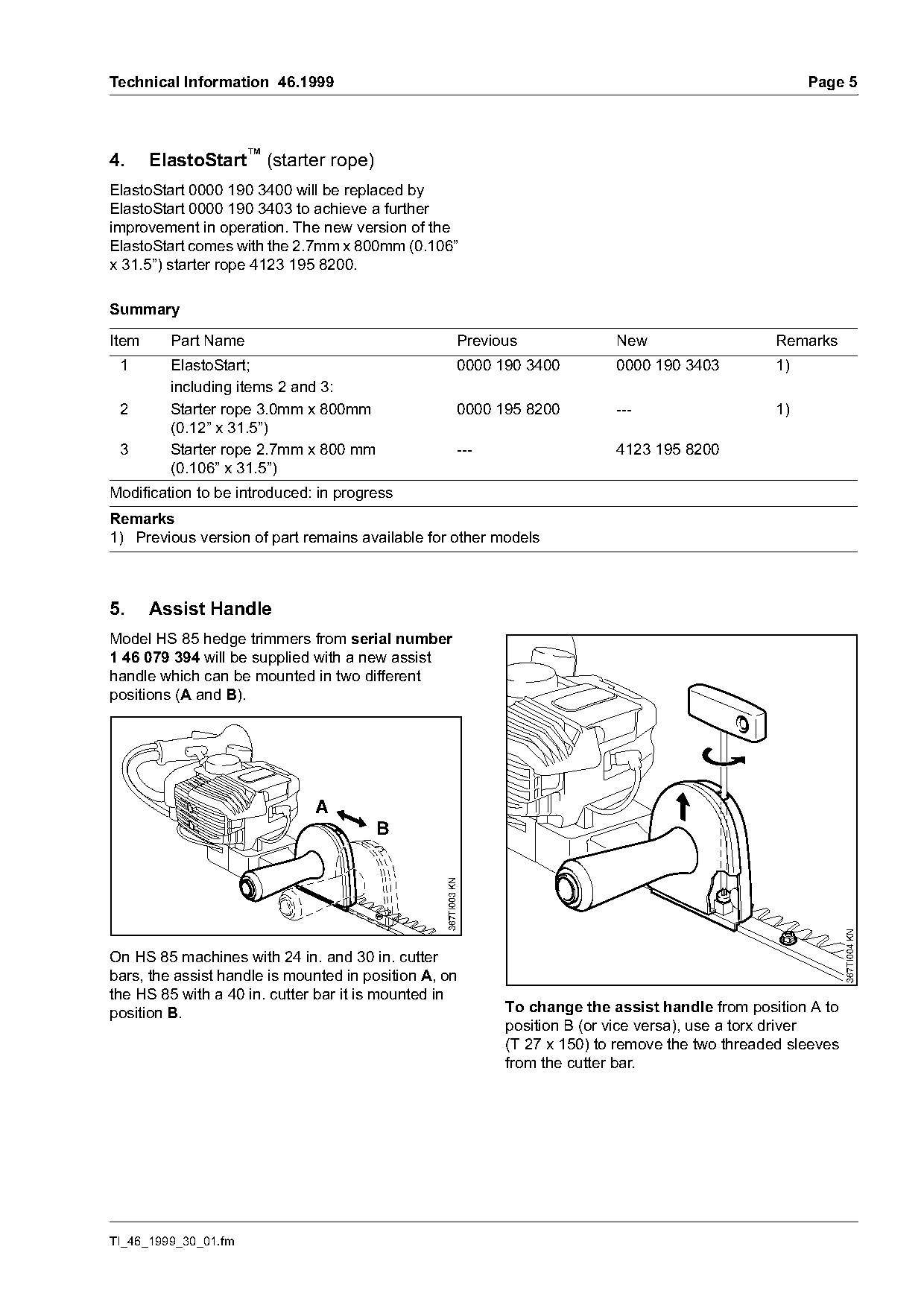

Technical Information 46.1999 Page 5
4. ElastoStart™ (starter rope)
ElastoStart 0000 190 3400 will be replaced by
ElastoStart 0000 190 3403 to achieve a further
improvement in operation. The new version of the
ElastoStart comes with the 2.7mm x 800mm (0.106”
x 31.5”) starter rope 4123 195 8200.
Summary
Item Part Name Previous New Remarks
1 ElastoStart; 0000 190 3400 0000 190 3403 1)
including items 2 and 3:
2 Starter rope 3.0mm x 800mm 0000 195 8200 --- 1)
(0.12” x 31.5”)
3 Starter rope 2.7mm x 800 mm --- 4123 195 8200
(0.106” x 31.5”)
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available for other models
5. Assist Handle
Model HS 85 hedge trimmers from serial number
1 46 079 394 will be supplied with a new assist
handle which can be mounted in two different
positions (A and B).
A
B
367TI003 KN
367TI004 KN
On HS 85 machines with 24 in. and 30 in. cutter
bars, the assist handle is mounted in position A, on
the HS 85 with a 40 in. cutter bar it is mounted in
position B. To change the assist handle from position A to
position B (or vice versa), use a torx driver
(T 27 x 150) to remove the two threaded sleeves
from the cutter bar.
TI_46_1999_30_01.fm

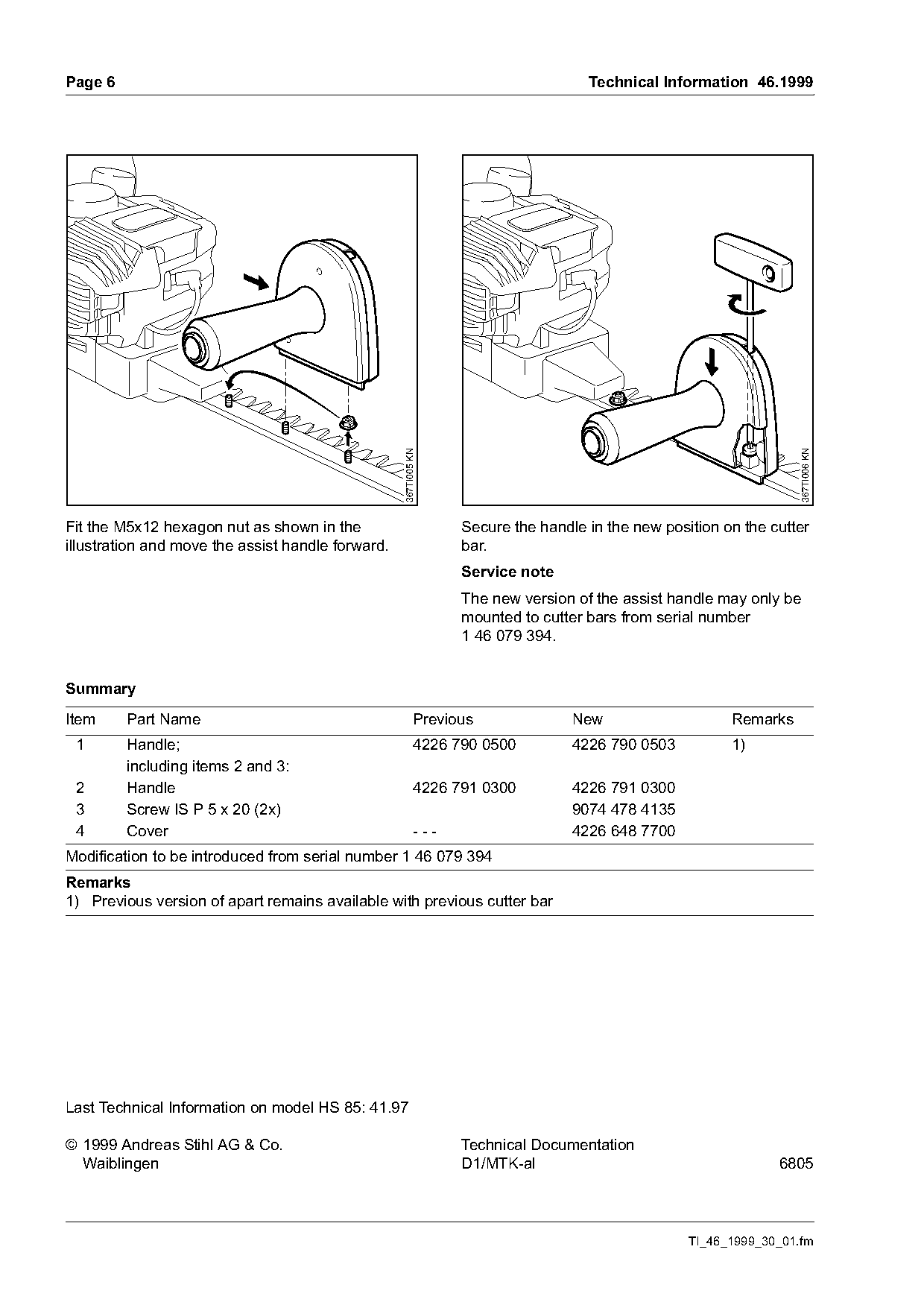

)m~ge 6 Technical Information 46.1999
367TI006 KN
367TI005 KN
Fit the M5x12 hexagon nut as shown in the Secure the handle in the new position on the cutter
illustration and move the assist handle forward. bar.
Service note
The new version of the assist handle may only be
mounted to cutter bars from serial number
1 46 079 394.
Summary
Item Part Name Previous New Remarks
1 Handle; 4226 790 0500 4226 790 0503 1)
including items 2 and 3:
2 Handle 4226 791 0300 4226 791 0300
3 Screw IS P 5 x 20 (2x) 9074 478 4135
4 Cover --- 4226 648 7700
Modification to be introduced from serial number 1 46 079 394
Remarks
1) Previous version of apart remains available with previous cutter bar
Last Technical Information on model HS 85: 41.97
© 1999 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-al 6805
TI_46_1999_30_01.fm Page 4 of 6
