Technical Information · issue 51 of 1999
E 140, E 160, E 180 C: Chain Brake; Coasting Brake
Model E 140, E 160, E 180 C Chainsaws - Series 1208
IssueTI 51/1999
Full text
Page 1 of 1

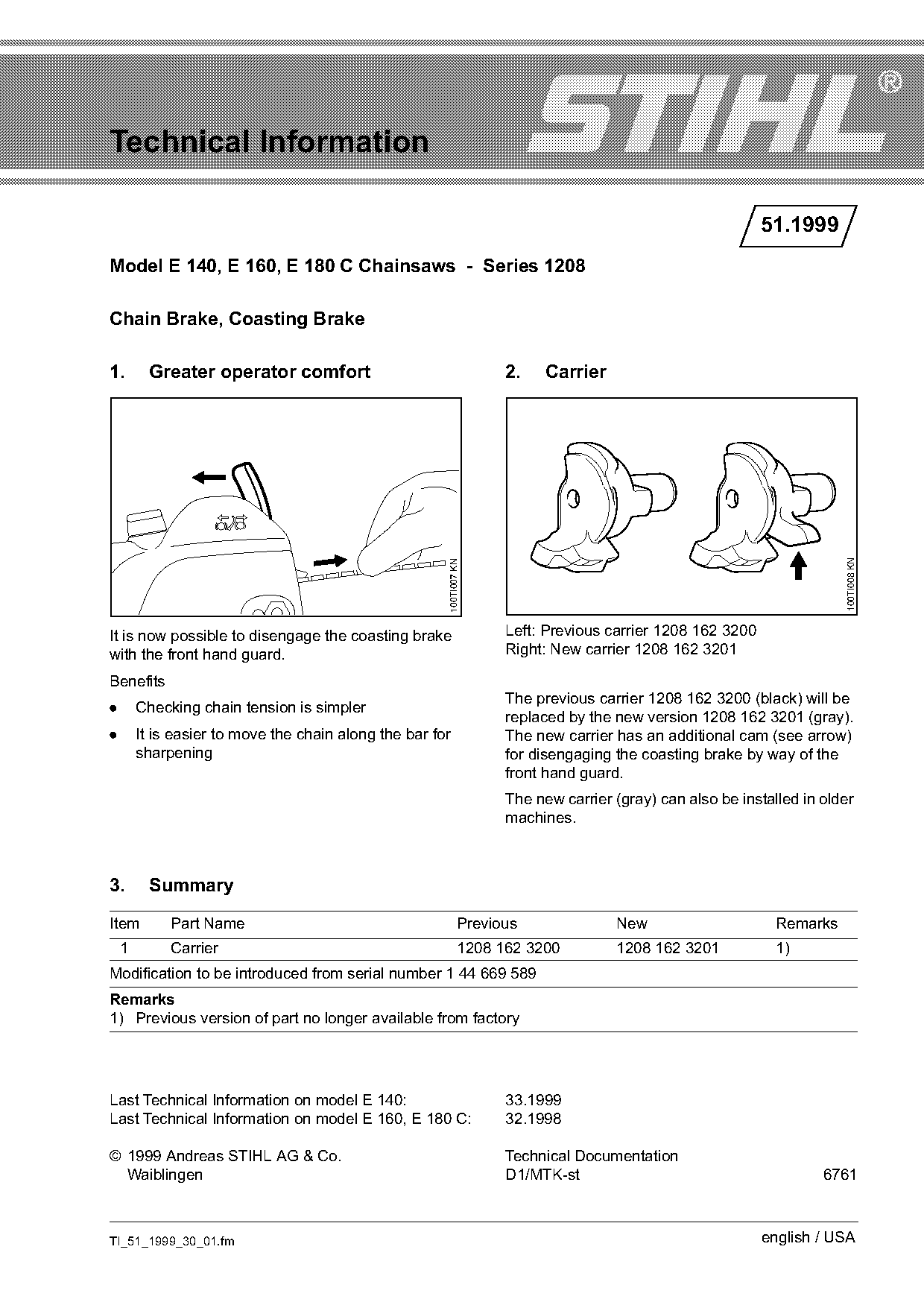

Technical Information
51.1999
Model E 140, E 160, E 180 C Chainsaws - Series 1208
Chain Brake, Coasting Brake
1. Greater operator comfort 2. Carrier
100TI008 KN
100TI007 KN
It is now possible to disengage the coasting brake Left: Previous carrier 1208 162 3200
with the front hand guard. Right: New carrier 1208 162 3201
Benefits
The previous carrier 1208 162 3200 (black) will be
. Checking chain tension is simpler
replaced by the new version 1208 162 3201 (gray).
. It is easier to move the chain along the bar for The new carrier has an additional cam (see arrow)
sharpening for disengaging the coasting brake by way of the
front hand guard.
The new carrier (gray) can also be installed in older
machines.
3. Summary
Item Part Name Previous New Remarks
1 Carrier 1208 162 3200 1208 162 3201 1)
Modification to be introduced from serial number 1 44 669 589
Remarks
1) Previous version of part no longer available from factory
Last Technical Information on model E 140: 33.1999
Last Technical Information on model E 160, E 180 C: 32.1998
© 1999 Andreas STIHL AG & Co. Technical Documentation
Waiblingen D1/MTK-st 6761
