Technical Information · issue 5 of 2000
Carburetor with balanced idle system; Cylinder wit
Model 017 Chainsaws - Series 1130
IssueTI 5/2000
Engine family 1130
Part changes (4)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1130 791 4900 | 1130 791 4901 | The previous handle frame 1130 791 4900 will be replaced by LD version 1130 791 4901, the previous engine housing 1130 020 3001 will be replaced by version 1130 020 3002. |
| 1130 020 3001 | 1130 020 3002 | The previous handle frame 1130 791 4900 will be replaced by LD version 1130 791 4901, the previous engine housing 1130 020 3001 will be replaced by version 1130 020 3002. |
| 1130 120 0600 | 1130 120 0601 | The previous carburetor 1130 120 0600 will be replaced by version 1130 120 0601. |
| 1132 030 0400 | 1132 030 0401 | Crankshaft (needle sleeves) The previous crankshaft 1132 030 0400 will be replaced by crankshaft 1132 030 0401 from serial number 2 43 542 535. |
Full text

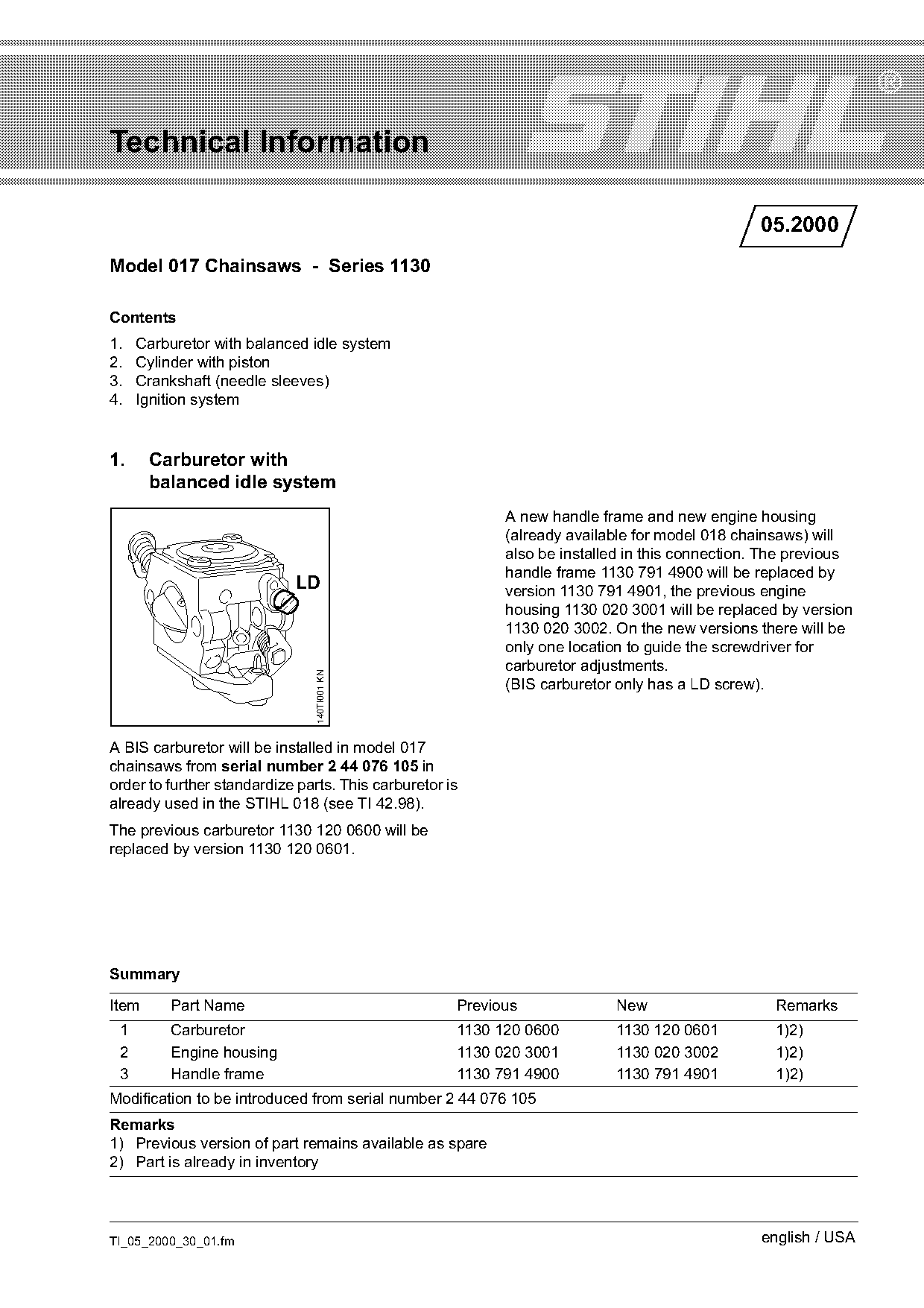

Page 1 of 3
Technical Information
05.2000
Model 017 Chainsaws - Series 1130
Contents
1. Carburetor with balanced idle system
2. Cylinder with piston
3. Crankshaft (needle sleeves)
4. Ignition system
1. Carburetor with
balanced idle system
A new handle frame and new engine housing
(already available for model 018 chainsaws) will
also be installed in this connection. The previous
handle frame 1130 791 4900 will be replaced by
LD version 1130 791 4901, the previous engine
housing 1130 020 3001 will be replaced by version
1130 020 3002. On the new versions there will be
only one location to guide the screwdriver for
carburetor adjustments.
140TI001 KN
(BIS carburetor only has a LD screw).
A BIS carburetor will be installed in model 017
chainsaws from serial number 2 44 076 105 in
order to further standardize parts. This carburetor is
already used in the STIHL 018 (see TI 42.98).
The previous carburetor 1130 120 0600 will be
replaced by version 1130 120 0601.
Summary
Item Part Name Previous New Remarks
1 Carburetor 1130 120 0600 1130 120 0601 1)2)
2 Engine housing 1130 020 3001 1130 020 3002 1)2)
3 Handle frame 1130 791 4900 1130 791 4901 1)2)
Modification to be introduced from serial number 2 44 076 105
Remarks
1) Previous version of part remains available as spare
2) Part is already in inventory
TI_05_2000_30_01.fm english / USA

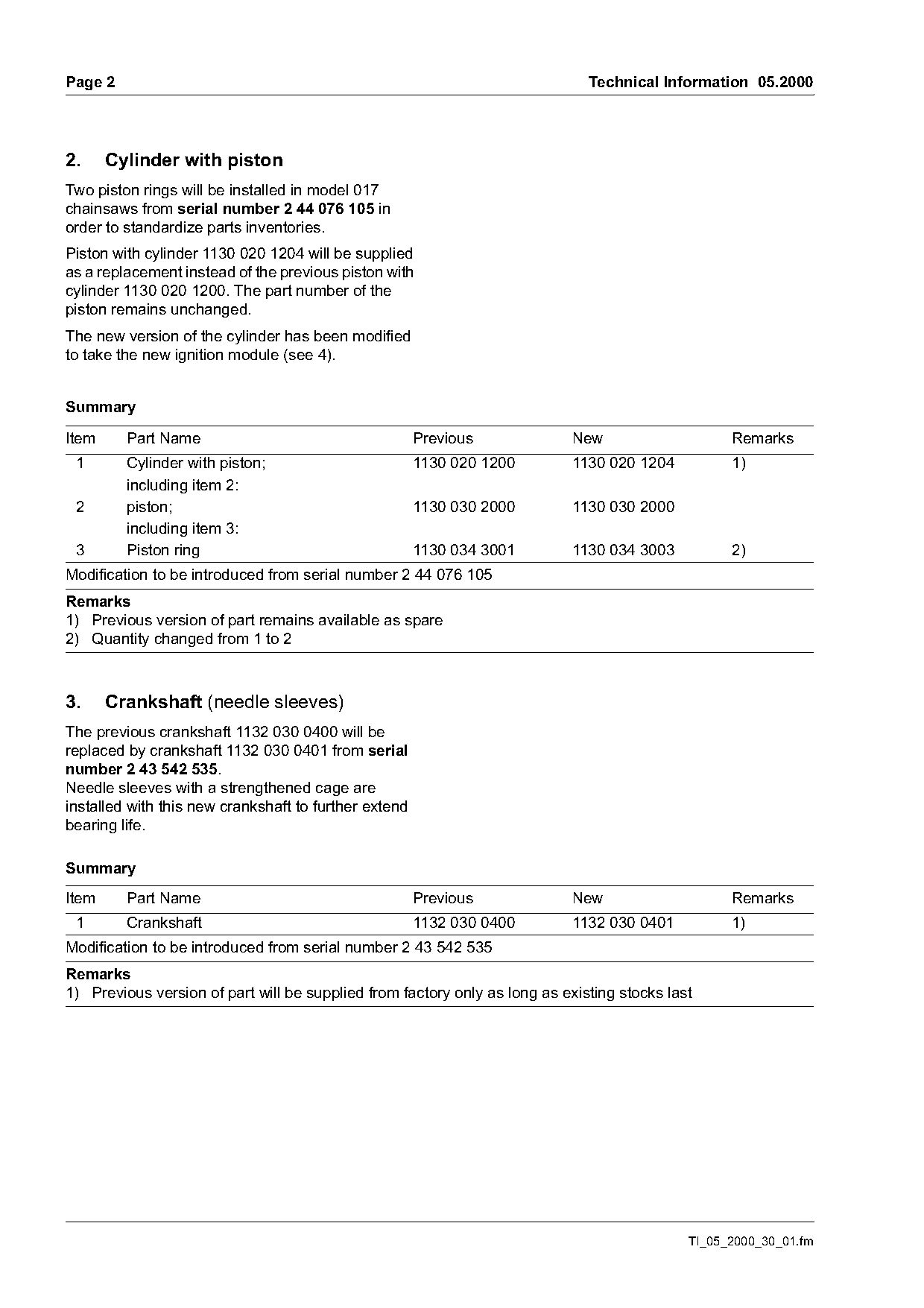

)m~ge 2 Technical Information 05.2000
2. Cylinder with piston
Two piston rings will be installed in model 017
chainsaws from serial number 2 44 076 105 in
order to standardize parts inventories.
Piston with cylinder 1130 020 1204 will be supplied
as a replacement instead of the previous piston with
cylinder 1130 020 1200. The part number of the
piston remains unchanged.
The new version of the cylinder has been modified
to take the new ignition module (see 4).
Summary
Item Part Name Previous New Remarks
1 Cylinder with piston; 1130 020 1200 1130 020 1204 1)
including item 2:
2 piston; 1130 030 2000 1130 030 2000
including item 3:
3 Piston ring 1130 034 3001 1130 034 3003 2)
Modification to be introduced from serial number 2 44 076 105
Remarks
1) Previous version of part remains available as spare
2) Quantity changed from 1 to 2
3. Crankshaft (needle sleeves)
The previous crankshaft 1132 030 0400 will be
replaced by crankshaft 1132 030 0401 from serial
number 2 43 542 535.
Needle sleeves with a strengthened cage are
installed with this new crankshaft to further extend
bearing life.
Summary
Item Part Name Previous New Remarks
1 Crankshaft 1132 030 0400 1132 030 0401 1)
Modification to be introduced from serial number 2 43 542 535
Remarks
1) Previous version of part will be supplied from factory only as long as existing stocks last
TI_05_2000_30_01.fm Page 2 of 3

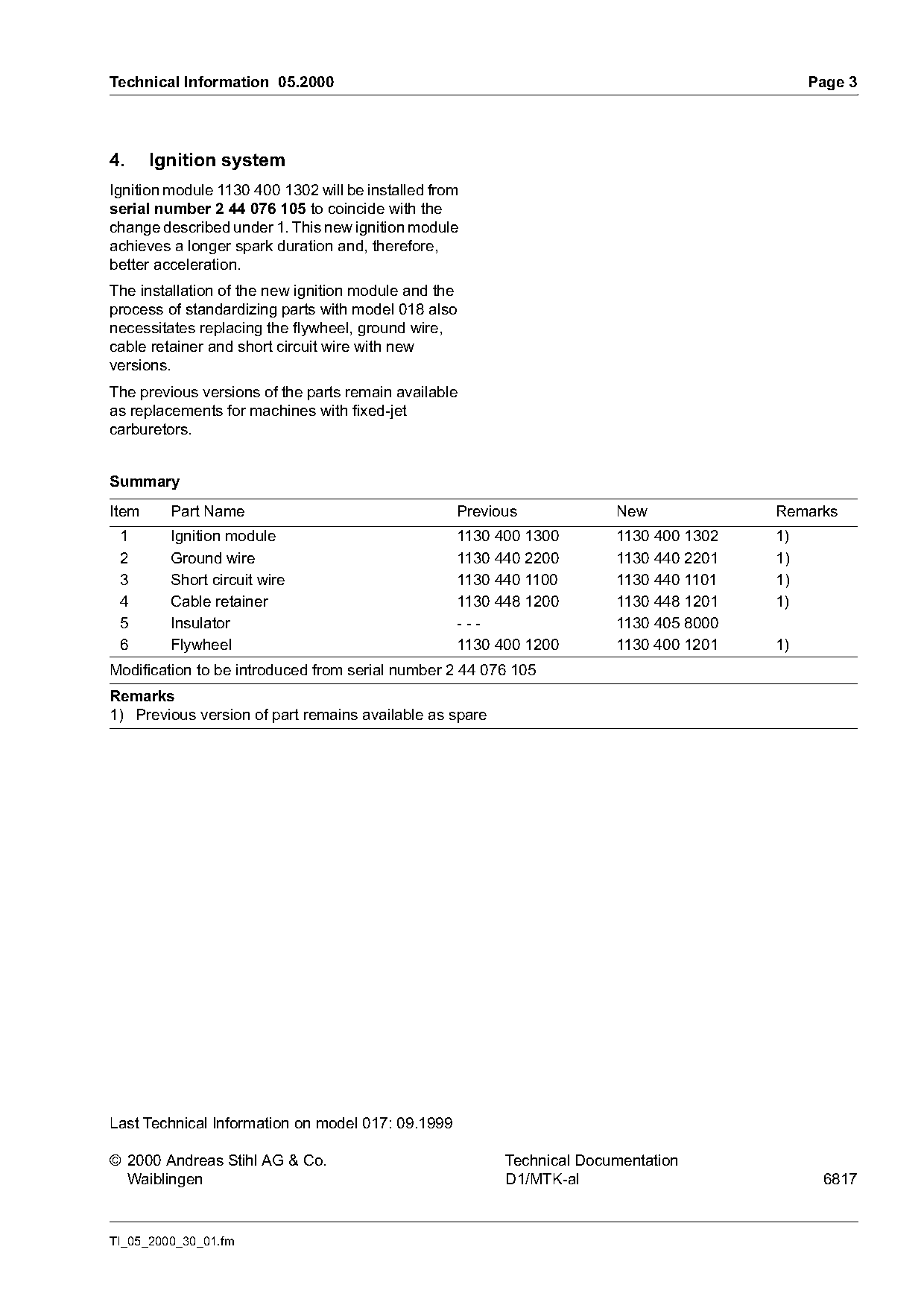

Technical Information 05.2000 Page 3 4. Ignition system Ignition module 1130 400 1302 will be installed from serial number 2 44 076 105 to coincide with the change described under 1. This new ignition module achieves a longer spark duration and, therefore, better acceleration. The installation of the new ignition module and the process of standardizing parts with model 018 also necessitates replacing the flywheel, ground wire, cable retainer and short circuit wire with new versions. The previous versions of the parts remain available as replacements for machines with fixed-jet carburetors. Summary Item Part Name Previous New Remarks 1 Ignition module 1130 400 1300 1130 400 1302 1) 2 Ground wire 1130 440 2200 1130 440 2201 1) 3 Short circuit wire 1130 440 1100 1130 440 1101 1) 4 Cable retainer 1130 448 1200 1130 448 1201 1) 5 Insulator --- 1130 405 8000 6 Flywheel 1130 400 1200 1130 400 1201 1) Modification to be introduced from serial number 2 44 076 105 Remarks 1) Previous version of part remains available as spare Last Technical Information on model 017: 09.1999 © 2000 Andreas Stihl AG & Co. Technical Documentation Waiblingen D1/MTK-al 6817 TI_05_2000_30_01.fm
Page 3 of 3
