Technical Information · issue 6 of 2000
Crankshaft; Cylinder with piston
Model 018 Chainsaw - Series 1130
IssueTI 6/2000
Engine family 1130
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1130 034 1500 | 1132 034 1501 | The piston pin 1130 034 1500 and snap ring 9463 650 0807 will be replaced by the new piston pin 1132 034 1501 and snap ring 9463 650 1000. |
| 1130 020 1203 | 1130 020 1205 | In this connection the previous cylinder with piston 1130 020 1203 and 1130 020 1201 (with decompression valve) will be replaced by the versions 1130 020 1205 and 1130 020 1206 (with decompression valve). |
Full text

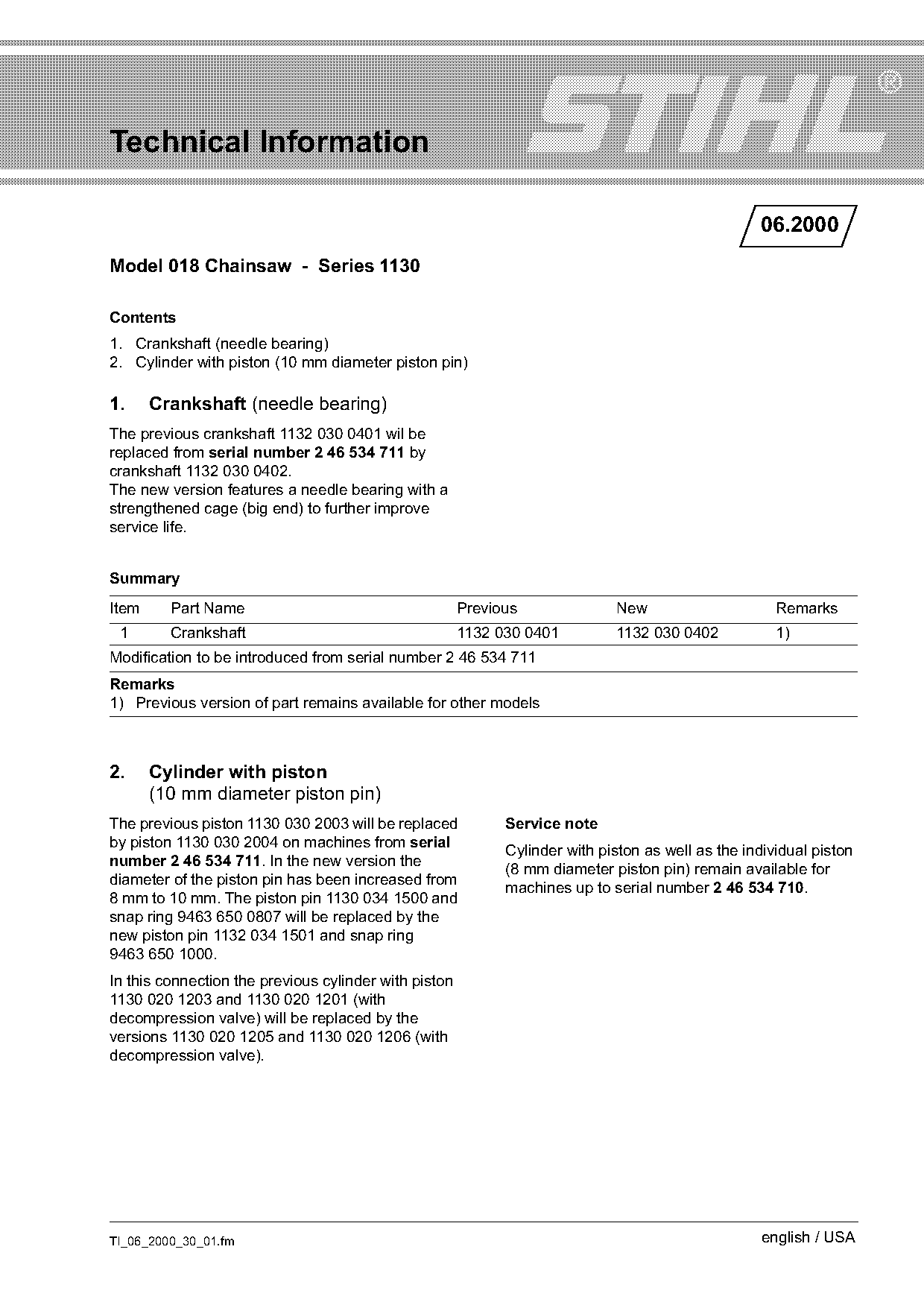

Page 1 of 2
Technical Information
06.2000
Model 018 Chainsaw - Series 1130
Contents
1. Crankshaft (needle bearing)
2. Cylinder with piston (10 mm diameter piston pin)
1. Crankshaft (needle bearing)
The previous crankshaft 1132 030 0401 wil be
replaced from serial number 2 46 534 711 by
crankshaft 1132 030 0402.
The new version features a needle bearing with a
strengthened cage (big end) to further improve
service life.
Summary
Item Part Name Previous New Remarks
1 Crankshaft 1132 030 0401 1132 030 0402 1)
Modification to be introduced from serial number 2 46 534 711
Remarks
1) Previous version of part remains available for other models
2. Cylinder with piston
(10 mm diameter piston pin)
The previous piston 1130 030 2003 will be replaced Service note
by piston 1130 030 2004 on machines from serial
Cylinder with piston as well as the individual piston
number 2 46 534 711. In the new version the
(8 mm diameter piston pin) remain available for
diameter of the piston pin has been increased from
machines up to serial number 2 46 534 710.
8 mm to 10 mm. The piston pin 1130 034 1500 and
snap ring 9463 650 0807 will be replaced by the
new piston pin 1132 034 1501 and snap ring
9463 650 1000.
In this connection the previous cylinder with piston
1130 020 1203 and 1130 020 1201 (with
decompression valve) will be replaced by the
versions 1130 020 1205 and 1130 020 1206 (with
decompression valve).
TI_06_2000_30_01.fm english / USA

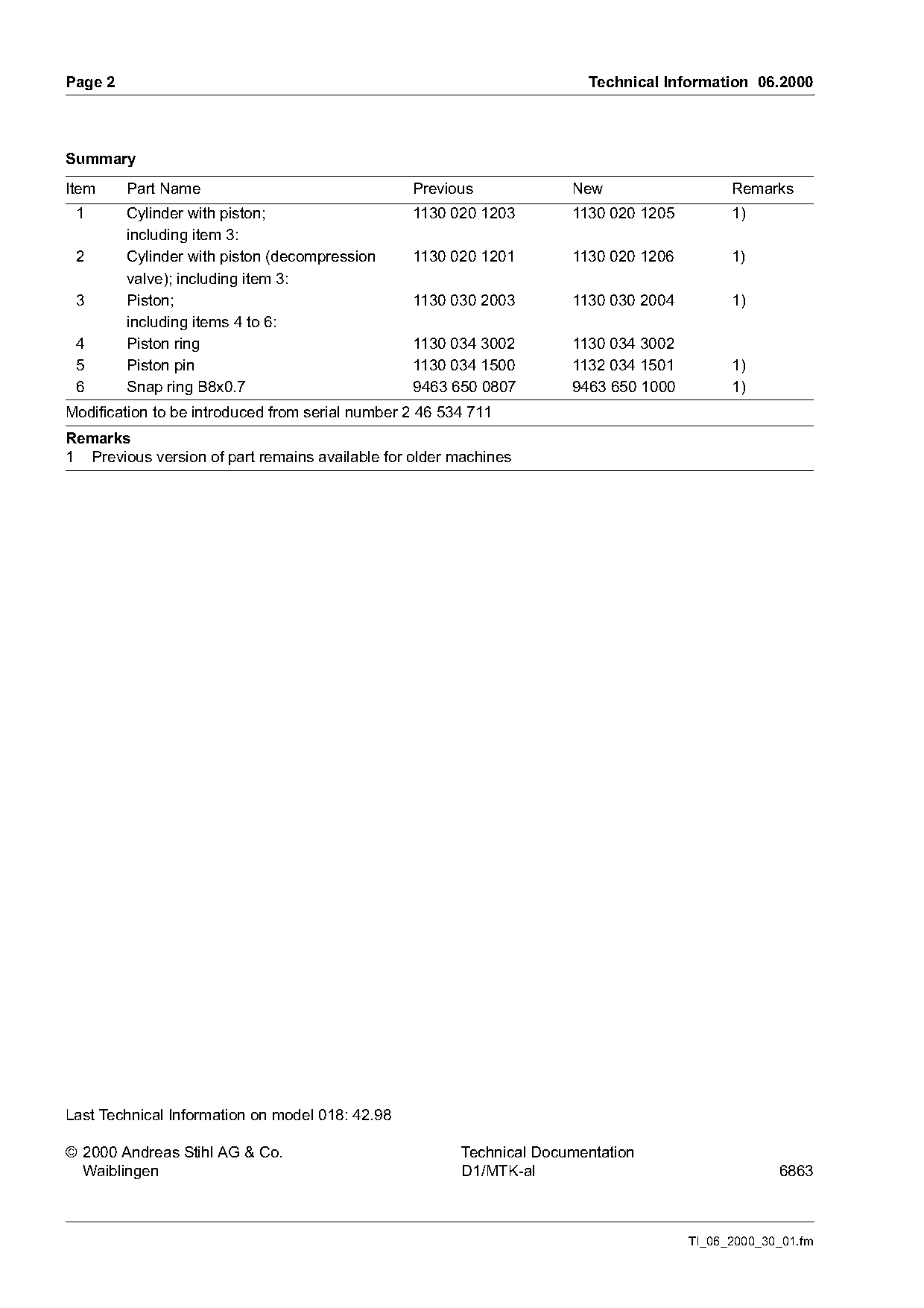

)m~ge 2 Technical Information 06.2000
Summary
Item Part Name Previous New Remarks
1 Cylinder with piston; 1130 020 1203 1130 020 1205 1)
including item 3:
2 Cylinder with piston (decompression 1130 020 1201 1130 020 1206 1)
valve); including item 3:
3 Piston; 1130 030 2003 1130 030 2004 1)
including items 4 to 6:
4 Piston ring 1130 034 3002 1130 034 3002
5 Piston pin 1130 034 1500 1132 034 1501 1)
6 Snap ring B8x0.7 9463 650 0807 9463 650 1000 1)
Modification to be introduced from serial number 2 46 534 711
Remarks
1 Previous version of part remains available for older machines
Last Technical Information on model 018: 42.98
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-al 6863
TI_06_2000_30_01.fm Page 2 of 2
