Technical Information · issue 8 of 2000
Air filter system; Fan housing; Shroud; Muffler; F
Model 034, 036 Chainsaws - Series 1125
IssueTI 8/2000
Engine family 1125
Part changes (4)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1125 120 0617 | 1125 120 0651 | 1 Carburetor with compensator connection Due to this change the previous carburetor 1125 120 0617 offered as a spare part will be replaced by carburetor 1125 120 0651. |
| 1125 080 1812 | 1125 080 1823 | The previous fan housings 1125 080 1812 (034) and 1125 080 1807 (036) will be replaced by versions 1125 080 1823 (034) and 1125 080 1816 (036). |
| 1125 080 1603 | 1125 080 1617 | In connection with the change under 1 and in order to standardize parts, the previous shrouds 1125 080 1603 and 1125 080 1614 will be replaced by the shroud 1125 080 1617 on model 036 from serial number 2 44 173 165. |
| 1125 400 1200 | 1125 400 1203 | Flywheel (034) In order to standardize parts inventories, the previous flywheel 1125 400 1200 will be replaced by flywheel 1125 400 1203. |
Full text
Page 1 of 5

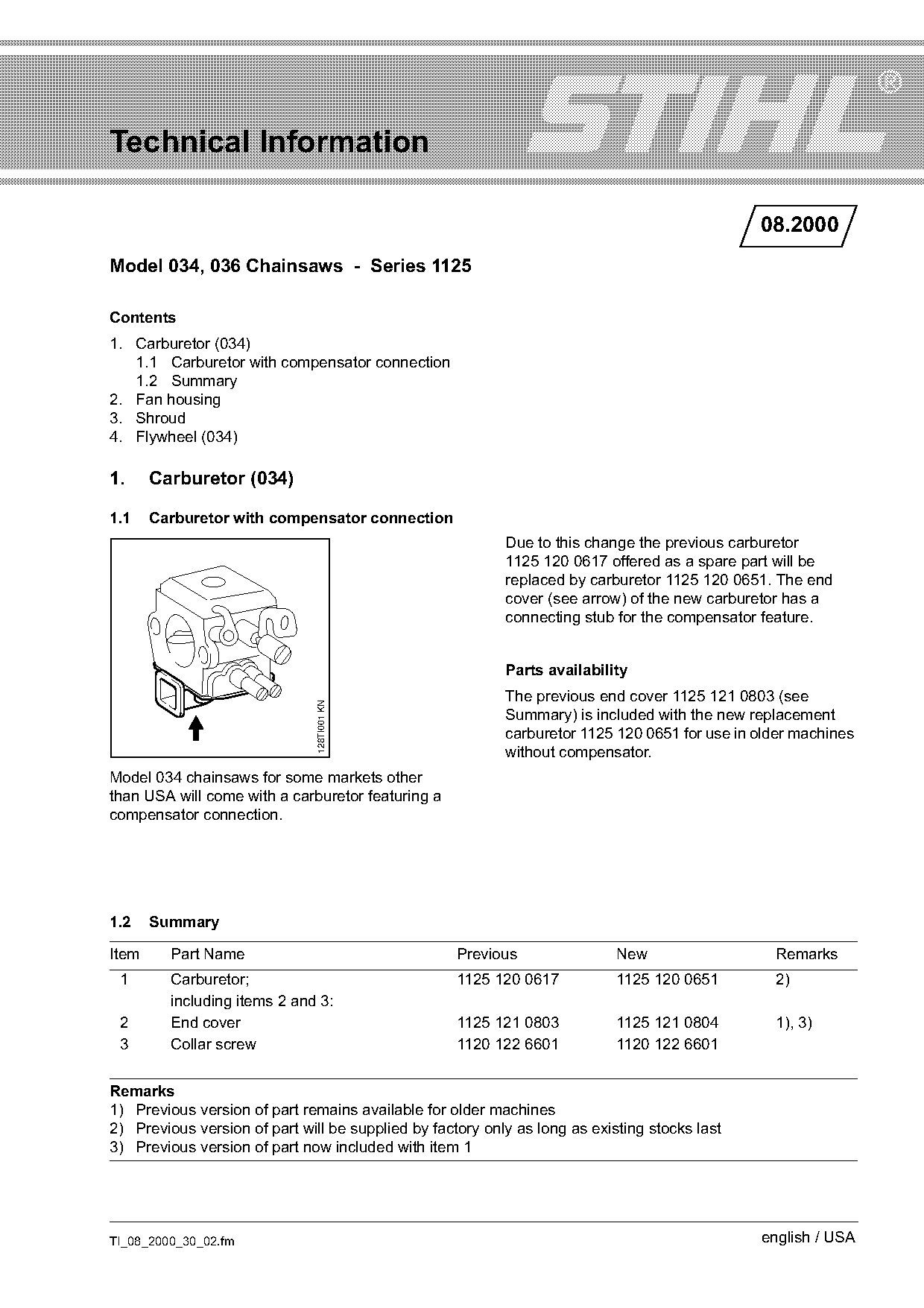

Technical Information
08.2000
Model 034, 036 Chainsaws - Series 1125
Contents
1. Carburetor (034)
1.1 Carburetor with compensator connection
1.2 Summary
2. Fan housing
3. Shroud
4. Flywheel (034)
1. Carburetor (034)
1.1 Carburetor with compensator connection
Due to this change the previous carburetor
1125 120 0617 offered as a spare part will be
replaced by carburetor 1125 120 0651. The end
cover (see arrow) of the new carburetor has a
connecting stub for the compensator feature.
Parts availability
The previous end cover 1125 121 0803 (see
128TI001 KN
Summary) is included with the new replacement
carburetor 1125 120 0651 for use in older machines
without compensator.
Model 034 chainsaws for some markets other
than USA will come with a carburetor featuring a
compensator connection.
1.2 Summary
Item Part Name Previous New Remarks
1 Carburetor; 1125 120 0617 1125 120 0651 2)
including items 2 and 3:
2 End cover 1125 121 0803 1125 121 0804 1), 3)
3 Collar screw 1120 122 6601 1120 122 6601
Remarks
1) Previous version of part remains available for older machines
2) Previous version of part will be supplied by factory only as long as existing stocks last
3) Previous version of part now included with item 1
TI_08_2000_30_02.fm english / USA
)m~ge 2 Technical Information 08.2000

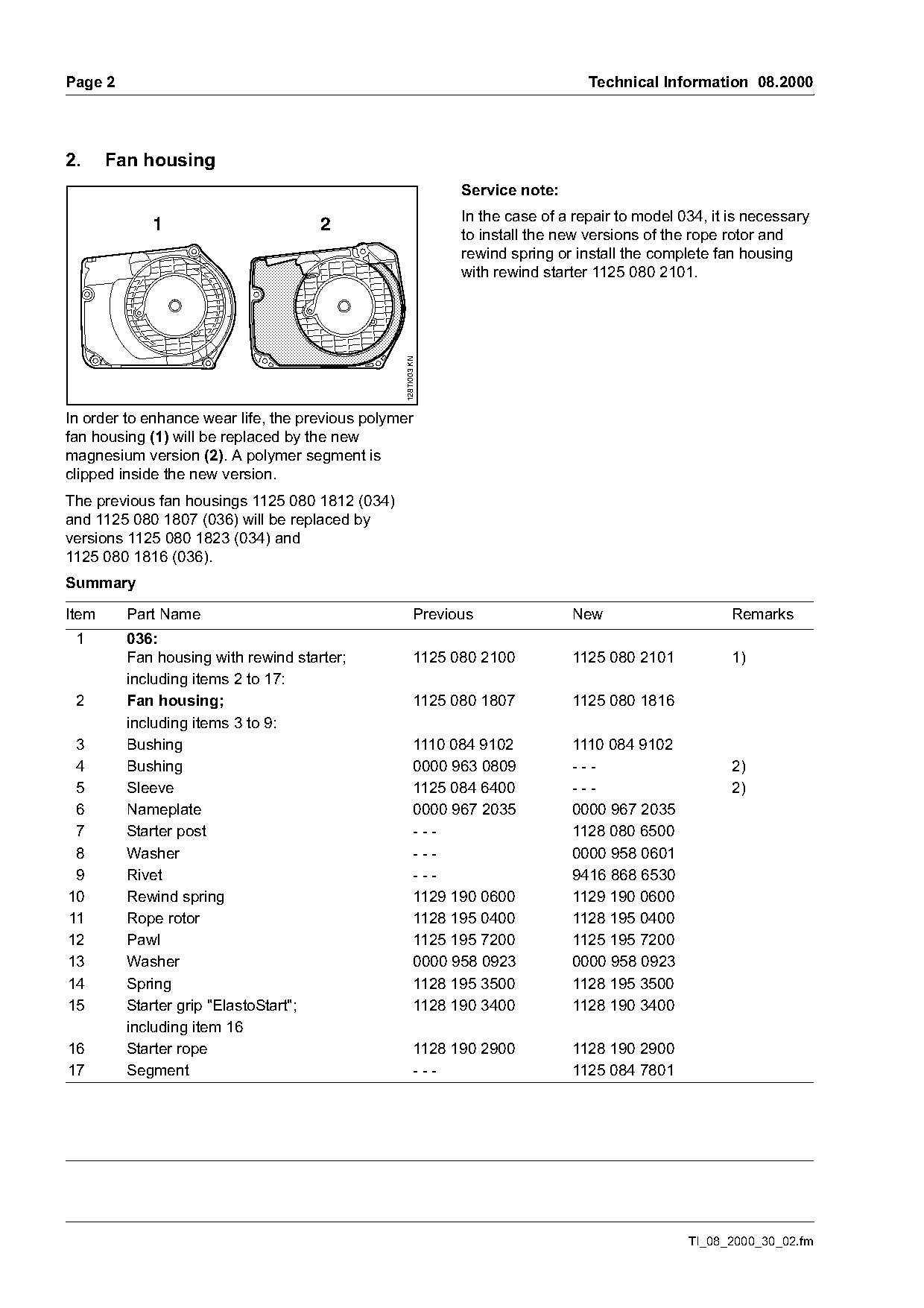

2. Fan housing
Service note:
In the case of a repair to model 034, it is necessary
1 2
to install the new versions of the rope rotor and
rewind spring or install the complete fan housing
with rewind starter 1125 080 2101.
128TI003 KN
In order to enhance wear life, the previous polymer
fan housing (1) will be replaced by the new
magnesium version (2). A polymer segment is
clipped inside the new version.
The previous fan housings 1125 080 1812 (034)
and 1125 080 1807 (036) will be replaced by
versions 1125 080 1823 (034) and
1125 080 1816 (036).
Summary
Item Part Name Previous New Remarks
1 036:
Fan housing with rewind starter; 1125 080 2100 1125 080 2101 1)
including items 2 to 17:
2 Fan housing; 1125 080 1807 1125 080 1816
including items 3 to 9:
3 Bushing 1110 084 9102 1110 084 9102
4 Bushing 0000 963 0809 --- 2)
5 Sleeve 1125 084 6400 --- 2)
6 Nameplate 0000 967 2035 0000 967 2035
7 Starter post --- 1128 080 6500
8 Washer --- 0000 958 0601
9 Rivet --- 9416 868 6530
10 Rewind spring 1129 190 0600 1129 190 0600
11 Rope rotor 1128 195 0400 1128 195 0400
12 Pawl 1125 195 7200 1125 195 7200
13 Washer 0000 958 0923 0000 958 0923
14 Spring 1128 195 3500 1128 195 3500
15 Starter grip "ElastoStart"; 1128 190 3400 1128 190 3400
including item 16
16 Starter rope 1128 190 2900 1128 190 2900
17 Segment --- 1125 084 7801
TI_08_2000_30_02.fm Page 2 of 5

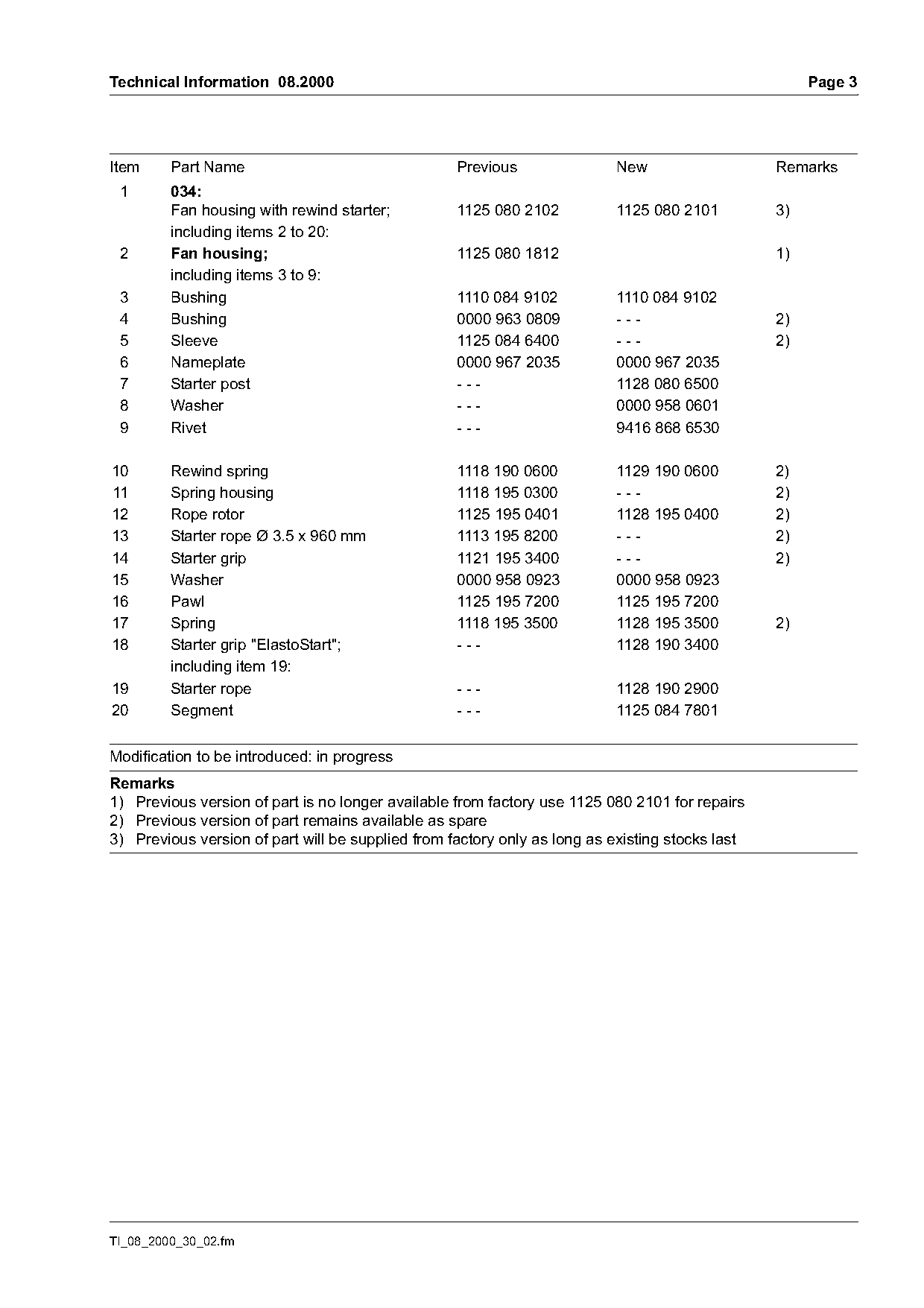

Technical Information 08.2000 Page 3
Item Part Name Previous New Remarks
1 034:
Fan housing with rewind starter; 1125 080 2102 1125 080 2101 3)
including items 2 to 20:
2 Fan housing; 1125 080 1812 1)
including items 3 to 9:
3 Bushing 1110 084 9102 1110 084 9102
4 Bushing 0000 963 0809 --- 2)
5 Sleeve 1125 084 6400 --- 2)
6 Nameplate 0000 967 2035 0000 967 2035
7 Starter post --- 1128 080 6500
8 Washer --- 0000 958 0601
9 Rivet --- 9416 868 6530
10 Rewind spring 1118 190 0600 1129 190 0600 2)
11 Spring housing 1118 195 0300 --- 2)
12 Rope rotor 1125 195 0401 1128 195 0400 2)
13 Starter rope Ø 3.5 x 960 mm 1113 195 8200 --- 2)
14 Starter grip 1121 195 3400 --- 2)
15 Washer 0000 958 0923 0000 958 0923
16 Pawl 1125 195 7200 1125 195 7200
17 Spring 1118 195 3500 1128 195 3500 2)
18 Starter grip "ElastoStart"; --- 1128 190 3400
including item 19:
19 Starter rope --- 1128 190 2900
20 Segment --- 1125 084 7801
Modification to be introduced: in progress
Remarks
1) Previous version of part is no longer available from factory use 1125 080 2101 for repairs
2) Previous version of part remains available as spare
3) Previous version of part will be supplied from factory only as long as existing stocks last
TI_08_2000_30_02.fm
)m~ge 4 Technical Information 08.2000

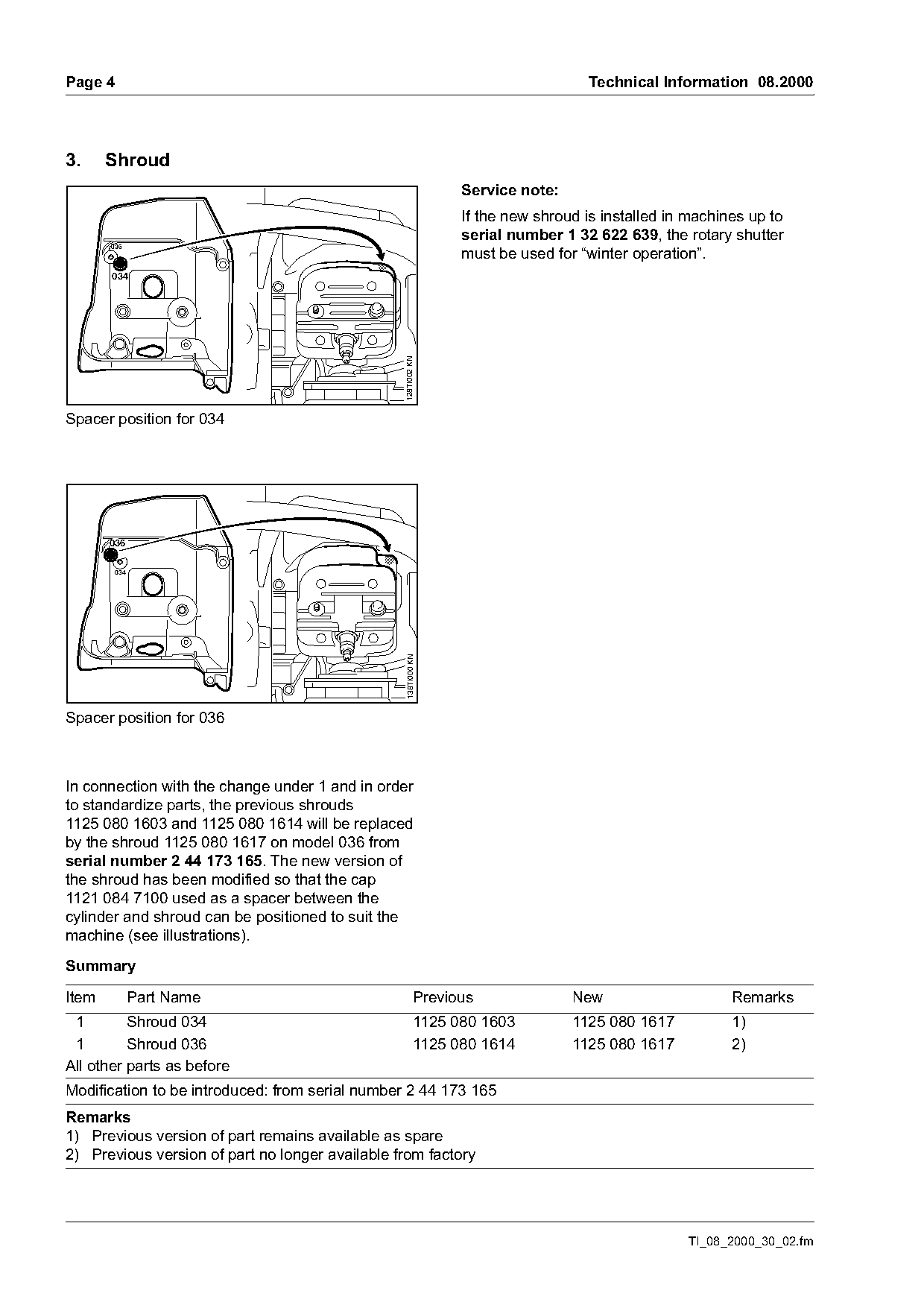

3. Shroud
Service note:
If the new shroud is installed in machines up to
serial number 1 32 622 639, the rotary shutter
036
must be used for “winter operation”.
034
128TI002 KN
Spacer position for 034
036
034
138TI000 KN
Spacer position for 036
In connection with the change under 1 and in order
to standardize parts, the previous shrouds
1125 080 1603 and 1125 080 1614 will be replaced
by the shroud 1125 080 1617 on model 036 from
serial number 2 44 173 165. The new version of
the shroud has been modified so that the cap
1121 084 7100 used as a spacer between the
cylinder and shroud can be positioned to suit the
machine (see illustrations).
Summary
Item Part Name Previous New Remarks
1 Shroud 034 1125 080 1603 1125 080 1617 1)
1 Shroud 036 1125 080 1614 1125 080 1617 2)
All other parts as before
Modification to be introduced: from serial number 2 44 173 165
Remarks
1) Previous version of part remains available as spare
2) Previous version of part no longer available from factory
TI_08_2000_30_02.fm Page 3 of 5

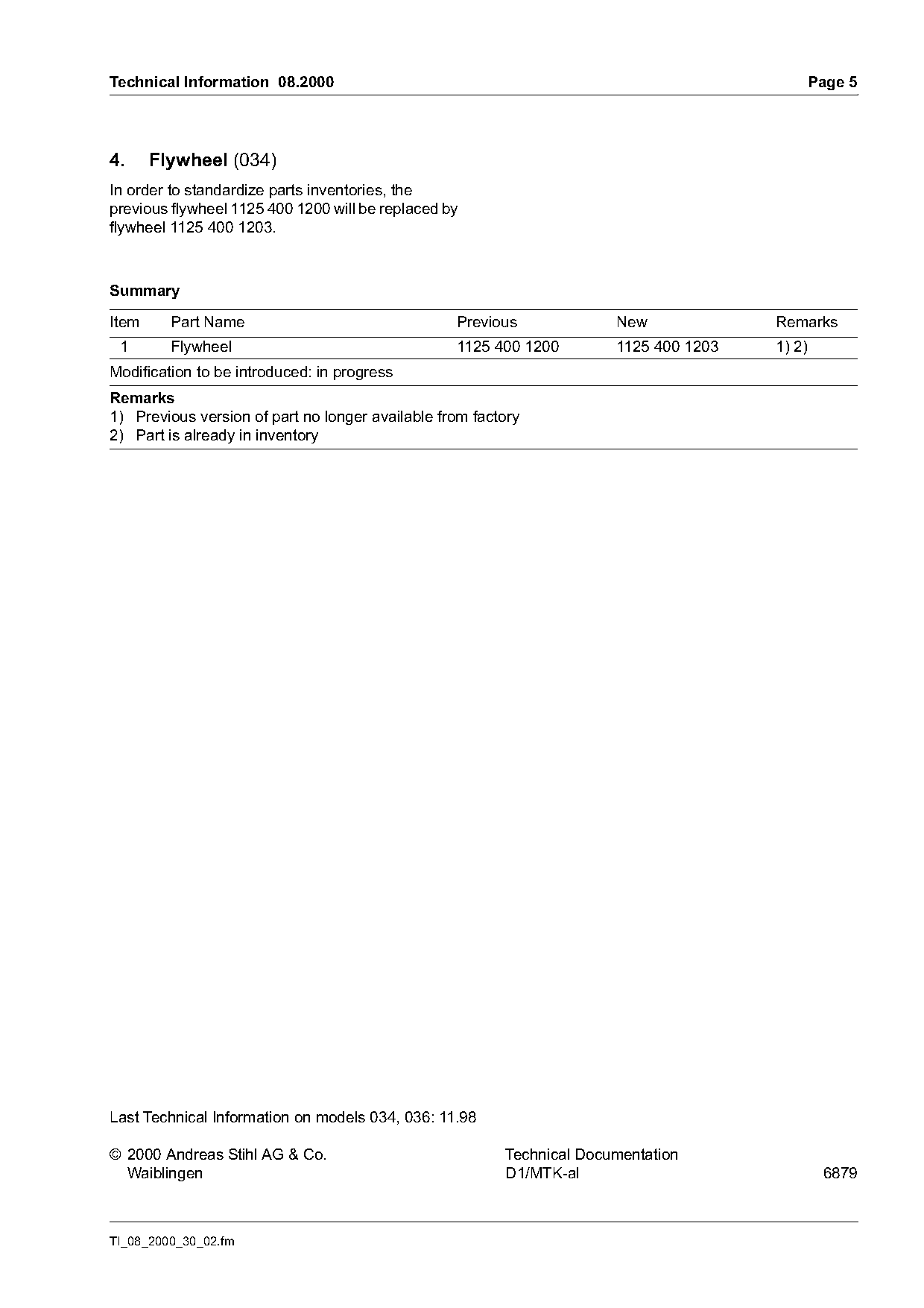

Technical Information 08.2000 Page 5 4. Flywheel (034) In order to standardize parts inventories, the previous flywheel 1125 400 1200 will be replaced by flywheel 1125 400 1203. Summary Item Part Name Previous New Remarks 1 Flywheel 1125 400 1200 1125 400 1203 1) 2) Modification to be introduced: in progress Remarks 1) Previous version of part no longer available from factory 2) Part is already in inventory Last Technical Information on models 034, 036: 11.98 © 2000 Andreas Stihl AG & Co. Technical Documentation Waiblingen D1/MTK-al 6879 TI_08_2000_30_02.fm
Page 4 of 5
Page 5 of 5
