Technical Information · issue 12 of 2000
Front handle with integral stiffener
Model 064, 066 Chainsaws - Series 1122
IssueTI 12/2000
Engine family 1122
Full text
Page 1 of 2

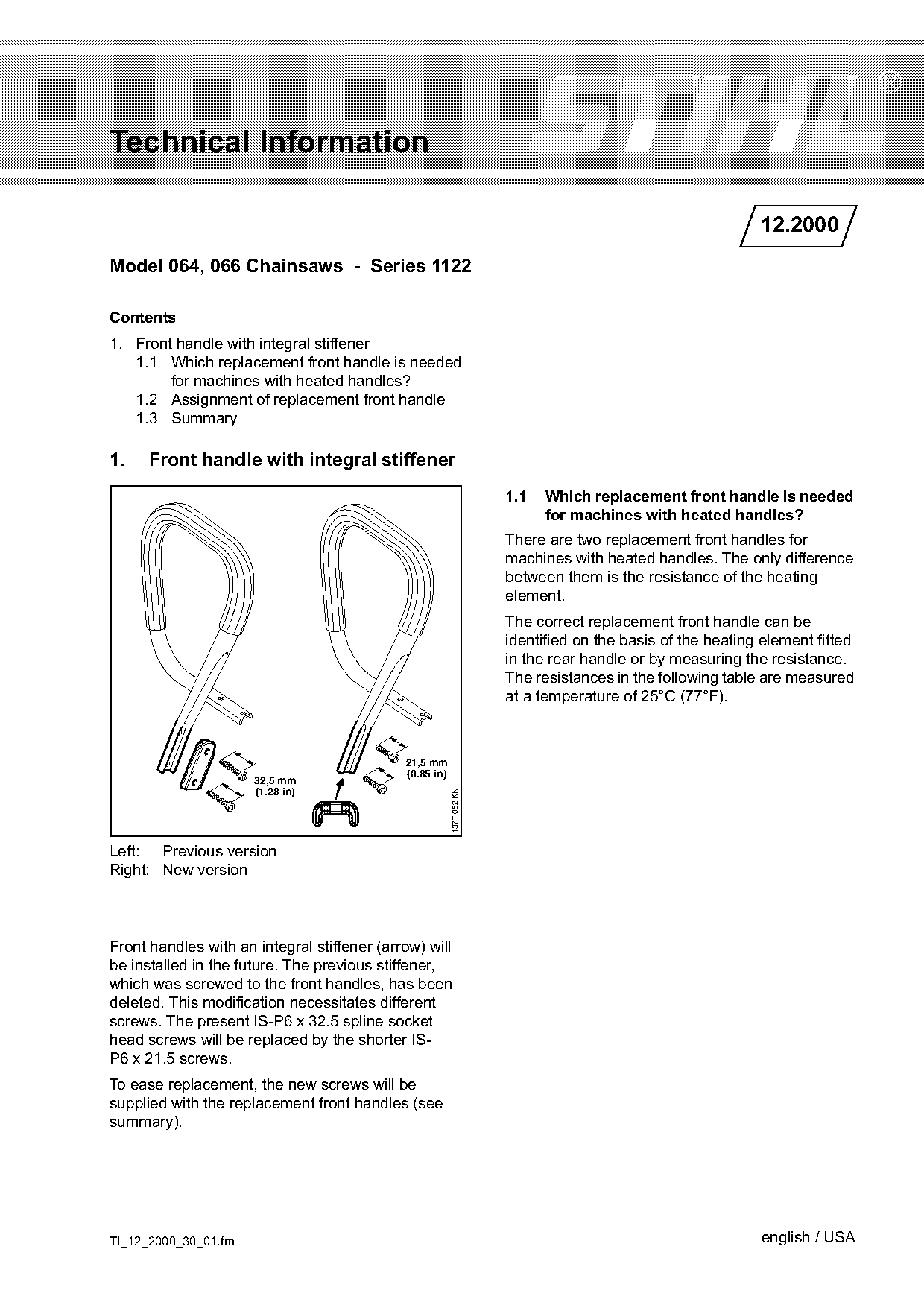

Technical Information
12.2000
Model 064, 066 Chainsaws - Series 1122
Contents
1. Front handle with integral stiffener
1.1 Which replacement front handle is needed
for machines with heated handles?
1.2 Assignment of replacement front handle
1.3 Summary
1. Front handle with integral stiffener
1.1 Which replacement front handle is needed
for machines with heated handles?
There are two replacement front handles for
machines with heated handles. The only difference
between them is the resistance of the heating
element.
The correct replacement front handle can be
identified on the basis of the heating element fitted
in the rear handle or by measuring the resistance.
The resistances in the following table are measured
at a temperature of 25°C (77°F).
21,5 mm
(0.85 in)
32,5 mm
(1.28 in)
137TI052 KN
Left: Previous version
Right: New version
Front handles with an integral stiffener (arrow) will
be installed in the future. The previous stiffener,
which was screwed to the front handles, has been
deleted. This modification necessitates different
screws. The present IS-P6 x 32.5 spline socket
head screws will be replaced by the shorter IS-
P6 x 21.5 screws.
To ease replacement, the new screws will be
supplied with the replacement front handles (see
summary).
TI_12_2000_30_01.fm english / USA

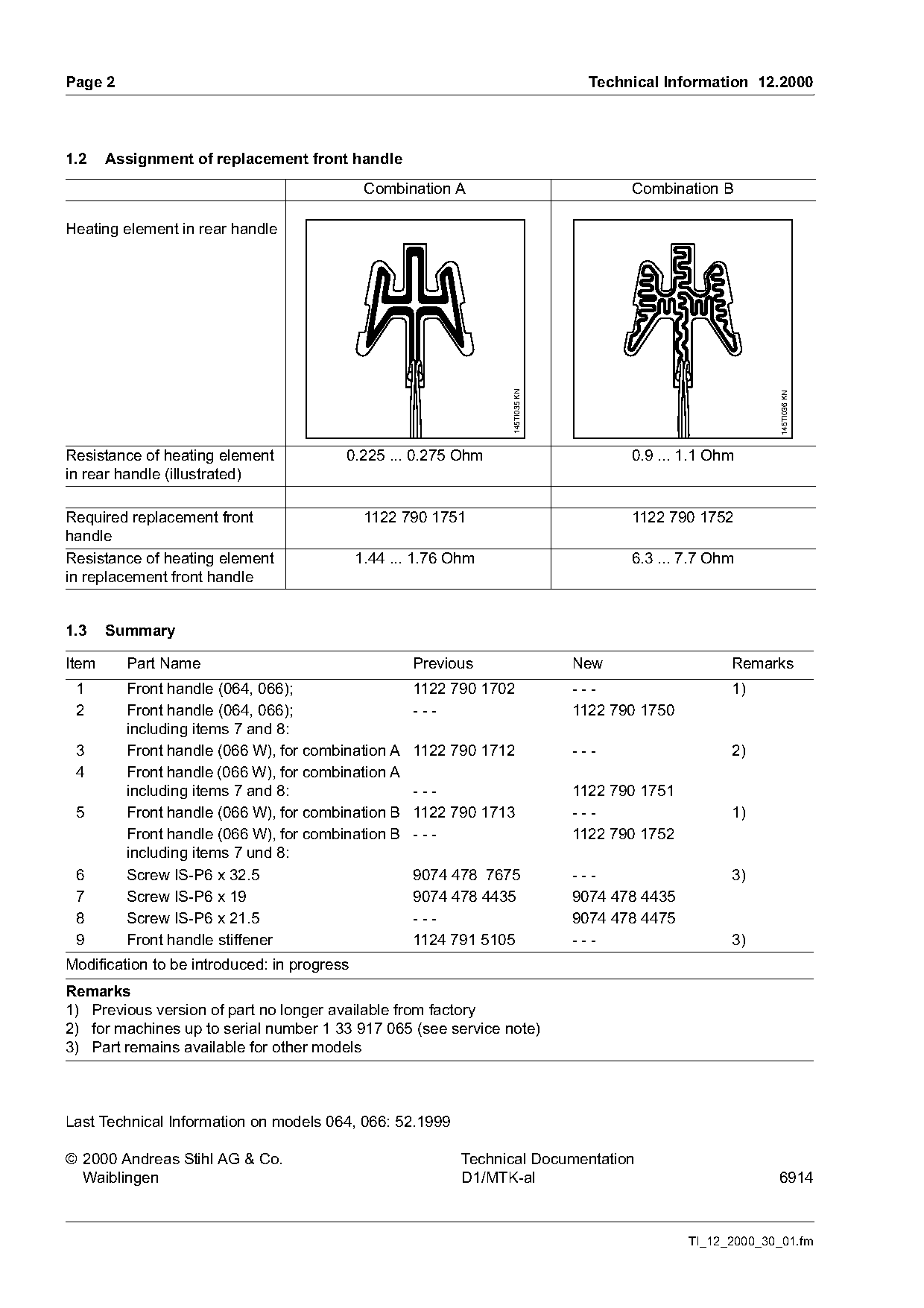

)m~ge 2 Technical Information 12.2000
1.2 Assignment of replacement front handle
Combination A Combination B
Heating element in rear handle
145TI035 KN
145TI036 KN
Resistance of heating element 0.225 ... 0.275 Ohm 0.9 ... 1.1 Ohm
in rear handle (illustrated)
Required replacement front 1122 790 1751 1122 790 1752
handle
Resistance of heating element 1.44 ... 1.76 Ohm 6.3 ... 7.7 Ohm
in replacement front handle
1.3 Summary
Item Part Name Previous New Remarks
1 Front handle (064, 066); 1122 790 1702 --- 1)
2 Front handle (064, 066); --- 1122 790 1750
including items 7 and 8:
3 Front handle (066 W), for combination A 1122 790 1712 --- 2)
4 Front handle (066 W), for combination A
including items 7 and 8: --- 1122 790 1751
5 Front handle (066 W), for combination B 1122 790 1713 --- 1)
Front handle (066 W), for combination B --- 1122 790 1752
including items 7 und 8:
6 Screw IS-P6 x 32.5 9074 478 7675 --- 3)
7 Screw IS-P6 x 19 9074 478 4435 9074 478 4435
8 Screw IS-P6 x 21.5 --- 9074 478 4475
9 Front handle stiffener 1124 791 5105 --- 3)
Modification to be introduced: in progress
Remarks
1) Previous version of part no longer available from factory
2) for machines up to serial number 1 33 917 065 (see service note)
3) Part remains available for other models
Last Technical Information on models 064, 066: 52.1999
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-al 6914
TI_12_2000_30_01.fm Page 2 of 2
