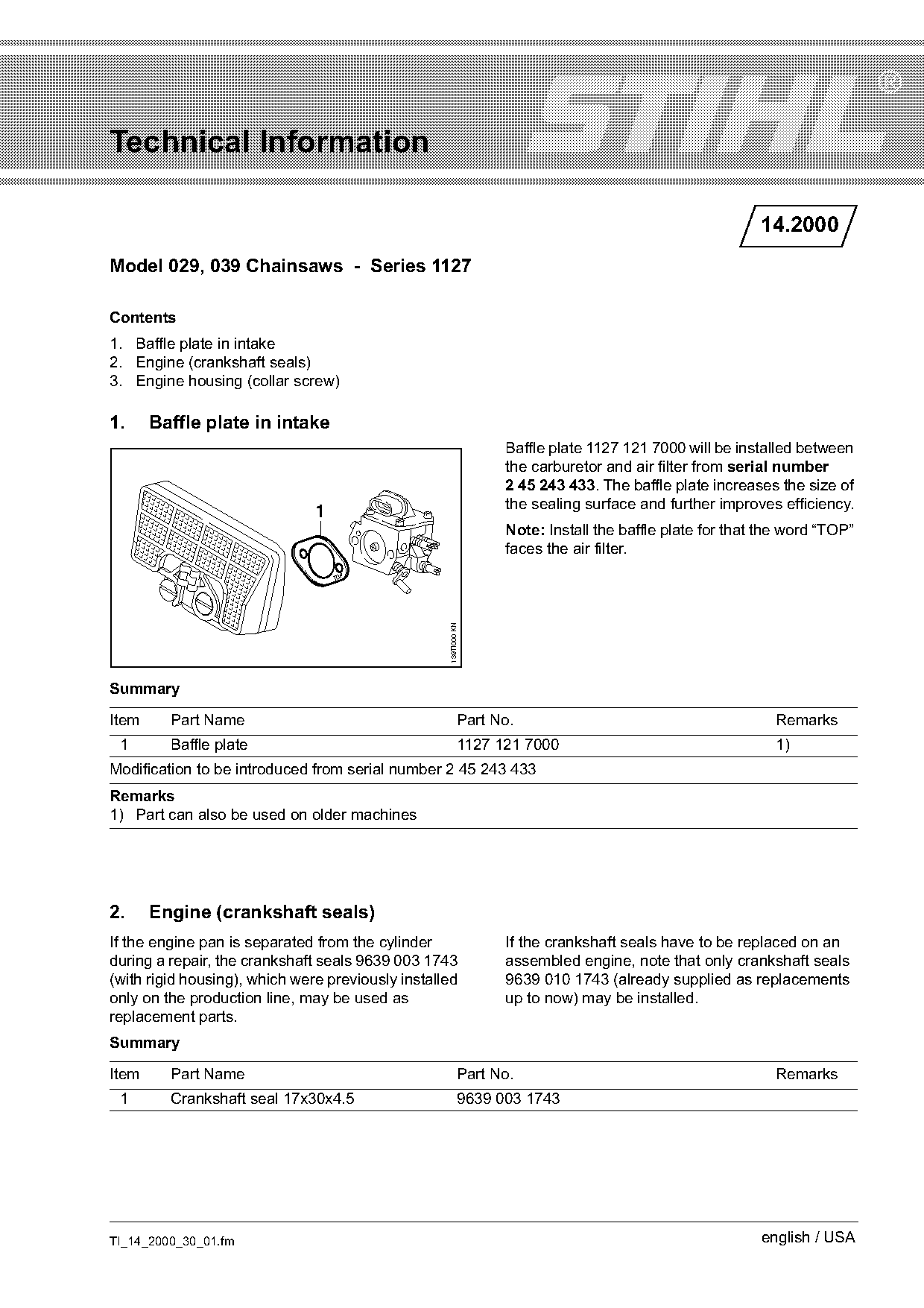

Technical Information
14.2000
Model 029, 039 Chainsaws - Series 1127
Contents
1. Baffle plate in intake
2. Engine (crankshaft seals)
3. Engine housing (collar screw)
1. Baffle plate in intake
Baffle plate 1127 121 7000 will be installed between
the carburetor and air filter from serial number
2 45 243 433. The baffle plate increases the size of
the sealing surface and further improves efficiency.
1
Note: Install the baffle plate for that the word “TOP”
faces the air filter.
TOP
139TI000 KN
Summary
Item Part Name Part No. Remarks
1 Baffle plate 1127 121 7000 1)
Modification to be introduced from serial number 2 45 243 433
Remarks
1) Part can also be used on older machines
2. Engine (crankshaft seals)
If the engine pan is separated from the cylinder If the crankshaft seals have to be replaced on an
during a repair, the crankshaft seals 9639 003 1743 assembled engine, note that only crankshaft seals
(with rigid housing), which were previously installed 9639 010 1743 (already supplied as replacements
only on the production line, may be used as up to now) may be installed.
replacement parts.
Summary
Item Part Name Part No. Remarks
1 Crankshaft seal 17x30x4.5 9639 003 1743
TI_14_2000_30_01.fm english / USA
)m~ge 2 Technical Information 14.2000

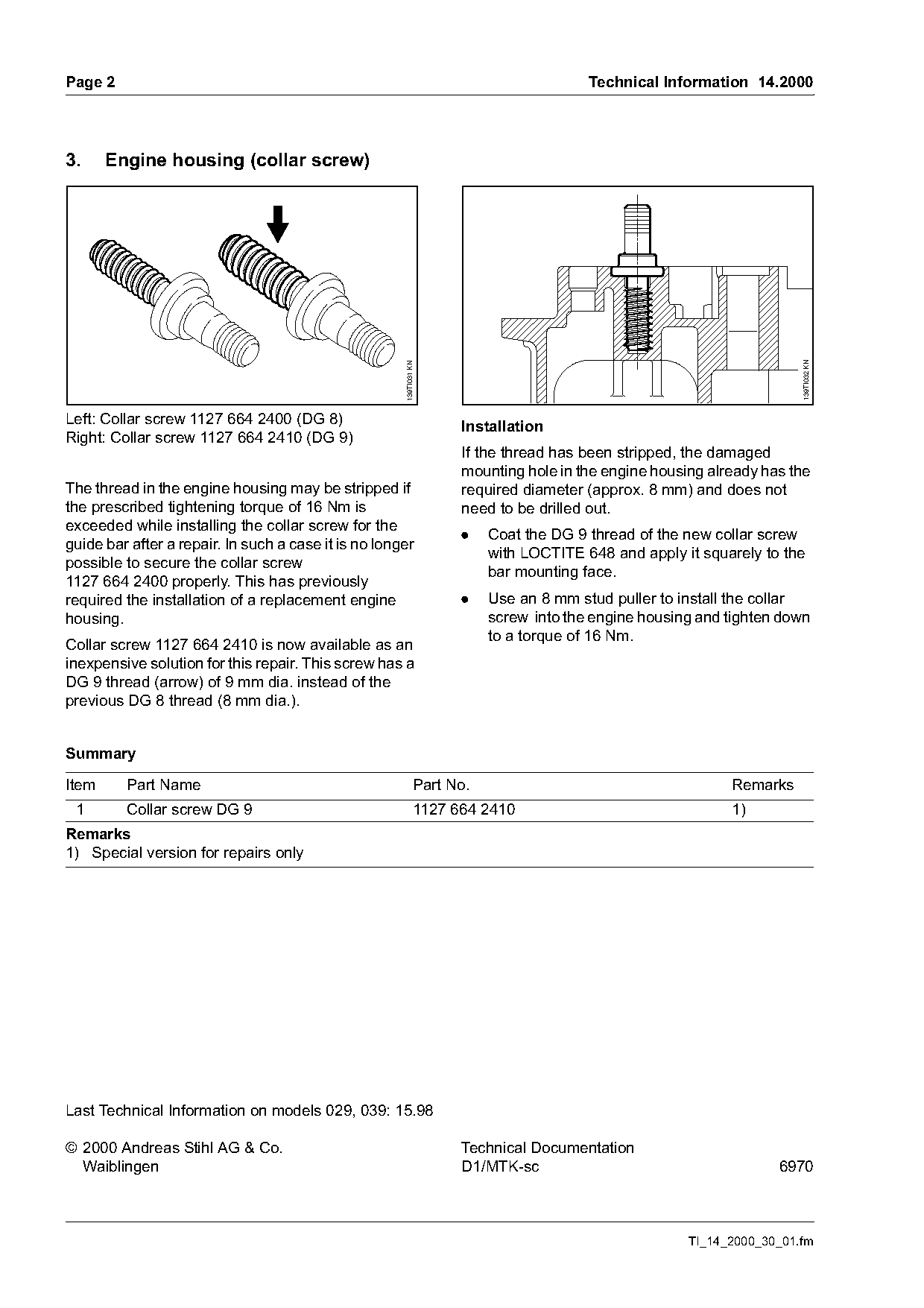

3. Engine housing (collar screw)
139TI032 KN
139TI031 KN
Left: Collar screw 1127 664 2400 (DG 8) Installation
Right: Collar screw 1127 664 2410 (DG 9)
If the thread has been stripped, the damaged
mounting hole in the engine housing already has the
The thread in the engine housing may be stripped if required diameter (approx. 8 mm) and does not
the prescribed tightening torque of 16 Nm is need to be drilled out.
exceeded while installing the collar screw for the
. Coat the DG 9 thread of the new collar screw
guide bar after a repair. In such a case it is no longer
with LOCTITE 648 and apply it squarely to the
possible to secure the collar screw
bar mounting face.
1127 664 2400 properly. This has previously
required the installation of a replacement engine . Use an 8 mm stud puller to install the collar
housing. screw into the engine housing and tighten down
to a torque of 16 Nm.
Collar screw 1127 664 2410 is now available as an
inexpensive solution for this repair. This screw has a
DG 9 thread (arrow) of 9 mm dia. instead of the
previous DG 8 thread (8 mm dia.).
Summary
Item Part Name Part No. Remarks
1 Collar screw DG 9 1127 664 2410 1)
Remarks
1) Special version for repairs only
Last Technical Information on models 029, 039: 15.98
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 6970
TI_14_2000_30_01.fm Page 2 of 2
