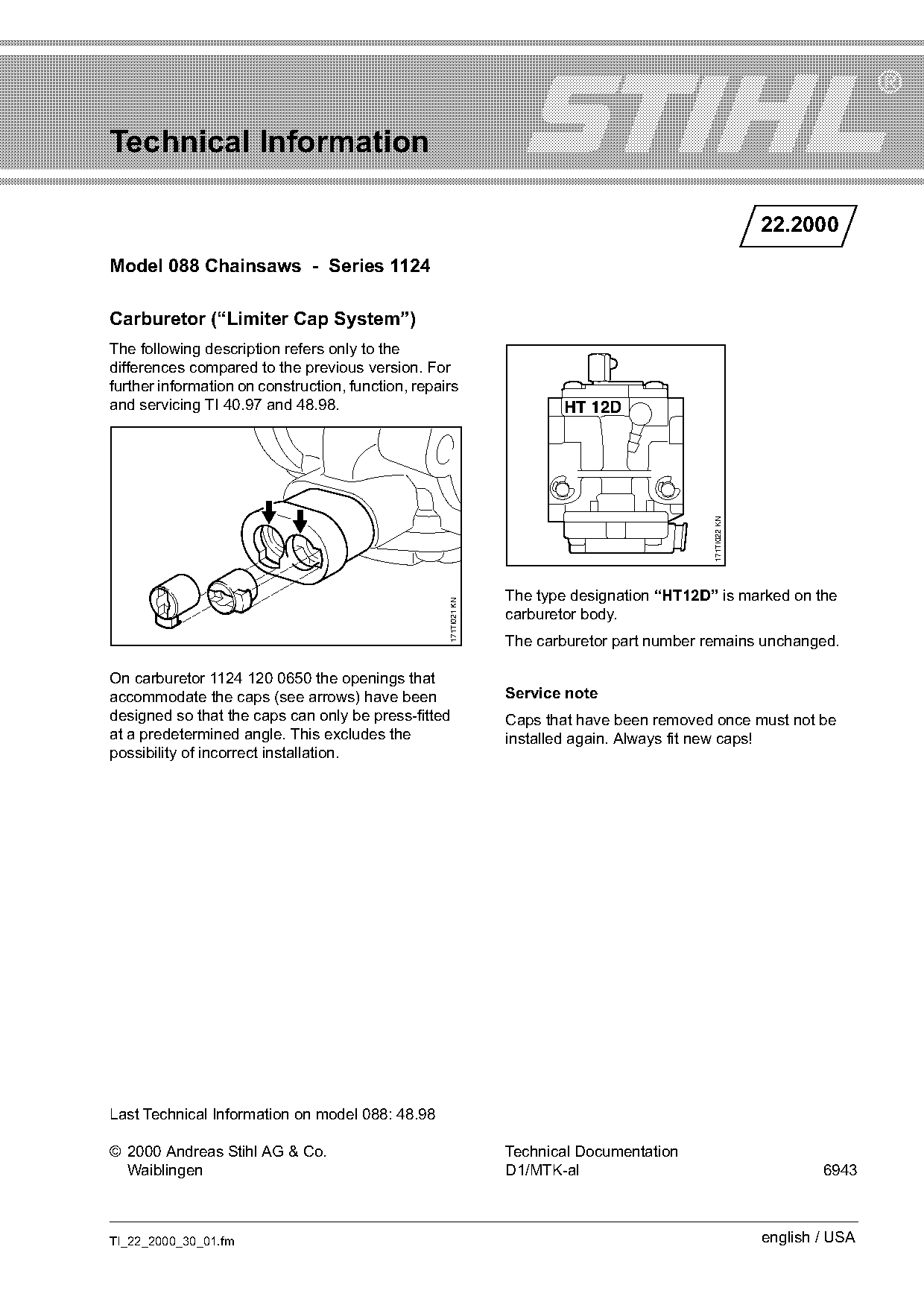

Technical Information
22.2000
Model 088 Chainsaws - Series 1124
Carburetor (“Limiter Cap System”)
The following description refers only to the
differences compared to the previous version. For
further information on construction, function, repairs
and servicing TI 40.97 and 48.98. HT 12D
171TI022 KN
The type designation “HT12D” is marked on the
171TI021 KN
carburetor body.
The carburetor part number remains unchanged.
On carburetor 1124 120 0650 the openings that
accommodate the caps (see arrows) have been Service note
designed so that the caps can only be press-fitted Caps that have been removed once must not be
at a predetermined angle. This excludes the installed again. Always fit new caps!
possibility of incorrect installation.
Last Technical Information on model 088: 48.98
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-al 6943
