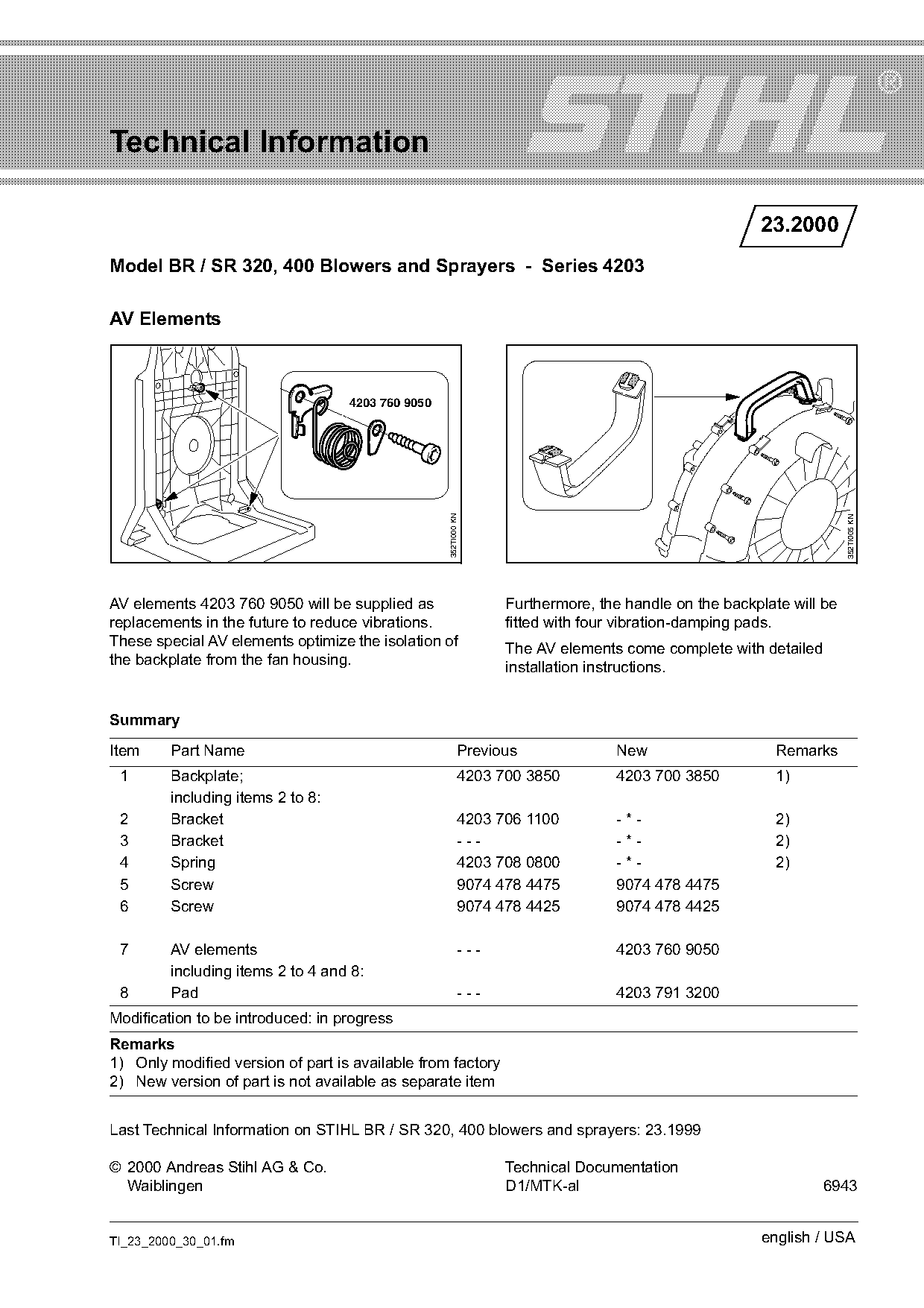

Technical Information
23.2000
Model BR / SR 320, 400 Blowers and Sprayers - Series 4203
AV Elements
4203 760 9050
352TI000 KN
352TI005 KN
AV elements 4203 760 9050 will be supplied as Furthermore, the handle on the backplate will be
replacements in the future to reduce vibrations. fitted with four vibration-damping pads.
These special AV elements optimize the isolation of The AV elements come complete with detailed
the backplate from the fan housing. installation instructions.
Summary
Item Part Name Previous New Remarks
1 Backplate; 4203 700 3850 4203 700 3850 1)
including items 2 to 8:
2 Bracket 4203 706 1100 -*- 2)
3 Bracket --- -*- 2)
4 Spring 4203 708 0800 -*- 2)
5 Screw 9074 478 4475 9074 478 4475
6 Screw 9074 478 4425 9074 478 4425
7 AV elements --- 4203 760 9050
including items 2 to 4 and 8:
8 Pad --- 4203 791 3200
Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from factory
2) New version of part is not available as separate item
Last Technical Information on STIHL BR / SR 320, 400 blowers and sprayers: 23.1999
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-al 6943
