HS 85: Assist handle
Model HS 85 Hedge Trimmers - Series 4226
IssueTI 24/2000
Full text
Page 1 of 2
Text of page 1 — search, copy, screen readers
Technical Information
24.2000
Model HS 85 Hedge Trimmers - Series 4226

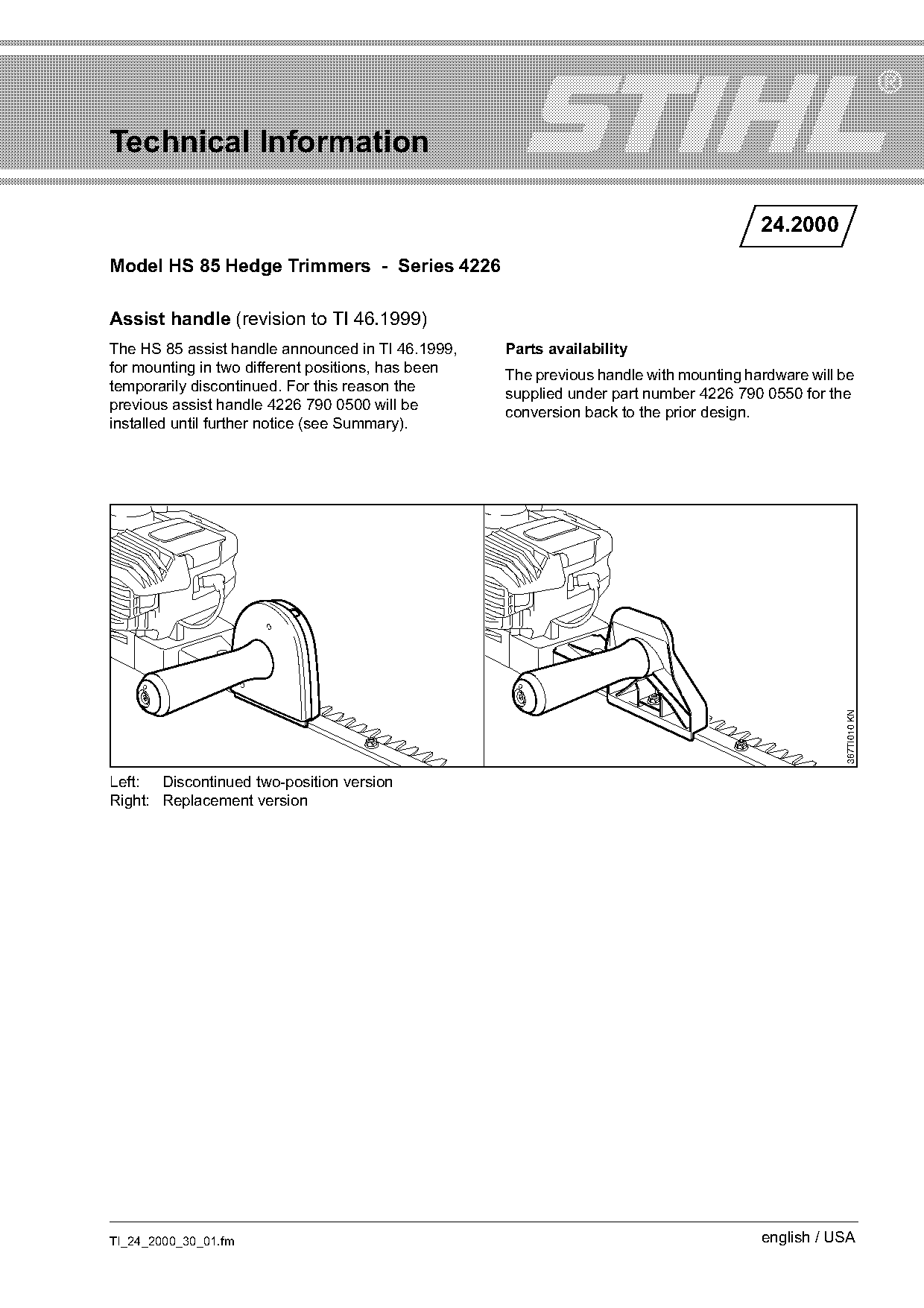

Assist handle (revision to TI 46.1999)
The HS 85 assist handle announced in TI 46.1999, Parts availability
for mounting in two different positions, has been
The previous handle with mounting hardware will be
temporarily discontinued. For this reason the
supplied under part number 4226 790 0550 for the
previous assist handle 4226 790 0500 will be
conversion back to the prior design.
installed until further notice (see Summary).
367TI010 KN
Left: Discontinued two-position version
Right: Replacement version
TI_24_2000_30_01.fm english / USA Page 2 of 2
Text of page 2 — search, copy, screen readers
Page 2 Technical Information 24.2000

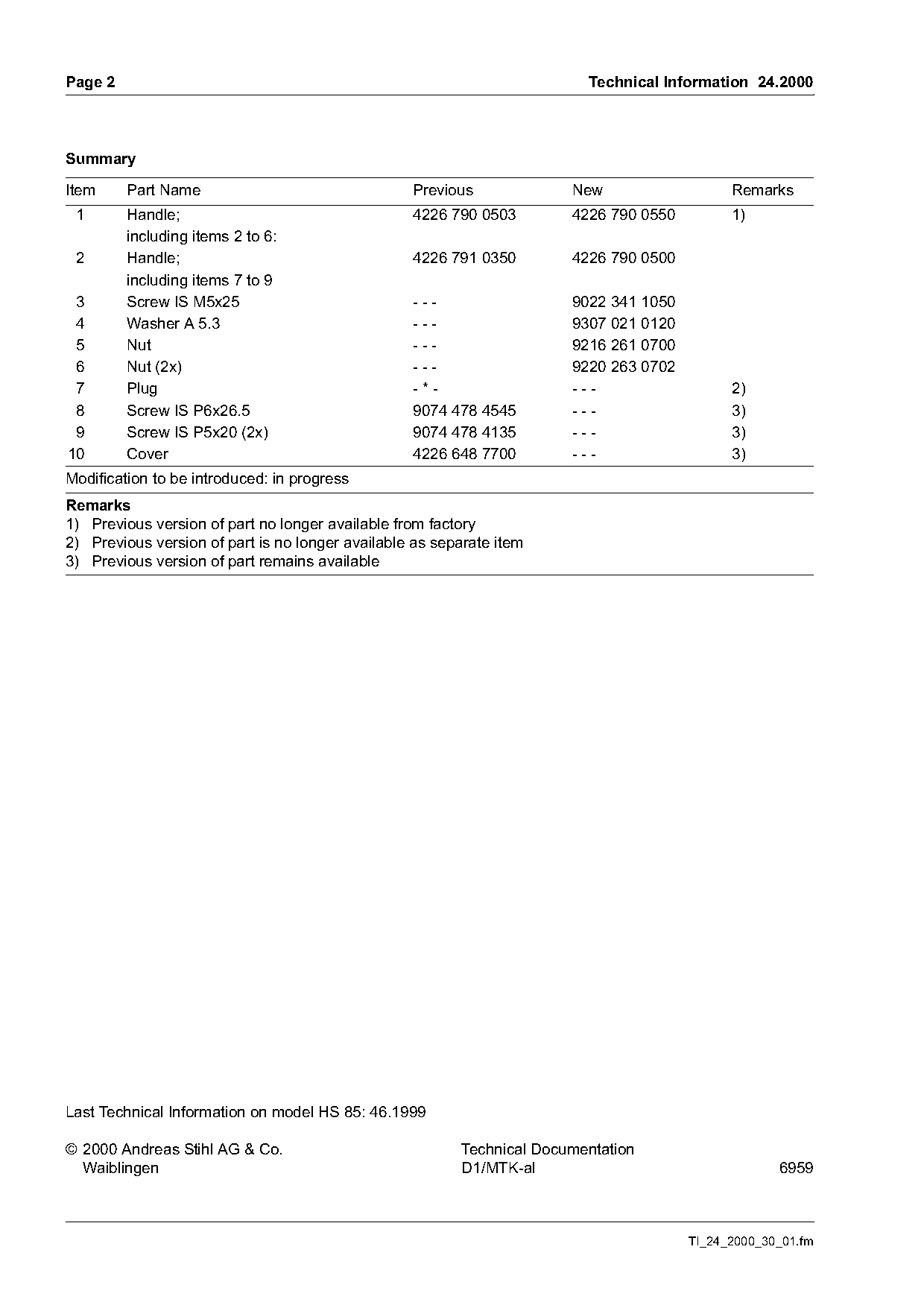

Summary
Item Part Name Previous New Remarks
1 Handle; 4226 790 0503 4226 790 0550 1)
including items 2 to 6:
2 Handle; 4226 791 0350 4226 790 0500
including items 7 to 9
3 Screw IS M5x25 --- 9022 341 1050
4 Washer A 5.3 --- 9307 021 0120
5 Nut --- 9216 261 0700
6 Nut (2x) --- 9220 263 0702
7 Plug -*- --- 2)
8 Screw IS P6x26.5 9074 478 4545 --- 3)
9 Screw IS P5x20 (2x) 9074 478 4135 --- 3)
10 Cover 4226 648 7700 --- 3)
Modification to be introduced: in progress
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part is no longer available as separate item
3) Previous version of part remains available
Last Technical Information on model HS 85: 46.1999
