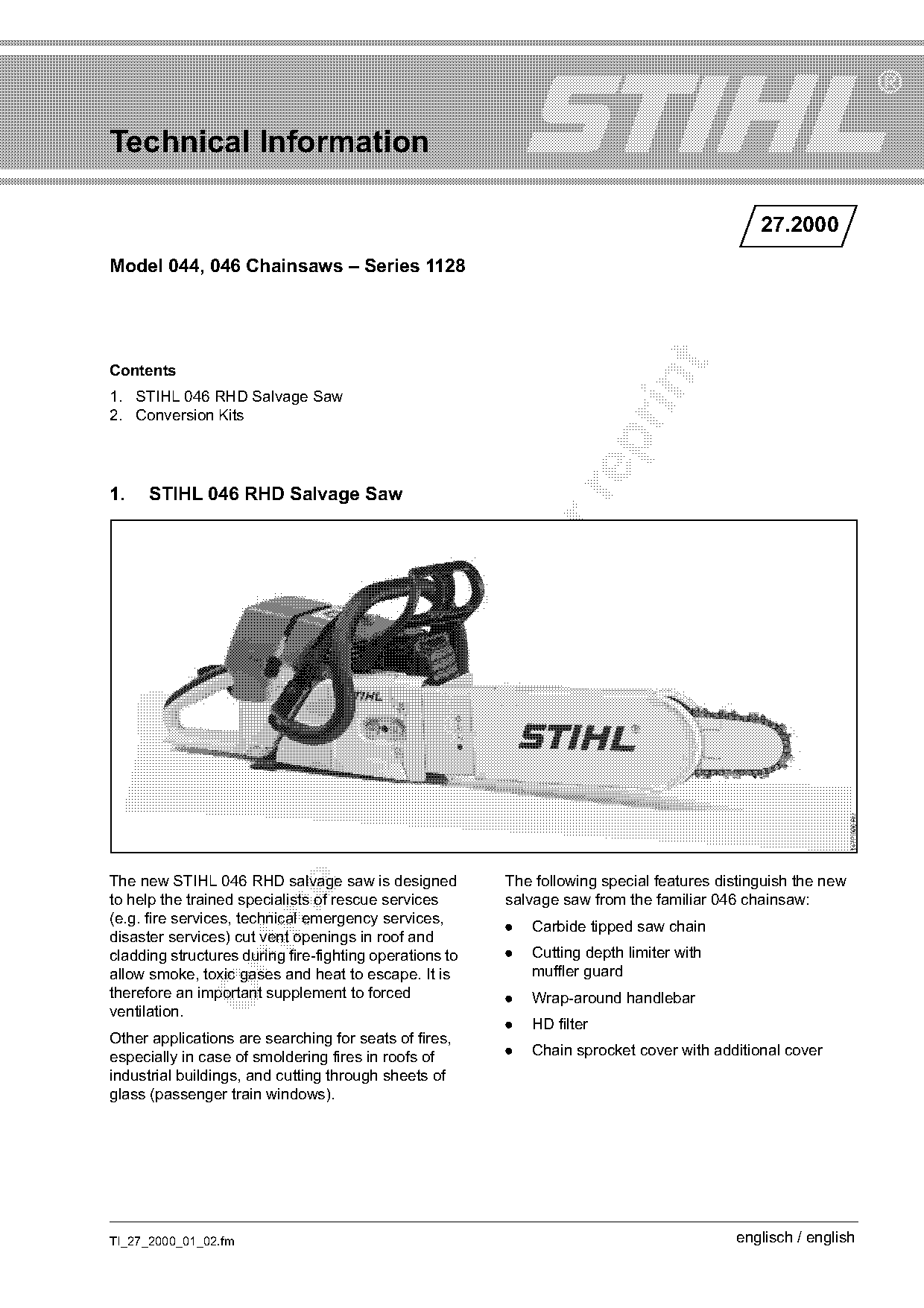

Technical Information
27.2000
Model 044, 046 Chainsaws – Series 1128
Contents
1. STIHL 046 RHD Salvage Saw
2. Conversion Kits
1. STIHL 046 RHD Salvage Saw
The new STIHL 046 RHD salvage saw is designed The following special features distinguish the new
to help the trained specialists of rescue services salvage saw from the familiar 046 chainsaw:
(e.g. fire services, technical emergency services,
. Carbide tipped saw chain
disaster services) cut vent openings in roof and
cladding structures during fire-fighting operations to . Cutting depth limiter with
allow smoke, toxic gases and heat to escape. It is muffler guard
therefore an important supplement to forced . Wrap-around handlebar
ventilation.
. HD filter
Other applications are searching for seats of fires,
especially in case of smoldering fires in roofs of . Chain sprocket cover with additional cover
industrial buildings, and cutting through sheets of
glass (passenger train windows).
TI_27_2000_01_02.fm englisch / english Page 2 of 4
Text of page 2 — search, copy, screen readers

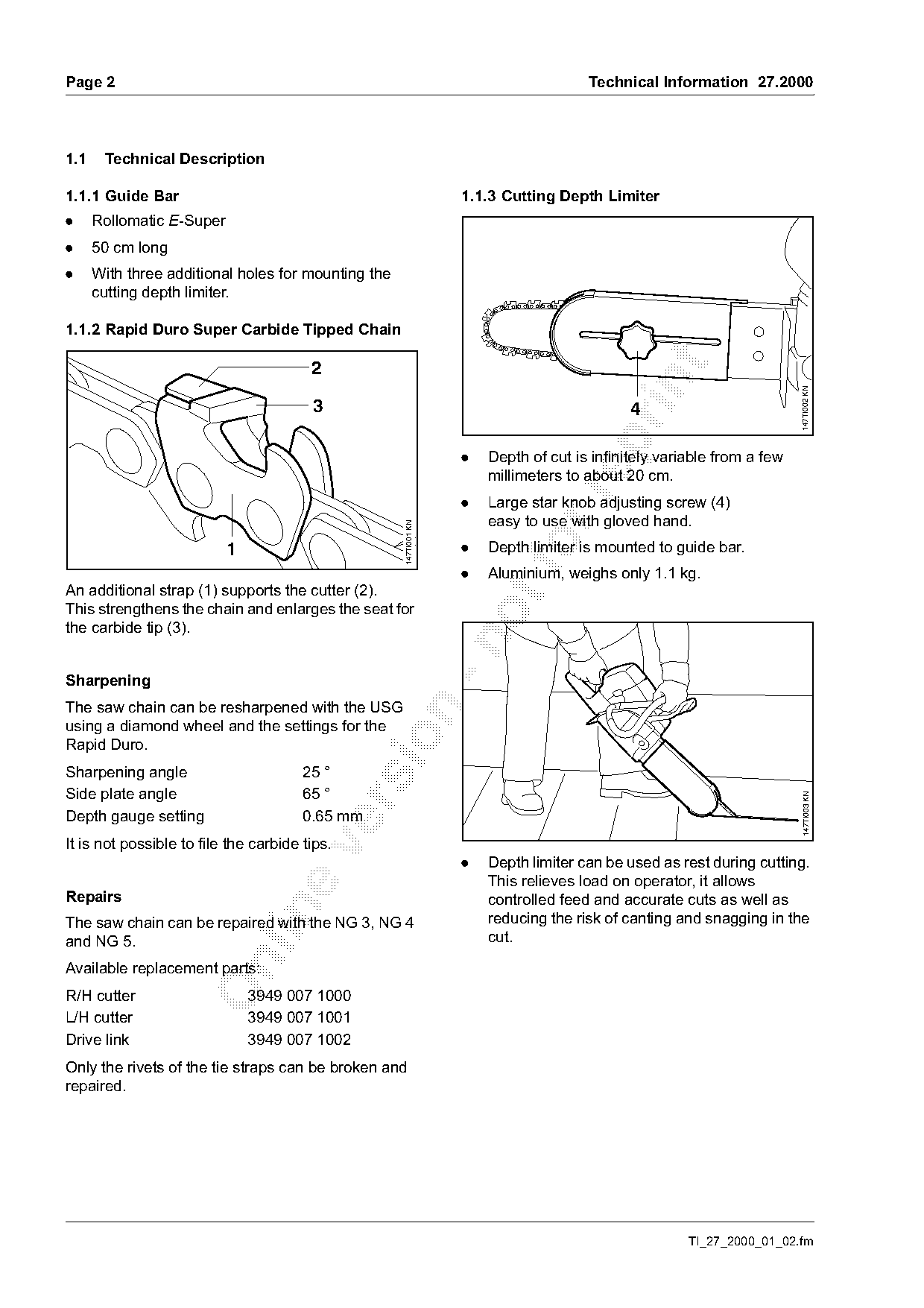

Page 2 Technical Information 27.2000
1.1 Technical Description
1.1.1 Guide Bar 1.1.3 Cutting Depth Limiter
. Rollomatic E-Super
. 50 cm long
. With three additional holes for mounting the
cutting depth limiter.
1.1.2 Rapid Duro Super Carbide Tipped Chain
147TI002 KN
3 4
. Depth of cut is infinitely variable from a few
millimeters to about 20 cm.
. Large star knob adjusting screw (4)
easy to use with gloved hand.
147TI001 KN
1 .
.
Depth limiter is mounted to guide bar.
Aluminium, weighs only 1.1 kg.
An additional strap (1) supports the cutter (2).
This strengthens the chain and enlarges the seat for
the carbide tip (3).
Sharpening
The saw chain can be resharpened with the USG
using a diamond wheel and the settings for the
Rapid Duro.
Sharpening angle 25 °
Side plate angle 65 °
147TI003 KN
Depth gauge setting 0.65 mm
It is not possible to file the carbide tips.
. Depth limiter can be used as rest during cutting.
This relieves load on operator, it allows
Repairs controlled feed and accurate cuts as well as
The saw chain can be repaired with the NG 3, NG 4 reducing the risk of canting and snagging in the
and NG 5. cut.
Available replacement parts:
R/H cutter 3949 007 1000
L/H cutter 3949 007 1001
Drive link 3949 007 1002
Only the rivets of the tie straps can be broken and
repaired.
TI_27_2000_01_02.fm Page 3 of 4
Text of page 3 — search, copy, screen readers

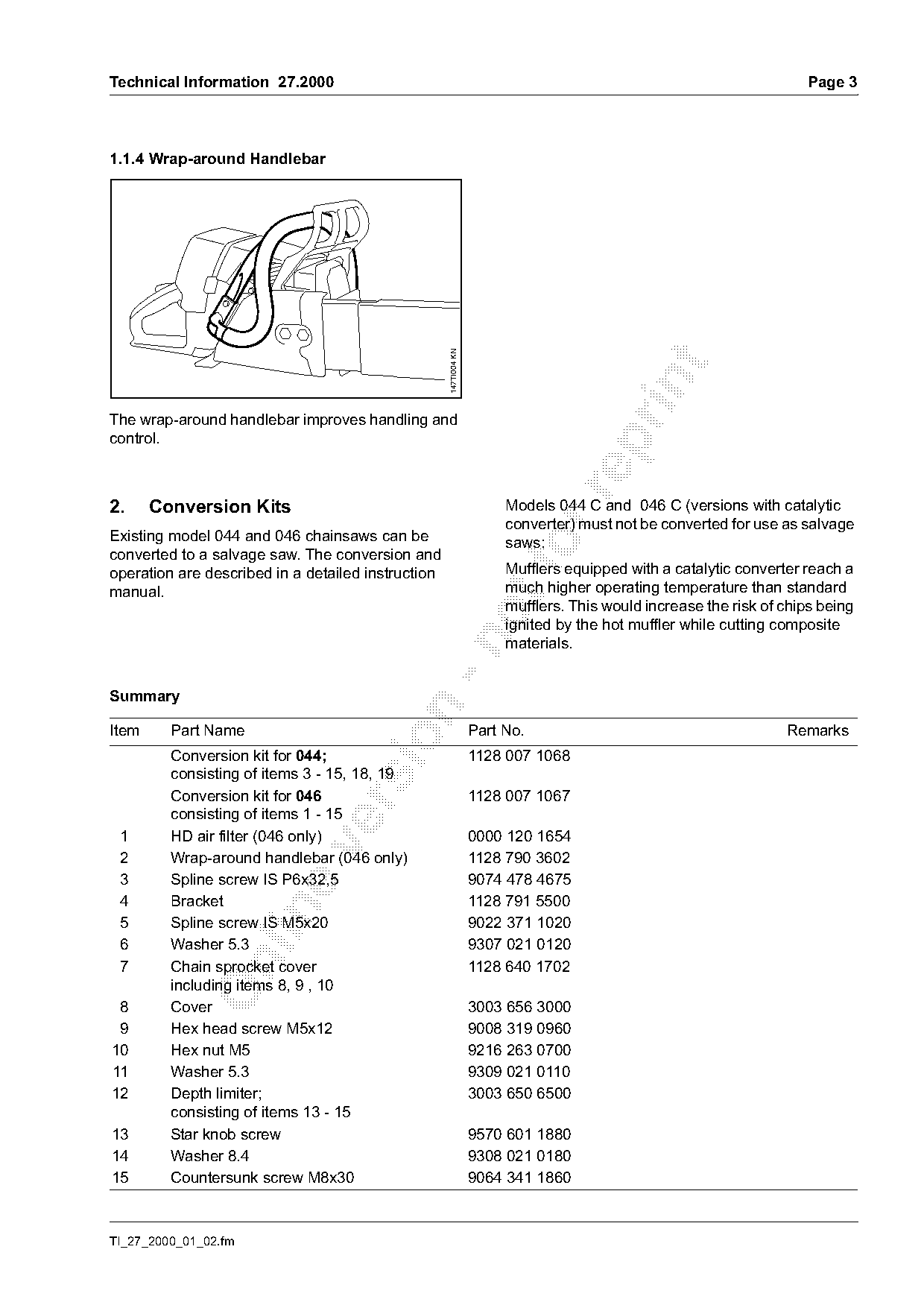

Technical Information 27.2000 Page 3
1.1.4 Wrap-around Handlebar
147TI004 KN
The wrap-around handlebar improves handling and
control.
2. Conversion Kits Models 044 C and 046 C (versions with catalytic
converter) must not be converted for use as salvage
Existing model 044 and 046 chainsaws can be saws:
converted to a salvage saw. The conversion and
operation are described in a detailed instruction
Mufflers equipped with a catalytic converter reach a
manual. much higher operating temperature than standard
mufflers. This would increase the risk of chips being
ignited by the hot muffler while cutting composite
materials.
Summary
Item Part Name Part No. Remarks
Conversion kit for 044; 1128 007 1068
consisting of items 3 - 15, 18, 19
Conversion kit for 046 1128 007 1067
consisting of items 1 - 15
1 HD air filter (046 only) 0000 120 1654
2 Wrap-around handlebar (046 only) 1128 790 3602
3 Spline screw IS P6x32,5 9074 478 4675
4 Bracket 1128 791 5500
5 Spline screw IS M5x20 9022 371 1020
6 Washer 5.3 9307 021 0120
7 Chain sprocket cover 1128 640 1702
including items 8, 9 , 10
8 Cover 3003 656 3000
9 Hex head screw M5x12 9008 319 0960
10 Hex nut M5 9216 263 0700
11 Washer 5.3 9309 021 0110
12 Depth limiter; 3003 650 6500
consisting of items 13 - 15
13 Star knob screw 9570 601 1880
14 Washer 8.4 9308 021 0180
15 Countersunk screw M8x30 9064 341 1860
TI_27_2000_01_02.fm Page 4 of 4
Text of page 4 — search, copy, screen readers

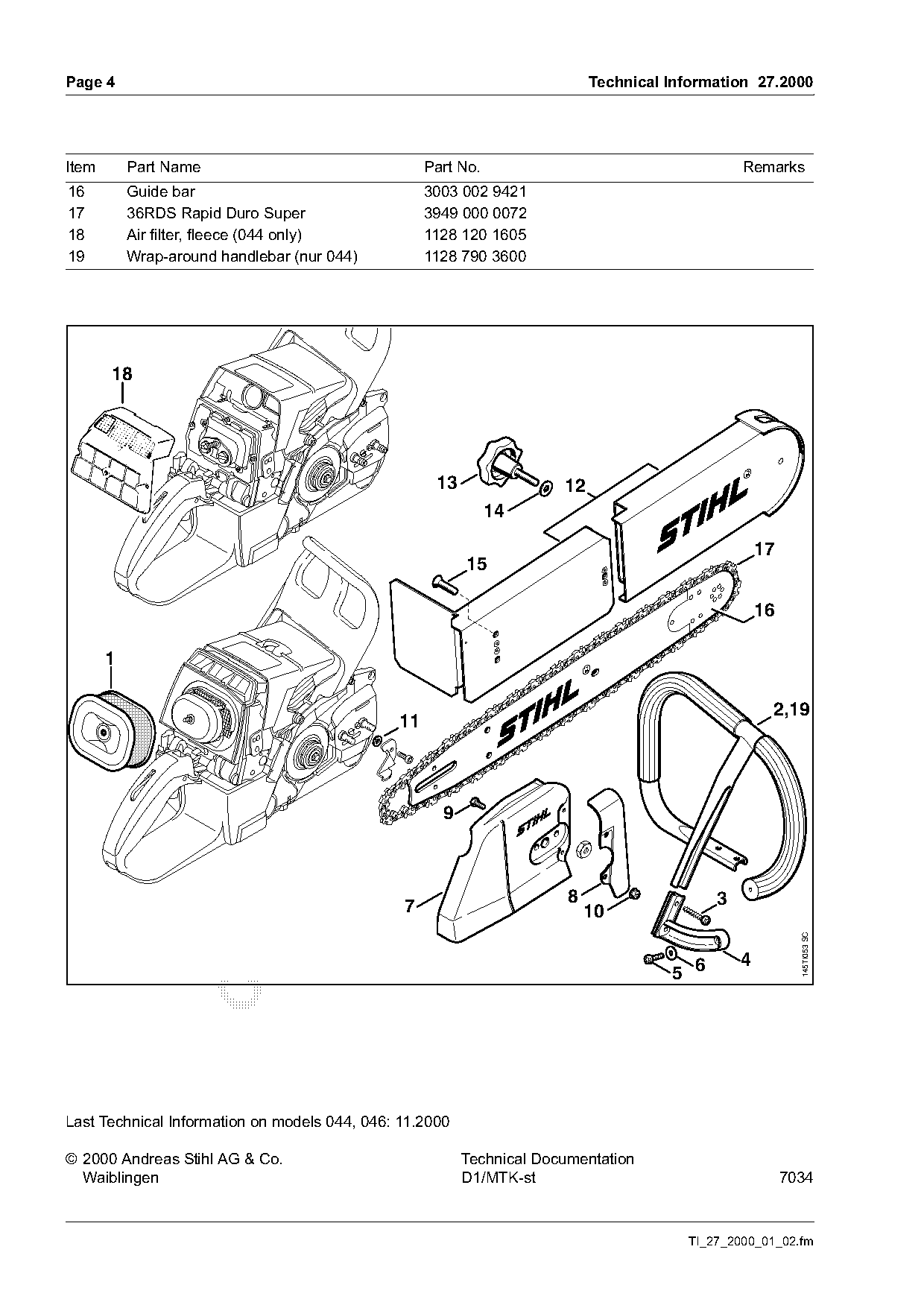

Page 4 Technical Information 27.2000
Item Part Name Part No. Remarks
16 Guide bar 3003 002 9421
17 36RDS Rapid Duro Super 3949 000 0072
18 Air filter, fleece (044 only) 1128 120 1605
19 Wrap-around handlebar (nur 044) 1128 790 3600
13 12
15
fo 17
16
2,19
11
8 3
7
10
145TI053 SC
5 6
Last Technical Information on models 044, 046: 11.2000
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-st 7034
