Technical Information · issue 31 of 2000
Clutch (cover washer); Tank housing (tank vent); p
Model 024, 026 Chainsaws - Series 1121
IssueTI 31/2000
Engine family 1121
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1121 358 1800 | 1122 358 1800 | The previous sintered filter 2 3 1121 358 1800 will be replaced by the version 5 1122 358 1800. |
Full text

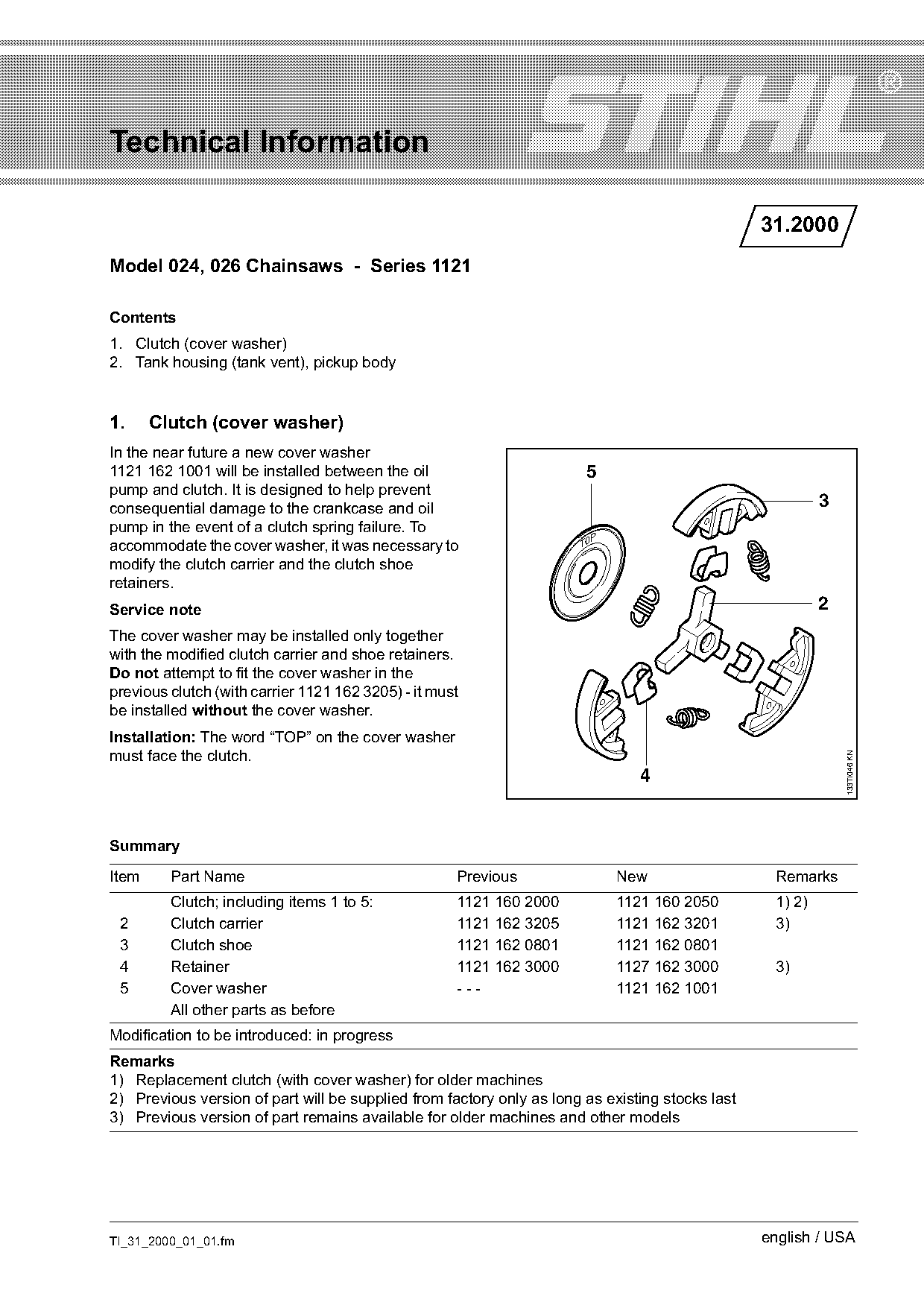

Page 1 of 2
Technical Information
31.2000
Model 024, 026 Chainsaws - Series 1121
Contents
1. Clutch (cover washer)
2. Tank housing (tank vent), pickup body
1. Clutch (cover washer)
In the near future a new cover washer
1121 162 1001 will be installed between the oil 5
pump and clutch. It is designed to help prevent
consequential damage to the crankcase and oil 3
pump in the event of a clutch spring failure. To
accommodate the cover washer, it was necessary to T0
modify the clutch carrier and the clutch shoe
retainers.
Service note 2
The cover washer may be installed only together
with the modified clutch carrier and shoe retainers.
Do not attempt to fit the cover washer in the
previous clutch (with carrier 1121 162 3205) - it must
be installed without the cover washer.
Installation: The word “TOP” on the cover washer
must face the clutch.
133TI046 KN
4
Summary
Item Part Name Previous New Remarks
Clutch; including items 1 to 5: 1121 160 2000 1121 160 2050 1) 2)
2 Clutch carrier 1121 162 3205 1121 162 3201 3)
3 Clutch shoe 1121 162 0801 1121 162 0801
4 Retainer 1121 162 3000 1127 162 3000 3)
5 Cover washer --- 1121 162 1001
All other parts as before
Modification to be introduced: in progress
Remarks
1) Replacement clutch (with cover washer) for older machines
2) Previous version of part will be supplied from factory only as long as existing stocks last
3) Previous version of part remains available for older machines and other models
TI_31_2000_01_01.fm english / USA

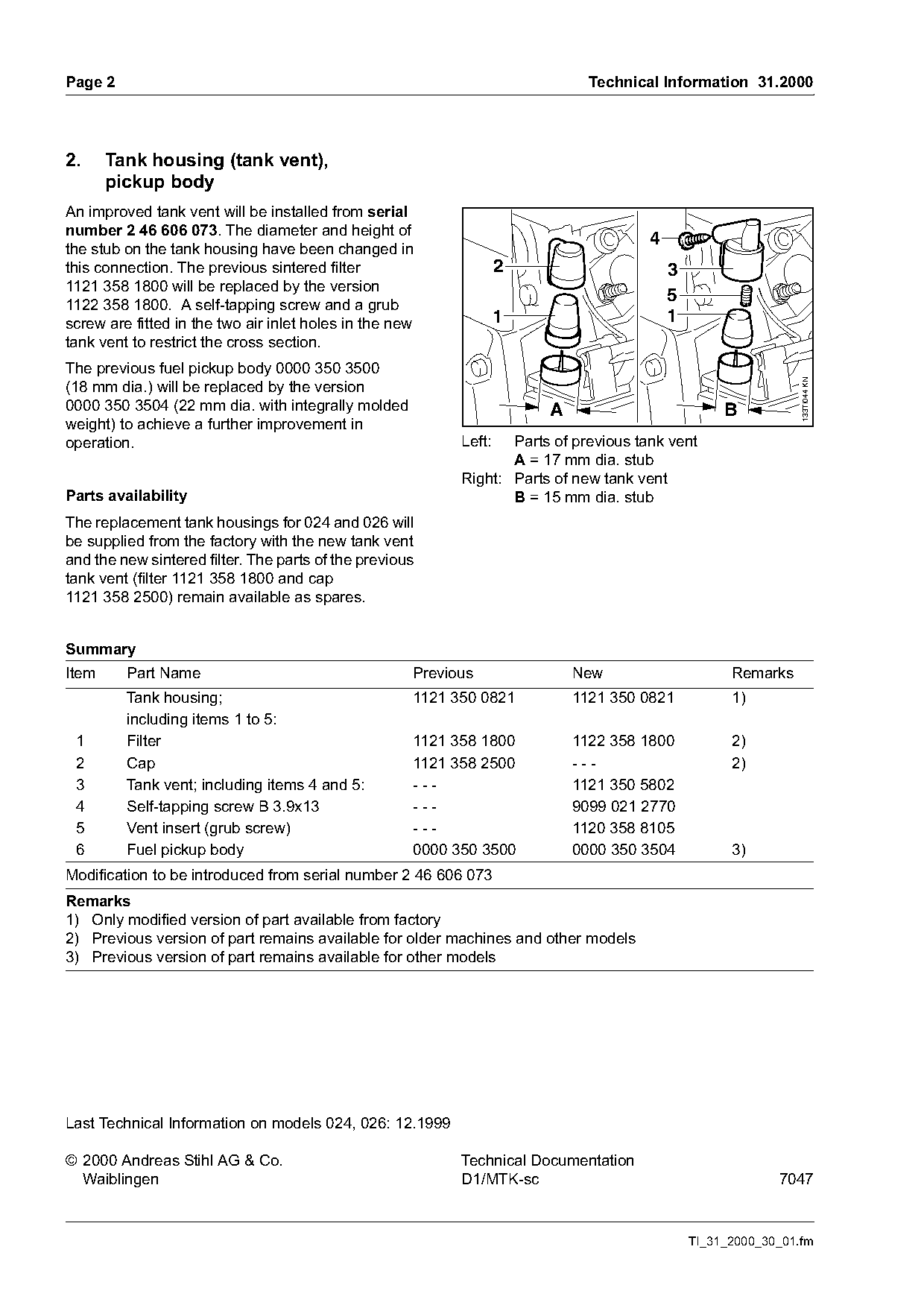

)m~ge 2 Technical Information 31.2000
2. Tank housing (tank vent),
pickup body
An improved tank vent will be installed from serial
number 2 46 606 073. The diameter and height of
4
the stub on the tank housing have been changed in
this connection. The previous sintered filter 2 3
1121 358 1800 will be replaced by the version
5
1122 358 1800. A self-tapping screw and a grub
screw are fitted in the two air inlet holes in the new 1 1
tank vent to restrict the cross section.
The previous fuel pickup body 0000 350 3500
133TI044 KN
(18 mm dia.) will be replaced by the version
0000 350 3504 (22 mm dia. with integrally molded A B
weight) to achieve a further improvement in
operation. Left: Parts of previous tank vent
A = 17 mm dia. stub
Right: Parts of new tank vent
Parts availability B = 15 mm dia. stub
The replacement tank housings for 024 and 026 will
be supplied from the factory with the new tank vent
and the new sintered filter. The parts of the previous
tank vent (filter 1121 358 1800 and cap
1121 358 2500) remain available as spares.
Summary
Item Part Name Previous New Remarks
Tank housing; 1121 350 0821 1121 350 0821 1)
including items 1 to 5:
1 Filter 1121 358 1800 1122 358 1800 2)
2 Cap 1121 358 2500 --- 2)
3 Tank vent; including items 4 and 5: --- 1121 350 5802
4 Self-tapping screw B 3.9x13 --- 9099 021 2770
5 Vent insert (grub screw) --- 1120 358 8105
6 Fuel pickup body 0000 350 3500 0000 350 3504 3)
Modification to be introduced from serial number 2 46 606 073
Remarks
1) Only modified version of part available from factory
2) Previous version of part remains available for older machines and other models
3) Previous version of part remains available for other models
Last Technical Information on models 024, 026: 12.1999
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 7047
TI_31_2000_30_01.fm Page 2 of 2
