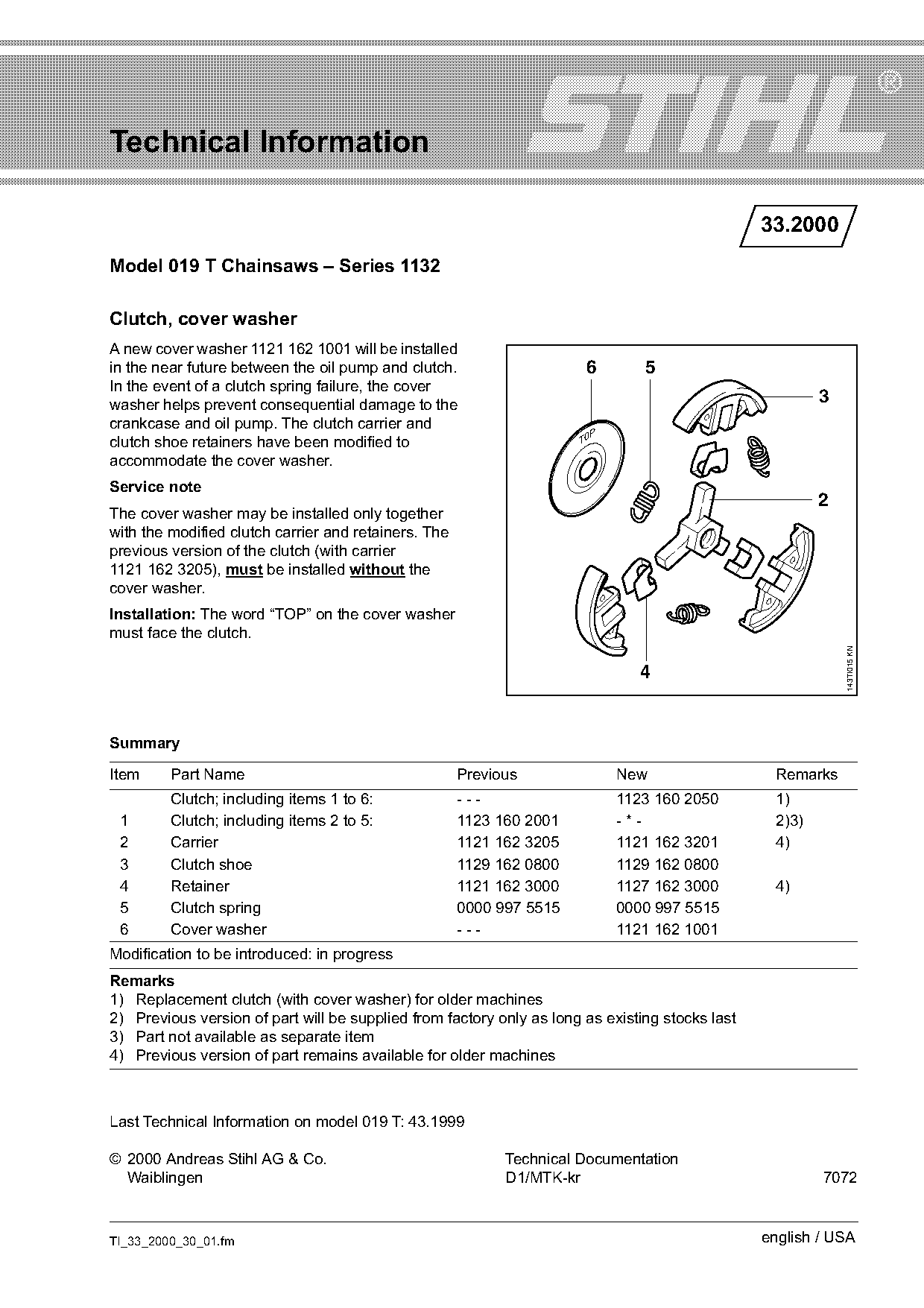

Model 019 T Chainsaws – Series 1132
Clutch, cover washer
A new cover washer 1121 162 1001 will be installed
in the near future between the oil pump and clutch. 6 5
In the event of a clutch spring failure, the cover
washer helps prevent consequential damage to the 3
crankcase and oil pump. The clutch carrier and
clutch shoe retainers have been modified to T0
accommodate the cover washer.
Service note
2
The cover washer may be installed only together
with the modified clutch carrier and retainers. The
previous version of the clutch (with carrier
1121 162 3205), must be installed without the
cover washer.
Installation: The word “TOP” on the cover washer
must face the clutch.
143TI015 KN
4
Summary
Item Part Name Previous New Remarks
Clutch; including items 1 to 6: --- 1123 160 2050 1)
1 Clutch; including items 2 to 5: 1123 160 2001 -*- 2)3)
2 Carrier 1121 162 3205 1121 162 3201 4)
3 Clutch shoe 1129 162 0800 1129 162 0800
4 Retainer 1121 162 3000 1127 162 3000 4)
5 Clutch spring 0000 997 5515 0000 997 5515
6 Cover washer --- 1121 162 1001
Modification to be introduced: in progress
Remarks
1) Replacement clutch (with cover washer) for older machines
2) Previous version of part will be supplied from factory only as long as existing stocks last
3) Part not available as separate item
4) Previous version of part remains available for older machines
Last Technical Information on model 019 T: 43.1999
