Technical Information · issue 36 of 2000
Fuel Pickup Body; Chain Sprocket Cover
Model 064, 066 Chainsaws – Series 1122
IssueTI 36/2000
Engine family 1122
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1125 640 1701 | 1122 640 1702 | Chain Sprocket Cover Chain sprocket cover 1125 640 1701 will be replaced by the new further improved version 1122 640 1702. |
Full text
Page 1 of 2

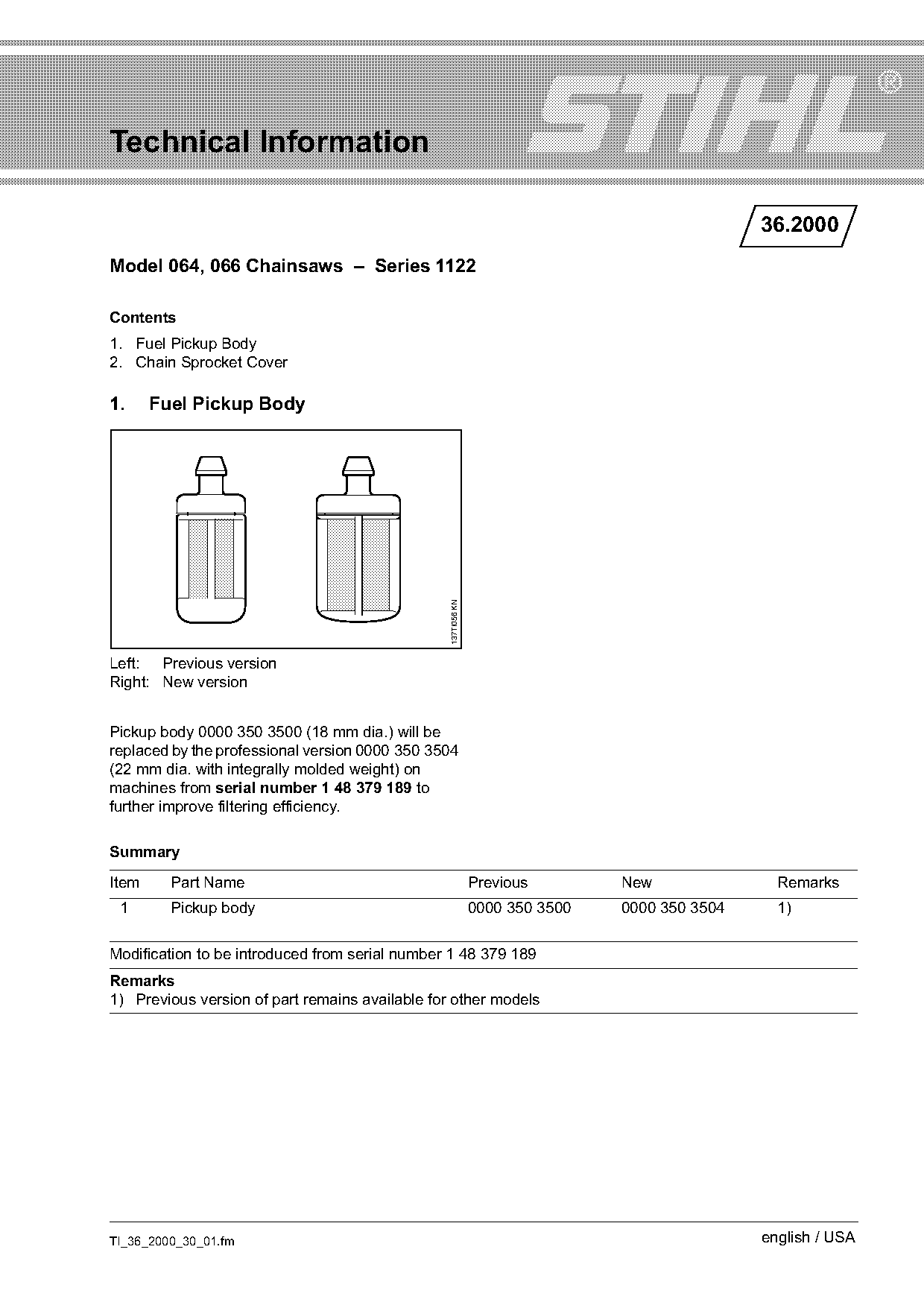

Technical Information
36.2000
Model 064, 066 Chainsaws – Series 1122
Contents
1. Fuel Pickup Body
2. Chain Sprocket Cover
1. Fuel Pickup Body
137TI056 KN
Left: Previous version
Right: New version
Pickup body 0000 350 3500 (18 mm dia.) will be
replaced by the professional version 0000 350 3504
(22 mm dia. with integrally molded weight) on
machines from serial number 1 48 379 189 to
further improve filtering efficiency.
Summary
Item Part Name Previous New Remarks
1 Pickup body 0000 350 3500 0000 350 3504 1)
Modification to be introduced from serial number 1 48 379 189
Remarks
1) Previous version of part remains available for other models
TI_36_2000_30_01.fm english / USA
)m~ge 2 Technical Information 36.2000

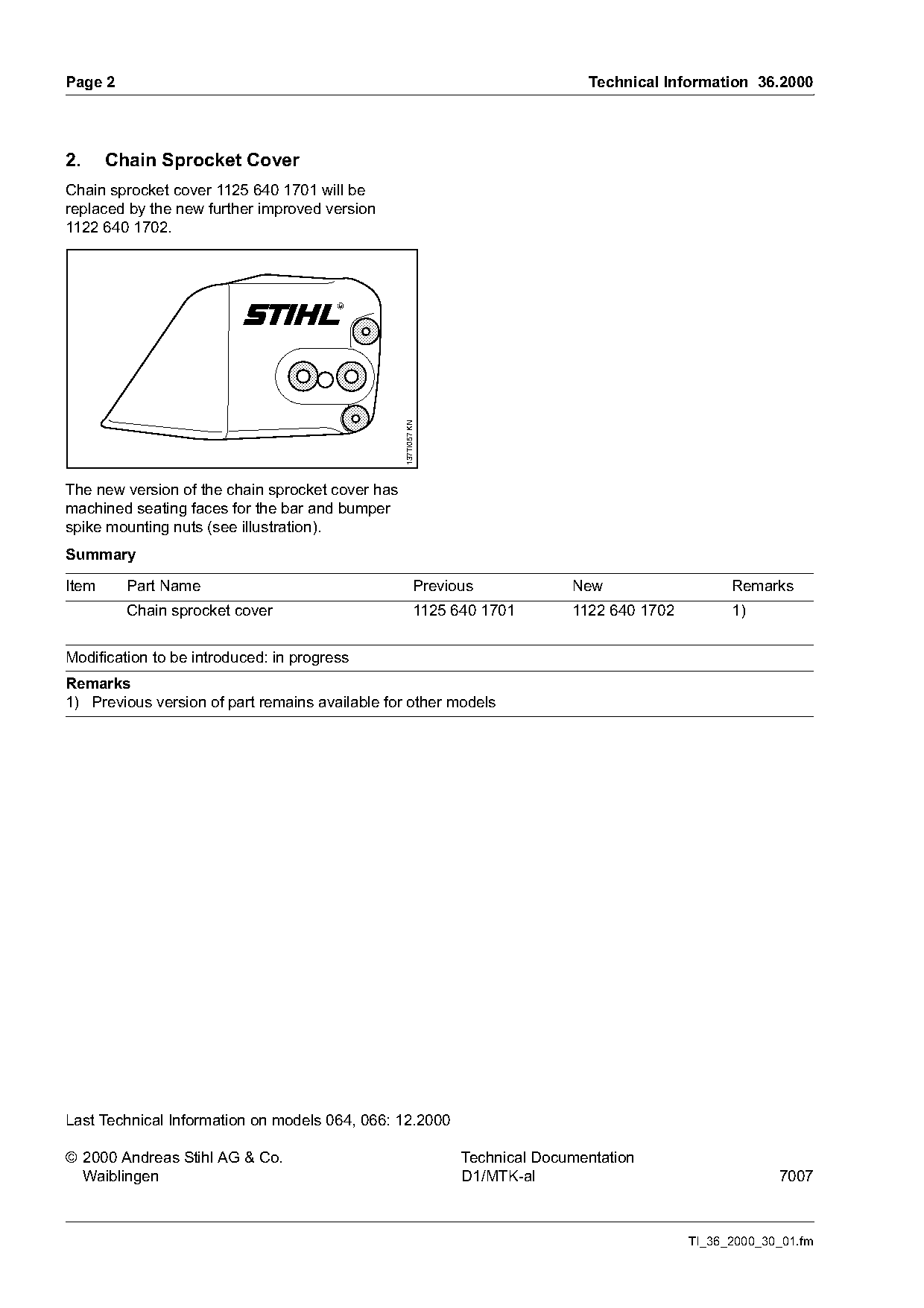

2. Chain Sprocket Cover
Chain sprocket cover 1125 640 1701 will be
replaced by the new further improved version
1122 640 1702.
137TI057 KN
The new version of the chain sprocket cover has
machined seating faces for the bar and bumper
spike mounting nuts (see illustration).
Summary
Item Part Name Previous New Remarks
Chain sprocket cover 1125 640 1701 1122 640 1702 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available for other models
Last Technical Information on models 064, 066: 12.2000
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-al 7007
TI_36_2000_30_01.fm Page 2 of 2
