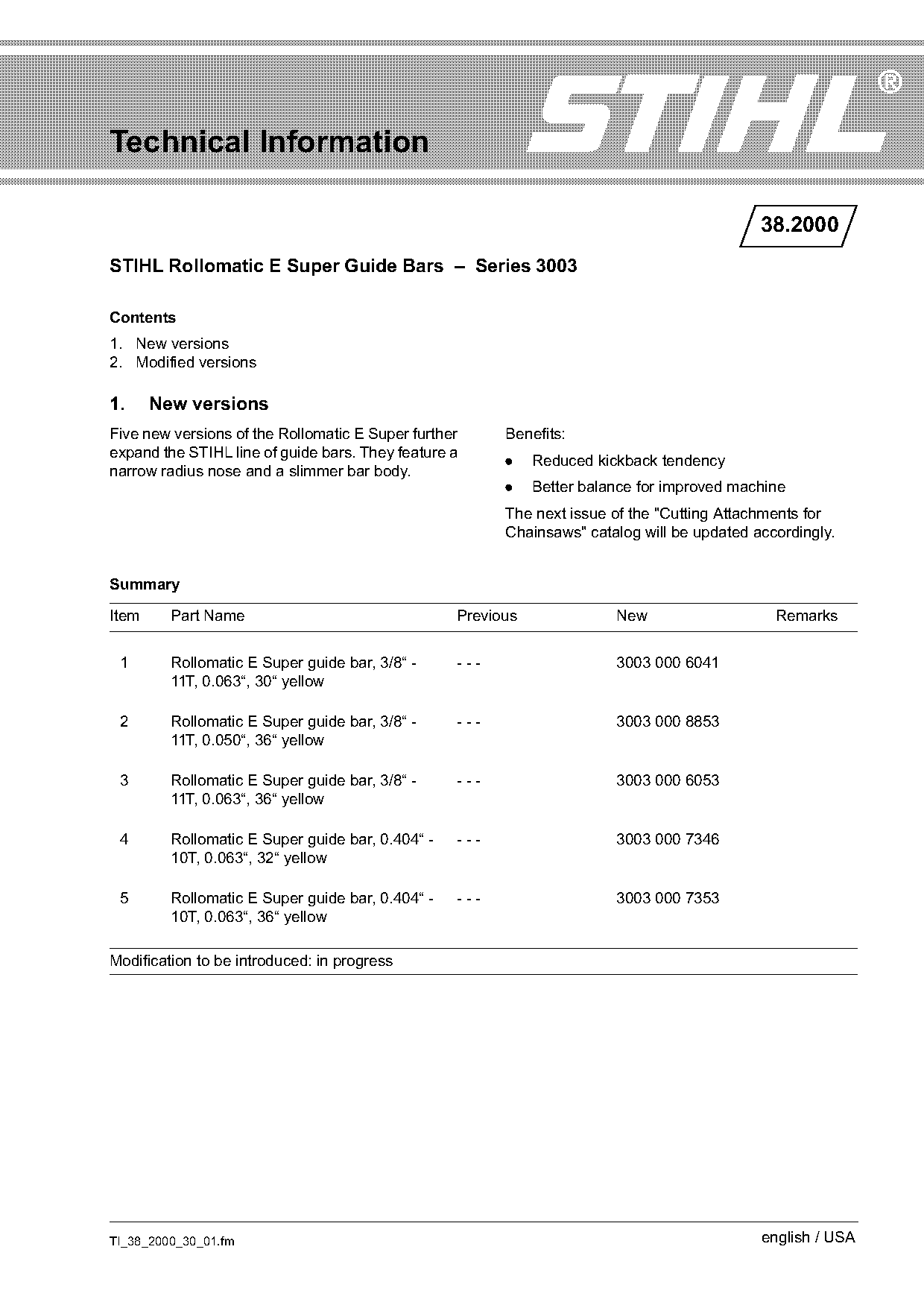

STIHL Rollomatic E Super Guide Bars – Series 3003
Contents
1. New versions
2. Modified versions
1. New versions
Five new versions of the Rollomatic E Super further Benefits:
expand the STIHL line of guide bars. They feature a . Reduced kickback tendency
narrow radius nose and a slimmer bar body.
. Better balance for improved machine
The next issue of the "Cutting Attachments for
Chainsaws" catalog will be updated accordingly.
Summary
Item Part Name Previous New Remarks
1 Rollomatic E Super guide bar, 3/8“ - --- 3003 000 6041
11T, 0.063“, 30“ yellow
2 Rollomatic E Super guide bar, 3/8“ - --- 3003 000 8853
11T, 0.050“, 36“ yellow
3 Rollomatic E Super guide bar, 3/8“ - --- 3003 000 6053
11T, 0.063“, 36“ yellow
4 Rollomatic E Super guide bar, 0.404“ - --- 3003 000 7346
10T, 0.063“, 32“ yellow
5 Rollomatic E Super guide bar, 0.404“ - --- 3003 000 7353
10T, 0.063“, 36“ yellow
Modification to be introduced: in progress
TI_38_2000_30_01.fm english / USA
)m~ge 2 Technical Information 38.2000

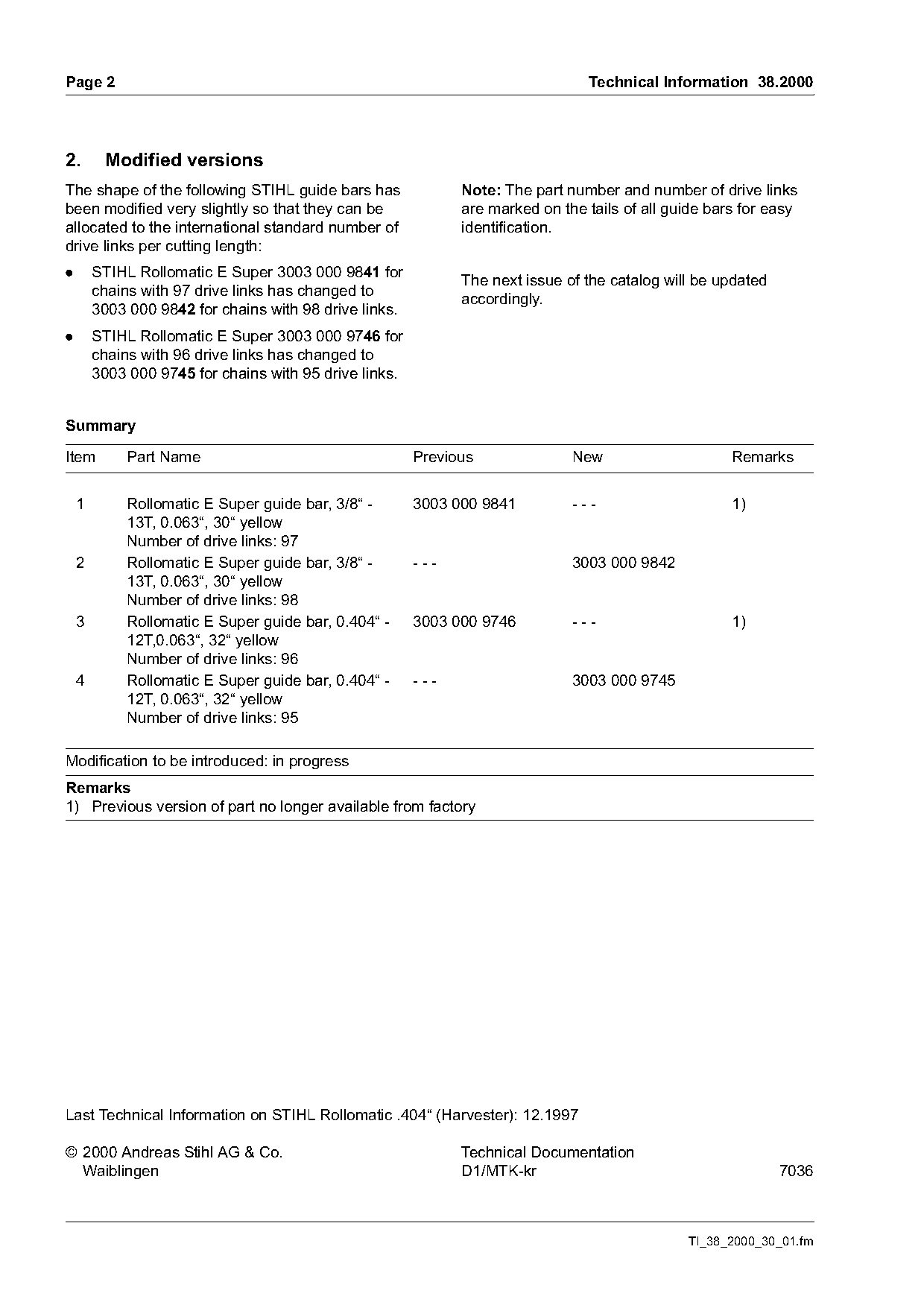

2. Modified versions
The shape of the following STIHL guide bars has Note: The part number and number of drive links
been modified very slightly so that they can be are marked on the tails of all guide bars for easy
allocated to the international standard number of identification.
drive links per cutting length:
. STIHL Rollomatic E Super 3003 000 9841 for
The next issue of the catalog will be updated
chains with 97 drive links has changed to
accordingly.
3003 000 9842 for chains with 98 drive links.
. STIHL Rollomatic E Super 3003 000 9746 for
chains with 96 drive links has changed to
3003 000 9745 for chains with 95 drive links.
Summary
Item Part Name Previous New Remarks
1 Rollomatic E Super guide bar, 3/8“ - 3003 000 9841 --- 1)
13T, 0.063“, 30“ yellow
Number of drive links: 97
2 Rollomatic E Super guide bar, 3/8“ - --- 3003 000 9842
13T, 0.063“, 30“ yellow
Number of drive links: 98
3 Rollomatic E Super guide bar, 0.404“ - 3003 000 9746 --- 1)
12T,0.063“, 32“ yellow
Number of drive links: 96
4 Rollomatic E Super guide bar, 0.404“ - --- 3003 000 9745
12T, 0.063“, 32“ yellow
Number of drive links: 95
Modification to be introduced: in progress
Remarks
1) Previous version of part no longer available from factory
Last Technical Information on STIHL Rollomatic .404“ (Harvester): 12.1997
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-kr 7036
