Technical Information · issue 39 of 2000

New Model STIHL FC 83 Power Edger

IssueTI 39/2000

Full text

Page 1 of 8

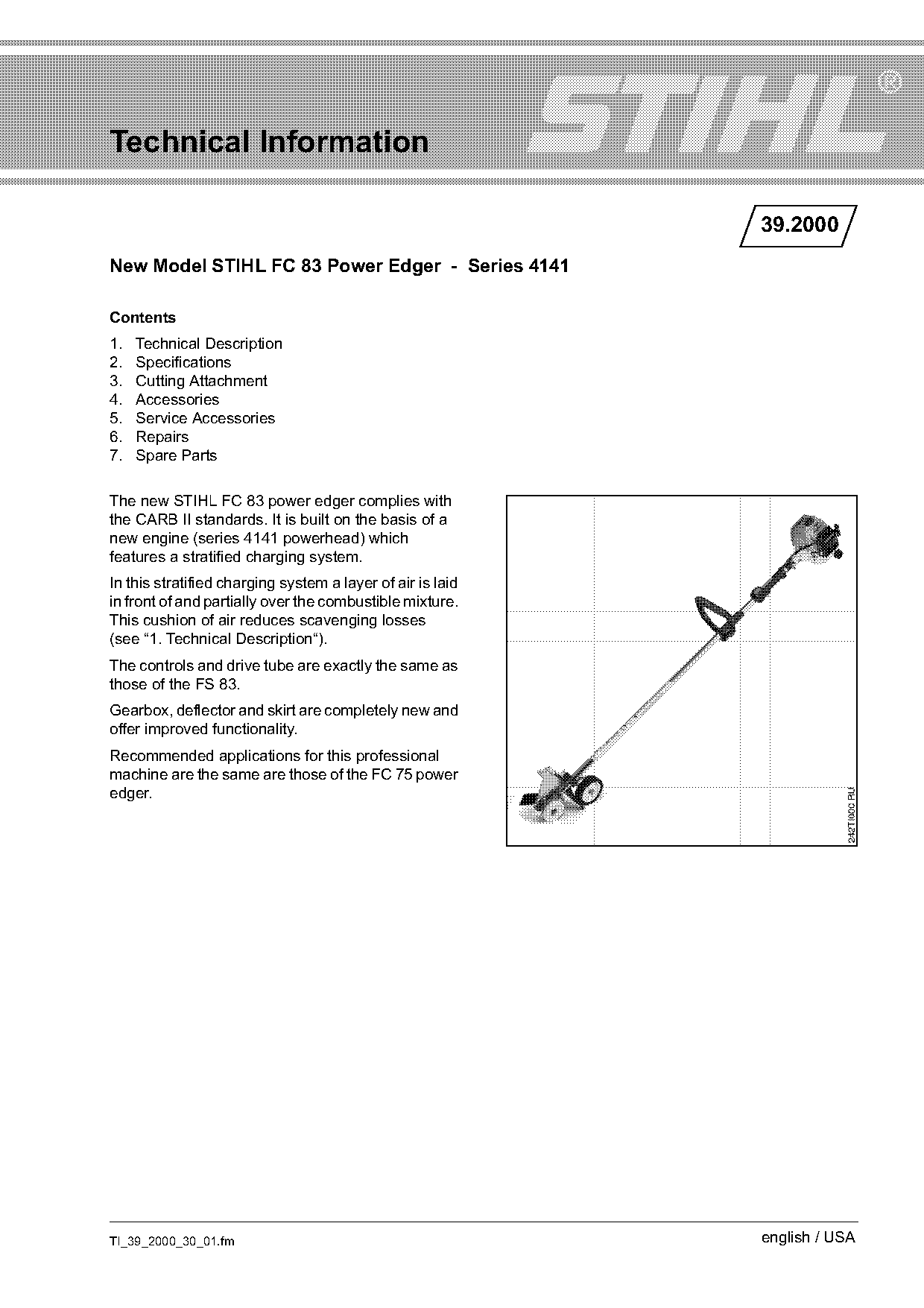

TI 39/2000 page 1
Technical Information

                                                            39.2000
New Model STIHL FC 83 Power Edger - Series 4141

Contents
1.   Technical Description
2.   Specifications
3.   Cutting Attachment
4.   Accessories
5.   Service Accessories
6.   Repairs
7.   Spare Parts

The new STIHL FC 83 power edger complies with
the CARB II standards. It is built on the basis of a
new engine (series 4141 powerhead) which
features a stratified charging system.
In this stratified charging system a layer of air is laid
in front of and partially over the combustible mixture.
This cushion of air reduces scavenging losses
(see “1. Technical Description“).
The controls and drive tube are exactly the same as
those of the FS 83.
Gearbox, deflector and skirt are completely new and
offer improved functionality.
Recommended applications for this professional
machine are the same are those of the FC 75 power
edger.

TI_39_2000_30_01.fm                                         english / USA
)m~ge 2                                                                               Technical Information 39.2000

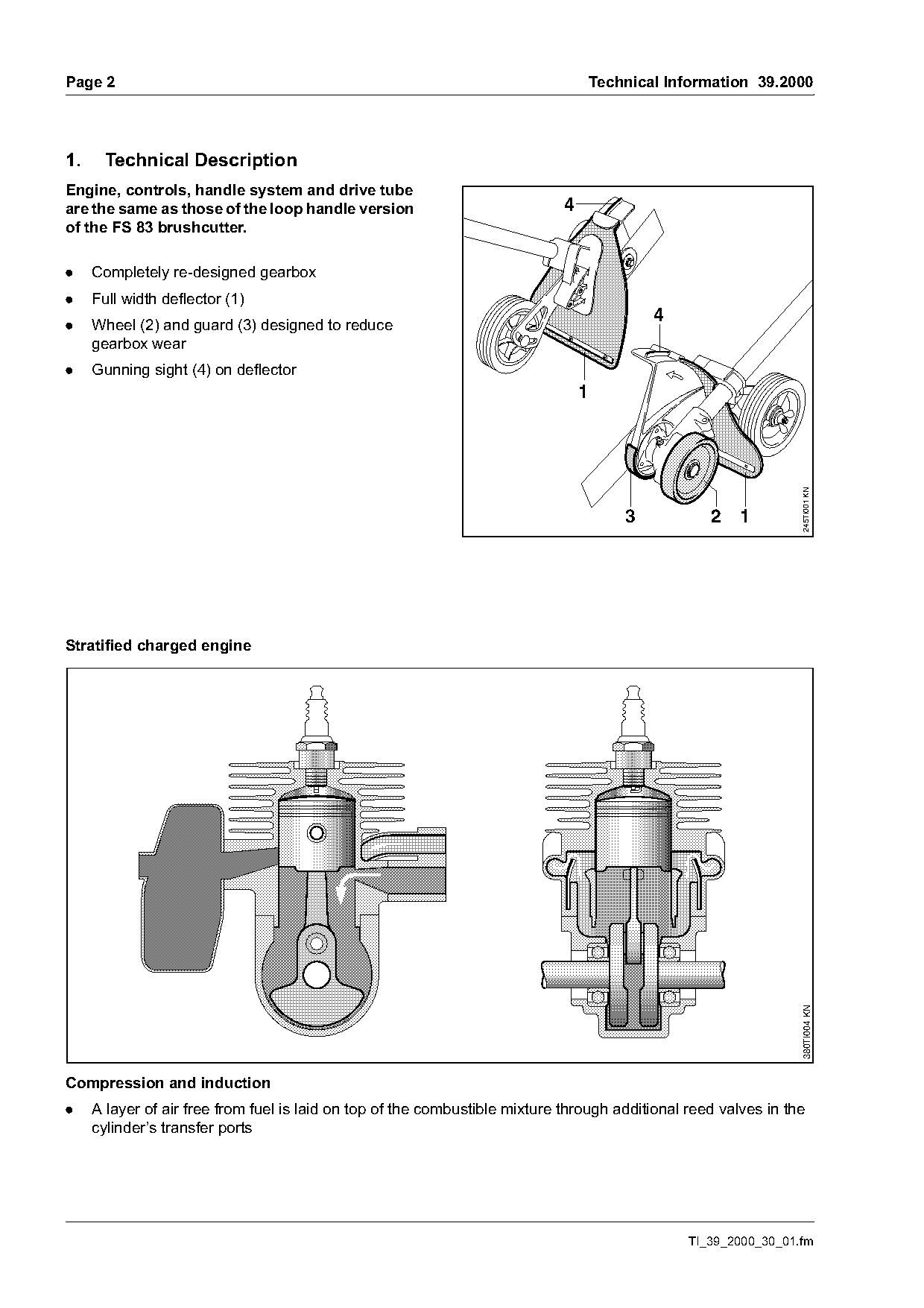

1.     Technical Description
Engine, controls, handle system and drive tube
are the same as those of the loop handle version                             4
of the FS 83 brushcutter.

.    Completely re-designed gearbox
.    Full width deflector (1)
.    Wheel (2) and guard (3) designed to reduce
                                                                                             4
     gearbox wear
.    Gunning sight (4) on deflector
                                                                                 1

                                                                                                                  245TI001 KN
                                                                                         3          2   1

Stratified charged engine

                                                                                                                  380TI004 KN

Compression and induction
.    A layer of air free from fuel is laid on top of the combustible mixture through additional reed valves in the
     cylinder’s transfer ports

                                                                                                 TI_39_2000_30_01.fm

Page 2 of 8

TI 39/2000 page 2
Technical Information 39.2000                                                                         Page 3

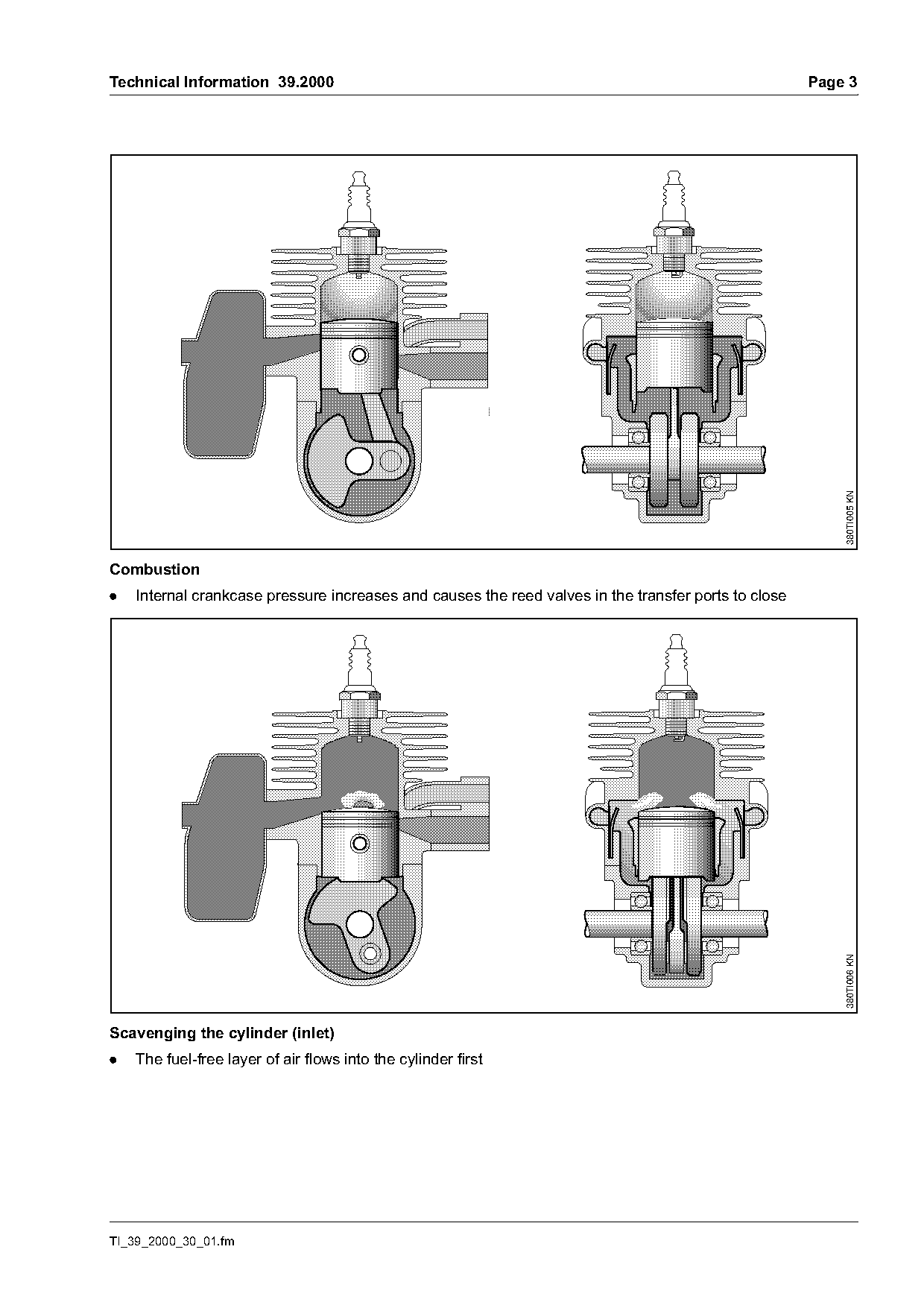

                                                                                                          380TI005 KN
Combustion
.   Internal crankcase pressure increases and causes the reed valves in the transfer ports to close

                                                                                                          380TI006 KN

Scavenging the cylinder (inlet)
.   The fuel-free layer of air flows into the cylinder first

TI_39_2000_30_01.fm
)m~ge 4                                                    Technical Information 39.2000

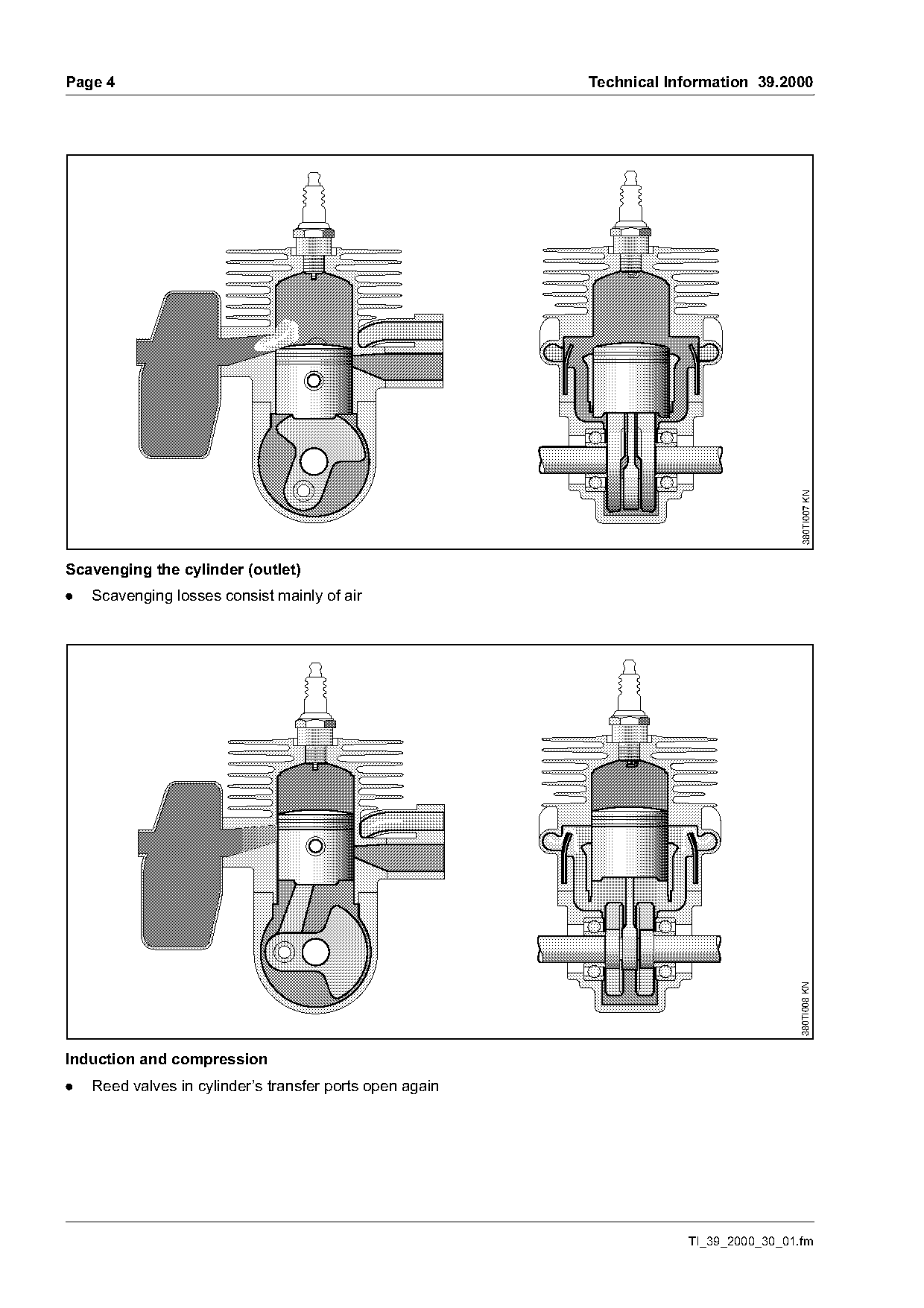

                                                                                       380TI007 KN
Scavenging the cylinder (outlet)
.   Scavenging losses consist mainly of air

                                                                                       380TI008 KN

Induction and compression
.   Reed valves in cylinder’s transfer ports open again

                                                                      TI_39_2000_30_01.fm

Page 3 of 8

TI 39/2000 page 3
Technical Information 39.2000                                                            Page 5

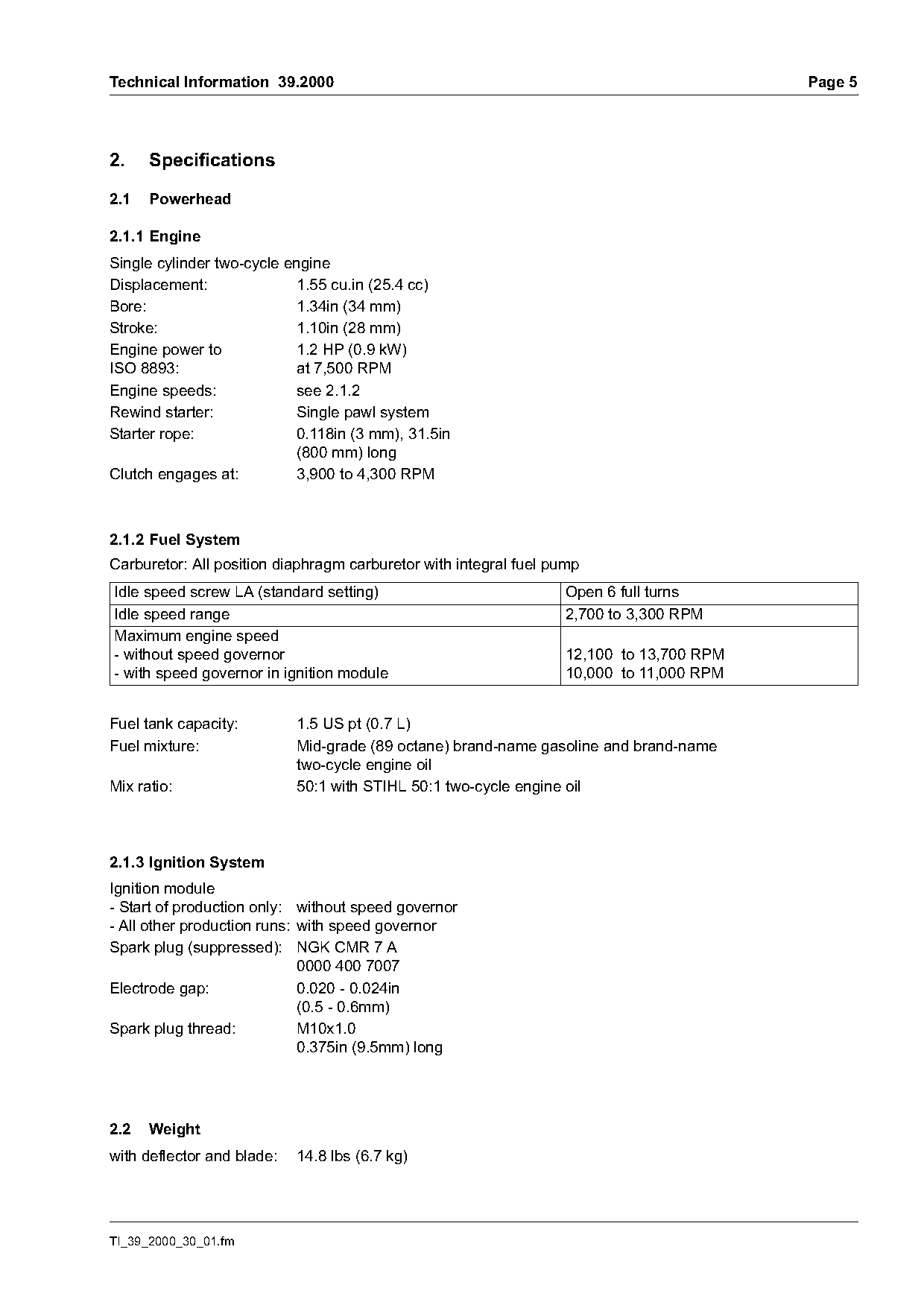

2.    Specifications

2.1   Powerhead

2.1.1 Engine
Single cylinder two-cycle engine
Displacement:              1.55 cu.in (25.4 cc)
Bore:                      1.34in (34 mm)
Stroke:                    1.10in (28 mm)
Engine power to            1.2 HP (0.9 kW)
ISO 8893:                  at 7,500 RPM
Engine speeds:             see 2.1.2
Rewind starter:            Single pawl system
Starter rope:              0.118in (3 mm), 31.5in
                           (800 mm) long
Clutch engages at:         3,900 to 4,300 RPM

2.1.2 Fuel System
Carburetor: All position diaphragm carburetor with integral fuel pump
Idle speed screw LA (standard setting)                            Open 6 full turns
Idle speed range                                                  2,700 to 3,300 RPM
Maximum engine speed
- without speed governor                                          12,100 to 13,700 RPM
- with speed governor in ignition module                          10,000 to 11,000 RPM

Fuel tank capacity:         1.5 US pt (0.7 L)
Fuel mixture:               Mid-grade (89 octane) brand-name gasoline and brand-name
                            two-cycle engine oil
Mix ratio:                  50:1 with STIHL 50:1 two-cycle engine oil

2.1.3 Ignition System
Ignition module
- Start of production only: without speed governor
- All other production runs: with speed governor
Spark plug (suppressed): NGK CMR 7 A
                             0000 400 7007
Electrode gap:               0.020 - 0.024in
                             (0.5 - 0.6mm)
Spark plug thread:           M10x1.0
                             0.375in (9.5mm) long

2.2   Weight
with deflector and blade:   14.8 lbs (6.7 kg)

TI_39_2000_30_01.fm
)m~ge 6                                                                      Technical Information 39.2000

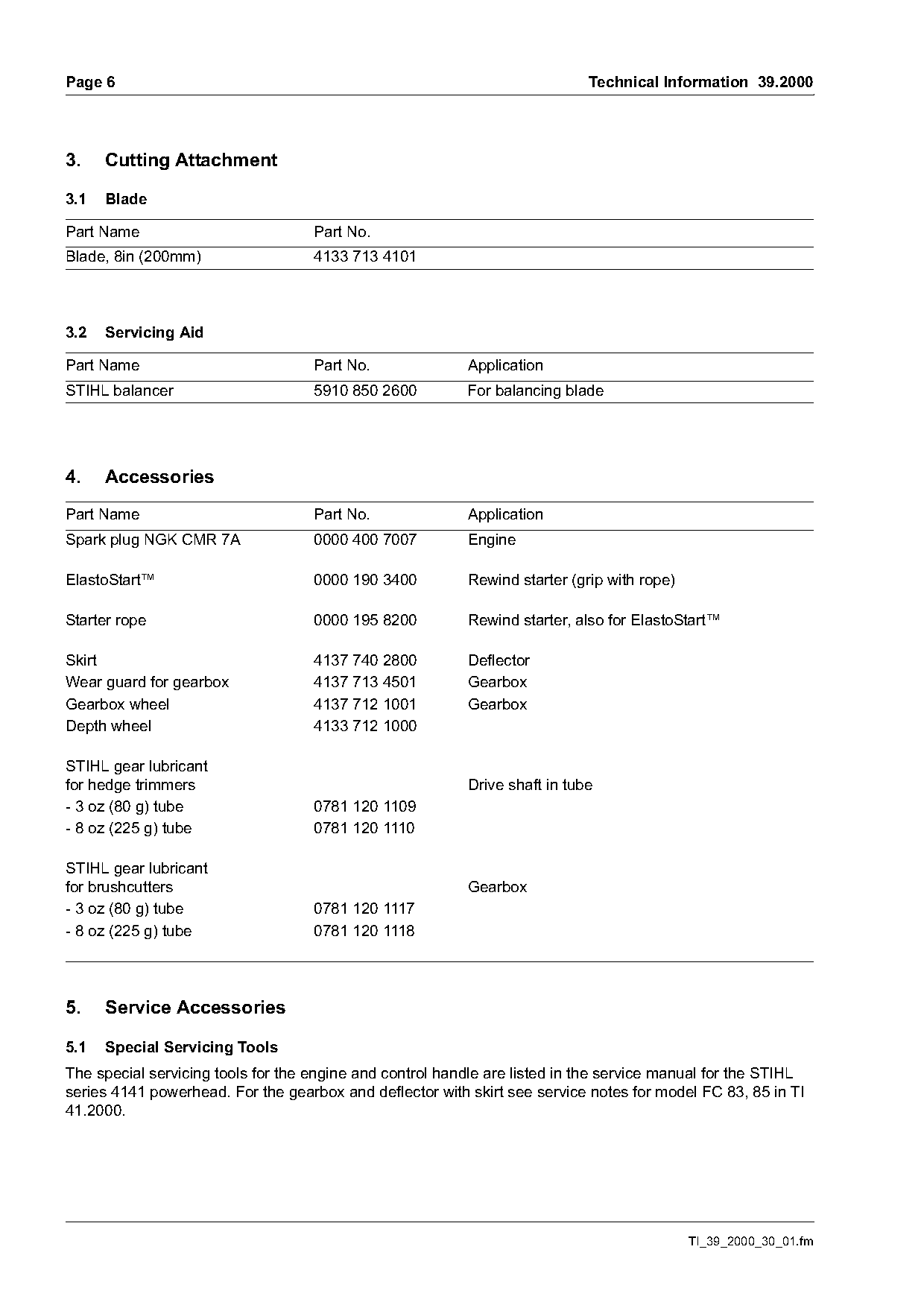

3.    Cutting Attachment

3.1   Blade

Part Name                           Part No.
Blade, 8in (200mm)                  4133 713 4101

3.2   Servicing Aid

Part Name                           Part No.              Application
STIHL balancer                      5910 850 2600         For balancing blade

4.    Accessories
Part Name                           Part No.              Application
Spark plug NGK CMR 7A               0000 400 7007         Engine

ElastoStart™                        0000 190 3400         Rewind starter (grip with rope)

Starter rope                        0000 195 8200         Rewind starter, also for ElastoStart™

Skirt                               4137 740 2800         Deflector
Wear guard for gearbox              4137 713 4501         Gearbox
Gearbox wheel                       4137 712 1001         Gearbox
Depth wheel                         4133 712 1000

STIHL gear lubricant
for hedge trimmers                                        Drive shaft in tube
- 3 oz (80 g) tube                  0781 120 1109
- 8 oz (225 g) tube                 0781 120 1110

STIHL gear lubricant
for brushcutters                                          Gearbox
- 3 oz (80 g) tube                  0781 120 1117
- 8 oz (225 g) tube                 0781 120 1118

5.    Service Accessories

5.1   Special Servicing Tools
The special servicing tools for the engine and control handle are listed in the service manual for the STIHL
series 4141 powerhead. For the gearbox and deflector with skirt see service notes for model FC 83, 85 in TI
41.2000.

                                                                                            TI_39_2000_30_01.fm

Page 4 of 8

TI 39/2000 page 4
Technical Information 39.2000                                                                       Page 7

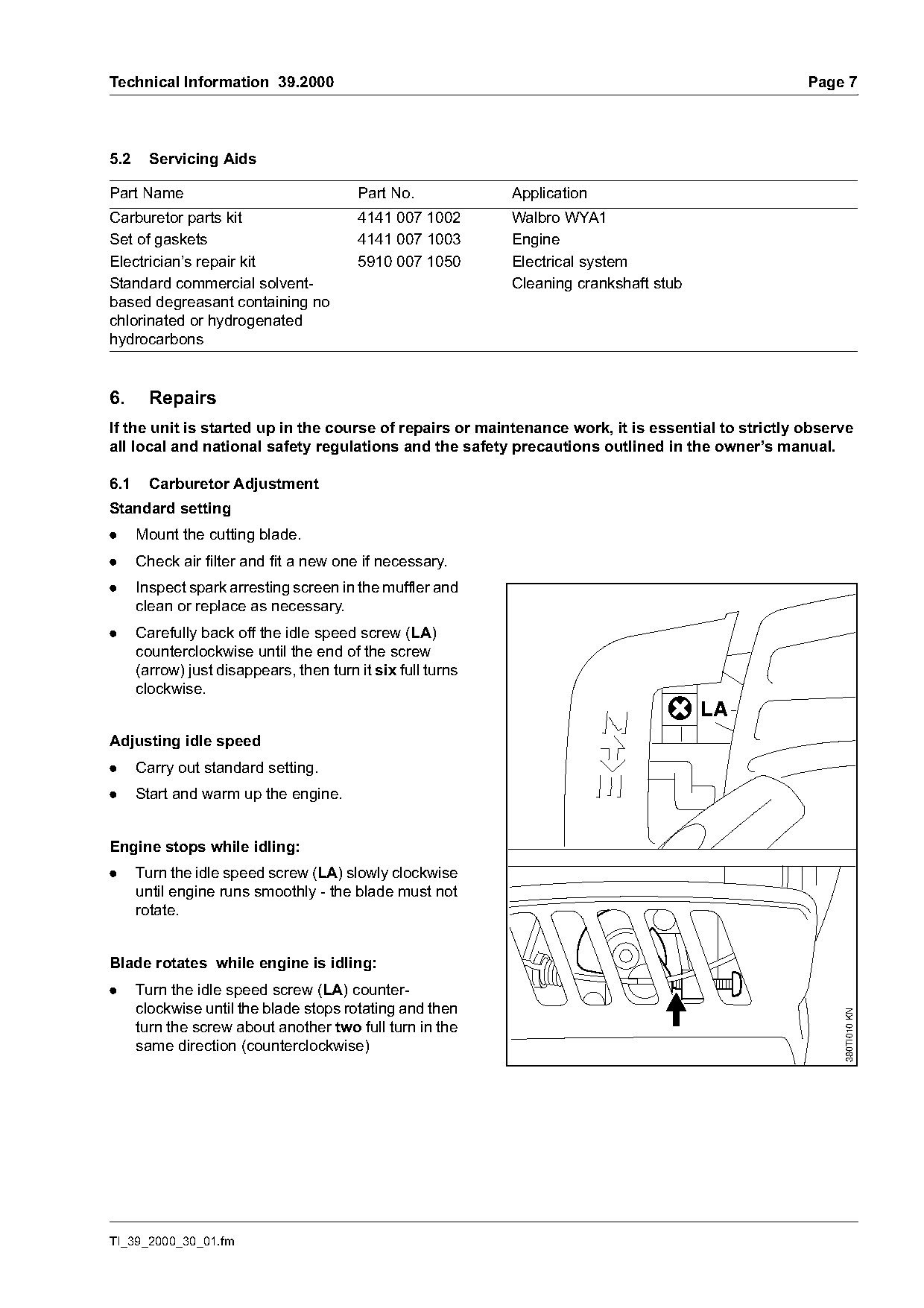

5.2     Servicing Aids

Part Name                                Part No.            Application
Carburetor parts kit                     4141 007 1002       Walbro WYA1
Set of gaskets                           4141 007 1003       Engine
Electrician’s repair kit                 5910 007 1050       Electrical system
Standard commercial solvent-                                 Cleaning crankshaft stub
based degreasant containing no
chlorinated or hydrogenated
hydrocarbons

6.      Repairs
If the unit is started up in the course of repairs or maintenance work, it is essential to strictly observe
all local and national safety regulations and the safety precautions outlined in the owner’s manual.

6.1     Carburetor Adjustment
Standard setting
.     Mount the cutting blade.
.     Check air filter and fit a new one if necessary.
.     Inspect spark arresting screen in the muffler and
      clean or replace as necessary.
.     Carefully back off the idle speed screw (LA)
      counterclockwise until the end of the screw
      (arrow) just disappears, then turn it six full turns
      clockwise.
                                                                                        LA
Adjusting idle speed
.     Carry out standard setting.
.     Start and warm up the engine.

Engine stops while idling:
.     Turn the idle speed screw (LA) slowly clockwise
      until engine runs smoothly - the blade must not
      rotate.

Blade rotates while engine is idling:
.     Turn the idle speed screw (LA) counter-
      clockwise until the blade stops rotating and then
                                                                                                         380TI010 KN

      turn the screw about another two full turn in the
      same direction (counterclockwise)

TI_39_2000_30_01.fm
)m~ge 8                                                                   Technical Information 39.2000

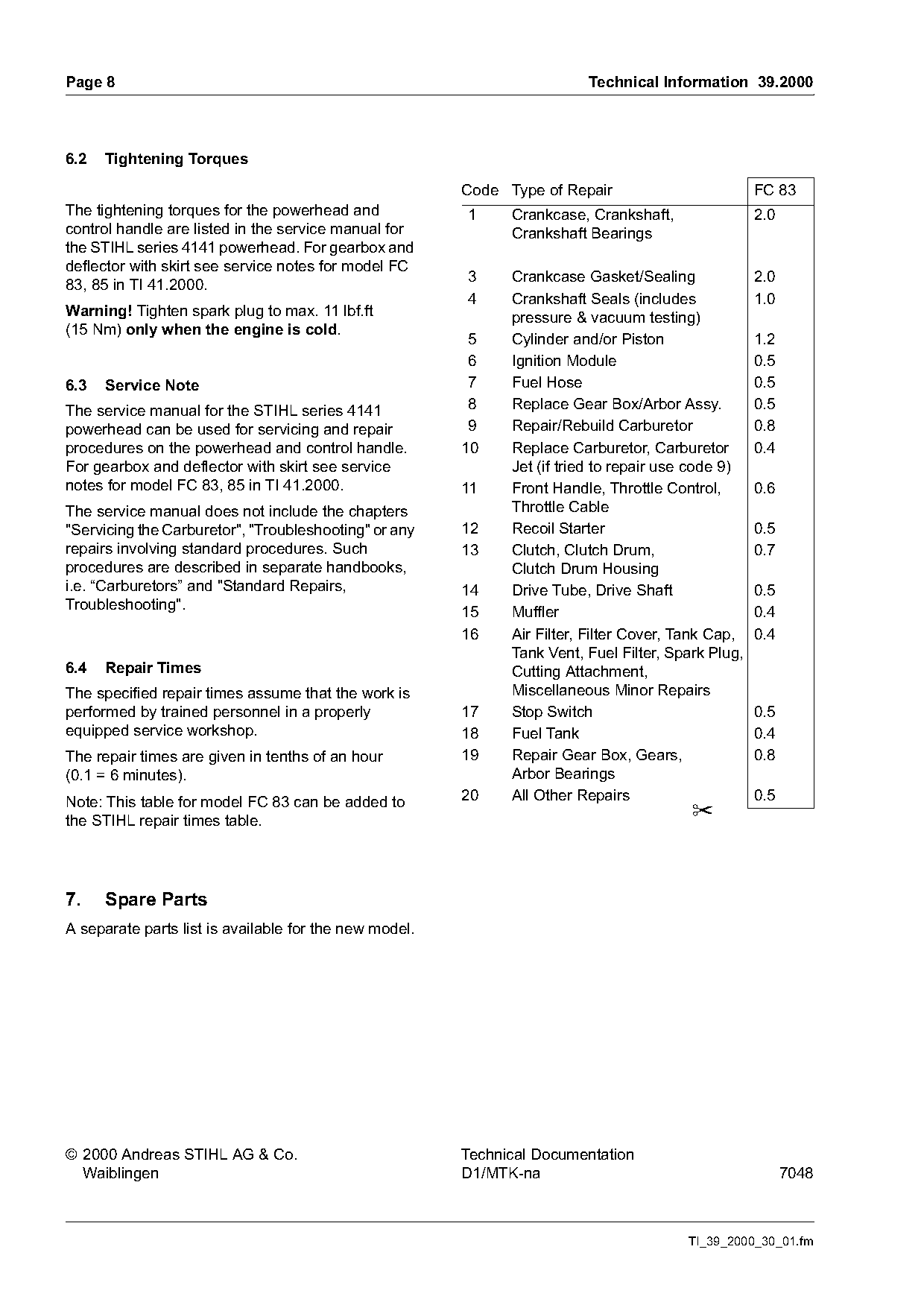

6.2   Tightening Torques

                                                        Code Type of Repair                      FC 83
The tightening torques for the powerhead and            1     Crankcase, Crankshaft,             2.0
control handle are listed in the service manual for           Crankshaft Bearings
the STIHL series 4141 powerhead. For gearbox and
deflector with skirt see service notes for model FC
                                                        3     Crankcase Gasket/Sealing            2.0
83, 85 in TI 41.2000.
                                                        4     Crankshaft Seals (includes          1.0
Warning! Tighten spark plug to max. 11 lbf.ft                 pressure & vacuum testing)
(15 Nm) only when the engine is cold.
                                                         5    Cylinder and/or Piston              1.2
                                                         6    Ignition Module                     0.5
6.3   Service Note                                       7    Fuel Hose                           0.5
The service manual for the STIHL series 4141             8    Replace Gear Box/Arbor Assy.        0.5
powerhead can be used for servicing and repair           9    Repair/Rebuild Carburetor           0.8
procedures on the powerhead and control handle.         10    Replace Carburetor, Carburetor      0.4
For gearbox and deflector with skirt see service              Jet (if tried to repair use code 9)
notes for model FC 83, 85 in TI 41.2000.                11    Front Handle, Throttle Control,     0.6
The service manual does not include the chapters              Throttle Cable
"Servicing the Carburetor", "Troubleshooting" or any    12    Recoil Starter                      0.5
repairs involving standard procedures. Such             13    Clutch, Clutch Drum,                0.7
procedures are described in separate handbooks,               Clutch Drum Housing
i.e. “Carburetors” and "Standard Repairs,               14    Drive Tube, Drive Shaft             0.5
Troubleshooting".                                       15    Muffler                             0.4
                                                        16    Air Filter, Filter Cover, Tank Cap, 0.4
                                                              Tank Vent, Fuel Filter, Spark Plug,
6.4   Repair Times                                            Cutting Attachment,
The specified repair times assume that the work is            Miscellaneous Minor Repairs
performed by trained personnel in a properly            17    Stop Switch                         0.5
equipped service workshop.                              18    Fuel Tank                           0.4
The repair times are given in tenths of an hour         19    Repair Gear Box, Gears,             0.8
(0.1 = 6 minutes).                                            Arbor Bearings
Note: This table for model FC 83 can be added to        20    All Other Repairs                   0.5
the STIHL repair times table.
                                                                                        ✂

7.    Spare Parts
A separate parts list is available for the new model.

© 2000 Andreas STIHL AG & Co.                           Technical Documentation
  Waiblingen                                            D1/MTK-na                                       7048

                                                                                        TI_39_2000_30_01.fm

Page 5 of 8

TI 39/2000 page 5

Page 6 of 8

TI 39/2000 page 6

Page 7 of 8

TI 39/2000 page 7

Page 8 of 8

TI 39/2000 page 8
