Technical Information · issue 40 of 2000
New Model FC 85 Power Edger
IssueTI 40/2000
Full text

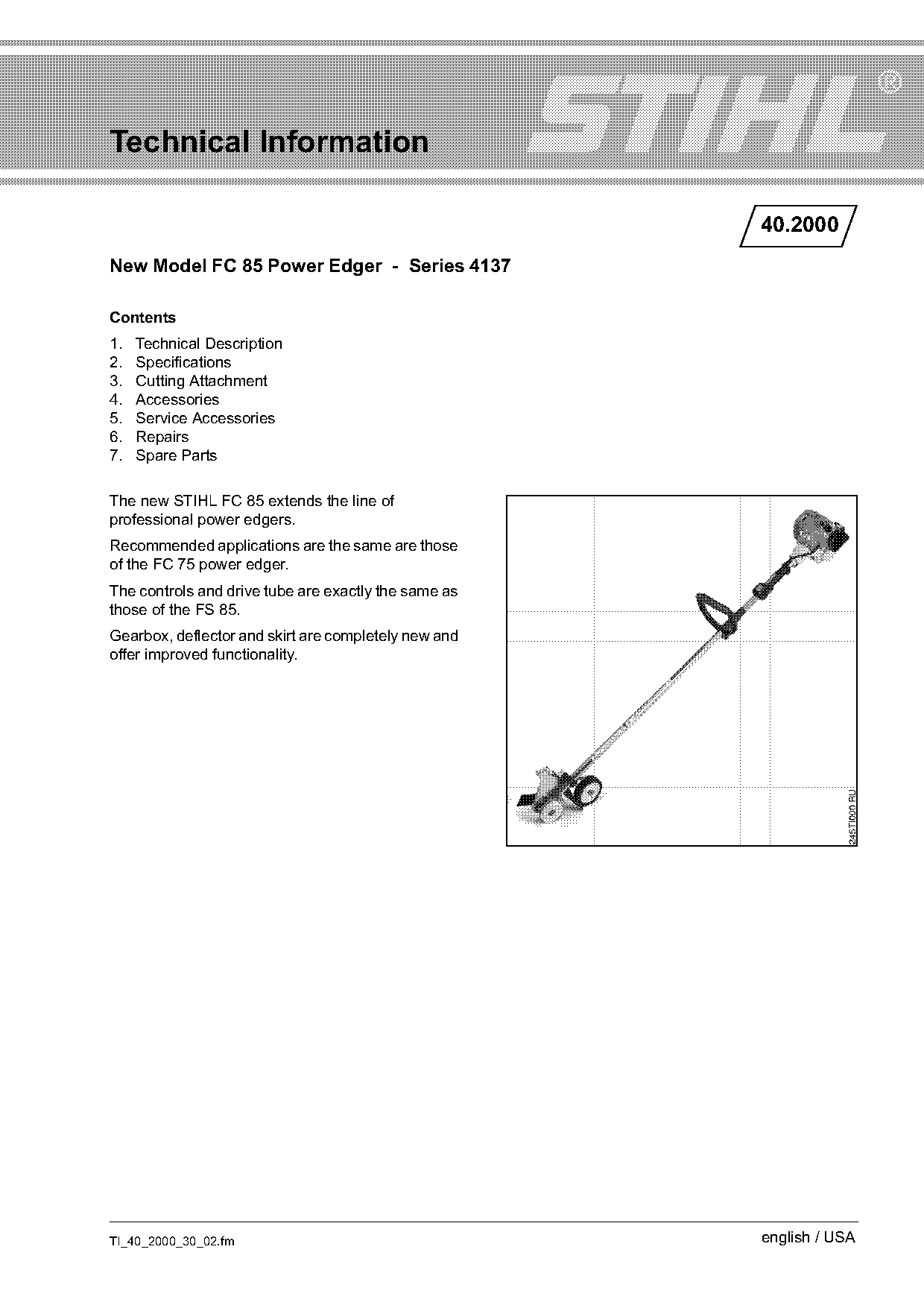

Page 1 of 6
Technical Information
40.2000
New Model FC 85 Power Edger - Series 4137
Contents
1. Technical Description
2. Specifications
3. Cutting Attachment
4. Accessories
5. Service Accessories
6. Repairs
7. Spare Parts
The new STIHL FC 85 extends the line of
professional power edgers.
Recommended applications are the same are those
of the FC 75 power edger.
The controls and drive tube are exactly the same as
those of the FS 85.
Gearbox, deflector and skirt are completely new and
offer improved functionality.
TI_40_2000_30_02.fm english / USA

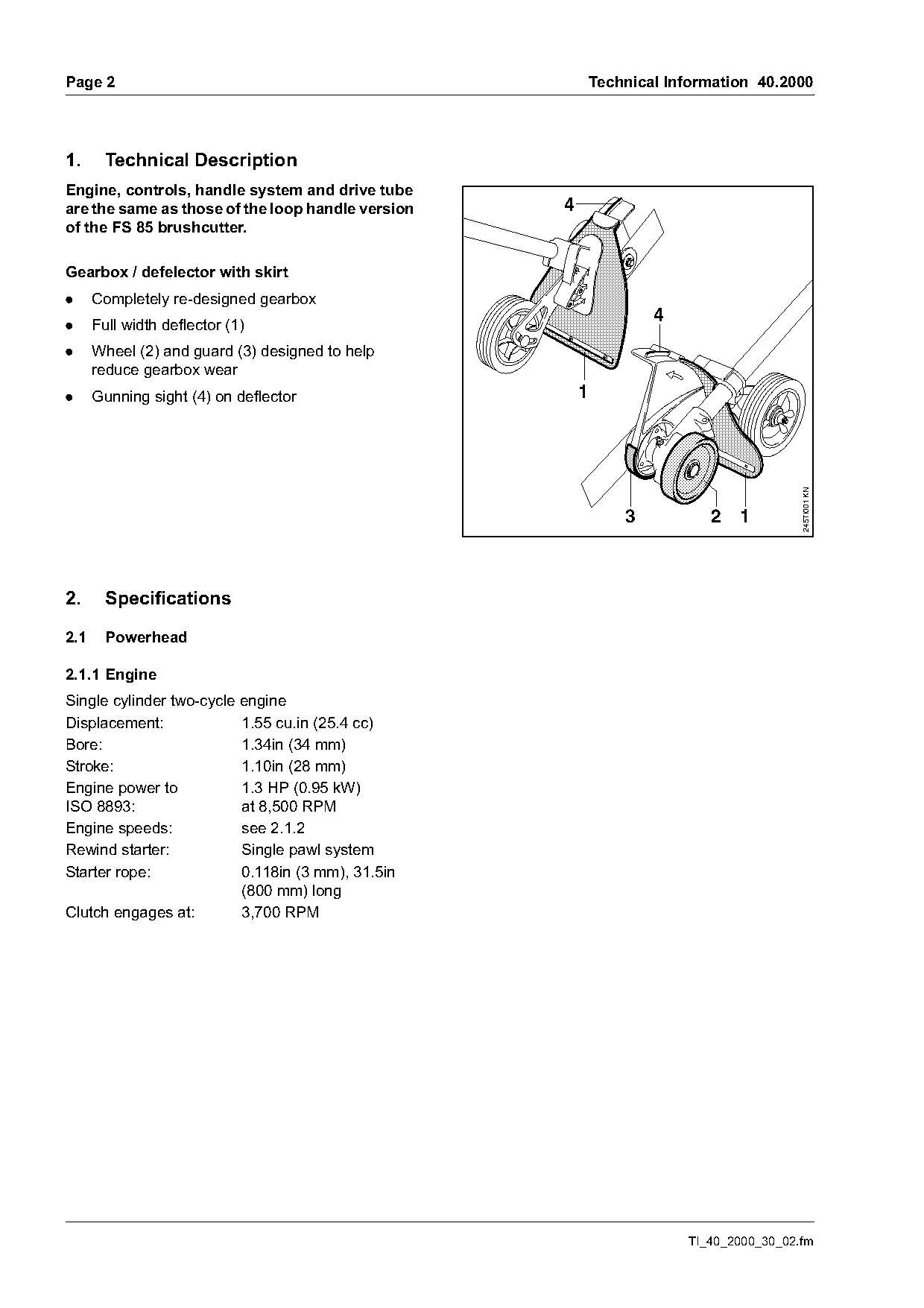

)m~ge 2 Technical Information 40.2000
1. Technical Description
Engine, controls, handle system and drive tube
are the same as those of the loop handle version 4
of the FS 85 brushcutter.
Gearbox / defelector with skirt
. Completely re-designed gearbox
. Full width deflector (1)
4
. Wheel (2) and guard (3) designed to help
reduce gearbox wear
. Gunning sight (4) on deflector 1
245TI001 KN
3 2 1
2. Specifications
2.1 Powerhead
2.1.1 Engine
Single cylinder two-cycle engine
Displacement: 1.55 cu.in (25.4 cc)
Bore: 1.34in (34 mm)
Stroke: 1.10in (28 mm)
Engine power to 1.3 HP (0.95 kW)
ISO 8893: at 8,500 RPM
Engine speeds: see 2.1.2
Rewind starter: Single pawl system
Starter rope: 0.118in (3 mm), 31.5in
(800 mm) long
Clutch engages at: 3,700 RPM
TI_40_2000_30_02.fm Page 2 of 6

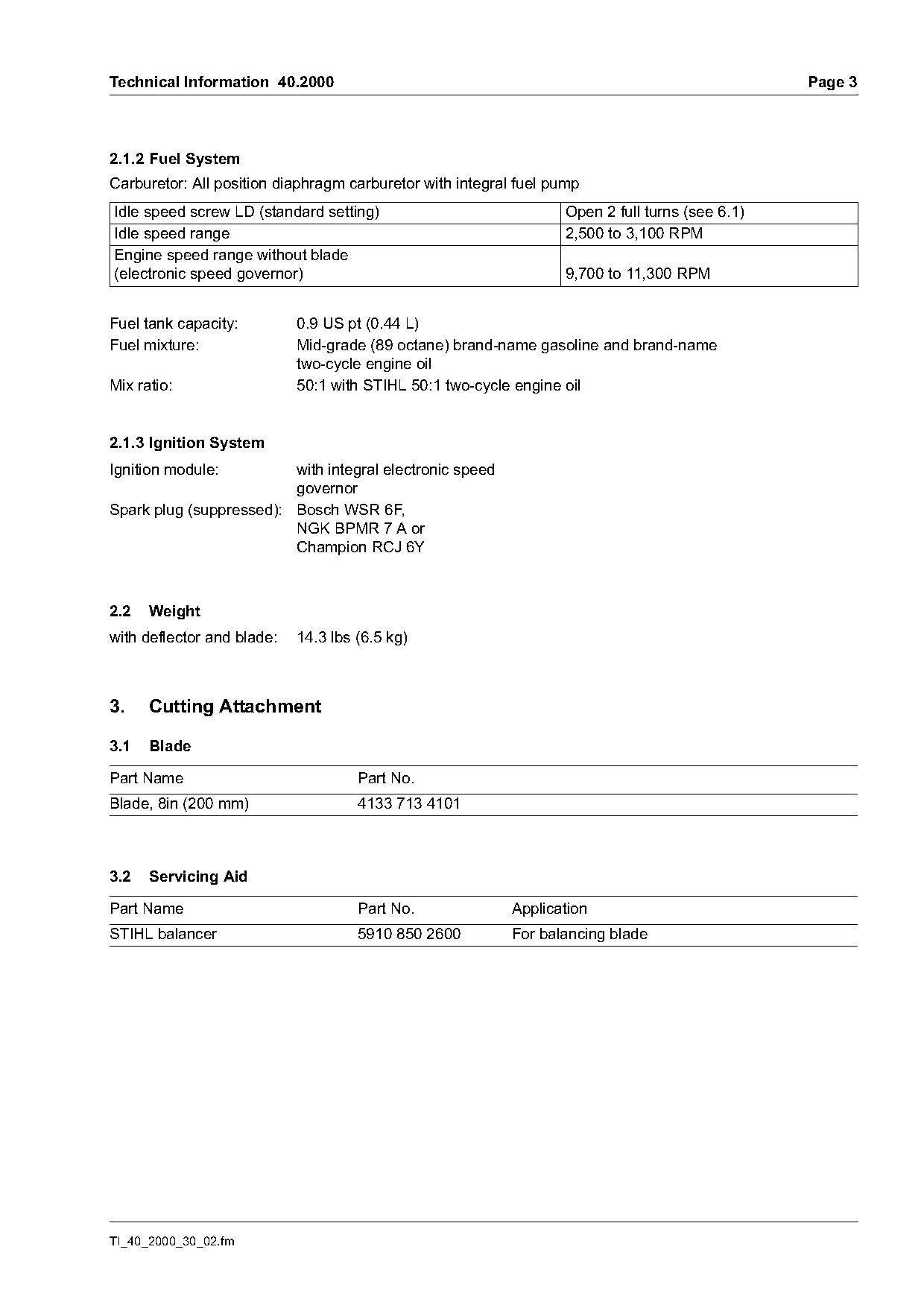

Technical Information 40.2000 Page 3
2.1.2 Fuel System
Carburetor: All position diaphragm carburetor with integral fuel pump
Idle speed screw LD (standard setting) Open 2 full turns (see 6.1)
Idle speed range 2,500 to 3,100 RPM
Engine speed range without blade
(electronic speed governor) 9,700 to 11,300 RPM
Fuel tank capacity: 0.9 US pt (0.44 L)
Fuel mixture: Mid-grade (89 octane) brand-name gasoline and brand-name
two-cycle engine oil
Mix ratio: 50:1 with STIHL 50:1 two-cycle engine oil
2.1.3 Ignition System
Ignition module: with integral electronic speed
governor
Spark plug (suppressed): Bosch WSR 6F,
NGK BPMR 7 A or
Champion RCJ 6Y
2.2 Weight
with deflector and blade: 14.3 lbs (6.5 kg)
3. Cutting Attachment
3.1 Blade
Part Name Part No.
Blade, 8in (200 mm) 4133 713 4101
3.2 Servicing Aid
Part Name Part No. Application
STIHL balancer 5910 850 2600 For balancing blade
TI_40_2000_30_02.fm

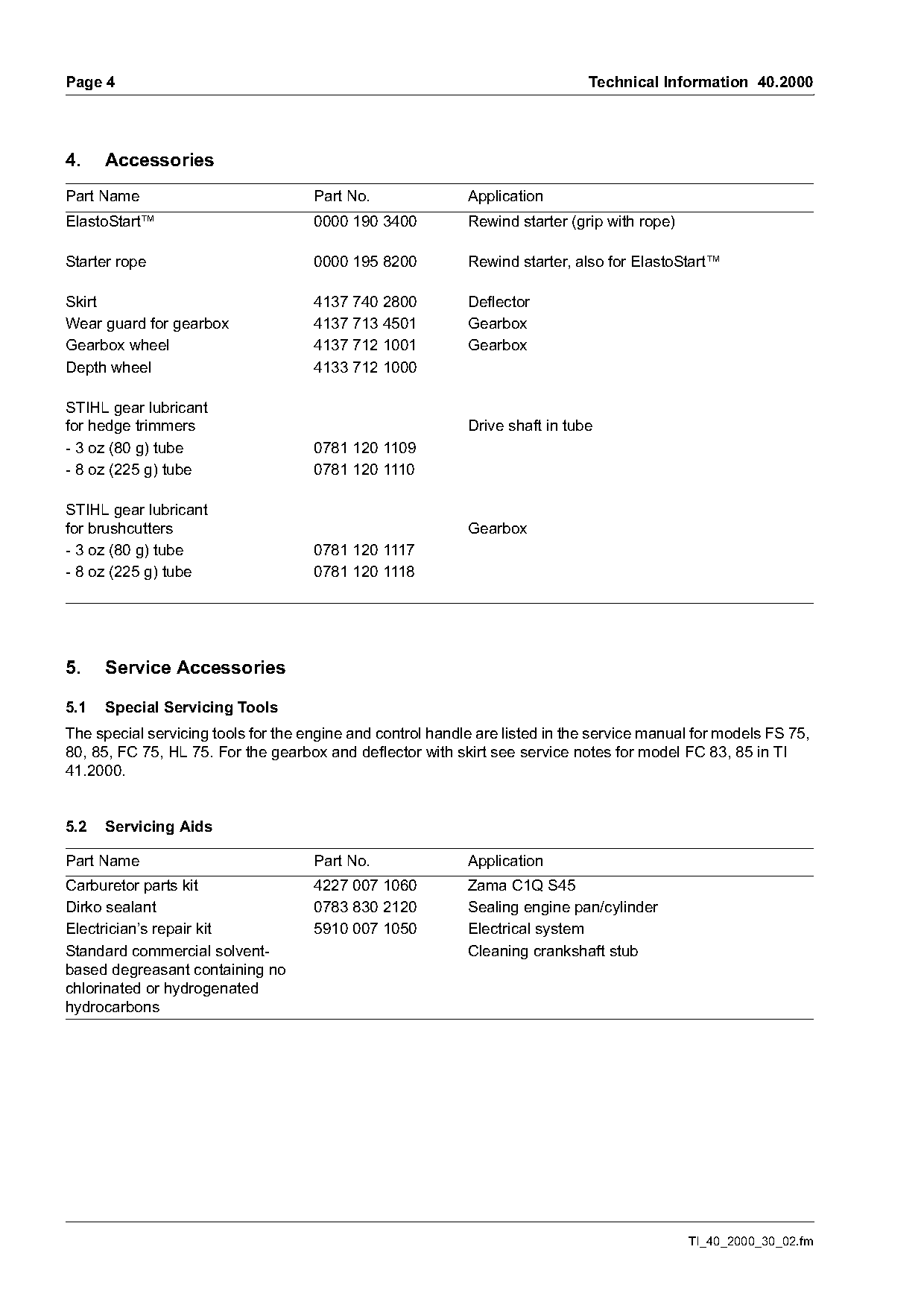

)m~ge 4 Technical Information 40.2000
4. Accessories
Part Name Part No. Application
ElastoStart™ 0000 190 3400 Rewind starter (grip with rope)
Starter rope 0000 195 8200 Rewind starter, also for ElastoStart™
Skirt 4137 740 2800 Deflector
Wear guard for gearbox 4137 713 4501 Gearbox
Gearbox wheel 4137 712 1001 Gearbox
Depth wheel 4133 712 1000
STIHL gear lubricant
for hedge trimmers Drive shaft in tube
- 3 oz (80 g) tube 0781 120 1109
- 8 oz (225 g) tube 0781 120 1110
STIHL gear lubricant
for brushcutters Gearbox
- 3 oz (80 g) tube 0781 120 1117
- 8 oz (225 g) tube 0781 120 1118
5. Service Accessories
5.1 Special Servicing Tools
The special servicing tools for the engine and control handle are listed in the service manual for models FS 75,
80, 85, FC 75, HL 75. For the gearbox and deflector with skirt see service notes for model FC 83, 85 in TI
41.2000.
5.2 Servicing Aids
Part Name Part No. Application
Carburetor parts kit 4227 007 1060 Zama C1Q S45
Dirko sealant 0783 830 2120 Sealing engine pan/cylinder
Electrician’s repair kit 5910 007 1050 Electrical system
Standard commercial solvent- Cleaning crankshaft stub
based degreasant containing no
chlorinated or hydrogenated
hydrocarbons
TI_40_2000_30_02.fm Page 3 of 6

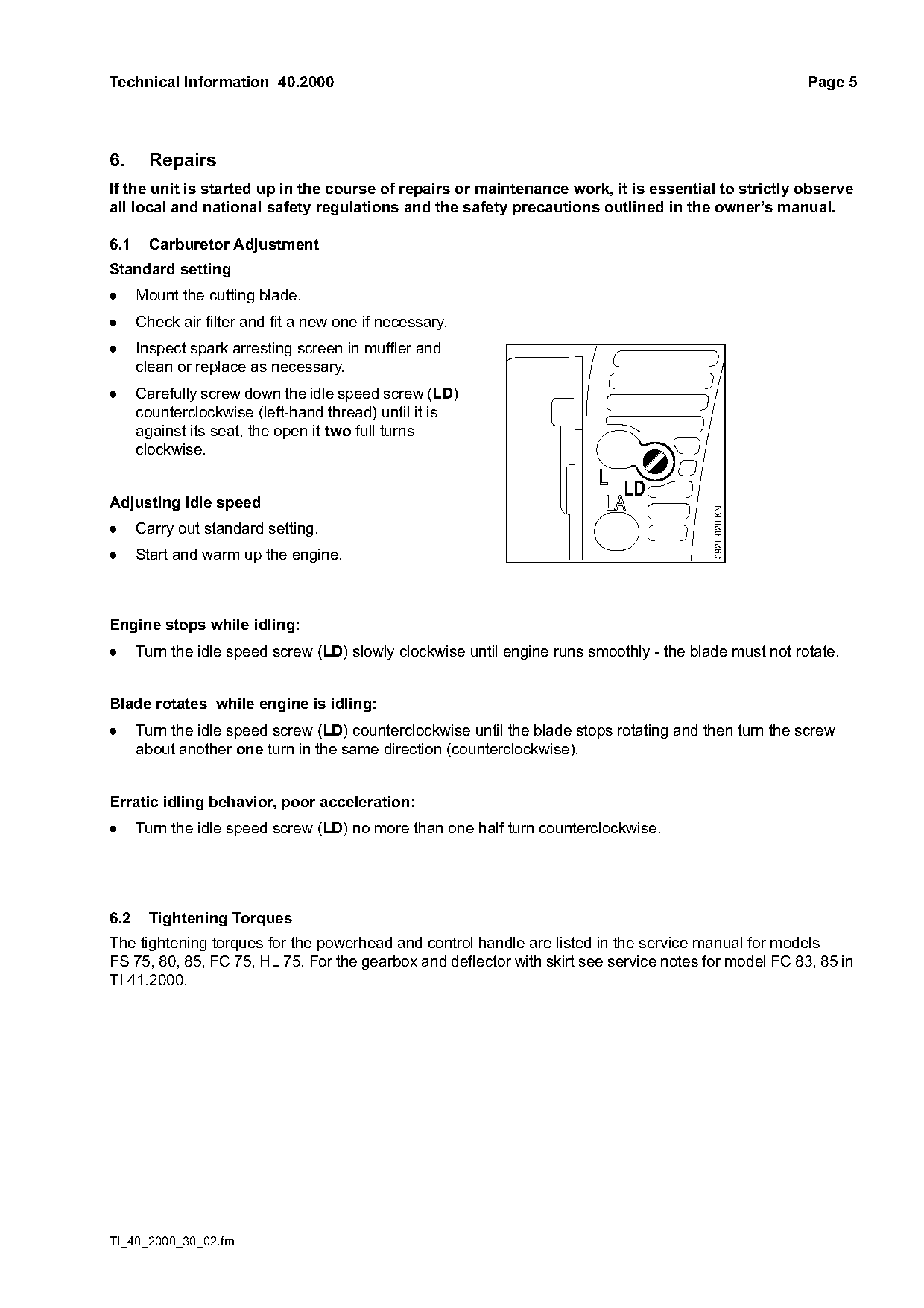

Technical Information 40.2000 Page 5
6. Repairs
If the unit is started up in the course of repairs or maintenance work, it is essential to strictly observe
all local and national safety regulations and the safety precautions outlined in the owner’s manual.
6.1 Carburetor Adjustment
Standard setting
. Mount the cutting blade.
. Check air filter and fit a new one if necessary.
. Inspect spark arresting screen in muffler and
clean or replace as necessary.
. Carefully screw down the idle speed screw (LD)
counterclockwise (left-hand thread) until it is
against its seat, the open it two full turns
clockwise.
LD
Adjusting idle speed
392TI028 KN
. Carry out standard setting.
. Start and warm up the engine.
Engine stops while idling:
. Turn the idle speed screw (LD) slowly clockwise until engine runs smoothly - the blade must not rotate.
Blade rotates while engine is idling:
. Turn the idle speed screw (LD) counterclockwise until the blade stops rotating and then turn the screw
about another one turn in the same direction (counterclockwise).
Erratic idling behavior, poor acceleration:
. Turn the idle speed screw (LD) no more than one half turn counterclockwise.
6.2 Tightening Torques
The tightening torques for the powerhead and control handle are listed in the service manual for models
FS 75, 80, 85, FC 75, HL 75. For the gearbox and deflector with skirt see service notes for model FC 83, 85 in
TI 41.2000.
TI_40_2000_30_02.fm

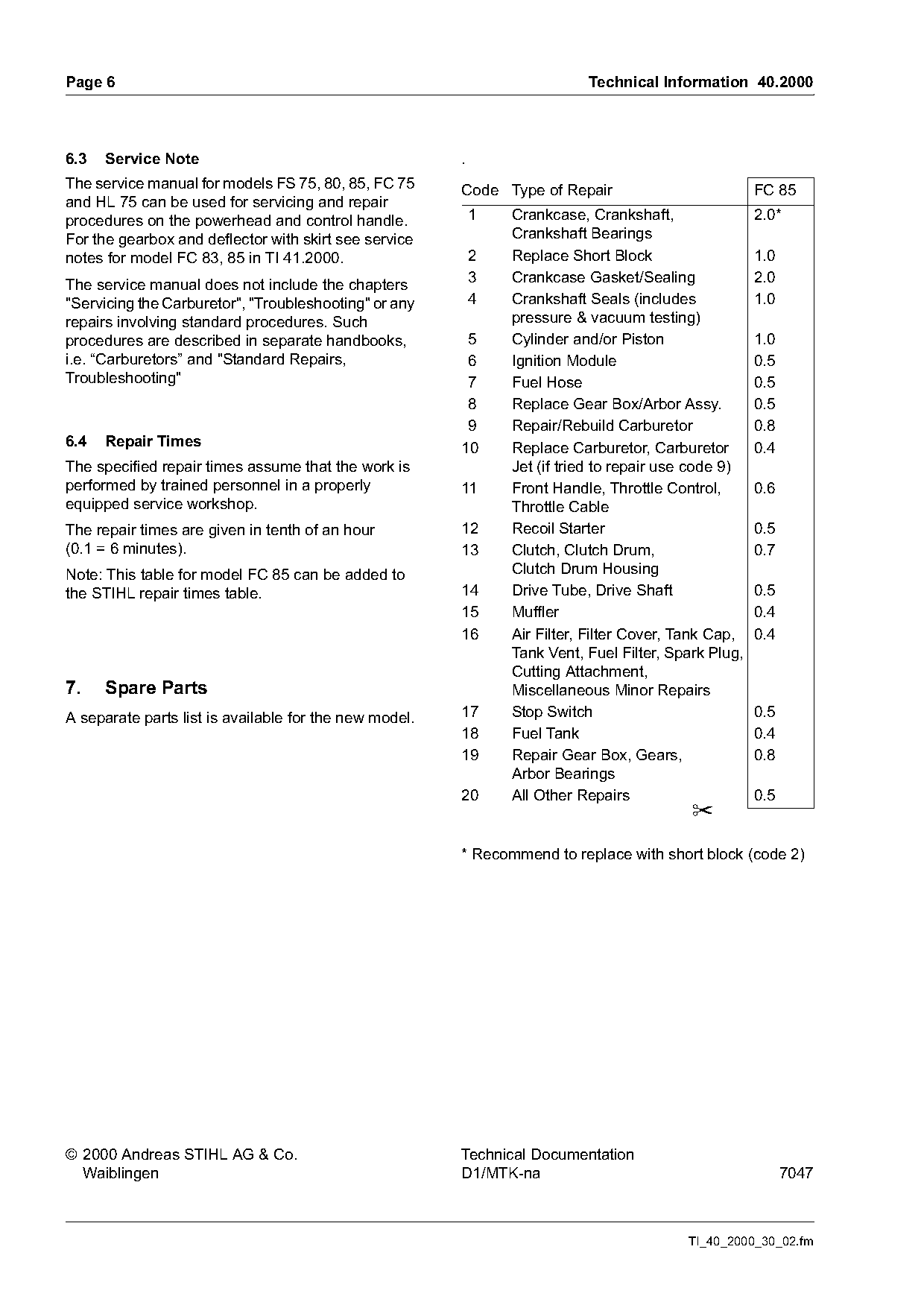

)m~ge 6 Technical Information 40.2000
6.3 Service Note .
The service manual for models FS 75, 80, 85, FC 75 Code Type of Repair FC 85
and HL 75 can be used for servicing and repair
procedures on the powerhead and control handle. 1 Crankcase, Crankshaft, 2.0*
For the gearbox and deflector with skirt see service Crankshaft Bearings
notes for model FC 83, 85 in TI 41.2000. 2 Replace Short Block 1.0
3 Crankcase Gasket/Sealing 2.0
The service manual does not include the chapters
"Servicing the Carburetor", "Troubleshooting" or any 4 Crankshaft Seals (includes 1.0
repairs involving standard procedures. Such pressure & vacuum testing)
procedures are described in separate handbooks, 5 Cylinder and/or Piston 1.0
i.e. “Carburetors” and "Standard Repairs, 6 Ignition Module 0.5
Troubleshooting" 7 Fuel Hose 0.5
8 Replace Gear Box/Arbor Assy. 0.5
9 Repair/Rebuild Carburetor 0.8
6.4 Repair Times 10 Replace Carburetor, Carburetor 0.4
The specified repair times assume that the work is Jet (if tried to repair use code 9)
performed by trained personnel in a properly 11 Front Handle, Throttle Control, 0.6
equipped service workshop. Throttle Cable
The repair times are given in tenth of an hour 12 Recoil Starter 0.5
(0.1 = 6 minutes). 13 Clutch, Clutch Drum, 0.7
Note: This table for model FC 85 can be added to Clutch Drum Housing
the STIHL repair times table. 14 Drive Tube, Drive Shaft 0.5
15 Muffler 0.4
16 Air Filter, Filter Cover, Tank Cap, 0.4
Tank Vent, Fuel Filter, Spark Plug,
Cutting Attachment,
7. Spare Parts Miscellaneous Minor Repairs
A separate parts list is available for the new model. 17 Stop Switch 0.5
18 Fuel Tank 0.4
19 Repair Gear Box, Gears, 0.8
Arbor Bearings
20 All Other Repairs 0.5
✂
* Recommend to replace with short block (code 2)
