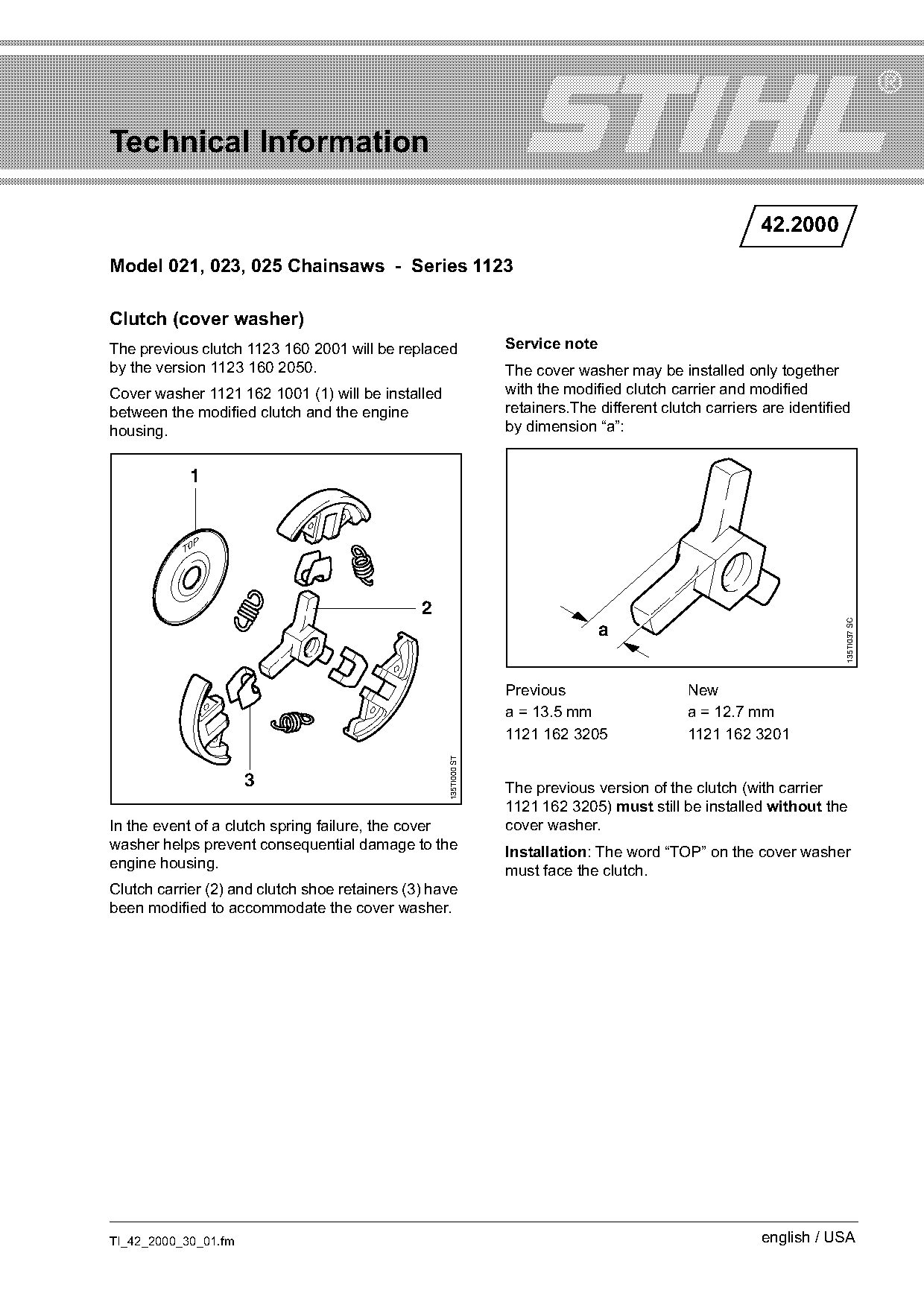

Technical Information
42.2000
Model 021, 023, 025 Chainsaws - Series 1123
Clutch (cover washer)
The previous clutch 1123 160 2001 will be replaced Service note
by the version 1123 160 2050. The cover washer may be installed only together
Cover washer 1121 162 1001 (1) will be installed with the modified clutch carrier and modified
between the modified clutch and the engine retainers.The different clutch carriers are identified
housing. by dimension “a”:
135TI037 SC
a
Previous New
a = 13.5 mm a = 12.7 mm
1121 162 3205 1121 162 3201
135TI000 ST
3 The previous version of the clutch (with carrier
1121 162 3205) must still be installed without the
In the event of a clutch spring failure, the cover cover washer.
washer helps prevent consequential damage to the Installation: The word “TOP” on the cover washer
engine housing. must face the clutch.
Clutch carrier (2) and clutch shoe retainers (3) have
been modified to accommodate the cover washer.
TI_42_2000_30_01.fm english / USA

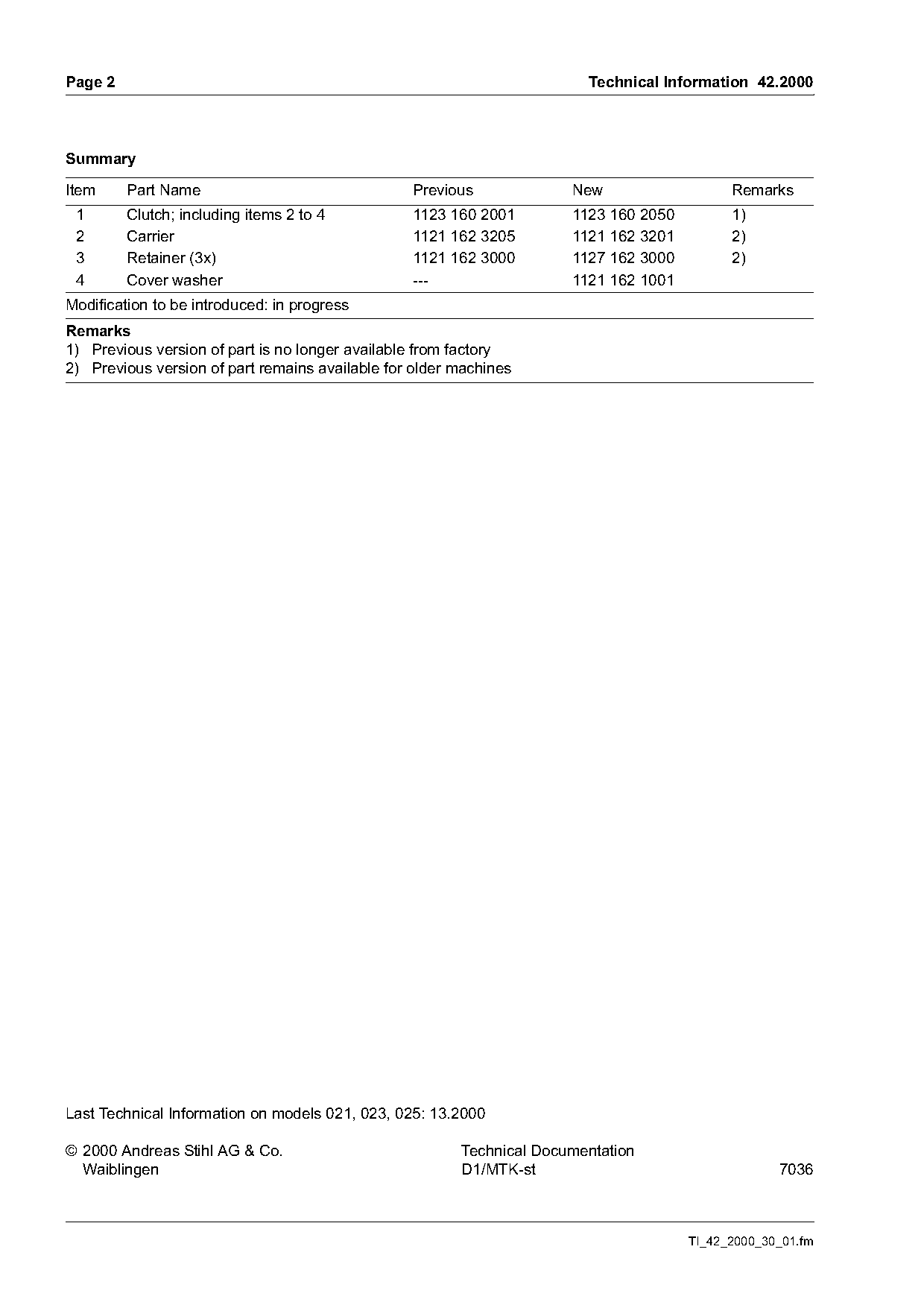

)m~ge 2 Technical Information 42.2000
Summary
Item Part Name Previous New Remarks
1 Clutch; including items 2 to 4 1123 160 2001 1123 160 2050 1)
2 Carrier 1121 162 3205 1121 162 3201 2)
3 Retainer (3x) 1121 162 3000 1127 162 3000 2)
4 Cover washer --- 1121 162 1001
Modification to be introduced: in progress
Remarks
1) Previous version of part is no longer available from factory
2) Previous version of part remains available for older machines
Last Technical Information on models 021, 023, 025: 13.2000
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-st 7036
TI_42_2000_30_01.fm Page 2 of 2
