STIHL Rollomatic E Super .404” guide bar – 150 cm

IssueTI 51/2000

Accessory changes & notes

Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.

Service note · Accessory

150 cm Rollomatic E Super: bar replacement and offset handle slot

The .404-inch, 12T, 1.6 mm Rollomatic E Super replaces the 150 cm Duromatic E; the helper-handle slot moves 130 mm rearward.

  • The summary replaces 150 cm (60 inch) Duromatic E 3002 000 8076 with Rollomatic E Super 3002 000 9576, specified as .404 inch pitch, 12T and 1.6 mm gauge. No drive-link count or exact powerhead mounting list is printed; do not infer either from length or the order-number prefix.
  • The helper-handle slot moves 130 mm (5.1 inch) to the rear relative to the previous Duromatic, requiring an extension arm. This is a slot offset, not an instruction to drill a new slot or a reduction in bar length.
  • The TI describes higher initial chain tension, longer intervals before retensioning, reduced nose friction and less wear as benefits. It provides no numerical chain-tension setting, service interval or measured wear result.
  • Introduction is in progress, with no serial cutoff. The previous bar row is deleted in this summary; this is not proof of present stock or a blanket replacement for every 150 cm bar.
  • The TI says some countries specify a helper’s handle for bars 105 cm (41 inch) and longer and recommends it elsewhere. This is the 2000 source statement, not a determination of present law or an authorization to operate. Last TI12/1997 is bibliography, not a prerequisite to this stated replacement.

Source: TI 51/2000, p. 1 · TI 51/2000, p. 5 — Sections1 and5: bar specification, offset-slot illustration, stated benefits and introduction.

Part numbers (2)
  • 3002 000 8076 — Duromatic E, 150 cmPrevious bar · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 3002 000 9576 — Rollomatic E Super .404 inch, 12T, 1.6 mm, 150 cmNew bar · TI51/2000 named accessory configuration; no unnamed saw-model fitment

Service note · Accessory

Helper’s handle: Rollomatic extension-arm retrofit

The new Rollomatic requires extension arm 1124 660 2650; an old helper’s handle must first lose both guide pins and receive M10 threads.

  • Complete helper’s handle with loop handle changes from 1109 660 2500 to 1124 660 2500; includes summary items 2.2–2.4. The new helper-handle body is not available separately: the new-number column is -*- rather than a replacement number for old body 1109 660 2501.
  • Loop handle 1109 790 2200 retains its number but gains guard plates to reduce incorrect hand positioning and an ergonomic shape; only the modified version was supplied by the factory. The number alone cannot identify shape/version. Two thrust pads 1109 791 9000 remain listed unchanged.
  • For an existing helper’s handle, knock out both guide pins while supporting the casting on a suitable base. Tap M10 threads in both existing holes; the cross-section labels 10 mm thread depth. This is not a 10 mm drill diameter. No tap pitch, drilling size or tightening torque is supplied.
  • After modification inspect every part for damage, including cracks in the casting; replace damaged parts. Both old and new handle versions need the extension arm for the offset-slot Rollomatic. All extension-arm joints are bolted.
  • Extension arm 1124 660 2650 includes two M10x 20 screws 9008 319 2360. The 20 mm screw length and 10 mm tapping depth describe different features; neither is an instruction to bottom a screw in a blind hole.
  • The new helper’s handle can also be used with the previous Duromatic by inserting the guide pins. This stated reverse compatibility does not authorize using the unmodified old handle directly on the offset-slot Rollomatic.
  • Instruction sheet 0457 361 0000 KN J00 (page 3) illustrates pin insertion, handle positioning at the old bar slot and fastening. Sheet 0457 361 0001 KN J00 (page 4) shows separate branches for modifying the old handle and fitting the new one: remove the previous bar/handle fastening as pictured, remove pins and tap only the old body, bolt the arm to the handle, then attach the arm at the Rollomatic slot and tighten the illustrated hand fastening. The final views retain the separate old/new handle configurations; the numbered drawings remain the orientation reference, not a source of unprinted torque or dimensions.
  • The original PDF’s extracted page 4 text contains supplementary-sheet number 0457 365 0005 beside placeholder-like strings. The rendered page shows an instruction-booklet symbol, not readable supplementary instructions or a visually verified number. The extraction and rendered page were checked separately. No separately named copy was established among the reviewed service documentation inventory. This unresolved supplementary-instruction dependency remains a source gap; the TI is not a complete substitute for all supplied kit instructions.

Source: TI 51/2000, p. 2 · TI 51/2000, p. 3 · TI 51/2000, p. 4 · TI 51/2000, p. 5 — Sections2,2.1–2.3,4.1–4.2 and5: both handle versions, retrofit drawings, summary inclusions and supply remarks.

Part numbers (10)
  • 1109 660 2500 — Helper’s handle with loop handlePrevious complete assembly · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 1124 660 2500 — Helper’s handle with loop handle, modifiedNew complete assembly; includes 2.2–2.4 · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 1109 660 2501 — Helper’s handle bodyPrevious body; new version not separately available · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 1109 790 2200 — Loop handleSame number; modified version only · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 1109 791 9000 — Thrust padTwo; unchanged · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 1124 660 2650 — Extension armRequired for offset Rollomatic slot; includes two screws · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 9008 319 2360 — Screw M 10x 20Two in extension arm · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 0457 361 0000 — Helper’s handle instruction sheet KN J 00Reproduced on page 3 · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 0457 361 0001 — Extension-arm instruction sheet KN J 00Reproduced on page 4 · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 0457 365 0005 — Supplementary-sheet reference in original PDF textExtracted reference; number not visually verified; instructions not recovered · TI51/2000 named accessory configuration; no unnamed saw-model fitment

Service note · Accessory

Long-bar guard rails: kits and 084 / 088 illustration

Guard rails are recommended with the helper’s handle; the reproduced 150 cm sheet names 084 and 088, not every saw accepting a long bar.

  • The TI recommends a guard rail with the helper’s handle on bars 105 cm (41 inch) and longer to reduce injury risk. It does not claim that a rail eliminates risk or replaces the helper’s handle.
  • The listed kits are 1124 007 1018 for 105 cm/41 inch,1124 007 1019 for 120 cm/47 inch, and 1124 007 1020 for 150 cm/60 inch. The printed lengths are kit selectors; no one-size-fits-all rail or extension of the 150 cm bar replacement to the other lengths is stated.
  • Page 3 shows the rail, its end brackets, bolt and washer stacks in exploded form; no individual hardware order numbers or torques are supplied. Retain the original illustration for stack orientation rather than assigning fasteners by appearance.
  • The page 4 instruction reproduction 0457 361 0002 KN J00 explicitly labels 084,088 and 150 cm kit 1124 007 1020. Its upper picture shows rail installation at the saw-side bracket and helper-handle end, removal of the depicted old fastening and replacement by the illustrated rail-end fastening. Its lower picture shows the assembled rail above the bar with helper’s handle in place. No additional model or variant list is supplied; these model names do not automatically bind the other accessory notes to 084/088.
  • The original PDF’s extracted page 4 text also contains supplementary-sheet number 0457 365 0005 beside the guard-rail instruction reproduction. The rendered page shows a booklet symbol, not its readable text or a visually verified number. No separately named copy was established in the reviewed service documentation inventory. Current complete kit instructions and physical assembly are unverified; this is an evidence record, not a validated installation procedure.

Source: TI 51/2000, p. 3 · TI 51/2000, p. 4 — Sections3,4 and4.3: all three kits, exploded hardware and084/088 installation illustrations.

Part numbers (5)
  • 1124 007 1018 — Guard rail kit 105 cm/41 inchLength-specific kit · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 1124 007 1019 — Guard rail kit 120 cm/47 inchLength-specific kit · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 1124 007 1020 — Guard rail kit 150 cm/60 inchKit in reproduced 084/088 sheet · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 0457 361 0002 — Guard rail instruction sheet KN J 00Reproduced on page 4 · TI51/2000 named accessory configuration; no unnamed saw-model fitment
  • 0457 365 0005 — Supplementary-sheet reference in original PDF textExtracted reference; number not visually verified; instructions not recovered · TI51/2000 named accessory configuration; no unnamed saw-model fitment

Full text

Page 1 of 5

TI 51/2000 page 1
Text of page 1 — search, copy, screen readers

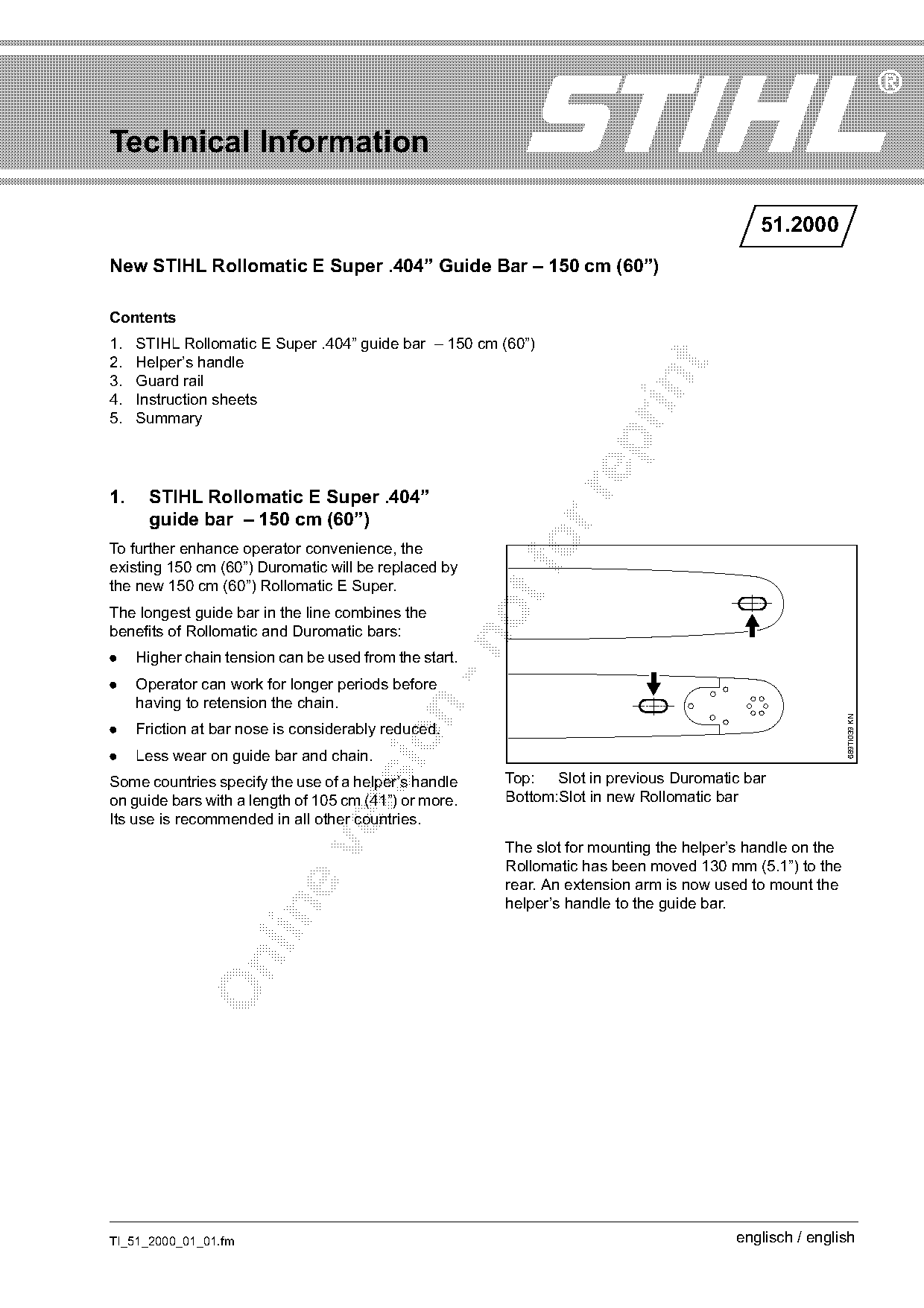

Technical Information

                                                                                            51.2000
New STIHL Rollomatic E Super .404” Guide Bar – 150 cm (60”)

Contents
1.   STIHL Rollomatic E Super .404” guide bar – 150 cm (60”)
2.   Helper’s handle

3.   Guard rail

4.   Instruction sheets
5.   Summary

1.    STIHL Rollomatic E Super .404”
      guide bar – 150 cm (60”)
To further enhance operator convenience, the
existing 150 cm (60”) Duromatic will be replaced by
the new 150 cm (60”) Rollomatic E Super.
The longest guide bar in the line combines the
benefits of Rollomatic and Duromatic bars:

.    Higher chain tension can be used from the start.
.    Operator can work for longer periods before
     having to retension the chain.

                                                                                                           689TI039 KN
.    Friction at bar nose is considerably reduced.

.    Less wear on guide bar and chain.
Some countries specify the use of a helper’s handle     Top:   Slot in previous Duromatic bar
on guide bars with a length of 105 cm (41”) or more.    Bottom:Slot in new Rollomatic bar

Its use is recommended in all other countries.
                                                        The slot for mounting the helper’s handle on the

                                                        Rollomatic has been moved 130 mm (5.1”) to the
                                                        rear. An extension arm is now used to mount the
                                                        helper’s handle to the guide bar.

TI_51_2000_01_01.fm                                                                     englisch / english

Page 2 of 5

TI 51/2000 page 2
Text of page 2 — search, copy, screen readers

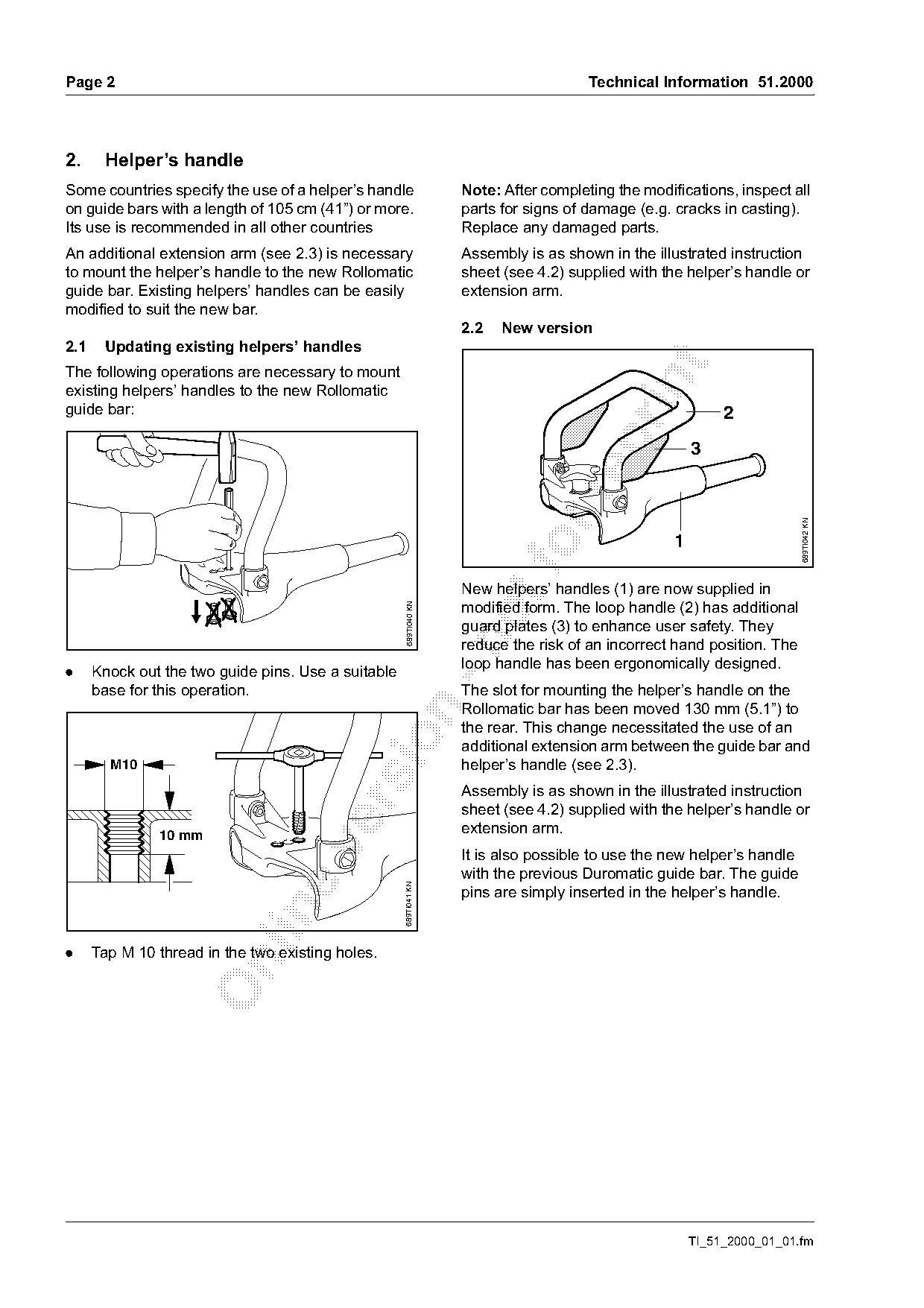

Page 2                                                                                 Technical Information 51.2000

2.     Helper’s handle
Some countries specify the use of a helper’s handle                 Note: After completing the modifications, inspect all
on guide bars with a length of 105 cm (41”) or more.                parts for signs of damage (e.g. cracks in casting).
Its use is recommended in all other countries                       Replace any damaged parts.
An additional extension arm (see 2.3) is necessary                  Assembly is as shown in the illustrated instruction
to mount the helper’s handle to the new Rollomatic                  sheet (see 4.2) supplied with the helper’s handle or
guide bar. Existing helpers’ handles can be easily                  extension arm.
modified to suit the new bar.
                                                                    2.2   New version
2.1    Updating existing helpers’ handles

The following operations are necessary to mount

existing helpers’ handles to the new Rollomatic
guide bar:                                                                                                   2


                                                                                                                         689TI042 KN
                                                                            fo                      1

                                                                    New helpers’ handles (1) are now supplied in
                                                                    modified form. The loop handle (2) has additional
                                                      689TI040 KN

                                                                    guard plates (3) to enhance user safety. They

                                                                    reduce the risk of an incorrect hand position. The
.     Knock out the two guide pins. Use a suitable                  loop handle has been ergonomically designed.
      base for this operation.                                      The slot for mounting the helper’s handle on the
                                                                    Rollomatic bar has been moved 130 mm (5.1”) to

                                                                    the rear. This change necessitated the use of an

                                                                    additional extension arm between the guide bar and
        M10                                                         helper’s handle (see 2.3).
                                                                    Assembly is as shown in the illustrated instruction

                                                                    sheet (see 4.2) supplied with the helper’s handle or
               10 mm                                                extension arm.

                                                                    It is also possible to use the new helper’s handle
                                                                    with the previous Duromatic guide bar. The guide
                                                     689TI041 KN

                                                                    pins are simply inserted in the helper’s handle.

.     Tap M 10 thread in the two existing holes.

                                                                                                        TI_51_2000_01_01.fm

Page 3 of 5

TI 51/2000 page 3
Text of page 3 — search, copy, screen readers

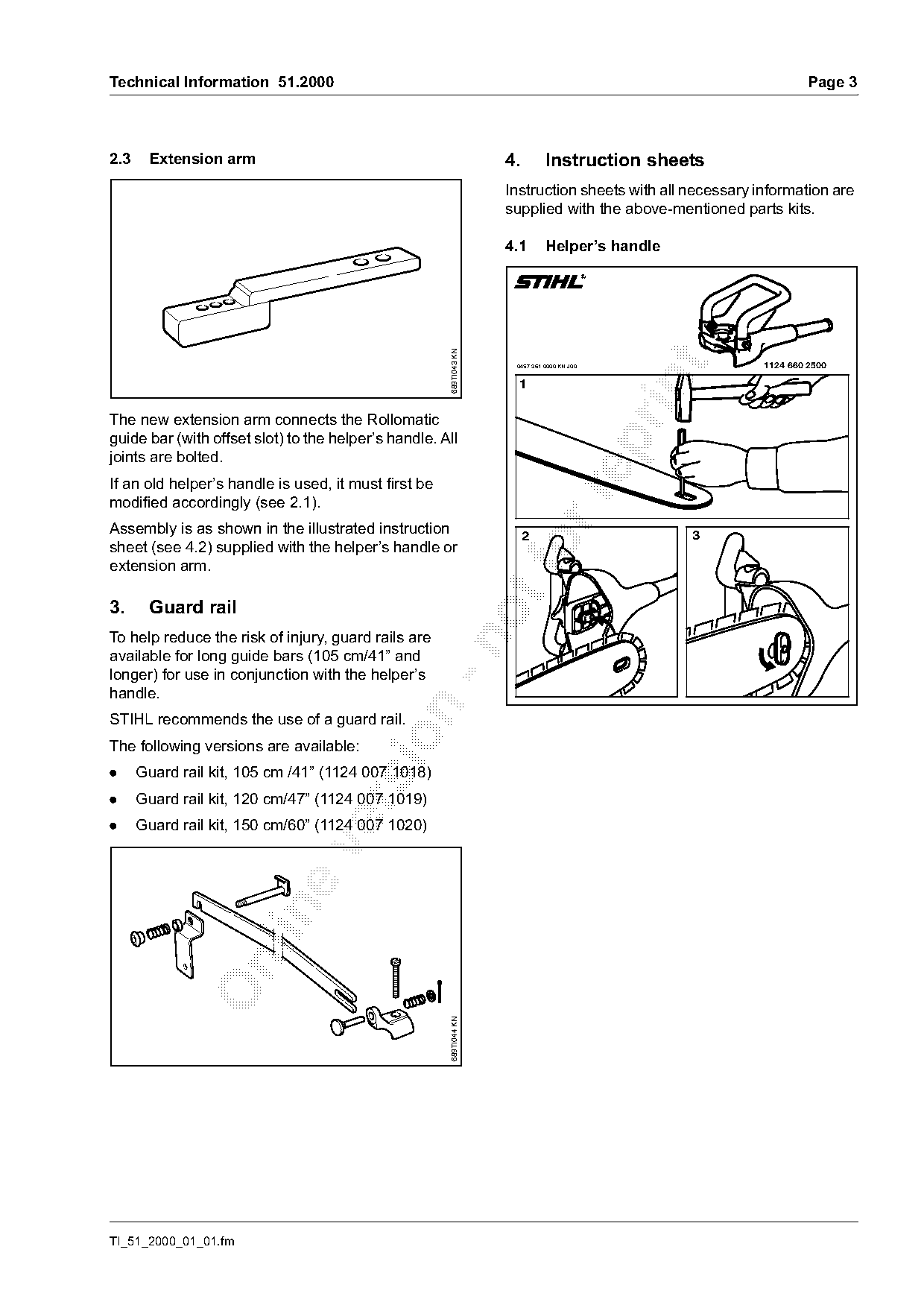

Technical Information 51.2000                                                                                       Page 3

2.3    Extension arm                                                4.        Instruction sheets
                                                                    Instruction sheets with all necessary information are
                                                                    supplied with the above-mentioned parts kits.

                                                                    4.1       Helper’s handle

                                                      689TI043 KN

                                                                     0457 361 0000 KN J00                  1124 660 2500


The new extension arm connects the Rollomatic
guide bar (with offset slot) to the helper’s handle. All

joints are bolted.
If an old helper’s handle is used, it must first be

modified accordingly (see 2.1).
Assembly is as shown in the illustrated instruction                      2                       3
sheet (see 4.2) supplied with the helper’s handle or
extension arm.
3.     Guard rail
To help reduce the risk of injury, guard rails are

available for long guide bars (105 cm/41” and
longer) for use in conjunction with the helper’s
handle.

STIHL recommends the use of a guard rail.

The following versions are available:
.     Guard rail kit, 105 cm /41” (1124 007 1018)
.     Guard rail kit, 120 cm/47” (1124 007 1019)

.     Guard rail kit, 150 cm/60” (1124 007 1020)

                                                      689TI044 KN

TI_51_2000_01_01.fm

Page 4 of 5

TI 51/2000 page 4
Text of page 4 — search, copy, screen readers

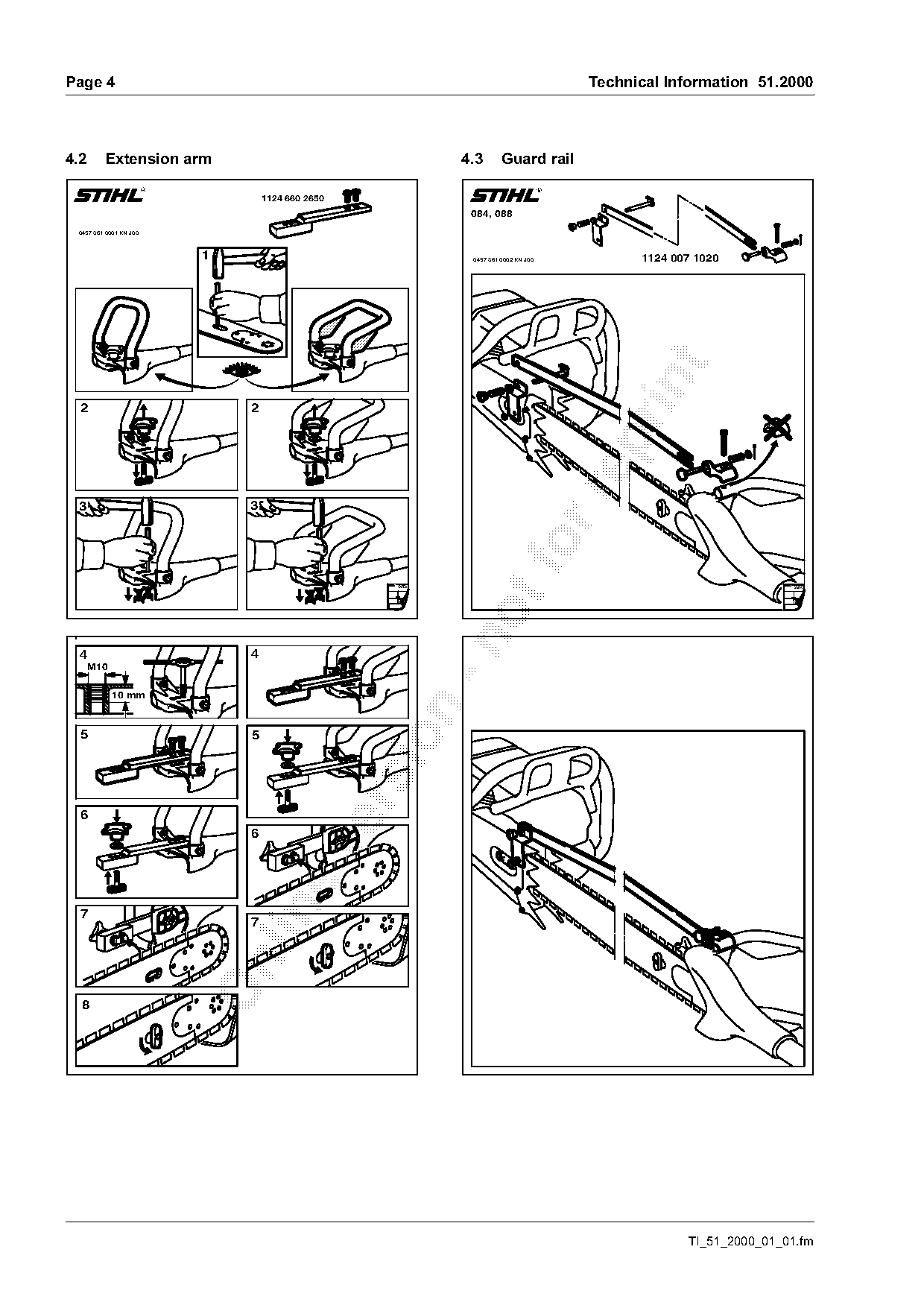

Page 4                                                                                                                  Technical Information 51.2000

4.2      Extension arm                                                                         4.3       Guard rail

                                1124 660 2650
                                                                                                084, 088
 0457 361 0001 KN J00

                        1                                                                       0457 361 0002 KN J00          1124 007 1020

  2                         2

 3                          3

                                                                 cvgdfnbhgfdsrfgvnktrec
                                                                                                                                                                   cvgdfnbhgfdsrfgvnktrec
                                                                 dfnbhgfdsrfgvnktrergvd
                                                                                                                                                                   dfnbhgfdsrfgvnktrergvd
                                                                 nbhgfdsrfgvnktrergvfbsi
                                                                                                                                                                   nbhgfdsrfgvnktrergvfbsi
                                                 0457 365 0005
                                                                 hgfdsrfgvnktrergvfbrsvk                                                           0457 365 0005
                                                                                                                                                                   hgfdsrfgvnktrergvfbrsvk

  4                         4
      M10

            10 mm



  6
                            6

  7
                            7


                                                                                                                                     TI_51_2000_01_01.fm

Page 5 of 5

TI 51/2000 page 5
Text of page 5 — search, copy, screen readers

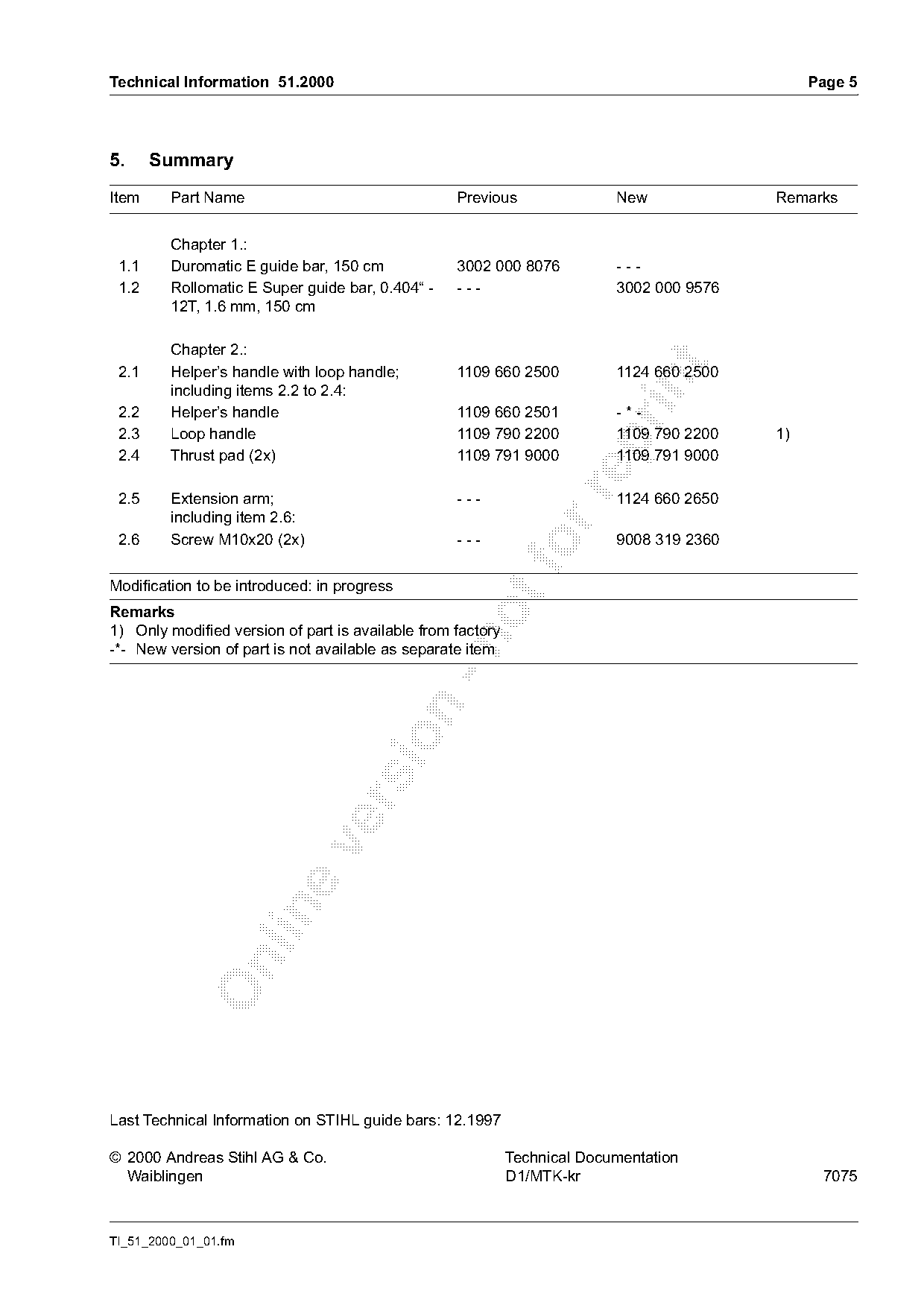

Technical Information 51.2000                                                                   Page 5

5.     Summary
Item     Part Name                                 Previous                New             Remarks

         Chapter 1.:
 1.1     Duromatic E guide bar, 150 cm             3002 000 8076           ---
 1.2     Rollomatic E Super guide bar, 0.404“ -    ---                     3002 000 9576
         12T, 1.6 mm, 150 cm

         Chapter 2.:

 2.1     Helper’s handle with loop handle;         1109 660 2500           1124 660 2500

         including items 2.2 to 2.4:
 2.2     Helper’s handle                           1109 660 2501           -*-
 2.3     Loop handle                               1109 790 2200           1109 790 2200   1)

 2.4     Thrust pad (2x)                           1109 791 9000           1109 791 9000

 2.5     Extension arm;                            ---                     1124 660 2650
         including item 2.6:
 2.6     Screw M10x20 (2x)                         ---                     9008 319 2360
Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from factory

-*- New version of part is not available as separate item

Last Technical Information on STIHL guide bars: 12.1997

© 2000 Andreas Stihl AG & Co.                                Technical Documentation
  Waiblingen                                                 D1/MTK-kr                           7075

TI_51_2000_01_01.fm
