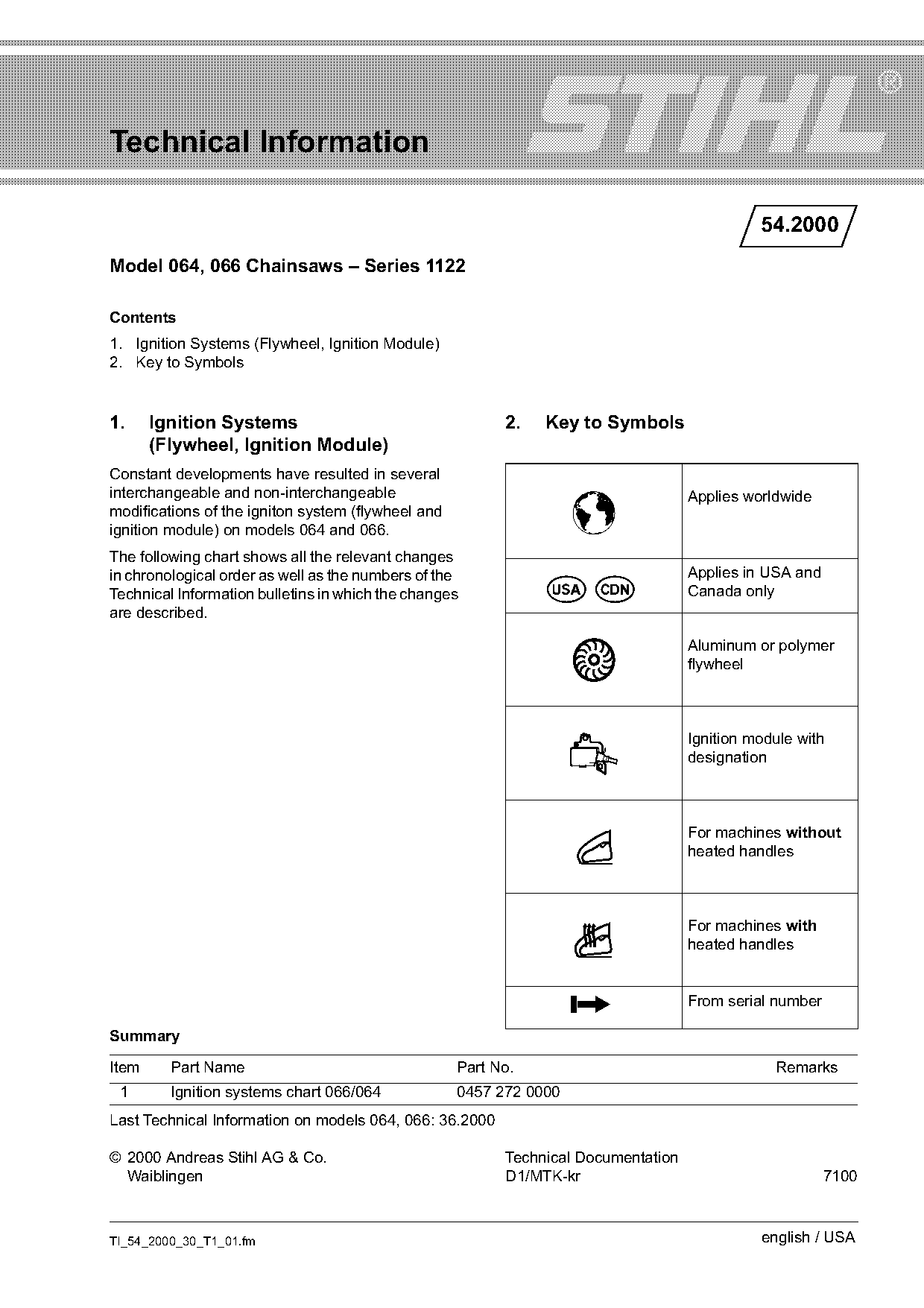

Technical Information
54.2000
Model 064, 066 Chainsaws – Series 1122
Contents
1. Ignition Systems (Flywheel, Ignition Module)
2. Key to Symbols
1. Ignition Systems 2. Key to Symbols
(Flywheel, Ignition Module)
Constant developments have resulted in several
interchangeable and non-interchangeable Applies worldwide
modifications of the igniton system (flywheel and
ignition module) on models 064 and 066.
The following chart shows all the relevant changes
in chronological order as well as the numbers of the Applies in USA and
Technical Information bulletins in which the changes UK Canada only
are described.
Aluminum or polymer
flywheel
Ignition module with
designation
For machines without
heated handles
For machines with
heated handles
+ From serial number
Summary
Item Part Name Part No. Remarks
1 Ignition systems chart 066/064 0457 272 0000
Last Technical Information on models 064, 066: 36.2000
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-kr 7100
TI_54_2000_30_T1_01.fm english / USA
)====OMMM=J=NO========================================================================================================================pqfel

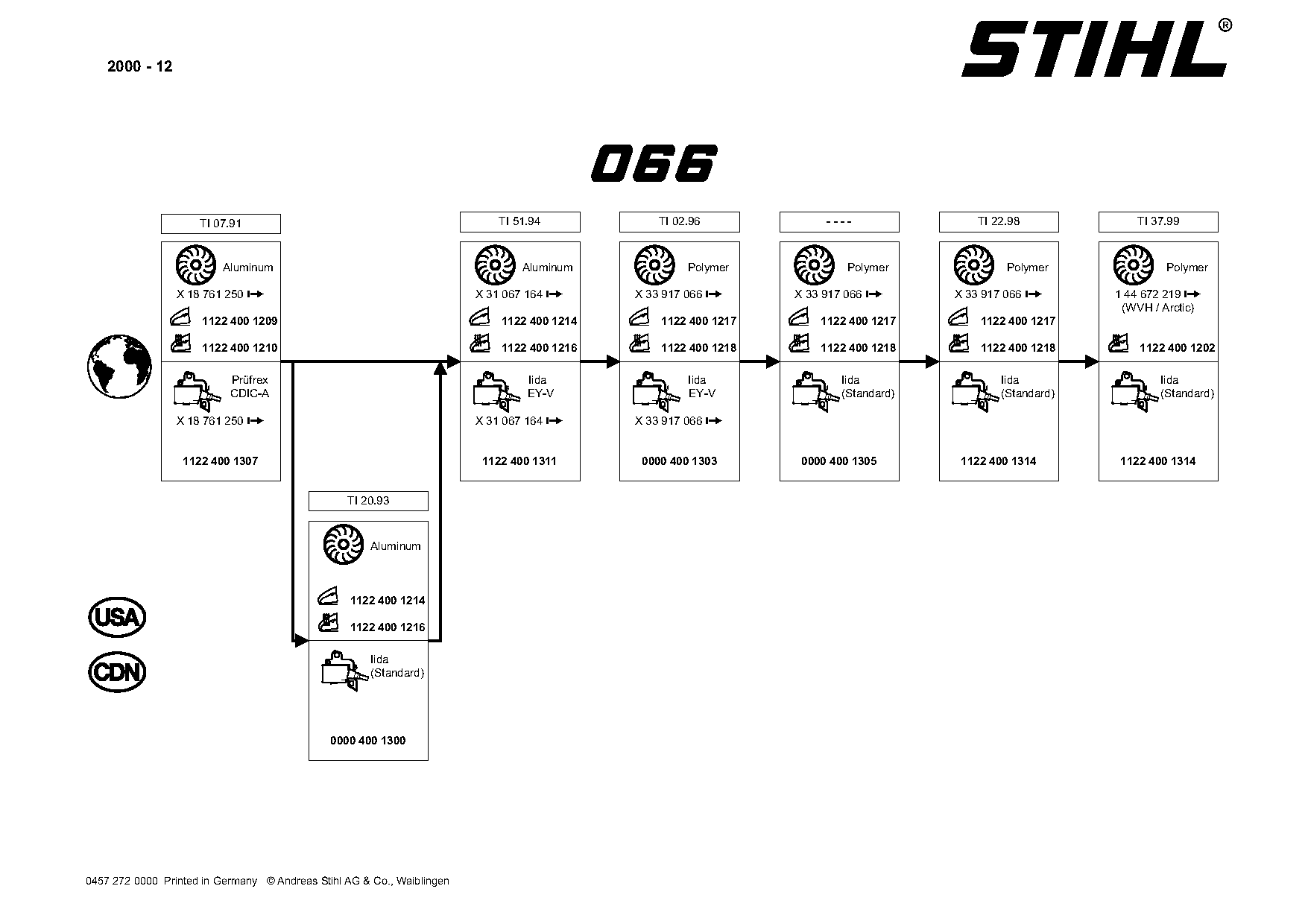

066
TI 07.91 TI 51.94 TI 02.96 ---- TI 22.98 TI 37.99
Aluminum Aluminum Polymer Polymer Polymer Polymer
X 18 761 250 + X 31 067 164 + X 33 917 066 + X 33 917 066 + X 33 917 066 + 1 44 672 219 +
(WVH / Arctic)
1122 400 1209 1122 400 1214 1122 400 1217 1122 400 1217 1122 400 1217
1122 400 1210 1122 400 1216 1122 400 1218 1122 400 1218 1122 400 1218 1122 400 1202
Prüfrex Iida Iida Iida Iida Iida
CDIC-A EY-V EY-V (Standard) (Standard) (Standard)
X 18 761 250 + X 31 067 164 + X 33 917 066 +
1122 400 1307 1122 400 1311 0000 400 1303 0000 400 1305 1122 400 1314 1122 400 1314
TI 20.93
Aluminum
1122 400 1214
1122 400 1216
Iida
(Standard)
0000 400 1300
0457 272 0000 Printed in Germany © Andreas Stihl AG & Co., Waiblingen
)OMMM=J=NO==============================================================pqfel

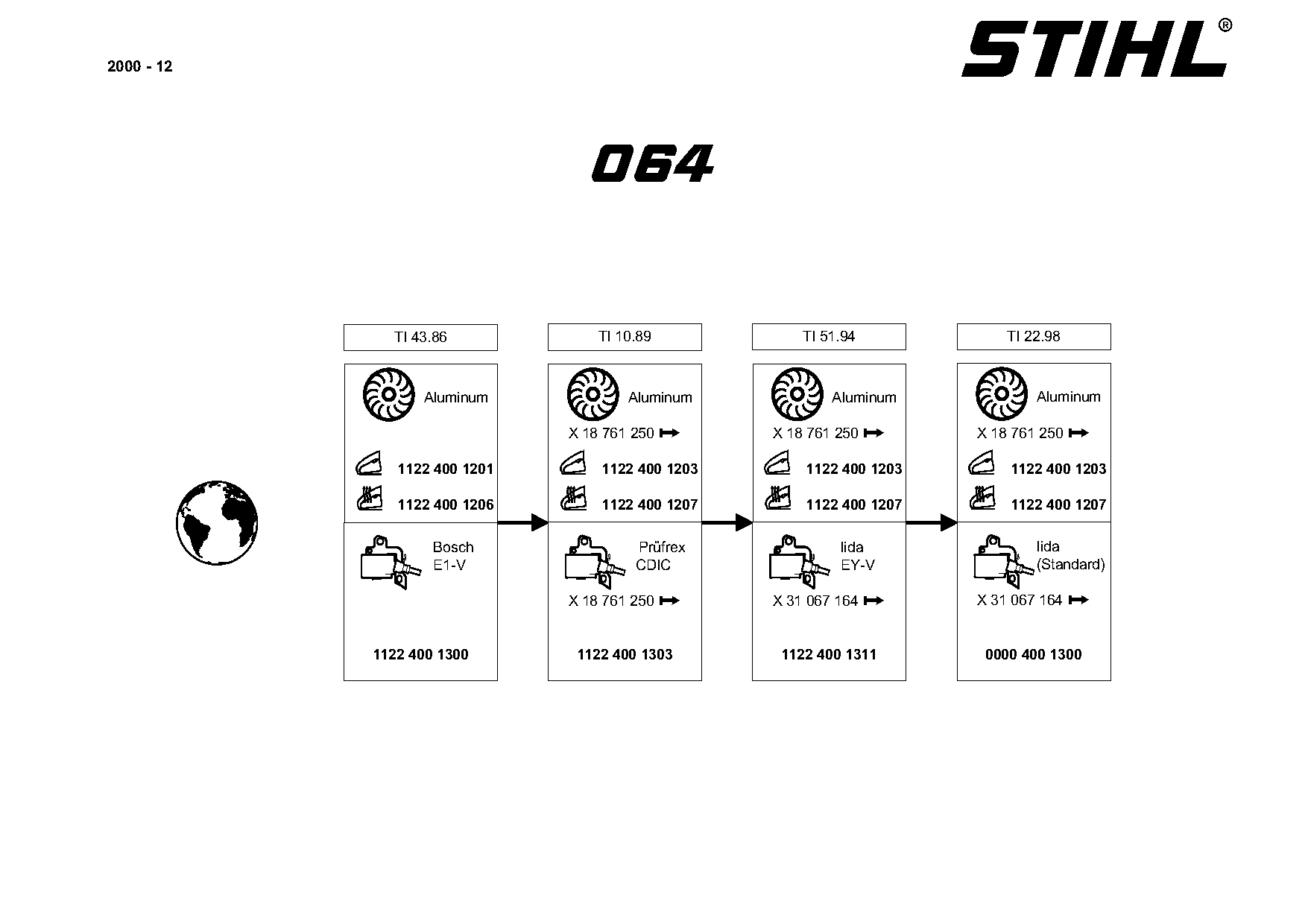

064
TI 43.86 TI 10.89 TI 51.94 TI 22.98
Aluminum Aluminum Aluminum Aluminum
X 18 761 250 + X 18 761 250 + X 18 761 250 +
1122 400 1201 1122 400 1203 1122 400 1203 1122 400 1203
1122 400 1206 1122 400 1207 1122 400 1207 1122 400 1207
Bosch Prüfrex Iida Iida
E1-V CDIC EY-V (Standard)
X 18 761 250 + X 31 067 164 + X 31 067 164 +
1122 400 1300 1122 400 1303 1122 400 1311 0000 400 1300 Page 2 of 3
Page 3 of 3
