Technical Information · issue 55 of 2000
Sprocket Bearing, Chain Sprockets
Model 036 Chainsaws – Series 1125
IssueTI 55/2000
Engine family 1125
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 9512 003 2260 | 9512 933 2380 | 63 16 51 needle bearing 9512 003 2260 (13 mm outside 13 diameter) will be replaced by needle bearing 9512 933 2380 (16 mm outside diameter). |
Full text

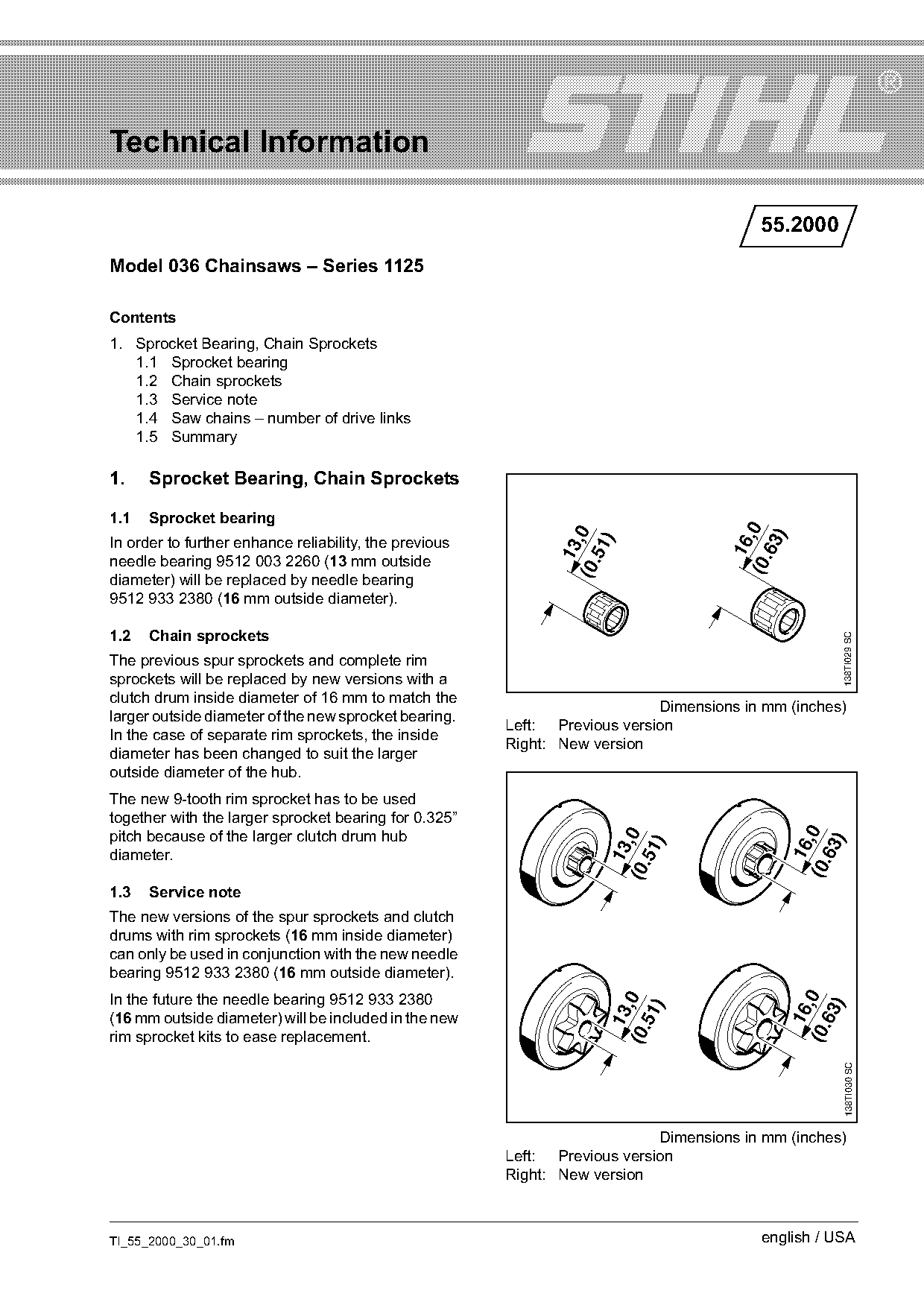

Page 1 of 2
Technical Information
55.2000
Model 036 Chainsaws – Series 1125
Contents
1. Sprocket Bearing, Chain Sprockets
1.1 Sprocket bearing
1.2 Chain sprockets
1.3 Service note
1.4 Saw chains – number of drive links
1.5 Summary
1. Sprocket Bearing, Chain Sprockets
1.1 Sprocket bearing
(0. ,0
(0. ,0
)
In order to further enhance reliability, the previous
)
63
16
51
needle bearing 9512 003 2260 (13 mm outside 13
diameter) will be replaced by needle bearing
9512 933 2380 (16 mm outside diameter).
1.2 Chain sprockets
138TI029 SC
The previous spur sprockets and complete rim
sprockets will be replaced by new versions with a
clutch drum inside diameter of 16 mm to match the
Dimensions in mm (inches)
larger outside diameter of the new sprocket bearing.
Left: Previous version
In the case of separate rim sprockets, the inside
Right: New version
diameter has been changed to suit the larger
outside diameter of the hub.
The new 9-tooth rim sprocket has to be used
together with the larger sprocket bearing for 0.325”
pitch because of the larger clutch drum hub
(0. ,0
(0. ,0
)
)
63
16
51
13
diameter.
1.3 Service note
The new versions of the spur sprockets and clutch
drums with rim sprockets (16 mm inside diameter)
can only be used in conjunction with the new needle
bearing 9512 933 2380 (16 mm outside diameter).
In the future the needle bearing 9512 933 2380
(0. ,0
(0. ,0
)
)
63
16
51
(16 mm outside diameter) will be included in the new
13
rim sprocket kits to ease replacement.
138TI030 SC
Dimensions in mm (inches)
Left: Previous version
Right: New version
TI_55_2000_30_01.fm english / USA

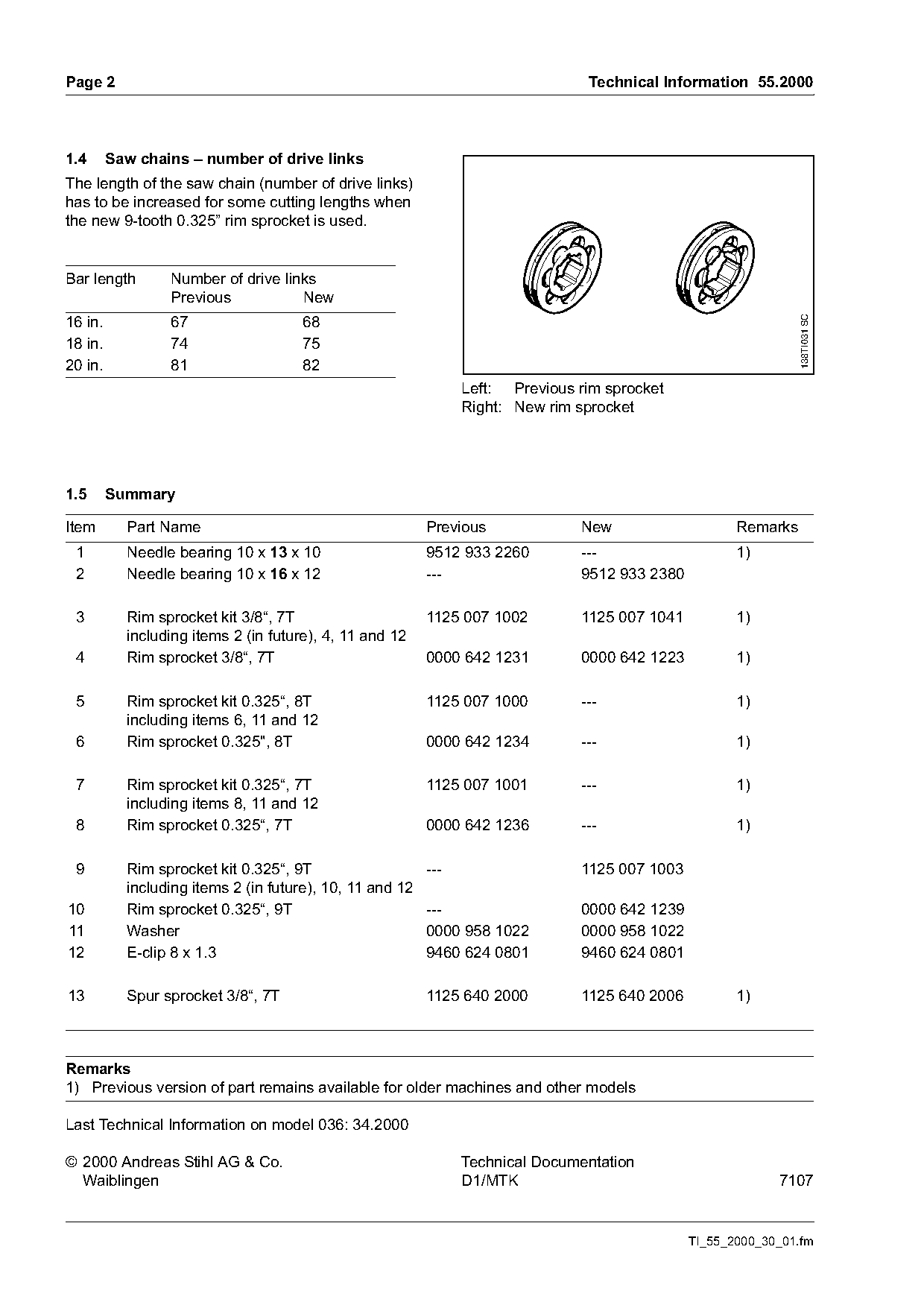

)m~ge 2 Technical Information 55.2000
1.4 Saw chains – number of drive links
The length of the saw chain (number of drive links)
has to be increased for some cutting lengths when
the new 9-tooth 0.325” rim sprocket is used.
Bar length Number of drive links
Previous New
16 in. 67 68
138TI031 SC
18 in. 74 75
20 in. 81 82
Left: Previous rim sprocket
Right: New rim sprocket
1.5 Summary
Item Part Name Previous New Remarks
1 Needle bearing 10 x 13 x 10 9512 933 2260 --- 1)
2 Needle bearing 10 x 16 x 12 --- 9512 933 2380
3 Rim sprocket kit 3/8“, 7T 1125 007 1002 1125 007 1041 1)
including items 2 (in future), 4, 11 and 12
4 Rim sprocket 3/8“, 7T 0000 642 1231 0000 642 1223 1)
5 Rim sprocket kit 0.325“, 8T 1125 007 1000 --- 1)
including items 6, 11 and 12
6 Rim sprocket 0.325", 8T 0000 642 1234 --- 1)
7 Rim sprocket kit 0.325“, 7T 1125 007 1001 --- 1)
including items 8, 11 and 12
8 Rim sprocket 0.325“, 7T 0000 642 1236 --- 1)
9 Rim sprocket kit 0.325“, 9T --- 1125 007 1003
including items 2 (in future), 10, 11 and 12
10 Rim sprocket 0.325“, 9T --- 0000 642 1239
11 Washer 0000 958 1022 0000 958 1022
12 E-clip 8 x 1.3 9460 624 0801 9460 624 0801
13 Spur sprocket 3/8“, 7T 1125 640 2000 1125 640 2006 1)
Remarks
1) Previous version of part remains available for older machines and other models
Last Technical Information on model 036: 34.2000
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK 7107
TI_55_2000_30_01.fm Page 2 of 2
