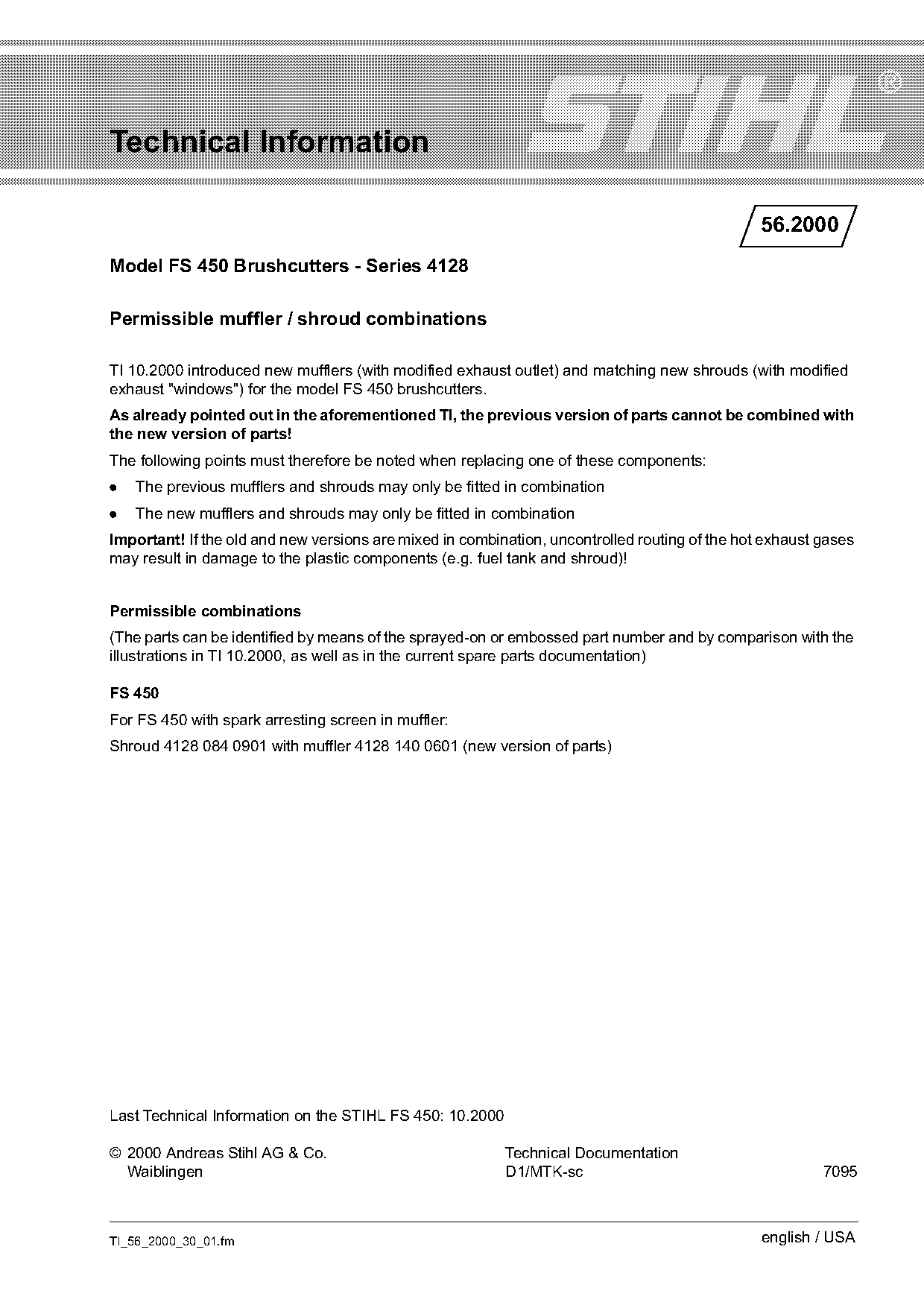

Technical Information
56.2000
Model FS 450 Brushcutters - Series 4128
Permissible muffler / shroud combinations
TI 10.2000 introduced new mufflers (with modified exhaust outlet) and matching new shrouds (with modified
exhaust "windows") for the model FS 450 brushcutters.
As already pointed out in the aforementioned TI, the previous version of parts cannot be combined with
the new version of parts!
The following points must therefore be noted when replacing one of these components:
. The previous mufflers and shrouds may only be fitted in combination
. The new mufflers and shrouds may only be fitted in combination
Important! If the old and new versions are mixed in combination, uncontrolled routing of the hot exhaust gases
may result in damage to the plastic components (e.g. fuel tank and shroud)!
Permissible combinations
(The parts can be identified by means of the sprayed-on or embossed part number and by comparison with the
illustrations in TI 10.2000, as well as in the current spare parts documentation)
FS 450
For FS 450 with spark arresting screen in muffler:
Shroud 4128 084 0901 with muffler 4128 140 0601 (new version of parts)
Last Technical Information on the STIHL FS 450: 10.2000
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 7095
