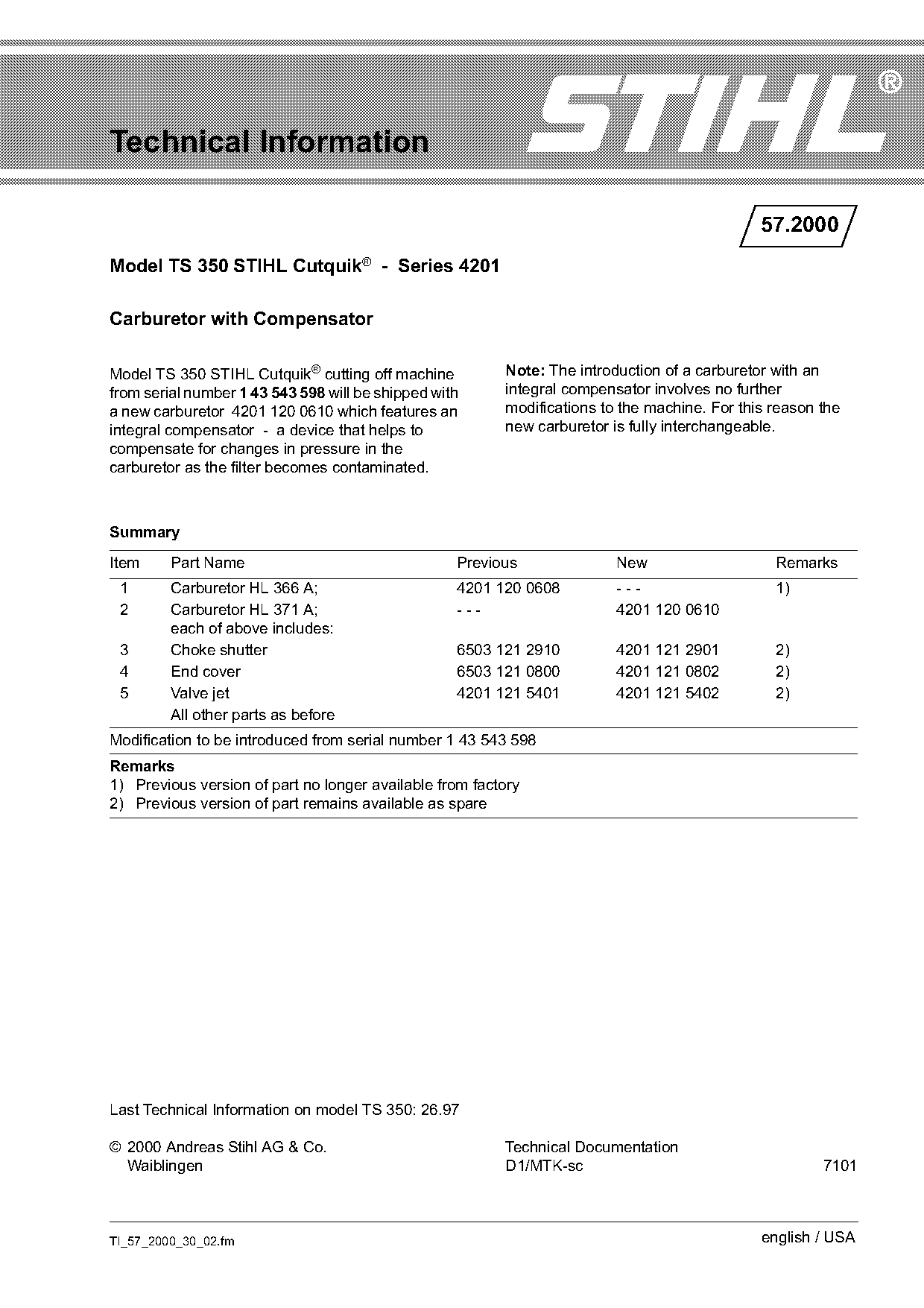

Technical Information
57.2000
Model TS 350 STIHL Cutquik® - Series 4201
Carburetor with Compensator
Model TS 350 STIHL Cutquik® cutting off machine Note: The introduction of a carburetor with an
from serial number 1 43 543 598 will be shipped with integral compensator involves no further
a new carburetor 4201 120 0610 which features an modifications to the machine. For this reason the
integral compensator - a device that helps to new carburetor is fully interchangeable.
compensate for changes in pressure in the
carburetor as the filter becomes contaminated.
Summary
Item Part Name Previous New Remarks
1 Carburetor HL 366 A; 4201 120 0608 --- 1)
2 Carburetor HL 371 A; --- 4201 120 0610
each of above includes:
3 Choke shutter 6503 121 2910 4201 121 2901 2)
4 End cover 6503 121 0800 4201 121 0802 2)
5 Valve jet 4201 121 5401 4201 121 5402 2)
All other parts as before
Modification to be introduced from serial number 1 43 543 598
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available as spare
Last Technical Information on model TS 350: 26.97
© 2000 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 7101
