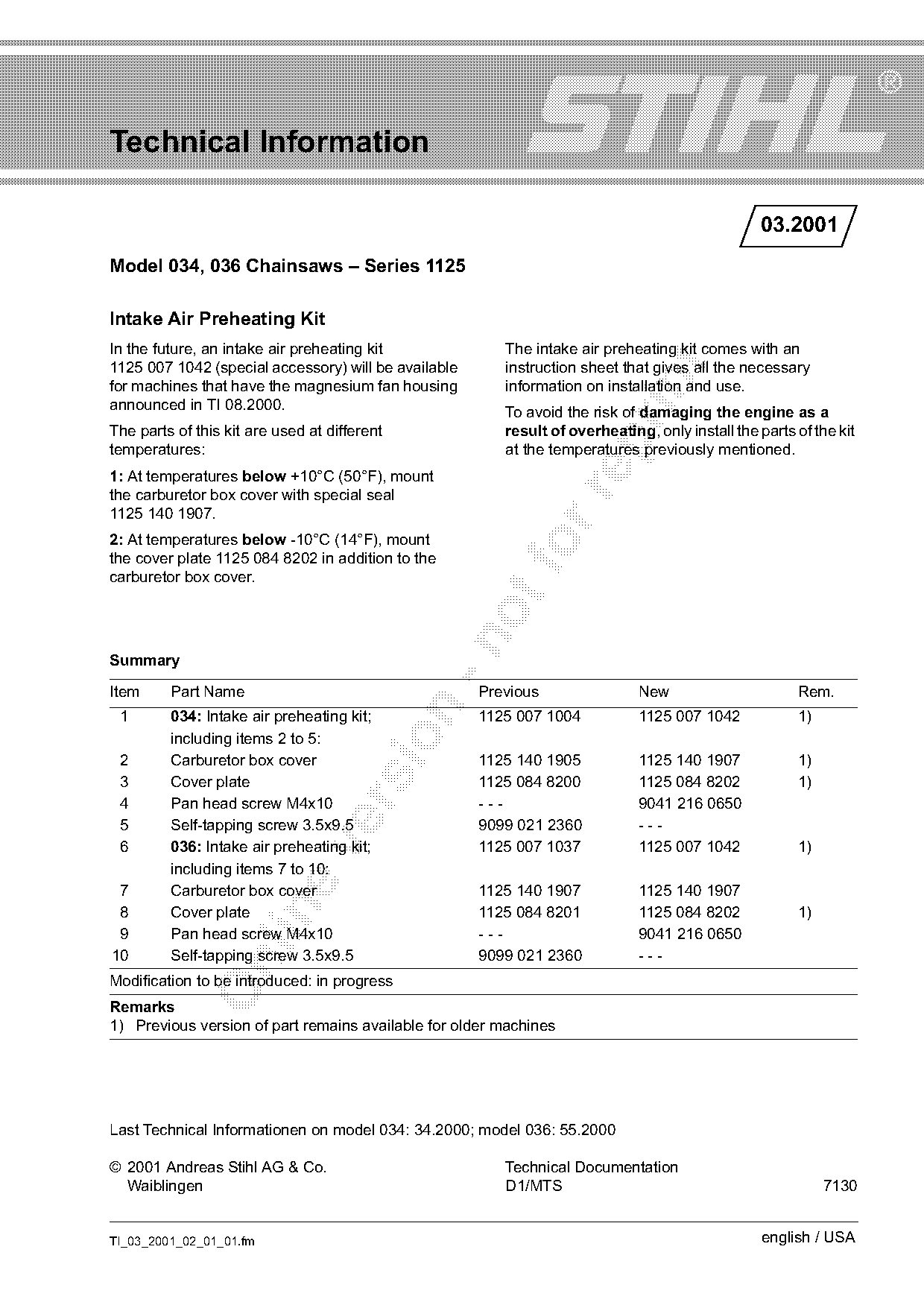

Technical Information
03.2001
Model 034, 036 Chainsaws – Series 1125
Intake Air Preheating Kit
In the future, an intake air preheating kit The intake air preheating kit comes with an
1125 007 1042 (special accessory) will be available instruction sheet that gives all the necessary
for machines that have the magnesium fan housing information on installation and use.
announced in TI 08.2000.
To avoid the risk of damaging the engine as a
The parts of this kit are used at different result of overheating, only install the parts of the kit
temperatures: at the temperatures previously mentioned.
1: At temperatures below +10°C (50°F), mount
the carburetor box cover with special seal
1125 140 1907.
2: At temperatures below -10°C (14°F), mount
the cover plate 1125 084 8202 in addition to the
carburetor box cover.
Summary
Item Part Name Previous New Rem.
1 034: Intake air preheating kit; 1125 007 1004 1125 007 1042 1)
including items 2 to 5:
2 Carburetor box cover 1125 140 1905 1125 140 1907 1)
3 Cover plate 1125 084 8200 1125 084 8202 1)
4 Pan head screw M4x10 --- 9041 216 0650
5 Self-tapping screw 3.5x9.5 9099 021 2360 ---
6 036: Intake air preheating kit; 1125 007 1037 1125 007 1042 1)
including items 7 to 10:
7 Carburetor box cover 1125 140 1907 1125 140 1907
8 Cover plate 1125 084 8201 1125 084 8202 1)
9 Pan head screw M4x10 --- 9041 216 0650
10 Self-tapping screw 3.5x9.5 9099 021 2360 ---
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available for older machines
Last Technical Informationen on model 034: 34.2000; model 036: 55.2000
