Technical Information · issue 6 of 2001
New Sales Designation for 044; Uprated Engine; Tan
Model 044 Chainsaws – Series 1128
IssueTI 6/2001
Engine family 1128
Part changes (5)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 350 0823 | 1128 350 0832 | The previous tank housing 1128 350 0823 has been replaced by the new version 1128 350 0832. |
| 1128 350 5802 | 0000 350 5800 | 1 Tank vent The previous tank vent 1128 350 5802 will be replaced by the new version 0000 350 5800. |
| 1128 020 2119 | 1128 020 2122 | The previous crankcase 1128 020 2119 will be replaced by the version 1128 020 2122. |
| 9503 003 0340 | 9503 003 0346 | previous main bearing 9503 003 0340 will be 1 4 replaced by bearing 9503 003 0346. |
| 1128 160 2000 | 1128 160 2001 | The previous clutch 1128 160 2000 with clutch 2 shoes 1128 162 0800 will be replaced by version 1128 160 2001 with clutch shoes 1128 162 0806. |
Full text

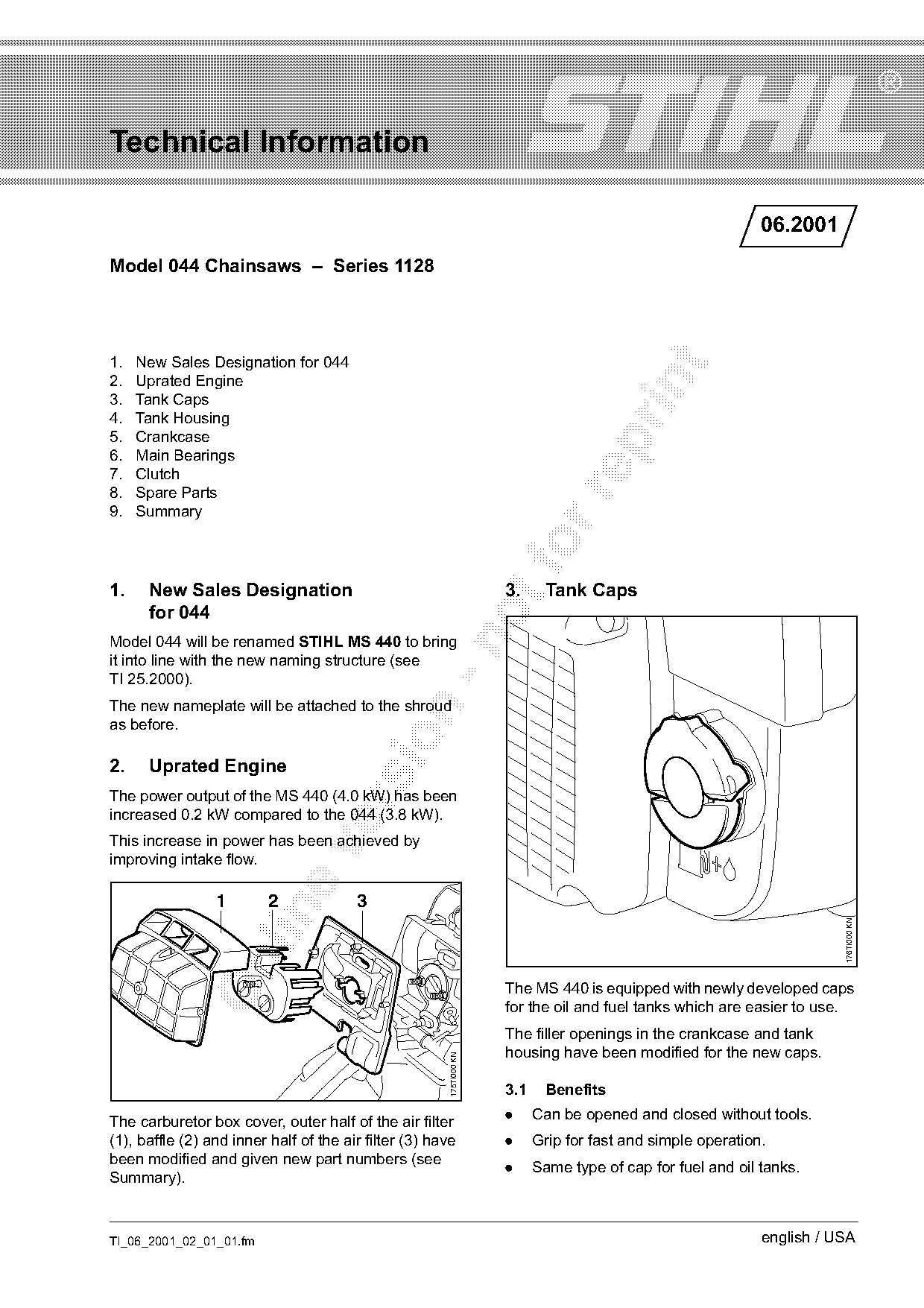

Page 1 of 4
Technical Information
06.2001
Model 044 Chainsaws – Series 1128
1. New Sales Designation for 044
2. Uprated Engine
3. Tank Caps
4. Tank Housing
5. Crankcase
6. Main Bearings
7. Clutch
8. Spare Parts
9. Summary
1. New Sales Designation 3. Tank Caps
for 044
Model 044 will be renamed STIHL MS 440 to bring
it into line with the new naming structure (see
TI 25.2000).
The new nameplate will be attached to the shroud
as before.
2. Uprated Engine
The power output of the MS 440 (4.0 kW) has been
increased 0.2 kW compared to the 044 (3.8 kW).
This increase in power has been achieved by
improving intake flow.
1 2 3
176TI000 KN
The MS 440 is equipped with newly developed caps
for the oil and fuel tanks which are easier to use.
The filler openings in the crankcase and tank
housing have been modified for the new caps.
175TI000 KN
3.1 Benefits
The carburetor box cover, outer half of the air filter . Can be opened and closed without tools.
(1), baffle (2) and inner half of the air filter (3) have . Grip for fast and simple operation.
been modified and given new part numbers (see
. Same type of cap for fuel and oil tanks.
Summary).
TI_06_2001_02_01_01.fm english / USA

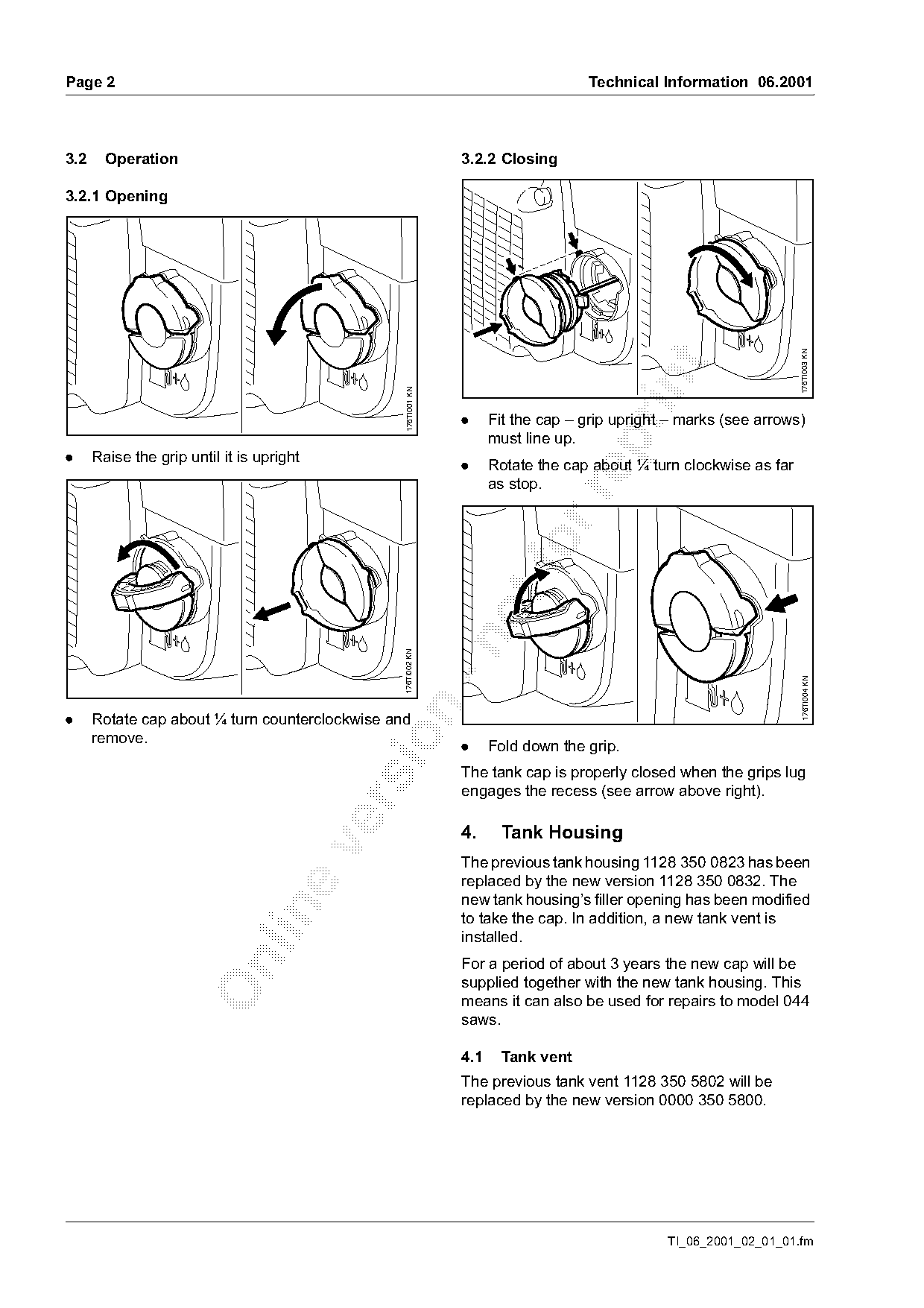

)m~ge 2 Technical Information 06.2001
3.2 Operation 3.2.2 Closing
3.2.1 Opening
176TI003 KN
176TI001 KN
. Fit the cap – grip upright – marks (see arrows)
must line up.
. Raise the grip until it is upright
. Rotate the cap about ¼ turn clockwise as far
as stop.
176TI002 KN
176TI004 KN
. Rotate cap about ¼ turn counterclockwise and
remove.
. Fold down the grip.
The tank cap is properly closed when the grips lug
engages the recess (see arrow above right).
4. Tank Housing
The previous tank housing 1128 350 0823 has been
replaced by the new version 1128 350 0832. The
new tank housing’s filler opening has been modified
to take the cap. In addition, a new tank vent is
installed.
For a period of about 3 years the new cap will be
supplied together with the new tank housing. This
means it can also be used for repairs to model 044
saws.
4.1 Tank vent
The previous tank vent 1128 350 5802 will be
replaced by the new version 0000 350 5800.
TI_06_2001_02_01_01.fm Page 2 of 4

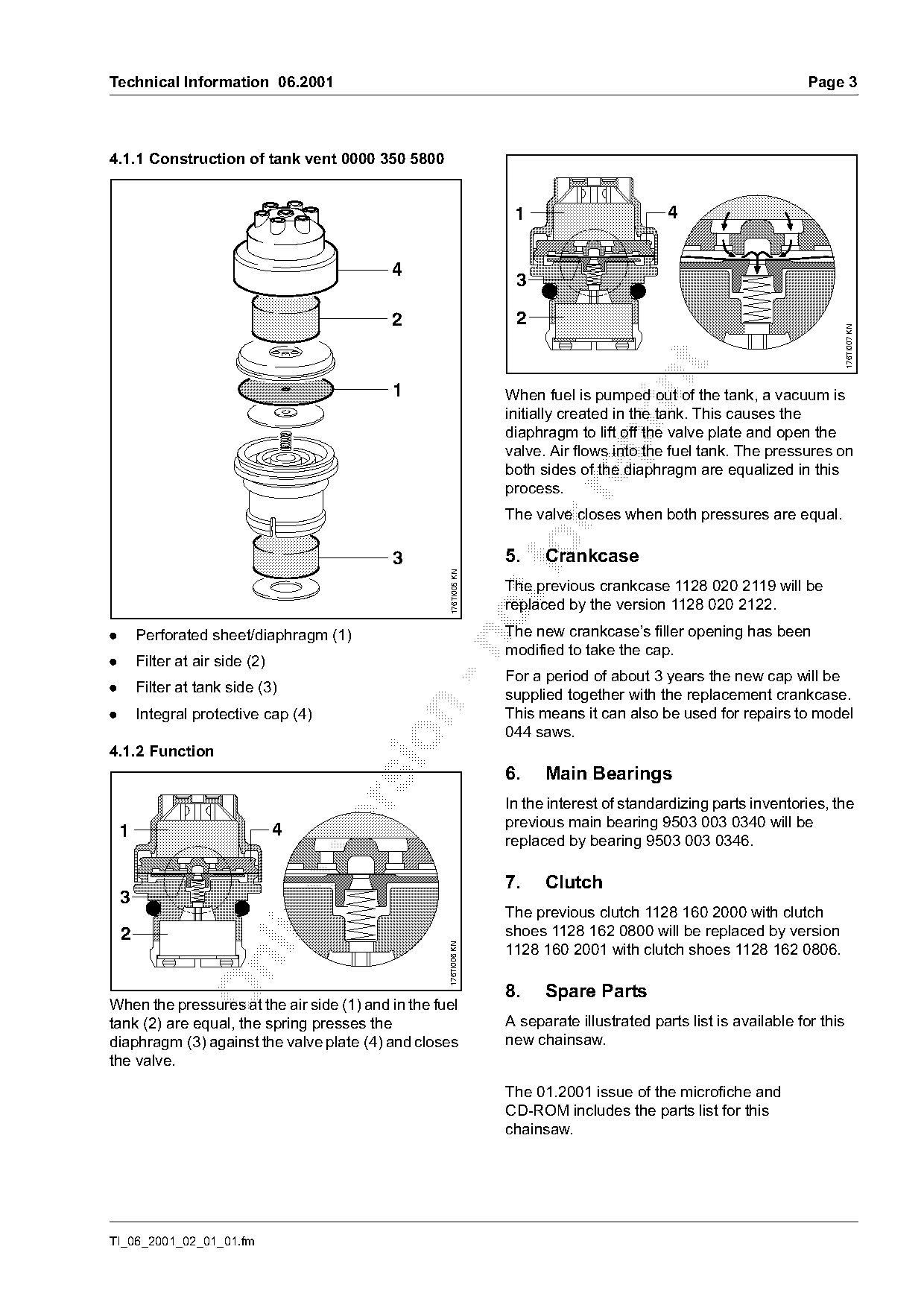

Technical Information 06.2001 Page 3
4.1.1 Construction of tank vent 0000 350 5800
1 4
4
3
2 2
176TI007 KN
1 When fuel is pumped out of the tank, a vacuum is
initially created in the tank. This causes the
diaphragm to lift off the valve plate and open the
valve. Air flows into the fuel tank. The pressures on
both sides of the diaphragm are equalized in this
process.
The valve closes when both pressures are equal.
3 fo
5. Crankcase
176TI005 KN
The previous crankcase 1128 020 2119 will be
replaced by the version 1128 020 2122.
. Perforated sheet/diaphragm (1) The new crankcase’s filler opening has been
modified to take the cap.
. Filter at air side (2)
For a period of about 3 years the new cap will be
. Filter at tank side (3) supplied together with the replacement crankcase.
. Integral protective cap (4) This means it can also be used for repairs to model
044 saws.
4.1.2 Function
6. Main Bearings
In the interest of standardizing parts inventories, the
previous main bearing 9503 003 0340 will be
1 4
replaced by bearing 9503 003 0346.
7. Clutch
3
The previous clutch 1128 160 2000 with clutch
2 shoes 1128 162 0800 will be replaced by version
1128 160 2001 with clutch shoes 1128 162 0806.
176TI006 KN
8. Spare Parts
When the pressures at the air side (1) and in the fuel
tank (2) are equal, the spring presses the A separate illustrated parts list is available for this
diaphragm (3) against the valve plate (4) and closes new chainsaw.
the valve.
The 01.2001 issue of the microfiche and
CD-ROM includes the parts list for this
chainsaw.
TI_06_2001_02_01_01.fm
)m~ge 4 Technical Information 06.2001

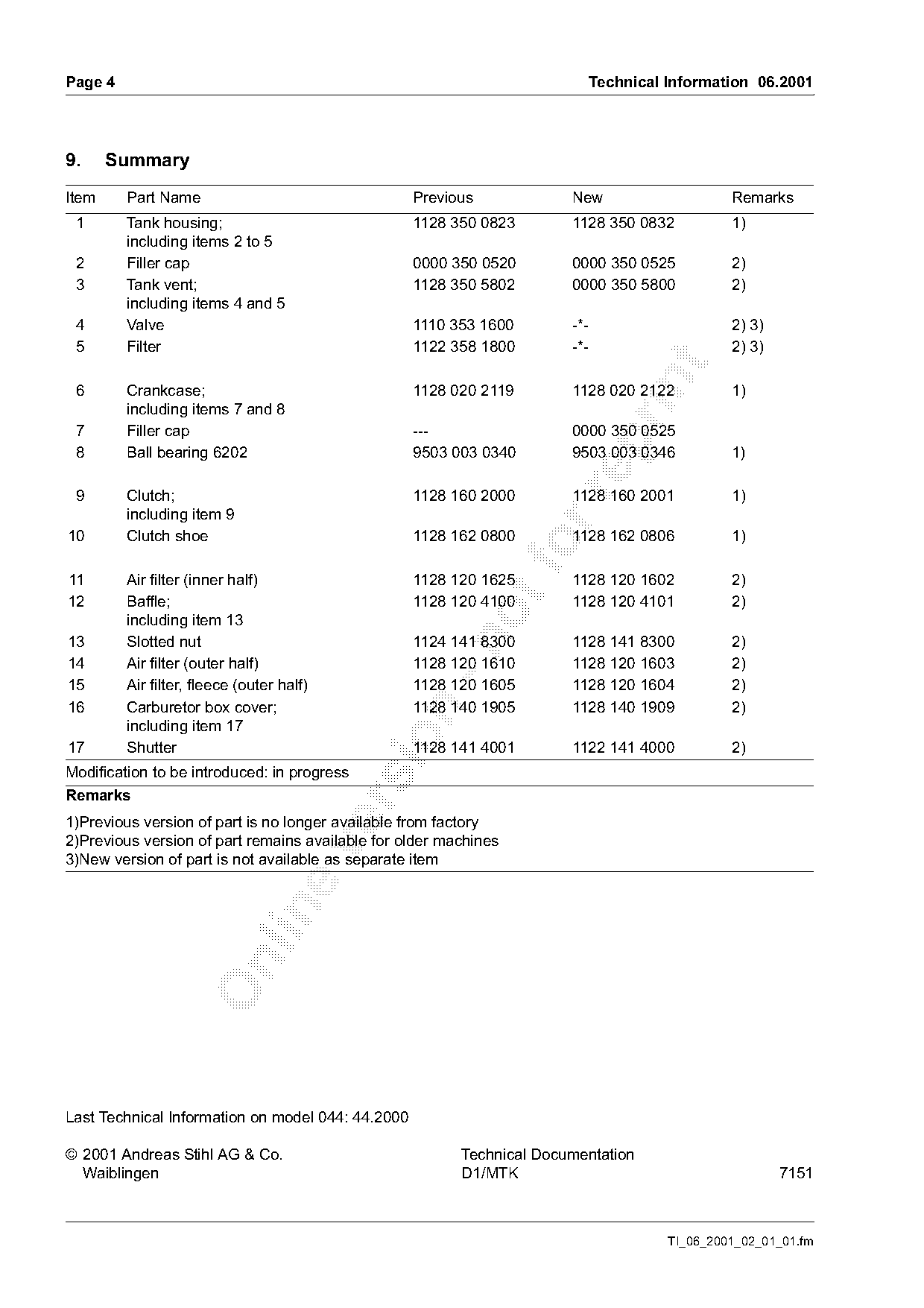

9. Summary
Item Part Name Previous New Remarks
1 Tank housing; 1128 350 0823 1128 350 0832 1)
including items 2 to 5
2 Filler cap 0000 350 0520 0000 350 0525 2)
3 Tank vent; 1128 350 5802 0000 350 5800 2)
including items 4 and 5
4 Valve 1110 353 1600 -*- 2) 3)
5 Filter 1122 358 1800 -*- 2) 3)
6 Crankcase; 1128 020 2119 1128 020 2122 1)
including items 7 and 8
7 Filler cap --- 0000 350 0525
8 Ball bearing 6202 9503 003 0340 9503 003 0346 1)
9 Clutch; 1128 160 2000 1128 160 2001 1)
including item 9
10 Clutch shoe 1128 162 0800 1128 162 0806 1)
11 Air filter (inner half) 1128 120 1625 1128 120 1602 2)
12 Baffle; 1128 120 4100 1128 120 4101 2)
including item 13
13 Slotted nut 1124 141 8300 1128 141 8300 2)
14 Air filter (outer half) 1128 120 1610 1128 120 1603 2)
15 Air filter, fleece (outer half) 1128 120 1605 1128 120 1604 2)
16 Carburetor box cover; 1128 140 1905 1128 140 1909 2)
including item 17
17 Shutter 1128 141 4001 1122 141 4000 2)
Modification to be introduced: in progress
Remarks
1)Previous version of part is no longer available from factory
2)Previous version of part remains available for older machines
3)New version of part is not available as separate item
Last Technical Information on model 044: 44.2000
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK 7151
TI_06_2001_02_01_01.fm Page 3 of 4
