Technical Information · issue 9 of 2001
New Model FC 73 Edger
IssueTI 9/2001
Full text
Page 1 of 6

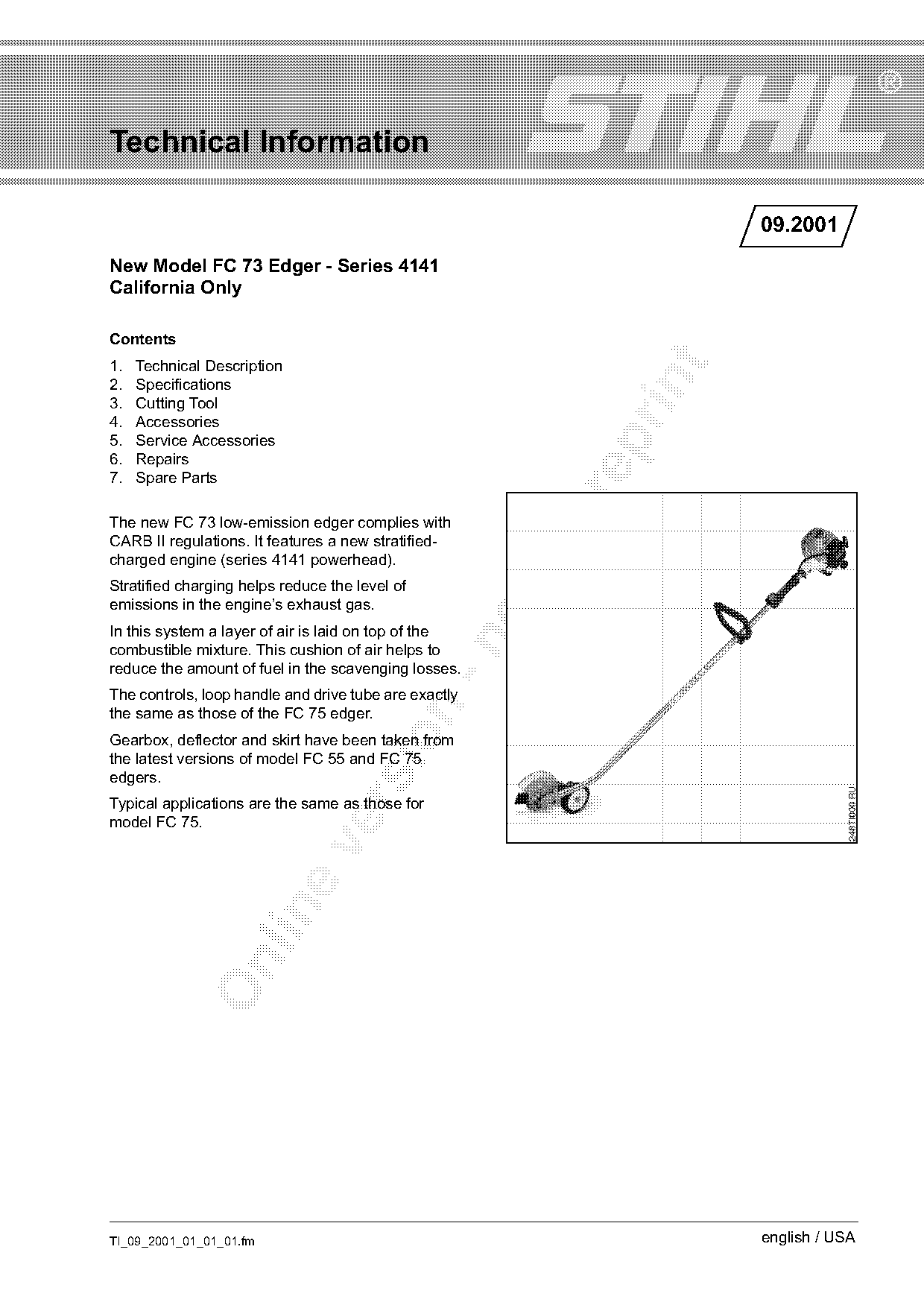

Technical Information
09.2001
New Model FC 73 Edger - Series 4141
California Only
Contents
1. Technical Description
2. Specifications
3. Cutting Tool
4. Accessories
5. Service Accessories
6. Repairs
7. Spare Parts
The new FC 73 low-emission edger complies with
CARB II regulations. It features a new stratified-
charged engine (series 4141 powerhead).
Stratified charging helps reduce the level of
emissions in the engine’s exhaust gas.
In this system a layer of air is laid on top of the
combustible mixture. This cushion of air helps to
reduce the amount of fuel in the scavenging losses.
The controls, loop handle and drive tube are exactly
the same as those of the FC 75 edger.
Gearbox, deflector and skirt have been taken from
the latest versions of model FC 55 and FC 75
edgers.
Typical applications are the same as those for
model FC 75.
TI_09_2001_01_01_01.fm english / USA

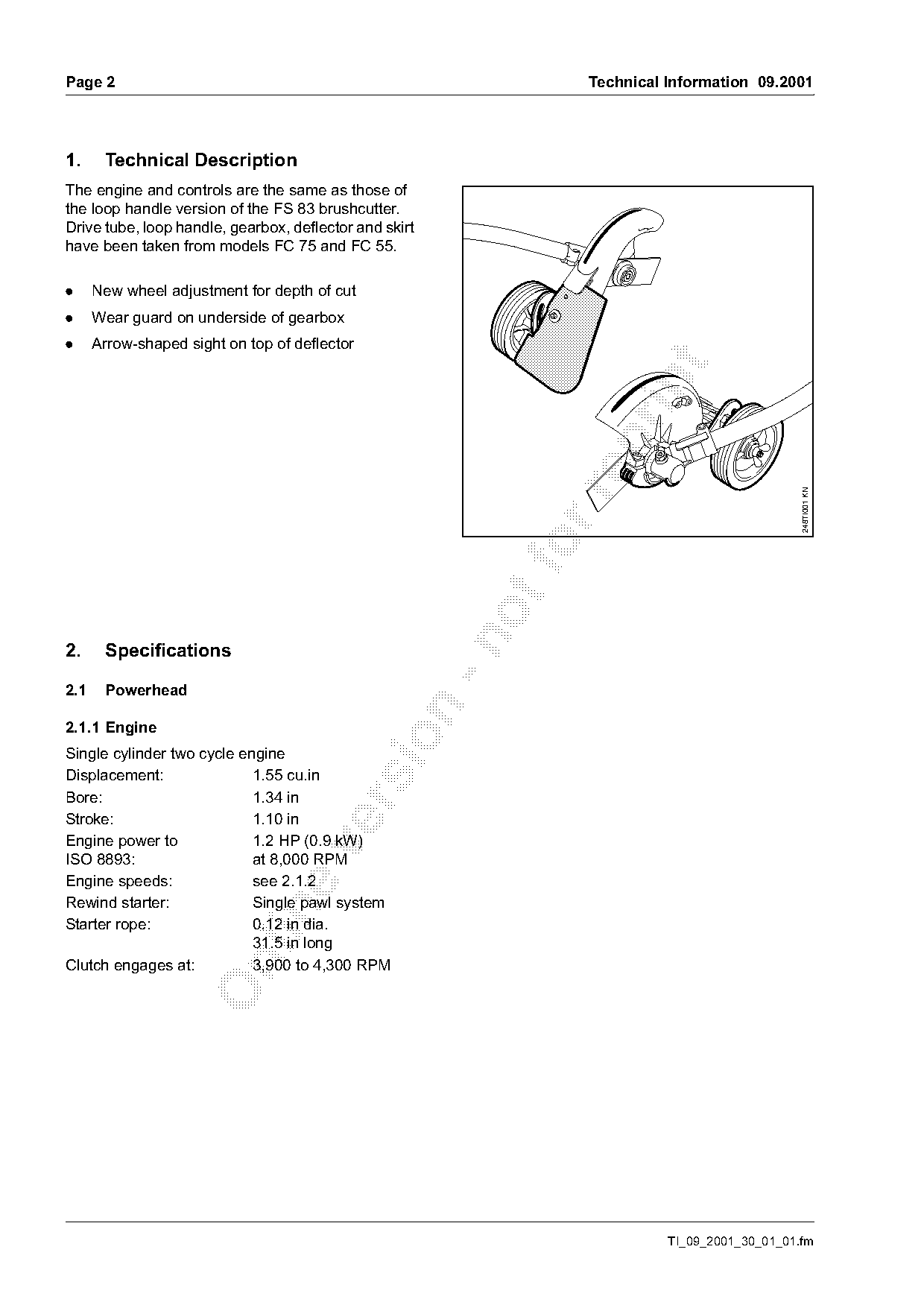

)m~ge 2 Technical Information 09.2001
1. Technical Description
The engine and controls are the same as those of
the loop handle version of the FS 83 brushcutter.
Drive tube, loop handle, gearbox, deflector and skirt
have been taken from models FC 75 and FC 55.
. New wheel adjustment for depth of cut
. Wear guard on underside of gearbox
. Arrow-shaped sight on top of deflector
248TI001 KN
2. Specifications
2.1 Powerhead
2.1.1 Engine
Single cylinder two cycle engine
Displacement: 1.55 cu.in
Bore: 1.34 in
Stroke: 1.10 in
Engine power to 1.2 HP (0.9 kW)
ISO 8893: at 8,000 RPM
Engine speeds: see 2.1.2
Rewind starter: Single pawl system
Starter rope: 0.12 in dia.
31.5 in long
Clutch engages at: 3,900 to 4,300 RPM
TI_09_2001_30_01_01.fm Page 2 of 6

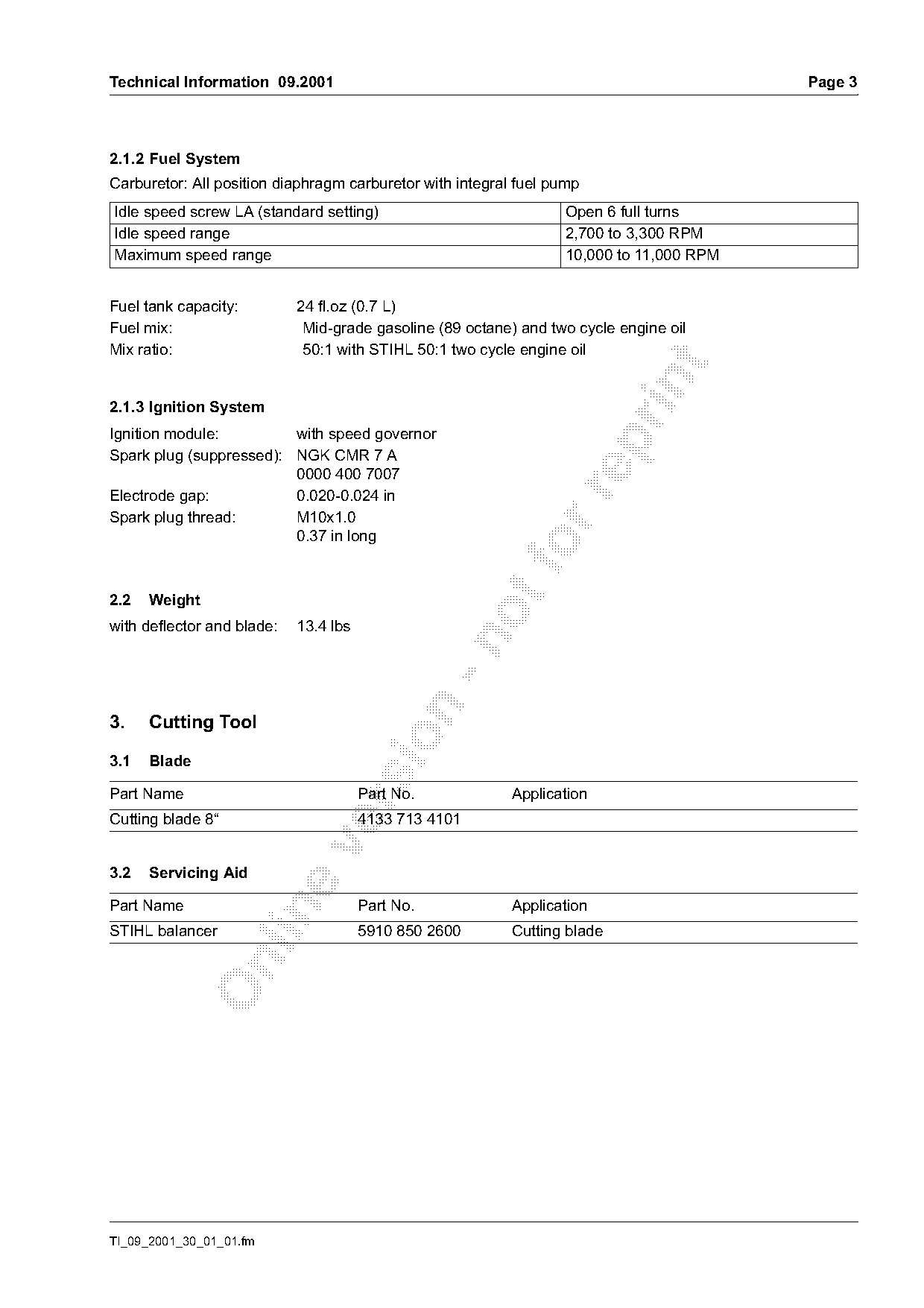

Technical Information 09.2001 Page 3
2.1.2 Fuel System
Carburetor: All position diaphragm carburetor with integral fuel pump
Idle speed screw LA (standard setting) Open 6 full turns
Idle speed range 2,700 to 3,300 RPM
Maximum speed range 10,000 to 11,000 RPM
Fuel tank capacity: 24 fl.oz (0.7 L)
Fuel mix: Mid-grade gasoline (89 octane) and two cycle engine oil
Mix ratio: 50:1 with STIHL 50:1 two cycle engine oil
2.1.3 Ignition System
Ignition module: with speed governor
Spark plug (suppressed): NGK CMR 7 A
0000 400 7007
Electrode gap: 0.020-0.024 in
Spark plug thread: M10x1.0
0.37 in long
2.2 Weight
with deflector and blade: 13.4 lbs
3. Cutting Tool
3.1 Blade
Part Name Part No. Application
Cutting blade 8“ 4133 713 4101
3.2 Servicing Aid
Part Name Part No. Application
STIHL balancer 5910 850 2600 Cutting blade
TI_09_2001_30_01_01.fm

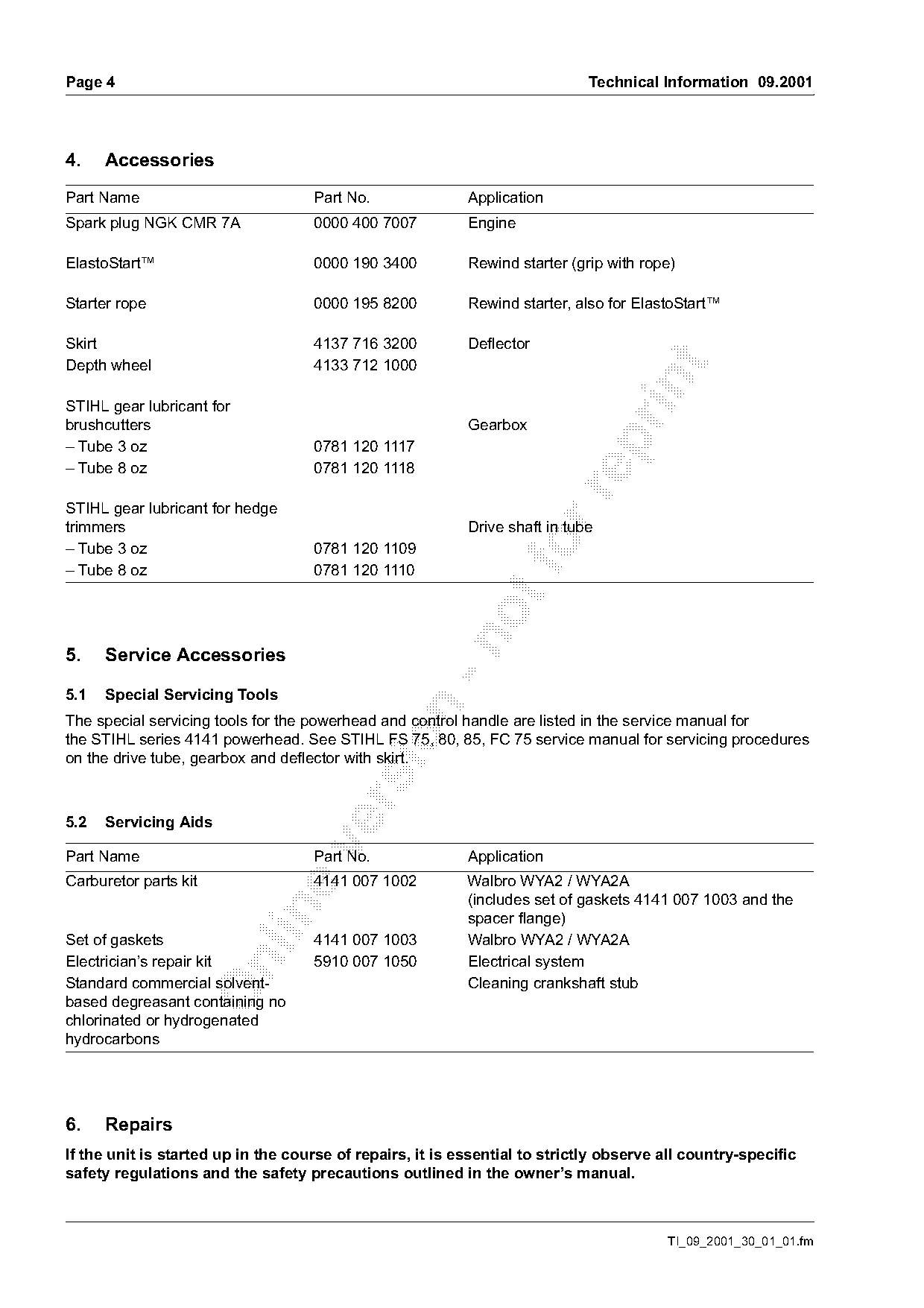

)m~ge 4 Technical Information 09.2001
4. Accessories
Part Name Part No. Application
Spark plug NGK CMR 7A 0000 400 7007 Engine
ElastoStart™ 0000 190 3400 Rewind starter (grip with rope)
Starter rope 0000 195 8200 Rewind starter, also for ElastoStart™
Skirt 4137 716 3200 Deflector
Depth wheel 4133 712 1000
STIHL gear lubricant for
brushcutters Gearbox
– Tube 3 oz 0781 120 1117
– Tube 8 oz 0781 120 1118
STIHL gear lubricant for hedge
trimmers Drive shaft in tube
– Tube 3 oz
– Tube 8 oz
0781 120 1109
0781 120 1110
5. Service Accessories
5.1 Special Servicing Tools
The special servicing tools for the powerhead and control handle are listed in the service manual for
the STIHL series 4141 powerhead. See STIHL FS 75, 80, 85, FC 75 service manual for servicing procedures
on the drive tube, gearbox and deflector with skirt.
5.2 Servicing Aids
Part Name Part No. Application
Carburetor parts kit 4141 007 1002 Walbro WYA2 / WYA2A
(includes set of gaskets 4141 007 1003 and the
spacer flange)
Set of gaskets 4141 007 1003 Walbro WYA2 / WYA2A
Electrician’s repair kit 5910 007 1050 Electrical system
Standard commercial solvent- Cleaning crankshaft stub
based degreasant containing no
chlorinated or hydrogenated
hydrocarbons
6. Repairs
If the unit is started up in the course of repairs, it is essential to strictly observe all country-specific
safety regulations and the safety precautions outlined in the owner’s manual.
TI_09_2001_30_01_01.fm Page 3 of 6

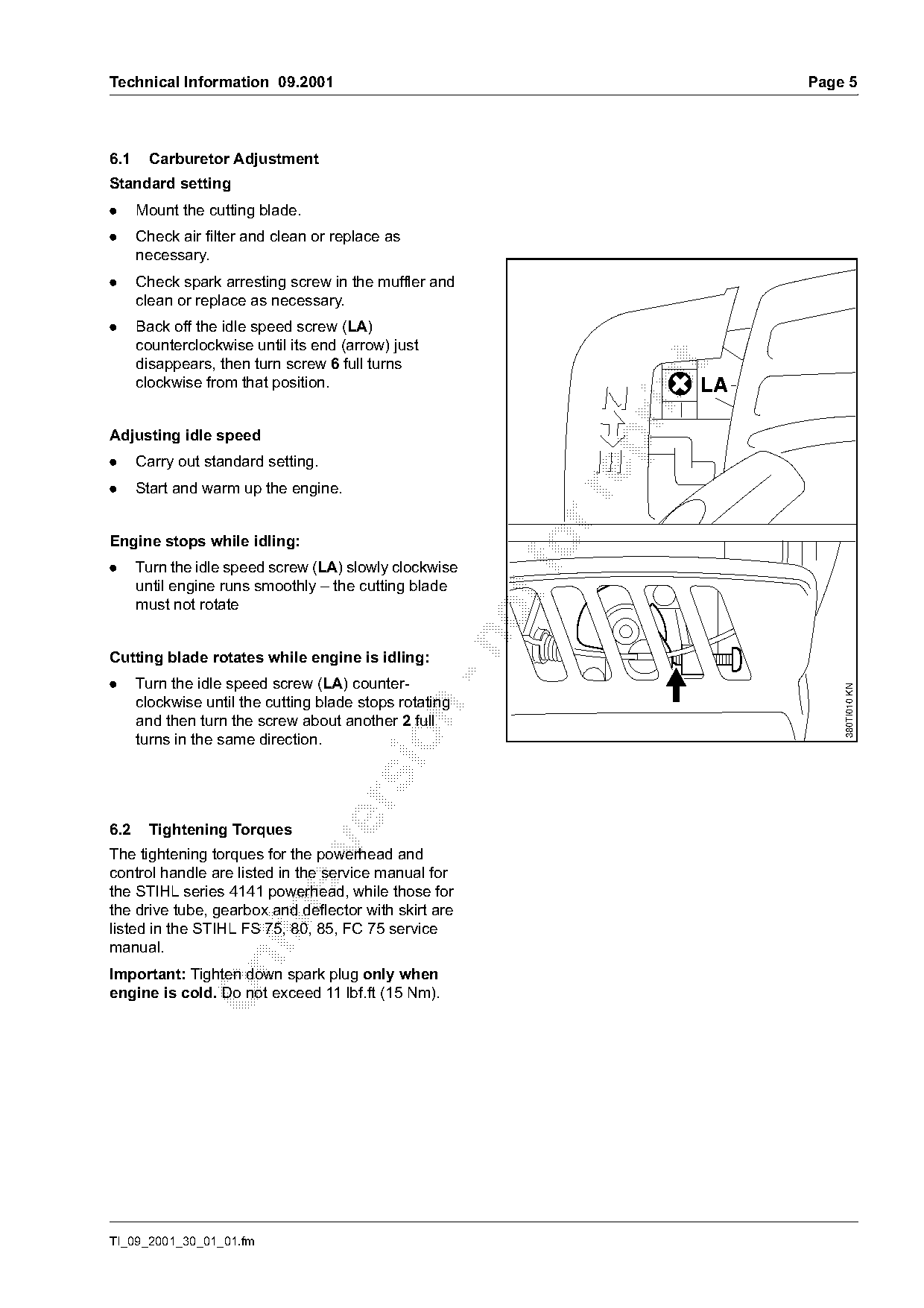

Technical Information 09.2001 Page 5
6.1 Carburetor Adjustment
Standard setting
. Mount the cutting blade.
. Check air filter and clean or replace as
necessary.
. Check spark arresting screw in the muffler and
clean or replace as necessary.
. Back off the idle speed screw (LA)
counterclockwise until its end (arrow) just
disappears, then turn screw 6 full turns
clockwise from that position.
Adjusting idle speed
. Carry out standard setting.
. Start and warm up the engine.
Engine stops while idling:
. Turn the idle speed screw (LA) slowly clockwise
until engine runs smoothly – the cutting blade
must not rotate
Cutting blade rotates while engine is idling:
. Turn the idle speed screw (LA) counter-
380TI010 KN
clockwise until the cutting blade stops rotating
and then turn the screw about another 2 full
turns in the same direction.
6.2 Tightening Torques
The tightening torques for the powerhead and
control handle are listed in the service manual for
the STIHL series 4141 powerhead, while those for
the drive tube, gearbox and deflector with skirt are
listed in the STIHL FS 75, 80, 85, FC 75 service
manual.
Important: Tighten down spark plug only when
engine is cold. Do not exceed 11 lbf.ft (15 Nm).
TI_09_2001_30_01_01.fm

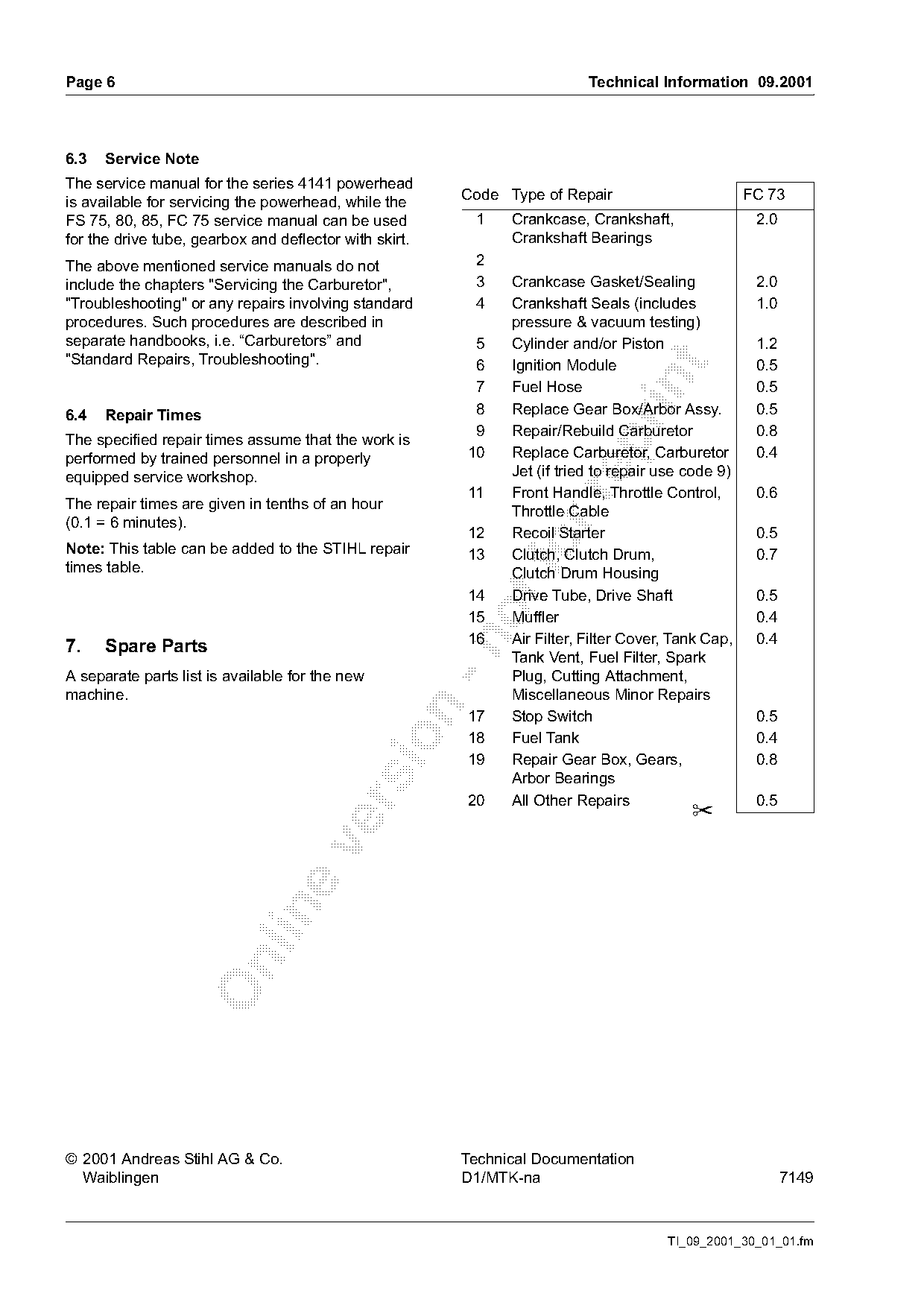

)m~ge 6 Technical Information 09.2001
6.3 Service Note
The service manual for the series 4141 powerhead
is available for servicing the powerhead, while the Code Type of Repair FC 73
FS 75, 80, 85, FC 75 service manual can be used 1 Crankcase, Crankshaft, 2.0
for the drive tube, gearbox and deflector with skirt. Crankshaft Bearings
The above mentioned service manuals do not 2
include the chapters "Servicing the Carburetor", 3 Crankcase Gasket/Sealing 2.0
"Troubleshooting" or any repairs involving standard 4 Crankshaft Seals (includes 1.0
procedures. Such procedures are described in pressure & vacuum testing)
separate handbooks, i.e. “Carburetors” and 5 Cylinder and/or Piston 1.2
"Standard Repairs, Troubleshooting". 6 Ignition Module 0.5
7 Fuel Hose 0.5
6.4 Repair Times 8 Replace Gear Box/Arbor Assy. 0.5
9 Repair/Rebuild Carburetor 0.8
The specified repair times assume that the work is
performed by trained personnel in a properly 10 Replace Carburetor, Carburetor 0.4
equipped service workshop. Jet (if tried to repair use code 9)
11 Front Handle, Throttle Control, 0.6
The repair times are given in tenths of an hour
Throttle Cable
(0.1 = 6 minutes).
12 Recoil Starter 0.5
Note: This table can be added to the STIHL repair
times table.
13 fo
Clutch, Clutch Drum,
Clutch Drum Housing
0.7
14 Drive Tube, Drive Shaft 0.5
15 Muffler 0.4
16 Air Filter, Filter Cover, Tank Cap, 0.4
7. Spare Parts
Tank Vent, Fuel Filter, Spark
A separate parts list is available for the new Plug, Cutting Attachment,
machine. Miscellaneous Minor Repairs
17 Stop Switch 0.5
18 Fuel Tank 0.4
19 Repair Gear Box, Gears, 0.8
Arbor Bearings
20 All Other Repairs 0.5
✂
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-na 7149
TI_09_2001_30_01_01.fm Page 4 of 6
Page 5 of 6
Page 6 of 6
