Technical Information · issue 23 of 2001

New Electric Grass Trimmer, New Electric Edger

IssueTI 23/2001

Full text

Page 1 of 6

Technical Information

23.2001
New Electric Grass Trimmer STIHL FSE 60 – Series 4809
New Electric Edger STIHL FCE 60 – Series 4809

Contents
1. Technical Description

2. Specifications
3. Cutting Tools
4. Accessories
5. Service Accessories

6. Repairs
7. Spare Parts

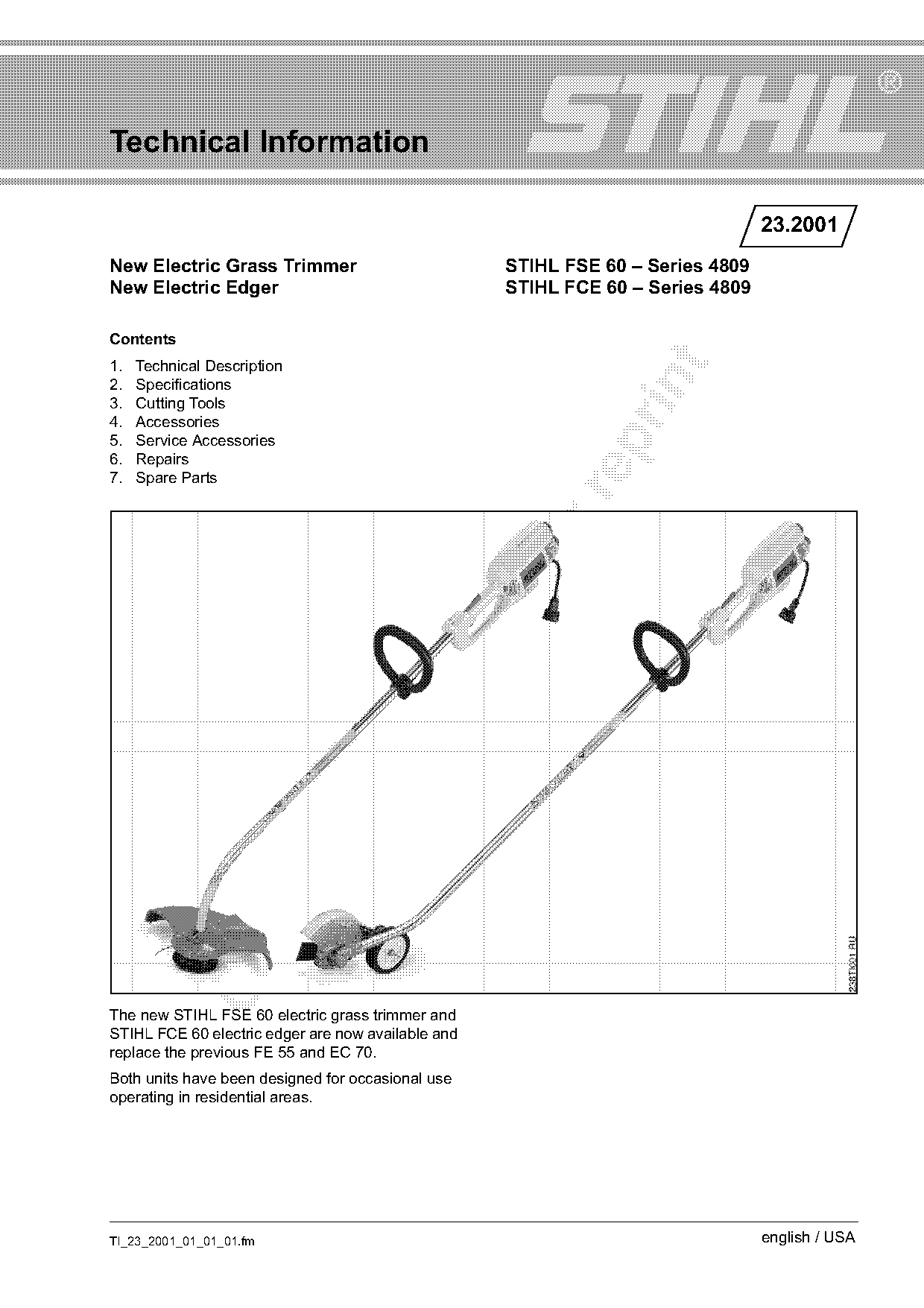

The new STIHL FSE 60 electric grass trimmer and
STIHL FCE 60 electric edger are now available and
replace the previous FE 55 and EC 70.
Both units have been designed for occasional use
operating in residential areas.

TI_23_2001_01_01_01.fm english / USA
)m~ge 2 Technical Information 23.2001

1. Technical Description

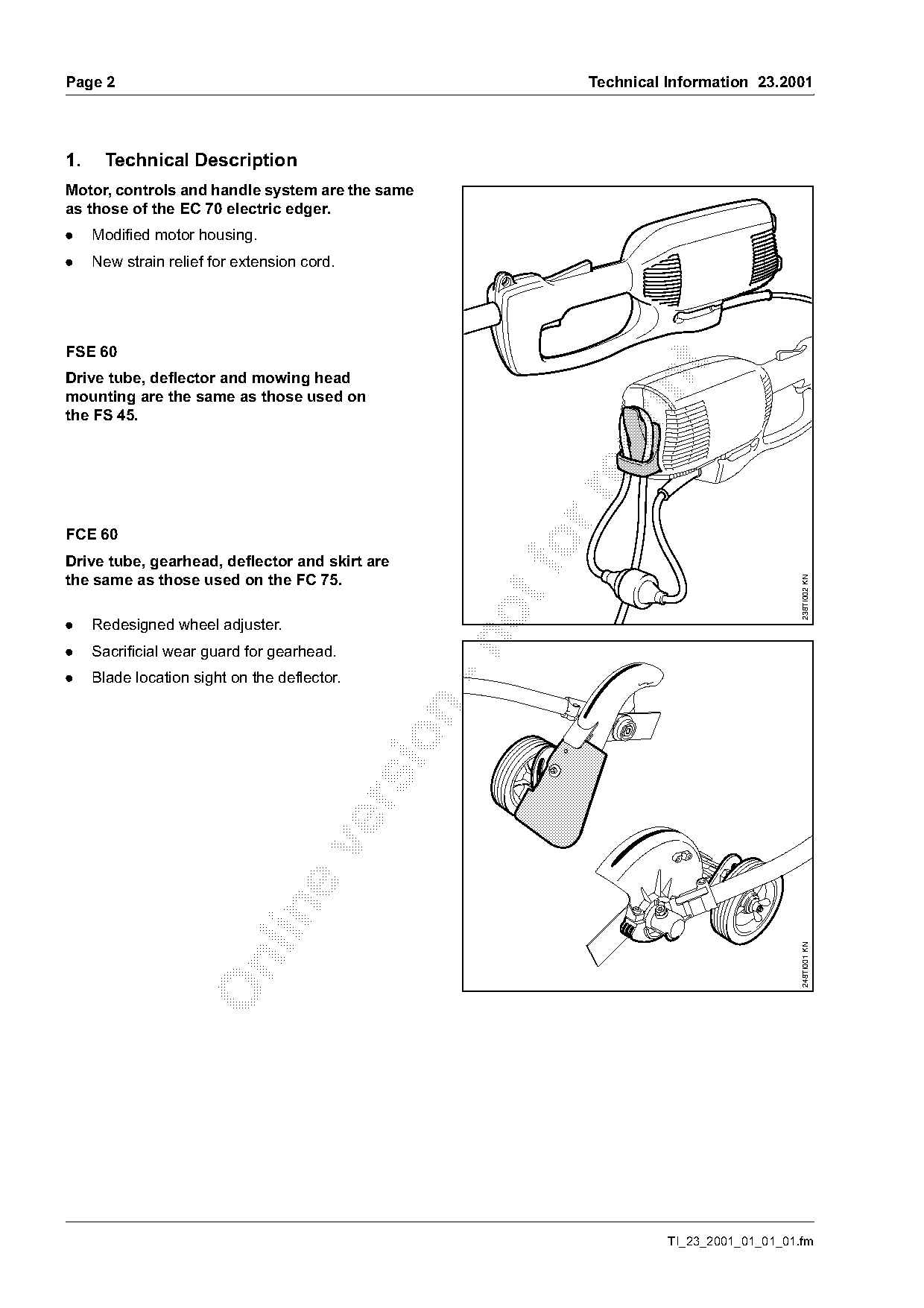

Motor, controls and handle system are the same
as those of the EC 70 electric edger.
. Modified motor housing.
. New strain relief for extension cord.

FSE 60

Drive tube, deflector and mowing head

mounting are the same as those used on
the FS 45.

FCE 60
Drive tube, gearhead, deflector and skirt are
the same as those used on the FC 75.

238TI002 KN

. Redesigned wheel adjuster.

. Sacrificial wear guard for gearhead.
. Blade location sight on the deflector.

248TI001 KN

TI_23_2001_01_01_01.fm

Page 2 of 6

Technical Information 23.2001                                    Page 3

2.    Specifications

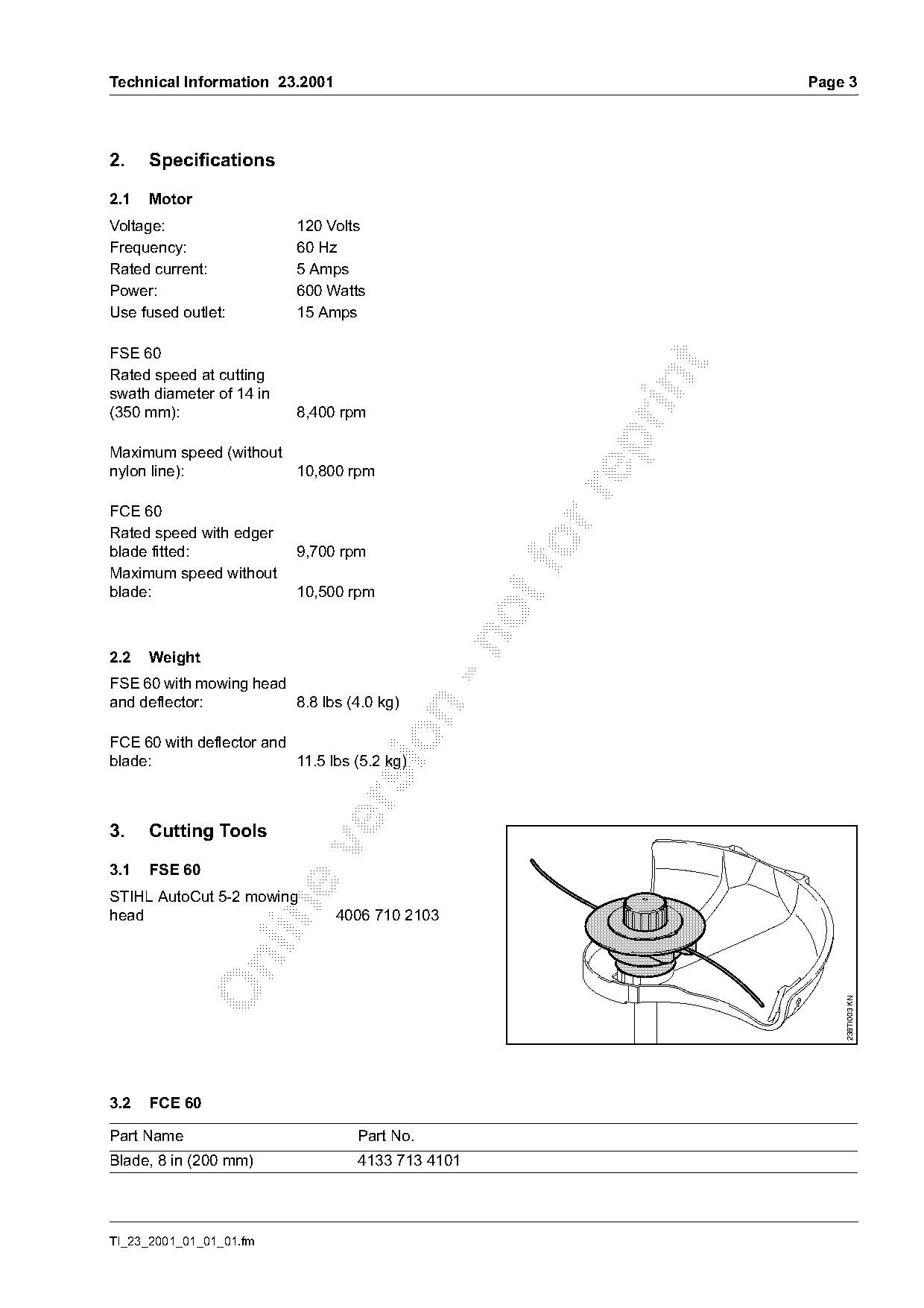

2.1   Motor
Voltage:                   120 Volts
Frequency:                 60 Hz
Rated current:             5 Amps
Power:                     600 Watts
Use fused outlet:          15 Amps

FSE 60

Rated speed at cutting

swath diameter of 14 in
(350 mm):                  8,400 rpm

Maximum speed (without
nylon line):           10,800 rpm

FCE 60
Rated speed with edger
blade fitted:
Maximum speed without
                           9,700 rpm                fo
blade:                     10,500 rpm

2.2   Weight
FSE 60 with mowing head
and deflector:          8.8 lbs (4.0 kg)

FCE 60 with deflector and
blade:                    11.5 lbs (5.2 kg)

3.    Cutting Tools

3.1   FSE 60
STIHL AutoCut 5-2 mowing

head                            4006 710 2103

                                                                     238TI003 KN

3.2   FCE 60

Part Name                          Part No.
Blade, 8 in (200 mm)               4133 713 4101

TI_23_2001_01_01_01.fm
)m~ge 4                                                                    Technical Information 23.2001

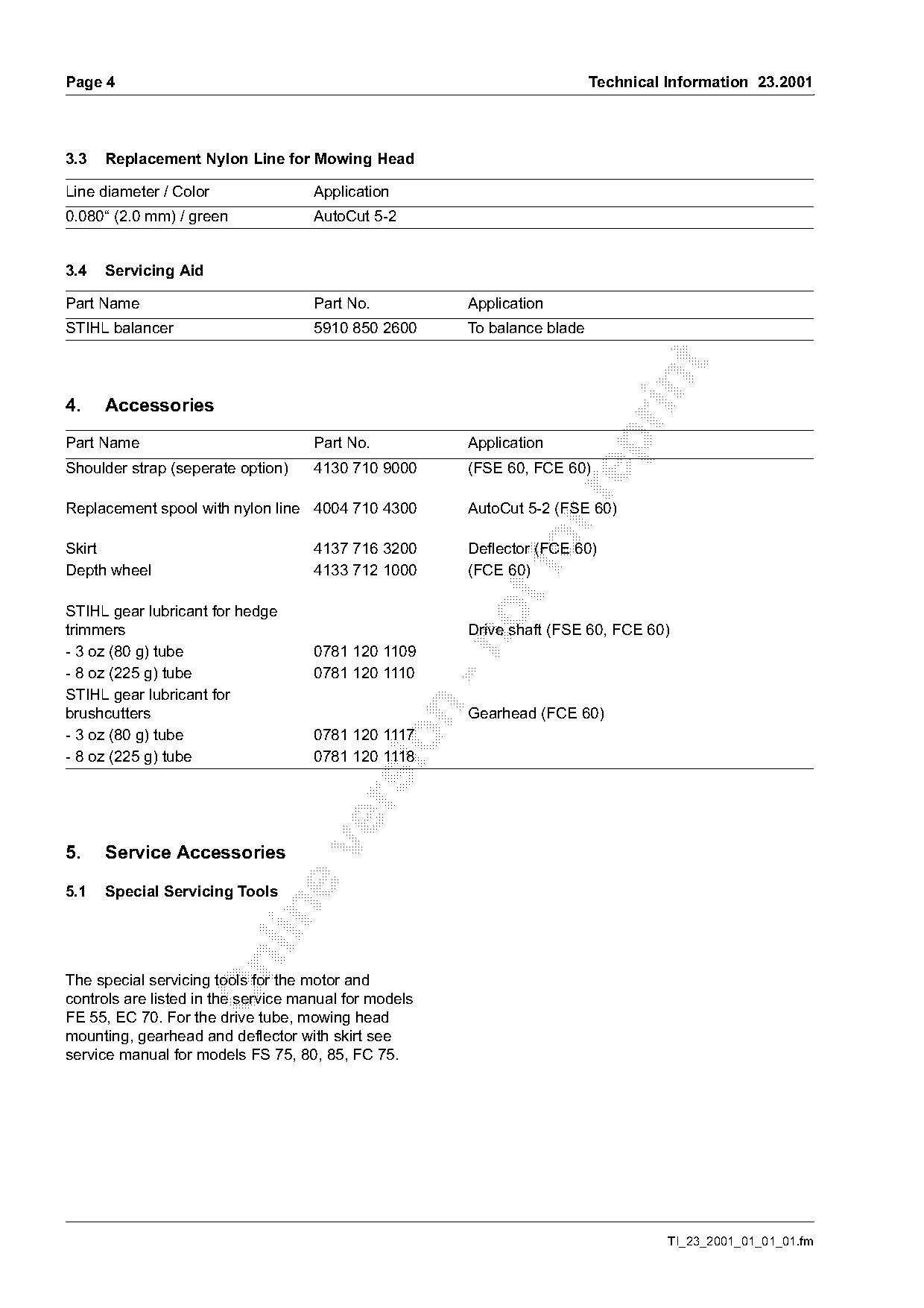

3.3   Replacement Nylon Line for Mowing Head

Line diameter / Color                Application
0.080“ (2.0 mm) / green              AutoCut 5-2

3.4   Servicing Aid

Part Name                            Part No.          Application
STIHL balancer                       5910 850 2600     To balance blade

4.    Accessories

Part Name                            Part No.          Application
Shoulder strap (seperate option)     4130 710 9000     (FSE 60, FCE 60)

Replacement spool with nylon line 4004 710 4300        AutoCut 5-2 (FSE 60)

Skirt
Depth wheel
                                     4137 716 3200
                                     4133 712 1000
                                                       Deflector (FCE 60)
                                                       (FCE 60)
STIHL gear lubricant for hedge
trimmers                                               Drive shaft (FSE 60, FCE 60)

- 3 oz (80 g) tube                   0781 120 1109
- 8 oz (225 g) tube                  0781 120 1110
STIHL gear lubricant for

brushcutters                                           Gearhead (FCE 60)
- 3 oz (80 g) tube                   0781 120 1117

- 8 oz (225 g) tube                  0781 120 1118

5.    Service Accessories

5.1   Special Servicing Tools

The special servicing tools for the motor and
controls are listed in the service manual for models
FE 55, EC 70. For the drive tube, mowing head
mounting, gearhead and deflector with skirt see
service manual for models FS 75, 80, 85, FC 75.

                                                                                    TI_23_2001_01_01_01.fm

Page 3 of 6

Technical Information 23.2001 Page 5

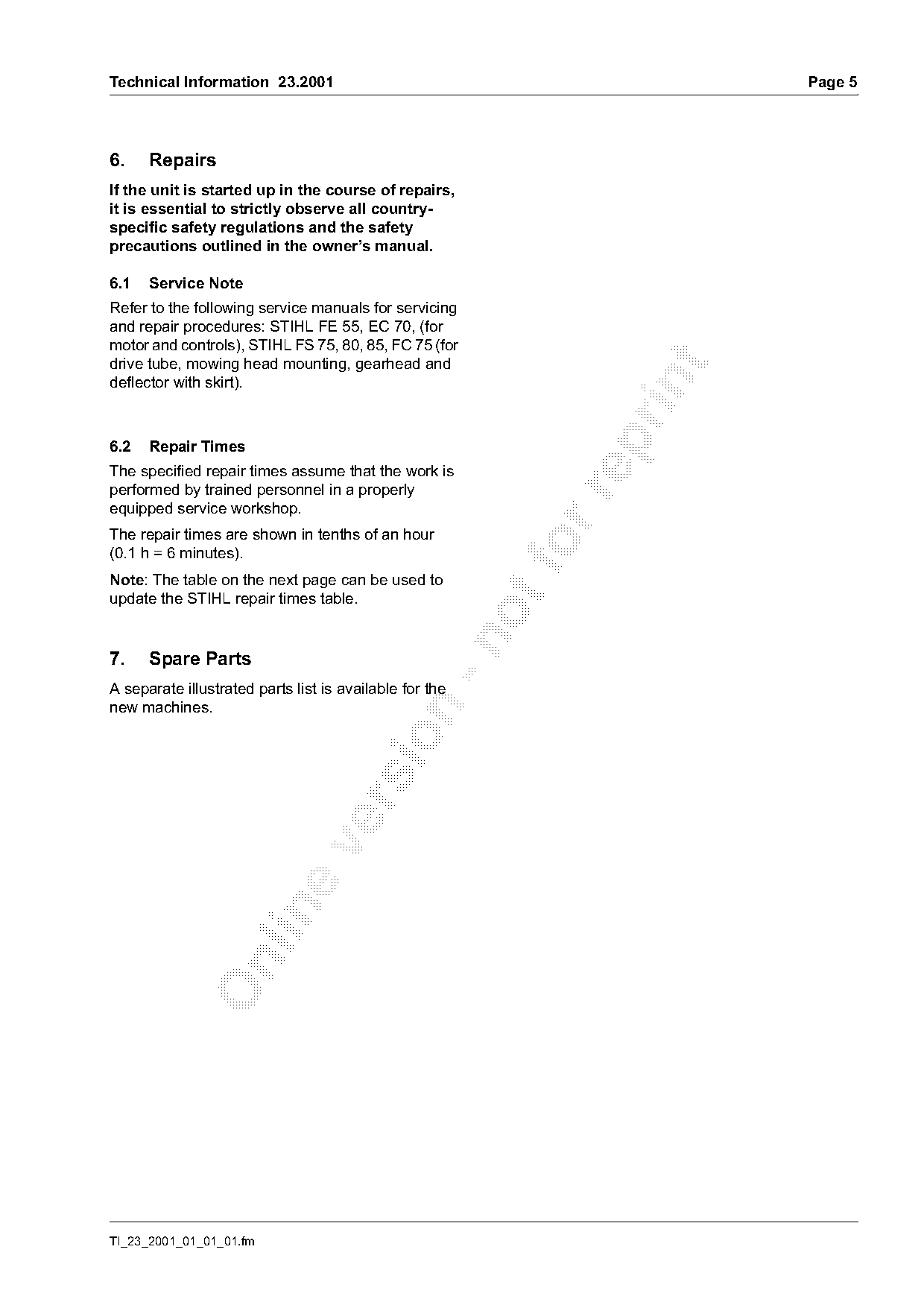

6. Repairs
If the unit is started up in the course of repairs,
it is essential to strictly observe all country-
specific safety regulations and the safety
precautions outlined in the owner’s manual.

6.1 Service Note
Refer to the following service manuals for servicing
and repair procedures: STIHL FE 55, EC 70, (for
motor and controls), STIHL FS 75, 80, 85, FC 75 (for
drive tube, mowing head mounting, gearhead and

deflector with skirt).

6.2 Repair Times
The specified repair times assume that the work is
performed by trained personnel in a properly

equipped service workshop.
The repair times are shown in tenths of an hour
(0.1 h = 6 minutes). fo
Note: The table on the next page can be used to
update the STIHL repair times table.

7. Spare Parts
A separate illustrated parts list is available for the
new machines.

TI_23_2001_01_01_01.fm
)m~ge 6 Technical Information 23.2001

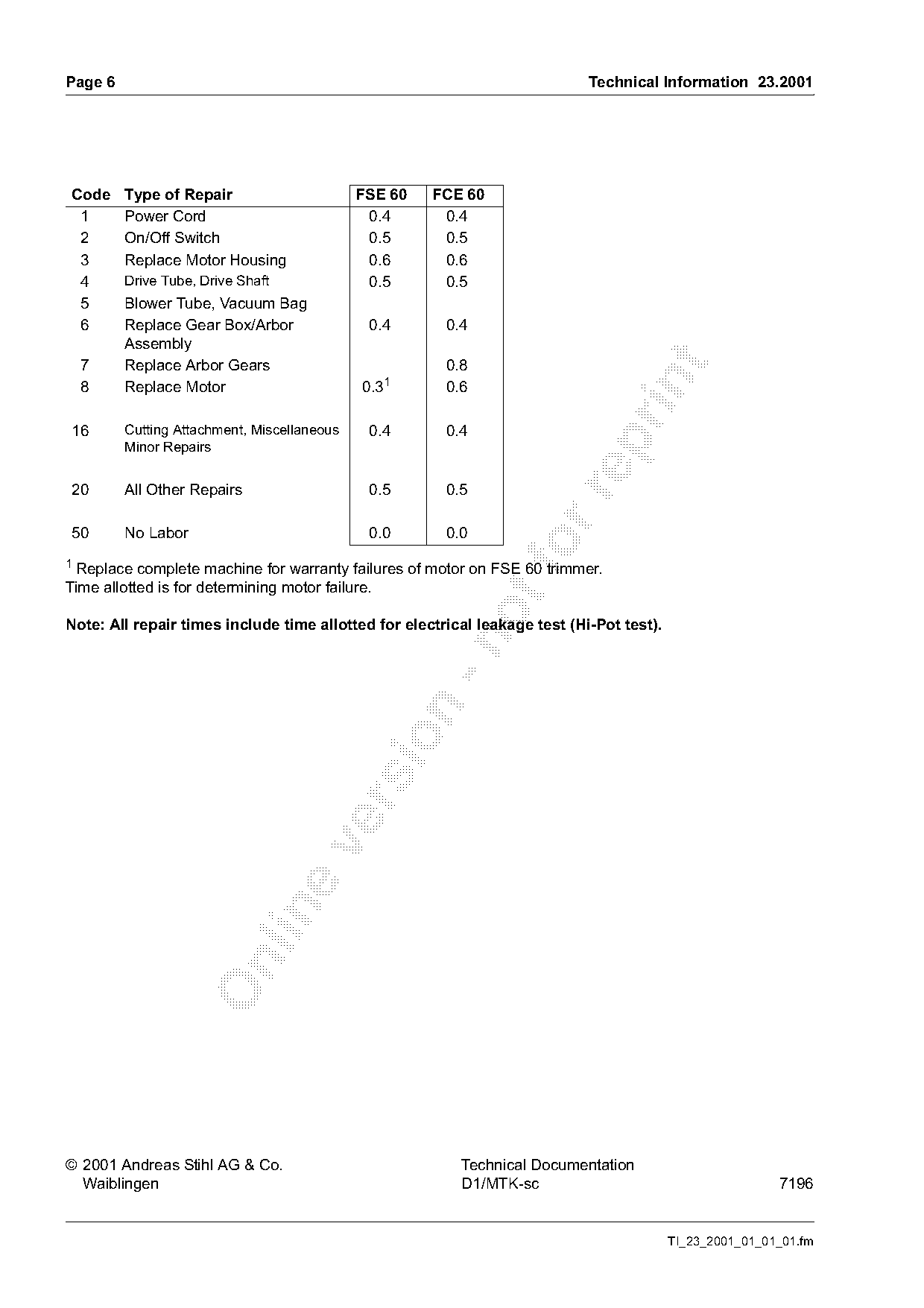

Code Type of Repair FSE 60 FCE 60
1 Power Cord 0.4 0.4
2 On/Off Switch 0.5 0.5
3 Replace Motor Housing 0.6 0.6
4 Drive Tube, Drive Shaft 0.5 0.5
5 Blower Tube, Vacuum Bag
6 Replace Gear Box/Arbor 0.4 0.4
Assembly
7 Replace Arbor Gears 0.8

8 Replace Motor 0.31 0.6

16 Cutting Attachment, Miscellaneous 0.4 0.4

Minor Repairs

20 All Other Repairs 0.5 0.5

50 No Labor 0.0 0.0
1
Replace complete machine for warranty failures of motor on FSE 60 trimmer.
Time allotted is for determining motor failure.

Note: All repair times include time allotted for electrical leakage test (Hi-Pot test).

TI_23_2001_01_01_01.fm

Page 4 of 6

Page 5 of 6

Page 6 of 6
