Technical Information · issue 24 of 2001

Engine Housing (Brake Band Attachment Point); Cove

Model 019 T / MS 191 T Chainsaws – Series 1132

Full text

Page 1 of 2

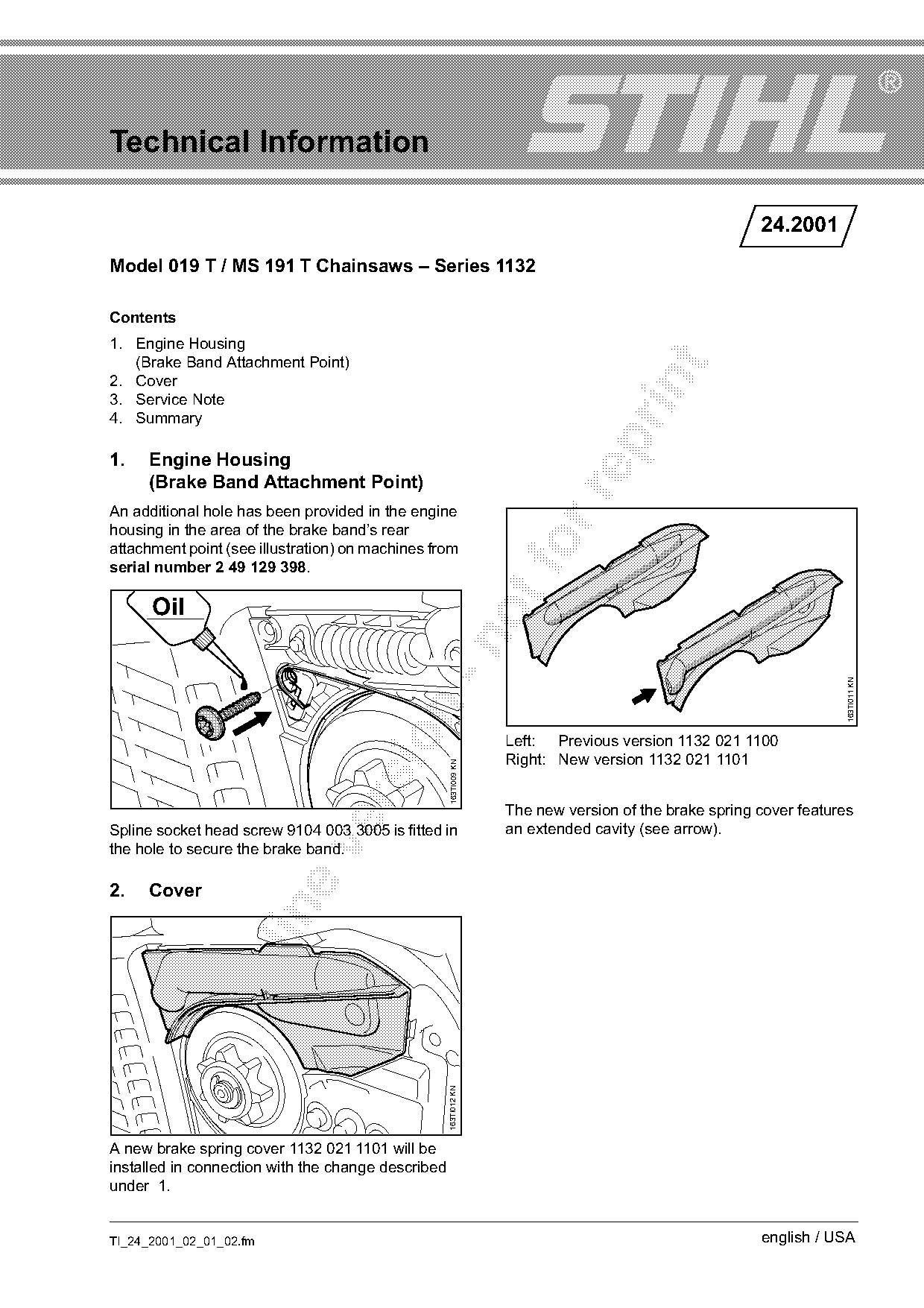

Technical Information

                                                                                                      24.2001
Model 019 T / MS 191 T Chainsaws – Series 1132

Contents
1. Engine Housing
   (Brake Band Attachment Point)

2. Cover

3. Service Note
4. Summary

1.   Engine Housing
     (Brake Band Attachment Point)

An additional hole has been provided in the engine
housing in the area of the brake band’s rear
attachment point (see illustration) on machines from
serial number 2 49 129 398.
      Oil

                                                                                                                   163TI011 KN

                                                                  Left: Previous version 1132 021 1100
                                                                  Right: New version 1132 021 1101
                                                    163TI009 KN

                                                                  The new version of the brake spring cover features
Spline socket head screw 9104 003 3005 is fitted in               an extended cavity (see arrow).

the hole to secure the brake band.

2.    Cover

                                                    163TI012 KN

A new brake spring cover 1132 021 1101 will be
installed in connection with the change described
under 1.

TI_24_2001_02_01_02.fm                                                                                english / USA

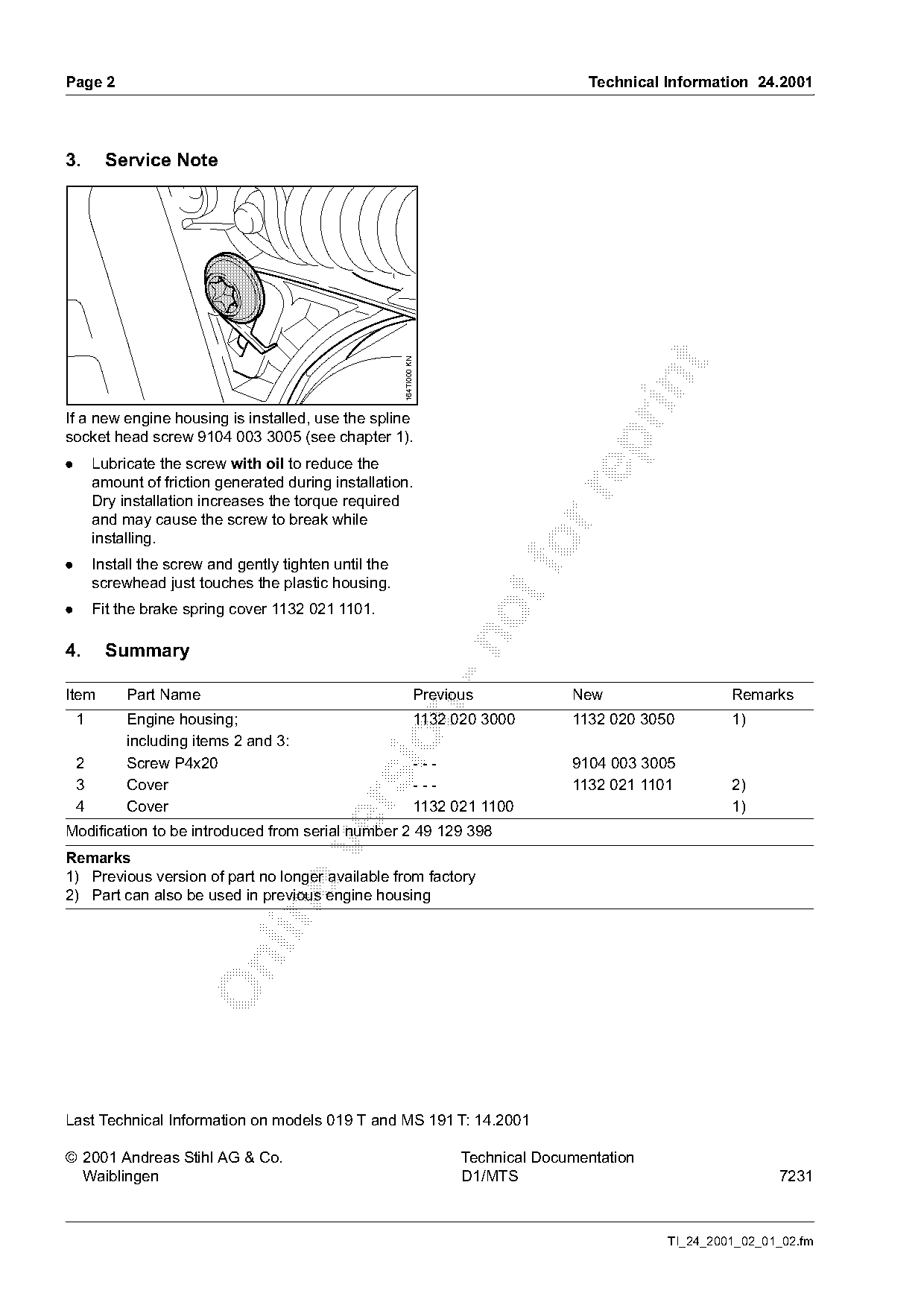

)m~ge 2                                                                                   Technical Information 24.2001

3.        Service Note

                                                         164TI000 KN

If a new engine housing is installed, use the spline
socket head screw 9104 003 3005 (see chapter 1).

.       Lubricate the screw with oil to reduce the
        amount of friction generated during installation.

        Dry installation increases the torque required
        and may cause the screw to break while
        installing.
.       Install the screw and gently tighten until the
        screwhead just touches the plastic housing.
.       Fit the brake spring cover 1132 021 1101.

4.        Summary

Item         Part Name                                             Previous            New                  Remarks

    1        Engine housing;                                       1132 020 3000       1132 020 3050        1)

             including items 2 and 3:
    2        Screw P4x20                                           ---                 9104 003 3005
    3        Cover                                                 ---                 1132 021 1101        2)

    4        Cover                                                 1132 021 1100                            1)
Modification to be introduced from serial number 2 49 129 398

Remarks
1) Previous version of part no longer available from factory
2) Part can also be used in previous engine housing

Last Technical Information on models 019 T and MS 191 T: 14.2001

© 2001 Andreas Stihl AG & Co.                                            Technical Documentation
  Waiblingen                                                             D1/MTS                                    7231

                                                                                                   TI_24_2001_02_01_02.fm

Page 2 of 2
