Technical Information · issue 25 of 2001
Handlebar, Control Handle; Drive Tube with Gearhea
Model FS 160 Clearing Saws – Series 4119
IssueTI 25/2001
Full text
Page 1 of 4

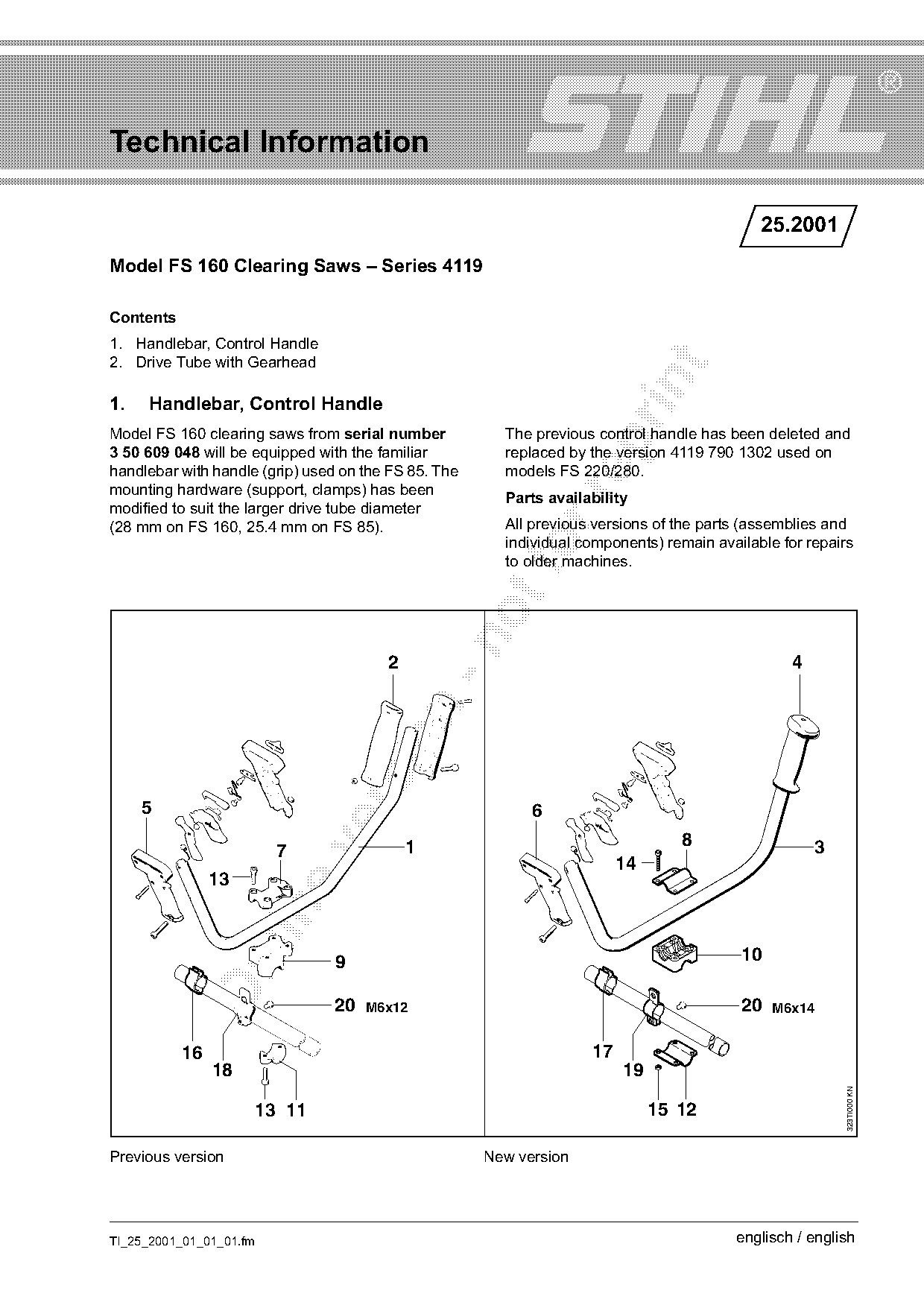

Technical Information
25.2001
Model FS 160 Clearing Saws – Series 4119
Contents
1. Handlebar, Control Handle
2. Drive Tube with Gearhead
1. Handlebar, Control Handle
Model FS 160 clearing saws from serial number The previous control handle has been deleted and
3 50 609 048 will be equipped with the familiar replaced by the version 4119 790 1302 used on
handlebar with handle (grip) used on the FS 85. The models FS 220/280.
mounting hardware (support, clamps) has been
Parts availability
modified to suit the larger drive tube diameter
(28 mm on FS 160, 25.4 mm on FS 85). All previous versions of the parts (assemblies and
individual components) remain available for repairs
to older machines.
2 4
5 6
8
7 1 3
14
13
9 10
20 M6x12 20 M6x14
16 17
18 19
323TI000 KN
13 11 15 12
Previous version New version
TI_25_2001_01_01_01.fm englisch / english

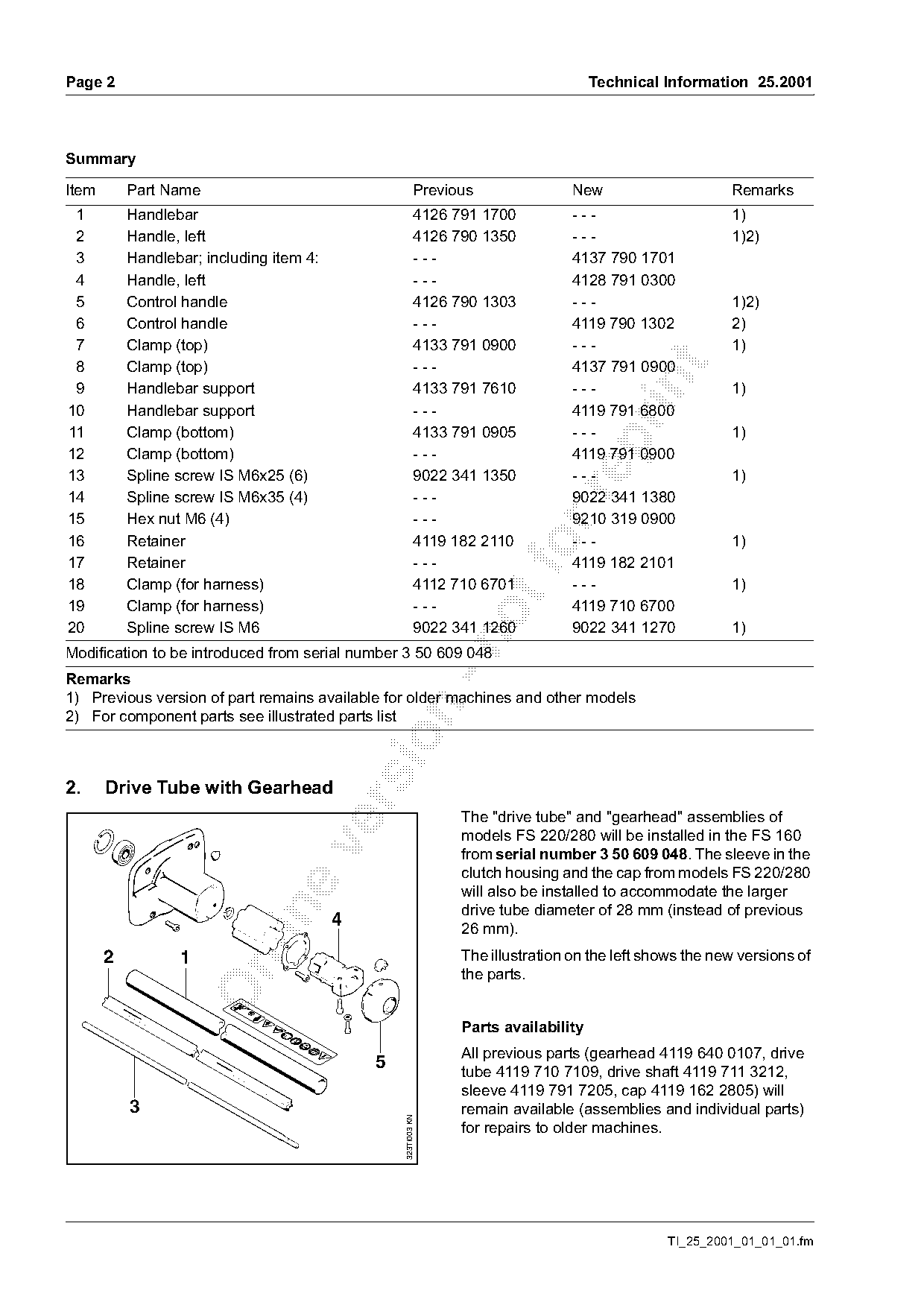

)m~ge 2 Technical Information 25.2001
Summary
Item Part Name Previous New Remarks
1 Handlebar 4126 791 1700 --- 1)
2 Handle, left 4126 790 1350 --- 1)2)
3 Handlebar; including item 4: --- 4137 790 1701
4 Handle, left --- 4128 791 0300
5 Control handle 4126 790 1303 --- 1)2)
6 Control handle --- 4119 790 1302 2)
7 Clamp (top) 4133 791 0900 --- 1)
8 Clamp (top) --- 4137 791 0900
9 Handlebar support 4133 791 7610 --- 1)
10 Handlebar support --- 4119 791 6800
11 Clamp (bottom) 4133 791 0905 --- 1)
12 Clamp (bottom) --- 4119 791 0900
13 Spline screw IS M6x25 (6) 9022 341 1350 --- 1)
14 Spline screw IS M6x35 (4) --- 9022 341 1380
15 Hex nut M6 (4) --- 9210 319 0900
16 Retainer 4119 182 2110 --- 1)
17 Retainer ---
fo 4119 182 2101
18 Clamp (for harness) 4112 710 6701 --- 1)
19 Clamp (for harness) --- 4119 710 6700
20 Spline screw IS M6 9022 341 1260 9022 341 1270 1)
Modification to be introduced from serial number 3 50 609 048
Remarks
1) Previous version of part remains available for older machines and other models
2) For component parts see illustrated parts list
2. Drive Tube with Gearhead
The "drive tube" and "gearhead" assemblies of
models FS 220/280 will be installed in the FS 160
from serial number 3 50 609 048. The sleeve in the
clutch housing and the cap from models FS 220/280
will also be installed to accommodate the larger
drive tube diameter of 28 mm (instead of previous
4 26 mm).
2 1 The illustration on the left shows the new versions of
the parts.
Parts availability
All previous parts (gearhead 4119 640 0107, drive
5 tube 4119 710 7109, drive shaft 4119 711 3212,
sleeve 4119 791 7205, cap 4119 162 2805) will
3 remain available (assemblies and individual parts)
323TI003 KN
for repairs to older machines.
TI_25_2001_01_01_01.fm Page 2 of 4

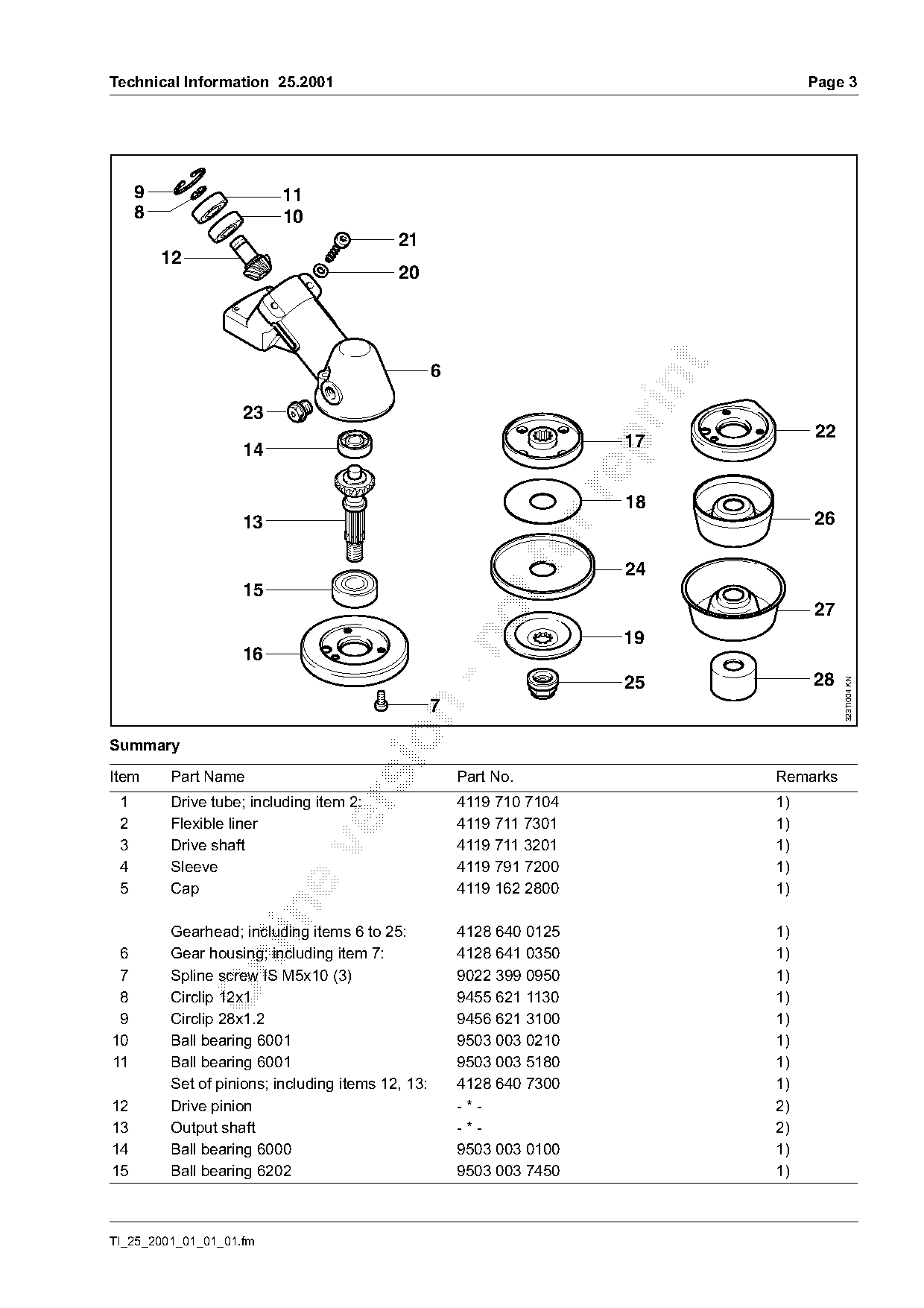

Technical Information 25.2001 Page 3
9 11
8 10
21
12
20
23
22
14 17
18
13 26
fo 24
15
27
19
16
25 28
323TI004 KN
7
Summary
Item Part Name Part No. Remarks
1 Drive tube; including item 2: 4119 710 7104 1)
2 Flexible liner 4119 711 7301 1)
3 Drive shaft 4119 711 3201 1)
4 Sleeve 4119 791 7200 1)
5 Cap 4119 162 2800 1)
Gearhead; including items 6 to 25: 4128 640 0125 1)
6 Gear housing; including item 7: 4128 641 0350 1)
7 Spline screw IS M5x10 (3) 9022 399 0950 1)
8 Circlip 12x1 9455 621 1130 1)
9 Circlip 28x1.2 9456 621 3100 1)
10 Ball bearing 6001 9503 003 0210 1)
11 Ball bearing 6001 9503 003 5180 1)
Set of pinions; including items 12, 13: 4128 640 7300 1)
12 Drive pinion -*- 2)
13 Output shaft -*- 2)
14 Ball bearing 6000 9503 003 0100 1)
15 Ball bearing 6202 9503 003 7450 1)
TI_25_2001_01_01_01.fm

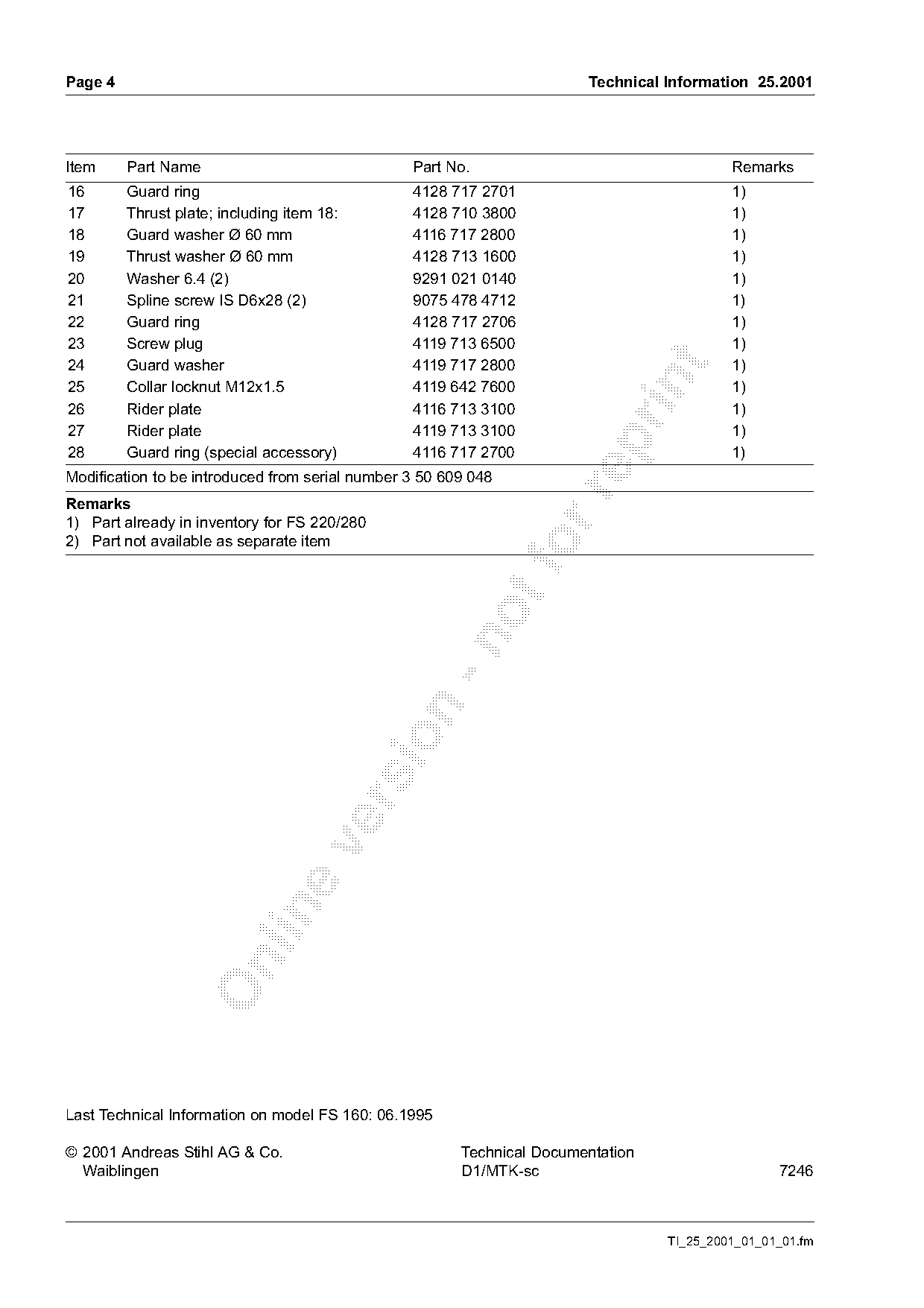

)m~ge 4 Technical Information 25.2001
Item Part Name Part No. Remarks
16 Guard ring 4128 717 2701 1)
17 Thrust plate; including item 18: 4128 710 3800 1)
18 Guard washer Ø 60 mm 4116 717 2800 1)
19 Thrust washer Ø 60 mm 4128 713 1600 1)
20 Washer 6.4 (2) 9291 021 0140 1)
21 Spline screw IS D6x28 (2) 9075 478 4712 1)
22 Guard ring 4128 717 2706 1)
23 Screw plug 4119 713 6500 1)
24 Guard washer 4119 717 2800 1)
25 Collar locknut M12x1.5 4119 642 7600 1)
26 Rider plate 4116 713 3100 1)
27 Rider plate 4119 713 3100 1)
28 Guard ring (special accessory) 4116 717 2700 1)
Modification to be introduced from serial number 3 50 609 048
Remarks
1) Part already in inventory for FS 220/280
2) Part not available as separate item
Last Technical Information on model FS 160: 06.1995
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 7246
TI_25_2001_01_01_01.fm Page 3 of 4
