Technical Information · issue 27 of 2001
Carburetor with LD Screw (Flange and End Cover Mou
Model HL 45 Hedge Trimmer – Series 4232
IssueTI 27/2001
Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4140 120 0610 | 4140 120 0603 | 1 Carburetor with 3 Adjusting Screws The carburetor 4140 120 0610 discussed in chapter 1 (BIS* carburetor with LD screw) will be replaced by the new version 4140 120 0603 (with H, L and LA screws). |
| 4140 121 1600 | 4140 121 1605 | The previous spacer flange 4140 121 1600 will be replaced by the new version 4140 121 1605 when the new carburetor is introduced (chapter 2. |
| 4140 160 2000 | 4140 160 2001 | To achieve a further improvement in operation, the 1 previous clutch 4140 160 2000 has been replaced by the new version 4140 160 2001 (1) on which a cup spring (2) is bonded to the inboard side of the carrier. |
Full text

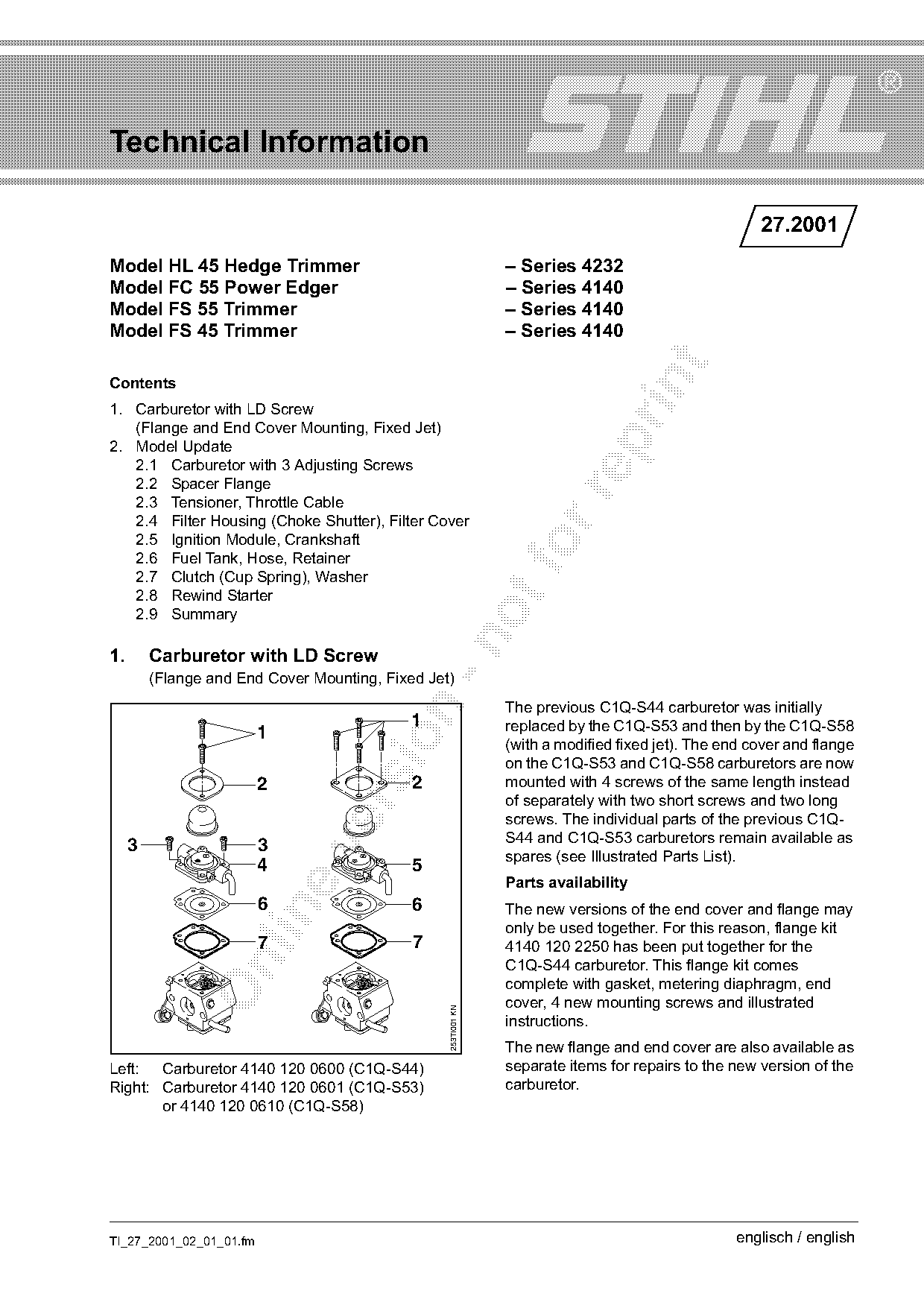

Page 1 of 8
Technical Information
27.2001
Model HL 45 Hedge Trimmer – Series 4232
Model FC 55 Power Edger – Series 4140
Model FS 55 Trimmer – Series 4140
Model FS 45 Trimmer – Series 4140
Contents
1. Carburetor with LD Screw
(Flange and End Cover Mounting, Fixed Jet)
2. Model Update
2.1 Carburetor with 3 Adjusting Screws
2.2 Spacer Flange
2.3 Tensioner, Throttle Cable
2.4 Filter Housing (Choke Shutter), Filter Cover
2.5 Ignition Module, Crankshaft
2.6 Fuel Tank, Hose, Retainer
2.7 Clutch (Cup Spring), Washer
2.8 Rewind Starter
2.9 Summary
1. Carburetor with LD Screw
(Flange and End Cover Mounting, Fixed Jet)
The previous C1Q-S44 carburetor was initially
1 replaced by the C1Q-S53 and then by the C1Q-S58
1
(with a modified fixed jet). The end cover and flange
on the C1Q-S53 and C1Q-S58 carburetors are now
2 2 mounted with 4 screws of the same length instead
of separately with two short screws and two long
screws. The individual parts of the previous C1Q-
S44 and C1Q-S53 carburetors remain available as
3 3
spares (see Illustrated Parts List).
4 5
Parts availability
6 6 The new versions of the end cover and flange may
only be used together. For this reason, flange kit
7 7 4140 120 2250 has been put together for the
C1Q-S44 carburetor. This flange kit comes
complete with gasket, metering diaphragm, end
cover, 4 new mounting screws and illustrated
253TI001 KN
instructions.
The new flange and end cover are also available as
Left: Carburetor 4140 120 0600 (C1Q-S44) separate items for repairs to the new version of the
Right: Carburetor 4140 120 0601 (C1Q-S53) carburetor.
or 4140 120 0610 (C1Q-S58)
TI_27_2001_02_01_01.fm englisch / english

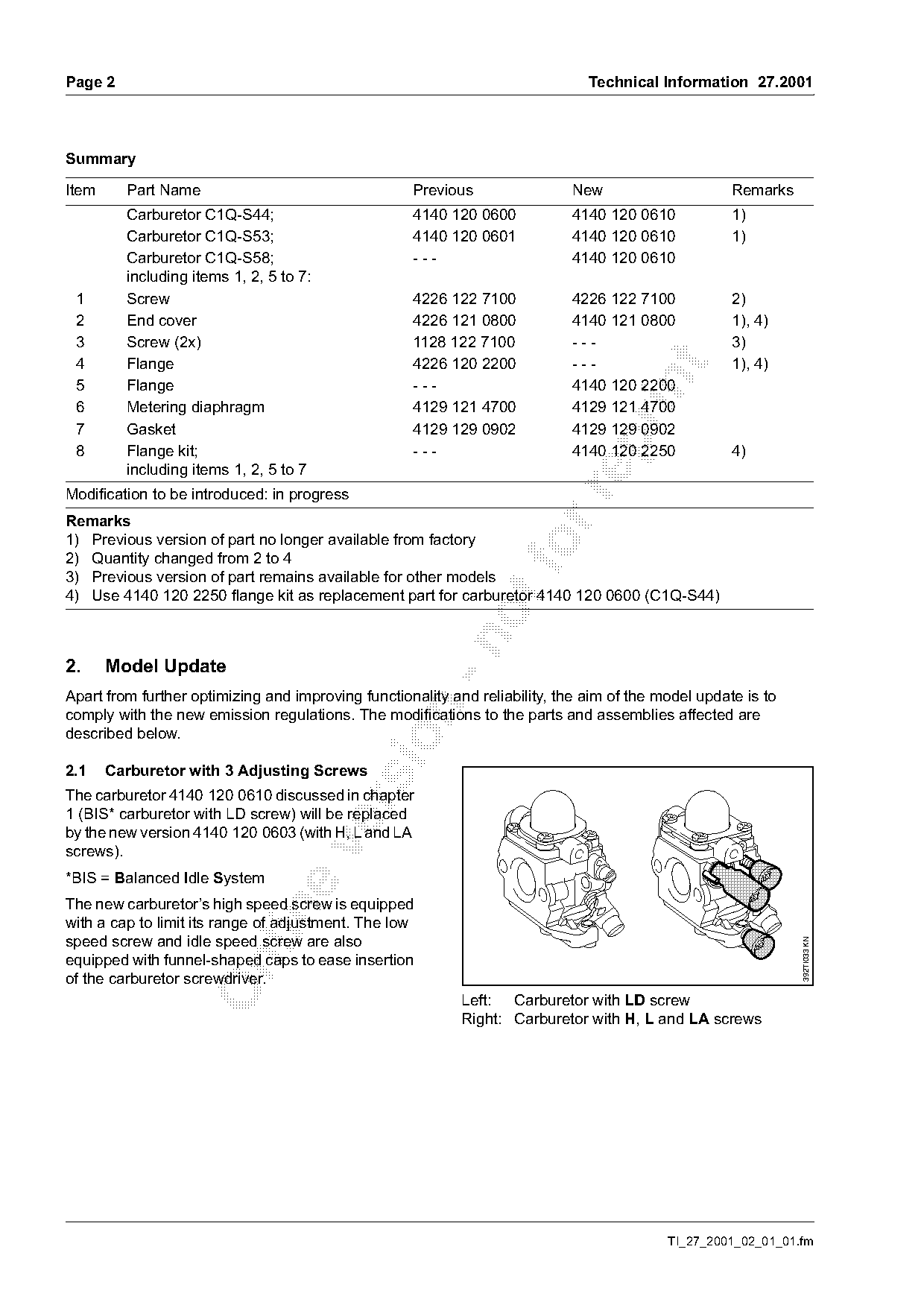

)m~ge 2 Technical Information 27.2001
Summary
Item Part Name Previous New Remarks
Carburetor C1Q-S44; 4140 120 0600 4140 120 0610 1)
Carburetor C1Q-S53; 4140 120 0601 4140 120 0610 1)
Carburetor C1Q-S58; --- 4140 120 0610
including items 1, 2, 5 to 7:
1 Screw 4226 122 7100 4226 122 7100 2)
2 End cover 4226 121 0800 4140 121 0800 1), 4)
3 Screw (2x) 1128 122 7100 --- 3)
4 Flange 4226 120 2200 --- 1), 4)
5 Flange --- 4140 120 2200
6 Metering diaphragm 4129 121 4700 4129 121 4700
7 Gasket 4129 129 0902 4129 129 0902
8 Flange kit; --- 4140 120 2250 4)
including items 1, 2, 5 to 7
Modification to be introduced: in progress
Remarks
1) Previous version of part no longer available from factory
2) Quantity changed from 2 to 4
3) Previous version of part remains available for other models
4) Use 4140 120 2250 flange kit as replacement part for carburetor 4140 120 0600 (C1Q-S44)
2. Model Update
Apart from further optimizing and improving functionality and reliability, the aim of the model update is to
comply with the new emission regulations. The modifications to the parts and assemblies affected are
described below.
2.1 Carburetor with 3 Adjusting Screws
The carburetor 4140 120 0610 discussed in chapter
1 (BIS* carburetor with LD screw) will be replaced
by the new version 4140 120 0603 (with H, L and LA
screws).
*BIS = Balanced Idle System
The new carburetor’s high speed screw is equipped
with a cap to limit its range of adjustment. The low
speed screw and idle speed screw are also
392TI033 KN
equipped with funnel-shaped caps to ease insertion
of the carburetor screwdriver.
Left: Carburetor with LD screw
Right: Carburetor with H, L and LA screws
TI_27_2001_02_01_01.fm Page 2 of 8

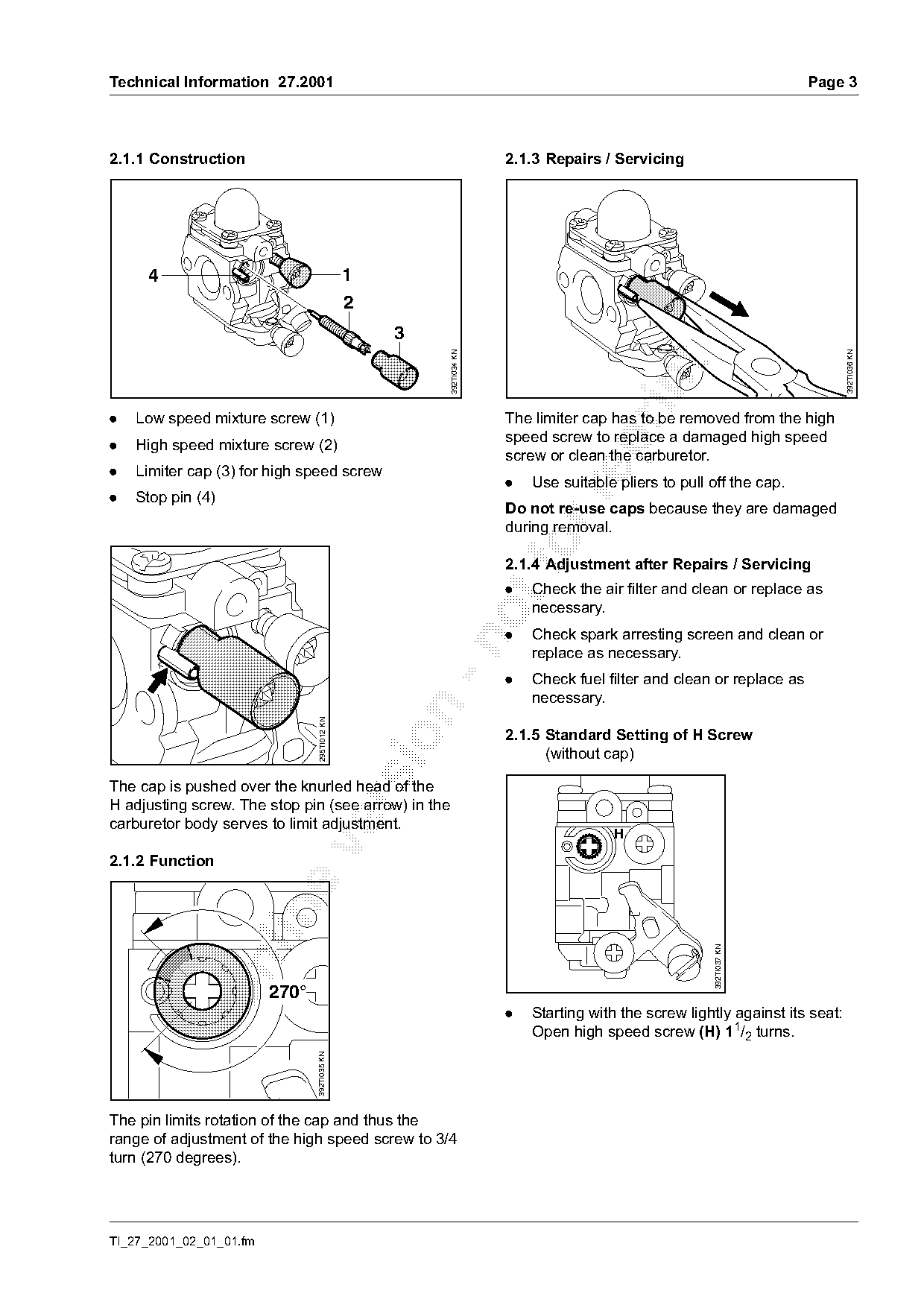

Technical Information 27.2001 Page 3
2.1.1 Construction 2.1.3 Repairs / Servicing
4 1
2
3
392TI036 KN
392TI034 KN
. Low speed mixture screw (1) The limiter cap has to be removed from the high
speed screw to replace a damaged high speed
. High speed mixture screw (2)
screw or clean the carburetor.
. Limiter cap (3) for high speed screw
. Use suitable pliers to pull off the cap.
. Stop pin (4)
Do not re-use caps because they are damaged
during removal.
2.1.4 Adjustment after Repairs / Servicing
. Check the air filter and clean or replace as
necessary.
. Check spark arresting screen and clean or
replace as necessary.
. Check fuel filter and clean or replace as
necessary.
295TI012 KN
2.1.5 Standard Setting of H Screw
(without cap)
The cap is pushed over the knurled head of the
H adjusting screw. The stop pin (see arrow) in the
carburetor body serves to limit adjustment.
H
2.1.2 Function
392TI037 KN
270°
. Starting with the screw lightly against its seat:
Open high speed screw (H) 11/2 turns.
392TI035 KN
The pin limits rotation of the cap and thus the
range of adjustment of the high speed screw to 3/4
turn (270 degrees).
TI_27_2001_02_01_01.fm

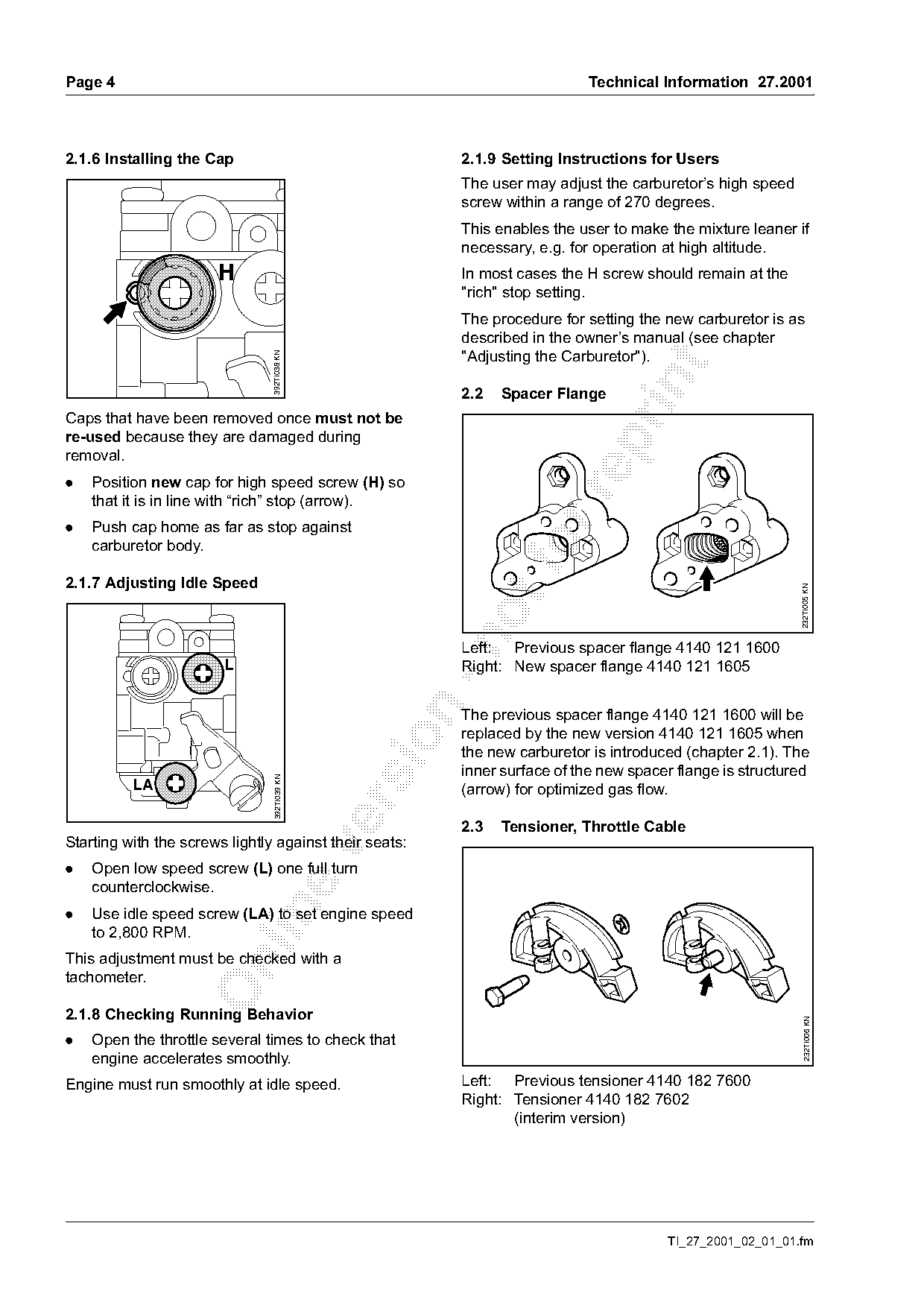

)m~ge 4 Technical Information 27.2001
2.1.6 Installing the Cap 2.1.9 Setting Instructions for Users
The user may adjust the carburetor’s high speed
screw within a range of 270 degrees.
This enables the user to make the mixture leaner if
necessary, e.g. for operation at high altitude.
H In most cases the H screw should remain at the
"rich" stop setting.
The procedure for setting the new carburetor is as
described in the owner’s manual (see chapter
"Adjusting the Carburetor").
392TI038 KN
2.2 Spacer Flange
Caps that have been removed once must not be
re-used because they are damaged during
removal.
. Position new cap for high speed screw (H) so
that it is in line with “rich” stop (arrow).
. Push cap home as far as stop against
carburetor body. fo
2.1.7 Adjusting Idle Speed
232TI005 KN
Left: Previous spacer flange 4140 121 1600
L Right: New spacer flange 4140 121 1605
The previous spacer flange 4140 121 1600 will be
replaced by the new version 4140 121 1605 when
the new carburetor is introduced (chapter 2.1). The
inner surface of the new spacer flange is structured
392TI039 KN
LA (arrow) for optimized gas flow.
2.3 Tensioner, Throttle Cable
Starting with the screws lightly against their seats:
. Open low speed screw (L) one full turn
counterclockwise.
. Use idle speed screw (LA) to set engine speed
to 2,800 RPM.
This adjustment must be checked with a
tachometer.
2.1.8 Checking Running Behavior
232TI006 KN
. Open the throttle several times to check that
engine accelerates smoothly.
Engine must run smoothly at idle speed. Left: Previous tensioner 4140 182 7600
Right: Tensioner 4140 182 7602
(interim version)
TI_27_2001_02_01_01.fm Page 3 of 8

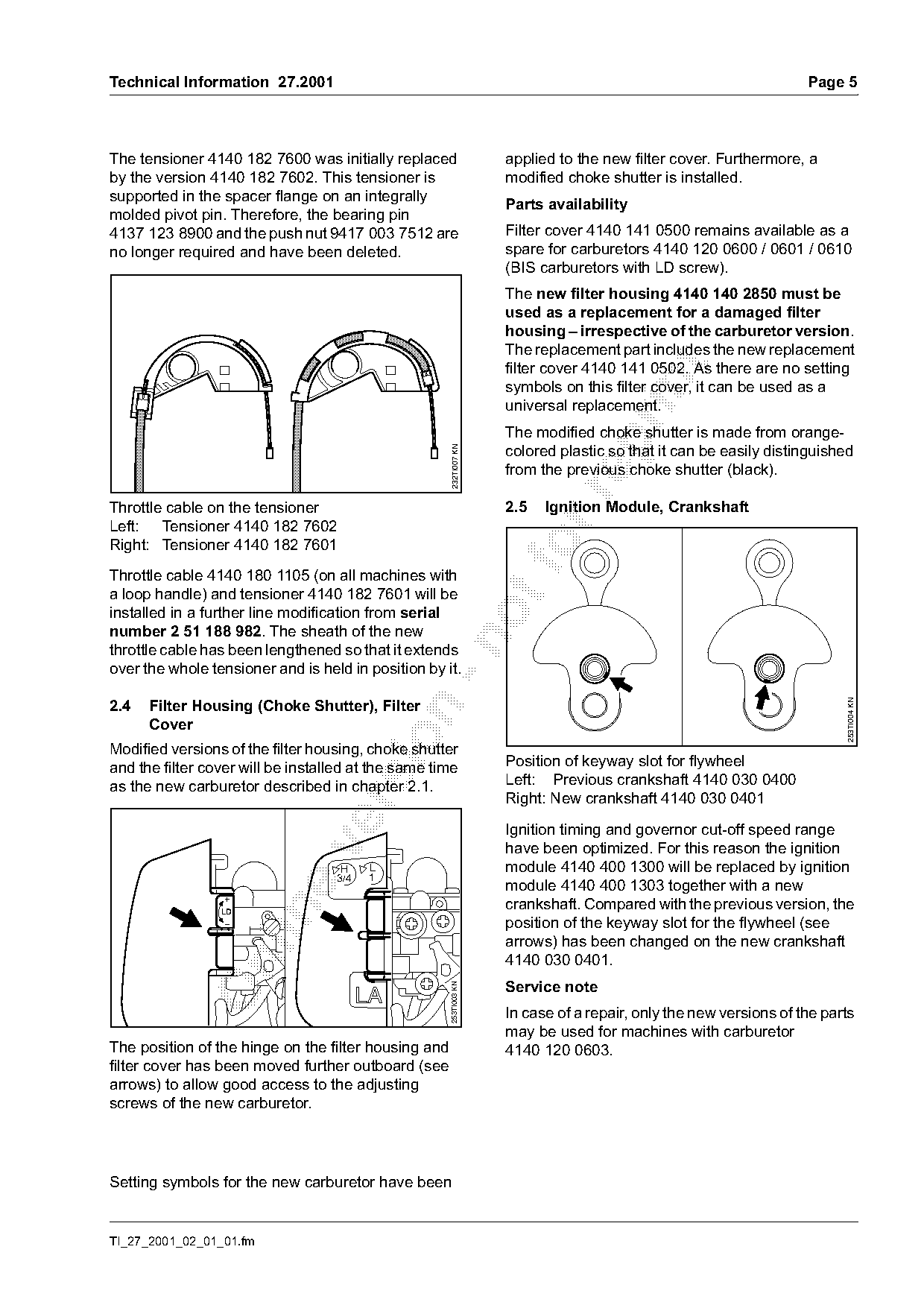

Technical Information 27.2001 Page 5
The tensioner 4140 182 7600 was initially replaced applied to the new filter cover. Furthermore, a
by the version 4140 182 7602. This tensioner is modified choke shutter is installed.
supported in the spacer flange on an integrally
Parts availability
molded pivot pin. Therefore, the bearing pin
4137 123 8900 and the push nut 9417 003 7512 are Filter cover 4140 141 0500 remains available as a
no longer required and have been deleted. spare for carburetors 4140 120 0600 / 0601 / 0610
(BIS carburetors with LD screw).
The new filter housing 4140 140 2850 must be
used as a replacement for a damaged filter
housing – irrespective of the carburetor version.
The replacement part includes the new replacement
filter cover 4140 141 0502. As there are no setting
symbols on this filter cover, it can be used as a
universal replacement.
The modified choke shutter is made from orange-
232TI007 KN colored plastic so that it can be easily distinguished
from the previous choke shutter (black).
Throttle cable on the tensioner 2.5 Ignition Module, Crankshaft
Left: Tensioner 4140 182 7602
Right: Tensioner 4140 182 7601
Throttle cable 4140 180 1105 (on all machines with
a loop handle) and tensioner 4140 182 7601 will be
installed in a further line modification from serial
number 2 51 188 982. The sheath of the new
throttle cable has been lengthened so that it extends
over the whole tensioner and is held in position by it.
2.4 Filter Housing (Choke Shutter), Filter
253TI004 KN
Cover
Modified versions of the filter housing, choke shutter
and the filter cover will be installed at the same time Position of keyway slot for flywheel
as the new carburetor described in chapter 2.1. Left: Previous crankshaft 4140 030 0400
Right: New crankshaft 4140 030 0401
Ignition timing and governor cut-off speed range
have been optimized. For this reason the ignition
H L module 4140 400 1300 will be replaced by ignition
3/4 1
module 4140 400 1303 together with a new
crankshaft. Compared with the previous version, the
LD
position of the keyway slot for the flywheel (see
arrows) has been changed on the new crankshaft
4140 030 0401.
Service note
253TI003 KN
In case of a repair, only the new versions of the parts
may be used for machines with carburetor
The position of the hinge on the filter housing and 4140 120 0603.
filter cover has been moved further outboard (see
arrows) to allow good access to the adjusting
screws of the new carburetor.
Setting symbols for the new carburetor have been
TI_27_2001_02_01_01.fm

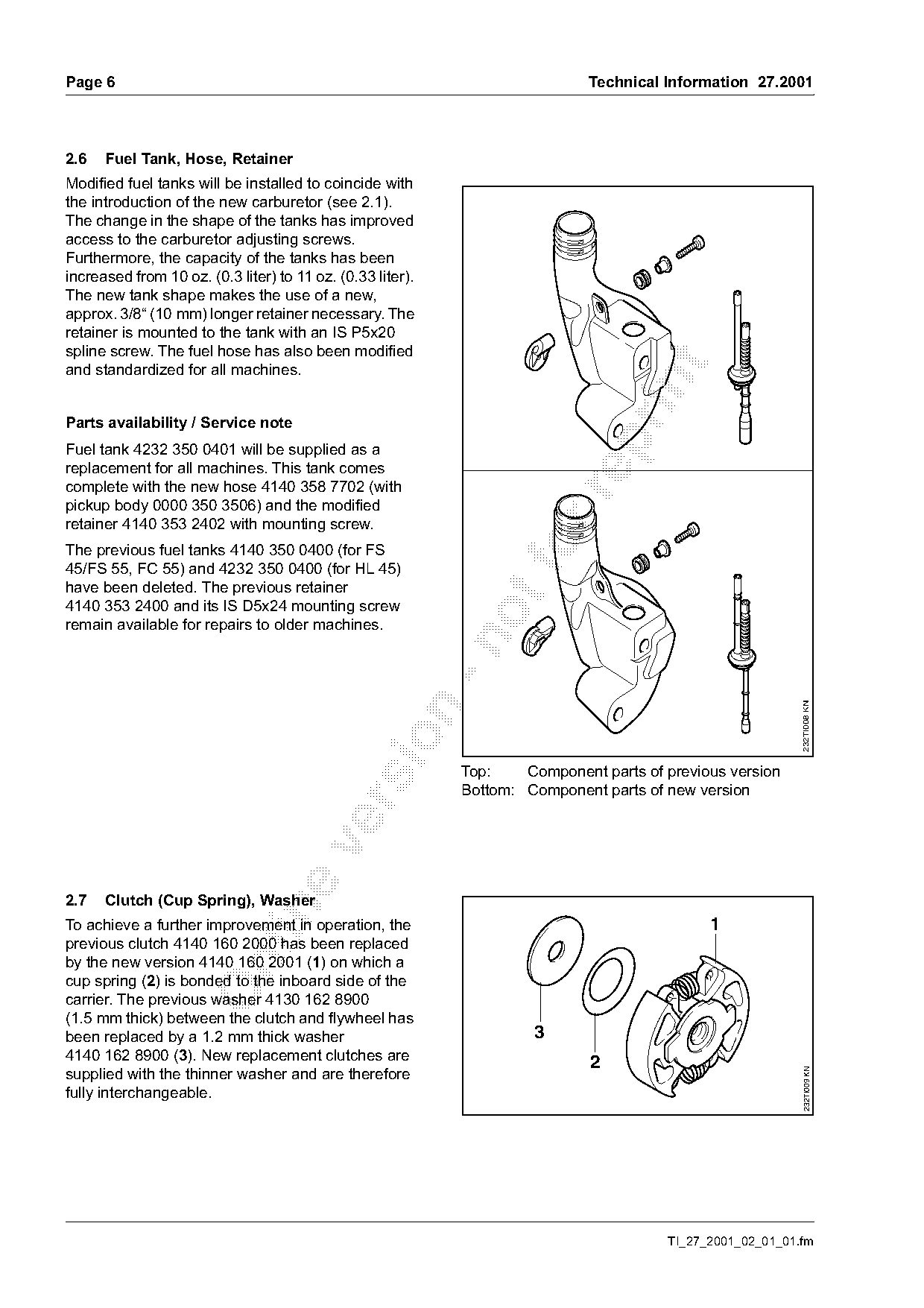

)m~ge 6 Technical Information 27.2001
2.6 Fuel Tank, Hose, Retainer
Modified fuel tanks will be installed to coincide with
the introduction of the new carburetor (see 2.1).
The change in the shape of the tanks has improved
access to the carburetor adjusting screws.
Furthermore, the capacity of the tanks has been
increased from 10 oz. (0.3 liter) to 11 oz. (0.33 liter).
The new tank shape makes the use of a new,
approx. 3/8“ (10 mm) longer retainer necessary. The
retainer is mounted to the tank with an IS P5x20
spline screw. The fuel hose has also been modified
and standardized for all machines.
Parts availability / Service note
Fuel tank 4232 350 0401 will be supplied as a
replacement for all machines. This tank comes
complete with the new hose 4140 358 7702 (with
pickup body 0000 350 3506) and the modified
retainer 4140 353 2402 with mounting screw.
The previous fuel tanks 4140 350 0400 (for FS
45/FS 55, FC 55) and 4232 350 0400 (for HL 45)
have been deleted. The previous retainer
4140 353 2400 and its IS D5x24 mounting screw
remain available for repairs to older machines.
232TI008 KN
Top: Component parts of previous version
Bottom: Component parts of new version
2.7 Clutch (Cup Spring), Washer
To achieve a further improvement in operation, the 1
previous clutch 4140 160 2000 has been replaced
by the new version 4140 160 2001 (1) on which a
cup spring (2) is bonded to the inboard side of the
carrier. The previous washer 4130 162 8900
(1.5 mm thick) between the clutch and flywheel has
been replaced by a 1.2 mm thick washer 3
4140 162 8900 (3). New replacement clutches are 2
supplied with the thinner washer and are therefore
232TI009 KN
fully interchangeable.
TI_27_2001_02_01_01.fm Page 4 of 8

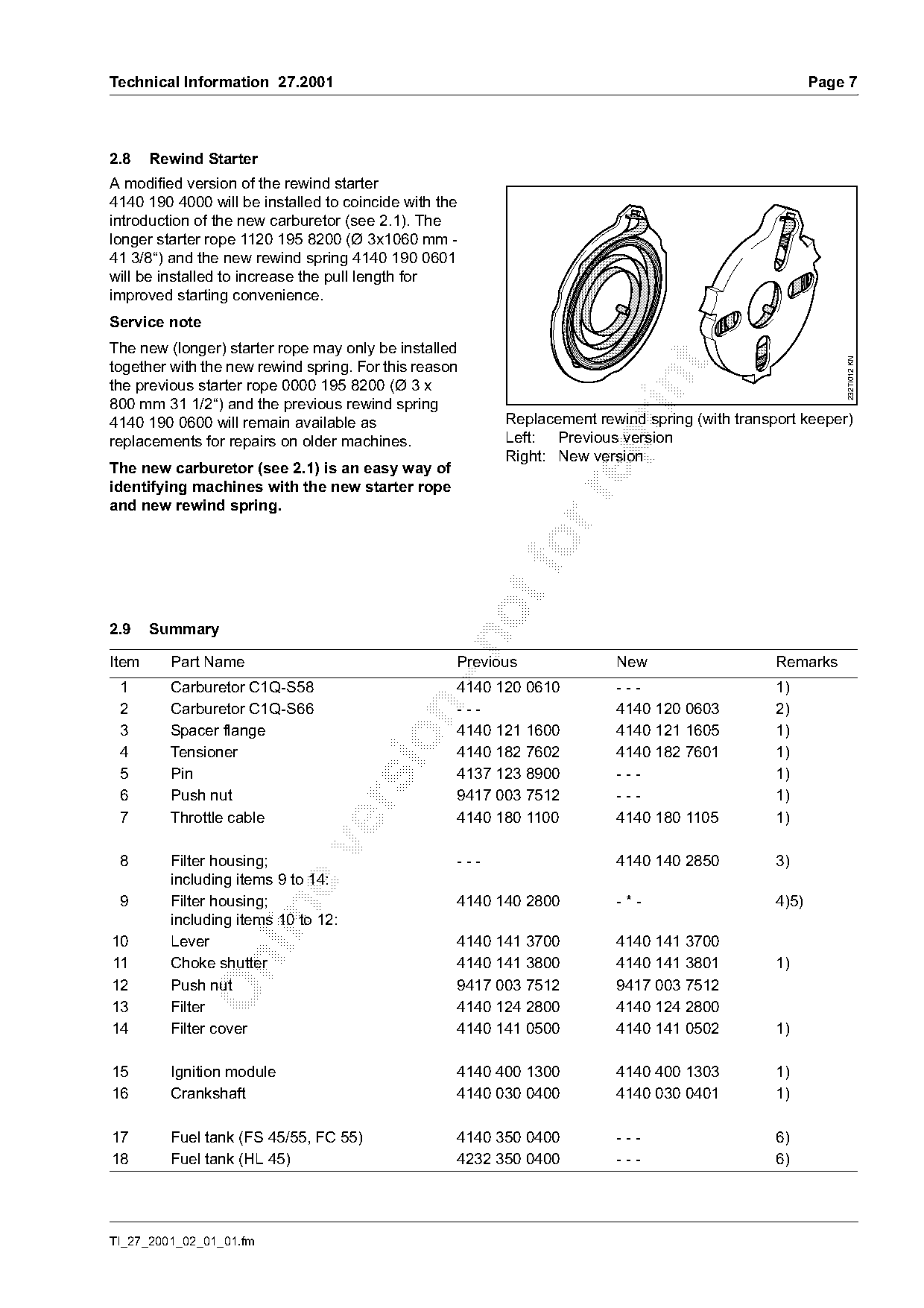

Technical Information 27.2001 Page 7
2.8 Rewind Starter
A modified version of the rewind starter
4140 190 4000 will be installed to coincide with the
introduction of the new carburetor (see 2.1). The
longer starter rope 1120 195 8200 (Ø 3x1060 mm -
41 3/8“) and the new rewind spring 4140 190 0601
will be installed to increase the pull length for
improved starting convenience.
Service note
The new (longer) starter rope may only be installed
232TI012 KN
together with the new rewind spring. For this reason
the previous starter rope 0000 195 8200 (Ø 3 x
800 mm 31 1/2“) and the previous rewind spring
4140 190 0600 will remain available as Replacement rewind spring (with transport keeper)
replacements for repairs on older machines. Left: Previous version
Right: New version
The new carburetor (see 2.1) is an easy way of
identifying machines with the new starter rope
and new rewind spring.
2.9 Summary
Item Part Name Previous New Remarks
1 Carburetor C1Q-S58 4140 120 0610 --- 1)
2 Carburetor C1Q-S66 --- 4140 120 0603 2)
3 Spacer flange 4140 121 1600 4140 121 1605 1)
4 Tensioner 4140 182 7602 4140 182 7601 1)
5 Pin 4137 123 8900 --- 1)
6 Push nut 9417 003 7512 --- 1)
7 Throttle cable 4140 180 1100 4140 180 1105 1)
8 Filter housing; --- 4140 140 2850 3)
including items 9 to 14:
9 Filter housing; 4140 140 2800 -*- 4)5)
including items 10 to 12:
10 Lever 4140 141 3700 4140 141 3700
11 Choke shutter 4140 141 3800 4140 141 3801 1)
12 Push nut 9417 003 7512 9417 003 7512
13 Filter 4140 124 2800 4140 124 2800
14 Filter cover 4140 141 0500 4140 141 0502 1)
15 Ignition module 4140 400 1300 4140 400 1303 1)
16 Crankshaft 4140 030 0400 4140 030 0401 1)
17 Fuel tank (FS 45/55, FC 55) 4140 350 0400 --- 6)
18 Fuel tank (HL 45) 4232 350 0400 --- 6)
TI_27_2001_02_01_01.fm

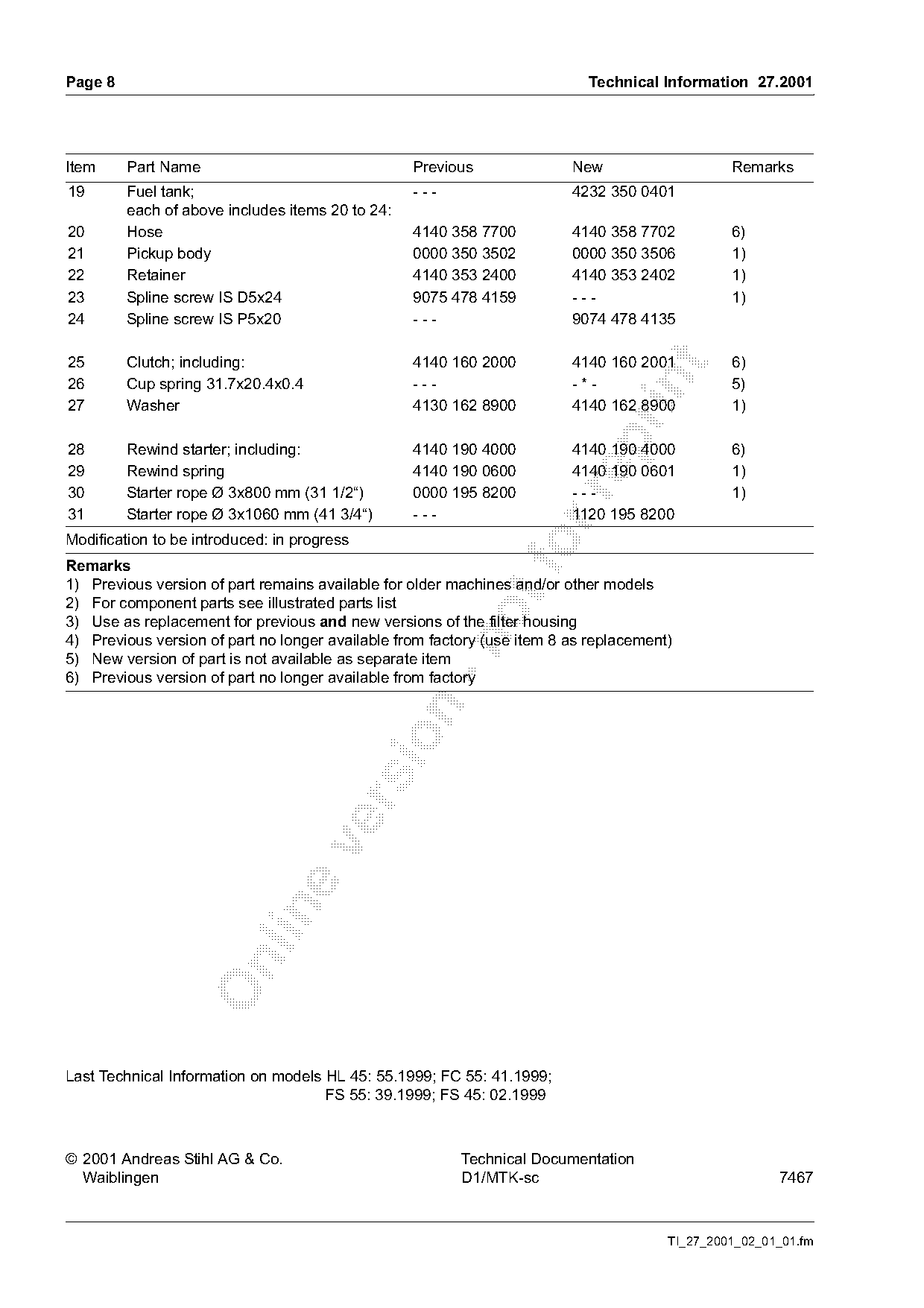

)m~ge 8 Technical Information 27.2001
Item Part Name Previous New Remarks
19 Fuel tank; --- 4232 350 0401
each of above includes items 20 to 24:
20 Hose 4140 358 7700 4140 358 7702 6)
21 Pickup body 0000 350 3502 0000 350 3506 1)
22 Retainer 4140 353 2400 4140 353 2402 1)
23 Spline screw IS D5x24 9075 478 4159 --- 1)
24 Spline screw IS P5x20 --- 9074 478 4135
25 Clutch; including: 4140 160 2000 4140 160 2001 6)
26 Cup spring 31.7x20.4x0.4 --- -*- 5)
27 Washer 4130 162 8900 4140 162 8900 1)
28 Rewind starter; including: 4140 190 4000 4140 190 4000 6)
29 Rewind spring 4140 190 0600 4140 190 0601 1)
30 Starter rope Ø 3x800 mm (31 1/2“) 0000 195 8200 --- 1)
31 Starter rope Ø 3x1060 mm (41 3/4“) --- 1120 195 8200
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available for older machines and/or other models
2) For component parts see illustrated parts list
3) Use as replacement for previous and new versions of the filter housing
4) Previous version of part no longer available from factory (use item 8 as replacement)
5) New version of part is not available as separate item
6) Previous version of part no longer available from factory
Last Technical Information on models HL 45: 55.1999; FC 55: 41.1999;
FS 55: 39.1999; FS 45: 02.1999
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 7467
TI_27_2001_02_01_01.fm Page 5 of 8
Page 6 of 8
Page 7 of 8
Page 8 of 8
Extracted from the manufacturer's 2012 service catalogue. Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
