Technical Information · issue 30 of 2001
HS 85: Cover
Model HS 85 Hedge Trimmers – Series 4226
IssueTI 30/2001
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4226 792 2700 | 4226 792 2701 | Cover Cover 4226 792 2700 will be replaced by cover 4226 792 2701. |
Full text
Page 1 of 1

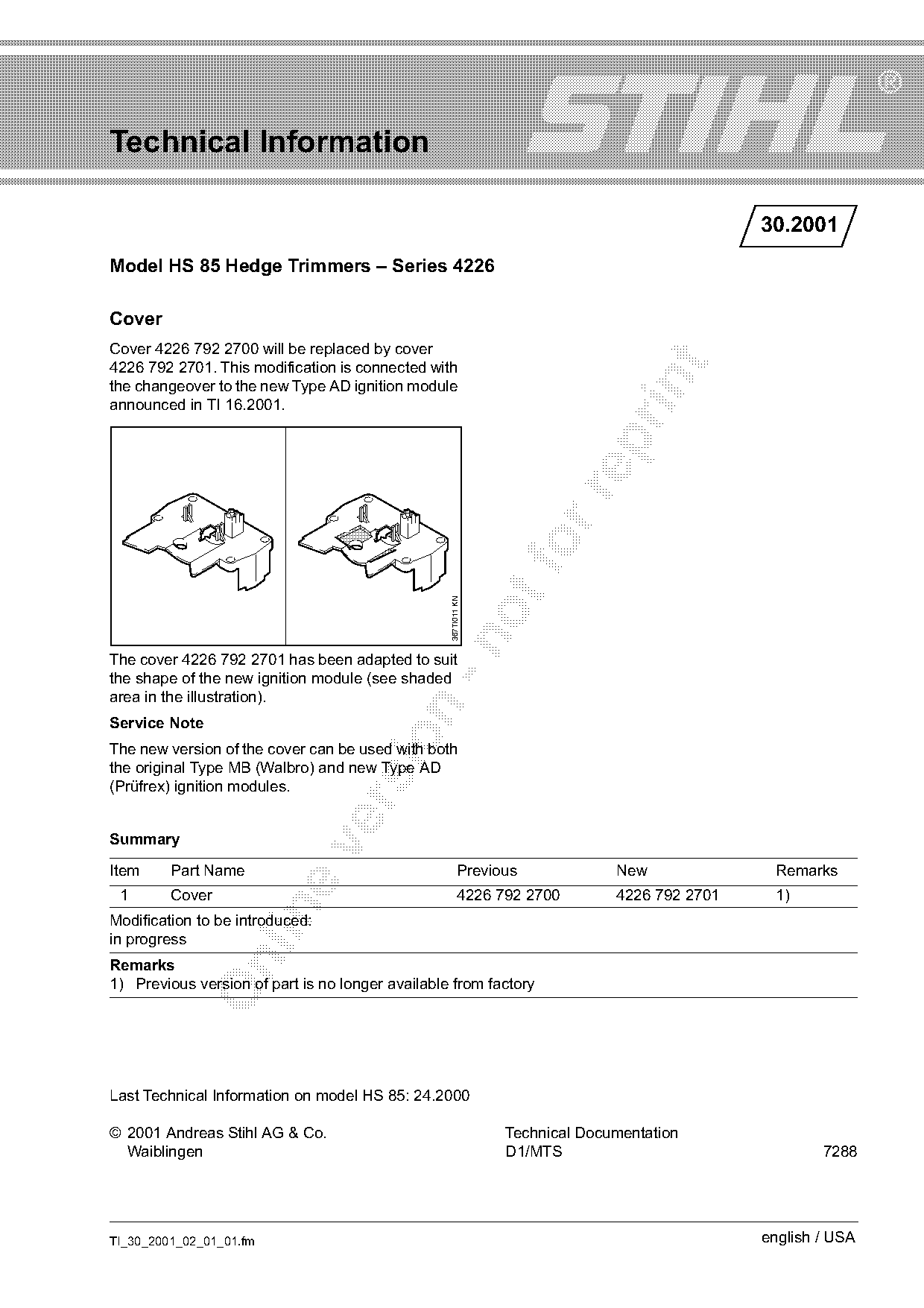

Technical Information
30.2001
Model HS 85 Hedge Trimmers – Series 4226
Cover
Cover 4226 792 2700 will be replaced by cover
4226 792 2701. This modification is connected with
the changeover to the new Type AD ignition module
announced in TI 16.2001.
367TI011 KN
The cover 4226 792 2701 has been adapted to suit
the shape of the new ignition module (see shaded
area in the illustration).
Service Note
The new version of the cover can be used with both
the original Type MB (Walbro) and new Type AD
(Prüfrex) ignition modules.
Summary
Item Part Name Previous New Remarks
1 Cover 4226 792 2700 4226 792 2701 1)
Modification to be introduced:
in progress
Remarks
1) Previous version of part is no longer available from factory
Last Technical Information on model HS 85: 24.2000
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTS 7288
