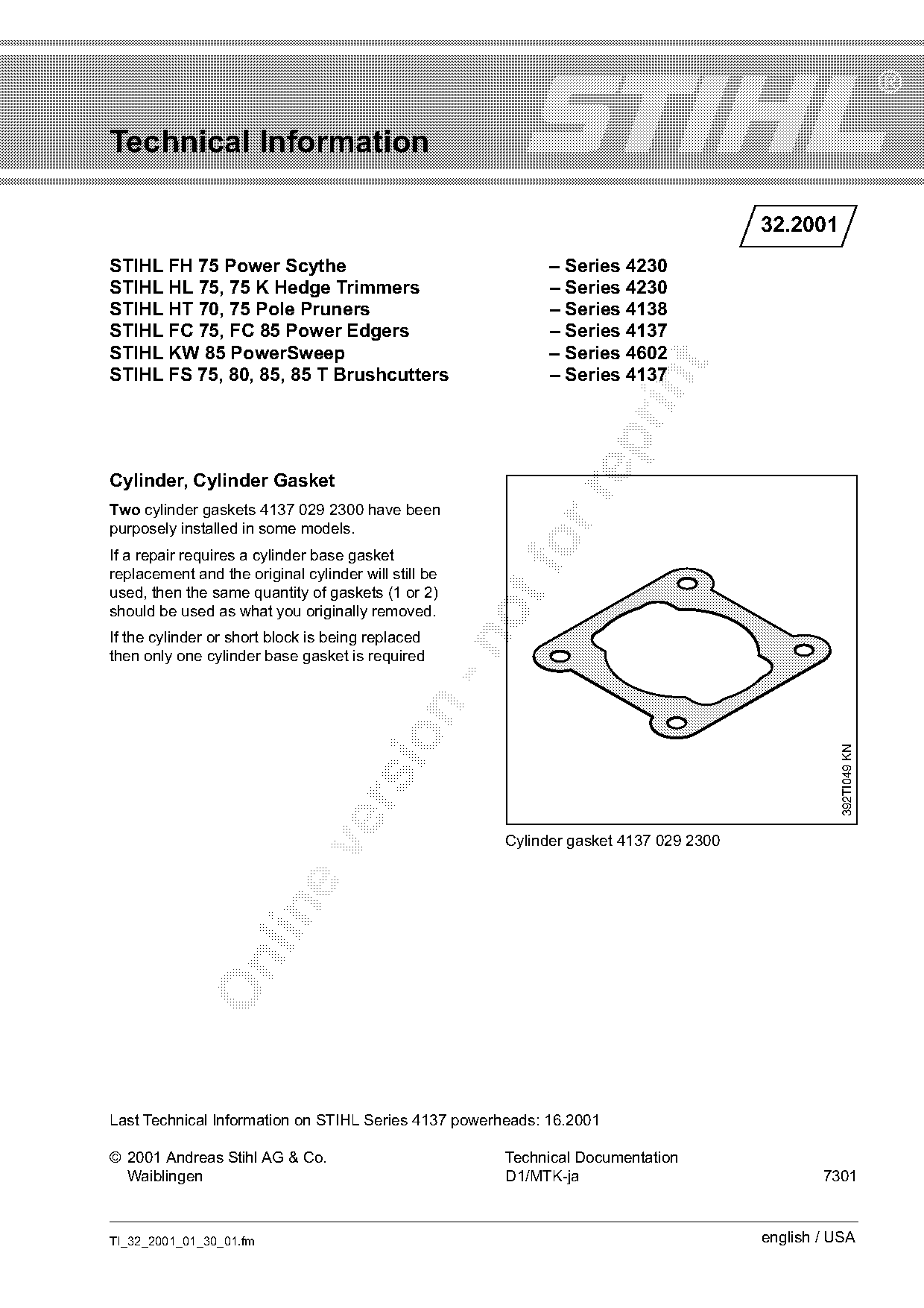

Technical Information
32.2001
STIHL FH 75 Power Scythe – Series 4230
STIHL HL 75, 75 K Hedge Trimmers – Series 4230
STIHL HT 70, 75 Pole Pruners – Series 4138
STIHL FC 75, FC 85 Power Edgers – Series 4137
STIHL KW 85 PowerSweep – Series 4602
STIHL FS 75, 80, 85, 85 T Brushcutters – Series 4137
Cylinder, Cylinder Gasket
Two cylinder gaskets 4137 029 2300 have been
purposely installed in some models.
If a repair requires a cylinder base gasket
replacement and the original cylinder will still be
used, then the same quantity of gaskets (1 or 2)
should be used as what you originally removed.
If the cylinder or short block is being replaced
then only one cylinder base gasket is required
392TI049 KN
Cylinder gasket 4137 029 2300
Last Technical Information on STIHL Series 4137 powerheads: 16.2001
