Technical Information · issue 33 of 2001
Handle Housing and Gear Housing
Model E 140, E 180 C Chainsaws – Series 1208
IssueTI 33/2001
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1208 790 1015 | 1208 790 1003 | The previous handle housing 1208 790 1015 will be The previous gear housing 1208 640 0500 will be replaced by handle housing 1208 790 1003. |
Full text

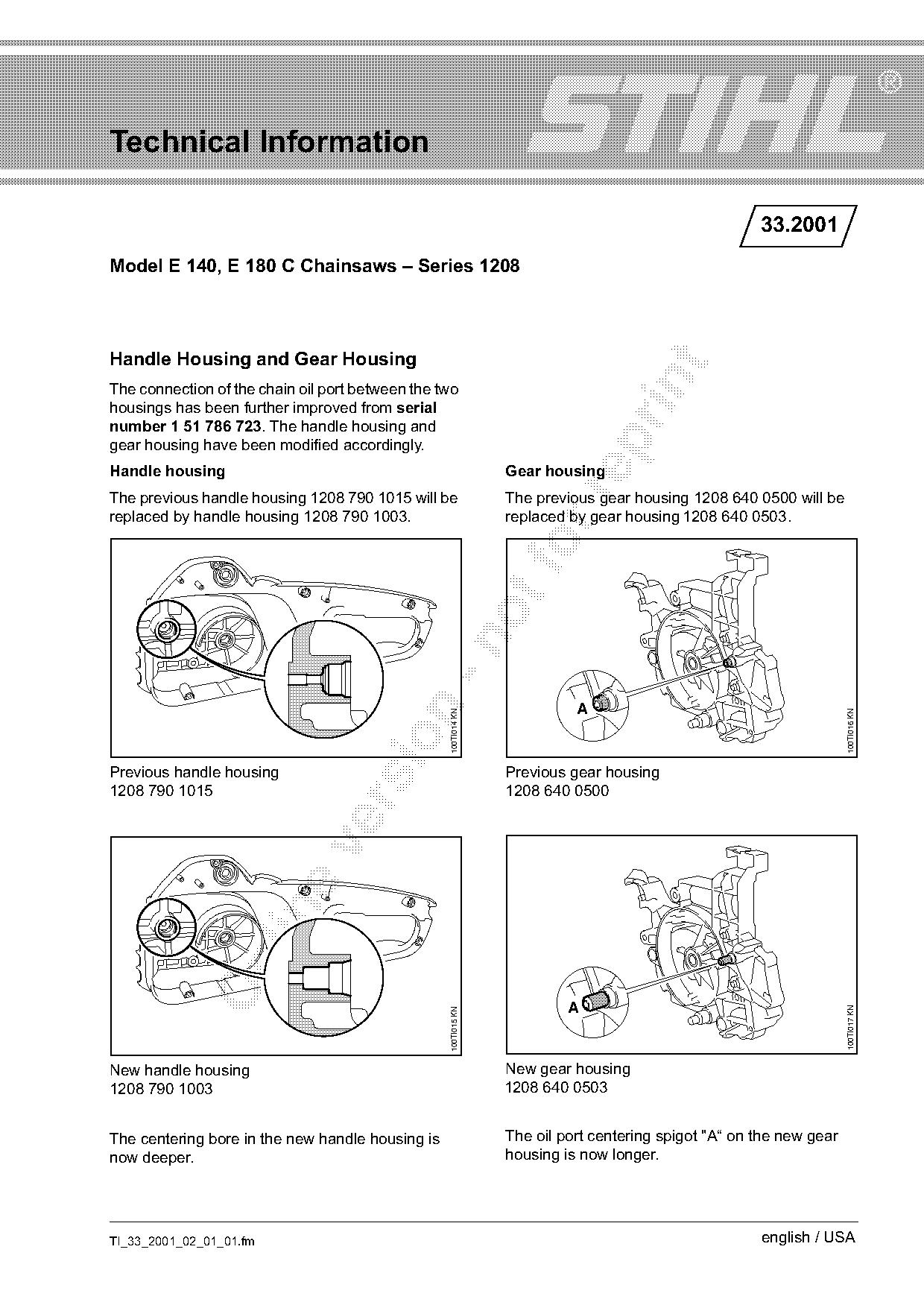

Page 1 of 2
Technical Information
33.2001
Model E 140, E 180 C Chainsaws – Series 1208
Handle Housing and Gear Housing
The connection of the chain oil port between the two
housings has been further improved from serial
number 1 51 786 723. The handle housing and
gear housing have been modified accordingly.
Handle housing Gear housing
The previous handle housing 1208 790 1015 will be The previous gear housing 1208 640 0500 will be
replaced by handle housing 1208 790 1003. replaced by gear housing 1208 640 0503.
A
100TI014 KN
100TI016 KN
Previous handle housing Previous gear housing
1208 790 1015 1208 640 0500
A
100TI017 KN
100TI015 KN
New handle housing New gear housing
1208 790 1003 1208 640 0503
The centering bore in the new handle housing is The oil port centering spigot "A“ on the new gear
now deeper. housing is now longer.
TI_33_2001_02_01_01.fm english / USA

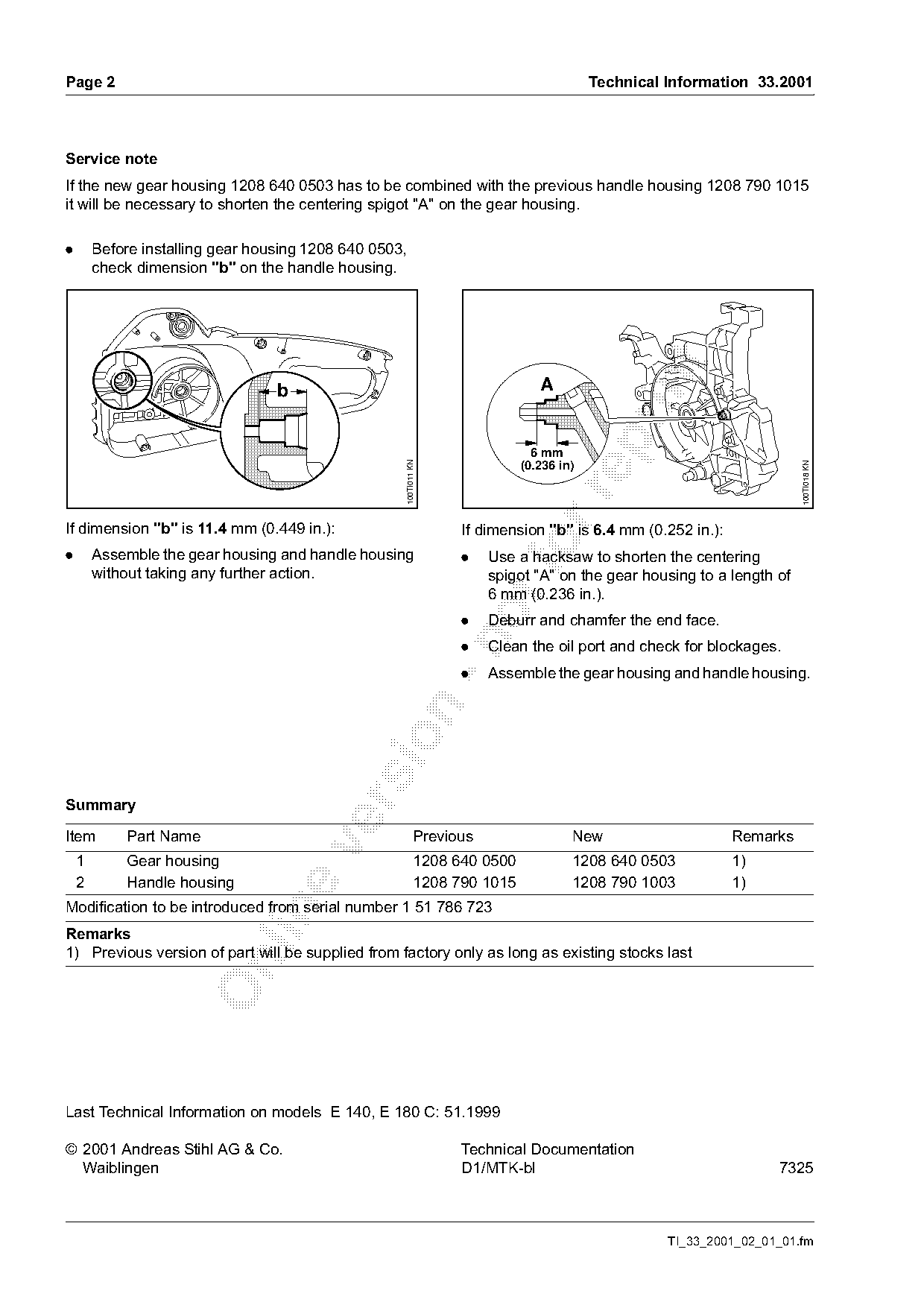

)m~ge 2 Technical Information 33.2001
Service note
If the new gear housing 1208 640 0503 has to be combined with the previous handle housing 1208 790 1015
it will be necessary to shorten the centering spigot "A" on the gear housing.
. Before installing gear housing 1208 640 0503,
check dimension "b" on the handle housing.
b A
6 mm
100TI011 KN
100TI018 KN
(0.236 in)
If dimension "b" is 11.4 mm (0.449 in.): If dimension "b" is 6.4 mm (0.252 in.):
. Assemble the gear housing and handle housing
without taking any further action.
. fo
Use a hacksaw to shorten the centering
spigot "A" on the gear housing to a length of
6 mm (0.236 in.).
. Deburr and chamfer the end face.
. Clean the oil port and check for blockages.
. Assemble the gear housing and handle housing.
Summary
Item Part Name Previous New Remarks
1 Gear housing 1208 640 0500 1208 640 0503 1)
2 Handle housing 1208 790 1015 1208 790 1003 1)
Modification to be introduced from serial number 1 51 786 723
Remarks
1) Previous version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on models E 140, E 180 C: 51.1999
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7325
TI_33_2001_02_01_01.fm Page 2 of 2
