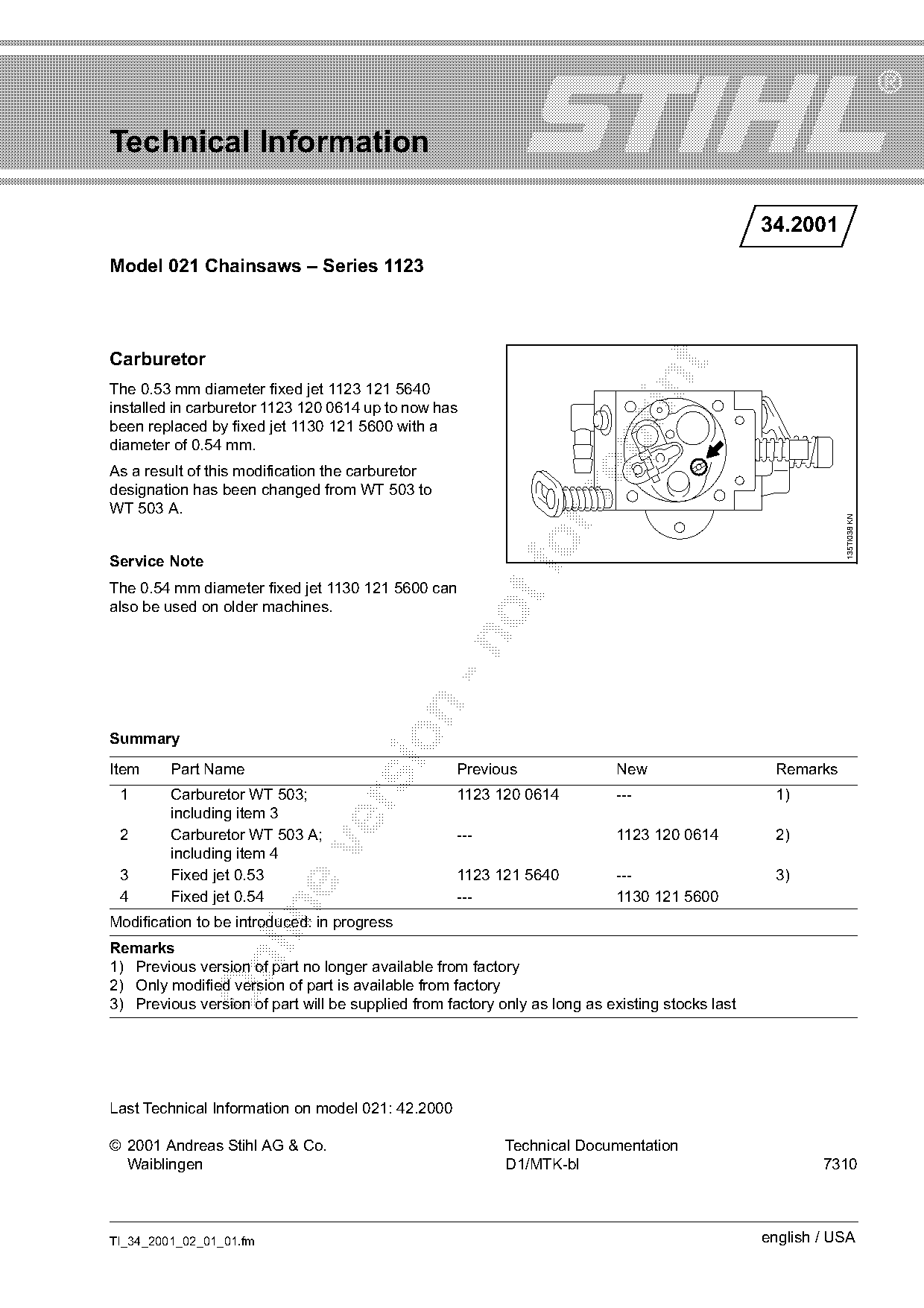

Model 021 Chainsaws – Series 1123
Carburetor
The 0.53 mm diameter fixed jet 1123 121 5640
installed in carburetor 1123 120 0614 up to now has
been replaced by fixed jet 1130 121 5600 with a
diameter of 0.54 mm.
As a result of this modification the carburetor
designation has been changed from WT 503 to
WT 503 A.
135TI038 KN
Service Note
The 0.54 mm diameter fixed jet 1130 121 5600 can
also be used on older machines.
Summary
Item Part Name Previous New Remarks
1 Carburetor WT 503; 1123 120 0614 --- 1)
including item 3
2 Carburetor WT 503 A; --- 1123 120 0614 2)
including item 4
3 Fixed jet 0.53 1123 121 5640 --- 3)
4 Fixed jet 0.54 --- 1130 121 5600
Modification to be introduced: in progress
Remarks
1) Previous version of part no longer available from factory
2) Only modified version of part is available from factory
3) Previous version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on model 021: 42.2000
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7310
